The document introduces HRSG SOLUTION, an integrated software for designing heat recovery steam generator (HRSG) boilers. Some key features of the software include: carrying out basic design calculations and performance analysis; estimating boiler weight and price; releasing final design documents; and being extensible. The software allows inputting gas turbine and burner information, setting heat exchanger parameters, and performing circulation analysis, pump calculations, and insulation thickness calculations to facilitate HRSG design.

1. By
MAHDI KARAMI
&
HANIEH KHALILI
Email: mahdykaramy@yahoo.com
Cell-phone: +98-9122936981
October 2016
Introduction to
HRSG SOLUTION

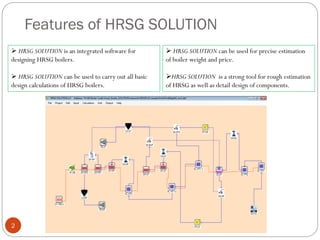

2. Features of HRSG SOLUTION
 HRSG SOLUTION is an integrated software for
designing HRSG boilers.
 HRSG SOLUTION can be used to carry out all basic
design calculations of HRSG boilers.
2
 HRSG SOLUTION can be used for precise estimation
of boiler weight and price.
HRSG SOLUTION is a strong tool for rough estimation
of HRSG as well as detail design of components.

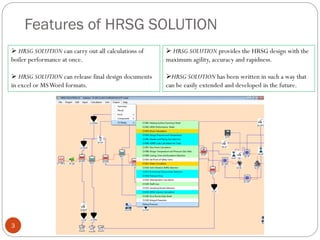

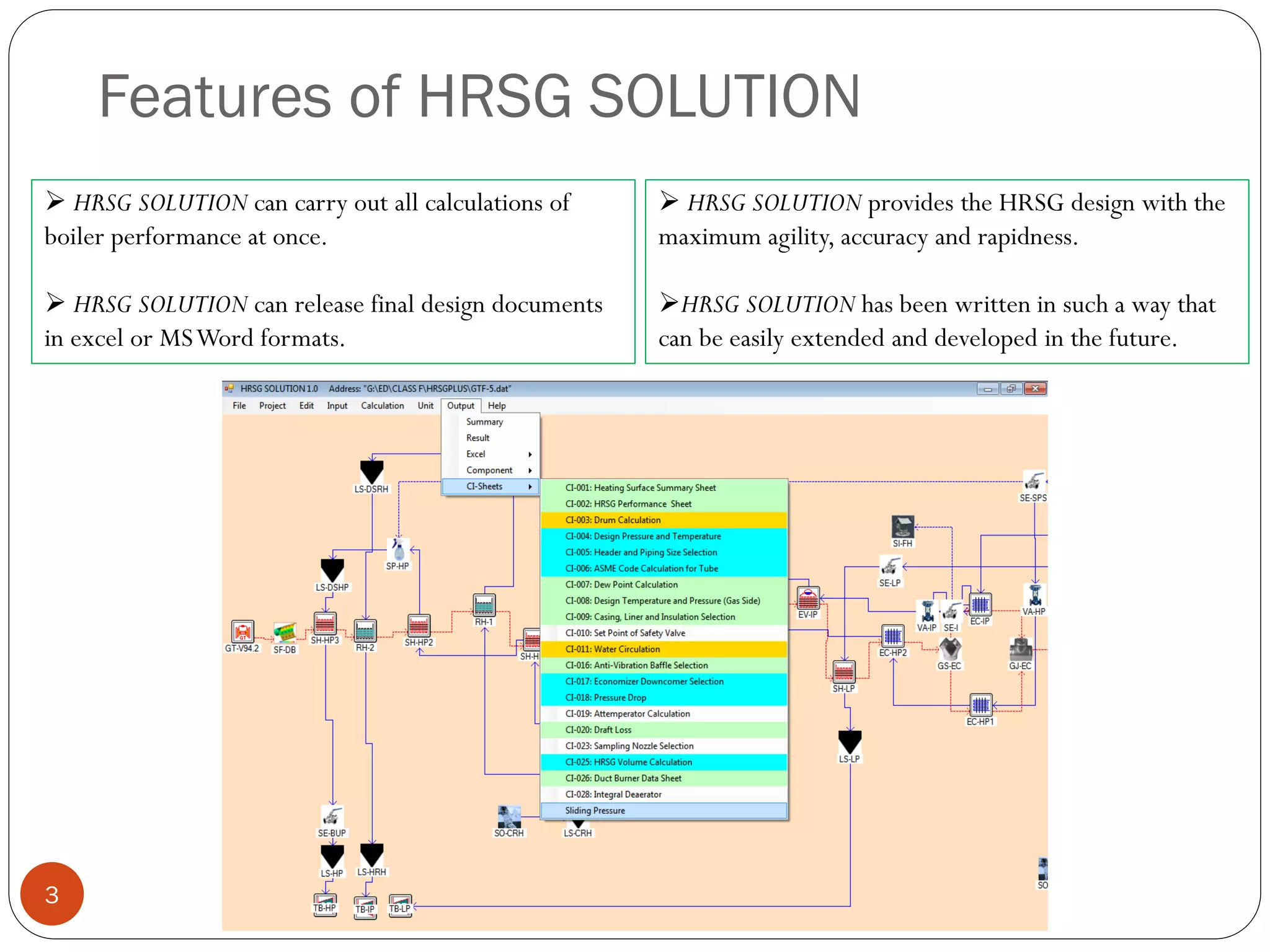

3. Features of HRSG SOLUTION
 HRSG SOLUTION can carry out all calculations of
boiler performance at once.
 HRSG SOLUTION can release final design documents
in excel or MSWord formats.
3
 HRSG SOLUTION provides the HRSG design with the
maximum agility, accuracy and rapidness.
HRSG SOLUTION has been written in such a way that
can be easily extended and developed in the future.

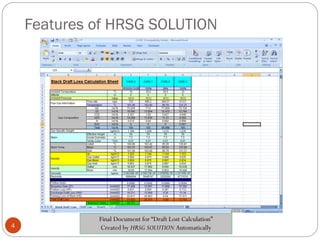

4. Features of HRSG SOLUTION
4
Final Document for “Draft Lost Calculation”
Created by HRSG SOLUTION Automatically

5. Features of HRSG SOLUTION
5 Fluid Input Form in HRSG SOLUTION: GT Information

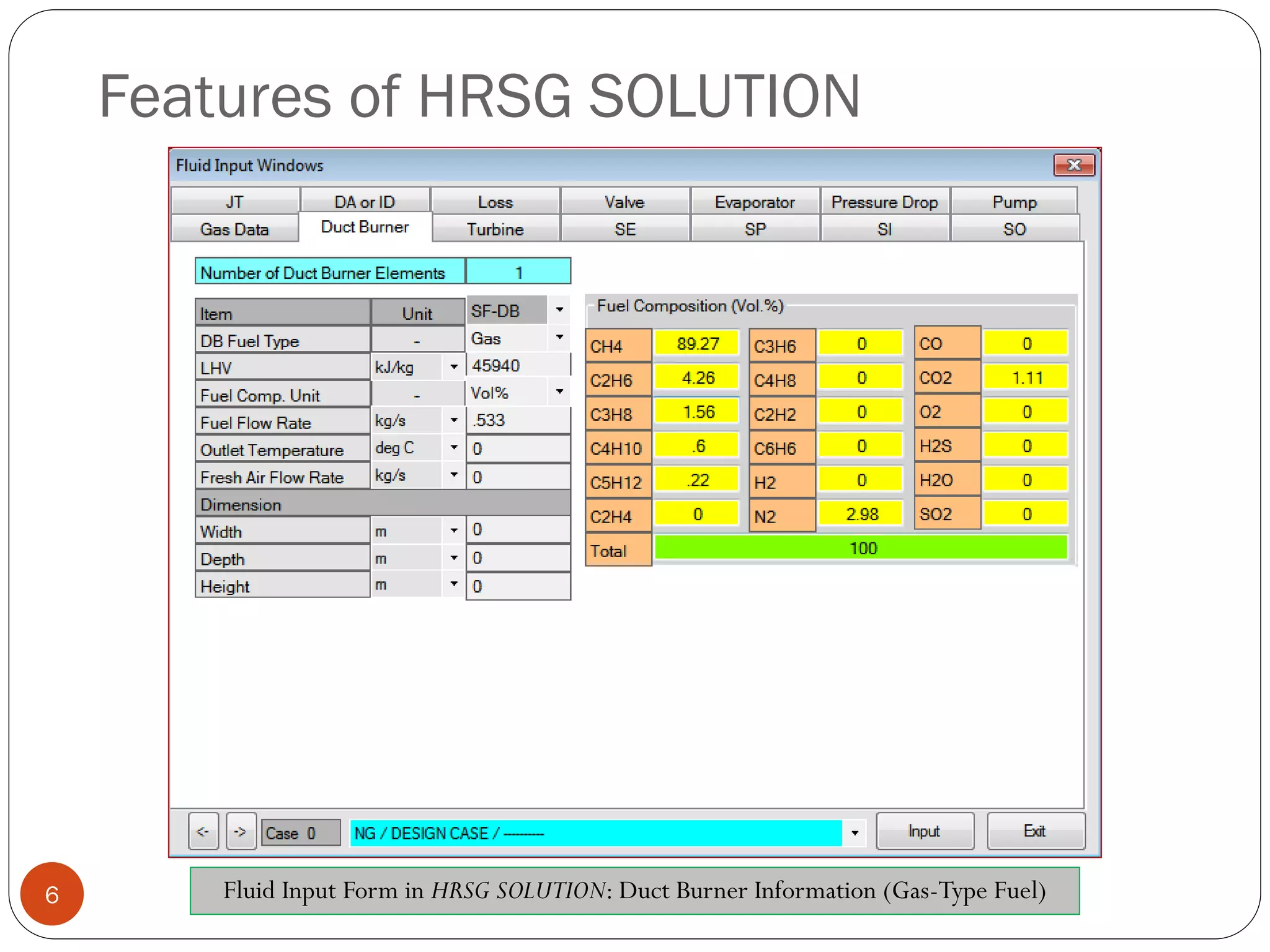

6. Features of HRSG SOLUTION
6 Fluid Input Form in HRSG SOLUTION: Duct Burner Information (Gas-Type Fuel)

7. Features of HRSG SOLUTION
7 Fluid Input Form in HRSG SOLUTION: Duct Burner Information (Oil-Type Fuel)

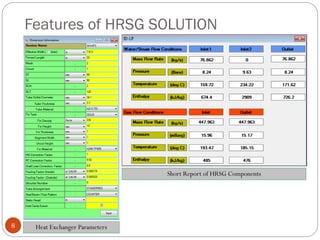

8. Features of HRSG SOLUTION
8 Heat Exchanger Parameters
Short Report of HRSG Components

9. Features of HRSG SOLUTION
9

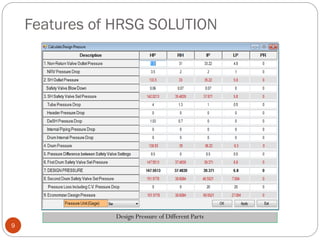

Design Pressure of Different Parts

10. Features of HRSG SOLUTION
10

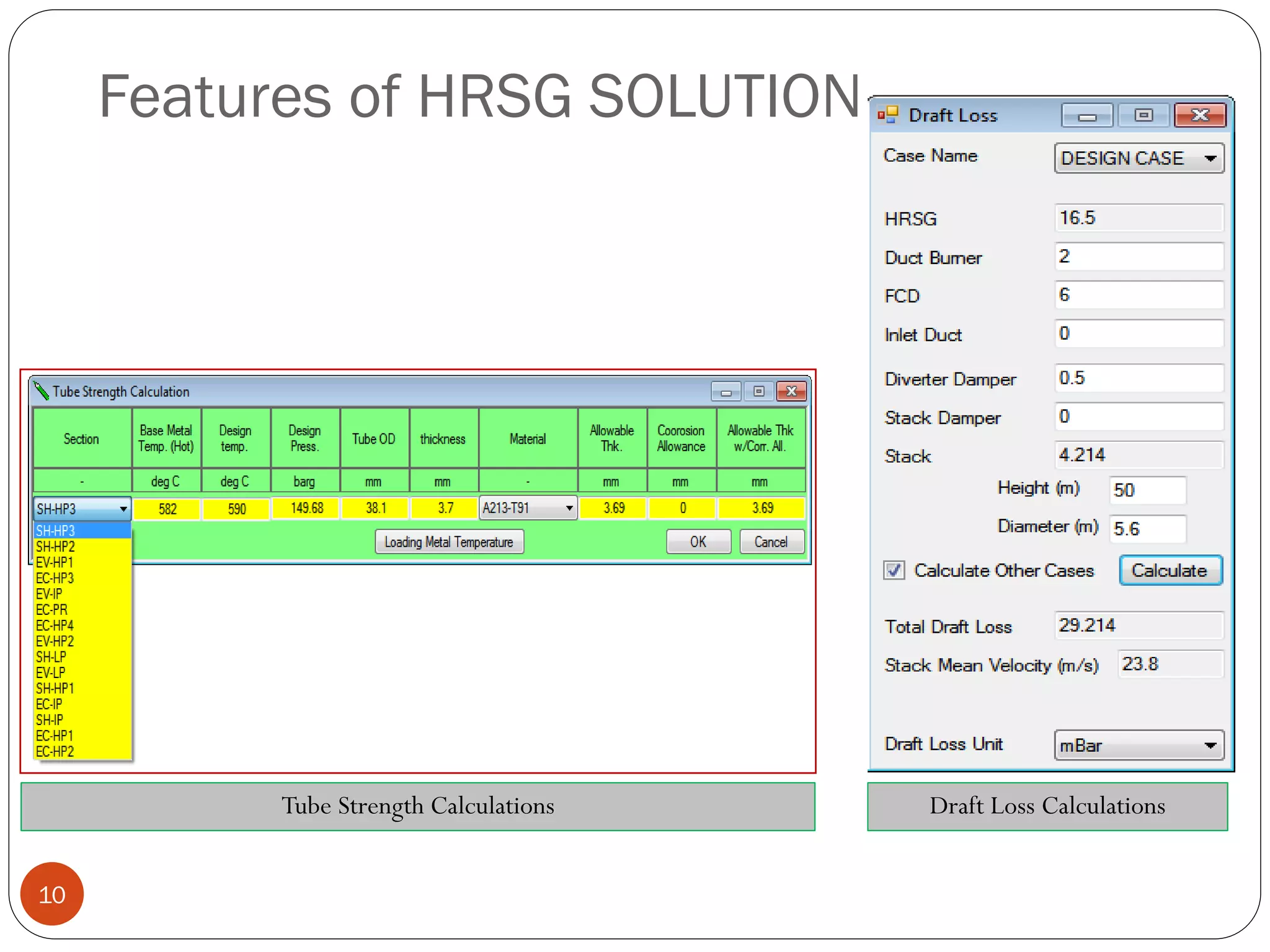

Tube Strength Calculations Draft Loss Calculations

11. Features of HRSG SOLUTION
11

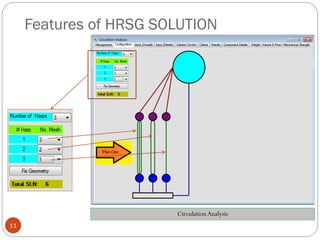

Circulation Analysis

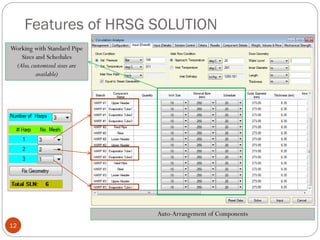

12. Features of HRSG SOLUTION
12
Auto-Arrangement of Components
Working with Standard Pipe
Sizes and Schedules
(Also,customized sizes are
available)

13. Features of HRSG SOLUTION
13
Setting of Numerical Iterations:
Number of Nodes,Allowable Errors,
Solution Instability and Convergence Parameters
Velocity Criteria for Different Sections

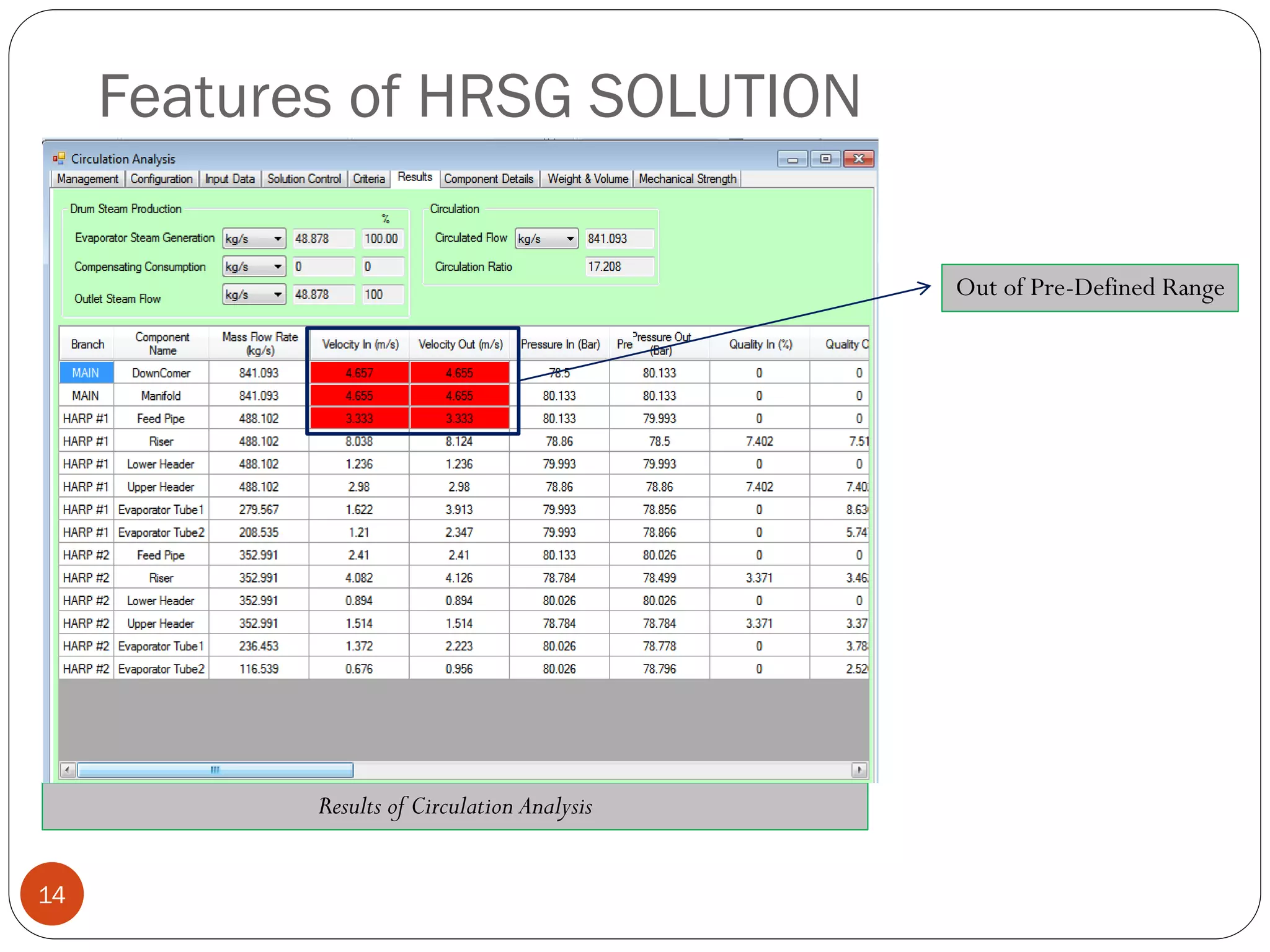

14. Features of HRSG SOLUTION
14
Results of Circulation Analysis
Out of Pre-Defined Range

15. Features of HRSG SOLUTION
15

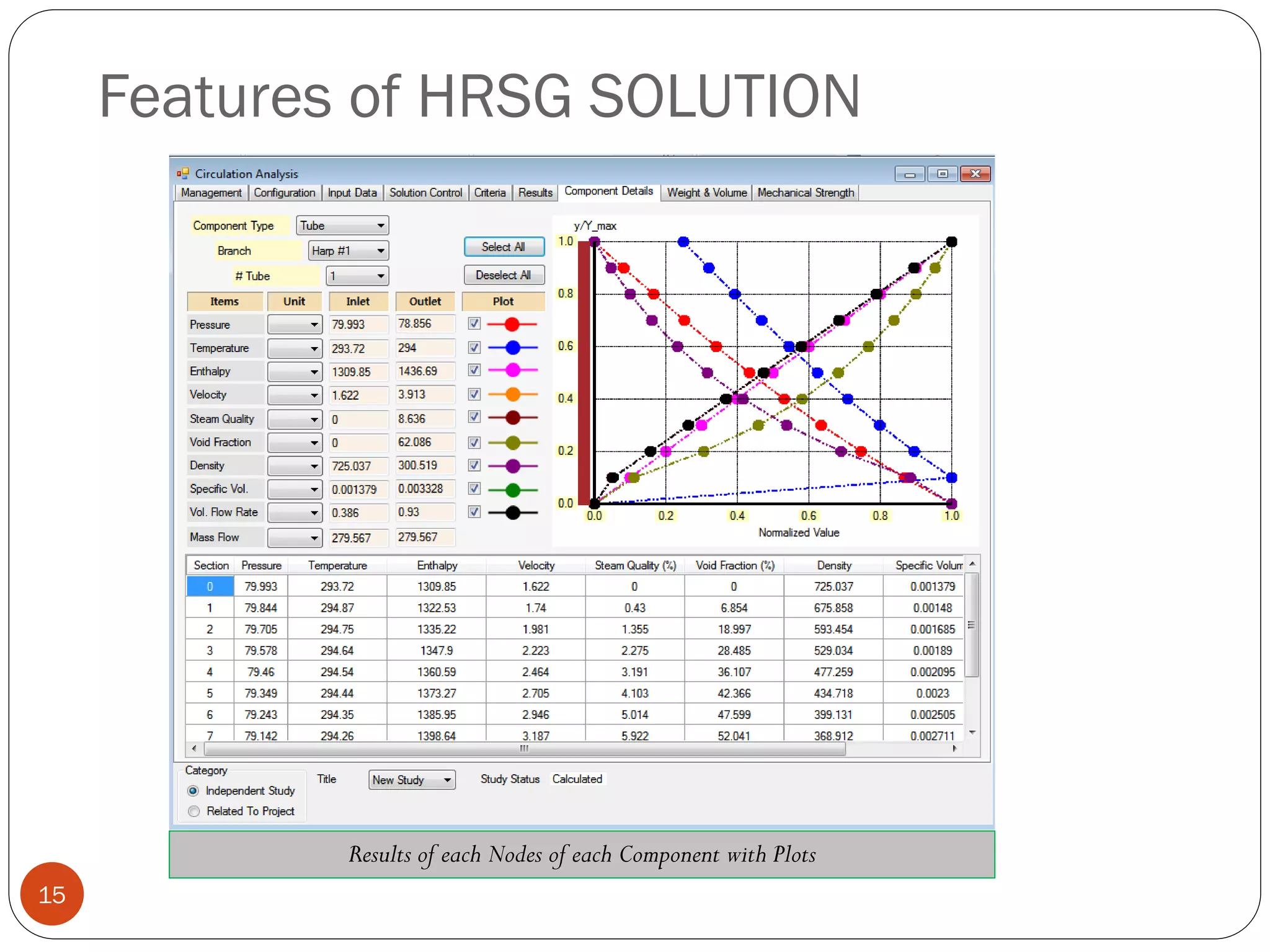

Results of each Nodes of each Component with Plots

16. Features of HRSG SOLUTION
16
Pump Calculations
 Input Pump Curve in Bitmap
Format
 Extract the Curve from Picture
 Calculate the Polynomial
Coefficients of Pump Curve
 Specify the Operating Cases on the
Curve
 Adjust the Pressure Drops of
ControlValve by Considering Pump
Curve

17. Features of HRSG SOLUTION
17

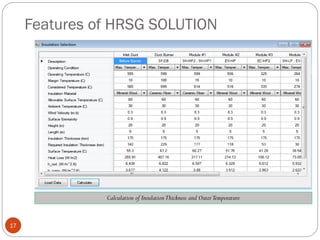

Calculation of InsulationThickness and OuterTemperature

18. Features of HRSG SOLUTION
18

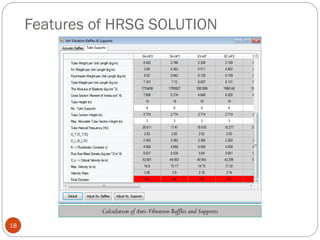

Calculation of Anti-Vibration Baffles and Supports
