Big data is growing - in every sense of the word. And an increasing number of companies across a variety of industries are beginning to realize the benefits of leveraging big data and adopting a big data strategy in the workplace. In a recent survey conducted by Gartner it was found that 42% of IT leaders have invested in big data, or plan to do so within 12 months. (Gartner) When implementing big data within an organization, a strategy must be put in place to fully leverage its benefits. One extremely important big data strategy aspect and often overlooked is how to move this big data from one geographic location to another. File transfer bottlenecks such as failed data transfers and network delays are commonly experienced when transferring massive amounts of data that can easily run into terabytes spread over millions of files. This IP EXPO 2013 presentation provides an understanding of the challenges and solutions associated with the agile and reliable movement of big data, as well as an overview file transfer technologies optimizing user networks for cost-efficient IT processes. Other takeaways include an understanding of the technology behind accelerated file transfer, its benefits over other methods of file transfer, and an in depth look at why accelerated and managed file transfer should be included in every big data strategy. Also see a video recording of this presentation from IP EXPO 2013 at the end of the presentation slides.

1. How to Share and Deliver Big Data Fast – Considerations
When Implementing Big Data Infrastructure
Presented by John Tkaczewski, President and Co-founder
Thursday at 14:30 in the Data Insight & Analytics Lab.
FileCatalyst Stand : G32

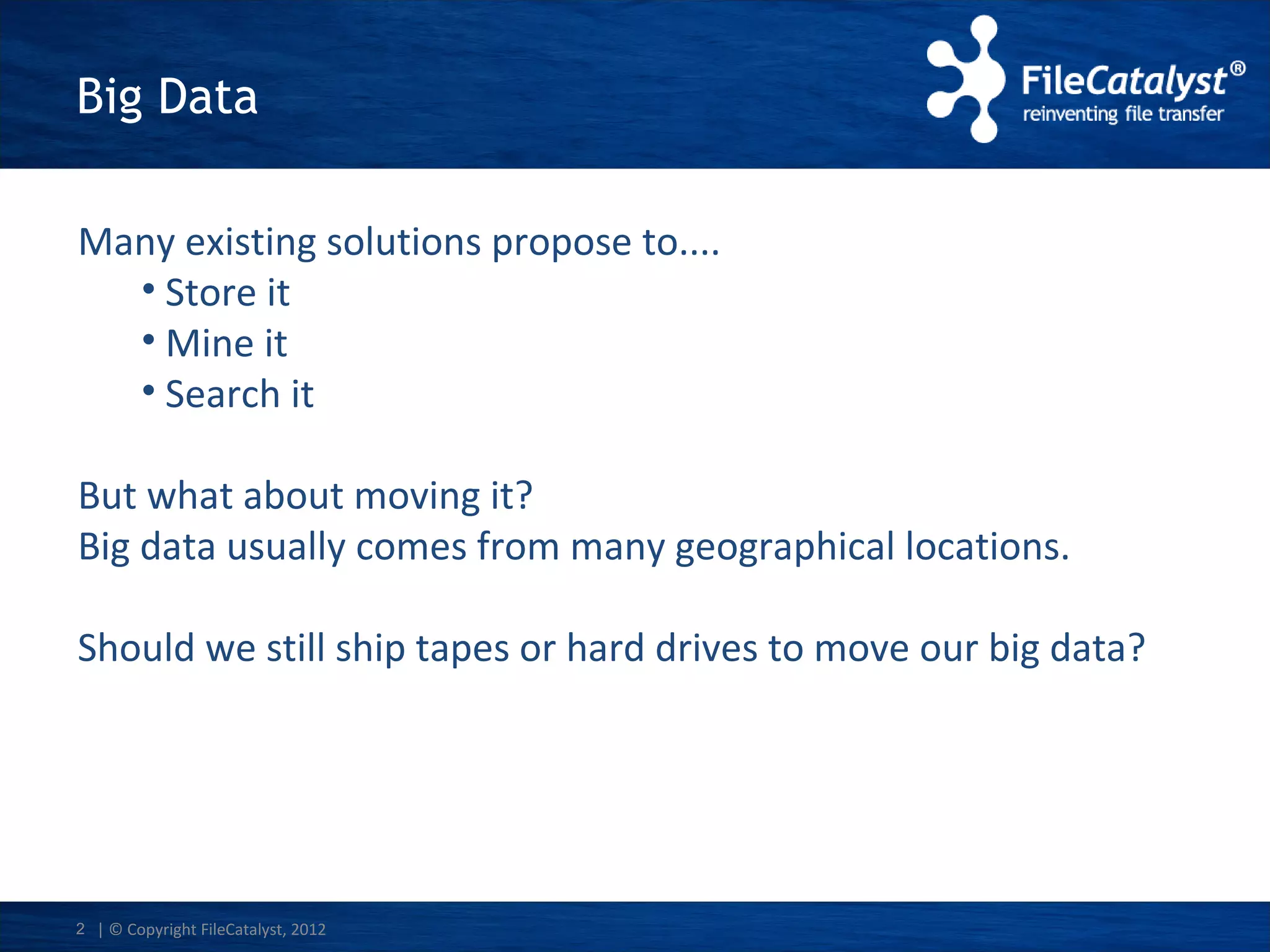

2. Big Data
Many existing solutions propose to....
• Store it
• Mine it
• Search it
But what about moving it?
Big data usually comes from many geographical locations.
Should we still ship tapes or hard drives to move our big data?
2 | © Copyright FileCatalyst, 2012

3. What We Do
•
Provide software solutions for moving big data around the world using the
Internet or dedicated WAN links
•
Accelerate file transfers via our unique UDP based approach
•
Simplify transfer and distribution of big data for the end enterprise users
•
Provide the tools for fast integration into existing enterprise infrastructure
(Storage, LDAP/AD, AV and SNMP)
•
Provide management, security and monitoring tools required to move big data
across corporate networks and/or the Internet
•
Integrate with all major cloud vendors, including, Amazon, OpenStack and
Windows Azure to accelerate moving big data to the cloud
3 | © Copyright FileCatalyst, 2013 Booth F616

4. Underlying File Transfer Technology and
Why FTP is not enough?

5. TCP Overview
• Provides reliability, error checking, ordered packets in a
stream
• Congestion control built in
• Internet could not survive without it
• Works well for most internet traffic, email, web browsing
small ad-hoc transfers (SFTP,HTTP, FTP, SMTP, SMB and
more)
5 | © Copyright FileCatalyst, 2013

6. Solving Latency Issues
Every network suffers from latency
Latency is an expression of how much time it takes for a packet of data to get from one designated point to another.
Network latency is measured by sending a packet and receiving an acknowledgement. This round-trip time (RTT) is the “latency”.
Data Packet
Destination
File
Source File
FTP is a very serial process. Each packet of data must be
received before a new packet is sent = Decreased transfer
speed
Acknowledgments
Destination
File
Source File
FileCatalyst completely saturates the pipe by sending multiple
blocks of data = Increased transfer speed
Acknowledgments
Visualize the flow of packets like water running through a hose. With FTP, there is a kink in the hose
restricting the water’s flow. With FileCatalyst, the kink is removed and water can rush through
unrestricted.
6 | © Copyright FileCatalyst, 2012

7. More Efficient Transport Protocol
Introducing FileCatalyst protocol for file transfers at full link speed:
•
UDP with proprietary retransmission and congestion control
•
Patent pending algorithm built from the ground up in-house
•
Transfer rates up to 10 Gbps (with encryption) using commodity hardware
•
Not affected by latency and speed degrades, linearly with packet loss
•
Ability to fully leverage multi-core CPU architecture and virtual / cloud systems
7 | © Copyright FileCatalyst, 2012

8. Speed gains with UDP
Transfer Scenario
NA
NA
FTP Actual
Throughput
6 Mbps
RTT 40 ms / 60 ms
NA
Europe
RTT 200 ms / 220 ms
NA
Asia
44.3 Mbps
44.3 Mbps
700 Kbps
700 Kbps
44.3 Mbps
44.3 Mbps
Results based on a T3 (45 Mbps) connection
8 | © Copyright FileCatalyst, 2012
44.3 Mbps
44.3 Mbps
11Mbps
Mbps
RTT 300 ms / 320 ms
*NA = North America
FileCatalyst
Throughput
Bandwidth Recovered

9. Time Savings with UDP
FTP
FileCatalyst
LA to Hong Kong
LA to Hong Kong
44 hours
20 minutes
20 minutes
LA to Auckland
LA to Auckland
35 hours
20 minutes
20 minutes
LA to London
LA to London
16 hours
20 minutes
20 minutes
RTT 250ms / / Loss 1.5%
RTT 250ms Loss 1.5%
RTT 200ms / / Loss 2%
RTT 200ms Loss 2%
RTT 110ms / / Loss 1%
RTT 110ms Loss 1%
6GB File over a T3 (45 Mbps) connection
9 | © Copyright FileCatalyst, 2012
Time Savings

10. Other Acceleration Methods
• RSYNC - Ability to send deltas over the UDP protocol
• Bundling multiple small files into a single archive. Sending this archive as it’s
being created. (Zip Chunking)
• Transferring multiple files simultaneously over multiple concurrent sessions
• Compression via ZIP or LMZA
10 | © Copyright FileCatalyst, 2012

11. Combined Speed Gains
• UDP combined with “other” methods
– Transferring directory structure of 7000 files (~6.96 GB),
– 110ms latency link, 0% packet loss over 1Gbps line
•
•
•
•
1 large 1.0 GB file
8 large 500 MB files
4 large 100 MB files
6988 small 250KB files
* Note: FileZilla or standard FTP transfer was over 21 hours
11 © Copyright FileCatalyst, 2013
|

12. Congestion Control
Network congestion occurs when a link is carrying so much data that its quality of
service deteriorates
FileCatalyst traffic plays nicely with other traffic on the link:
•
Congestion control will immediately detect server receive rate and react
•
Aggression (how much link capacity FileCatalyst tries to continuously recover) can be tuned
to suit your network
•
Shares bandwidth with concurrent TCP streams
•
Slows down very quickly when congestion detected
•
Quick ramp up to reclaim un-used bandwidth
•
Zero tuning required for links between 1Mbps up-to 1Gbps
12 | © Copyright FileCatalyst, 2012

13. Security Concerns
Security for both data transmission and user access:
• Encrypted with industry standards: SSL for control channel
and AES for data
• Brute force attack protection
• Filter by IP address for either inclusion or exclusion
• Central Monitoring advises administrators about suspected
threats
• Authenticate via LDAP, Active Directory or PAM (LDAP, LDAPS,
AD, ADS)
• Ban IPs or block accounts in real time
13 | © Copyright FileCatalyst, 2012

14. Use Scenarios / Verticals
• General IT
• DR/Backup
• Sending large email attachments
• Cloud deployments
• Replacement for FTP going over WAN Accelerators
• Broadcast / Media
• Moving large media production files
• Moving dailies
• Military and Law enforcement
• Faster communication with the fleet
• Moving intelligence and mapping data
• Oil and Gas
• Moving seismic data
• Moving well head operations data
14 | © Copyright FileCatalyst, 2012

15. FileCatalyst Solution Portfolio
The FileCatalyst platform is designed to take the complexity out of high speed transfers,
providing a flexible and comprehensive solution for almost any file transfer workflow.
15 | © Copyright FileCatalyst, 2012

16. Summary
• FileCatalyst provides software-based solutions designed to accelerate and optimize
file transfers across global networks, featuring industry leading acceleration
technology at 10 Gbps
•FileCatalyst solutions are modular (purchase only what you need) and add more
functionality and capacity when required.
•File transfers with FileCatalyst are secure, reliable, and immune to packet loss and
latency
• Visit us at our booth: G32 or online at www.filecatalyst.com
For more information, look at:
-Blog, Webinars, Monthly Newsletter, White Papers, Youtube channel, support portal
16 | © Copyright FileCatalyst, 2012
