How to make a simple calculator

1. How to make a
Simple
Calculator??
Algoritma Pemrogaman
Proudly present:

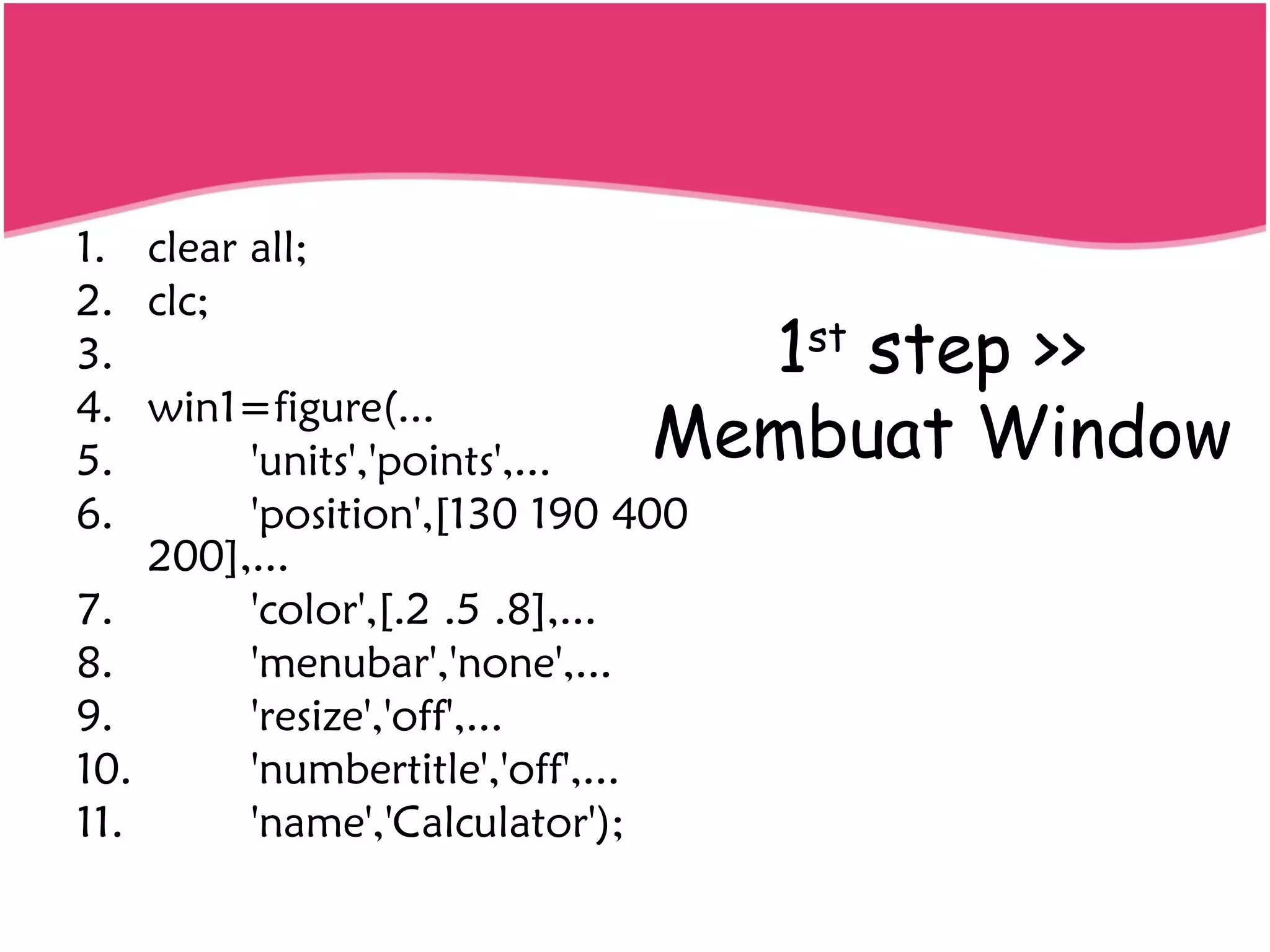

2. 1st
step >>
Membuat Window
1. clear all;
2. clc;
3.
4. win1=figure(...
5. 'units','points',...
6. 'position',[130 190 400
200],...
7. 'color',[.2 .5 .8],...
8. 'menubar','none',...
9. 'resize','off',...
10. 'numbertitle','off',...
11. 'name','Calculator');

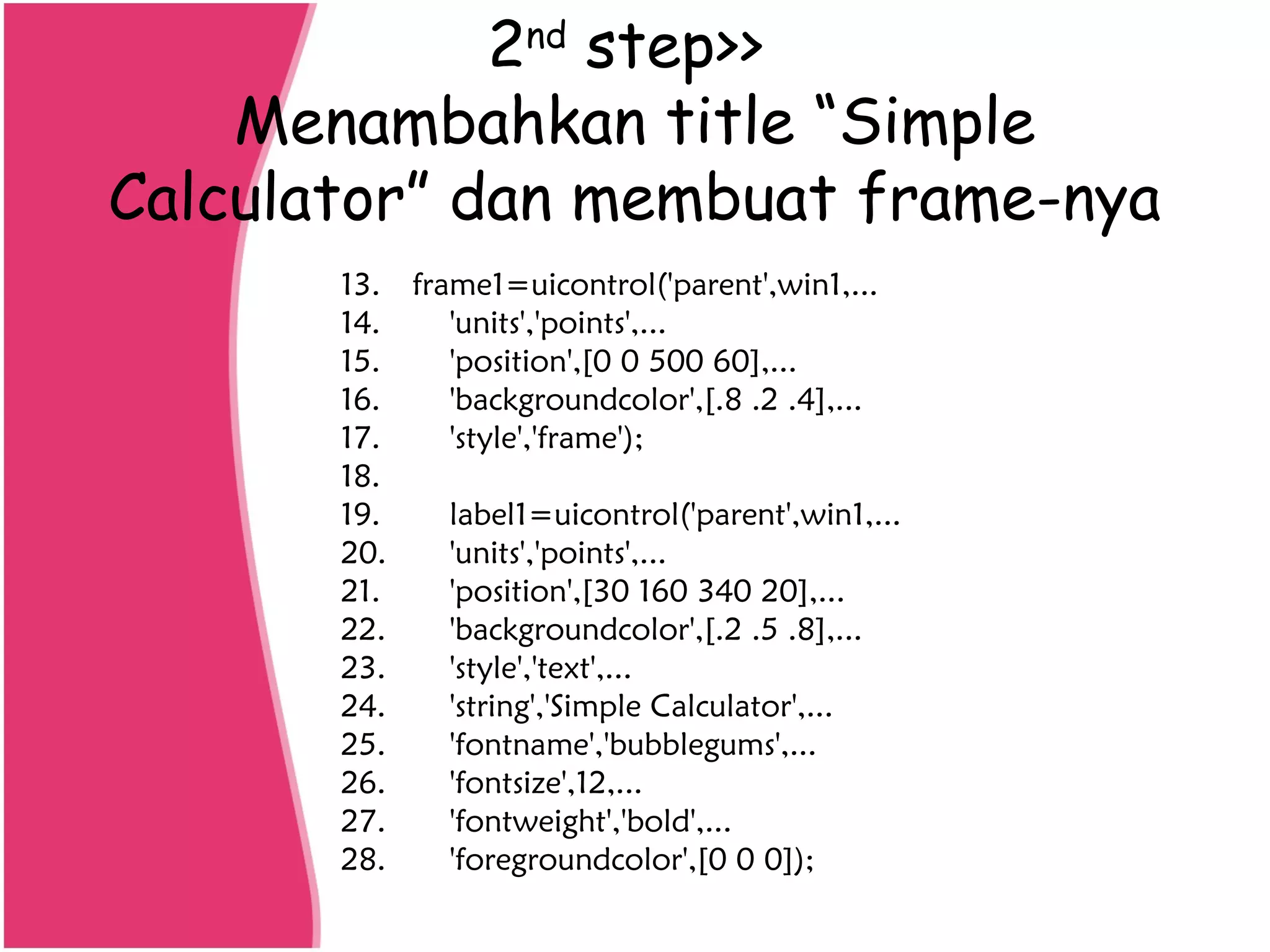

4. 2nd
step>>
Menambahkan title “Simple
Calculator” dan membuat frame-nya
13. frame1=uicontrol('parent',win1,...
14. 'units','points',...
15. 'position',[0 0 500 60],...
16. 'backgroundcolor',[.8 .2 .4],...
17. 'style','frame');
18.
19. label1=uicontrol('parent',win1,...
20. 'units','points',...
21. 'position',[30 160 340 20],...
22. 'backgroundcolor',[.2 .5 .8],...
23. 'style','text',...
24. 'string','Simple Calculator',...
25. 'fontname','bubblegums',...
26. 'fontsize',12,...
27. 'fontweight','bold',...
28. 'foregroundcolor',[0 0 0]);

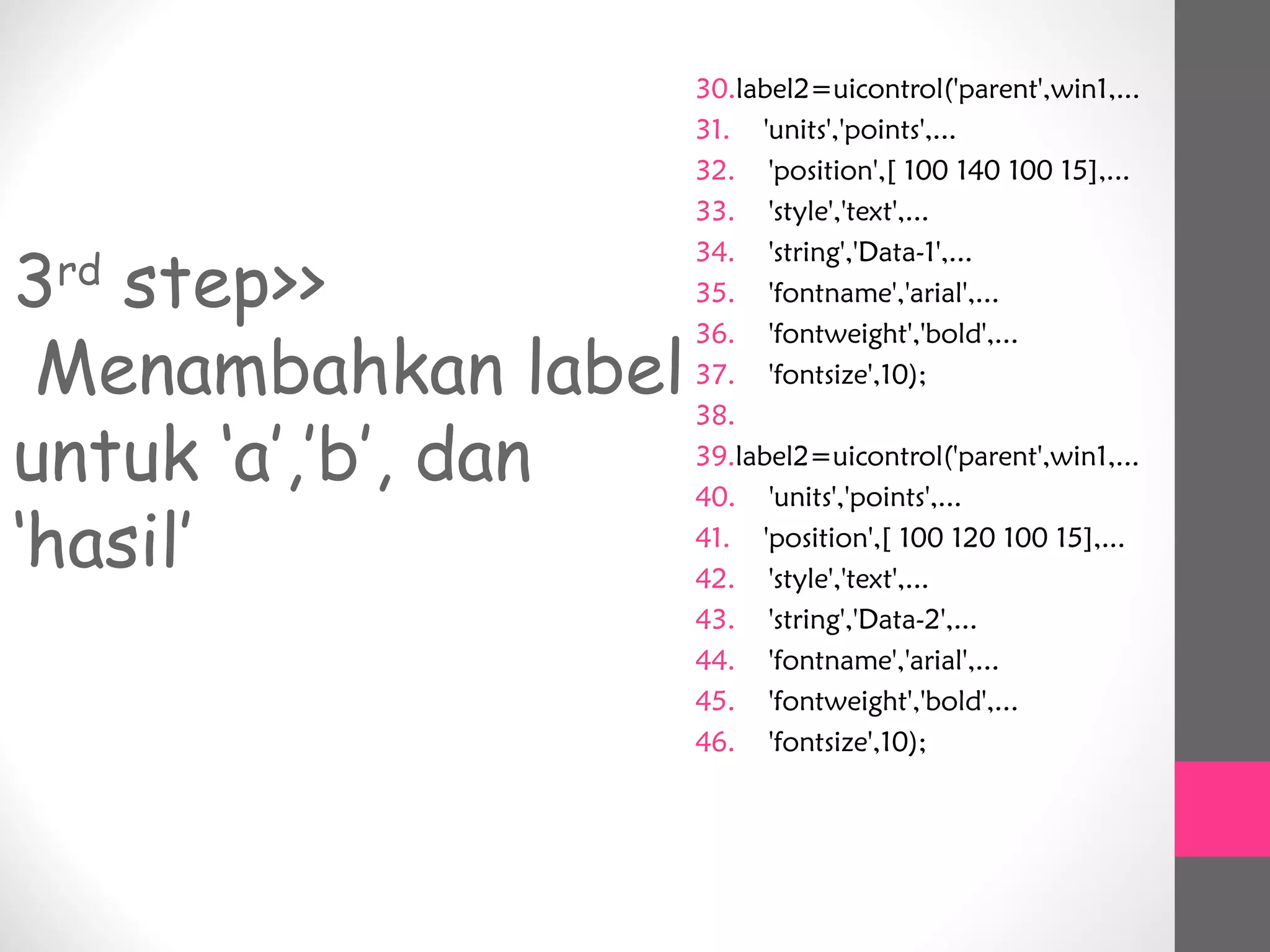

6. 3rd
step>>
Menambahkan label
untuk ‘a’,’b’, dan
‘hasil’
30.label2=uicontrol('parent',win1,...
31. 'units','points',...
32. 'position',[ 100 140 100 15],...
33. 'style','text',...
34. 'string','Data-1',...
35. 'fontname','arial',...
36. 'fontweight','bold',...
37. 'fontsize',10);
38.
39.label2=uicontrol('parent',win1,...
40. 'units','points',...
41. 'position',[ 100 120 100 15],...
42. 'style','text',...
43. 'string','Data-2',...
44. 'fontname','arial',...
45. 'fontweight','bold',...
46. 'fontsize',10);

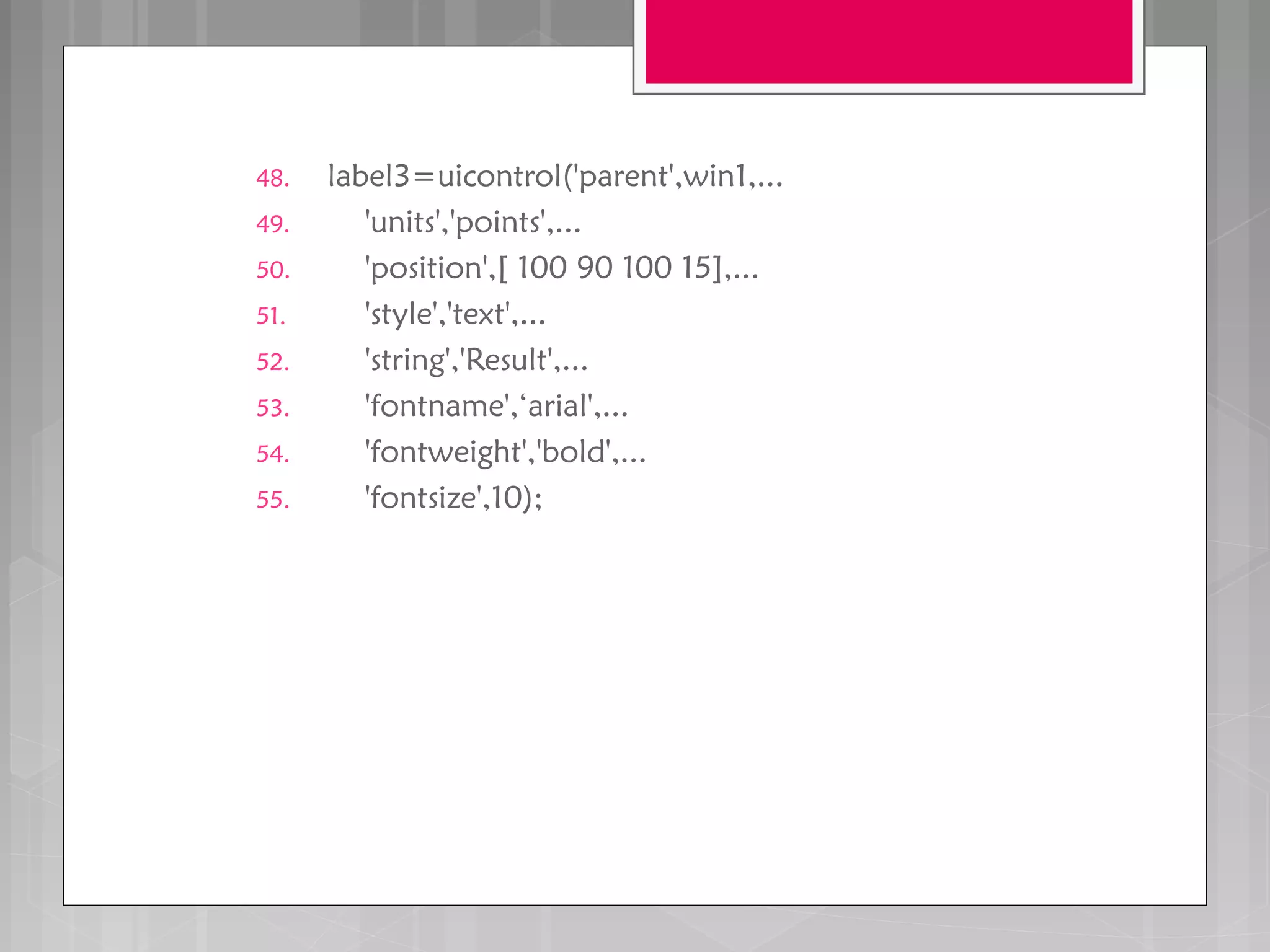

7. 48. label3=uicontrol('parent',win1,...
49. 'units','points',...
50. 'position',[ 100 90 100 15],...
51. 'style','text',...
52. 'string','Result',...
53. 'fontname',‘arial',...
54. 'fontweight','bold',...
55. 'fontsize',10);

9. 56.edit1=uicontrol('parent',win1,...
57. 'units','points',...
58. 'position',[200 140 100 15],...
59. 'style','edit',...
60. 'string','0',...
61. 'fontname','arial',...
62. 'fontsize',10);
63.
64.edit2=uicontrol('parent',win1,...
65. 'units','points',...
66. 'position',[200 120 100 15],...
67. 'style','edit',...
68. 'string','0',...
69. 'fontname','arial',...
70. 'fontsize',10);
4th
step>> Membuat textbox
untuk input data dan hasilnya

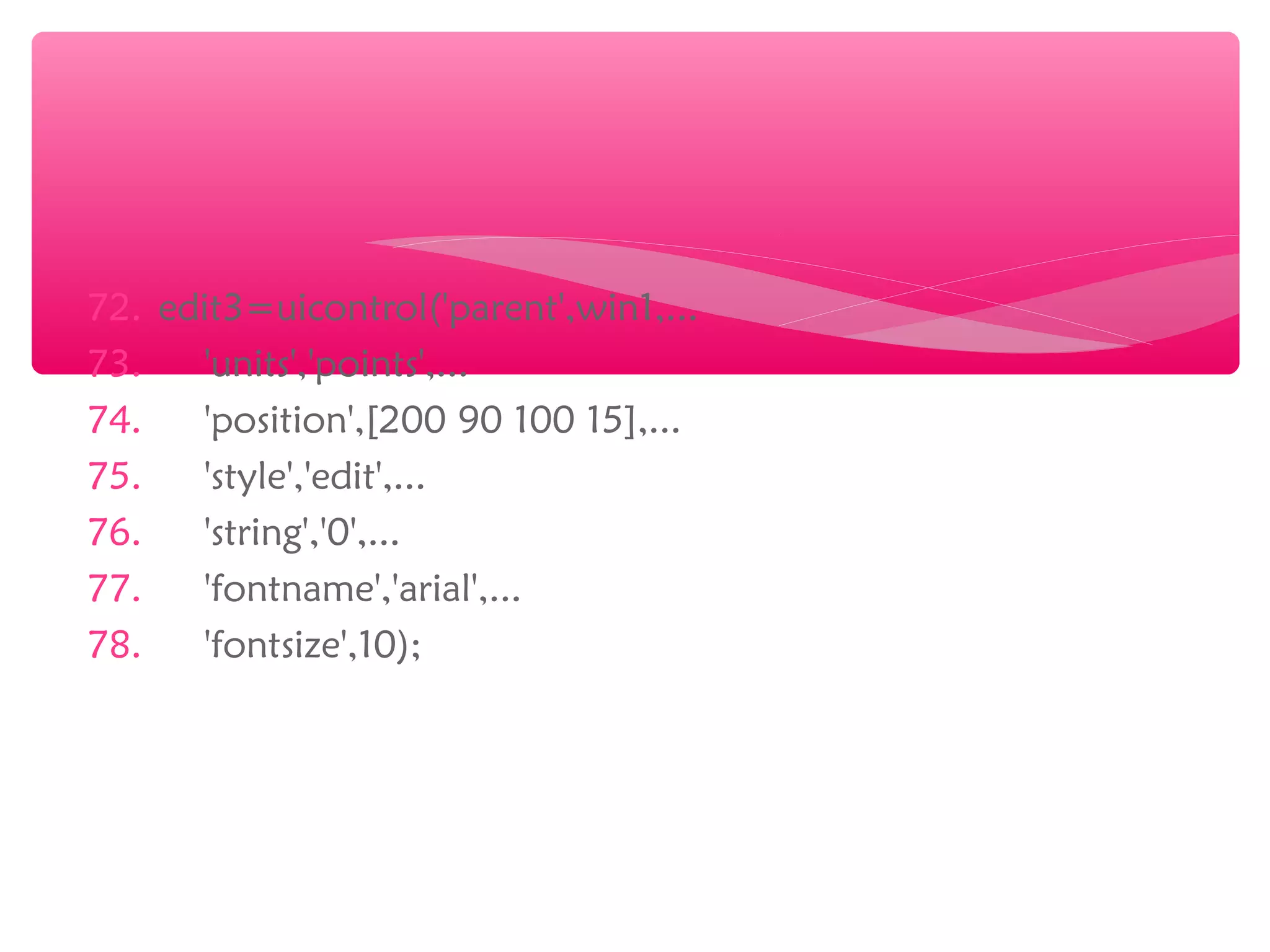

10. 72. edit3=uicontrol('parent',win1,...
73. 'units','points',...
74. 'position',[200 90 100 15],...
75. 'style','edit',...
76. 'string','0',...
77. 'fontname','arial',...
78. 'fontsize',10);

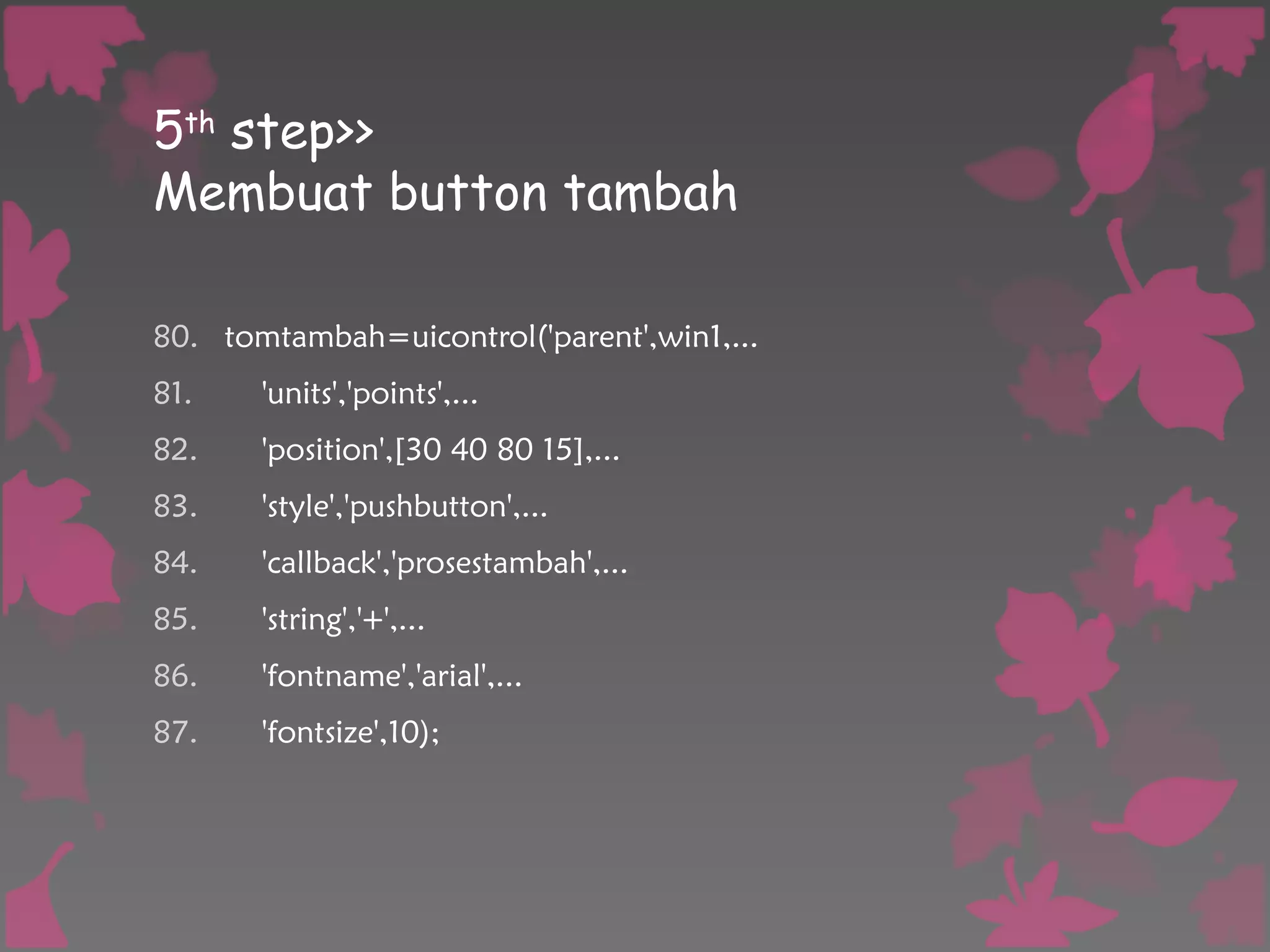

12. 5th
step>>
Membuat button tambah
80. tomtambah=uicontrol('parent',win1,...
81. 'units','points',...
82. 'position',[30 40 80 15],...
83. 'style','pushbutton',...
84. 'callback','prosestambah',...
85. 'string','+',...
86. 'fontname','arial',...
87. 'fontsize',10);

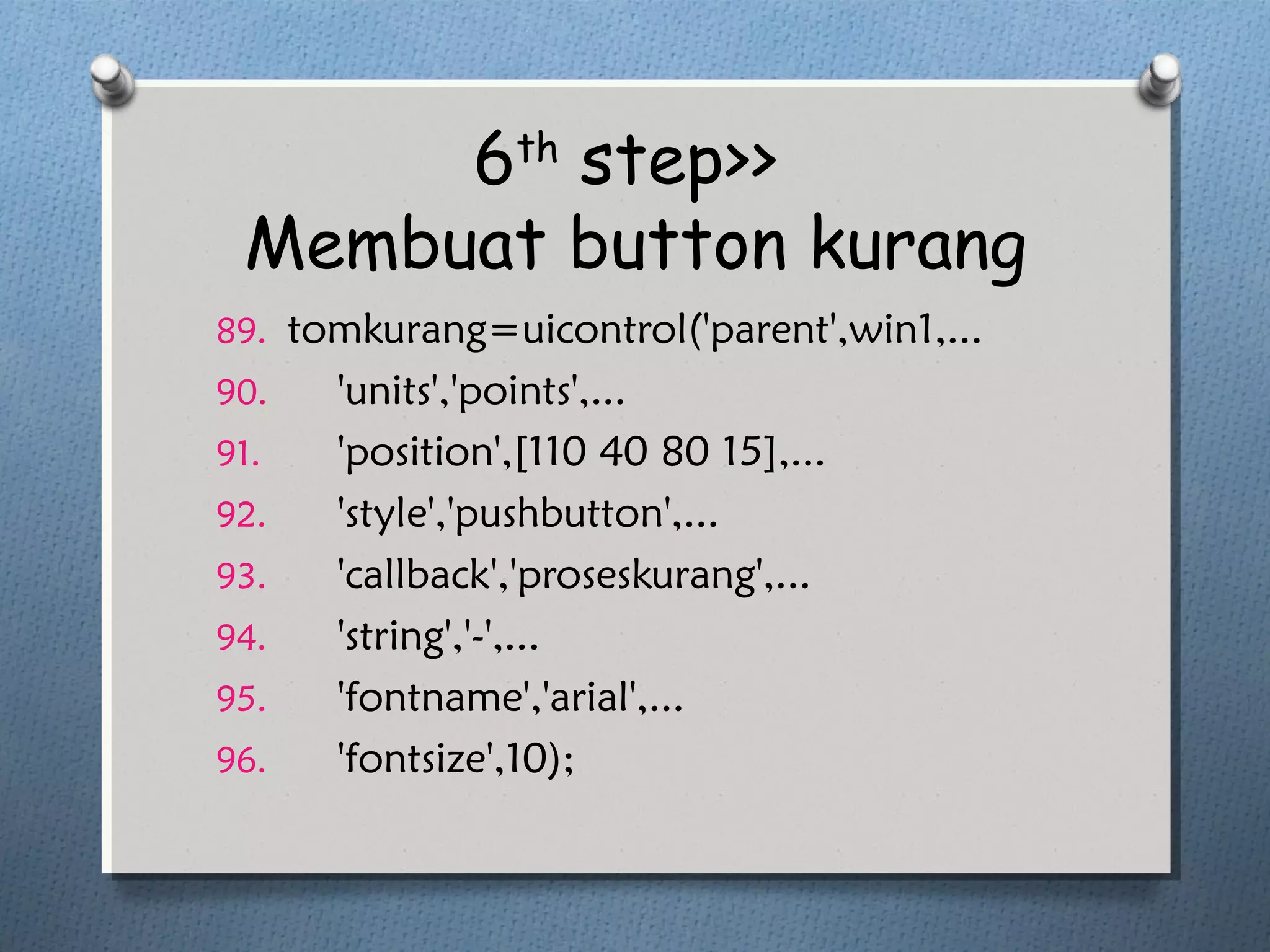

14. 6th
step>>
Membuat button kurang
89. tomkurang=uicontrol('parent',win1,...
90. 'units','points',...
91. 'position',[110 40 80 15],...
92. 'style','pushbutton',...
93. 'callback','proseskurang',...
94. 'string','-',...
95. 'fontname','arial',...
96. 'fontsize',10);

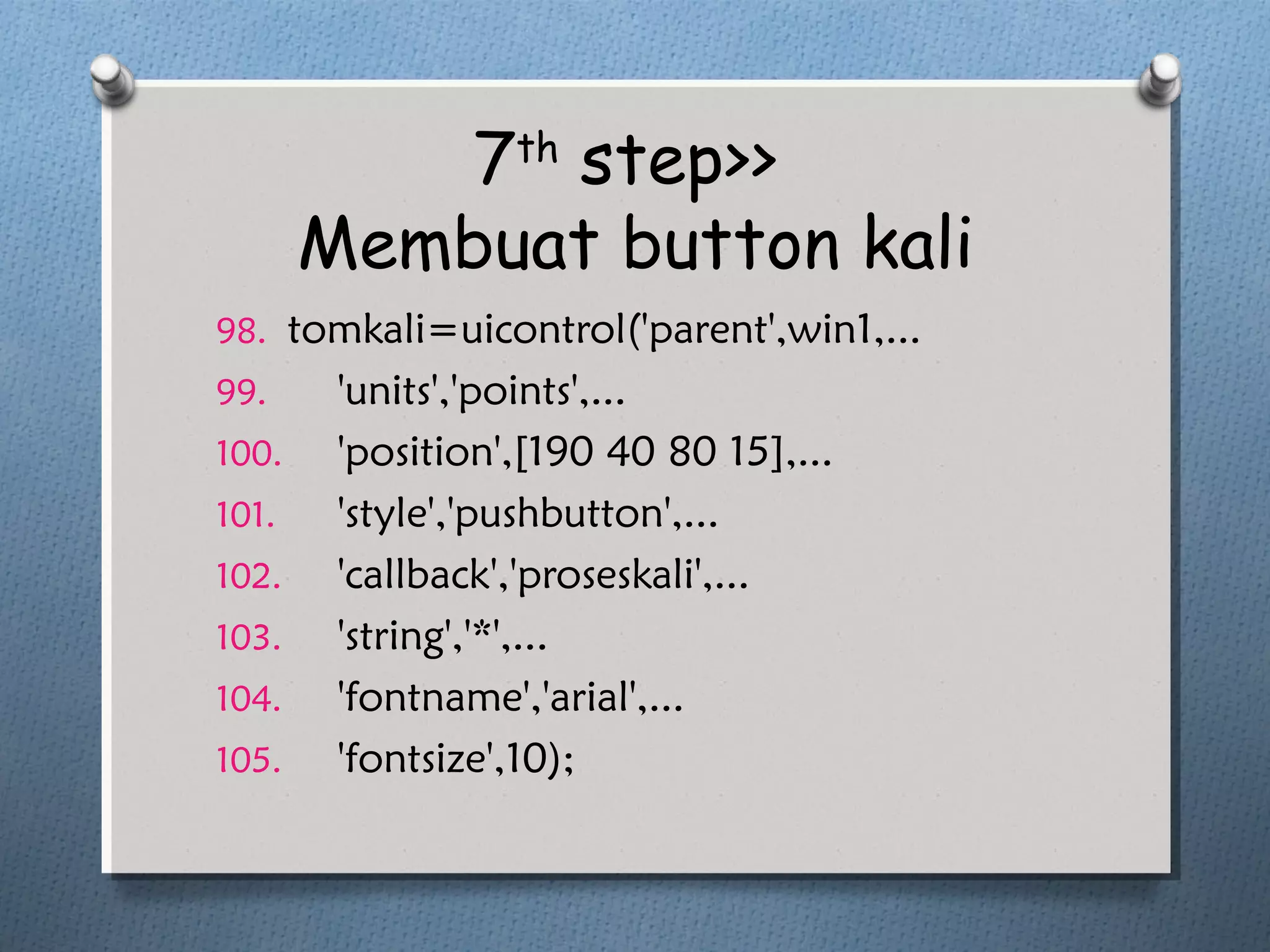

15. 7th
step>>
Membuat button kali
98. tomkali=uicontrol('parent',win1,...
99. 'units','points',...
100. 'position',[190 40 80 15],...
101. 'style','pushbutton',...
102. 'callback','proseskali',...
103. 'string','*',...
104. 'fontname','arial',...
105. 'fontsize',10);

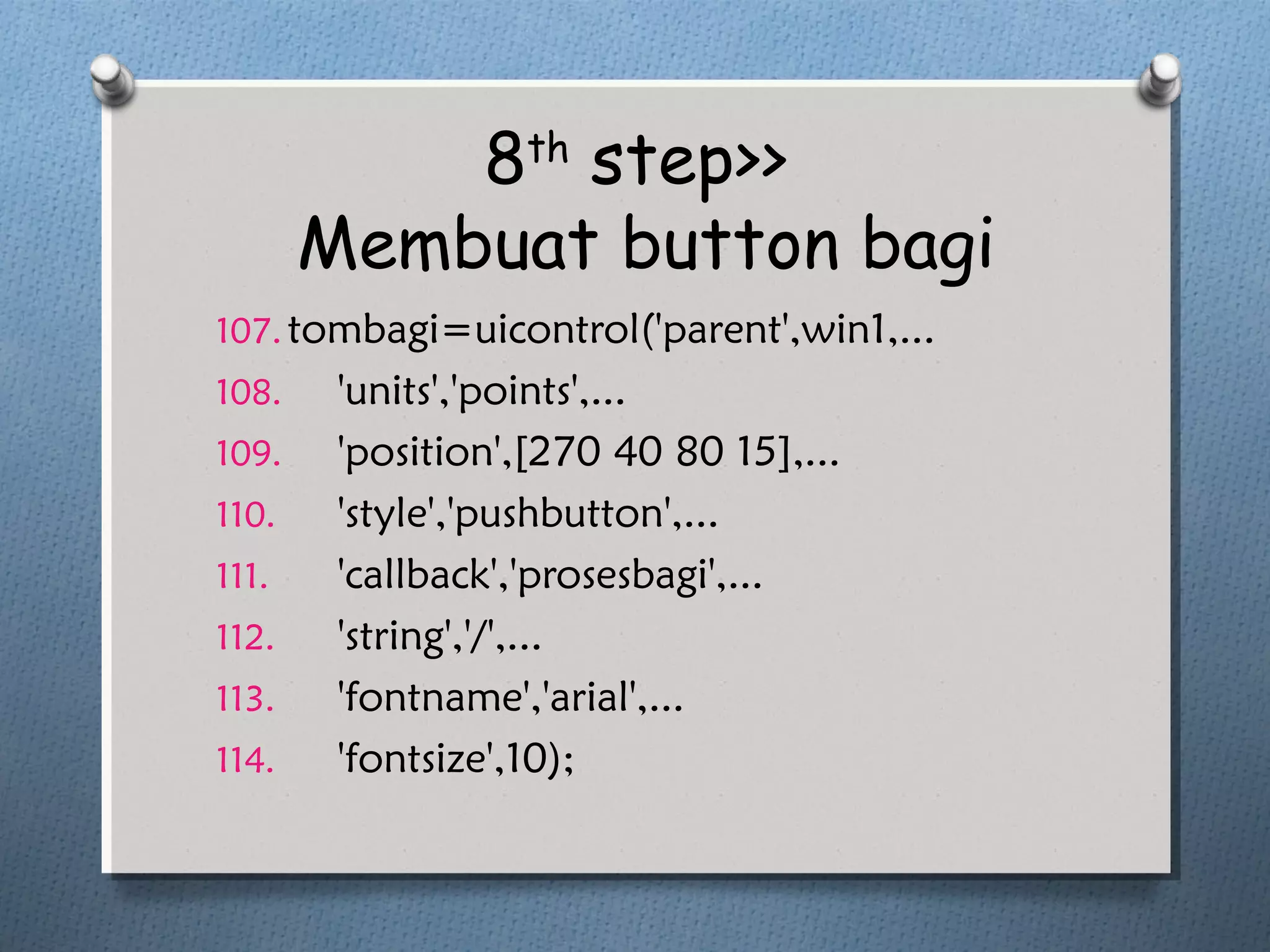

16. 8th
step>>
Membuat button bagi
107.tombagi=uicontrol('parent',win1,...
108. 'units','points',...
109. 'position',[270 40 80 15],...
110. 'style','pushbutton',...
111. 'callback','prosesbagi',...
112. 'string','/',...
113. 'fontname','arial',...
114. 'fontsize',10);

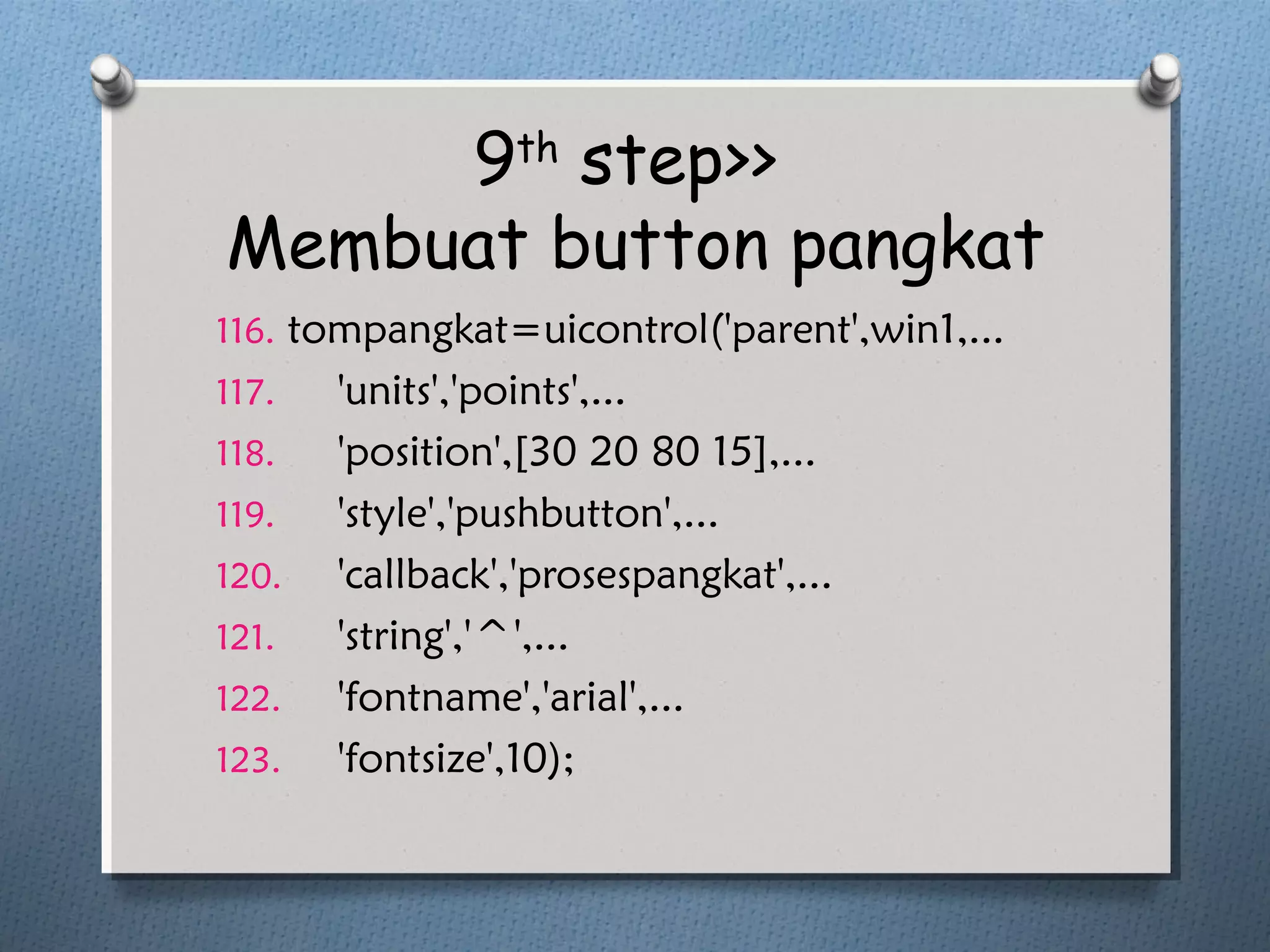

17. 9th
step>>
Membuat button pangkat
116. tompangkat=uicontrol('parent',win1,...
117. 'units','points',...
118. 'position',[30 20 80 15],...
119. 'style','pushbutton',...
120. 'callback','prosespangkat',...
121. 'string','^',...
122. 'fontname','arial',...
123. 'fontsize',10);

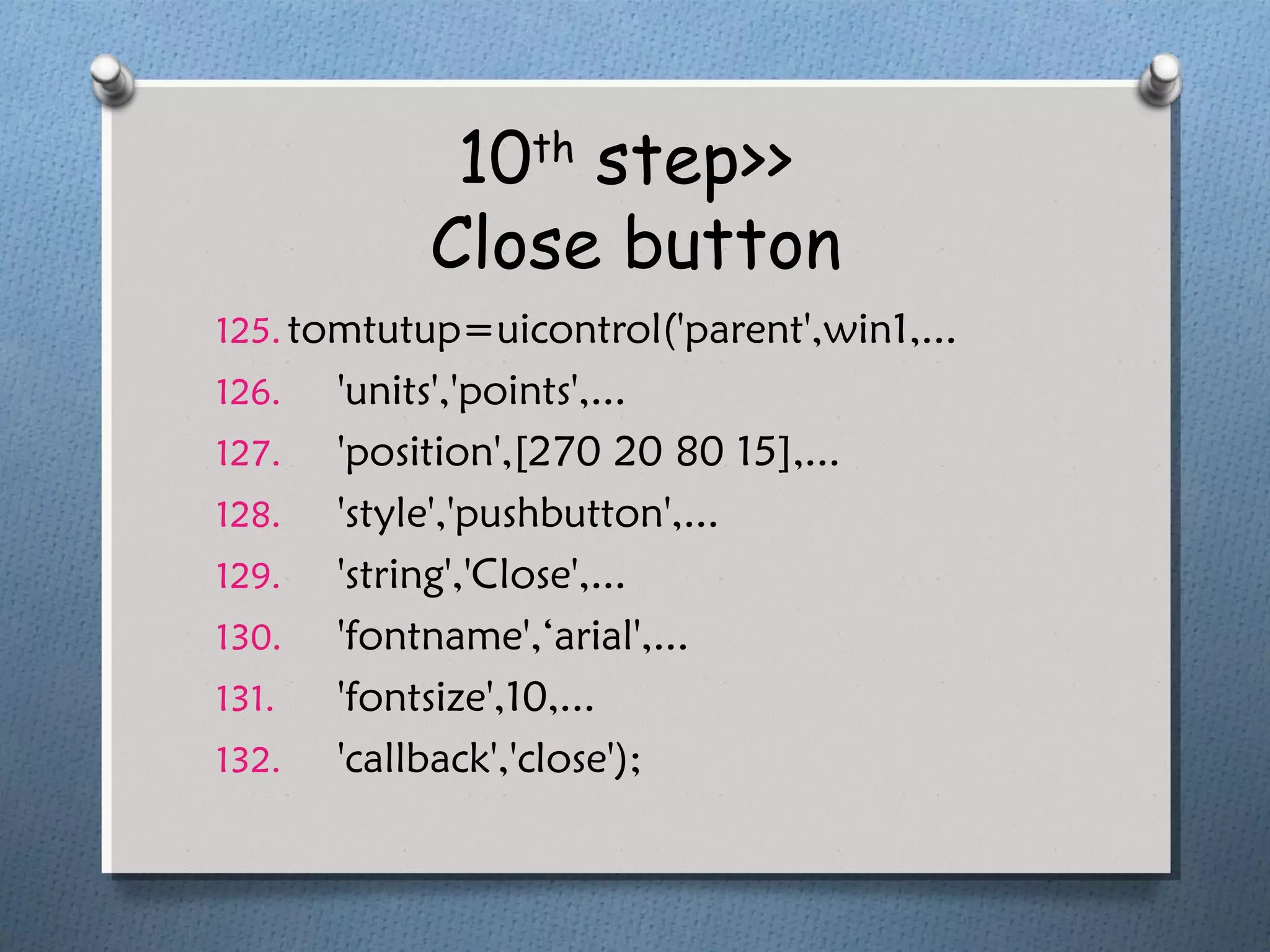

18. 10th
step>>
Close button
125. tomtutup=uicontrol('parent',win1,...
126. 'units','points',...
127. 'position',[270 20 80 15],...
128. 'style','pushbutton',...
129. 'string','Close',...
130. 'fontname',‘arial',...
131. 'fontsize',10,...
132. 'callback','close');

20. 

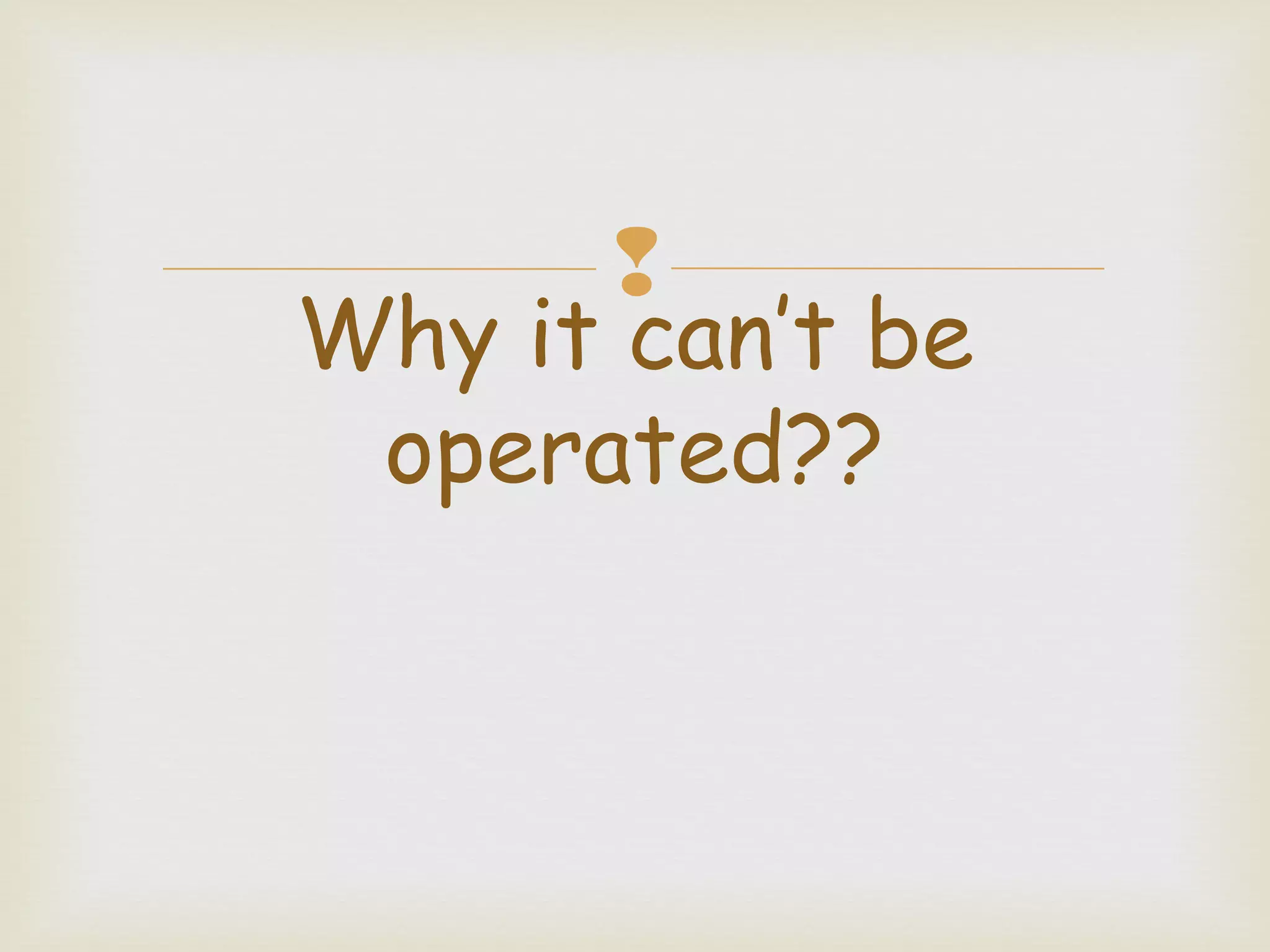

Why it can’t be
operated??

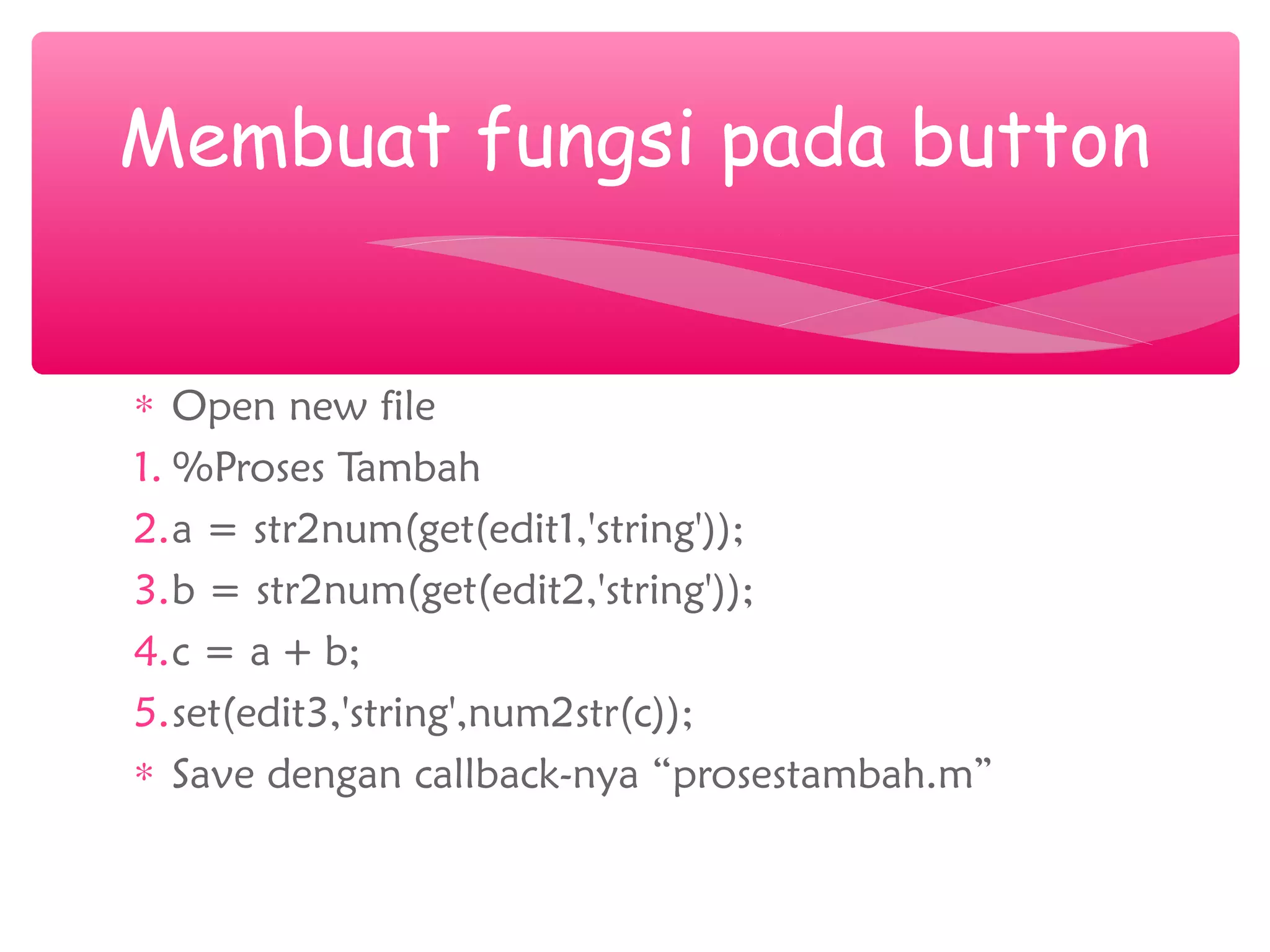

21. ∗ Open new file
1. %Proses Tambah
2.a = str2num(get(edit1,'string'));
3.b = str2num(get(edit2,'string'));
4.c = a + b;
5.set(edit3,'string',num2str(c));
∗ Save dengan callback-nya “prosestambah.m”
Membuat fungsi pada button

22. pen new file
Proses Pengurangan
= str2num(get(edit1,'string'));
= str2num(get(edit2,'string'));
= a - b;
et(edit3,'string',num2str(c));

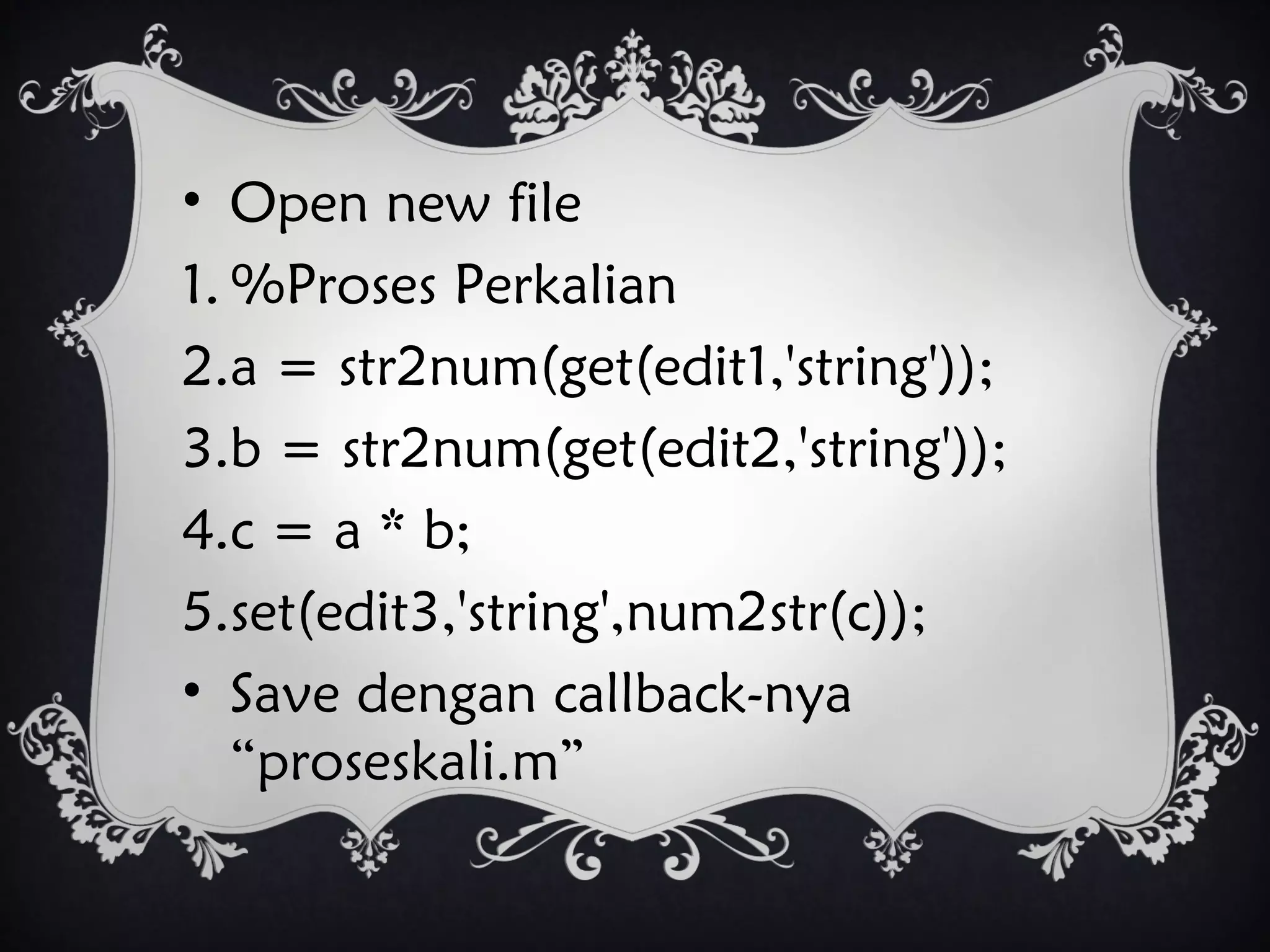

23. • Open new file
1. %Proses Perkalian
2.a = str2num(get(edit1,'string'));
3.b = str2num(get(edit2,'string'));
4.c = a * b;
5.set(edit3,'string',num2str(c));
• Save dengan callback-nya
“proseskali.m”

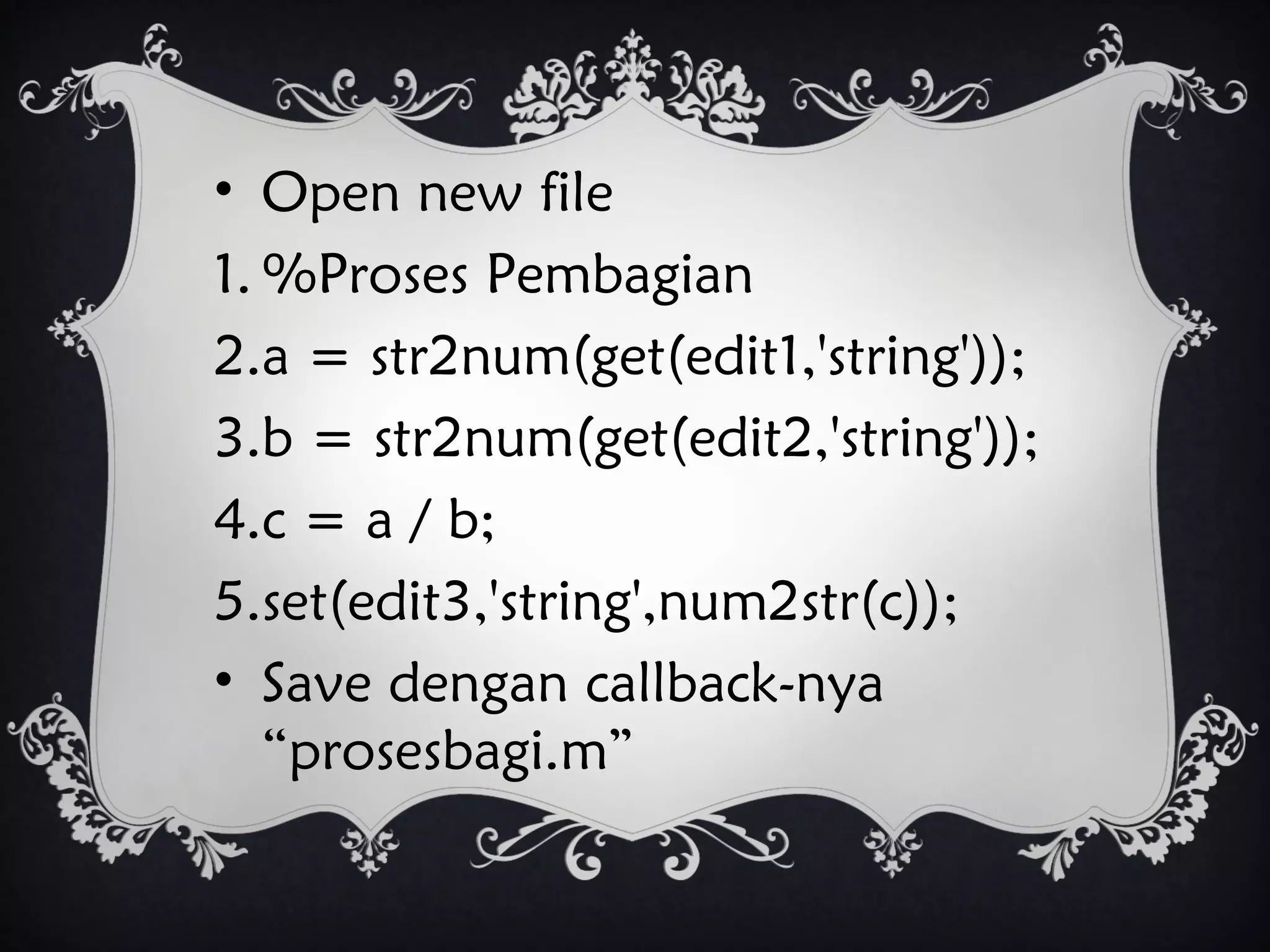

24. • Open new file
1. %Proses Pembagian
2.a = str2num(get(edit1,'string'));
3.b = str2num(get(edit2,'string'));
4.c = a / b;
5.set(edit3,'string',num2str(c));
• Save dengan callback-nya
“prosesbagi.m”

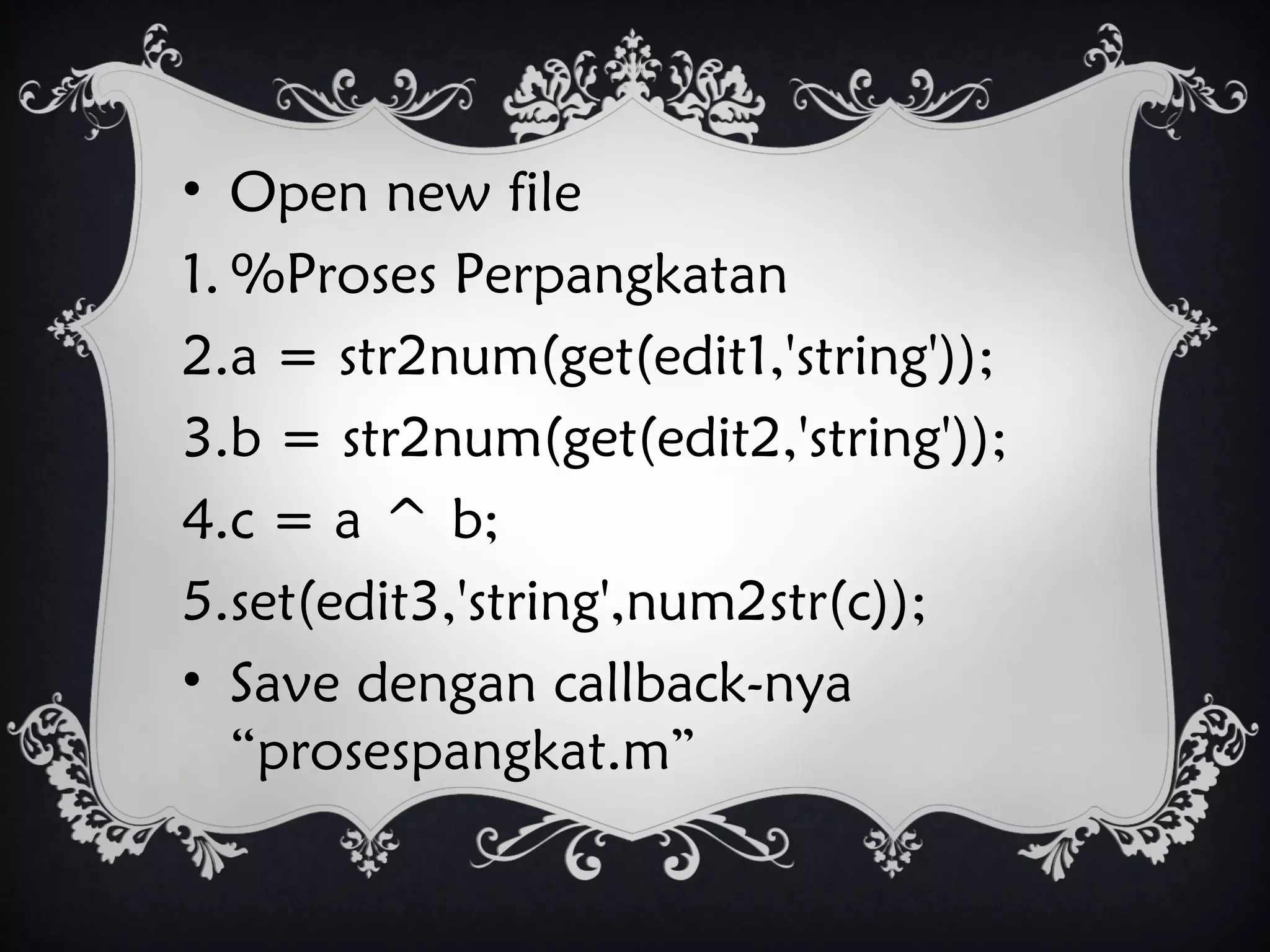

25. • Open new file
1. %Proses Perpangkatan
2.a = str2num(get(edit1,'string'));
3.b = str2num(get(edit2,'string'));
4.c = a ^ b;
5.set(edit3,'string',num2str(c));
• Save dengan callback-nya
“prosespangkat.m”

26. Enjoy your own
calculator 

27. Thanks For Your Attention 
Presented by:
Ambar Mangesti
Dina Nancy
Nida Shafiyanti
Riska Anggraini
