This presentation is based on the case of development of Instabeat, an innovative swimming tracker. The slides contain hints on how to organize development process, which sensors to use, how to analyze raw data and alternatively use tracking systems. This presentation by Mykola Shatokhin, GlobalLogic expert, was delivered at GlobalLogic Lviv C++ TechTalk on September 15, 2016. Learn more here: https://www.globallogic.com/ua/gl_news/globallogic-lviv-c-techtalk-summary/

1. 1
Confidential

2. 2
How to make a motion tracking
device
Mykola Shatokhin
Software Engineer
15.09.2016

3. 3
Instabeat

4. 4

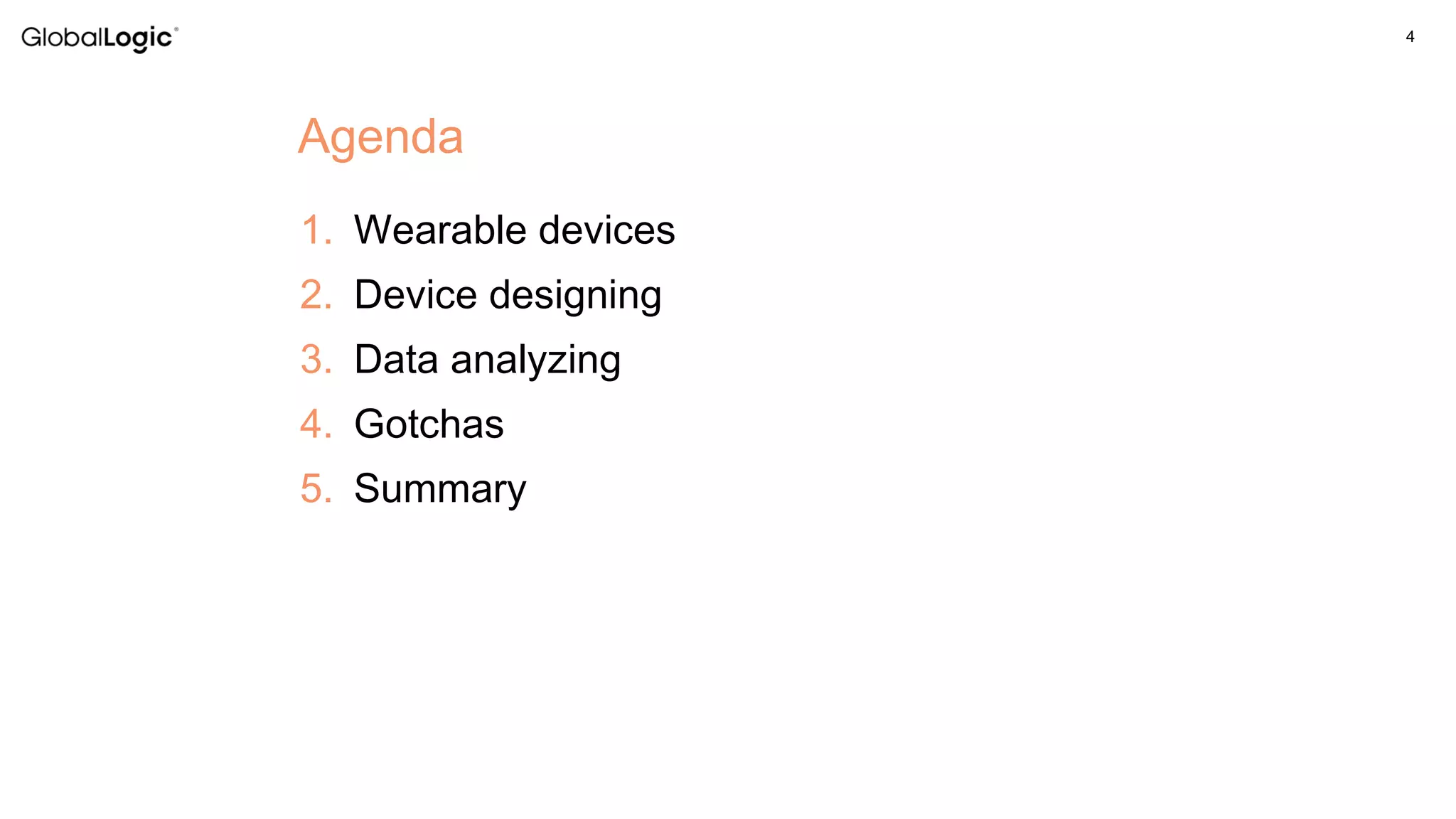

1. Wearable devices
2. Device designing
3. Data analyzing
4. Gotchas
5. Summary
Agenda

5. 5
Wearable devices

6. 6
Device designing

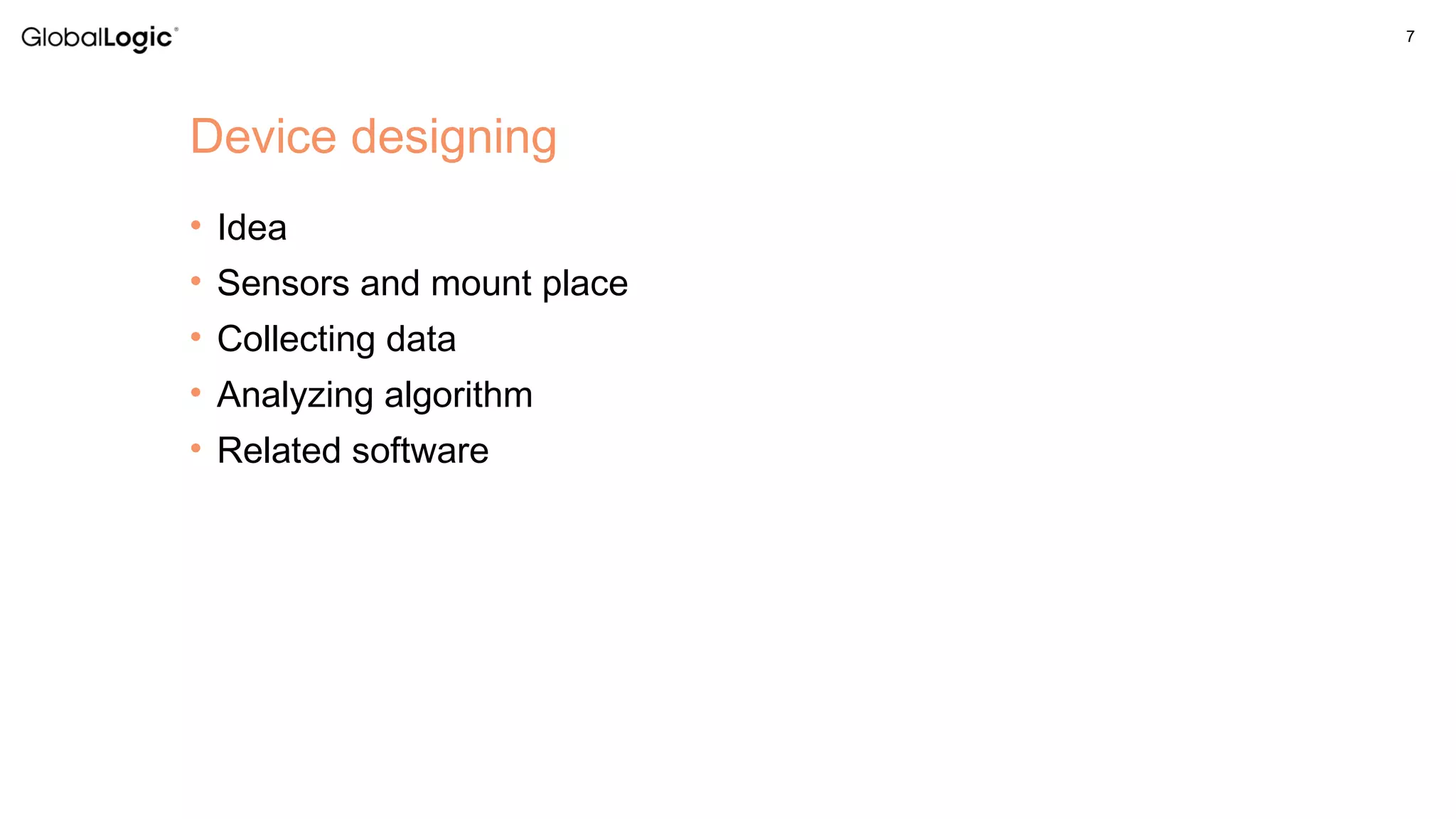

7. 7
• Idea
• Sensors and mount place
• Collecting data
• Analyzing algorithm
• Related software
Device designing

8. 8

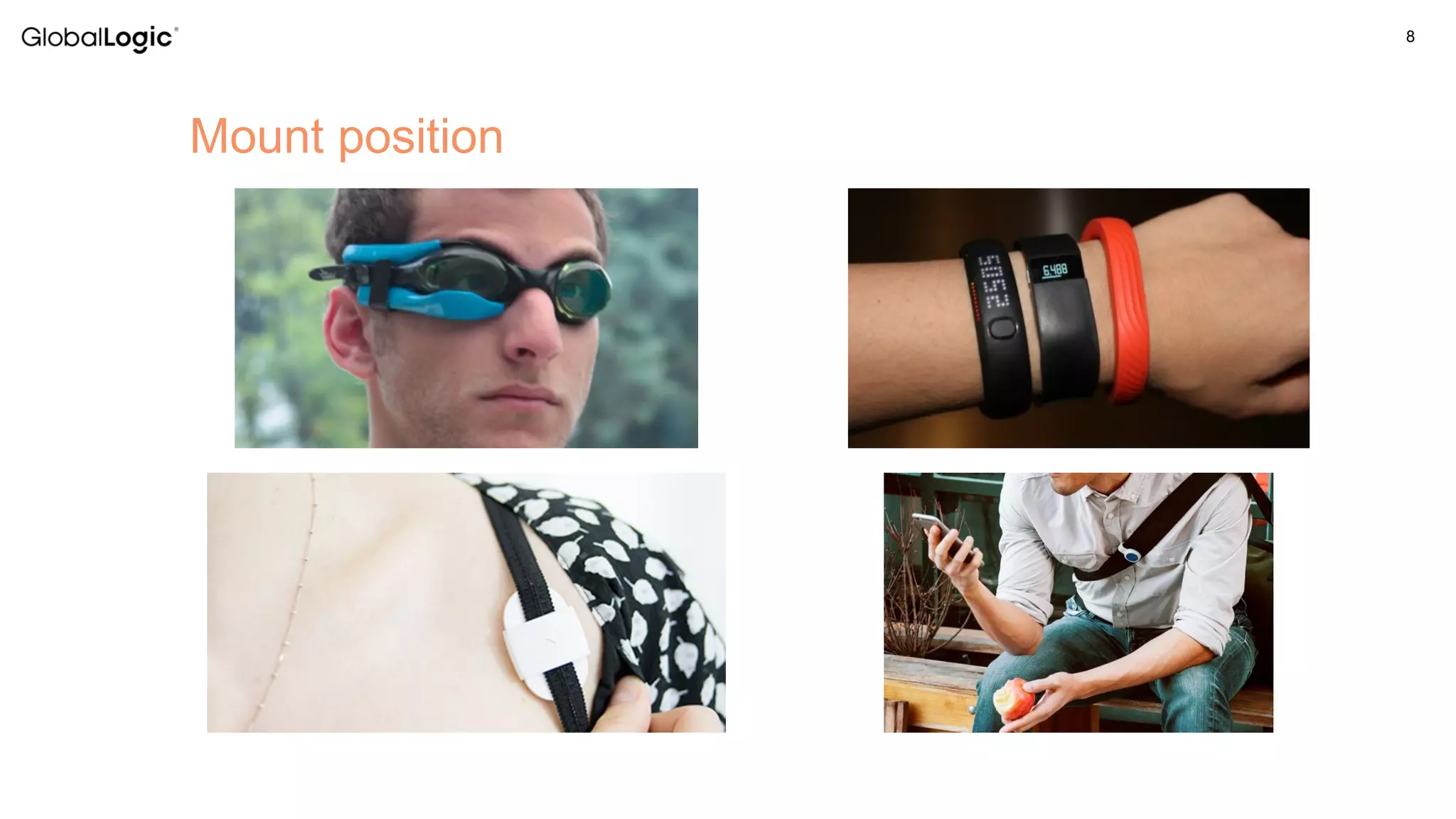

Mount position

9. 9

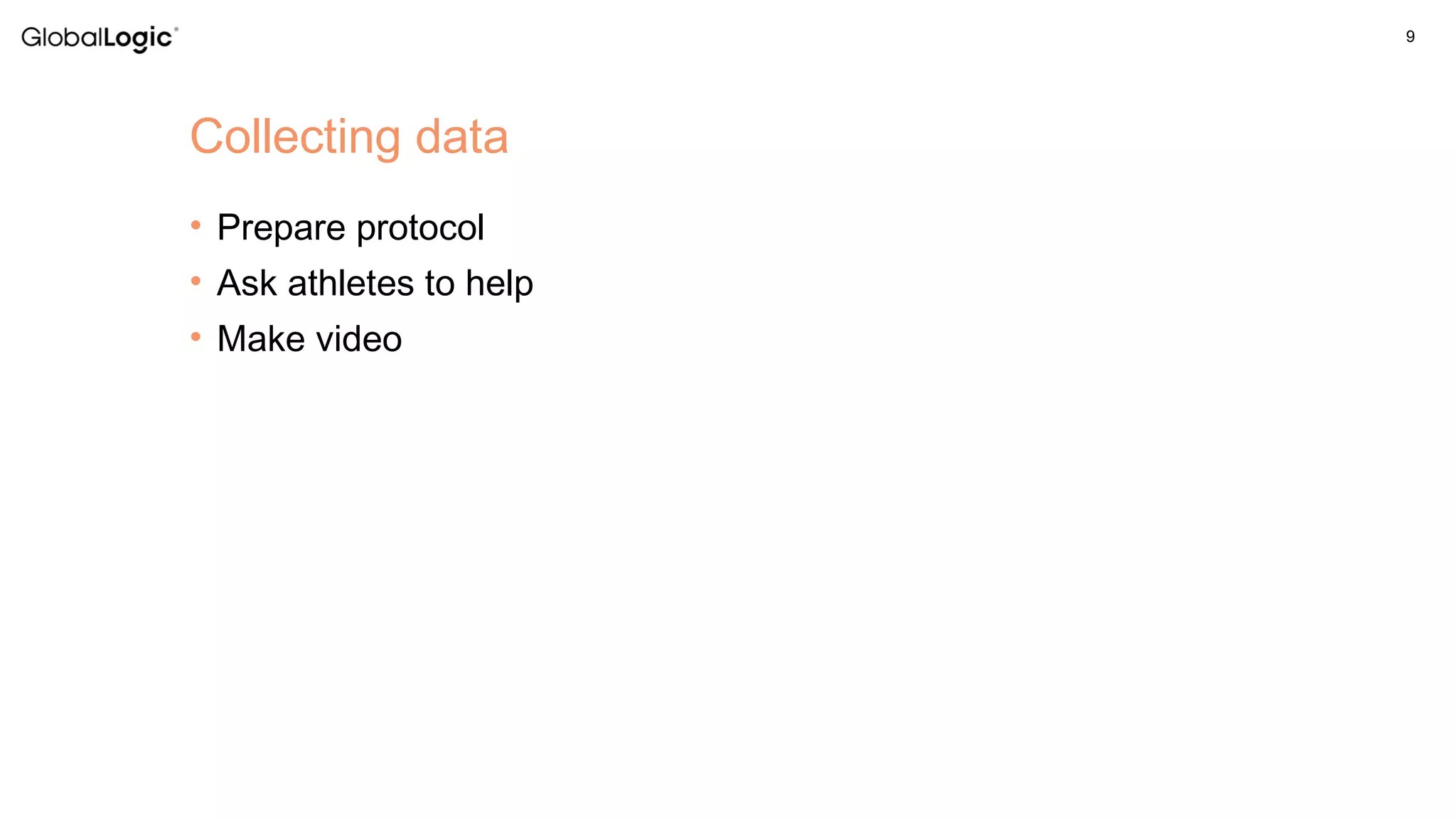

• Prepare protocol
• Ask athletes to help
• Make video
Collecting data

10. 10
Don’t be a racist

11. 11

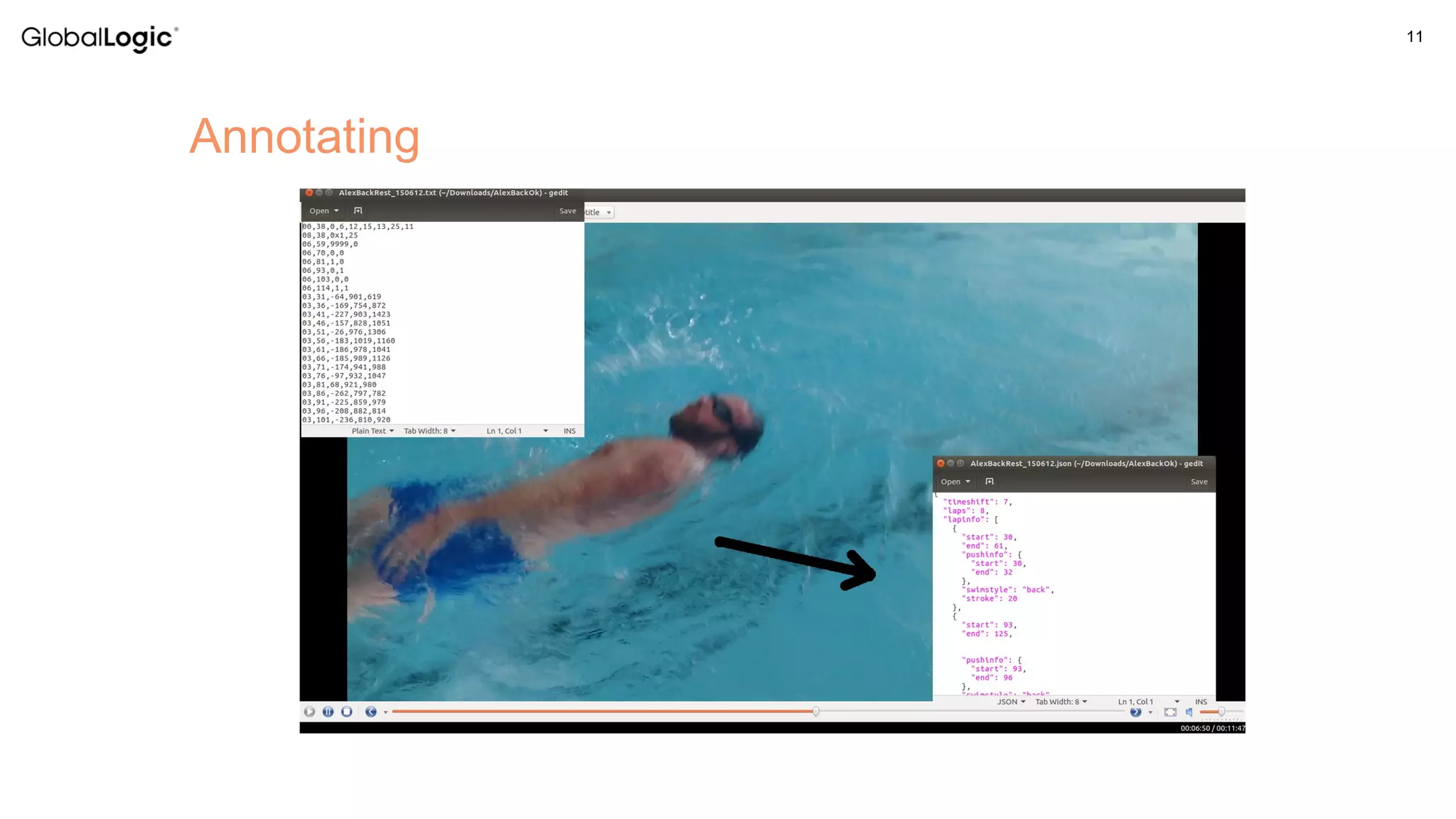

Annotating

12. 12
Data analyzing

13. 13
Accelerometer
Gyroscope

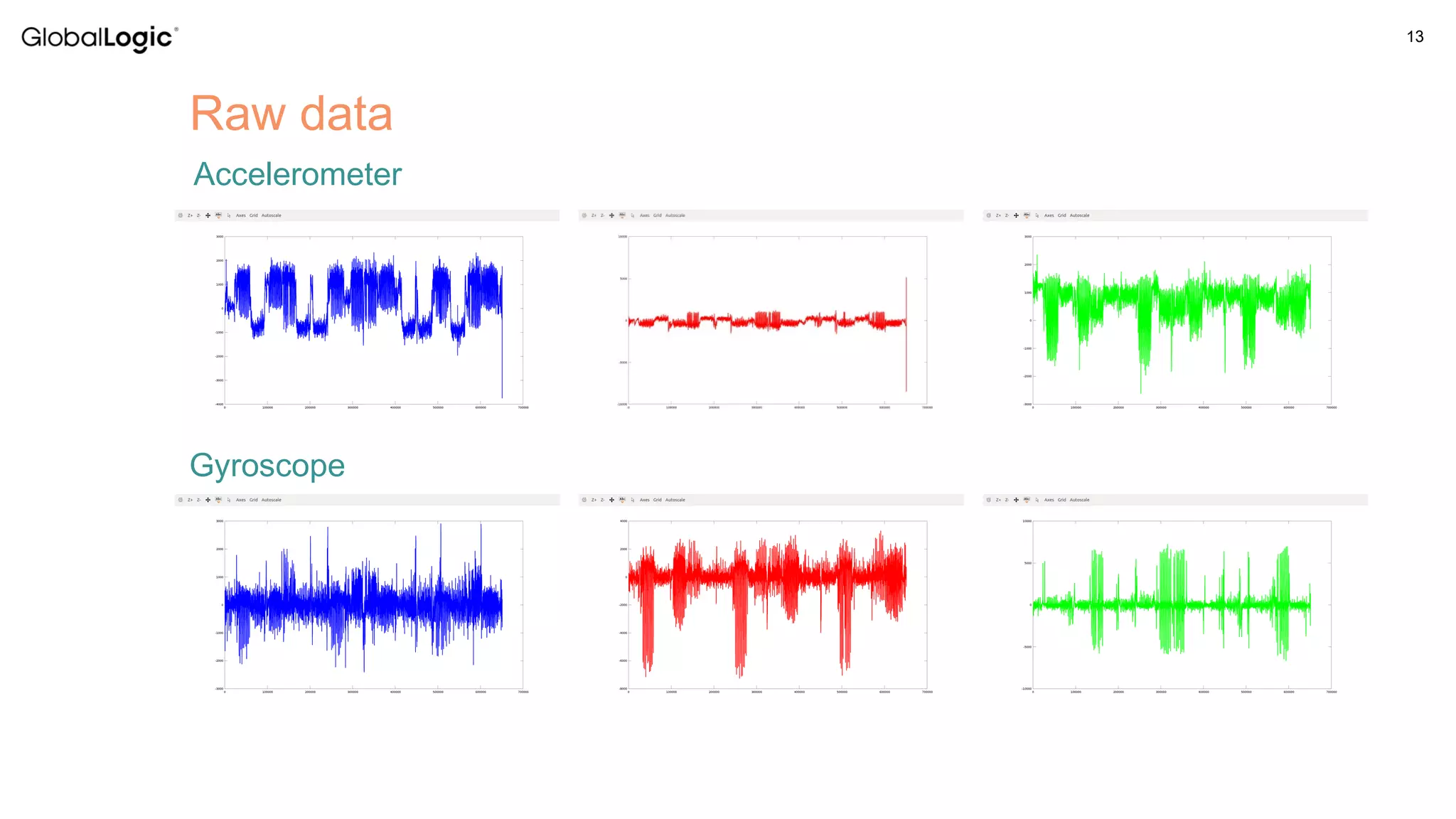

Raw data

14. 14

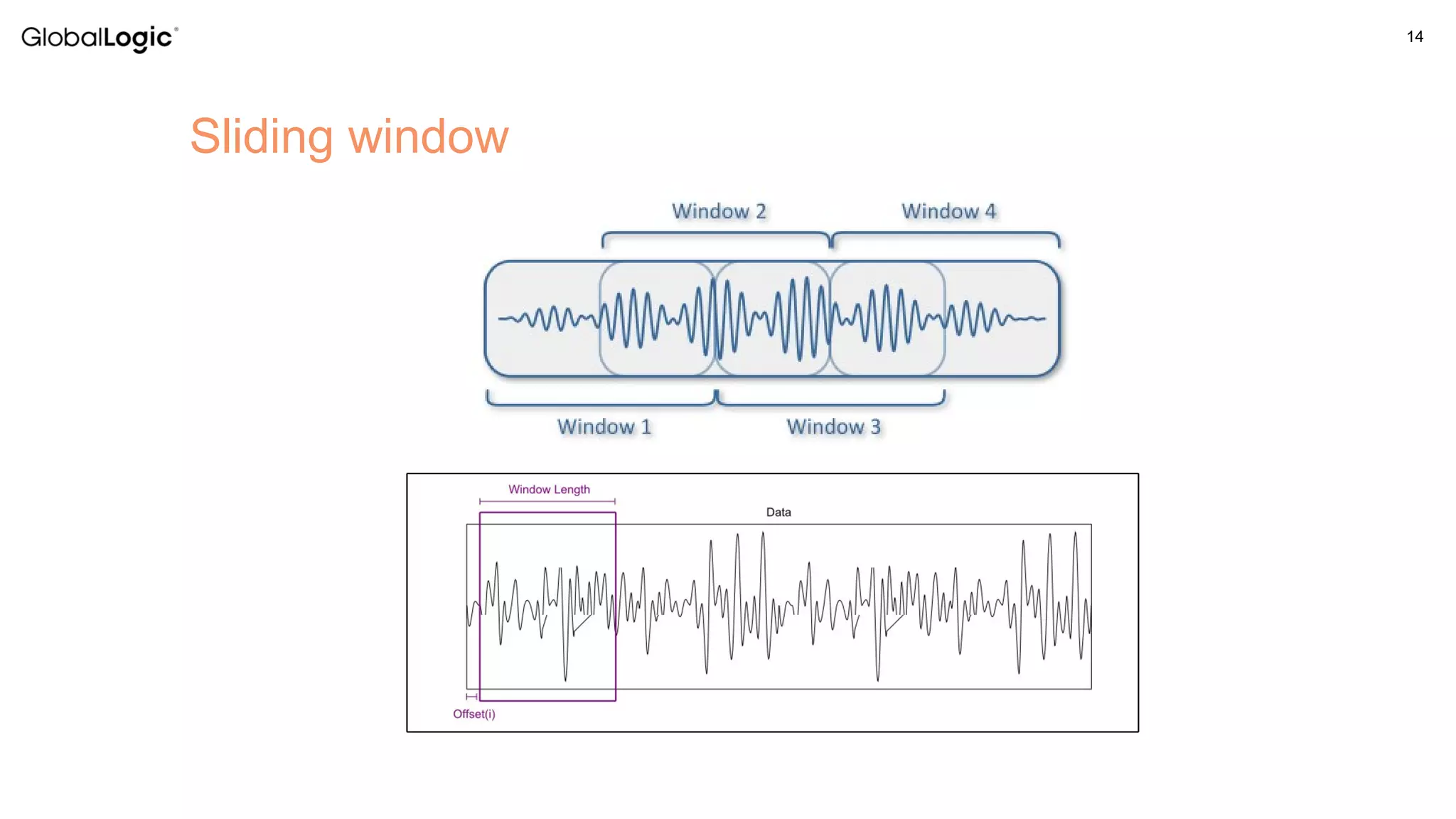

Sliding window

15. 15
Where:
n – window size,
x – signal values in current window,
μ – window mean value.

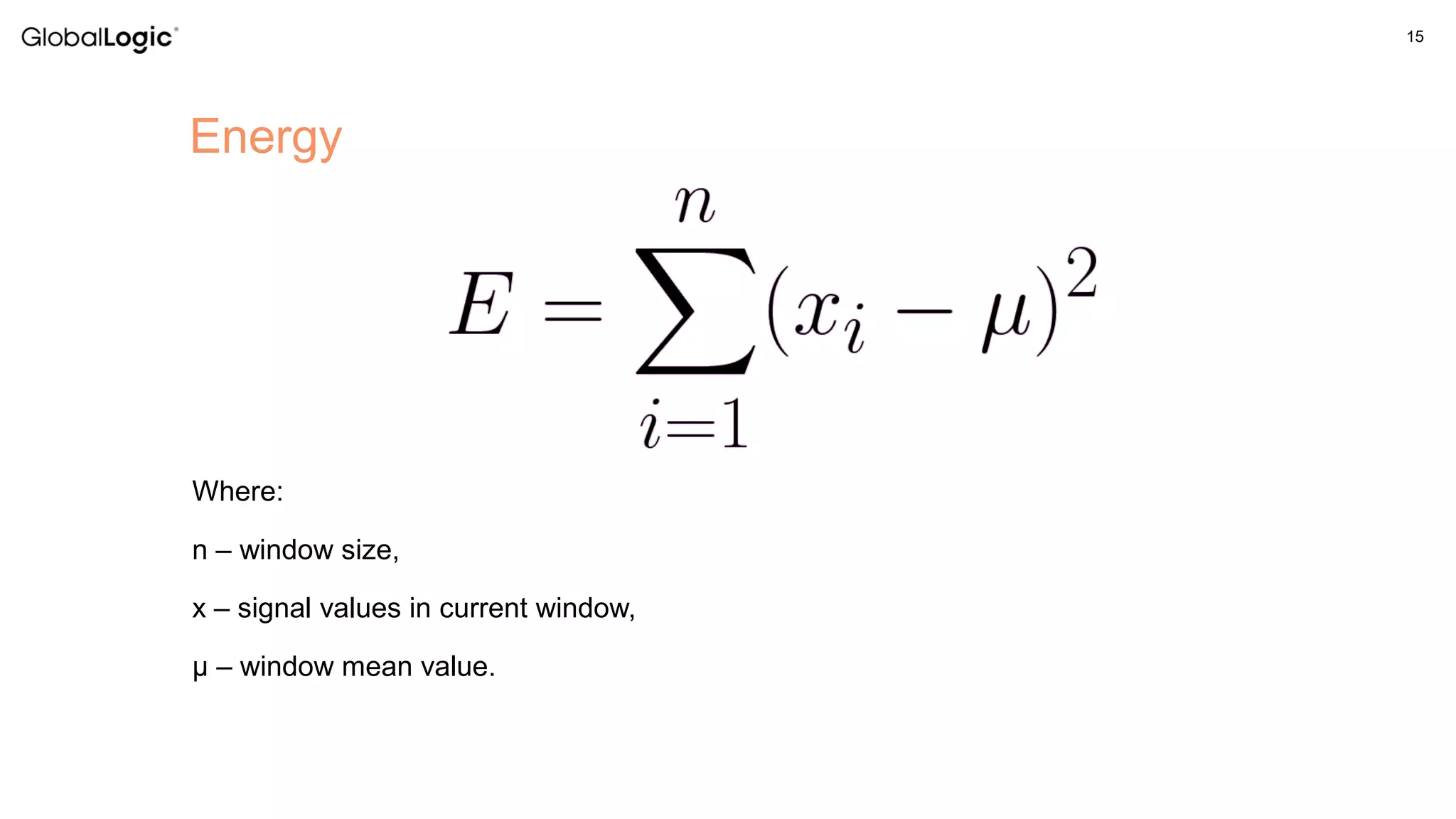

Energy

16. 16
Accelerometer
Gyroscope

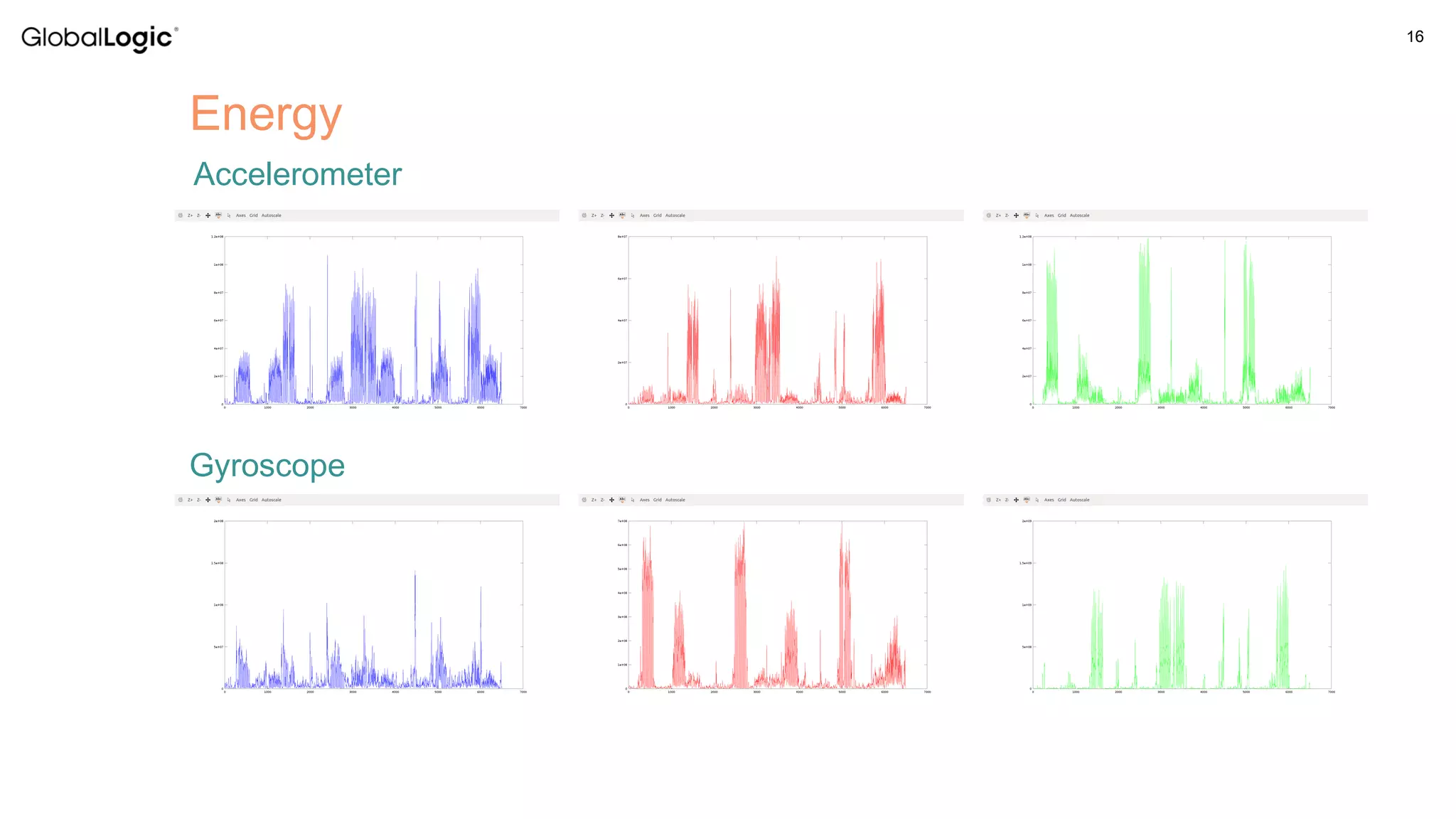

Energy

17. 17

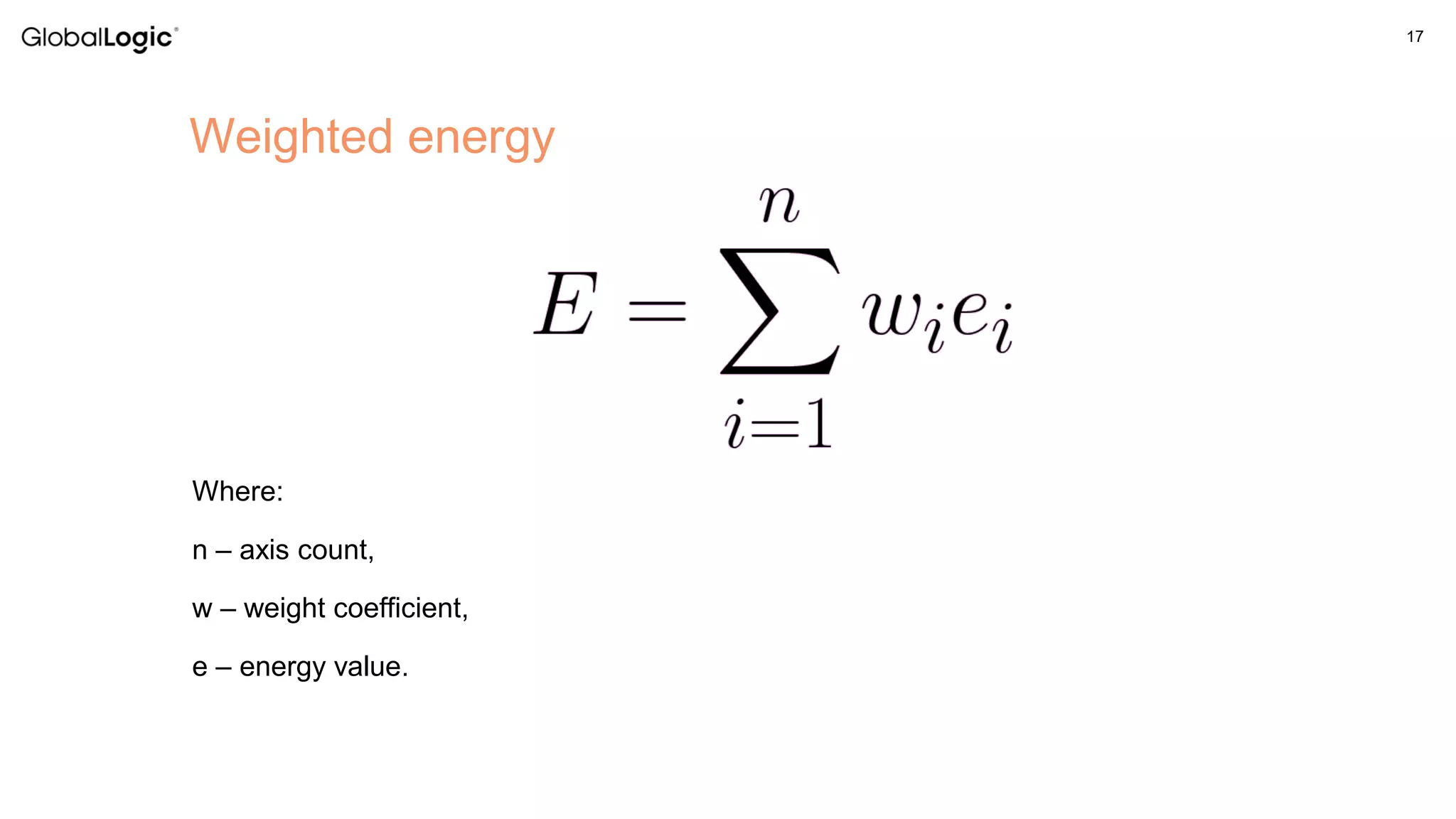

Where:
n – axis count,
w – weight coefficient,
e – energy value.

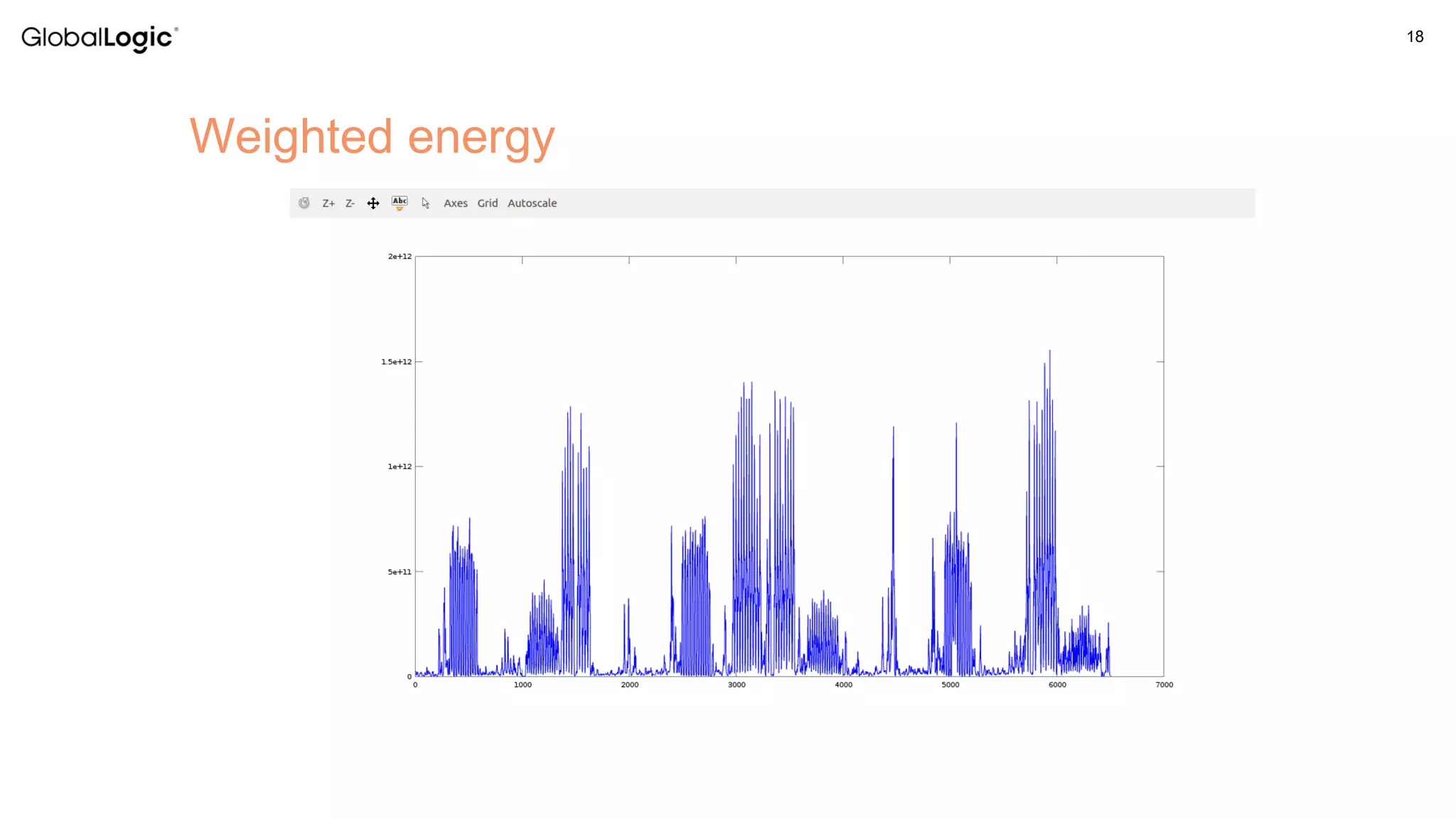

Weighted energy

18. 18
Weighted energy

19. 19

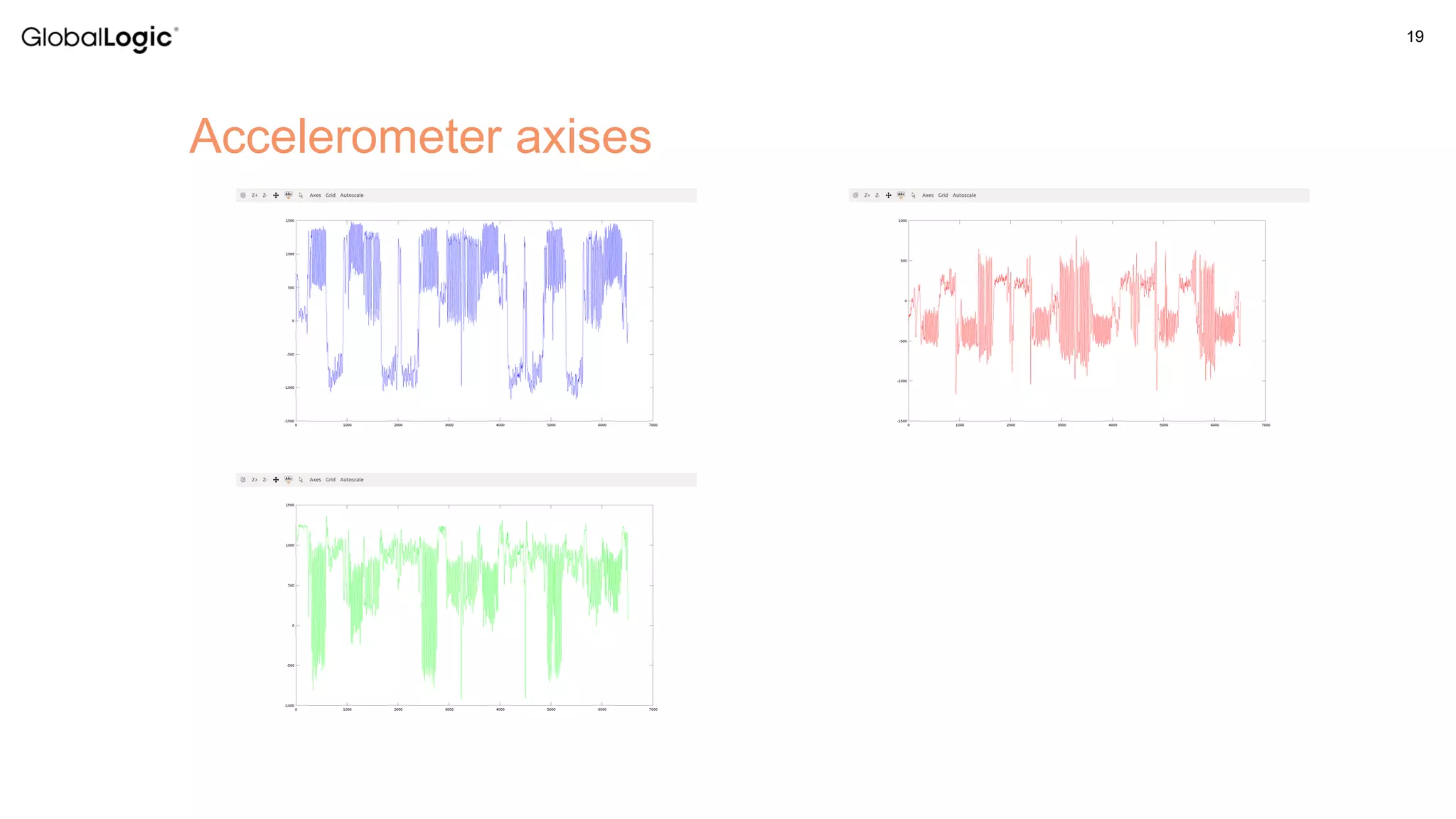

Accelerometer axises

20. 20

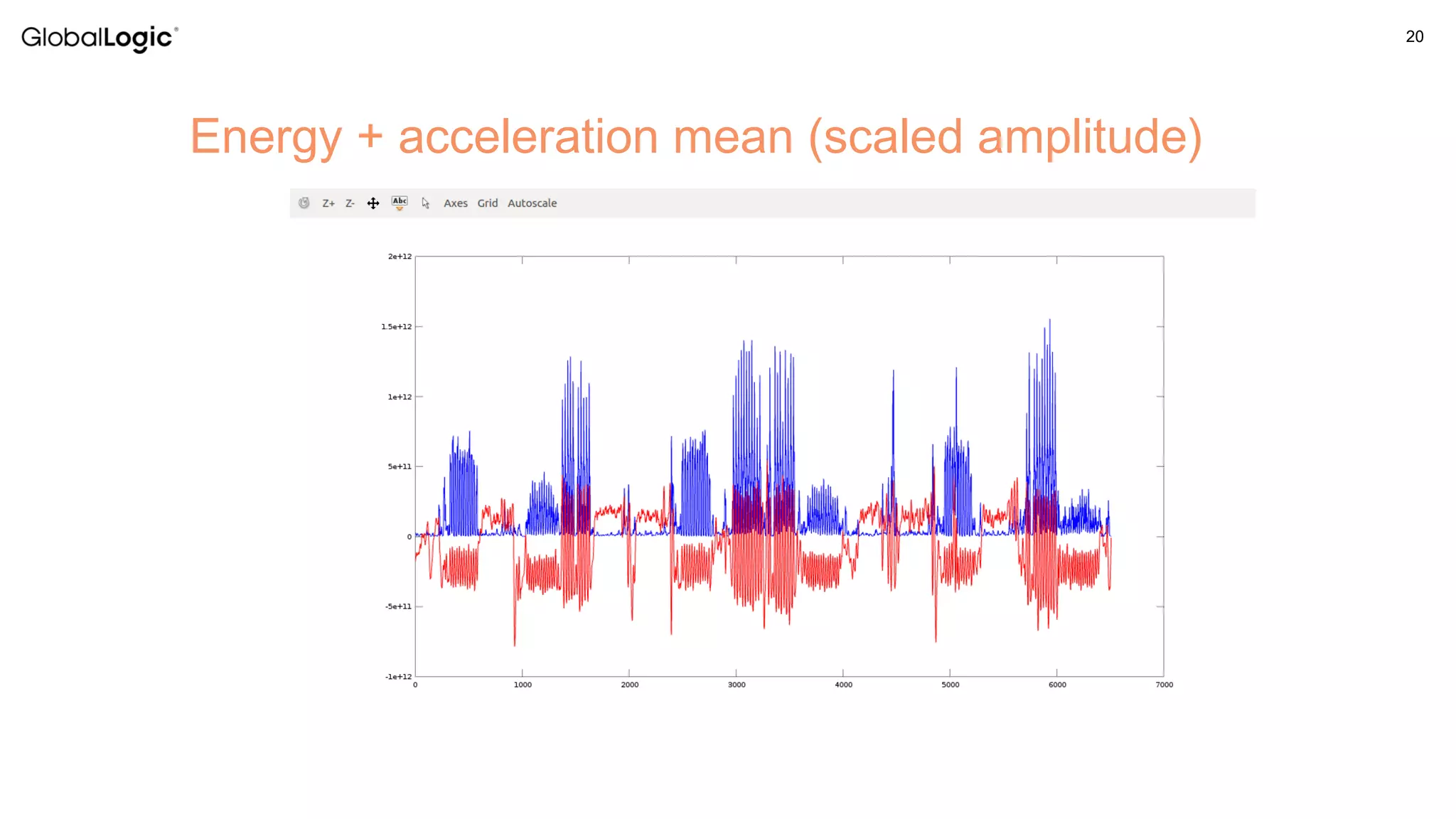

Energy + acceleration mean (scaled amplitude)

21. 21

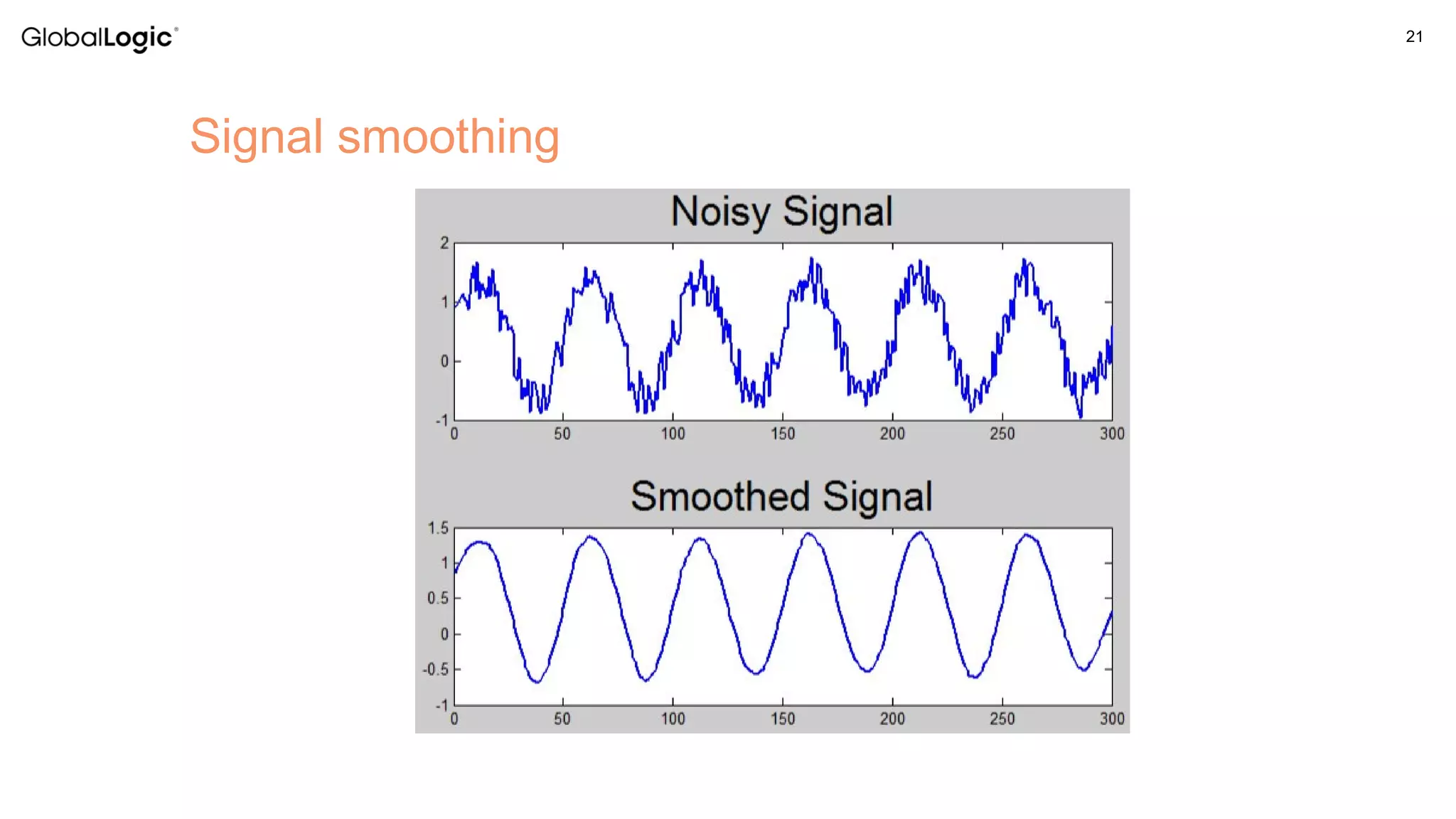

Signal smoothing

22. 22

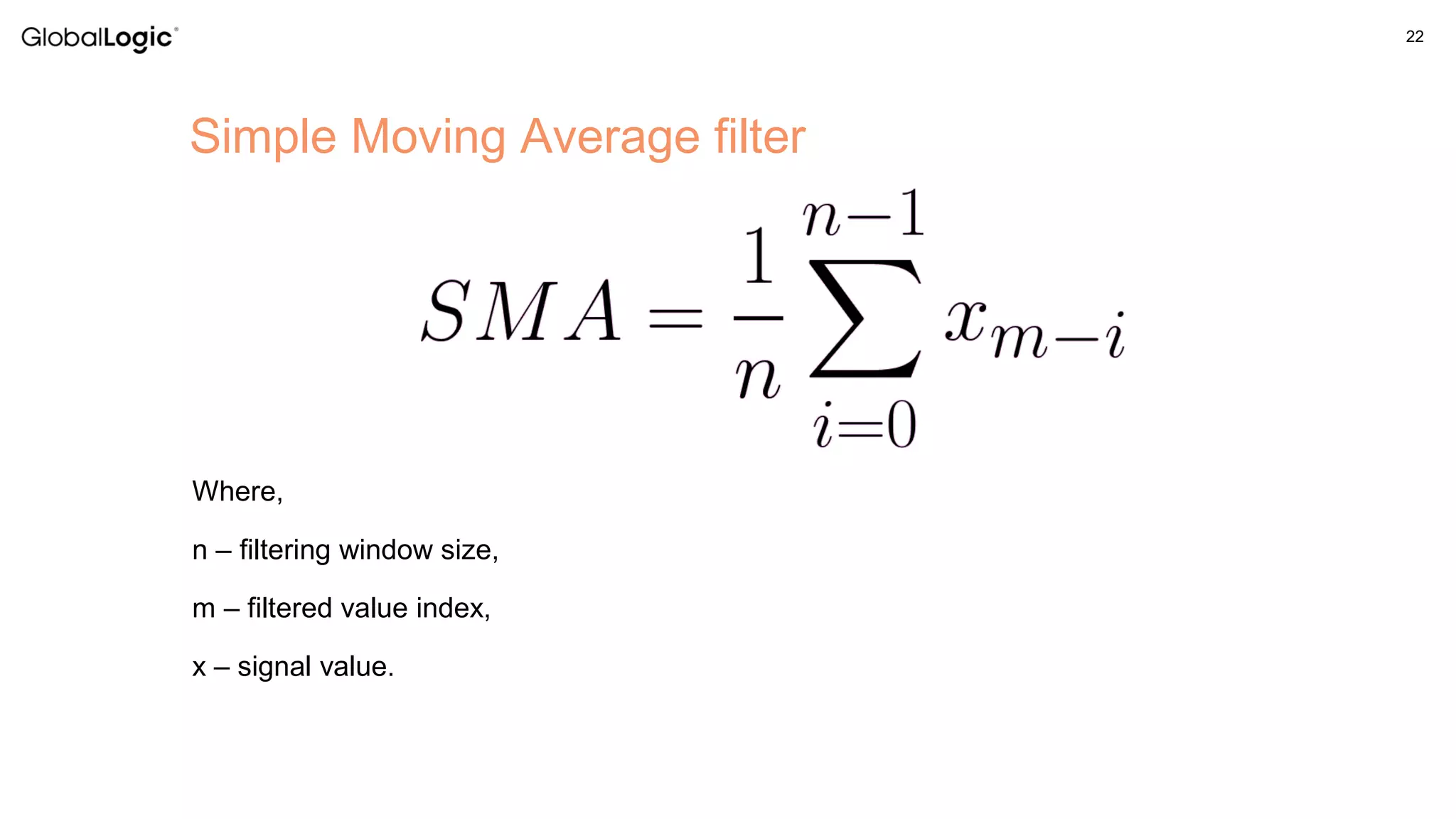

Where,
n – filtering window size,
m – filtered value index,
x – signal value.
Simple Moving Average filter

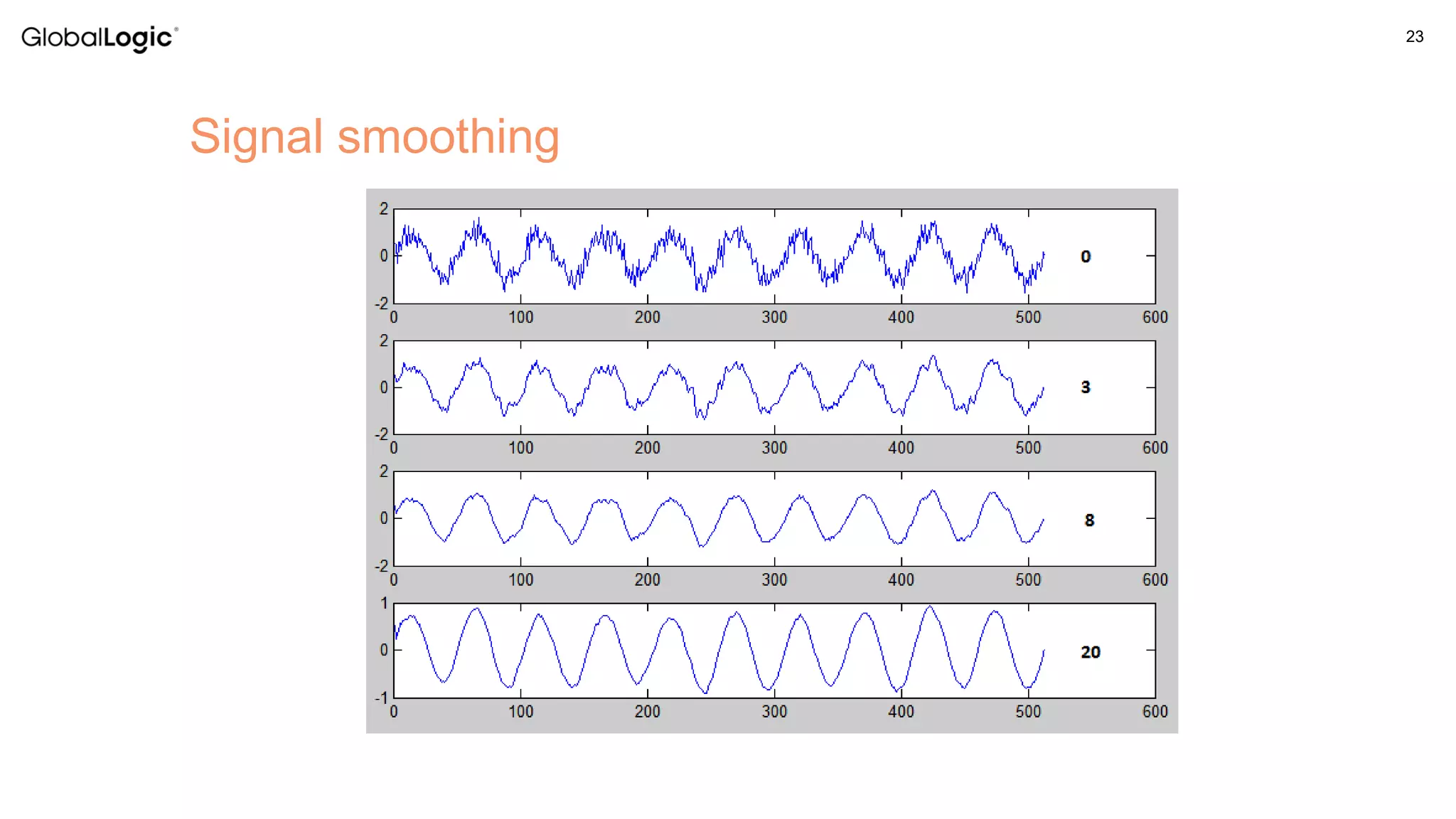

23. 23
Signal smoothing

24. 24

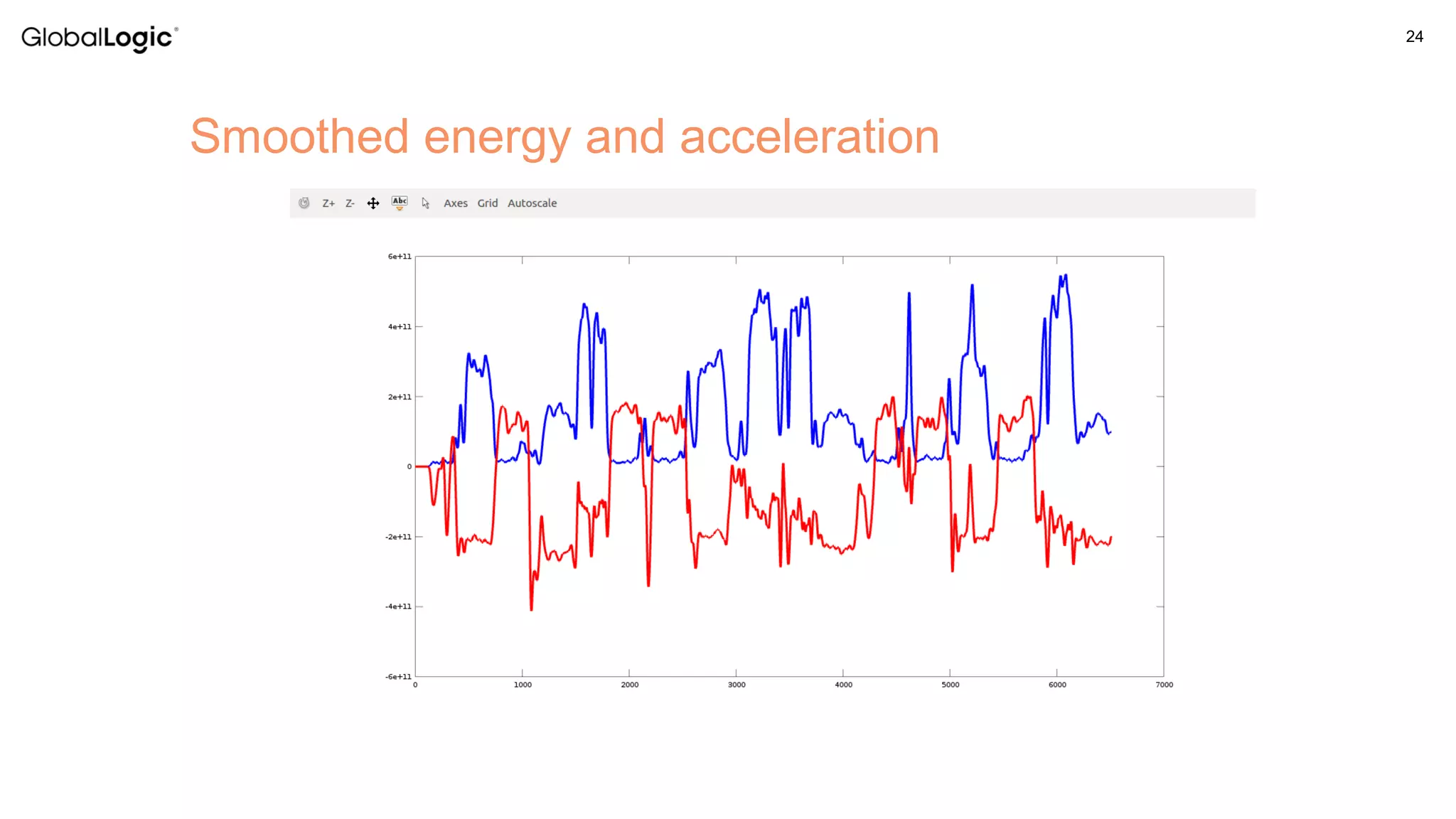

Smoothed energy and acceleration

25. 25

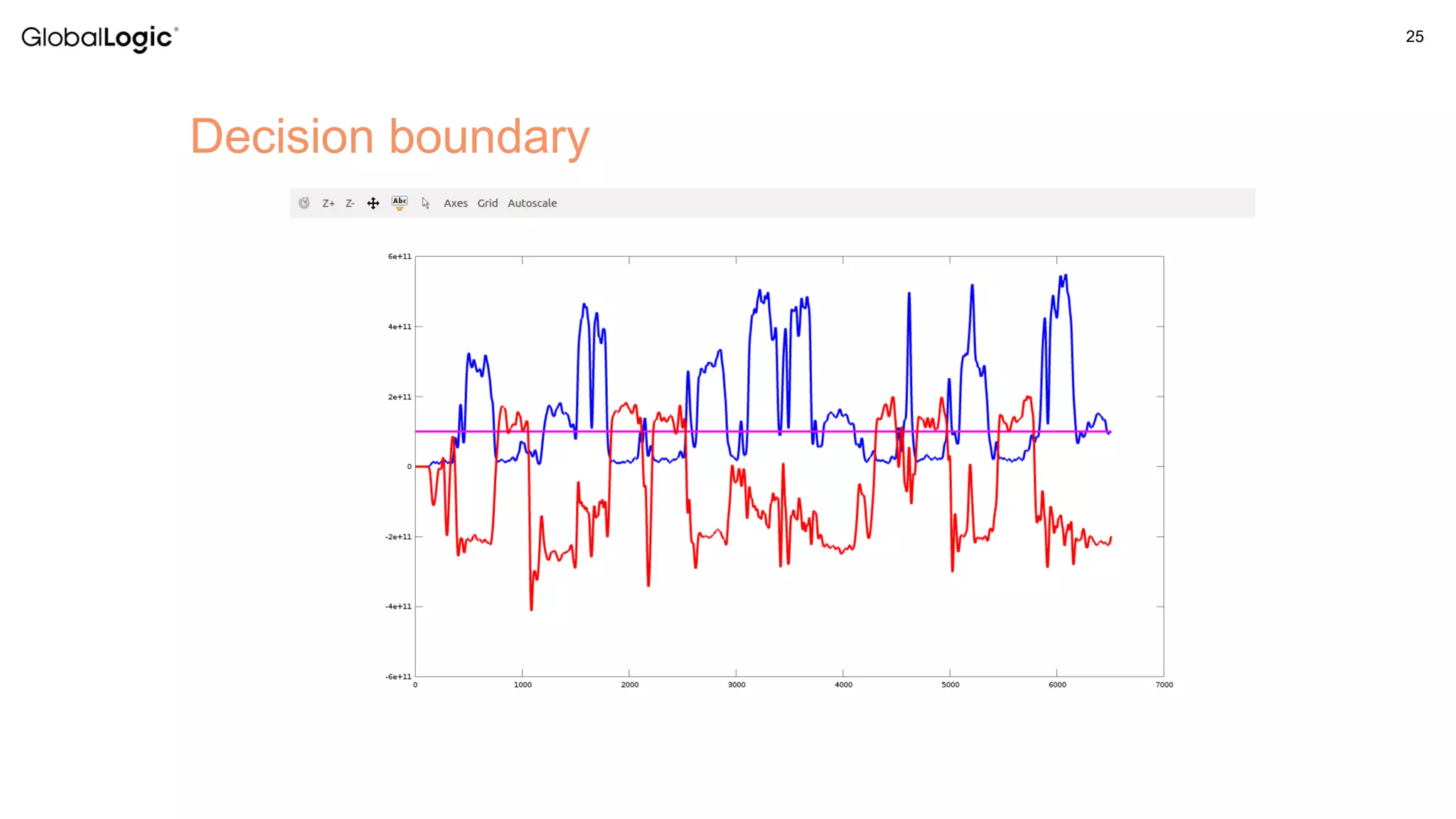

Decision boundary

26. 26

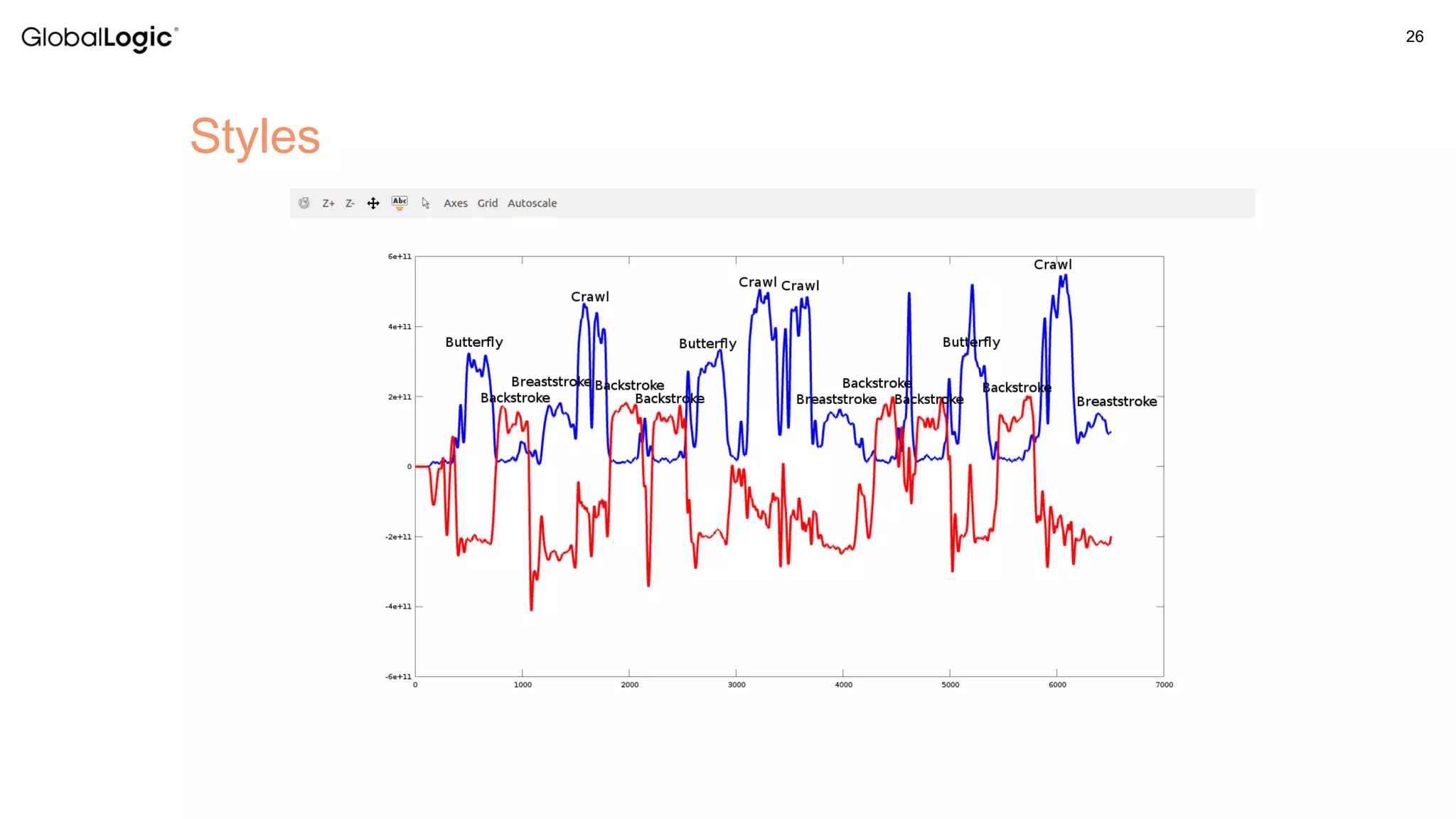

Styles

27. 27

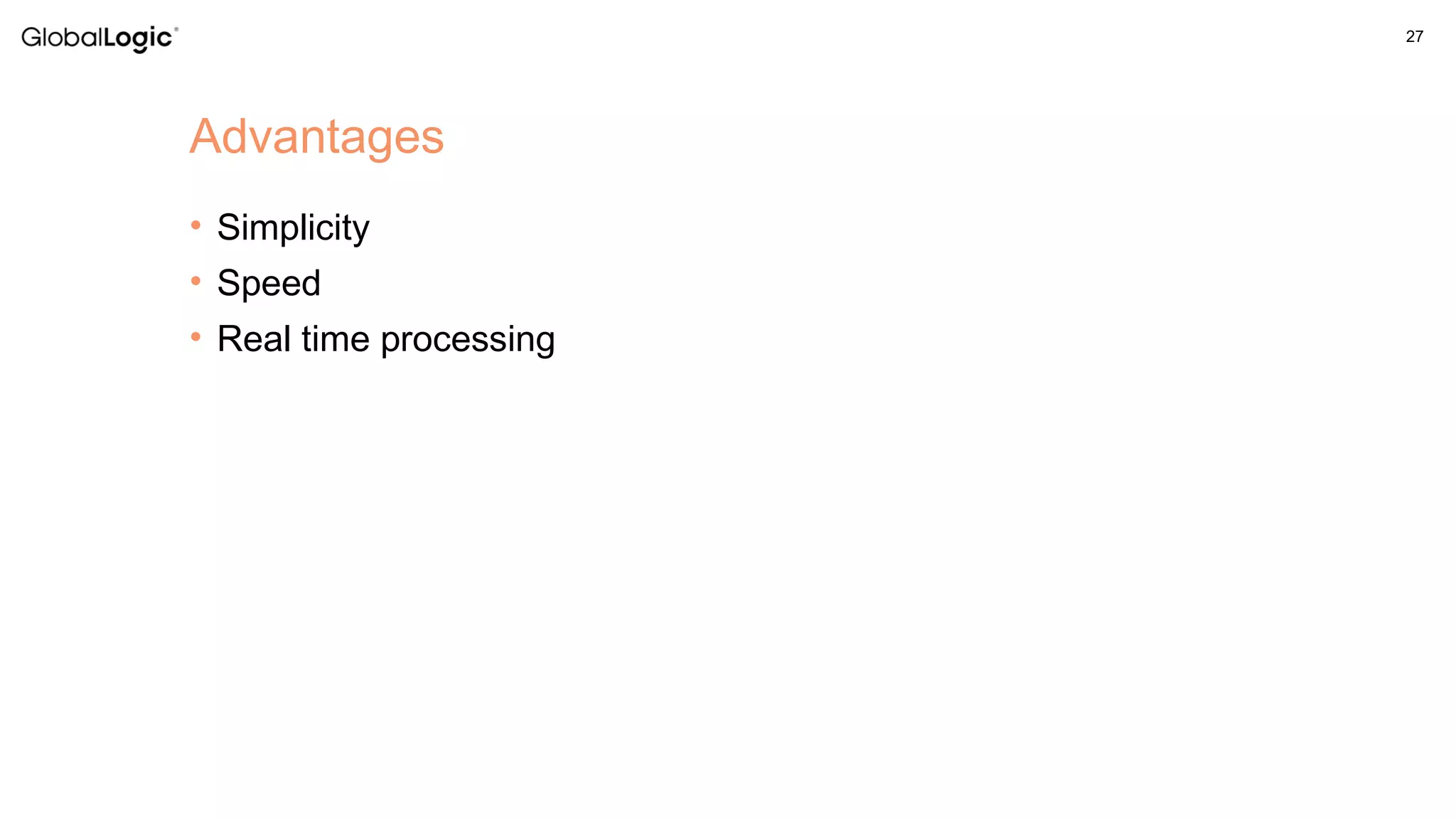

• Simplicity
• Speed
• Real time processing
Advantages

28. 28
• Low accuracy

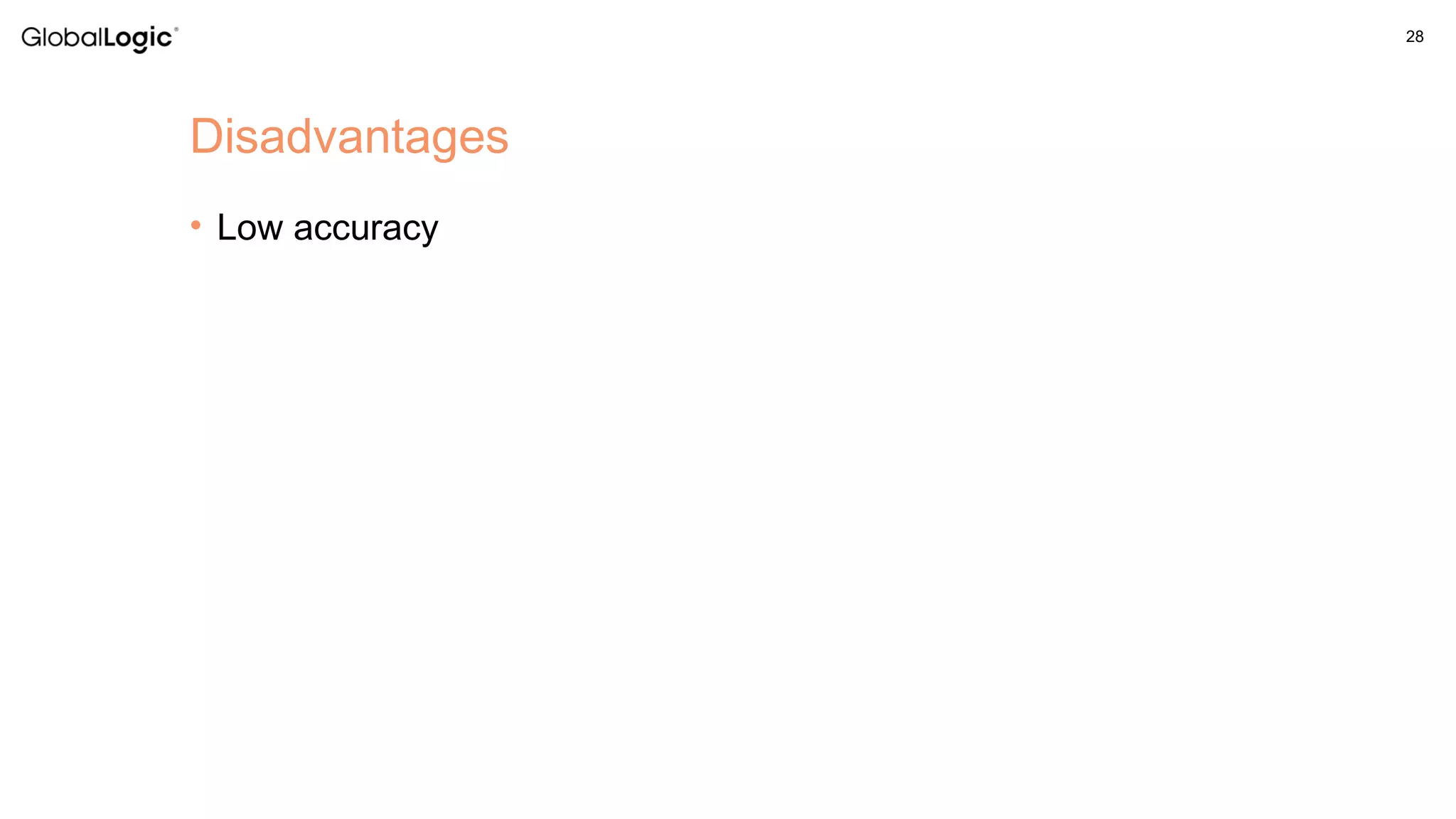

Disadvantages

29. 29
• Sleep tracking
• Brain-Computer interface
• Games
Alternative usage

30. 30
Sleep tracking

31. 31
Brain-Computer interface

32. 32

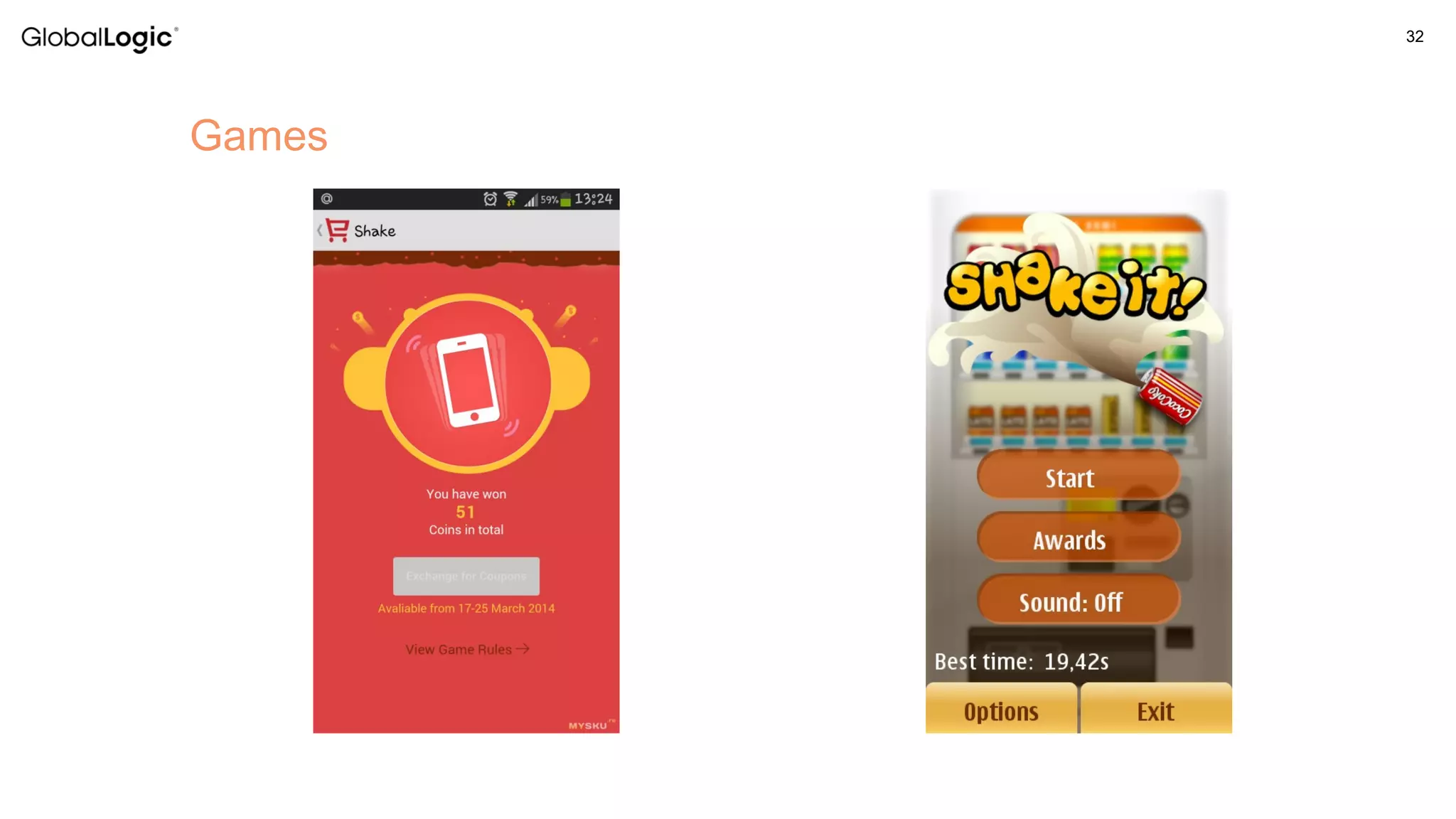

Games

33. 33
Gotchas

34. 34

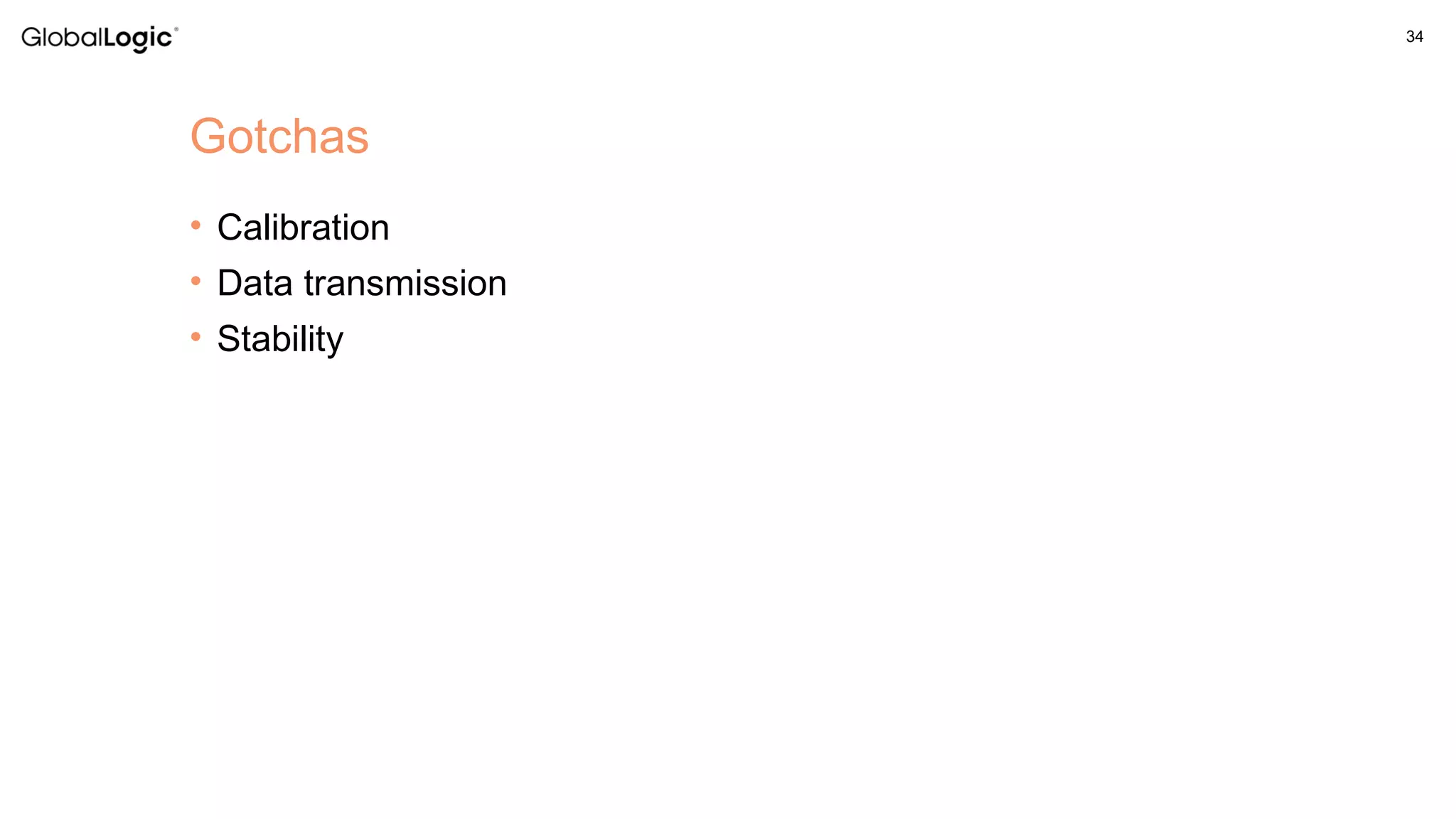

• Calibration
• Data transmission
• Stability
Gotchas

35. 35
Why C++?

36. 36
Summary

37. 37
Thank you
Q/A?
Mykola Shatokhin
Software Engineer
mykola.shatokhin@globallogic.com
