How to configure flexible netflow export on cisco routers
1. How to Configure Flexible NetFlow Export on Cisco Routers?
Cisco’s Flexible NetFlow technology is a powerful but sometimes
complicated way to customize your flow collection. Here are some tips how to
configure Cisco routers for NetFlow export. It can take a little bit of time to
understand and set up, but is well worth the effort.
There are three basic objects that need to be understood in order to make
sense of Flexible NetFlow:
Records
Exporters
Monitors
The terms aren’t necessarily obvious in their meaning. One can think of a
Cisco device as an inspection station, with packets going by from one
interface to another. Inspectors examine the packets and produce reports to
send outside. There may be multiple inspectors, each of whom might send a
couple different reports to a couple different places depending on the kind of
packets they see. In order for them to perform their tasks, a few things need
to be defined:

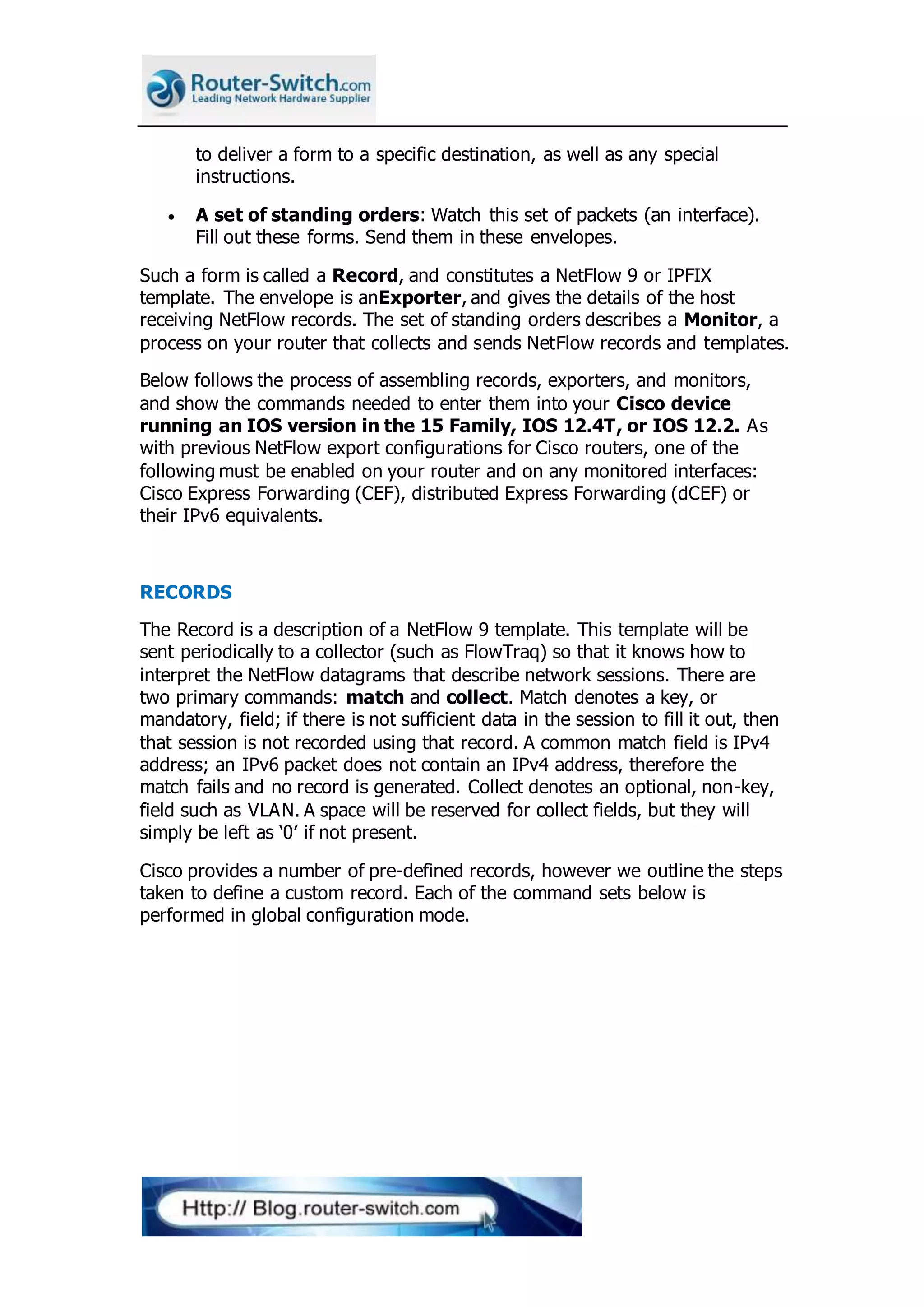

The forms they fill out and send as the reports. The forms will
have required fields and optional fields; if a given packet doesn’t have
the information needed to fill out a required field that form doesn’t get
filled out. The form fields have standardized names so that the end
reader of the form knows exactly how to treat the contents.
An envelope format with standardized address labels to match
to completed forms and send on their way, detailing everything needed
2. to deliver a form to a specific destination, as well as any special
instructions.
A set of standing orders: Watch this set of packets (an interface).
Fill out these forms. Send them in these envelopes.
Such a form is called a Record, and constitutes a NetFlow 9 or IPFIX
template. The envelope is anExporter, and gives the details of the host
receiving NetFlow records. The set of standing orders describes a Monitor, a
process on your router that collects and sends NetFlow records and templates.
Below follows the process of assembling records, exporters, and monitors,
and show the commands needed to enter them into your Cisco device
running an IOS version in the 15 Family, IOS 12.4T, or IOS 12.2. As
with previous NetFlow export configurations for Cisco routers, one of the
following must be enabled on your router and on any monitored interfaces:
Cisco Express Forwarding (CEF), distributed Express Forwarding (dCEF) or
their IPv6 equivalents.
RECORDS
The Record is a description of a NetFlow 9 template. This template will be
sent periodically to a collector (such as FlowTraq) so that it knows how to
interpret the NetFlow datagrams that describe network sessions. There are
two primary commands: match and collect. Match denotes a key, or
mandatory, field; if there is not sufficient data in the session to fill it out, then
that session is not recorded using that record. A common match field is IPv4
address; an IPv6 packet does not contain an IPv4 address, therefore the
match fails and no record is generated. Collect denotes an optional, non-key,
field such as VLAN. A space will be reserved for collect fields, but they will
simply be left as ‘0’ if not present.
Cisco provides a number of pre-defined records, however we outline the steps
taken to define a custom record. Each of the command sets below is
performed in global configuration mode.
3. Many of these items are specific to IPv4. This is due to the length
specifications in the NetFlow datagram: a Record is specifying which data
goes in which field, how long the field is and how to interpret it. IPv6 and
IPv4 addresses, being such different lengths, must be dealt with differently,
which requires separate forms. Internally, this data is broken down according
to a logical tree structure — once a packet is identified as being IPv6, then all
of the IPv4 fields will be blank. The configuration must therefore switch
everything (protocol, masks, etc) to read out of the v6 tree.
4. You may wish to skip this step, and use one of the pre-defined templates (see
the Monitor section below on how to do this), however, you are still required
to define an Exporter.
EXPORTER
The Exporter is a description of a destination for flow records, which is the
collector. At this stage we are not specifying what is being sent, instead we
are just crafting the envelope. This also determines how often to send
templates — 5 minutes in the configuration below, which will reduce
bandwidth overhead slightly, but will result in a delay of 5 minutes after any
reconfiguration. Official recommendations range from templates resends once
a minute to resending twice an hour.
5. MONITOR
The final stage is setting up the Monitor itself. Having already done the heavy
definition work, this bit goes fast, in two parts. First, define the monitor:
Remember that different Records for IPv4 and IPv6 traffic were created; each
needs a separate Monitor:
flow monitor main_monitor_v6
record ipv6_record
exporter my_flow_collector
cache timeout active 30
exit
You may wish to use a pre-defined Flexible NetFlow “NetFlow IPv4/IPv6
original input” template instead, substitute an alternate record command:
record netflow ipv4 original-input
or
6. record netflow ipv6 original-input
Finally, deploy the monitor by selecting the desired interface(s) and attaching
it:
interface InternalNetwork/0
ip flow monitor main_monitor input
exit
interface InternalNetwork/1
ip flow monitor main_monitor input
exit
…
If your network carries both IPv4 and IPv6 traffic, you may need to apply a
monitor to an IPv6 interface as well:
interface InternalNetwork/1
ip flow monitor main_monitor input
ipv6 flow monitor main_monitor_v6 input
exit
In most situations, you will be applying a monitor to each interface. In such a
case, that “input” line will be sufficient — all bases are covered by monitoring
each interface’s Ingress traffic. If you choose not to monitor all interfaces,
you may need to add an output monitor as well so that both Ingress and
Egress traffic are covered:
interface InternalNetwork/1
ip flow monitor main_monitor input
ip flow monitor main_monitor output
exit
FINISHING UP
At this point the Cisco device is configured and exporting NetFlow. Depending
on the configured timeouts, it could take some minutes for session traffic to
start arriving and being processed. If traffic fails to arrive at your collector,
there are a few things check:
First, make sure that your NetFlow collector is listening on the correct port
(UDP 2055 above) and that any firewalls in between (particularly on the host
running the collector) allow the NetFlow packets to pass.
Second, double-check the Exporter configuration and ensure the collector IP
address listed is correct and routable. You can verify the flow of session
records using a packet capture utility such as Wireshark or TCPdump.
7. Third, make sure the configuration includes all the data needed to store full
network session records: typically, collectors require IP addresses, protocol,
port numbers, and byte and packet counts.
Finally, if none of the above troubleshooting methods worked, contact your
vendor’s support.
—
This document applies to multiple versions of Cisco IOS, starting with the IOS
Release 12.2 family. Wherever possible, devices are listed according to the
latest release of IOS supported, organized according to version. This includes
the following more recent versions in particular:
Cisco IOS versions 15.3M and 15.3T, which is run by:
Cisco 800 Series Routers
Cisco 812G, Cisco 812G-CIFI
Cisco 819G
Cisco 819H, Cisco 819HG, Cisco 819HGW, Cisco 819HW
Cisco 861
Cisco 866VAE
Cisco 867VAE
Cisco 881, Cisco 881G, Cisco 881GW, Cisco 881SRST, Cisco
881W, Cisco 881WD, Cisco 881-CUBE
Cisco 886VA, Cisco 886VAG, Cisco 886VAJ,Cisco 886VA-W,
Cisco 886-CUBE
Cisco 887VA, Cisco 887VAG, Cisco 887VAGW, Cisco 887VAMG,
Cisco 887VA-M, Cisco 887VA-W, Cisco 887VA-WD, Cisco
887VAM-W, Cisco 887-CUBE
Cisco 888, Cisco 888E, Cisco 888EA, Cisco 888EG, Cisco
888SRST, Cisco 888-CUBE
(Cisco 888EA is supported in Cisco IOS Release 15.2(2)T and
later releases)
Cisco 891, Cisco 891F, Cisco 891FW-A, Cisco 891FW-E
Cisco 892, Cisco 892FSP, Cisco 892F-CUBE
Cisco 898EA
8. Cisco 1900 Series Integrated Services Routers
Cisco 1905
Cisco 1906C
Cisco 1921
Cisco 1941
Cisco 1941W
Cisco 2900 Series Integrated Services Routers
Cisco 2901
Cisco 2911
Cisco 2921
Cisco 2951
Cisco 3900 Series Integrated Services Routers
Cisco 3925
Cisco 3925E
Cisco 3945
Cisco 3945E
Cisco Connected Grid Router 2000 Series
Cisco Connected Grid Router 2010
Cisco Analog Voice Gateways
Cisco VG202XM
Cisco VG204XM
Cisco High Density Analog Voice Gateways
Cisco VG350 High Density Voice over IP Analog Gateway
Cisco IOS Version 15.3S, which is run by:
Cisco 7600 series routers
Cisco 7603-S
9. Cisco 7604
Cisco 7606
Cisco 7606-S
Cisco 7609
Cisco 7609-S
Cisco 7613
Cisco ASR 901 router
Cisco ASR 901 10G router
Cisco ME 3600X switch
Cisco ME 3600X-24CX switch
Cisco ME 3800X switch
Cisco RSP720-10GE
Cisco Supervisor Engine 32, Supervisor Engine 720, Route
Switch Processor 720
Cisco IOS Version 15.2S, which is run by:
Cisco ME 3600X switch (IOS Release 15.2(2)S)
Cisco ME 3600X 24CX (IOS Release 15.2(2)S1)
Cisco ME 3800X switch (IOS Release 15.2(2)S)
Cisco RSP720-10GE
Cisco Supervisor Engine 32, Supervisor Engine 720, Route Switch
Processor 720
Cisco 7200 router (supported in Cisco IOS Release 15.2(4)S)
Cisco 7301 router (supported in Cisco IOS Release 15.2(4)S)
Devices running Cisco IOS Version 15.2 M&T
Devices running Cisco IOS version 15.1S
Devices running Cisco IOS Version 15.0M
Devices running Cisco IOS Version 15.0S
10. Cisco Catalyst 6500 Switches running Supervisor Engine 2T or Supervisor
Engine 720
Devices running Cisco IOS Version 12.4T
Reference Guide from
http://www.flowtraq.com/corporate/blog/tech-thoughts/configuring-flexible-
netflow-export-cisco-routers/
More about Networking and Cisco Hardware & Network you can read here…
http://blog.router-switch.com/
