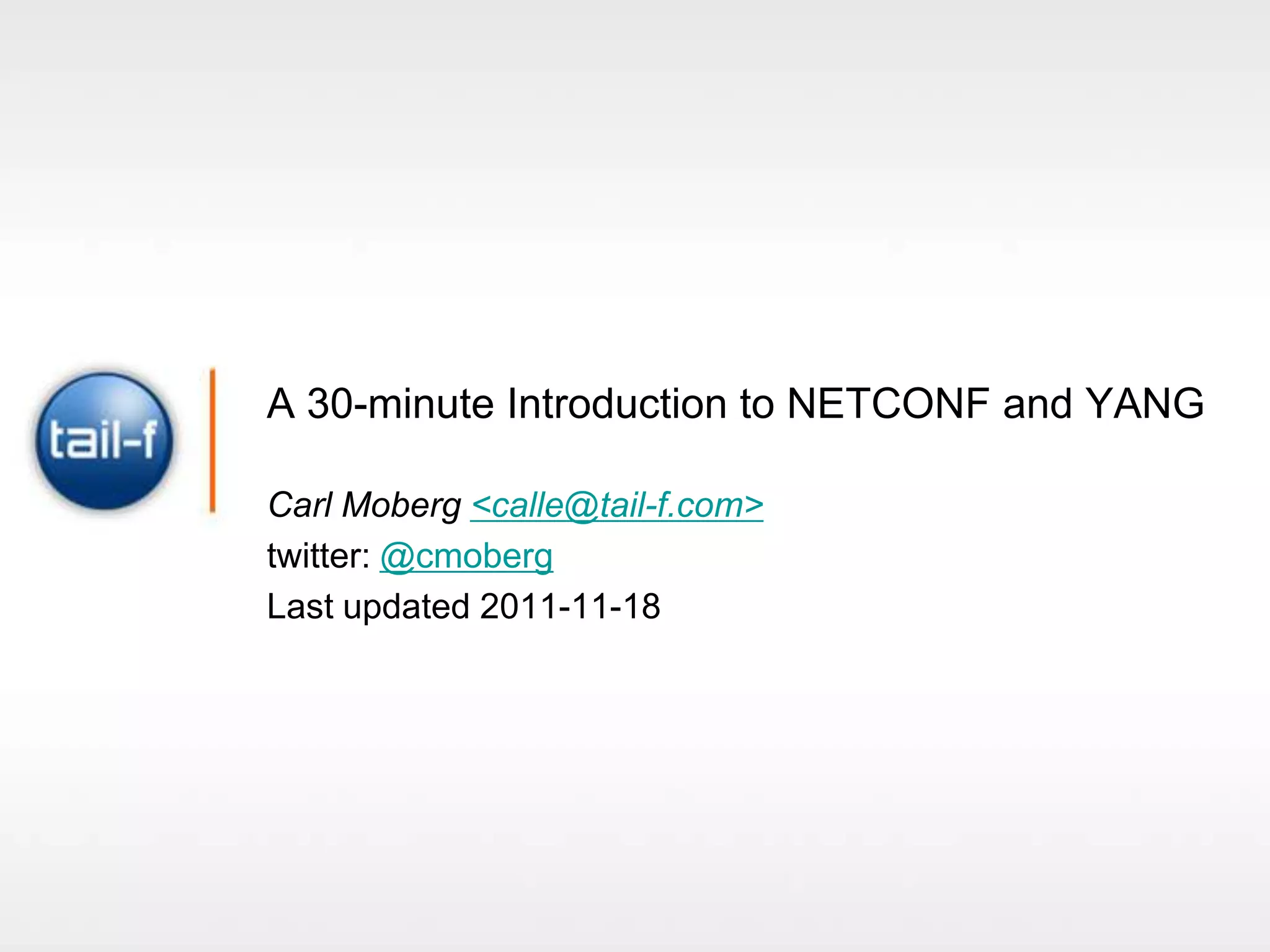

A 30-minute Introduction to NETCONF and YANG

Carl Moberg <calle@tail-f.com>
twitter: @cmoberg
Last updated 2011-11-18

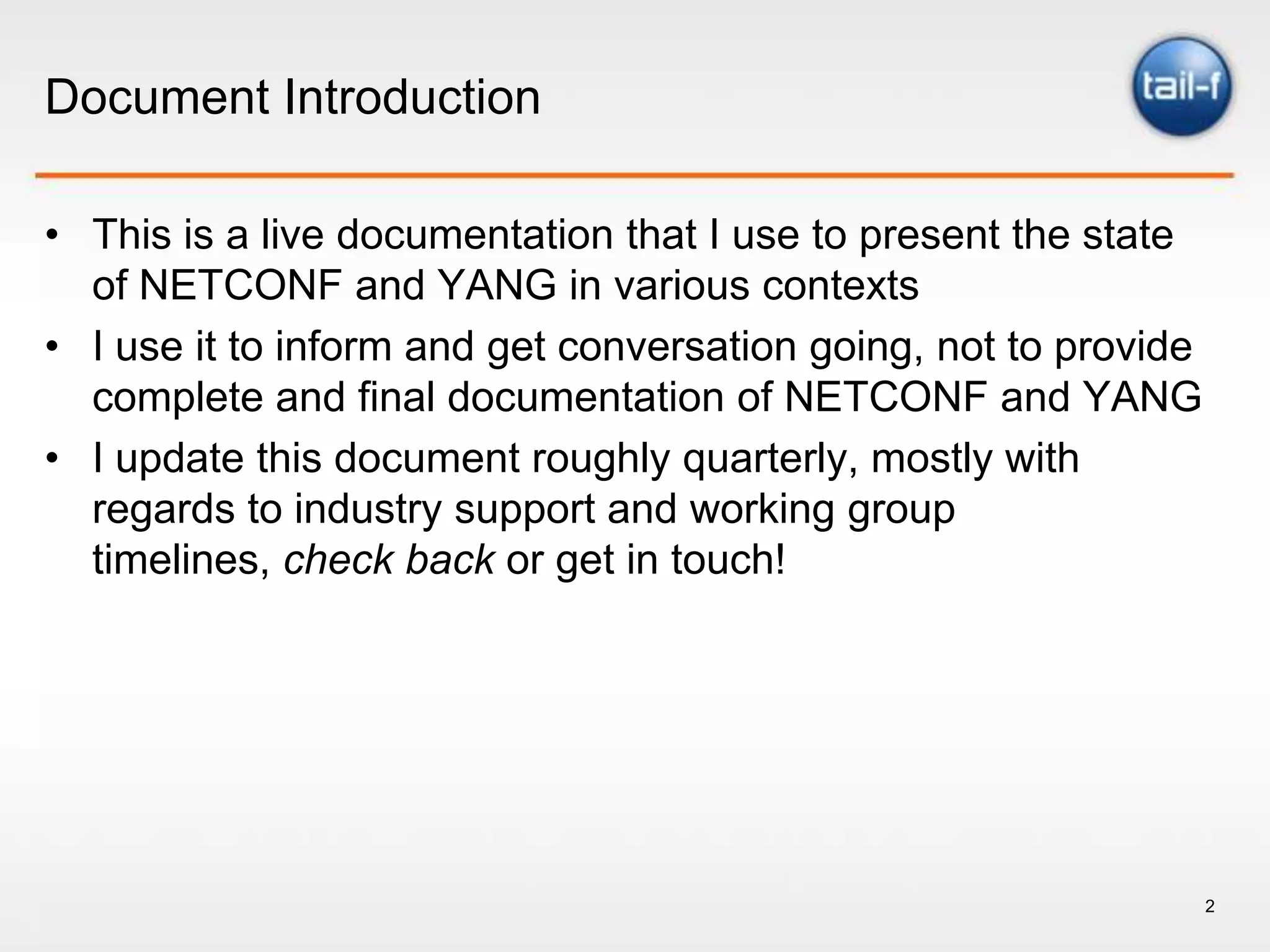

Document Introduction

• This is a live documentation that I use to present the state
  of NETCONF and YANG in various contexts
• I use it to inform and get conversation going, not to provide
  complete and final documentation of NETCONF and YANG
• I update this document roughly quarterly, mostly with
  regards to industry support and working group
  timelines, check back or get in touch!




                                                                  2
Some Background

• NETCONF is an IETF configuration management protocol
  and YANG is its data modeling language
• In response to SNMP/SMI shortcomings for managing
  configuration e.g.:
   – Lack of support for simple things like backup-and-restore of element
     configuration
   – No concept of transactions (single- or multibox)
   – Many inherent limitations in SMI (e.g. label length)
• Lots of background text in RFC 3535 Overview of the 2002
  IAB Network Management Workshop



                                                                        3
NETCONF and YANG Brief Timeline


NETCONF                       YANG
• 2001                        • 2007
  IETF Meeting with poll of     YANG design team proposal
  SNMP SET usage
                              • Apr 2008
• June 2002
                                NETMOD WG established
  IAB Network Mgmt Workshop
                              • Oct 2010
• May 2003
                                YANG RFC 6020 published
  NETCONF WG established
• Dec 2006
  NETCONF core RFCs
  published



                                                            4
So What is NETCONF?

• NETCONF is an IETF network management protocol
  designed to support management of
  configuration, including:
  –   Distinction between configuration and state data
  –   Multiple configuration data stores (candidate, running, startup)
  –   Configuration change validations
  –   Configuration change transactions
  –   Selective data retrieval with filtering
  –   Streaming and playback of event notifications
  –   Extensible remote procedure call mechanism




                                                                         5
Ok, So What is YANG

• YANG is a data modeling language designed to write data
  models for the NETCONF protocol. It provides the following
  features:
   –   Human readable, and easy to learn representation
   –   Hierarchical configuration data models
   –   Reusable types and groupings (structured types)
   –   Extensibility through augmentation mechanisms
   –   Supports definition of operations (RPCs)
   –   Formal constraints for configuration validation
   –   Data modularity through modules and sub-modules
   –   Well defined versioning rules



                                                               6
NETCONF Layering Model


         Layer                NETCONF

        Content            Configuration Data


       Operations   <get> <get-config>   <notification>


                         <rpc>
          RPC
                      <rpc-reply>

        Transport
                         SSH, SSL, BEEP, etc
        Protocol


                                                          7
Basic NETCONF Operations

• Get configuration <get-config>
   – Retrieve all or part of a specified configuration from a named data store
• Get all information <get>
   – Retrieve running configuration and device state information
• Edit configuration <edit-config>
   – Loads all or part of a specified configuration to the specified target
     configuration
• Copy configuration <copy-config>
   – Create or replace an entire configuration datastore with the contents of
     another complete configuration datastore.
• Delete configuration <delete-config>
   – Delete a configuration datastore (not applicable to running)
• Lock and unlock <lock>, <unlock>
   – Short-lived lock and unlock of the configuration system of a device
• Close and kill session <close-session>, <kill-session>
   – Graceful (close) or forced (kill) termination of a NETCONF session
                                                                                8
YANG Feature Highlights

• YANG definitions directly map to NETCONF (XML) content
• YANG uses a compact C and Java-like syntax with
  readability is highest priority
• Data type system leverages work done for next-generation
  SNMP type system accommodating XML and XSD
  requirements
• YANG can be formally translated to DSDL
  (RelaxNG, Schematron and DSRL) as described in RFC
  6110
• There is also an informal translation to W3C XML Schema
  in the pyang tool

                                                             9
YANG Feature Highlights (cont’d)

• Organization
   – Leaf, leaf-list, container, lists, grouping, choice
• Data model structure
   – Module, submodule, augment, if-feature, when
• Constraints
   – Must, unique, min-elements, max-elements, mandatory
• Data types
   – Many built-in types, sub-typing, restrictions
• Reusable groupings
   – Grouping, uses



                                                           10
YANG Example

module acme-system {
    namespace "http://acme.example.com/system";
    prefix "acme”;

   organization "ACME Inc.”;
   contact "joe@acme.example.com";

   description
       "The module for entities implementing the ACME
        system.”;
   revision 2007-11-05 {
       description "Initial revision.”;
   }

   container system {
       leaf host-name {
           type string;
           description "Hostname for this system”;
       }

                                                        11
YANG Example (cont’d)


        list interface {
            key "name";
            description "List of interfaces in the system”;
            leaf name {
                type string;
            }
            leaf type {
                type string;
            }
            leaf mtu {
                type int32;
            }
        }
    }
}



                                                              12
Known NETCONF Vendor Implementations

  – Alaxala                                  – Juniper Networks
      • Ethernet switches                           • JUNOS 7.5 and later
  – BATM/Telco Systems                       – Nexor
      • T-Metro 7224                                • Messaging Gateways
  – BigBand                                  – RuggedCom
      • MSP2800                                     • RX5000 and MX5000
  – Brocade                                  – Sonus
      • NetIron XMR, CES, and CER                   • NBS5200 Session Border Controller
      • MLX Series                           – Taseon
      • VDX (Announced, not released)               • TN 320
  – Cisco                                    – Verivue
      • IOS 12.4(9)T and later                      • MDX 9020
      • IOS XE 2.1 and later
  – Edgeware
      • WTV-2X
  – Ericsson
      • SEA 20                           Entries in italics is new in this version of the
  – H3C                                  presentation
      • S9500E Series Routing Switches
                                         Please Note that this list is work in
  – Huawei
      • AR3200/2200 Enterprise Routers
                                         progress and feedback on accuracy and
                                         completeness is strongly encouraged
                                                                                            13
Available NETCONF Implementations

Commercial Products                 Open Source Projects
  – Applied Informatics
     • POCO NETCONF (server)           – Ncclient (client)
  – Centered Logic                     – NetconfX (client)
     • NetconfX (client)
                                       – Netconf4Android
  – Oracle/GoAhead
     • NETCONF MindAgent (server)        (client)
  – SNMP Research                      – netconf4j (client)
     • EPIC NETCONF (server)
                                       – netopeer (client/server)
  – Tail-f Systems
     • ConfD (server)                  – YencaP (client/server)
     • NCS (client)
                                       – Yuma (client/server)
  – Velankani
     • NOCVue ConfigMan
                                    Please Note that this list is work in
  – WebNMS
                                    progress and feedback on accuracy and
     • WebNMS Framework (client)    completeness is strongly encouraged
                                                                            14
Available YANG Implementations

• Commercial Products       • Open Source Projects
  –   MG Soft Corporation      –   jYang
  –   Oracle/GoAhead           –   libsmi
  –   SNMP Research            –   Pyang
  –   Tail-f Systems           –   yang-mode for Emacs
                               –   Yuma




                            Please Note that this list is work in
                            progress and feedback on accuracy and
                            completeness is strongly encouraged
                                                                    15
Standards Organizations Activities

• IETF

                                               – YANG models for Service
  – NETCONF working group                        OAM PM and FM
    focusing on:                               – To be published
      • Access Control
      • System Notifications
  – NETMOD (YANG) working
    group currently focusing on:               – YANG module for CCAP: next
      • Interfaces, routing and system           generation cable head-end systems
        data modules                           – Part of the Converged Cable
      • SMIv2-to-YANG translation                Access Platform Support
  – Always updated:                              System Interface Specification
      • http://tools.ietf.org/wg/netconf/
      • http://tools.ietf.org/wg/netconf/


                                            Please Note that this list is work in
                                            progress and feedback on accuracy and
                                            completeness is strongly encouraged
                                                                                    16
Further Reading

• IETF NETMOD and NETCONF WG pages:
   – http://trac.tools.ietf.org/wg/netconf/trac/wiki
   – http://trac.tools.ietf.org/wg/netmod/trac/wiki
• NETCONF Central
   – http://www.netconfcentral.org/
• YANG Central
   – http://www.yang-central.org/twiki/bin/view/Main/WebHome
• Instant YANG – an Introduction
   – http://www.tail-f.com/instant-yang-primer
• The NETCONF and YANG Users LinkedIn Group
   – http://www.linkedin.com/groups/NETCONF-YANG-Users-3301774


                                                                 17
18
Backup Slides




                19
Why not use XSD?

• XSD defines the syntax of XML instance documents,
• YANG defines the semantics of a configuration data model
  and the syntax of XML

• For more in-depth reading:
   – Why we need a NETCONF-Specific Modeling Language (draft-
     lengyel-why-yang-00.txt)
   – Comparing Approaches to NETCONF Modeling (CANMOD) BOF
     (http://tools.ietf.org/agenda/71/canmod.html)




                                                                20
A Layered Comparison

                  SNMP   NETCONF   SOAP
Data models       MIBs   Modules

Data Modeling     SMI     YANG
Language
Management        SNMP   NETCONF
Operations
RPC Protocol      BER      XML     XML

Transport Stack   UDP      SSH      SSL
                          BEEP     HTTP
                          SOAP     TCP
                           TLS


                                          21

More Related Content

What's hot

Intel dpdk Tutorial
Intel dpdk TutorialIntel dpdk Tutorial
Intel dpdk Tutorial
Saifuddin Kaijar

OpenFlow Switch Management using NETCONF and YANG
OpenFlow Switch Management using NETCONF and YANGOpenFlow Switch Management using NETCONF and YANG
OpenFlow Switch Management using NETCONF and YANG
Tail-f Systems

Module 6: YANG Tutorial - part 2
Module 6: YANG Tutorial - part 2Module 6: YANG Tutorial - part 2
Module 6: YANG Tutorial - part 2
Tail-f Systems

Learning netconf yang from scratch
Learning netconf yang from scratchLearning netconf yang from scratch
Learning netconf yang from scratch
Telematika Open Session

LinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking WalkthroughLinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking Walkthrough
Thomas Graf

Vxlan deep dive session rev0.5 final
Vxlan deep dive session rev0.5   finalVxlan deep dive session rev0.5   final
Vxlan deep dive session rev0.5 final
KwonSun Bae

Demystifying Networking Webinar Series- Routing on the Host
Demystifying Networking Webinar Series- Routing on the HostDemystifying Networking Webinar Series- Routing on the Host
Demystifying Networking Webinar Series- Routing on the Host
Cumulus Networks

Building Open Source Identity Management with FreeIPA
Building Open Source Identity Management with FreeIPABuilding Open Source Identity Management with FreeIPA
Building Open Source Identity Management with FreeIPA
LDAPCon

NSO: Network Service Orchestrator enabled by Tail-f Hands-on Lab
NSO: Network Service Orchestrator enabled by Tail-f Hands-on LabNSO: Network Service Orchestrator enabled by Tail-f Hands-on Lab
NSO: Network Service Orchestrator enabled by Tail-f Hands-on Lab
Cisco Canada

NFV : Virtual Network Function Architecture
NFV : Virtual Network Function ArchitectureNFV : Virtual Network Function Architecture
NFV : Virtual Network Function Architecture
sidneel

Arista Networks - Building the Next Generation Workplace and Data Center Usin...
Arista Networks - Building the Next Generation Workplace and Data Center Usin...Arista Networks - Building the Next Generation Workplace and Data Center Usin...
Arista Networks - Building the Next Generation Workplace and Data Center Usin...
Aruba, a Hewlett Packard Enterprise company

66 pfsense tutorial
66 pfsense tutorial66 pfsense tutorial
66 pfsense tutorial
equinonesr

LF_DPDK17_Accelerating NFV with VMware's Enhanced Network Stack (ENS) and Int...
LF_DPDK17_Accelerating NFV with VMware's Enhanced Network Stack (ENS) and Int...LF_DPDK17_Accelerating NFV with VMware's Enhanced Network Stack (ENS) and Int...
LF_DPDK17_Accelerating NFV with VMware's Enhanced Network Stack (ENS) and Int...
LF_DPDK

Fun with Network Interfaces
Fun with Network InterfacesFun with Network Interfaces
Fun with Network Interfaces
Kernel TLV

Kubernetes networking: Introduction to overlay networks, communication models...
Kubernetes networking: Introduction to overlay networks, communication models...Kubernetes networking: Introduction to overlay networks, communication models...
Kubernetes networking: Introduction to overlay networks, communication models...
Murat Mukhtarov

netconf, restconf, grpc_basic
netconf, restconf, grpc_basicnetconf, restconf, grpc_basic
netconf, restconf, grpc_basic
Gyewan An

Using Netconf/Yang with OpenDalight
Using Netconf/Yang with OpenDalightUsing Netconf/Yang with OpenDalight
Using Netconf/Yang with OpenDalight
Глеб Хохлов

How to Prepare for CKA Exam
How to Prepare for CKA ExamHow to Prepare for CKA Exam
How to Prepare for CKA Exam
Alfie Chen

How VXLAN works on Linux
How VXLAN works on LinuxHow VXLAN works on Linux
How VXLAN works on Linux
Etsuji Nakai

Introduction to DPDK
Introduction to DPDKIntroduction to DPDK
Introduction to DPDK
Kernel TLV


What's hot (20)

Intel dpdk Tutorial
Intel dpdk TutorialIntel dpdk Tutorial
Intel dpdk Tutorial

OpenFlow Switch Management using NETCONF and YANG
OpenFlow Switch Management using NETCONF and YANGOpenFlow Switch Management using NETCONF and YANG
OpenFlow Switch Management using NETCONF and YANG

Module 6: YANG Tutorial - part 2
Module 6: YANG Tutorial - part 2Module 6: YANG Tutorial - part 2
Module 6: YANG Tutorial - part 2

Learning netconf yang from scratch
Learning netconf yang from scratchLearning netconf yang from scratch
Learning netconf yang from scratch

LinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking WalkthroughLinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking Walkthrough

Vxlan deep dive session rev0.5 final
Vxlan deep dive session rev0.5   finalVxlan deep dive session rev0.5   final
Vxlan deep dive session rev0.5 final

Demystifying Networking Webinar Series- Routing on the Host
Demystifying Networking Webinar Series- Routing on the HostDemystifying Networking Webinar Series- Routing on the Host
Demystifying Networking Webinar Series- Routing on the Host

Building Open Source Identity Management with FreeIPA
Building Open Source Identity Management with FreeIPABuilding Open Source Identity Management with FreeIPA
Building Open Source Identity Management with FreeIPA

NSO: Network Service Orchestrator enabled by Tail-f Hands-on Lab
NSO: Network Service Orchestrator enabled by Tail-f Hands-on LabNSO: Network Service Orchestrator enabled by Tail-f Hands-on Lab
NSO: Network Service Orchestrator enabled by Tail-f Hands-on Lab

NFV : Virtual Network Function Architecture
NFV : Virtual Network Function ArchitectureNFV : Virtual Network Function Architecture
NFV : Virtual Network Function Architecture

Arista Networks - Building the Next Generation Workplace and Data Center Usin...
Arista Networks - Building the Next Generation Workplace and Data Center Usin...Arista Networks - Building the Next Generation Workplace and Data Center Usin...
Arista Networks - Building the Next Generation Workplace and Data Center Usin...

66 pfsense tutorial
66 pfsense tutorial66 pfsense tutorial
66 pfsense tutorial

LF_DPDK17_Accelerating NFV with VMware's Enhanced Network Stack (ENS) and Int...
LF_DPDK17_Accelerating NFV with VMware's Enhanced Network Stack (ENS) and Int...LF_DPDK17_Accelerating NFV with VMware's Enhanced Network Stack (ENS) and Int...
LF_DPDK17_Accelerating NFV with VMware's Enhanced Network Stack (ENS) and Int...

Fun with Network Interfaces
Fun with Network InterfacesFun with Network Interfaces
Fun with Network Interfaces

Kubernetes networking: Introduction to overlay networks, communication models...
Kubernetes networking: Introduction to overlay networks, communication models...Kubernetes networking: Introduction to overlay networks, communication models...
Kubernetes networking: Introduction to overlay networks, communication models...

netconf, restconf, grpc_basic
netconf, restconf, grpc_basicnetconf, restconf, grpc_basic
netconf, restconf, grpc_basic

Using Netconf/Yang with OpenDalight
Using Netconf/Yang with OpenDalightUsing Netconf/Yang with OpenDalight
Using Netconf/Yang with OpenDalight

How to Prepare for CKA Exam
How to Prepare for CKA ExamHow to Prepare for CKA Exam
How to Prepare for CKA Exam

How VXLAN works on Linux
How VXLAN works on LinuxHow VXLAN works on Linux
How VXLAN works on Linux

Introduction to DPDK
Introduction to DPDKIntroduction to DPDK
Introduction to DPDK


Similar to A 30-minute Introduction to NETCONF and YANG

Tail-f Webinar OpenFlow Switch Management Using NETCONF and YANG
Tail-f Webinar OpenFlow Switch Management Using NETCONF and YANGTail-f Webinar OpenFlow Switch Management Using NETCONF and YANG
Tail-f Webinar OpenFlow Switch Management Using NETCONF and YANG
Tail-f Systems

SDN and metrics from the SDOs
SDN and metrics from the SDOsSDN and metrics from the SDOs
SDN and metrics from the SDOs
Open Networking Summit

Data models-and-automation-jp
Data models-and-automation-jpData models-and-automation-jp
Data models-and-automation-jp
Miya Kohno

5G core use cases in CORE NetworkSBI.pptx
5G core use cases in CORE NetworkSBI.pptx5G core use cases in CORE NetworkSBI.pptx
5G core use cases in CORE NetworkSBI.pptx
lakshmianthony80

OpenStack Infrastructure at any Scale - Simple is BEST!? - - OpenStack最新情報セミ...
OpenStack Infrastructure at any Scale - Simple is BEST!? -  - OpenStack最新情報セミ...OpenStack Infrastructure at any Scale - Simple is BEST!? -  - OpenStack最新情報セミ...
OpenStack Infrastructure at any Scale - Simple is BEST!? - - OpenStack最新情報セミ...
VirtualTech Japan Inc.

DEVNET-1152 OpenDaylight YANG Model Overview and Tools
DEVNET-1152	OpenDaylight YANG Model Overview and ToolsDEVNET-1152	OpenDaylight YANG Model Overview and Tools
DEVNET-1152 OpenDaylight YANG Model Overview and Tools
Cisco DevNet

PLNOG14: Service orchestration in provider network, Tail-f - Przemysław Borek
PLNOG14: Service orchestration in provider network, Tail-f - Przemysław BorekPLNOG14: Service orchestration in provider network, Tail-f - Przemysław Borek
PLNOG14: Service orchestration in provider network, Tail-f - Przemysław Borek
PROIDEA

SDN/NFV: Service Chaining
SDN/NFV: Service Chaining SDN/NFV: Service Chaining
SDN/NFV: Service Chaining
Odinot Stanislas

The hague rina-workshop-intro-eduard
The hague rina-workshop-intro-eduardThe hague rina-workshop-intro-eduard
The hague rina-workshop-intro-eduard
ICT PRISTINE

MINA2 (Apache Netty)
MINA2 (Apache Netty)MINA2 (Apache Netty)
MINA2 (Apache Netty)
ducquoc_vn

YANG (哪)
YANG (哪)YANG (哪)
YANG (哪)
Amey Borkar

Stratum: Next-Gen SDN (beyond OpenFlow)
Stratum: Next-Gen SDN (beyond OpenFlow)Stratum: Next-Gen SDN (beyond OpenFlow)
Stratum: Next-Gen SDN (beyond OpenFlow)
PLVision

The Modern Telco Network: Defining The Telco Cloud
The Modern Telco Network: Defining The Telco CloudThe Modern Telco Network: Defining The Telco Cloud
The Modern Telco Network: Defining The Telco Cloud
Marco Rodrigues

Programmability and Automation in Data Center Networks: A talk on Hot Air Bal...
Programmability and Automation in Data Center Networks: A talk on Hot Air Bal...Programmability and Automation in Data Center Networks: A talk on Hot Air Bal...
Programmability and Automation in Data Center Networks: A talk on Hot Air Bal...
Joel W. King

Introduction to YANG data models and their use in OpenDaylight: an overview
Introduction to YANG data models and their use in OpenDaylight: an overviewIntroduction to YANG data models and their use in OpenDaylight: an overview
Introduction to YANG data models and their use in OpenDaylight: an overview
Cisco DevNet

SCAP and NETCONF
SCAP and NETCONFSCAP and NETCONF
SCAP and NETCONF
c3i

State of the OpenDaylight Union
State of the OpenDaylight UnionState of the OpenDaylight Union
State of the OpenDaylight Union
Open Networking Summit

Cisco's Open Device Programmability Strategy: Open Discussion
Cisco's Open Device Programmability Strategy: Open DiscussionCisco's Open Device Programmability Strategy: Open Discussion
Cisco's Open Device Programmability Strategy: Open Discussion
Cisco DevNet

Cisco Connect Toronto 2018 model-driven programmability for cisco ios xr-v1
Cisco Connect Toronto 2018   model-driven programmability for cisco ios xr-v1Cisco Connect Toronto 2018   model-driven programmability for cisco ios xr-v1
Cisco Connect Toronto 2018 model-driven programmability for cisco ios xr-v1
Cisco Canada

Integrating Active Networking and Commercial-Grade Routing Platforms
Integrating Active Networking and Commercial-Grade Routing PlatformsIntegrating Active Networking and Commercial-Grade Routing Platforms
Integrating Active Networking and Commercial-Grade Routing Platforms
Tal Lavian Ph.D.


Similar to A 30-minute Introduction to NETCONF and YANG (20)

Tail-f Webinar OpenFlow Switch Management Using NETCONF and YANG
Tail-f Webinar OpenFlow Switch Management Using NETCONF and YANGTail-f Webinar OpenFlow Switch Management Using NETCONF and YANG
Tail-f Webinar OpenFlow Switch Management Using NETCONF and YANG

SDN and metrics from the SDOs
SDN and metrics from the SDOsSDN and metrics from the SDOs
SDN and metrics from the SDOs

Data models-and-automation-jp
Data models-and-automation-jpData models-and-automation-jp
Data models-and-automation-jp

5G core use cases in CORE NetworkSBI.pptx
5G core use cases in CORE NetworkSBI.pptx5G core use cases in CORE NetworkSBI.pptx
5G core use cases in CORE NetworkSBI.pptx

OpenStack Infrastructure at any Scale - Simple is BEST!? - - OpenStack最新情報セミ...
OpenStack Infrastructure at any Scale - Simple is BEST!? -  - OpenStack最新情報セミ...OpenStack Infrastructure at any Scale - Simple is BEST!? -  - OpenStack最新情報セミ...
OpenStack Infrastructure at any Scale - Simple is BEST!? - - OpenStack最新情報セミ...

DEVNET-1152 OpenDaylight YANG Model Overview and Tools
DEVNET-1152	OpenDaylight YANG Model Overview and ToolsDEVNET-1152	OpenDaylight YANG Model Overview and Tools
DEVNET-1152 OpenDaylight YANG Model Overview and Tools

PLNOG14: Service orchestration in provider network, Tail-f - Przemysław Borek
PLNOG14: Service orchestration in provider network, Tail-f - Przemysław BorekPLNOG14: Service orchestration in provider network, Tail-f - Przemysław Borek
PLNOG14: Service orchestration in provider network, Tail-f - Przemysław Borek

SDN/NFV: Service Chaining
SDN/NFV: Service Chaining SDN/NFV: Service Chaining
SDN/NFV: Service Chaining

The hague rina-workshop-intro-eduard
The hague rina-workshop-intro-eduardThe hague rina-workshop-intro-eduard
The hague rina-workshop-intro-eduard

MINA2 (Apache Netty)
MINA2 (Apache Netty)MINA2 (Apache Netty)
MINA2 (Apache Netty)

YANG (哪)
YANG (哪)YANG (哪)
YANG (哪)

Stratum: Next-Gen SDN (beyond OpenFlow)
Stratum: Next-Gen SDN (beyond OpenFlow)Stratum: Next-Gen SDN (beyond OpenFlow)
Stratum: Next-Gen SDN (beyond OpenFlow)

The Modern Telco Network: Defining The Telco Cloud
The Modern Telco Network: Defining The Telco CloudThe Modern Telco Network: Defining The Telco Cloud
The Modern Telco Network: Defining The Telco Cloud

Programmability and Automation in Data Center Networks: A talk on Hot Air Bal...
Programmability and Automation in Data Center Networks: A talk on Hot Air Bal...Programmability and Automation in Data Center Networks: A talk on Hot Air Bal...
Programmability and Automation in Data Center Networks: A talk on Hot Air Bal...

Introduction to YANG data models and their use in OpenDaylight: an overview
Introduction to YANG data models and their use in OpenDaylight: an overviewIntroduction to YANG data models and their use in OpenDaylight: an overview
Introduction to YANG data models and their use in OpenDaylight: an overview

SCAP and NETCONF
SCAP and NETCONFSCAP and NETCONF
SCAP and NETCONF

State of the OpenDaylight Union
State of the OpenDaylight UnionState of the OpenDaylight Union
State of the OpenDaylight Union

Cisco's Open Device Programmability Strategy: Open Discussion
Cisco's Open Device Programmability Strategy: Open DiscussionCisco's Open Device Programmability Strategy: Open Discussion
Cisco's Open Device Programmability Strategy: Open Discussion

Cisco Connect Toronto 2018 model-driven programmability for cisco ios xr-v1
Cisco Connect Toronto 2018   model-driven programmability for cisco ios xr-v1Cisco Connect Toronto 2018   model-driven programmability for cisco ios xr-v1
Cisco Connect Toronto 2018 model-driven programmability for cisco ios xr-v1

Integrating Active Networking and Commercial-Grade Routing Platforms
Integrating Active Networking and Commercial-Grade Routing PlatformsIntegrating Active Networking and Commercial-Grade Routing Platforms
Integrating Active Networking and Commercial-Grade Routing Platforms


Recently uploaded

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair

Elizabeth Buie - Older adults: Are we really designing for our future selves?
Elizabeth Buie - Older adults: Are we really designing for our future selves?Elizabeth Buie - Older adults: Are we really designing for our future selves?
Elizabeth Buie - Older adults: Are we really designing for our future selves?
Nexer Digital

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Albert Hoitingh

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
Neo4j

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5
DianaGray10

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect
Kari Kakkonen

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
Neo4j

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team
ControlCase

Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AIEnchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Vladimir Iglovikov, Ph.D.

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair


Recently uploaded (20)

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024

Elizabeth Buie - Older adults: Are we really designing for our future selves?
Elizabeth Buie - Older adults: Are we really designing for our future selves?Elizabeth Buie - Older adults: Are we really designing for our future selves?
Elizabeth Buie - Older adults: Are we really designing for our future selves?

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team

Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AIEnchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024


A 30-minute Introduction to NETCONF and YANG

  • 1. A 30-minute Introduction to NETCONF and YANG Carl Moberg <calle@tail-f.com> twitter: @cmoberg Last updated 2011-11-18
  • 2. Document Introduction • This is a live documentation that I use to present the state of NETCONF and YANG in various contexts • I use it to inform and get conversation going, not to provide complete and final documentation of NETCONF and YANG • I update this document roughly quarterly, mostly with regards to industry support and working group timelines, check back or get in touch! 2
  • 3. Some Background • NETCONF is an IETF configuration management protocol and YANG is its data modeling language • In response to SNMP/SMI shortcomings for managing configuration e.g.: – Lack of support for simple things like backup-and-restore of element configuration – No concept of transactions (single- or multibox) – Many inherent limitations in SMI (e.g. label length) • Lots of background text in RFC 3535 Overview of the 2002 IAB Network Management Workshop 3
  • 4. NETCONF and YANG Brief Timeline NETCONF YANG • 2001 • 2007 IETF Meeting with poll of YANG design team proposal SNMP SET usage • Apr 2008 • June 2002 NETMOD WG established IAB Network Mgmt Workshop • Oct 2010 • May 2003 YANG RFC 6020 published NETCONF WG established • Dec 2006 NETCONF core RFCs published 4
  • 5. So What is NETCONF? • NETCONF is an IETF network management protocol designed to support management of configuration, including: – Distinction between configuration and state data – Multiple configuration data stores (candidate, running, startup) – Configuration change validations – Configuration change transactions – Selective data retrieval with filtering – Streaming and playback of event notifications – Extensible remote procedure call mechanism 5
  • 6. Ok, So What is YANG • YANG is a data modeling language designed to write data models for the NETCONF protocol. It provides the following features: – Human readable, and easy to learn representation – Hierarchical configuration data models – Reusable types and groupings (structured types) – Extensibility through augmentation mechanisms – Supports definition of operations (RPCs) – Formal constraints for configuration validation – Data modularity through modules and sub-modules – Well defined versioning rules 6
  • 7. NETCONF Layering Model Layer NETCONF Content Configuration Data Operations <get> <get-config> <notification> <rpc> RPC <rpc-reply> Transport SSH, SSL, BEEP, etc Protocol 7
  • 8. Basic NETCONF Operations • Get configuration <get-config> – Retrieve all or part of a specified configuration from a named data store • Get all information <get> – Retrieve running configuration and device state information • Edit configuration <edit-config> – Loads all or part of a specified configuration to the specified target configuration • Copy configuration <copy-config> – Create or replace an entire configuration datastore with the contents of another complete configuration datastore. • Delete configuration <delete-config> – Delete a configuration datastore (not applicable to running) • Lock and unlock <lock>, <unlock> – Short-lived lock and unlock of the configuration system of a device • Close and kill session <close-session>, <kill-session> – Graceful (close) or forced (kill) termination of a NETCONF session 8
  • 9. YANG Feature Highlights • YANG definitions directly map to NETCONF (XML) content • YANG uses a compact C and Java-like syntax with readability is highest priority • Data type system leverages work done for next-generation SNMP type system accommodating XML and XSD requirements • YANG can be formally translated to DSDL (RelaxNG, Schematron and DSRL) as described in RFC 6110 • There is also an informal translation to W3C XML Schema in the pyang tool 9
  • 10. YANG Feature Highlights (cont’d) • Organization – Leaf, leaf-list, container, lists, grouping, choice • Data model structure – Module, submodule, augment, if-feature, when • Constraints – Must, unique, min-elements, max-elements, mandatory • Data types – Many built-in types, sub-typing, restrictions • Reusable groupings – Grouping, uses 10
  • 11. YANG Example module acme-system { namespace "http://acme.example.com/system"; prefix "acme”; organization "ACME Inc.”; contact "joe@acme.example.com"; description "The module for entities implementing the ACME system.”; revision 2007-11-05 { description "Initial revision.”; } container system { leaf host-name { type string; description "Hostname for this system”; } 11
  • 12. YANG Example (cont’d) list interface { key "name"; description "List of interfaces in the system”; leaf name { type string; } leaf type { type string; } leaf mtu { type int32; } } } } 12
  • 13. Known NETCONF Vendor Implementations – Alaxala – Juniper Networks • Ethernet switches • JUNOS 7.5 and later – BATM/Telco Systems – Nexor • T-Metro 7224 • Messaging Gateways – BigBand – RuggedCom • MSP2800 • RX5000 and MX5000 – Brocade – Sonus • NetIron XMR, CES, and CER • NBS5200 Session Border Controller • MLX Series – Taseon • VDX (Announced, not released) • TN 320 – Cisco – Verivue • IOS 12.4(9)T and later • MDX 9020 • IOS XE 2.1 and later – Edgeware • WTV-2X – Ericsson • SEA 20 Entries in italics is new in this version of the – H3C presentation • S9500E Series Routing Switches Please Note that this list is work in – Huawei • AR3200/2200 Enterprise Routers progress and feedback on accuracy and completeness is strongly encouraged 13
  • 14. Available NETCONF Implementations Commercial Products Open Source Projects – Applied Informatics • POCO NETCONF (server) – Ncclient (client) – Centered Logic – NetconfX (client) • NetconfX (client) – Netconf4Android – Oracle/GoAhead • NETCONF MindAgent (server) (client) – SNMP Research – netconf4j (client) • EPIC NETCONF (server) – netopeer (client/server) – Tail-f Systems • ConfD (server) – YencaP (client/server) • NCS (client) – Yuma (client/server) – Velankani • NOCVue ConfigMan Please Note that this list is work in – WebNMS progress and feedback on accuracy and • WebNMS Framework (client) completeness is strongly encouraged 14
  • 15. Available YANG Implementations • Commercial Products • Open Source Projects – MG Soft Corporation – jYang – Oracle/GoAhead – libsmi – SNMP Research – Pyang – Tail-f Systems – yang-mode for Emacs – Yuma Please Note that this list is work in progress and feedback on accuracy and completeness is strongly encouraged 15
  • 16. Standards Organizations Activities • IETF – YANG models for Service – NETCONF working group OAM PM and FM focusing on: – To be published • Access Control • System Notifications – NETMOD (YANG) working group currently focusing on: – YANG module for CCAP: next • Interfaces, routing and system generation cable head-end systems data modules – Part of the Converged Cable • SMIv2-to-YANG translation Access Platform Support – Always updated: System Interface Specification • http://tools.ietf.org/wg/netconf/ • http://tools.ietf.org/wg/netconf/ Please Note that this list is work in progress and feedback on accuracy and completeness is strongly encouraged 16
  • 17. Further Reading • IETF NETMOD and NETCONF WG pages: – http://trac.tools.ietf.org/wg/netconf/trac/wiki – http://trac.tools.ietf.org/wg/netmod/trac/wiki • NETCONF Central – http://www.netconfcentral.org/ • YANG Central – http://www.yang-central.org/twiki/bin/view/Main/WebHome • Instant YANG – an Introduction – http://www.tail-f.com/instant-yang-primer • The NETCONF and YANG Users LinkedIn Group – http://www.linkedin.com/groups/NETCONF-YANG-Users-3301774 17
  • 18. 18
  • 20. Why not use XSD? • XSD defines the syntax of XML instance documents, • YANG defines the semantics of a configuration data model and the syntax of XML • For more in-depth reading: – Why we need a NETCONF-Specific Modeling Language (draft- lengyel-why-yang-00.txt) – Comparing Approaches to NETCONF Modeling (CANMOD) BOF (http://tools.ietf.org/agenda/71/canmod.html) 20
  • 21. A Layered Comparison SNMP NETCONF SOAP Data models MIBs Modules Data Modeling SMI YANG Language Management SNMP NETCONF Operations RPC Protocol BER XML XML Transport Stack UDP SSH SSL BEEP HTTP SOAP TCP TLS 21
