The document discusses the differences between mechanical and electronic fuel injection systems. It highlights issues with mechanical injectors, such as lower power output and increased emissions due to carbon buildup, while emphasizing the advantages of electronic injectors controlled by a microprocessor. Overall, the transition to electronic systems offers better efficiency and precision in fuel management.

6. Fuel
Distributor

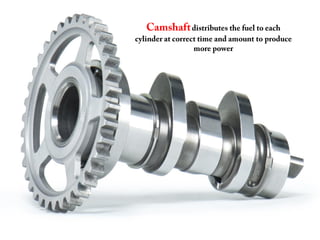

CamshaftAccumulator

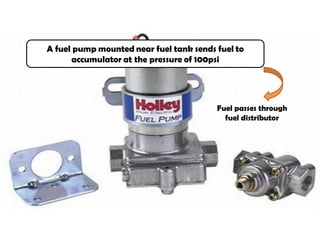

7. A fuel pump mounted near fuel tank sends fuel to
accumulator at the pressure of 100psi
Fuel passes through
fuel distributor

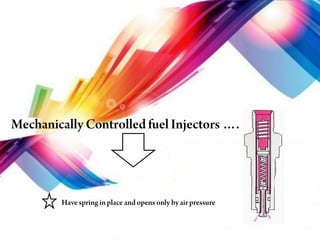

9. Let’s Know About The Loopholes Of
Mechanically Controlled Injectors

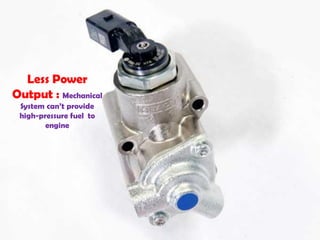

10. Less Power
Output : Mechanical
System can’t provide
high-pressure fuel to
engine

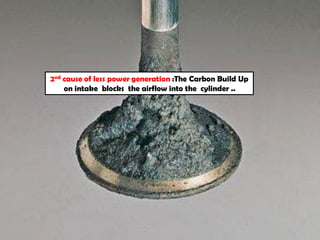

11. 2nd cause of less power generation :The Carbon Build Up
on intake blocks the airflow into the cylinder ..

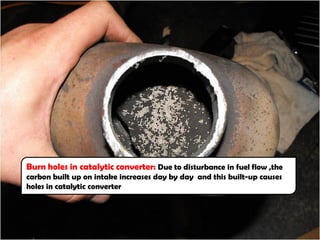

12. Burn holes in catalytic converter: Due to disturbance in fuel flow ,the
carbon built up on intake increases day by day and this built-up causes
holes in catalytic converter

13. Produces high percentage of
Emission due to mechanical
injectors

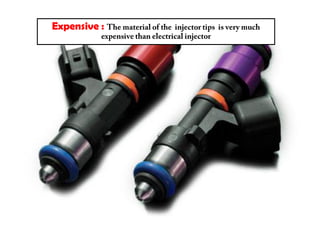

14. Expensive :

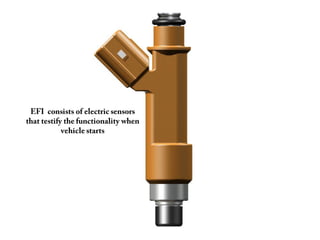

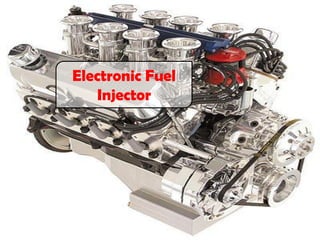

15. Electronic Fuel
Injector

16. Electronic Injector System also possess
springs
Injectors opened By Electromagnet
system

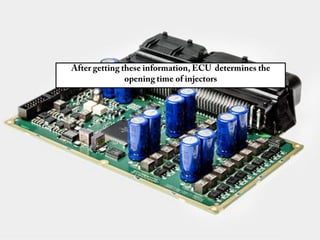

The ECU determine the duration of getting
open and close of injectors

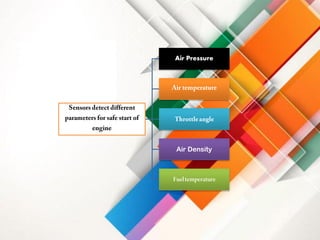

22. Air Pressure
Air Density

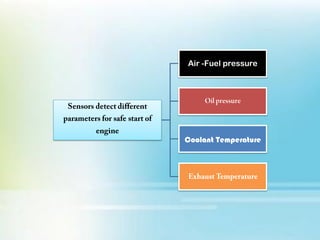

23. Air -Fuel pressure
Coolant Temperature

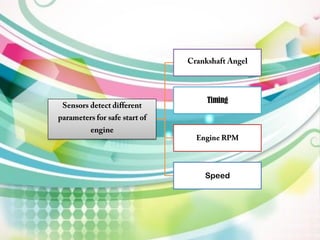

24. Timing
Speed

29. Is there any difference between Mechanical and electronic
injectors..???

30. Yes ………..Electronic injectors are controlled by complex-
microprocessor unit or a miniaturecomputer
But Mechanical System depends on the
data from airflow sensor alone …
