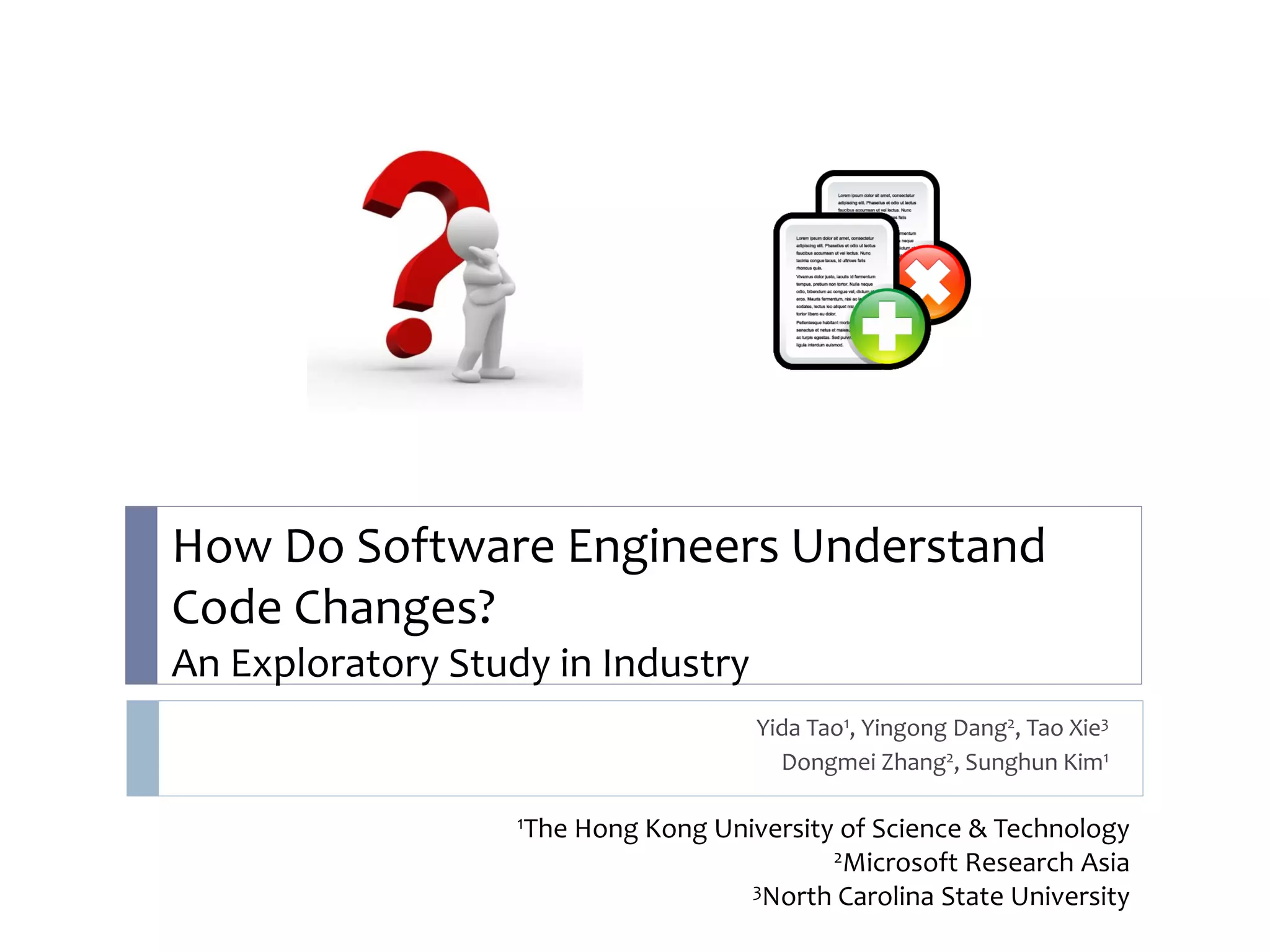

1. How Do Software Engineers Understand
Code Changes?
An Exploratory Study in Industry
Yida Tao1, Yingong Dang2, Tao Xie3
Dongmei Zhang2, Sunghun Kim1
1The Hong Kong University of Science & Technology
2Microsoft Research Asia
3North Carolina State University

2. 2

3. > if (hudRef && hud) {
> if (hudRef.consolePanel) {
> + hudRef.consolePanel.hidePopup()
“Why this change here? This is the
only one that doesn’t seem to make
sense for me…”
3

4. >+ struct CIDEntry
>+ {
>+ const nsCID* cid;
>+ bool service;
> if (hudRef && hud) {
> if (hudRef.consolePanel) {
> + hudRef.consolePanel.hidePopup()
“What is this used for, I can’t spot it in
use anywhere. ”
“Why this change here? This is the
only one that doesn’t seem to make
sense for me…”
4

5. >+ struct CIDEntry
>+ {
>+ const nsCID* cid;
>+ bool service;
> if (hudRef && hud) {
> if (hudRef.consolePanel) {
> + hudRef.consolePanel.hidePopup()
“What is this used for, I can’t spot it in
use anywhere. ”
“Why this change here? This is the
only one that doesn’t seem to make
sense for me…”
> browser_hide_removing.js
>+ browser_imageReload.js
>+ image_Reload.html
“These files are missing from this
patch, aren’t they?”
5

6. >+ struct CIDEntry
>+ {
>+ const nsCID* cid;
>+ bool service;
> if (hudRef && hud) {
> if (hudRef.consolePanel) {
> + hudRef.consolePanel.hidePopup()
“What is this used for, I can’t spot it in
use anywhere. ”
“Why this change here? This is the
only one that doesn’t seem to make
sense for me…”
> browser_hide_removing.js >+ for (var i = aURL.length – 1; i >= 1; i--) {
>+ browser_imageReload.js >+ var chPrev = aURL.charAt(i – 1) ;
>+ image_Reload.html >+ var ch = aURL.charAt(i) ;
“These files are missing from this “I’m not sure why you walk this char
patch, aren’t they?” by char… ”
6

7. >+ struct CIDEntry
>+ {
>+ const nsCID* cid;
>+ bool service;
> if (hudRef && hud) {
> if (hudRef.consolePanel) {
> + hudRef.consolePanel.hidePopup()
“What is this used for, I can’t spot it in
use anywhere. ”
“Why this change here? This is the
only one that doesn’t seem to make
sense for me…”
> browser_hide_removing.js >+ for (var i = aURL.length – 1; i >= 1; i--) {
>+ browser_imageReload.js >+ var chPrev = aURL.charAt(i – 1) ;
>+ image_Reload.html >+ var ch = aURL.charAt(i) ;
“These files are missing from this “I’m not sure why you walk this char
patch, aren’t they?” by char… ”
7

8. >+ struct CIDEntry
“…” >+ {
>+ const nsCID* cid;
>+ bool service;
> if (hudRef && hud) {
> if (hudRef.consolePanel) {
> + hudRef.consolePanel.hidePopup()
“What is this used for, I can’t spot it in
use anywhere. ”
“Why this change here? This is the
only one that doesn’t seem to make
sense for me…”
“…”
> browser_hide_removing.js >+ for (var i = aURL.length – 1; i >= 1; i--) {
>+ browser_imageReload.js >+ var chPrev = aURL.charAt(i – 1) ;
>+ image_Reload.html >+ var ch = aURL.charAt(i) ;
“These files are missing from this “…” “I’m not sure why you walk this char
patch, aren’t they?” by char… ”
8

9. “How do software engineers understand code changes?”
9

10. Research Questions
 RQ1: How frequently is code change understanding
practiced and in which development tasks is it
required?
 RQ2: What are engineers’ information needs and
difficulties for understanding code changes?
 RQ3: How to improve the effectiveness and efficiency
of the practices in understanding code changes?
10

11. Study Methodology
Literature Questionnaire Pilot Interview
Review Design
•Potential •Investigate •Question is
information RQ1, RQ2 relevant &
needs clear
11

12. Study Methodology
Literature Questionnaire Pilot Interview
Review Design
•Potential •Investigate •Question is
information RQ1, RQ2 relevant &
needs clear
Online Survey Follow-up Analysis
Interview
•Over 1000 MS •Investigate •Answering
employees RQ3 RQs
12

13. Survey Participants
180 respondents (16% response rate)
Role Distribution Product Teams
 OS
PM
 Desktop App
14%
 Web App
Test Dev  Mobile App
31% 55%  Service
 Others
13

14. RQs
RQ1 • Frequency ?
• Development tasks ?
RQ2 • Information needs ?
• Difficulty ?
RQ3 • Improvement ?
14

15. RQ1: Frequency of Understanding Code Changes
How often do you need to understand code changes?
o Several times each hour
o About once an hour
o Several times each day
o About once a day
o Several times each week
o About once a week
o Rarely
o Never
15

16. RQ1: Frequency of Understanding Code Changes
40%
Percentage of responses
35%
30%
25%
20%
15%
10%
5%
0%
16

17. RQ1: Frequency of Understanding Code Changes
40%
80%
Percentage of responses
35%
30%
25%
20%
15%
10%
5%
0%
17

18. RQ1: Tasks Requiring Code Change Understanding
 “Select the top three tasks that most often require you
to understand code changes”
 [Design/Planning] Refactoring
 [Implementation] Developing new feature
 [Implementation] Fixing bug
 [Integration] Resolving merge conflict
 [Verification] Reviewing others’ code changes
 [Verification] Reviewing my own code changes
 [Verification] Writing & updating test cases
 Other, please specify
18

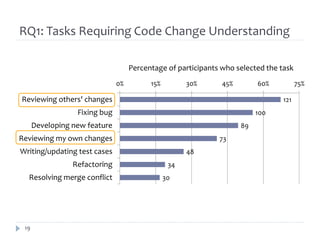

19. RQ1: Tasks Requiring Code Change Understanding
Percentage of participants who selected the task
0% 15% 30% 45% 60% 75%
Reviewing others' changes 121
Fixing bug 100
Developing new feature 89
Reviewing my own changes 73
Writing/updating test cases 48
Refactoring 34
Resolving merge conflict 30
19

20. RQ1: Tasks Requiring Code Change Understanding
Percentage of participants who selected the task
0% 15% 30% 45% 60% 75%
Reviewing others' changes 121
Fixing bug 100
Developing new feature 89
Reviewing my own changes 73
Writing/updating test cases 48
Refactoring 34
Resolving merge conflict 30
20

21. Answers to RQs
RQ1 • Frequently practiced
• Major development tasks
RQ2 • Information needs ?
• Difficulty ?
RQ3 • Improvement ?
21

22. Potential Information Needs
 Literature review (code-change analysis and management)
 180 articles in 10 SE venues over the past decade
22

23. Potential Information Needs
 Literature review (code-change analysis and management)
 180 articles in 10 SE venues over the past decade
Reasoning & assessing the change
• Clones
• Design
•…
Exploring the change’s context & impact
• Risk
• Consistency
•…
Evaluating the change history
• Change proneness
• Defect proneness
23

24. Survey Questions
 “Rate the importance & difficulty of each information need
(formulated as question) in a change understanding task”
Very 3
Important
2
Important
1
Somewhat
Important
0
Not
Important
24

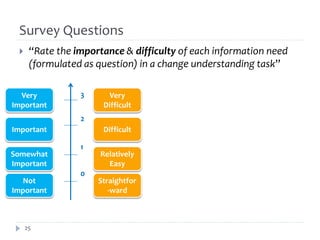

25. Survey Questions
 “Rate the importance & difficulty of each information need
(formulated as question) in a change understanding task”
Very 3 Very
Important Difficult
2
Important Difficult
1
Somewhat Relatively
Important Easy
0
Not Straightfor
Important -ward
25

26. Survey Questions
 “Rate the importance & difficulty of each information need
(formulated as question) in a change understanding task”
Does this change
Very 3 Very
Important Difficult
introduce code clones?
2 Does this change break
Important Difficult
any code elsewhere?
Which tests should be run
1 to verify this change?
Somewhat Relatively
Important Easy Is this changed location a
0 hotspot for past fixes?
Not Straightfor
Important -ward ……
26

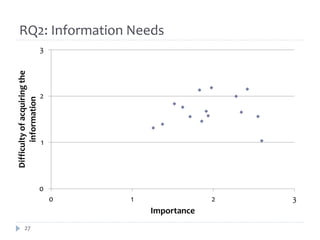

27. RQ2: Information Needs
3
Difficulty of acquiring the
2
information
1
0
0 1 2 3
Importance
27

28. RQ2: Information Needs
3
Difficulty of acquiring the
2
information
1
0
0 1 2 3
Importance
28

29. RQ2: Information Needs
3
Consistency Risk
Difficulty of acquiring the
Completeness
2
information
Correctness
Design
1
0
0 1 2 3
Importance
29

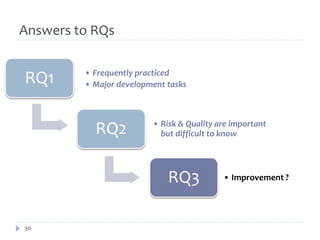

30. Answers to RQs
RQ1 • Frequently practiced
• Major development tasks
RQ2 • Risk & Quality are important
but difficult to know
RQ3 • Improvement ?
30

31. RQ3: Interview Items
3
Risk
Difficulty of acquiring the
2
information
1
0
0 1 2 3
Importance
31

32. RQ3: Interview Items
3
Risk
Difficulty of acquiring the
2
information
1
Rationale
0
0 1 2 3
Importance
32

33. RQ3: Interview Items
3
Risk
Difficulty of acquiring the
2
information
Defect proneness
1 Change proneness
Rationale
0
0 1 2 3
Importance
33

34. Assessing a Change’s Risk
3
Risk
Difficulty of acquiring the
2
information
1
0
0 1 2 3
Importance
34

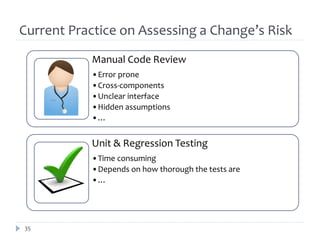

35. Current Practice on Assessing a Change’s Risk
Manual Code Review
•Error prone
•Cross-components
•Unclear interface
•Hidden assumptions
•…
Unit & Regression Testing
•Time consuming
•Depends on how thorough the tests are
•…
35

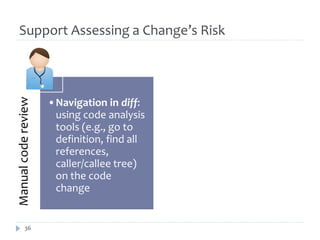

36. Support Assessing a Change’s Risk
•Navigation in diff:
Manual code review
using code analysis
tools (e.g., go to
definition, find all
references,
caller/callee tree)
on the code
change
36

37. Support Assessing a Change’s Risk
“…miss a level of
understanding object
relationships”
•Navigation in diff:
Manual code review
using code analysis Diff
tools (e.g., go to
definition, find all Navigation
references, in diff
caller/callee tree)
on the code Code
Analysis
change
37

38. Support Assessing a Change’s Risk
•which code must
Testing
be retested as it is “An ‘Intelli-sense’ for updating
dependent upon these (affected) tests would be
the change? nice as well.”
•who owns testing
that dependency?
•which tests must
be run?
38

39. Discussion
3
Difficulty of acquiring the
2
information
Defect proneness
1 Change proneness
Rationale
0
0 1 2 3
Importance
39

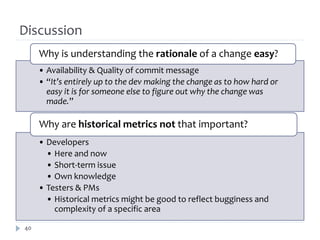

40. Discussion
Why is understanding the rationale of a change easy?
• Availability & Quality of commit message
• “It’s entirely up to the dev making the change as to how hard or
easy it is for someone else to figure out why the change was
made.”
Why are historical metrics not that important?
• Developers
• Here and now
• Short-term issue
• Own knowledge
• Testers & PMs
• Historical metrics might be good to reflect bugginess and
complexity of a specific area
40

41. Other Information Needs
“In addition to the information needs listed above, what else
would you ask when you try to understand a code change? How
difficult is it for you to answer?”
41

42. Other Information Needs
“In addition to the information needs listed above, what else
would you ask when you try to understand a code change? How
difficult is it for you to answer?”
“Can this change be broken into
smaller discreet changes?”
42

43. Composite Code Change
43

44. Understanding a Composite Code Change
44

45. Decomposing a Composite Code Change
45

46. Answers to RQs
RQ1 • Frequently practiced
• Major development tasks
RQ2 • Risk & Quality are important
but difficult to know
• Assessing the risk
RQ3 of a change
• Decomposing a
composite change
46

47. Summary
 A large-scale exploratory study on industrial practice in
understanding code changes
 Understanding code changes happens frequently in major
development tasks
47

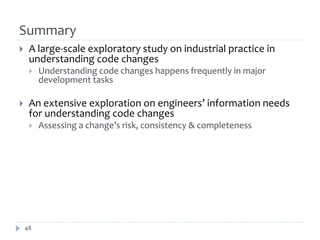

48. Summary
 A large-scale exploratory study on industrial practice in
understanding code changes
 Understanding code changes happens frequently in major
development tasks
 An extensive exploration on engineers’ information needs
for understanding code changes
 Assessing a change’s risk, consistency & completeness
48

49. Summary
 A large-scale exploratory study on industrial practice in
understanding code changes
 Understanding code changes happens frequently in major
development tasks
 An extensive exploration on engineers’ information needs
for understanding code changes
 Assessing a change’s risk, consistency & completeness
 A guideline for future research and tool design that aims at
supporting change-understanding tasks
 Navigation in diff
 Change decomposition
49

50. Acknowledgment
 All participants of survey / interview
 Miryung Kim, Robin Moeur, Thomas Zimmermann, Jacek
Czerwonka, and Kathryn McKinley
50

51. Summary
 A large-scale exploratory study on industrial practice in
understanding code changes
 Understanding code changes happens frequently in major
development tasks
 An extensive exploration on engineers’ information needs
for understanding code changes
 Assessing a change’s risk, consistency & completeness
 A guideline for future research and tool design that aims at
supporting change-understanding tasks
 Navigation in diff
 Change decomposition
51
