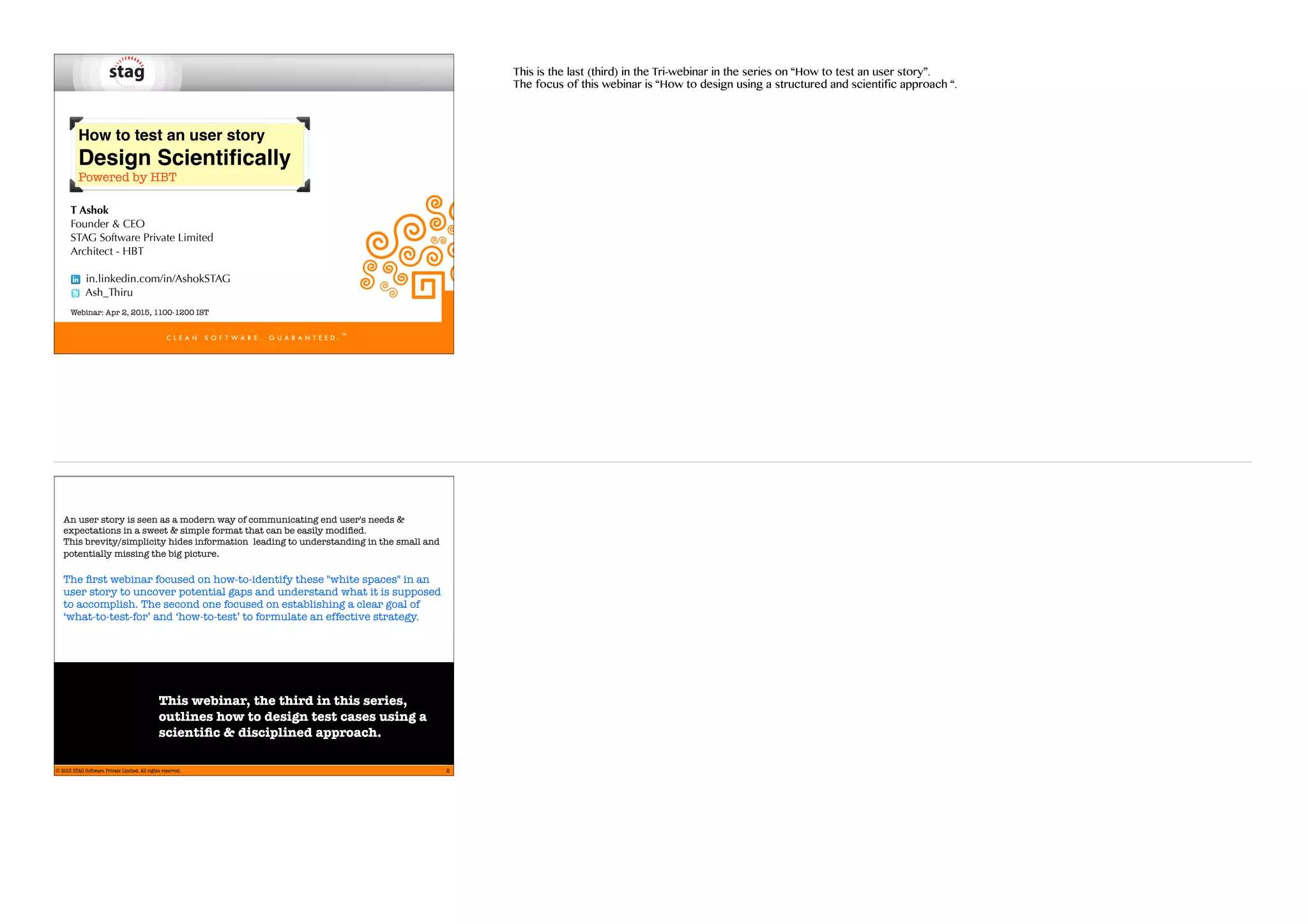

Design Scientifically (How to test a user story)

How to test an user story
Design Scientiﬁcally
Powered by HBT
T Ashok
Founder & CEO
STAG Software Private Limited
Architect - HBT
in.linkedin.com/in/AshokSTAG
Ash_Thiru
Webinar: Apr 2, 2015, 1100-1200 IST
This is the last (third) in the Tri-webinar in the series on “How to test an user story”.
The focus of this webinar is “How to design using a structured and scientific approach “.
1

© 2015 STAG Software Private Limited. All rights reserved. 2
An user story is seen as a modern way of communicating end user's needs &
expectations in a sweet & simple format that can be easily modified.
This brevity/simplicity hides information leading to understanding in the small and
potentially missing the big picture.
The first webinar focused on how-to-identify these "white spaces" in an
user story to uncover potential gaps and understand what it is supposed
to accomplish. The second one focused on establishing a clear goal of
‘what-to-test-for’ and ‘how-to-test’ to formulate an effective strategy.
This webinar, the third in this series,
outlines how to design test cases using a
scientific & disciplined approach.
2

© 2015 STAG Software Private Limited. All rights reserved.

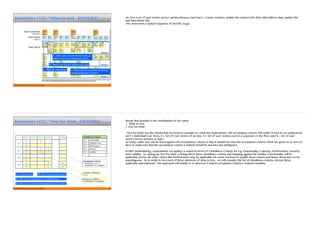

Remember (1/3) : “What-to-test - ENTITIES”
3
User Activities
(Theme?)
User Tasks
(Epic?)
User Story
From http://winnipegagilist.blogspot.in/2012/03/how-to-create-user-story-map.html
2 : Test a set of user stories of a epic
1 : Test an user story
3 : Test a set of user stories that an
user would do in sequence (ﬂow)
4 : Test a set of user stories across
releases(sprints) & epics
(4) Test a set of user stories across sprints(releases) and epics - Create contract, update the contact info, then Add address data, update this and then delete this.
This represents a typical sequence of real life usage.
3

Remember (2/3) : “Test for what - CRITERIA”
4
CC1 CC2 CC3 CC4 ... CCn
E1
✓ ?
-------
-------
E2
✓ ✓ ✓
-------
-------
-------
-------
-------
-------
E3
✓
-------
-------
E4
✓ ✓ ✓
-------
-------
-------
-------
-------
-------
E1 : An user story E2 : Set of user stories of a epic
E3 : Set of user stories used in a sequence (ﬂow)
E4 :Set of user stories across releases(sprints) & epics
Cleanliness Criteria
CC1 Functionality
CC2 Capacity/Load
CC3 Performance
CC4 Security
CC5 Usability
... ...
Acceptance Criteria
... Instantiation of CC
... Satisfaction of conditions
Attribute condition(s)
t<=2s
Behaviour conditions
Combination of conditions
Recap that baseline is the combination of two parts
1. What to Test
2. Test for What
‘Test for What’ are the criteria that we need to consider to meet the expectations- the acceptance criteria. The entity to test as we understood are E1-Individual User Story, E2- Set
of User stories of an epic, E3- Set of user stories used in a sequence or the flow and E4 – Set of user stories across releases & epics.
An entity under test can be listed against the acceptance criteria so that it should not miss the acceptance criteria which are given to us. But we have to make sure that the
acceptance criteria is indeed complete and also not ambiguous.
In HBT methodology, expectations (of quality) is stated in terms of Cleanliness Criteria for e.g. Functionality, Capacity, Performance, Security, and Usability. So setting up ‘test for
what’ is listing down these cleanliness criteria and mapping against the entities. Functionality will be applicable across all, while others like Performance may be applicable for some.
We have to qualify these criteria and hence these have to be unambiguous. So in order to test each of these elements of what to test, we will consider the list of cleanliness criteria,
choose these applicable and elaborate. This approach will enable us to discover if stated acceptance criteria is indeed complete.
4

Remember(3/3) : “Levels&Types - EVAL ORDER”
5
L9 End user value End user value test
L8 Deployment correctness Installation test Migration test
L7 Attributes correctness LSPS test Reliability test Security test
L6 Environment cleanliness Good citizen test Compatibility test
L5 Flow correctness Flow test
L4 Behaviour correctness Functionality test Access control test
L3 Structural cleanliness Structural test
L2 Interface cleanliness API validation test GUI validation test
L1 Input cleanliness Input validation test
Naturalorder(Qualitygrowth)
5

Structured & Scientific approach to design
6
E2 : Set of user stories of a epic
E1 : User story
E3 : Set of user stories of a ﬂow
(across sprints & epics)
E4 : Set of user stories of bigger ﬂow
(within a sprint)
1 What “entities” to design for?
So what is structured and scientific approach to design?
At the outset, knowing clearly the entities we going to design for.
In this case, there FOUR kinds of entities:
E1: User story
E2: Set of users stories of an epic
E3: Set of user stories of a flow
E4: Set of user stories of a bigger flow
A good design is about having stark clarity as what the entity under test is, and having a clear set of test cases for each one of these.
Note that the test cases get closer to be a end user scenario usage as we move from E1 to E4.
6

7
E1 : User story
L1-L4
L4
L5-L8
L5-L8
(within a sprint)
L9 End user value
L8 Deployment correctness
L7 Attributes correctness
L6 Environment cleanliness
L5 Flow correctness
L4 Behaviour correctness
L3 Structural cleanliness
L2 Interface cleanliness
L1 Input cleanliness
2 What quality levels to design for?
We talked about quality levels and associated types of tests. Let us see how they connect with the various types of entities.
A small entity which is individual in nature, at a lower level, forms a user story. That basic user story may be made up of set of screens, APIs or command lines which accepts inputs
and hence Level 1,2,3 as well as basic behavior (L4) of the end user is also applicable.
A set of user stories to form an epic, for which behavior correctness (L4) is indeed applicable. As we move further up the aggregation changes. A set of user stories that form a flow
(E3) has to be checked for flow correctness and attributes.
The higher order entities E3 and E4 consisting of aggregation of user stories which can be within the flow or across the sprints and epics, making a bigger flow. The focus of test
and test cases to a larger degree for those type of test cases which falls under the levels L5-L8.
Before we design test cases we need to clear about these:
1. What are the thing that we are design for?
2. What are the various types of test that have to be done?
7

8
3 What is the design approach?
E1 : User story
L1-L4
L4
L5-L8
L5-L8
(within a sprint)
T&P
E&E
E&E
E&E
T&P : Think & Prove
Evaluating statically,
Read in Frictionless Development Testing
E&E : Execute & Evaluate
Dynamic evaluation. Design test cases & execute
(Manual/Automated)
Once we understood that there are FOUR types of entities and certain types of tests are more applicable than others and those types of test has been stratified in EIGHT levels L1-
L8, we need to figure out the approach to evaluation.
There are two to evaluate correctness
T&P – Think & Prove – Evaluating statically
E&E – Dynamically evaluate, Design test cases & execute (Manual/Automated)
The typical approach to validation has always been about well documented test cases, converting them to scripts and learns & executes them to evaluate correctness.
The difference in Think & Prove is that we have been much faster because we do not detect an issue but try to prevent the issue. Since the user story is a smaller element it is worth
to think in terms of the approach to evaluate statically rather that by execution.
As the entities aggregate and becomes bigger it can become intellectually difficult to evaluate statically and hence it becomes necessary for us to execute the test cases.
Slide 9
So when we talk about T&P – Think & Prove, we mean that instead of going through an external stimulus to uncover potential issues in the code we can change the approach by
Put in tests in the code – Simple asserts for validating certain correctness, inputs
8

9
4 And the design technique?
E1 : User story
L1-L4
L4
L5-L8
L5-L8
(within a sprint)
T&P
E&E
E&E
E&E
Via
1. Simple assert (tests inside code)
2. Standardised PDT list
3. Common Test Scenarios
Via
Behaviour
Driven
Approach
“Extract
conditions
that govern
behaviour”
PDT = Potential Defect Type
So when we talk about T&P – Think & Prove, we mean that instead of going through an external stimulus to uncover potential issues in the code we can change the approach by
Put in tests in the code – Simple asserts for validating certain correctness, inputs in the interface and structural correctness
Using standardized list of defects or the PDT list
Coming with common scenarios of execution
We do not have to come up with new test cases always, we can leverage existing ones. We can cut down the design time and then map it through the user story. The challenge here
is there is no report as such or audited.
So the design technique of Think & Prove could be either of using the above mentioned criteria and hence can speed up the work because user story is comparatively small so we
do not want to overdo it. The same time can use to test larger aggregation.
As we move higher we need to know dynamically evaluate behavior. As the user story aggregate we want to see the behavior that governs the flow. We are trying to understand the
business conditions that govern the behavior so that we can meaningfully combine these conditions to form various behavioral scenarios and then come with test cases that
stimulate the behaviour.
The whole idea of design is not just about coming with test cases, it is about getting deeper that is extracting the condition that govern the behaviour. Note that conditions are not
merely limited to functionality.
9

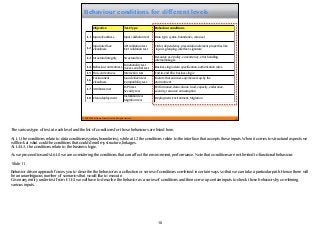

Behaviour conditions for different levels
10
Objective Test Type Behaviour conditions
L1 Input cleanliness Input validation test Data type, syntax, boundaries, value-set
L2
Input interface
cleanliness
API validation test
GUI validation test
Order, dependency, presentation element properties like
layout, grouping, interface signature
L3 Structural integrity Structural test
Resource use policy, concurrency, error handling,
internal linkages
L4 Behaviour correctness
Functionality test
Access control test
Business logic, data specification, authorisation rules
L5 Flow correctness Interaction test End-to-end flow business logic
L6
Environment
cleanliness
Good citizen test
Compatibility test
Factors that can mess-up/messed-up-by the
environment
L7 Attributes met
LSPS test
Security test
Performance, data volume, load, capacity, endurance,
security, resource consumption
L8 Clean deployment
Installation test
Migration test
Deployment, Environment, Migration
The various type of test at each level and the list of conditions for those behaviours are listed here.
At L1, the conditions relate to data conditions(syntax, boundaries), while at L2 the conditions relate to the interface that accepts these inputs. When it comes to structural aspects we
will look at what could be conditions that could derail my structure, linkages.
At L4/L5, the conditions relate to the business logic.
As we proceed towards L6-L8 we are considering the conditions that can affect the environment, performance. Note that conditions are not limited to functional behaviour.
Slide 11
Behavior driven approach forces you to describe the behavior as a collection or series of conditions combined in certain ways so that we can take a particular path. Hence there will
be an unambiguous number of scenarios that would like to execute.
Given any entity under test from E1-E4 we will have to describe the behavior as a series of conditions and then come up certain inputs to check those behaviors by combining
various inputs.
10

Behaviour driven approach
11
Behaviour Stimuli
Entity
under test
Conditions govern behaviour
Outcome is Test Scenarios
Input (data) is Stimuli
Outcome is Test Cases
C1
C2
C3
C4
i1
i2
i3
}
Outputs
1
2
3
4
5
Inputs Conditions
Behavior driven approach forces you to describe the behavior as a collection or series of conditions combined in certain ways so that we can take a particular path. Hence there will
be an unambiguous number of scenarios that would like to execute.
Given any entity under test from E1-E4 we will have to describe the behavior as a series of conditions and then come up certain inputs to check those behaviors by combining
various inputs.
For E1, the PDTs being simpler, it will be much faster do it in a mental approach. Hence we said Think & Prove. At higher level as we aggregate it could be more complex hence one
has to come up with the scenarios and evaluate by executing it.
11

So how will this look?
12
TT1
--------
--------
TT2
--------
-------
TT1
--------
-------
Ex -------
-------
-------
-------
E1 : An user story E2 : Set of user stories of a epic
E3 : Set of user stories used in a sequence (ﬂow)
E4 :Set of user stories across releases(sprints) & epics
Test types to be done Acceptance Criteria
Test cases neatly
segregated across test
types across levels
Given an Entity Ex (anything from E2 – E4) we have a set of test cases, grouped by the various type of tests TT1, TT2 and so on test cases following under different levels L1, L2, ---
L8. Hence the test case is segregated. Depending upon which of the test cases are suitable converted into scripts. The test cases are matched to the acceptance criteria. A neat
compartmentalization of test cases naturally happens and segregating them in different tests at various levels.
12

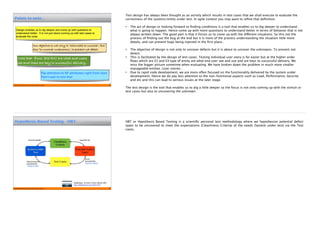

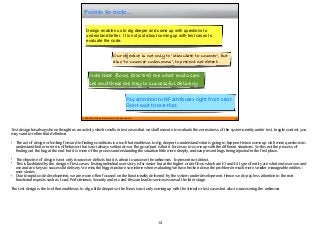

Points to note...
13
Design enables us to dig deeper and come up with questions to
understand better. It is not just about coming up with test cases to
evaluate the code.
Our objective is not only to ‘stimulate-to-uncover’, but
also ‘to-uncover-unknowns’, to prevent not detect.
Note that flows (E3/E4) are what end users
see and these are key to successful delivery.
Pay attention to NF attributes right from start.
Don’t wait to test that.
Test design has always been thought as an activity which results in test cases that we shall execute to evaluate the correctness of the systems/entity under test. In agile context you
may want to refine that definition.
• The act of design or looking forward to finding conditions is a tool that enables us to dig deeper to understand what is going to happen. Hence come up with more questions to
understand better in terms of behavior that is not always written down. The good part is that it forces us to come up with the different situations. So this not the process of
finding out the bug at the end but it is more of the process understanding the situation little more deeply, and can prevent bugs being injected in the first place..
• The objective of design is not only to uncover defects but it is about to uncover the unknowns. To prevent not detect.
• This is facilitated by the design of test cases. Testing individual user story is far easier but at the higher order flows which are E3 and E4 type of entity are what end user see and
use and are keys to successful delivery. We miss the bigger picture sometime when evaluating. We have broken down the problem in much more smaller manageable entities /
user stories .
• Due to rapid code development, we are more often focused on the functionality delivered by the system under development. Hence we do pay less attention to the non-
functional aspects such as Load, Performance, Security and etc and this can lead to serious issues at the later stage.
The test design is the tool that enables us to dig a little deeper so the focus is not only coming up with the stimuli or test cases but also to uncovering the unknown.
13

Hypothesis Based Testing - HBT
14
System Under
Test
Cleanliness
Criteria
Potential Defect
Types
Test CasesRequirements
traceability
“what to test”
Fault
traceability
“test for what”
should satisfy impeded by
Click here to know more about HBT.
http://stagsoftware.com/blog?p=570
HBT or Hypothesis Based Testing is a scientific personal test methodology where we hypothesize potential defect types to be uncovered to meet the expectations (Cleanliness
Criteria) of the needs (System under test) via the Test cases.
14

© 2015 STAG Software Private Limited. All rights reserved. www.stagsoftware.com
HBT is the intellectual property of STAG Software Private Limited.
STEMTM is the trademark of STAG Software Private Limited.
@stagsoft
blog.stagsoftware.com
Connect with us...
Thank you. Powered by HBT
How to test an user story : Design
Scientiﬁcally
To design scientifically the key ideas outlined are:
• Be clear of the entities you are designing for (E1-E4)
• Be clear as to levels that are applicable for each type of entity.
• Note that the approach to evaluating correctness can be Think&Prove and Execute&Evaluate.
• Apply a behavior driven approach, this enables us to dig deeper to uncover the conditions and in the process understand better..
•
15

Design Scientifically (How to test a user story)

More Related Content

What's hot

Similar to Design Scientifically (How to test a user story)

More from STAG Software Private Limited

Recently uploaded

Design Scientifically (How to test a user story)
