Hibernate III

© People Strategists www.peoplestrategists.com Slide 1 of 56
Overview of Hibernate -III

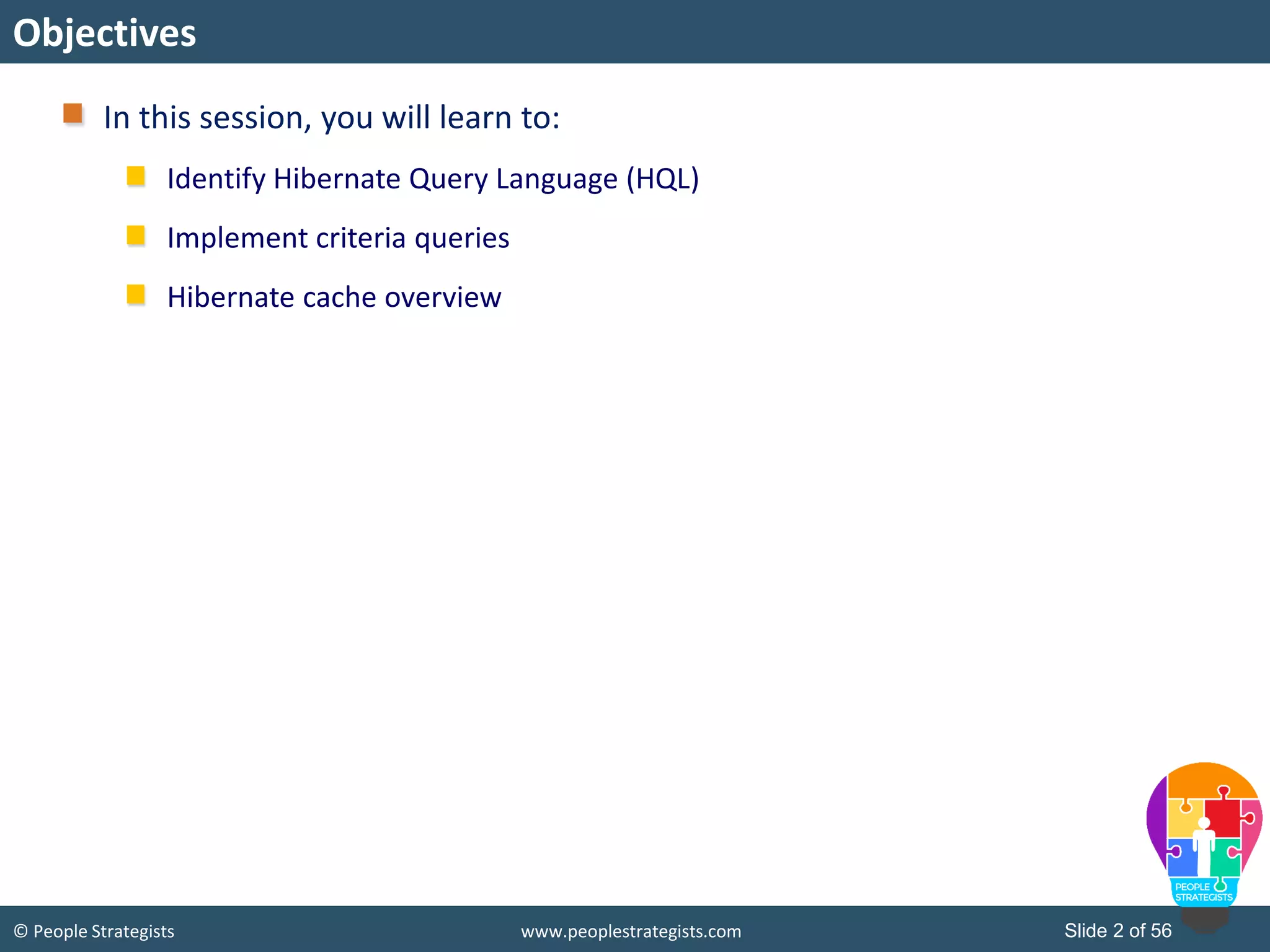

In this session, you will learn to:
Identify Hibernate Query Language (HQL)
Implement criteria queries
Hibernate cache overview
Objectives

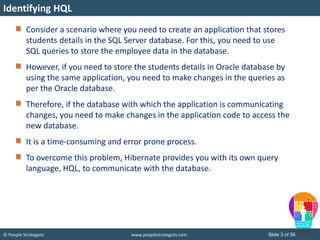

Consider a scenario where you need to create an application that stores
students details in the SQL Server database. For this, you need to use
SQL queries to store the employee data in the database.
However, if you need to store the students details in Oracle database by
using the same application, you need to make changes in the queries as
per the Oracle database.
Therefore, if the database with which the application is communicating
changes, you need to make changes in the application code to access the
new database.
It is a time-consuming and error prone process.
To overcome this problem, Hibernate provides you with its own query
language, HQL, to communicate with the database.
Identifying HQL

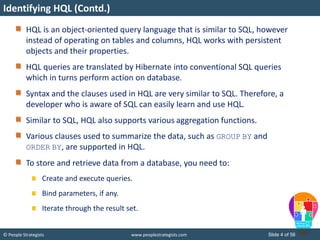

HQL is an object-oriented query language that is similar to SQL, however
instead of operating on tables and columns, HQL works with persistent
objects and their properties.
HQL queries are translated by Hibernate into conventional SQL queries
which in turns perform action on database.
Syntax and the clauses used in HQL are very similar to SQL. Therefore, a
developer who is aware of SQL can easily learn and use HQL.
Similar to SQL, HQL also supports various aggregation functions.
Various clauses used to summarize the data, such as GROUP BY and
ORDER BY, are supported in HQL.
To store and retrieve data from a database, you need to:
Create and execute queries.
Bind parameters, if any.
Iterate through the result set.
Identifying HQL (Contd.)

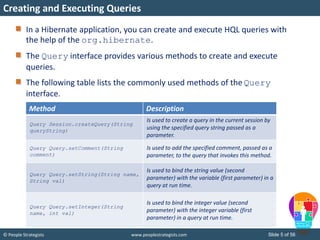

In a Hibernate application, you can create and execute HQL queries with
the help of the org.hibernate.
The Query interface provides various methods to create and execute
queries.
The following table lists the commonly used methods of the Query
interface.
Creating and Executing Queries
Method Description
Query Session.createQuery(String
queryString)
Is used to create a query in the current session by
using the specified query string passed as a
parameter.
Query Query.setComment(String
comment)
Is used to add the specified comment, passed as a
parameter, to the query that invokes this method.
Query Query.setString(String name,
String val)
Is used to bind the string value (second
parameter) with the variable (first parameter) in a
query at run time.
Query Query.setInteger(String
name, int val)
Is used to bind the integer value (second
parameter) with the integer variable (first
parameter) in a query at run time.

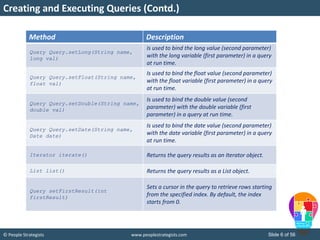

Creating and Executing Queries (Contd.)
Method Description
Query Query.setLong(String name,
long val)
Is used to bind the long value (second parameter)
with the long variable (first parameter) in a query
at run time.
Query Query.setFloat(String name,
float val)
Is used to bind the float value (second parameter)
with the float variable (first parameter) in a query
at run time.
Query Query.setDouble(String name,
double val)
Is used to bind the double value (second
parameter) with the double variable (first
parameter) in a query at run time.
Query Query.setDate(String name,
Date date)
Is used to bind the date value (second parameter)
with the date variable (first parameter) in a query
at run time.
Iterator iterate() Returns the query results as an Iterator object.
List list() Returns the query results as a List object.
Query setFirstResult(int
firstResult)
Sets a cursor in the query to retrieve rows starting
from the specified index. By default, the index
starts from 0.

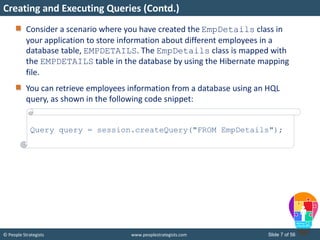

Consider a scenario where you have created the EmpDetails class in
your application to store information about different employees in a
database table, EMPDETAILS. The EmpDetails class is mapped with
the EMPDETAILS table in the database by using the Hibernate mapping
file.
You can retrieve employees information from a database using an HQL
query, as shown in the following code snippet:
Query query = session.createQuery("FROM EmpDetails");

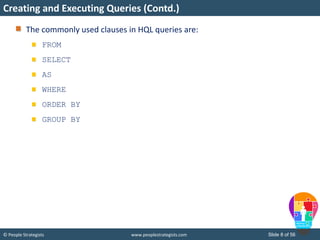

The commonly used clauses in HQL queries are:
FROM
SELECT
AS
WHERE
ORDER BY
GROUP BY

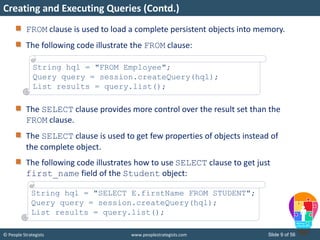

FROM clause is used to load a complete persistent objects into memory.
The following code illustrate the FROM clause:
The SELECT clause provides more control over the result set than the
FROM clause.
The SELECT clause is used to get few properties of objects instead of
the complete object.
The following code illustrates how to use SELECT clause to get just
first_name field of the Student object:
String hql = "FROM Employee";
Query query = session.createQuery(hql);
List results = query.list();
String hql = "SELECT E.firstName FROM STUDENT";

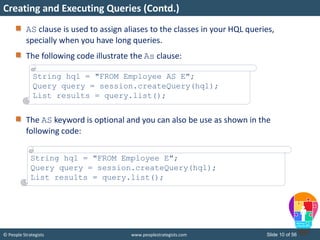

AS clause is used to assign aliases to the classes in your HQL queries,
specially when you have long queries.
The following code illustrate the As clause:
The AS keyword is optional and you can also be use as shown in the
following code:
String hql = "FROM Employee AS E";
String hql = "FROM Employee E";

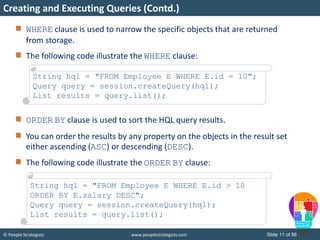

WHERE clause is used to narrow the specific objects that are returned
from storage.
The following code illustrate the WHERE clause:
ORDER BY clause is used to sort the HQL query results.
You can order the results by any property on the objects in the result set
either ascending (ASC) or descending (DESC).
The following code illustrate the ORDER BY clause:
String hql = "FROM Employee E WHERE E.id = 10";
String hql = "FROM Employee E WHERE E.id > 10
ORDER BY E.salary DESC";

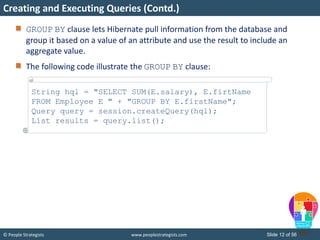

GROUP BY clause lets Hibernate pull information from the database and
group it based on a value of an attribute and use the result to include an
aggregate value.
The following code illustrate the GROUP BY clause:
String hql = "SELECT SUM(E.salary), E.firtName
FROM Employee E " + "GROUP BY E.firstName";

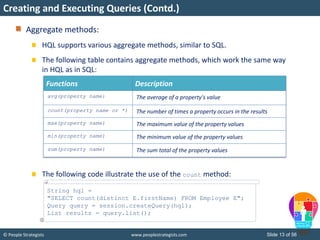

Aggregate methods:
HQL supports various aggregate methods, similar to SQL.
The following table contains aggregate methods, which work the same way
in HQL as in SQL:
The following code illustrate the use of the count method:
Functions Description
avg(property name) The average of a property's value
count(property name or *) The number of times a property occurs in the results
max(property name) The maximum value of the property values
min(property name) The minimum value of the property values
sum(property name) The sum total of the property values
String hql =
"SELECT count(distinct E.firstName) FROM Employee E";

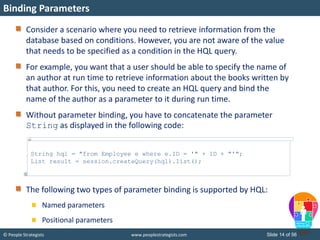

Consider a scenario where you need to retrieve information from the
database based on conditions. However, you are not aware of the value
that needs to be specified as a condition in the HQL query.
For example, you want that a user should be able to specify the name of
an author at run time to retrieve information about the books written by
that author. For this, you need to create an HQL query and bind the
name of the author as a parameter to it during run time.
Without parameter binding, you have to concatenate the parameter
String as displayed in the following code:
The following two types of parameter binding is supported by HQL:
Named parameters
Positional parameters
Binding Parameters
String hql = "from Employee e where e.ID = '" + ID + "'";
List result = session.createQuery(hql).list();

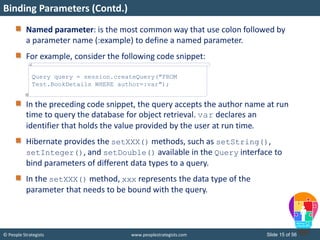

Named parameter: is the most common way that use colon followed by
a parameter name (:example) to define a named parameter.
For example, consider the following code snippet:
In the preceding code snippet, the query accepts the author name at run
time to query the database for object retrieval. var declares an
identifier that holds the value provided by the user at run time.
Hibernate provides the setXXX() methods, such as setString(),
setInteger(), and setDouble() available in the Query interface to
bind parameters of different data types to a query.
In the setXXX() method, xxx represents the data type of the
parameter that needs to be bound with the query.
Binding Parameters (Contd.)
Query query = session.createQuery("FROM
Test.BookDetails WHERE author=:var");

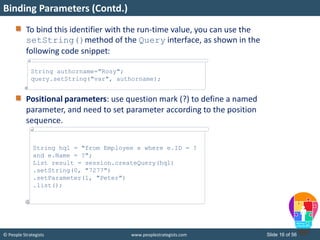

To bind this identifier with the run-time value, you can use the
setString()method of the Query interface, as shown in the
following code snippet:
Positional parameters: use question mark (?) to define a named
parameter, and need to set parameter according to the position
sequence.
Binding Parameters (Contd.)
String authorname="Rosy";
query.setString("var", authorname);
String hql = "from Employee e where e.ID = ?
and e.Name = ?";
List result = session.createQuery(hql)
.setString(0, "7277")
.setParameter(1, "Peter")
.list();

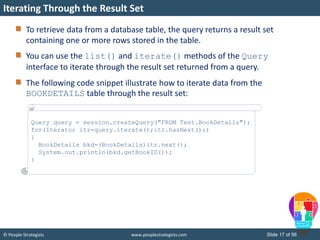

To retrieve data from a database table, the query returns a result set
containing one or more rows stored in the table.
You can use the list() and iterate() methods of the Query
interface to iterate through the result set returned from a query.
The following code snippet illustrate how to iterate data from the
BOOKDETAILS table through the result set:
Iterating Through the Result Set
Query query = session.createQuery("FROM Test.BookDetails");
for(Iterator itr=query.iterate();itr.hasNext();)
{
BookDetails bkd=(BookDetails)itr.next();
System.out.println(bkd.getBookID());
}

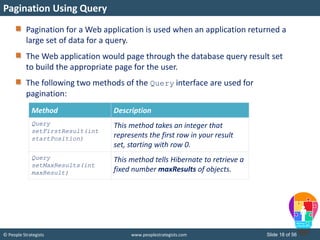

Pagination for a Web application is used when an application returned a
large set of data for a query.
The Web application would page through the database query result set
to build the appropriate page for the user.
The following two methods of the Query interface are used for
pagination:
Pagination Using Query
Method Description
Query
setFirstResult(int
startPosition)
This method takes an integer that
represents the first row in your result
set, starting with row 0.
Query
setMaxResults(int
maxResult)
This method tells Hibernate to retrieve a
fixed number maxResults of objects.

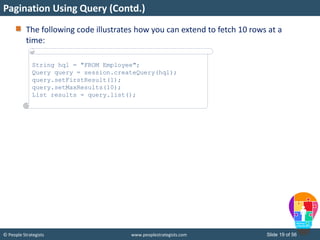

The following code illustrates how you can extend to fetch 10 rows at a
time:
Pagination Using Query (Contd.)
String hql = "FROM Employee";
query.setFirstResult(1);
query.setMaxResults(10);

While migrating from an SQL/JDBC-based application to Hibernate, you
can retain the SQL queries already written in the application by using
native SQL queries.
Hibernate provides the org.hibernate.SQLQuery interface to use
native SQL queries in your application.
This interface implements the Query interface and provides methods to
create and use native SQL queries in a Hibernate application.
The following table lists the commonly used methods of the SQLQuery
interface to create and use native SQL queries.
Using Native SQL
Method Description
SQLQuery
Session.createSQLQuery(String
queryString)
Is used to create a native SQL query by
using the string passed as a parameter.
SQLQuery SQLQuery.addEntity(Class
entityType)
Is used to declare the type of entity that
is associated with the table from where
the current native SQL query retrieves
the data. This method accepts the class
name as its parameter.

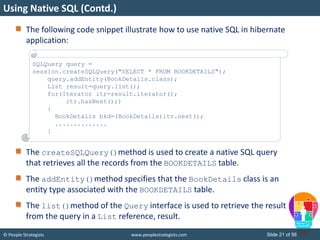

The following code snippet illustrate how to use native SQL in hibernate
application:
The createSQLQuery()method is used to create a native SQL query
that retrieves all the records from the BOOKDETAILS table.
The addEntity()method specifies that the BookDetails class is an
entity type associated with the BOOKDETAILS table.
The list()method of the Query interface is used to retrieve the result
from the query in a List reference, result.
Using Native SQL (Contd.)
SQLQuery query =
session.createSQLQuery("SELECT * FROM BOOKDETAILS");
query.addEntity(BookDetails.class);
List result=query.list();
for(Iterator itr=result.iterator();
itr.hasNext();)
{
BookDetails bkd=(BookDetails)itr.next();
..............
}

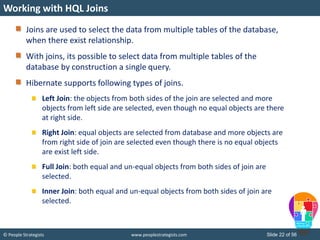

Joins are used to select the data from multiple tables of the database,
when there exist relationship.
With joins, its possible to select data from multiple tables of the
database by construction a single query.
Hibernate supports following types of joins.
Left Join: the objects from both sides of the join are selected and more
objects from left side are selected, even though no equal objects are there
at right side.
Right Join: equal objects are selected from database and more objects are
from right side of join are selected even though there is no equal objects
are exist left side.
Full Join: both equal and un-equal objects from both sides of join are
selected.
Inner Join: both equal and un-equal objects from both sides of join are
selected.
Working with HQL Joins

At the time of construction the join statements, we need to use the
properties created in POJO class to apply relationship between the
objects.
The DEFAULT join in hibernate is Inner join.
To construct a join statement, we use either HQL, or NativeSql.
The following code illustrates how to use left outer join in HQL:
Working with HQL Joins (Contd.)
Session session = factory.openSession();
Query qry= session.createQuery("select v.vendorName,
c.customerName from Vendor v Left Join v.children c");
List l = qry.list();
Iterator it=l.iterator();
while(it.hasNext())
{
Object rows[] = (Object[])it.next();
System.out.println(rows[0]+ " -- " +rows[1]);
}

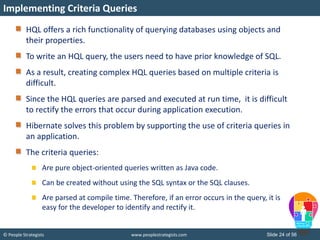

HQL offers a rich functionality of querying databases using objects and
their properties.
To write an HQL query, the users need to have prior knowledge of SQL.
As a result, creating complex HQL queries based on multiple criteria is
difficult.
Since the HQL queries are parsed and executed at run time, it is difficult
to rectify the errors that occur during application execution.
Hibernate solves this problem by supporting the use of criteria queries in
an application.
The criteria queries:
Are pure object-oriented queries written as Java code.
Can be created without using the SQL syntax or the SQL clauses.
Are parsed at compile time. Therefore, if an error occurs in the query, it is
easy for the developer to identify and rectify it.
Implementing Criteria Queries

The org.hibernate.Criteria interface
Is used to create criteria queries
contains methods required to create and use the criteria queries
The following table lists the commonly used methods of the Criteria
interface.
Building a Criteria Query
Method Description
Criteria
createCriteria(Class
persistenceClass)
Is used to create a criteria query for the given
entity class.
List list() Is used to retrieve the result from a criteria
query in a reference of the List collection.
Criteria add(Criterion
criterion)
Is used to add a condition in a criteria query by
specifying the condition as a parameter. The
condition for a criteria query is specified as an
object of the Criterion interface.

The following code snippet illustrates the use of the Criteria interface:
The createCriteria()method accepts the class name as its argument
and returns an object of the Criteria interface.
The criteria query retrieves all the details from the database table
associated with the Customer class.
The list()method of the Criteria interface is used to retrieve the list
of objects fetched from the database.
Criteria criteria = session.createCriteria
(Customer.class)
List myList = criteria.list();
Building a Criteria Query (Contd.)

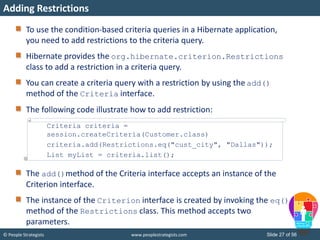

To use the condition-based criteria queries in a Hibernate application,
you need to add restrictions to the criteria query.
Hibernate provides the org.hibernate.criterion.Restrictions
class to add a restriction in a criteria query.
You can create a criteria query with a restriction by using the add()
method of the Criteria interface.
The following code illustrate how to add restriction:
The add()method of the Criteria interface accepts an instance of the
Criterion interface.
The instance of the Criterion interface is created by invoking the eq()
method of the Restrictions class. This method accepts two
parameters.
Adding Restrictions
Criteria criteria =
session.createCriteria(Customer.class)
criteria.add(Restrictions.eq("cust_city", "Dallas"));

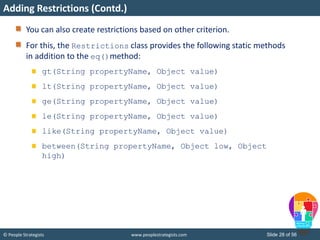

You can also create restrictions based on other criterion.
For this, the Restrictions class provides the following static methods
in addition to the eq()method:
gt(String propertyName, Object value)
lt(String propertyName, Object value)
ge(String propertyName, Object value)
le(String propertyName, Object value)
like(String propertyName, Object value)
between(String propertyName, Object low, Object
high)
Adding Restrictions (Contd.)

gt(String propertyName, Object value):
Accepts a property of an object as the first parameter and a value that
needs to be compared with the value of that property as the second
parameter.
Returns the result after comparing whether the value of a particular object
property is greater than the specified value.
For example:
The employee details are retrieved from a database table where employee
balance is greater than $2000.
Criteria criteria =
session.createCriteria(Employee.class)
.add(Restrictions.gt("Emp_balance", 2000));

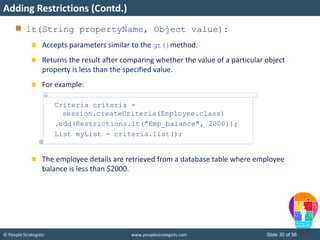

lt(String propertyName, Object value):
Accepts parameters similar to the gt()method.
Returns the result after comparing whether the value of a particular object
property is less than the specified value.
For example:
balance is less than $2000.
Criteria criteria =
.add(Restrictions.lt("Emp_balance", 2000));

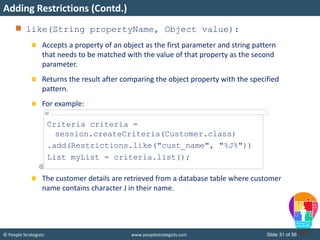

like(String propertyName, Object value):
Accepts a property of an object as the first parameter and string pattern
that needs to be matched with the value of that property as the second
parameter.
Returns the result after comparing the object property with the specified
pattern.
For example:
The customer details are retrieved from a database table where customer
name contains character J in their name.
Criteria criteria =
session.createCriteria(Customer.class)
.add(Restrictions.like("cust_name", "%J%"))

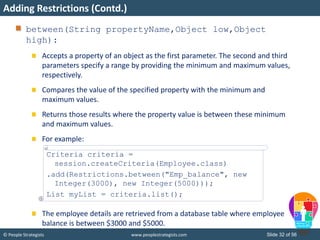

between(String propertyName,Object low,Object
high):
Accepts a property of an object as the first parameter. The second and third
parameters specify a range by providing the minimum and maximum values,
respectively.
Compares the value of the specified property with the minimum and
maximum values.
Returns those results where the property value is between these minimum
and maximum values.
For example:
balance is between $3000 and $5000.
Criteria criteria =
.add(Restrictions.between("Emp_balance", new
Integer(3000), new Integer(5000)));

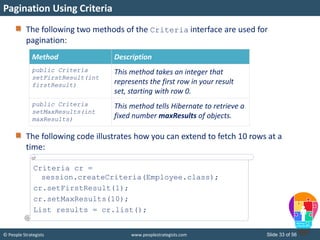

The following two methods of the Criteria interface are used for
pagination:
The following code illustrates how you can extend to fetch 10 rows at a
time:
Pagination Using Criteria
Method Description
public Criteria
setFirstResult(int
firstResult)
This method takes an integer that
represents the first row in your result
set, starting with row 0.
public Criteria
setMaxResults(int
maxResults)
This method tells Hibernate to retrieve a
fixed number maxResults of objects.
Criteria cr =
session.createCriteria(Employee.class);
cr.setFirstResult(1);
cr.setMaxResults(10);
List results = cr.list();

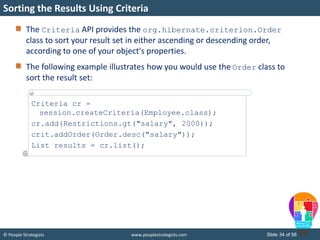

The Criteria API provides the org.hibernate.criterion.Order
class to sort your result set in either ascending or descending order,
according to one of your object's properties.
The following example illustrates how you would use the Order class to
sort the result set:
Sorting the Results Using Criteria
Criteria cr =
session.createCriteria(Employee.class);
cr.add(Restrictions.gt("salary", 2000));
crit.addOrder(Order.desc("salary"));
List results = cr.list();

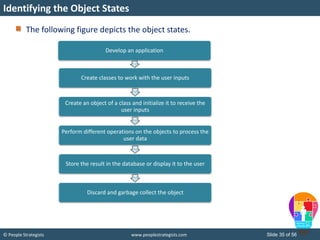

The following figure depicts the object states.
Identifying the Object States
Develop an application
Create classes to work with the user inputs
Create an object of a class and initialize it to receive the
user inputs
Perform different operations on the objects to process the
user data
Store the result in the database or display it to the user
Discard and garbage collect the object

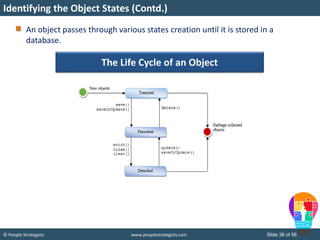

An object passes through various states creation until it is stored in a
database.
Identifying the Object States (Contd.)
The Life Cycle of an Object

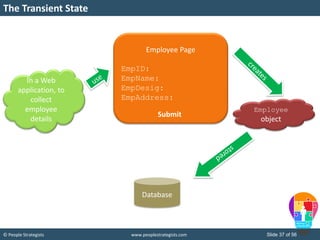

The Transient State
In a Web
application, to
collect
employee
details
Employee Page
EmpID:
EmpName:
EmpDesig:
EmpAddress:
Submit
Employee
object
Database

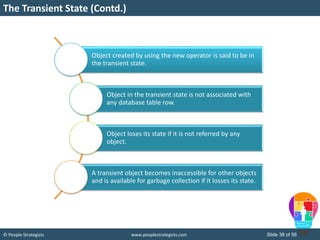

The Transient State (Contd.)
Object created by using the new operator is said to be in
the transient state.
Object in the transient state is not associated with
any database table row.
Object loses its state if it is not referred by any
object.
A transient object becomes inaccessible for other objects
and is available for garbage collection if it losses its state.

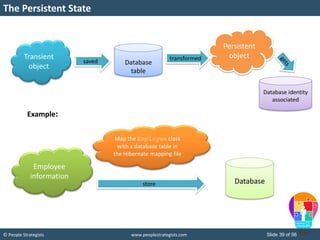

The Persistent State
Transient
object
saved Database
table
transformed
Persistent
object
Database identity
associated
Example:
Employee
information
Databasestore
Map the Employee class
with a database table in
the Hibernate mapping file

Hibernate manages the objects that are being
persisted or retrieved from the database in the
persistence context.
Persistence context is a logical cache where the
objects are manipulated before they are
permanently stored in the database.
The Persistent State (Contd.)

The object is transformed into the detached state, after storing the data
in the database and the session that was being used to store objects in
the database is closed.
The close(), clear(), or evict() methods available in the
org.hibernate.Session interface are used to transform the object to
detached state.
The Detached State

In an application that performs the storage and retrieval of data from the
database, you need to implement different operations on the objects
that hold the user data.
For example, to store the user data into a database table, you need to
persist the object that holds the user data into the database.

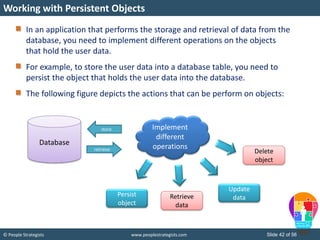

The following figure depicts the actions that can be perform on objects:
Working with Persistent Objects
Database
retrieve
store Implement
different
operations
Persist
object
Retrieve
data
Update
data
Delete
object

Persisting Objects:
To store application data into the database tables, you need to persist the
application objects.
For example, to store employee information in the database, you need to
persist objects that contains employee information in the database.
Hibernate provides the save()method to persist an object into a database
table.
The following code illustrate how to persist object:
Working with Persistent Objects (Contd.)
Employee emp = new Employee();
emp.setEmpID(...);
emp.setEmpName( ... );
...............
...............
Session session = sessionFactory.openSession();
Transaction tx = session.beginTransaction();
Serializable objId = session.save(emp);
tx.commit();

Retrieving Objects:
To perform an operation on a persistent object, you need to retrieve that
object in the persistence context.
For this, you can use the load()or the get()method.
Both the load() and the get()method accepts two parameters. The first
parameter accepts the class name of the object being accessed from the
database. The second parameter accepts a Serializable reference, which is
an identifier for the object to be retrieved.
following code illustrate how to retrieve object:
Transaction transaction = session.beginTransaction();
Employee emp=new Employee();
emp.setEmpId(109);
emp.setName("Martin");
emp.setAddress("Silver Street, California");
Serializable objID=session.save(emp);
transaction.commit();
transaction.begin();
Employee empUpdate=(Employee)session.load(Employee.class, objID);
empUpdate.setAddress("Hudson Street, California");
..............

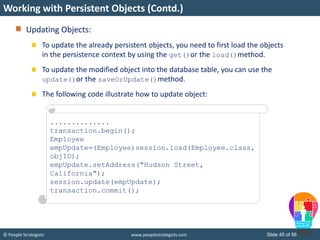

Updating Objects:
To update the already persistent objects, you need to first load the objects
in the persistence context by using the get()or the load()method.
To update the modified object into the database table, you can use the
update()or the saveOrUpdate()method.
The following code illustrate how to update object:
..............
Employee
empUpdate=(Employee)session.load(Employee.class,
objID);
empUpdate.setAddress("Hudson Street,
California");
session.update(empUpdate);

Deleting Objects:
You can delete an already persistent object by using the delete()or the
remove()method. The process of deleting an object is similar to the
process of modifying a persistent object.
The following code illustrate how to delete object:
Employee
empUpdate=(Employee)session.load(Employee.class,
objID);
session.delete(empUpdate);

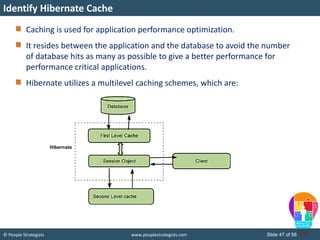

Caching is used for application performance optimization.
It resides between the application and the database to avoid the number
of database hits as many as possible to give a better performance for
performance critical applications.
Hibernate utilizes a multilevel caching schemes, which are:
Identify Hibernate Cache

First-level cache:
The first-level cache is the session cache and is a mandatory cache through
which all requests must pass. The Session object keeps an object under its
own power before committing it to the database.
If multiple updates are issued to an object, Hibernate tries to delay doing
the update as long as possible to reduce the number of update SQL
statements issued.
If the session is closed, all the objects being cached are lost and either
persisted or updated in the database.
Identify Hibernate Cache (Contd.)

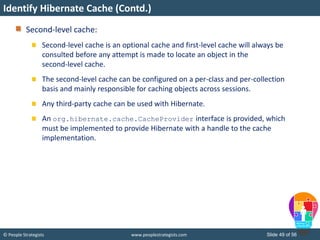

Second-level cache:
Second-level cache is an optional cache and first-level cache will always be
consulted before any attempt is made to locate an object in the
second-level cache.
The second-level cache can be configured on a per-class and per-collection
basis and mainly responsible for caching objects across sessions.
Any third-party cache can be used with Hibernate.
An org.hibernate.cache.CacheProvider interface is provided, which
must be implemented to provide Hibernate with a handle to the cache
implementation.

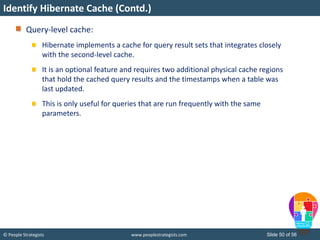

Query-level cache:
Hibernate implements a cache for query result sets that integrates closely
with the second-level cache.
It is an optional feature and requires two additional physical cache regions
that hold the cached query results and the timestamps when a table was
last updated.
This is only useful for queries that are run frequently with the same
parameters.

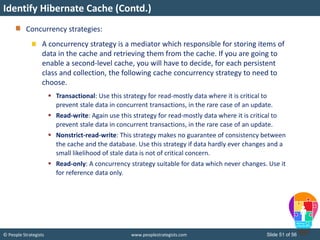

Concurrency strategies:
A concurrency strategy is a mediator which responsible for storing items of
data in the cache and retrieving them from the cache. If you are going to
enable a second-level cache, you will have to decide, for each persistent
class and collection, the following cache concurrency strategy to need to
choose.
 Transactional: Use this strategy for read-mostly data where it is critical to
prevent stale data in concurrent transactions, in the rare case of an update.
 Read-write: Again use this strategy for read-mostly data where it is critical to
prevent stale data in concurrent transactions, in the rare case of an update.
 Nonstrict-read-write: This strategy makes no guarantee of consistency between
the cache and the database. Use this strategy if data hardly ever changes and a
small likelihood of stale data is not of critical concern.
 Read-only: A concurrency strategy suitable for data which never changes. Use it
for reference data only.

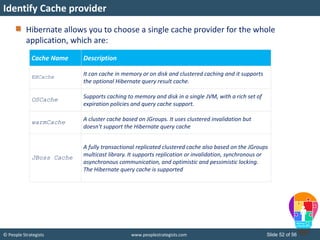

Hibernate allows you to choose a single cache provider for the whole
application, which are:
Identify Cache provider
Cache Name Description
EHCache
It can cache in memory or on disk and clustered caching and it supports
the optional Hibernate query result cache.
OSCache Supports caching to memory and disk in a single JVM, with a rich set of
expiration policies and query cache support.
warmCache A cluster cache based on JGroups. It uses clustered invalidation but
doesn't support the Hibernate query cache
JBoss Cache
A fully transactional replicated clustered cache also based on the JGroups
multicast library. It supports replication or invalidation, synchronous or
asynchronous communication, and optimistic and pessimistic locking.
The Hibernate query cache is supported

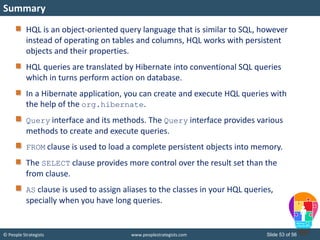

HQL is an object-oriented query language that is similar to SQL, however
instead of operating on tables and columns, HQL works with persistent
objects and their properties.
HQL queries are translated by Hibernate into conventional SQL queries
which in turns perform action on database.
In a Hibernate application, you can create and execute HQL queries with
the help of the org.hibernate.
Query interface and its methods. The Query interface provides various
methods to create and execute queries.
FROM clause is used to load a complete persistent objects into memory.
The SELECT clause provides more control over the result set than the
from clause.
AS clause is used to assign aliases to the classes in your HQL queries,
specially when you have long queries.
Summary

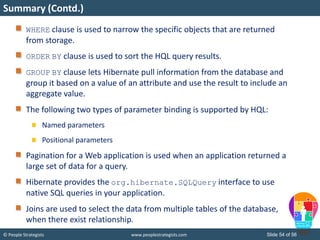

WHERE clause is used to narrow the specific objects that are returned
from storage.
ORDER BY clause is used to sort the HQL query results.
GROUP BY clause lets Hibernate pull information from the database and
group it based on a value of an attribute and use the result to include an
aggregate value.
The following two types of parameter binding is supported by HQL:
Named parameters
Positional parameters
Pagination for a Web application is used when an application returned a
large set of data for a query.
Hibernate provides the org.hibernate.SQLQuery interface to use
native SQL queries in your application.
Joins are used to select the data from multiple tables of the database,
when there exist relationship.
Summary (Contd.)

The criteria queries:
Are pure object-oriented queries written as Java code.
Can be created without using the SQL syntax or the SQL clauses.
Hibernate provides the org.hibernate.criterion.Restrictions
class to add a restriction in a criteria query.
Object created by using the new operator is said to be in the transient
state.
Hibernate manages the objects that are being persisted or retrieved
from the database in the persistence context
The object is transformed into the detached state, after storing the data
in the database and the session that was being used to store objects in
the database is closed.
Caching is used for application performance optimization.
Summary (Contd.)

The first-level cache is the session cache and is a mandatory cache
through which all requests must pass.
Second-level cache is an optional cache and first-level cache will always
be consulted before any attempt is made to locate an object in the
second-level cache.
Query-level cache is only useful for queries that are run frequently with
the same parameters.
Summary (Contd.)

Hibernate III

Recommended

Recommended

More Related Content

What's hot

What's hot (19)

Viewers also liked

Viewers also liked (20)

Similar to Hibernate III

Similar to Hibernate III (20)

More from People Strategists

More from People Strategists (7)

Recently uploaded

Recently uploaded (20)

Hibernate III
