David Bilík: Anko – modern way to build your layouts?

Anko - a modern way
to build your layouts?

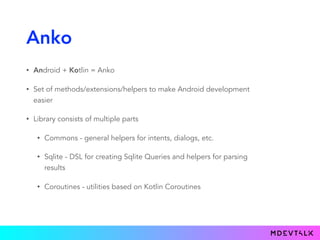

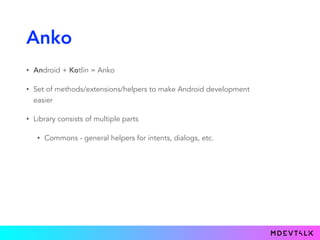

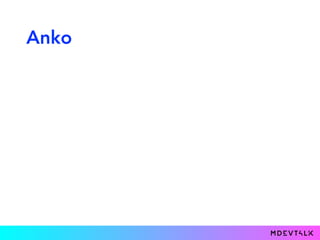

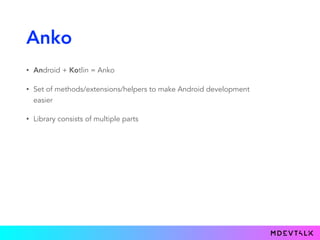

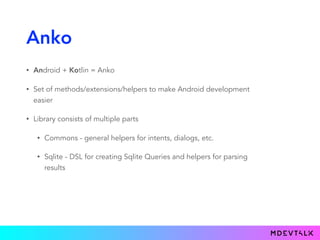

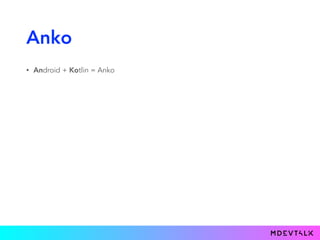

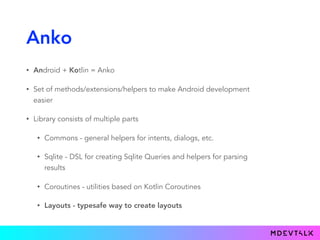

Anko
• Android + Kotlin = Anko

Anko
• Set of methods/extensions/helpers to make Android development
easier

Anko
easier
• Library consists of multiple parts

Anko
easier
• Commons - general helpers for intents, dialogs, etc.

Anko
easier
• Sqlite - DSL for creating Sqlite Queries and helpers for parsing
results

Anko
easier
results
• Coroutines - utilities based on Kotlin Coroutines

Anko
easier
results
• Coroutines - utilities based on Kotlin Coroutines
• Layouts - typesafe way to create layouts

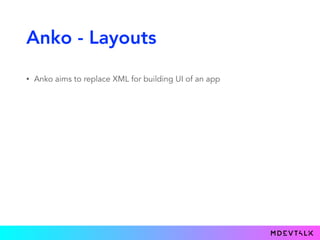

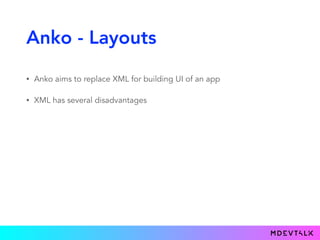

Anko - Layouts

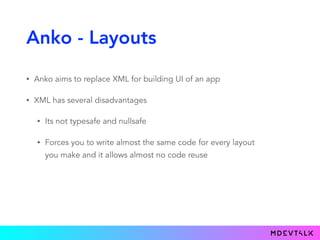

• Anko aims to replace XML for building UI of an app

Anko - Layouts
• XML has several disadvantages

Anko - Layouts
• Its not typesafe and nullsafe

Anko - Layouts
• Forces you to write almost the same code for every layout
you make and it allows almost no code reuse

Anko - Layouts
• Forces you to write almost the same code for every layout
you make and it allows almost no code reuse
• Waste of computational resources because of parsing of
XML file in runtime

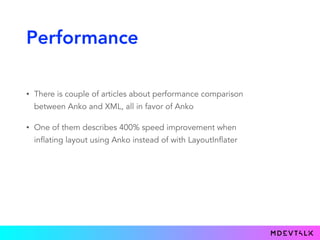

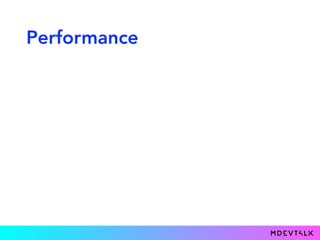

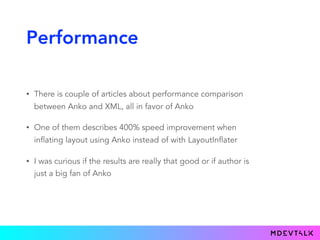

Performance

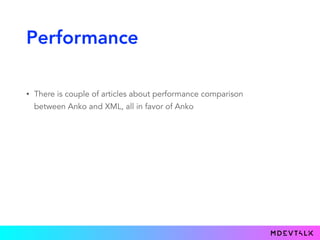

• There is couple of articles about performance comparison
between Anko and XML, all in favor of Anko

Performance
• One of them describes 400% speed improvement when

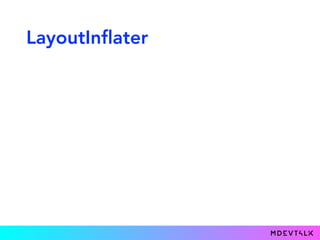

inflating layout using Anko instead of with LayoutInflater

Performance
• One of them describes 400% speed improvement when
inflating layout using Anko instead of with LayoutInflater
• I was curious if the results are really that good or if author is
just a big fan of Anko

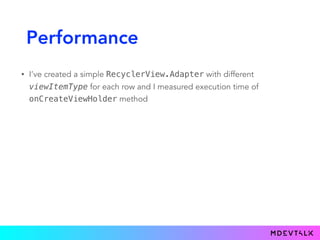

Performance

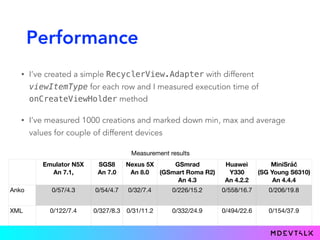

• I’ve created a simple RecyclerView.Adapter with different
viewItemType for each row and I measured execution time of
onCreateViewHolder method

Performance
• I’ve measured 1000 creations and marked down min, max and average
values for couple of different devices

Performance
• I’ve measured 1000 creations and marked down min, max and average
values for couple of different devices
Measurement results
Emulator N5X
An 7.1,
SGS8
An 7.0
Nexus 5X
An 8.0
GSmrad
(GSmart Roma R2)
An 4.3
Huawei
Y330
An 4.2.2
MiniSráč
(SG Young S6310)
An 4.4.4
Anko 0/57/4.3 0/54/4.7 0/32/7.4 0/226/15.2 0/558/16.7 0/206/19.8
XML 0/122/7.4 0/327/8.3 0/31/11.2 0/332/24.9 0/494/22.6 0/154/37.9

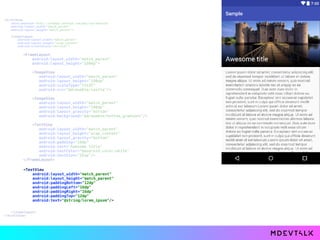

</LinearLayout> 
</ScrollView>

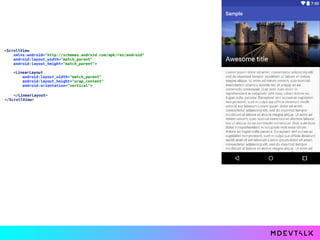

<ScrollView 
xmlns:android="http://schemas.android.com/apk/res/android" 
android:layout_width="match_parent" 
android:layout_height="match_parent"> 
 
<LinearLayout 
android:layout_height="wrap_content" 
android:orientation="vertical">

</LinearLayout> 
</ScrollView>

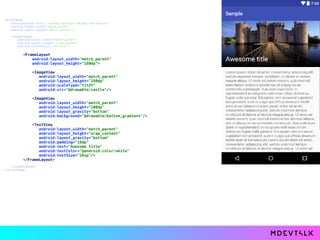

<FrameLayout 
android:layout_height="180dp"> 
 
<ImageView 
android:layout_height="180dp" 
android:scaleType="fitXY" 
android:src="@drawable/castle"/> 
 
<ImageView 
android:layout_gravity="bottom" 
android:background="@drawable/bottom_gradient"/> 
 
<TextView 
android:padding="16dp" 
android:text="Awesome title" 
android:textColor="@android:color/white" 
android:textSize="26sp"/> 
</FrameLayout>
<ScrollView 
 
<LinearLayout 

</LinearLayout> 
</ScrollView>
<FrameLayout 
android:layout_height="180dp"> 
 
<ImageView 
android:scaleType="fitXY" 
android:src="@drawable/castle"/> 
 
<ImageView 
android:background="@drawable/bottom_gradient"/> 
 
<TextView 
android:padding="16dp" 
android:text="Awesome title" 
android:textColor="@android:color/white" 
android:textSize="26sp"/> 
</FrameLayout>
<ScrollView 
 
<LinearLayout 
<TextView 
android:layout_height="match_parent" 
android:paddingBottom="12dp" 
android:paddingLeft="16dp" 
android:paddingRight="16dp" 
android:paddingTop="12dp" 
android:text="@string/lorem_ipsum"/>

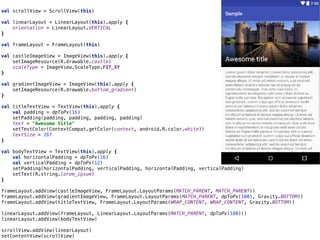

val scrollView = ScrollView(this) 
 
val linearLayout = LinearLayout(this).apply { 
orientation = LinearLayout.VERTICAL 
} 
 
val frameLayout = FrameLayout(this) 
 
val castleImageView = ImageView(this).apply { 
setImageResource(R.drawable.castle) 
scaleType = ImageView.ScaleType.FIT_XY 
} 
 
val gradientImageView = ImageView(this).apply { 
setImageResource(R.drawable.bottom_gradient) 
} 
 
val titleTextView = TextView(this).apply { 
val padding = dpToPx(16) 
setPadding(padding, padding, padding, padding) 
text = "Awesome title" 
setTextColor(ContextCompat.getColor(context, android.R.color.white)) 
textSize = 26f 
} 
 
val bodyTextView = TextView(this).apply { 
val horizontalPadding = dpToPx(16) 
val verticalPadding = dpToPx(12) 
setPadding(horizontalPadding, verticalPadding, horizontalPadding, verticalPadding) 
setText(R.string.lorem_ipsum) 
} 
 
frameLayout.addView(castleImageView, FrameLayout.LayoutParams(MATCH_PARENT, MATCH_PARENT)) 
frameLayout.addView(gradientImageView, FrameLayout.LayoutParams(MATCH_PARENT, dpToPx(100), Gravity.BOTTOM)) 
frameLayout.addView(titleTextView, FrameLayout.LayoutParams(WRAP_CONTENT, WRAP_CONTENT, Gravity.BOTTOM)) 
 
linearLayout.addView(frameLayout, LinearLayout.LayoutParams(MATCH_PARENT, dpToPx(180))) 
linearLayout.addView(bodyTextView) 
 
scrollView.addView(linearLayout) 
setContentView(scrollView)

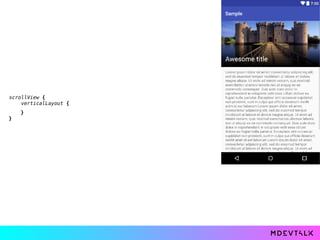

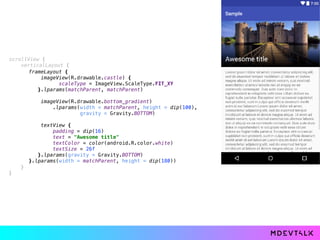

scrollView { 
verticalLayout { 
 
 
} 
}

scrollView { 
verticalLayout { 
 
 
} 
}
frameLayout { 
imageView(R.drawable.castle) { 
}.lparams(matchParent, matchParent) 
 
imageView(R.drawable.bottom_gradient) 
.lparams(width = matchParent, height = dip(100),
gravity = Gravity.BOTTOM) 
 
textView { 
padding = dip(16) 
textColor = color(android.R.color.white) 
textSize = 26f 
}.lparams(gravity = Gravity.BOTTOM) 
}.lparams(width = matchParent, height = dip(180))

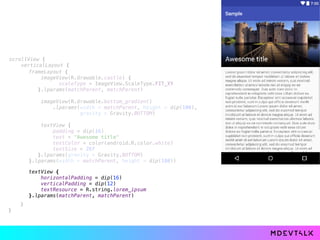

scrollView { 
verticalLayout { 
 
 
} 
}
frameLayout { 
 
.lparams(width = matchParent, height = dip(100),
gravity = Gravity.BOTTOM) 
 
textView { 
textSize = 26f 
}.lparams(width = matchParent, height = dip(180))
textView { 
horizontalPadding = dip(16) 
verticalPadding = dip(12) 
textResource = R.string.lorem_ipsum 
}.lparams(matchParent, matchParent)

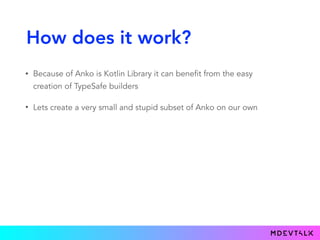

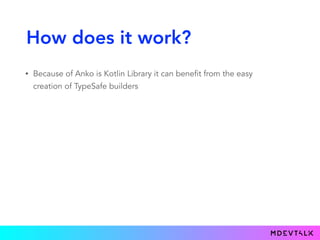

How does it work?
• Because of Anko is Kotlin Library it can benefit from the easy
creation of TypeSafe builders

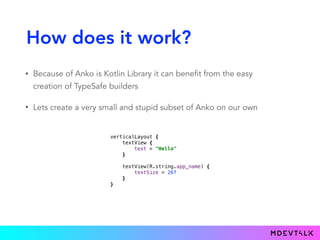

How does it work?
• Lets create a very small and stupid subset of Anko on our own

How does it work?
• Lets create a very small and stupid subset of Anko on our own

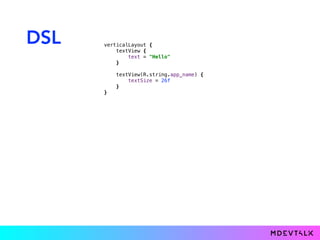

verticalLayout { 
textView { 
text = "Hello" 
}} 
 
textView(R.string.app_name) { 
textSize = 26f 
}} 
}}

DSL verticalLayout { 
textView { 
text = "Hello" 
}} 
 
textSize = 26f 
}} 
}}

DSL

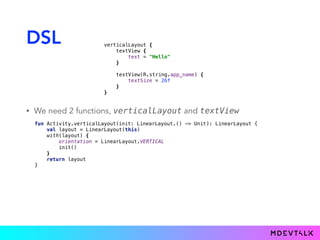

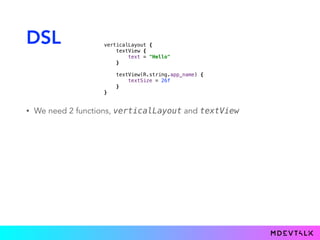

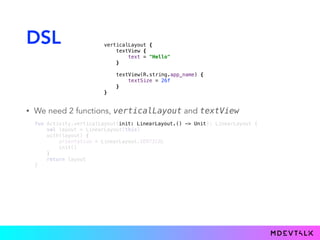

• We need 2 functions, verticalLayout and textView
verticalLayout { 
textView { 
text = "Hello" 
}} 
 
textSize = 26f 
}} 
}}

DSL
fun Activity.verticalLayout( ): LinearLayout { 
val layout = LinearLayout(this) 
with(layout) { 
init() 
} 
return layout 
}
init: LinearLayout.() -> Unit
verticalLayout { 
textView { 
text = "Hello" 
}} 
 
textSize = 26f 
}} 
}}

DSL
fun Activity.verticalLayout( ): LinearLayout { 
with(layout) { 
init() 
} 
return layout 
}
 
fun ViewGroup.textView(init: TextView.() -> Unit): TextView { 
val textView = TextView(context) 
textView.init() 
addView(textView) 
return textView 
}
init: LinearLayout.() -> Unit
verticalLayout { 
textView { 
text = "Hello" 
}} 
 
textSize = 26f 
}} 
}}

DSL

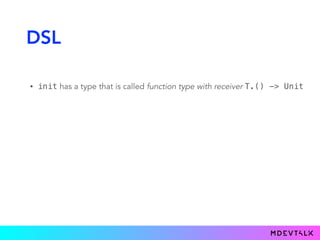

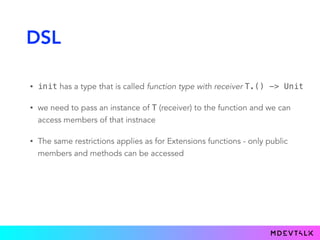

• init has a type that is called function type with receiver T.() -> Unit

DSL
• we need to pass an instance of T (receiver) to the function and we can
access members of that instnace

DSL
• we need to pass an instance of T (receiver) to the function and we can
access members of that instnace
• The same restrictions applies as for Extensions functions - only public
members and methods can be accessed

DSL

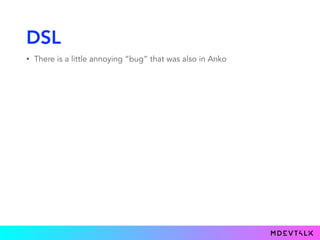

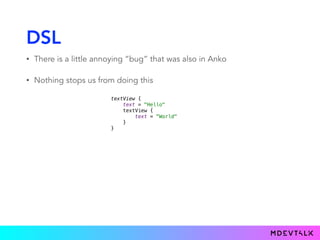

• There is a little annoying “bug” that was also in Anko

DSL
• Nothing stops us from doing this
textView { 
text = "Hello" 
textView { 
text = "World" 
} 
}

DSL
• We can generate syntactically incorrect results
textView { 
text = "Hello" 
textView { 
text = "World" 
} 
}

DSL
• We can generate syntactically incorrect results
• It’s possible because we are still inside the context of the outer
verticalLayout
textView { 
text = "Hello" 
textView { 
text = "World" 
} 
}

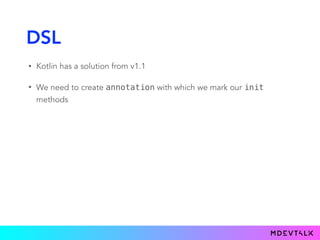

DSL

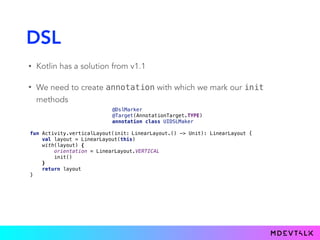

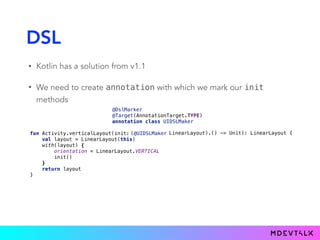

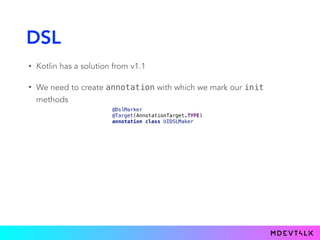

• Kotlin has a solution from v1.1
• We need to create annotation with which we mark our init
methods
LinearLayout.() -> Unit): LinearLayout {LinearLayout).() -> Unit): LinearLayout {(@UIDSLMaker

DSL
methods
@DslMarker 
@Target(AnnotationTarget.TYPE) 
annotation class UIDSLMaker

DSL
methods
@DslMarker 
@Target(AnnotationTarget.TYPE) 
annotation class UIDSLMaker
fun Activity.verticalLayout(init: 
with(layout) { 
init() 
} 
return layout 
}

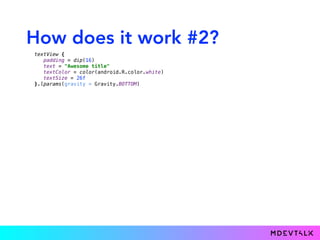

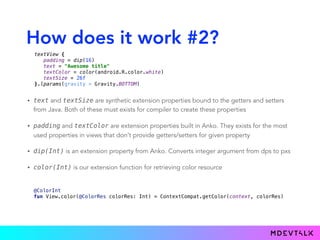

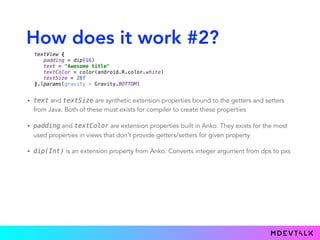

How does it work #2?
• DSL explains why the layout looks structurized but there is
more in Anko (or Kotlin) that makes building layouts easier
• Lets take a look at our first Anko sample

• DSL explains why the layout looks structurized but there is
more in Anko (or Kotlin) that makes building layouts easier
• Lets take a look at our first Anko sample
textView { 
textSize = 26f 
}.lparams(gravity = Gravity.BOTTOM)

textView { 
textSize = 26f 

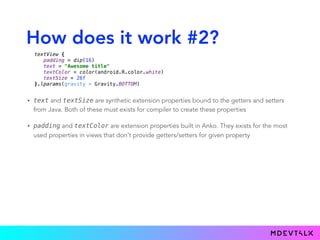

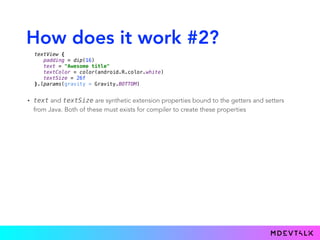

• text and textSize are synthetic extension properties bound to the getters and setters
from Java. Both of these must exists for compiler to create these properties
textView { 
textSize = 26f 

• padding and textColor are extension properties built in Anko. They exists for the most
used properties in views that don’t provide getters/setters for given property
textView { 
textSize = 26f 

• dip(Int) is an extension property from Anko. Converts integer argument from dps to pxs
textView { 
textSize = 26f 

• dip(Int) is an extension property from Anko. Converts integer argument from dps to pxs

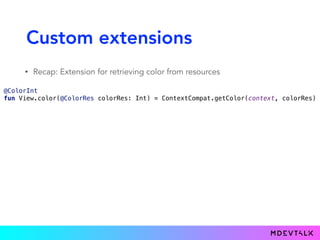

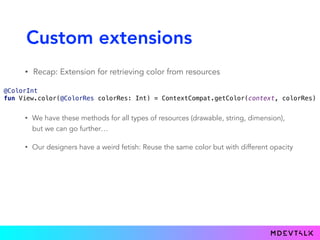

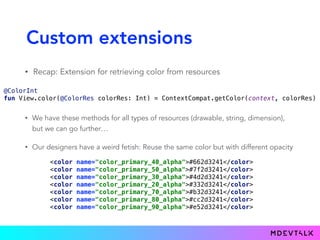

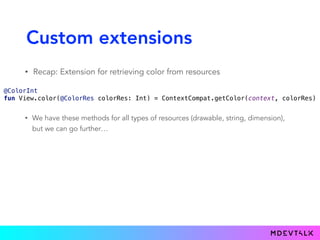

• color(Int) is our extension function for retrieving color resource
 
@ColorInt 
fun View.color(@ColorRes colorRes: Int) = ContextCompat.getColor(context, colorRes) 
textView { 
textSize = 26f 

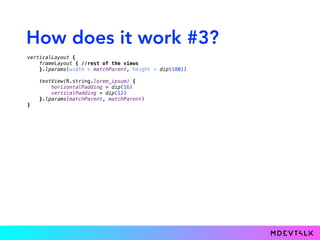

verticalLayout { 
frameLayout { //rest of the views 
}.lparams(width = matchParent, height = dip(180)) 
 
textView(R.string.lorem_ipsum) { 
}

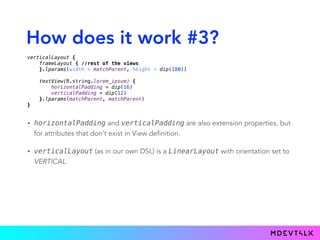

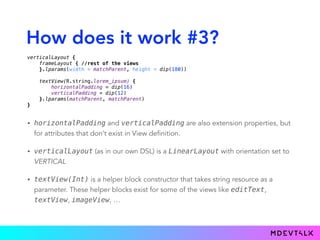

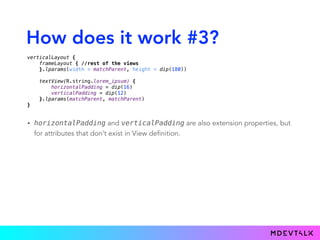

• horizontalPadding and verticalPadding are also extension properties, but
for attributes that don’t exist in View definition.
verticalLayout { 
 
}

• verticalLayout (as in our own DSL) is a LinearLayout with orientation set to
VERTICAL
verticalLayout { 
 
}

• verticalLayout (as in our own DSL) is a LinearLayout with orientation set to
VERTICAL
• textView(Int) is a helper block constructor that takes string resource as a
parameter. These helper blocks exist for some of the views like editText,
textView, imageView, …

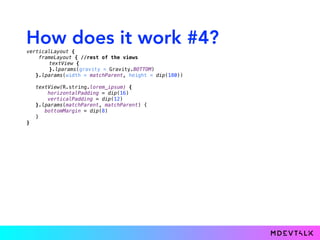

verticalLayout { 
 
}

verticalLayout { 
frameLayout { //rest of the views
textView { 
 
}.lparams(matchParent, matchParent) {
bottomMargin = dip(8)
} 
}

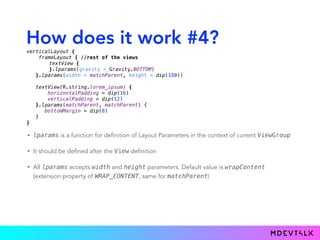

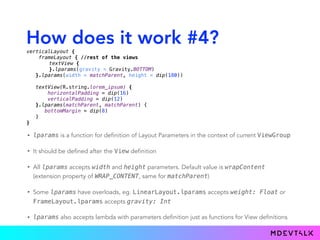

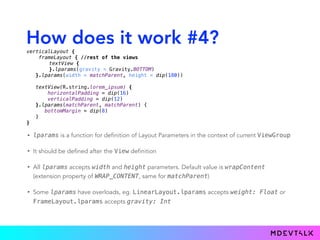

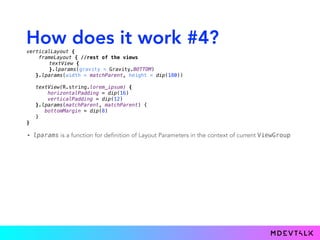

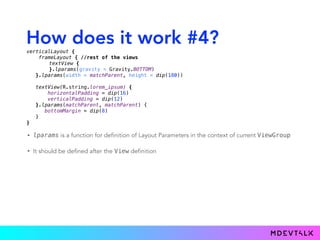

• lparams is a function for definition of Layout Parameters in the context of current ViewGroup
verticalLayout { 
textView { 
 
} 
}

• It should be defined after the View definition
verticalLayout { 
textView { 
 
} 
}

• All lparams accepts width and height parameters. Default value is wrapContent
(extension property of WRAP_CONTENT, same for matchParent)
verticalLayout { 
textView { 
 
} 
}

• Some lparams have overloads, eg. LinearLayout.lparams accepts weight: Float or
FrameLayout.lparams accepts gravity: Int
verticalLayout { 
textView { 
 
} 
}

• Some lparams have overloads, eg. LinearLayout.lparams accepts weight: Float or
FrameLayout.lparams accepts gravity: Int
• lparams also accepts lambda with parameters definition just as functions for View definitions
verticalLayout { 
textView { 
 
} 
}

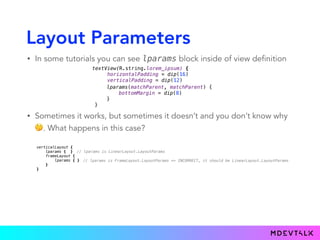

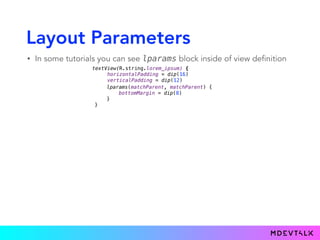

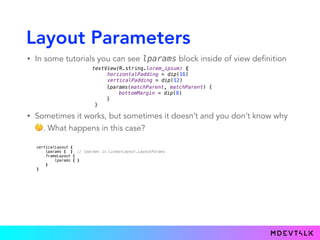

Layout Parameters

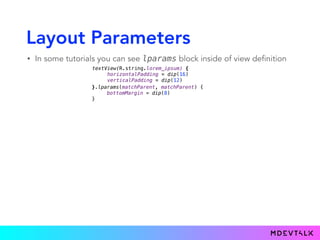

• In some tutorials you can see lparams block inside of view definition
verticalPadding = dip(12)
}

Layout Parameters
}
lparams(matchParent, matchParent) {
}
}

Layout Parameters
}
}
}
• Sometimes it works, but sometimes it doesn’t and you don’t know why
🤔. What happens in this case?
verticalLayout { 
lparams { } 
frameLayout { 
lparams { } 
} 
}

Layout Parameters
}
}
}
verticalLayout { 
lparams { } 
frameLayout { 
lparams { } 
} 
}
// lparams is LinearLayout.LayoutParams

Layout Parameters
}
}
}
verticalLayout { 
lparams { } 
frameLayout { 
lparams { } 
} 
}
// lparams is LinearLayout.LayoutParams 
// lparams is FrameLayout.LayoutParams => INCORRECT, it should be LinearLayout.LayoutParams

Layout Parameters
}
}
}
verticalLayout { 
lparams { } 
frameLayout { 
lparams { } 
} 
}
// lparams is LinearLayout.LayoutParams 
// lparams is FrameLayout.LayoutParams => INCORRECT, it should be LinearLayout.LayoutParams
• Because of that, you need to define lparams for the most outer
ViewGroup just like without Anko

Layout Parameters
• Because of that, you need to define lparams for the most outer
ViewGroup just like without Anko
verticalLayout { 
layoutParams = ViewGroup.LayoutParams(matchParent, dip(180))
 
frameLayout { 
}.lparams { } 
}

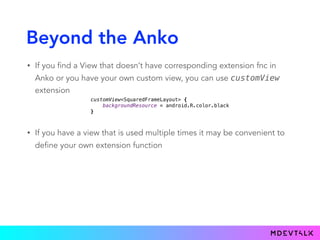

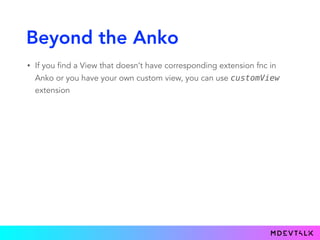

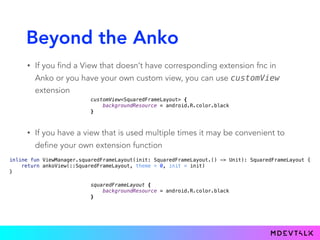

Beyond the Anko
• If you find a View that doesn’t have corresponding extension fnc in
Anko or you have your own custom view, you can use customView
extension

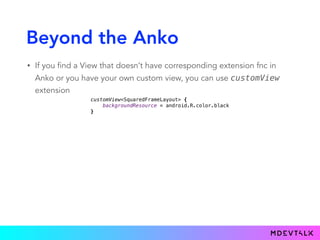

Beyond the Anko
extension
customView<SquaredFrameLayout> { 
backgroundResource = android.R.color.black 
}

Beyond the Anko
extension
}
• If you have a view that is used multiple times it may be convenient to
define your own extension function

Beyond the Anko
extension
}
inline fun ViewManager.squaredFrameLayout(init: SquaredFrameLayout.() -> Unit): SquaredFrameLayout { 
return ankoView(::SquaredFrameLayout, theme = 0, init = init) 
}

Beyond the Anko
extension
}
inline fun ViewManager.squaredFrameLayout(init: SquaredFrameLayout.() -> Unit): SquaredFrameLayout { 
return ankoView(::SquaredFrameLayout, theme = 0, init = init) 
}
squaredFrameLayout { 
}

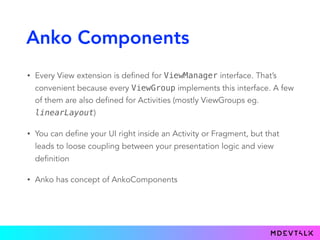

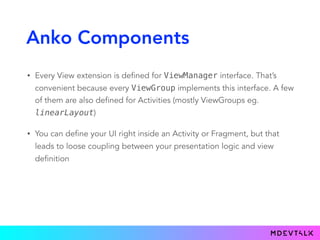

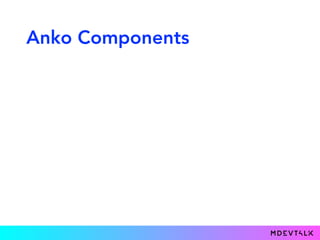

Anko Components
• Every View extension is defined for ViewManager interface. That’s
convenient because every ViewGroup implements this interface. A few
of them are also defined for Activities (mostly ViewGroups eg.
linearLayout)

Anko Components
linearLayout)
• You can define your UI right inside an Activity or Fragment, but that
leads to loose coupling between your presentation logic and view
definition

Anko Components
linearLayout)
• You can define your UI right inside an Activity or Fragment, but that
leads to loose coupling between your presentation logic and view
definition
• Anko has concept of AnkoComponents

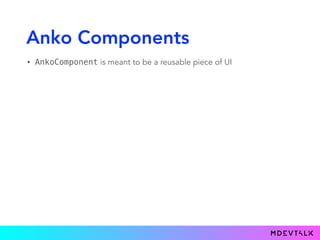

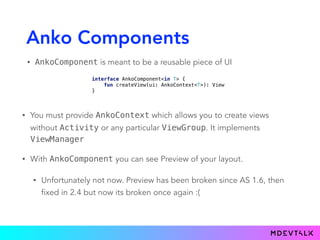

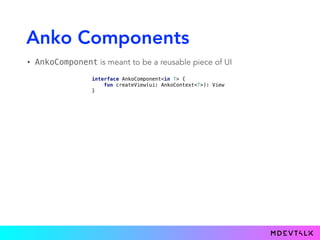

Anko Components

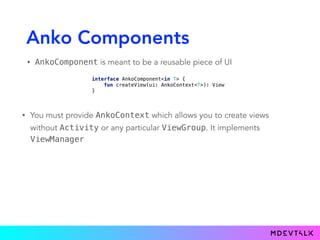

• AnkoComponent is meant to be a reusable piece of UI

Anko Components
interface AnkoComponent<in T> { 
fun createView(ui: AnkoContext<T>): View 
}

Anko Components
}
• You must provide AnkoContext which allows you to create views
without Activity or any particular ViewGroup. It implements
ViewManager

Anko Components
}
ViewManager
• With AnkoComponent you can see Preview of your layout.

Anko Components
}
ViewManager
• With AnkoComponent you can see Preview of your layout.
• Unfortunately not now. Preview has been broken since AS 1.6, then
fixed in 2.4 but now its broken once again :(

Anko Components
class SampleComponent : AnkoComponent<AnkoComponentActivity> { 
override fun createView(ui: AnkoContext<AnkoComponentActivity>): View { 
return with(ui) {
frameLayout { 
layoutParams = ViewGroup.LayoutParams(matchParent, dip(180)) 
 
.lparams(width = matchParent, height = dip(100), gravity = Gravity.BOTTOM) 
 
textView { 
textSize = 26f 
} 
} 
} 
}

Anko Components
class SampleComponent : AnkoComponent<AnkoComponentActivity> { 
override fun createView(ui: AnkoContext<AnkoComponentActivity>): View {
layoutParams = ViewGroup.LayoutParams(matchParent, dip(180)) 
 
.lparams(width = matchParent, height = dip(100), gravity = Gravity.BOTTOM) 
 
textView { 
textSize = 26f 
}
} 
}
return ui.frameLayout {

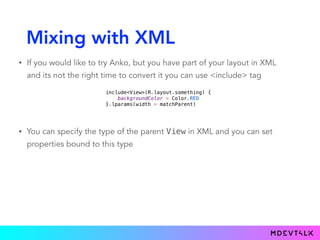

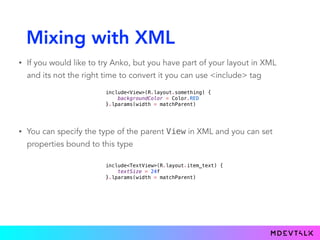

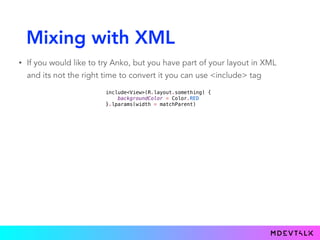

Mixing with XML
• If you would like to try Anko, but you have part of your layout in XML
and its not the right time to convert it you can use <include> tag

Mixing with XML
include<View>(R.layout.something) {
backgroundColor = Color.RED
}.lparams(width = matchParent)

Mixing with XML
• You can specify the type of the parent View in XML and you can set
properties bound to this type

Mixing with XML
• You can specify the type of the parent View in XML and you can set
properties bound to this type
include<TextView>(R.layout.item_text) {
textSize = 24f

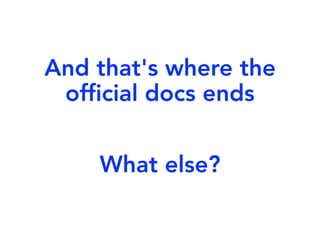

And that's where the
official docs ends

And that's where the
official docs ends
What else?

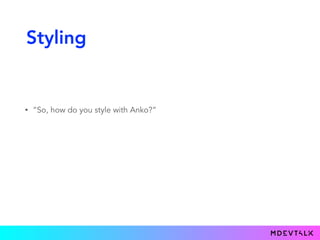

Styling
• “So, how do you style with Anko?”

Styling
• “So, how do you style with Anko?”
• We are in code, so the same rules apply as in programming anything else

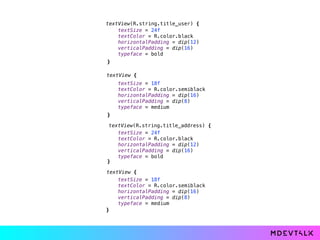

textView(R.string.title_user) { 
 
textView { 
 
 
textView { 
textView(R.string.title_address) { 
 
 
textSize = 24f 
textColor = R.color.black 
typeface = bold
}
textSize = 18f 
textColor = R.color.semiblack 
typeface = medium 
} 
textSize = 24f 
typeface = bold
}
textSize = 18f 
}

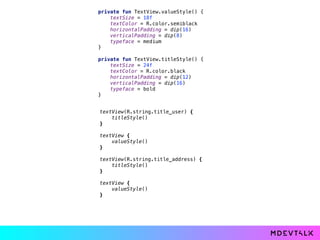

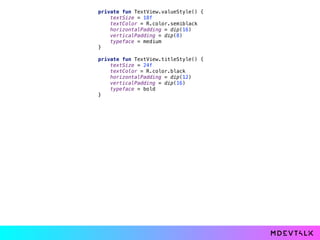

private fun TextView.valueStyle() { 
textSize = 18f 
} 
 
private fun TextView.titleStyle() { 
textSize = 24f 
typeface = bold 
}

private fun TextView.valueStyle() { 
textSize = 18f 
} 
 
private fun TextView.titleStyle() { 
textSize = 24f 
typeface = bold 
}
textView(R.string.title_user) { 
titleStyle() 
} 
 
textView { 
valueStyle() 
} 
 
textView(R.string.title_address) { 
titleStyle() 
} 
 
textView { 
valueStyle() 
}

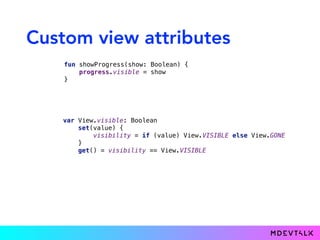

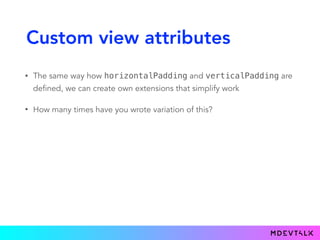

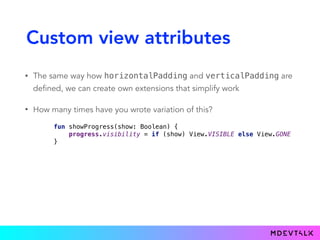

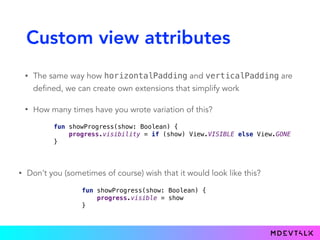

Custom view attributes
• The same way how horizontalPadding and verticalPadding are
defined, we can create own extensions that simplify work
• How many times have you wrote variation of this?

fun showProgress(show: Boolean) { 
progress.visibility = if (show) View.VISIBLE else View.GONE 
}

progress.visibility = if (show) View.VISIBLE else View.GONE 
}
• Don’t you (sometimes of course) wish that it would look like this?
progress.visible = show 
}}

progress.visible = show 
}}
var View.visible: Boolean 
set(value) { 
visibility = if (value) View.VISIBLE else View.GONE 
} 
get() = visibility == View.VISIBLE

Custom extensions
• Recap: Extension for retrieving color from resources
 
@ColorInt 
fun View.color(@ColorRes colorRes: Int) = ContextCompat.getColor(context, colorRes)

Custom extensions
 
@ColorInt 
• We have these methods for all types of resources (drawable, string, dimension),
but we can go further…

Custom extensions
 
@ColorInt 
• Our designers have a weird fetish: Reuse the same color but with different opacity

Custom extensions
 
@ColorInt 
• Our designers have a weird fetish: Reuse the same color but with different opacity
 
<color name="color_primary_40_alpha">#662d3241</color> 
<color name="color_primary_50_alpha">#7f2d3241</color> 
<color name="color_primary_30_alpha">#4d2d3241</color> 
<color name="color_primary_20_alpha">#332d3241</color> 
<color name="color_primary_70_alpha">#b32d3241</color> 
<color name="color_primary_80_alpha">#cc2d3241</color> 
<color name="color_primary_90_alpha">#e52d3241</color>

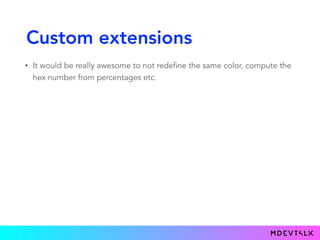

Custom extensions
• It would be really awesome to not redefine the same color, compute the
hex number from percentages etc.

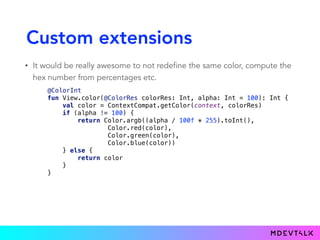

Custom extensions
• It would be really awesome to not redefine the same color, compute the
hex number from percentages etc.
@ColorInt 
fun View.color(@ColorRes colorRes: Int, alpha: Int = 100): Int { 
val color = ContextCompat.getColor(context, colorRes) 
if (alpha != 100) { 
return Color.argb((alpha / 100f * 255).toInt(), 
Color.red(color), 
Color.green(color), 
Color.blue(color)) 
} else { 
return color 
} 
}

Custom extensions
textView { 
textColor = color(R.color.color_primary, alpha = 50) 
textSize = 26f 
}

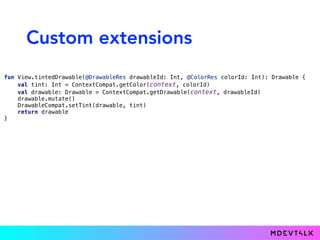

Custom extensions
fun View.tintedDrawable(@DrawableRes drawableId: Int, @ColorRes colorId: Int): Drawable { 
val tint: Int = ContextCompat.getColor(context, colorId) 
val drawable: Drawable = ContextCompat.getDrawable(context, drawableId) 
drawable.mutate() 
DrawableCompat.setTint(drawable, tint) 
return drawable 
}

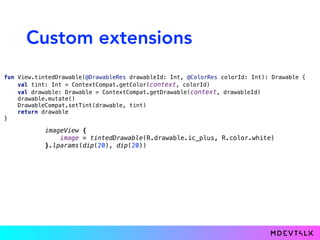

Custom extensions
fun View.tintedDrawable(@DrawableRes drawableId: Int, @ColorRes colorId: Int): Drawable { 
val tint: Int = ContextCompat.getColor(context, colorId) 
val drawable: Drawable = ContextCompat.getDrawable(context, drawableId) 
drawable.mutate() 
DrawableCompat.setTint(drawable, tint) 
return drawable 
}
imageView { 
image = tintedDrawable(R.drawable.ic_plus, R.color.white) 
}.lparams(dip(20), dip(20))

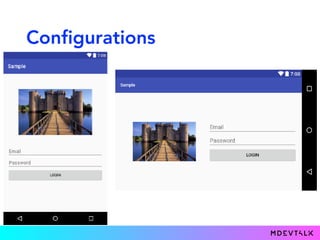

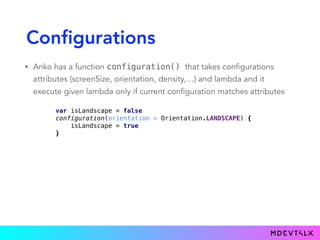

Configurations
• Anko has a function configuration() that takes configurations
attributes (screenSize, orientation, density,…) and lambda and it
execute given lambda only if current configuration matches attributes

Configurations
var isLandscape = false 
configuration(orientation = Orientation.LANDSCAPE) { 
isLandscape = true 
}

Configurations
var isLandscape = false 
configuration(orientation = Orientation.LANDSCAPE) { 
isLandscape = true 
}
• You can put a few ifs to your layout to change it according to device
orientation

linearLayout { 
orientation = if (isLandscape) LinearLayout.HORIZONTAL else LinearLayout.VERTICA
if (!isLandscape) { 
} 
imageView(R.drawable.castle) { }.lparams { 
if (isLandscape) { 
width = 0 
weight = 1f 
} 
} 
verticalLayout { 
editText { hint = "Email" } 
editText { hint = "Password" } 
button("Login") 
}.lparams { 
width = 0 
weight = 1f 
} else { 
width = matchParent 
} 
height = wrapContent 
}}

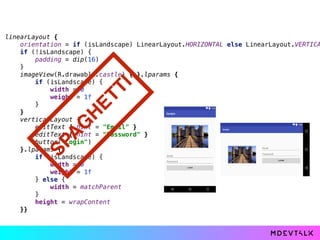

linearLayout { 
orientation = if (isLandscape) LinearLayout.HORIZONTAL else LinearLayout.VERTICA
if (!isLandscape) { 
} 
imageView(R.drawable.castle) { }.lparams { 
width = 0 
weight = 1f 
} 
} 
verticalLayout { 
editText { hint = "Email" } 
editText { hint = "Password" } 
button("Login") 
}.lparams { 
width = 0 
weight = 1f 
} else { 
width = matchParent 
} 
height = wrapContent 
}}
SPA
G
H
ETTI

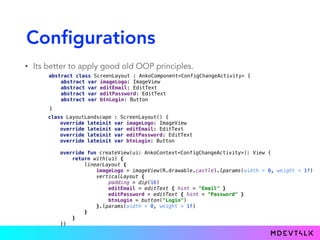

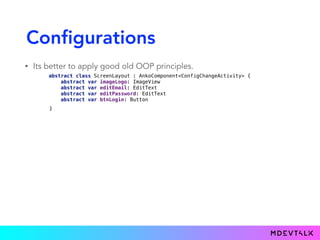

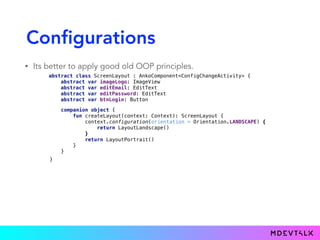

Configurations
• Its better to apply good old OOP principles.
abstract class ScreenLayout : AnkoComponent<ConfigChangeActivity> { 
abstract var imageLogo: ImageView 
abstract var editEmail: EditText 
abstract var editPassword: EditText 
abstract var btnLogin: Button
}

Configurations
class LayoutPortrait : ScreenLayout() { 
override lateinit var imageLogo: ImageView 
override lateinit var editEmail: EditText 
override lateinit var editPassword: EditText 
override lateinit var btnLogin: Button 
 
override fun createView(ui: AnkoContext<ConfigChangeActivity>): View { 
return with(ui) { 
verticalLayout { 
imageLogo = imageView(R.drawable.castle)
editEmail = editText { hint = "Email" } 
editPassword = editText { hint = "Password" } 
btnLogin = button("Login") 
} 
} 
} 
}
}

Configurations
 
verticalLayout { 
} 
} 
} 
}
class LayoutLandscape : ScreenLayout() { 
 
linearLayout { 
imageLogo = imageView(R.drawable.castle).lparams(width = 0, weight = 1f) 
verticalLayout { 
}.lparams(width = 0, weight = 1f) 
} 
} 
}}
}

Configurations
 
verticalLayout { 
} 
} 
} 
}
class LayoutLandscape : ScreenLayout() { 
 
linearLayout { 
imageLogo = imageView(R.drawable.castle).lparams(width = 0, weight = 1f) 
verticalLayout { 
}.lparams(width = 0, weight = 1f) 
} 
} 
}}
companion object { 
fun createLayout(context: Context): ScreenLayout { 
context.configuration(orientation = Orientation.LANDSCAPE) { 
return LayoutLandscape() 
} 
return LayoutPortrait() 
} 
}
}

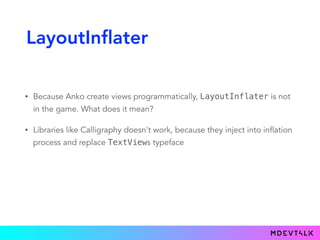

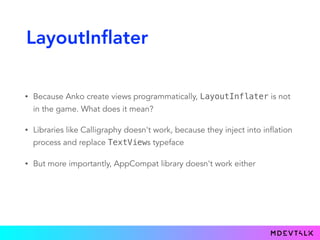

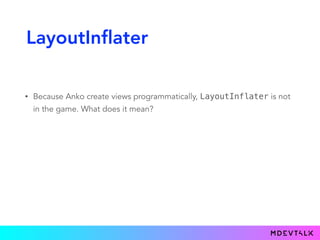

LayoutInflater
• Because Anko create views programmatically, LayoutInflater is not
in the game. What does it mean?

LayoutInflater
• Libraries like Calligraphy doesn't work, because they inject into inflation
process and replace TextViews typeface

LayoutInflater
• Libraries like Calligraphy doesn't work, because they inject into inflation
process and replace TextViews typeface
• But more importantly, AppCompat library doesn't work either

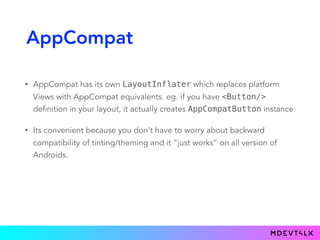

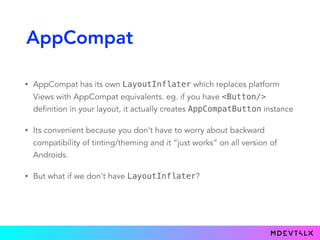

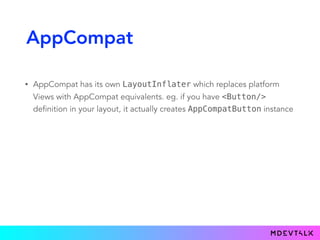

AppCompat
• AppCompat has its own LayoutInflater which replaces platform
Views with AppCompat equivalents. eg. if you have <Button/>
definition in your layout, it actually creates AppCompatButton instance

AppCompat
• Its convenient because you don't have to worry about backward
compatibility of tinting/theming and it “just works” on all version of
Androids.

AppCompat
• Its convenient because you don't have to worry about backward
compatibility of tinting/theming and it “just works” on all version of
Androids.
• But what if we don't have LayoutInflater?

AppCompat

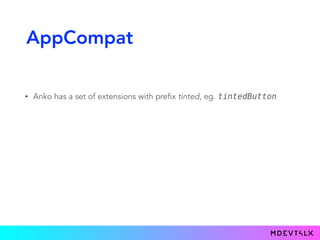

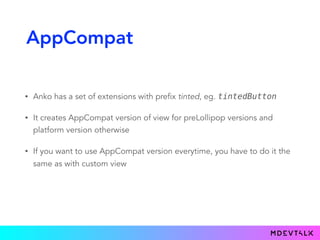

• Anko has a set of extensions with prefix tinted, eg. tintedButton

AppCompat
• It creates AppCompat version of view for preLollipop versions and
platform version otherwise

AppCompat
• It creates AppCompat version of view for preLollipop versions and
platform version otherwise
• If you want to use AppCompat version everytime, you have to do it the
same as with custom view

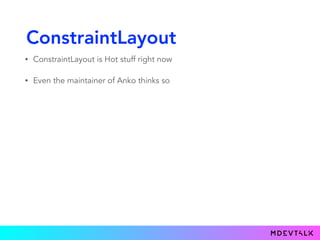

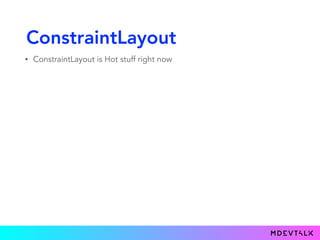

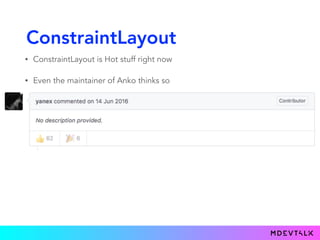

ConstraintLayout
• ConstraintLayout is Hot stuff right now

ConstraintLayout
• Even the maintainer of Anko thinks so

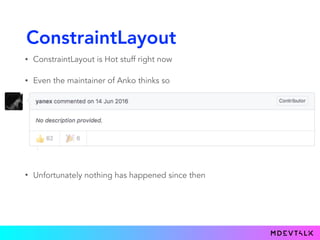

ConstraintLayout
• Even the maintainer of Anko thinks so
• Unfortunately nothing has happened since then

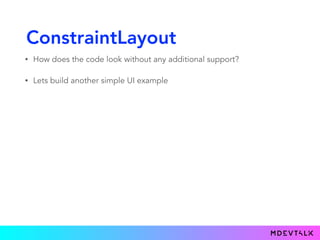

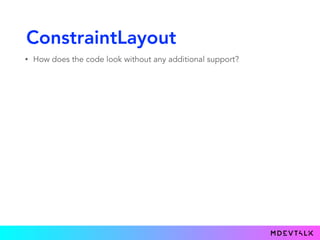

ConstraintLayout
• How does the code look without any additional support?

ConstraintLayout
• How does the code look without any additional support?
• Lets build another simple UI example

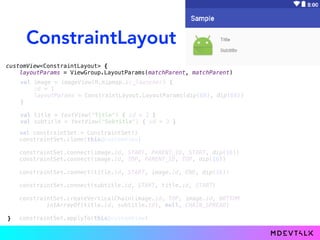

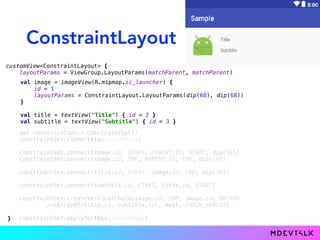

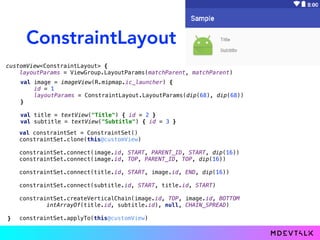

ConstraintLayout
customView<ConstraintLayout> {
layoutParams = ViewGroup.LayoutParams(matchParent, matchParent)
val constraintSet = ConstraintSet()
constraintSet.clone(this@customView)
constraintSet.connect(image.id, START, PARENT_ID, START, dip(16))
constraintSet.connect(image.id, TOP, PARENT_ID, TOP, dip(16))
constraintSet.connect(title.id, START, image.id, END, dip(16))
constraintSet.connect(subtitle.id, START, title.id, START)
constraintSet.createVerticalChain(image.id, TOP, image.id, BOTTOM
intArrayOf(title.id, subtitle.id), null, CHAIN_SPREAD)
constraintSet.applyTo(this@customView)
val image = imageView(R.mipmap.ic_launcher) {
id = 1
layoutParams = ConstraintLayout.LayoutParams(dip(68), dip(68))
}
val title = textView("Title") { id = 2 }
val subtitle = textView("Subtitle") { id = 3 }
}

ConstraintLayout
• Fortunately, our colleague David (other than me) likes ConstraintLayout
so much that he developed library that is compatible with Anko

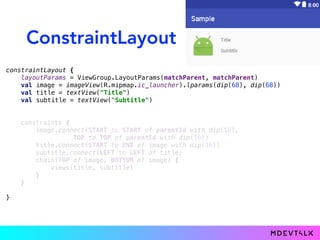

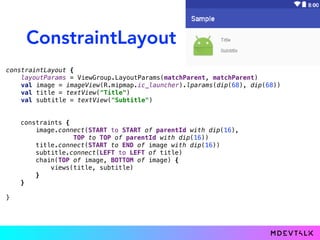

ConstraintLayout
constraintLayout {
layoutParams = ViewGroup.LayoutParams(matchParent, matchParent)
val image = imageView(R.mipmap.ic_launcher).lparams(dip(68), dip(68))
val title = textView("Title")
val subtitle = textView("Subtitle")
}
constraints {
image.connect(START to START of parentId with dip(16),
TOP to TOP of parentId with dip(16))
title.connect(START to END of image with dip(16))
subtitle.connect(LEFT to LEFT of title)
chain(TOP of image, BOTTOM of image) {
views(title, subtitle)
}
}

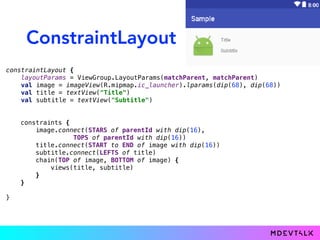

constraints {
image.connect(STARS of parentId with dip(16),
TOPS of parentId with dip(16))
title.connect(START to END of image with dip(16))
subtitle.connect(LEFTS of title)
chain(TOP of image, BOTTOM of image) {
views(title, subtitle)
}
}

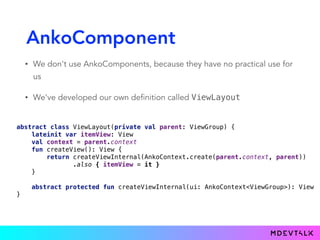

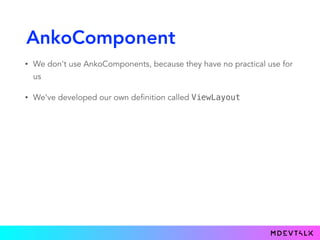

AnkoComponent
• We don't use AnkoComponents, because they have no practical use for
us

AnkoComponent
us
• We've developed our own definition called ViewLayout

AnkoComponent
us
• We've developed our own definition called ViewLayout
 
abstract class ViewLayout(private val parent: ViewGroup) { 
lateinit var itemView: View 
val context = parent.context 
fun createView(): View { 
return createViewInternal(AnkoContext.create(parent.context, parent))
.also { itemView = it } 
} 
 
abstract protected fun createViewInternal(ui: AnkoContext<ViewGroup>): View 
}

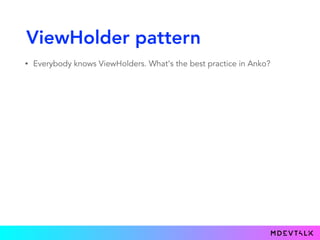

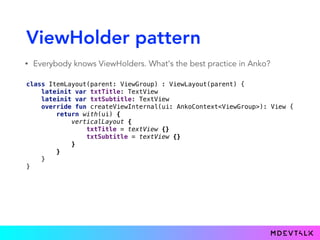

ViewHolder pattern
• Everybody knows ViewHolders. What's the best practice in Anko?

ViewHolder pattern
 
class ItemLayout(parent: ViewGroup) : ViewLayout(parent) { 
lateinit var txtTitle: TextView 
lateinit var txtSubtitle: TextView 
override fun createViewInternal(ui: AnkoContext<ViewGroup>): View { 
verticalLayout { 
txtTitle = textView {} 
txtSubtitle = textView {} 
} 
} 
} 
}

ViewHolder pattern
 
verticalLayout { 
} 
} 
} 
}
class ItemHolder(val layout: ItemLayout) : ViewHolder (layout.createView()) { 
fun bind(title: String, subtitle: String) { 
with(layout) { 
txtTitle.text = title 
txtSubtitle.text = subtitle 
}}}

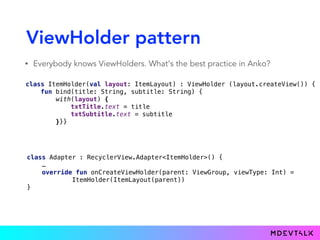

ViewHolder pattern
 
verticalLayout { 
} 
} 
} 
}
class ItemHolder(val layout: ItemLayout) : ViewHolder (layout.createView()) { 
fun bind(title: String, subtitle: String) { 
with(layout) { 
txtTitle.text = title 
txtSubtitle.text = subtitle 
}}}
class Adapter : RecyclerView.Adapter<ItemHolder>() {
… 
override fun onCreateViewHolder(parent: ViewGroup, viewType: Int) = 
ItemHolder(ItemLayout(parent)) 
}

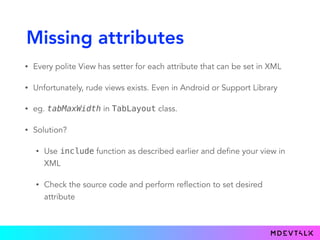

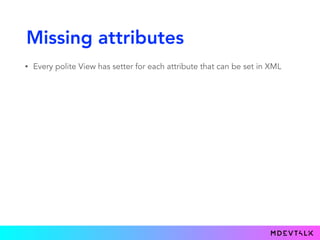

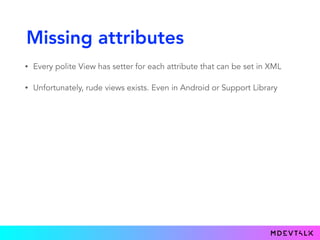

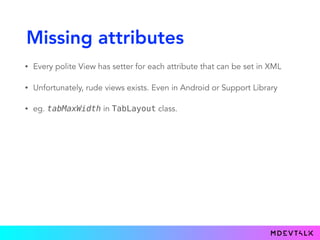

Missing attributes
• Every polite View has setter for each attribute that can be set in XML

Missing attributes
• Unfortunately, rude views exists. Even in Android or Support Library

Missing attributes
• eg. tabMaxWidth in TabLayout class.

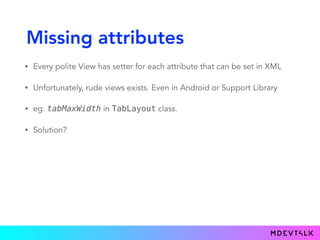

Missing attributes
• Solution?

Missing attributes
• Solution?
• Use include function as described earlier and define your view in
XML

Missing attributes
• Solution?
• Use include function as described earlier and define your view in
XML
• Check the source code and perform reflection to set desired
attribute

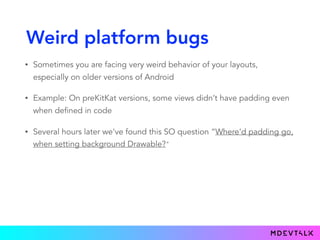

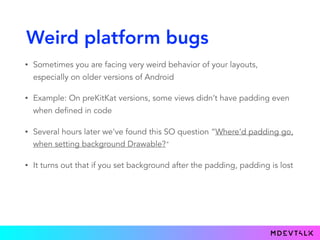

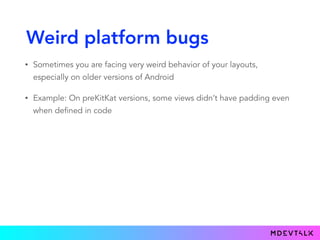

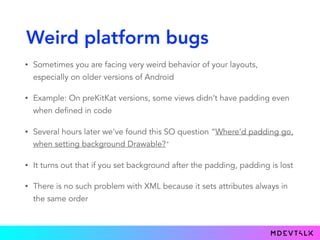

Weird platform bugs
• Sometimes you are facing very weird behavior of your layouts,
especially on older versions of Android

Weird platform bugs
• Example: On preKitKat versions, some views didn’t have padding even
when defined in code

Weird platform bugs
• Several hours later we've found this SO question “Where'd padding go,
when setting background Drawable?"

Weird platform bugs
• It turns out that if you set background after the padding, padding is lost

Weird platform bugs
• It turns out that if you set background after the padding, padding is lost
• There is no such problem with XML because it sets attributes always in
the same order

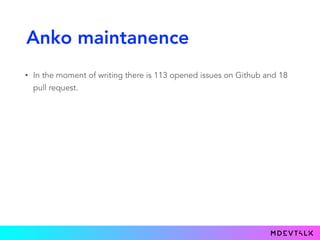

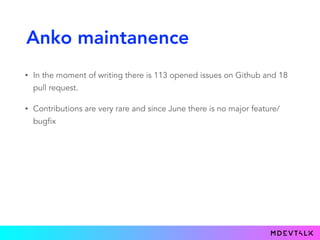

Anko maintanence
• In the moment of writing there is 113 opened issues on Github and 18
pull request.

Anko maintanence
pull request.
• Contributions are very rare and since June there is no major feature/
bugfix

Anko maintanence
pull request.
bugfix
• Members of JB said in YouTrack that Anko is one-man project and that
one man doesn't have time for that right now :(

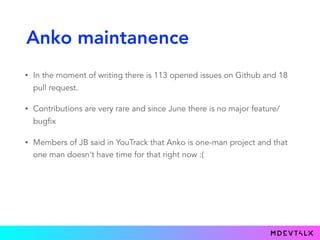

Anko maintanence
pull request.
bugfix
• Members of JB said in YouTrack that Anko is one-man project and that
one man doesn't have time for that right now :(
• Preview was broken since AS 1.6, fixed in 2.4 but broke once again in
3.0. But couple of days ago…

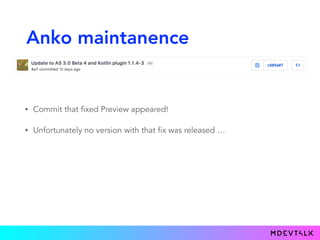

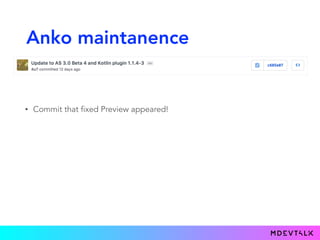

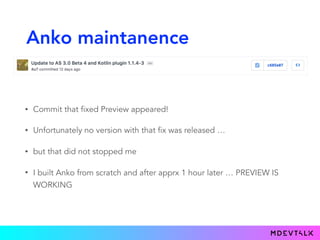

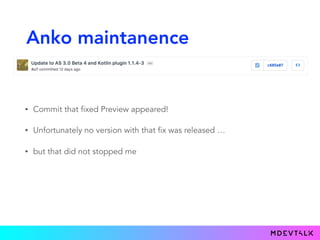

Anko maintanence
• Commit that fixed Preview appeared!

Anko maintanence
• Unfortunately no version with that fix was released …

Anko maintanence
• but that did not stopped me

Anko maintanence
• but that did not stopped me
• I built Anko from scratch and after apprx 1 hour later … PREVIEW IS
WORKING

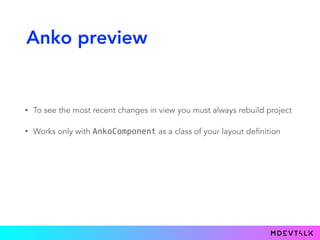

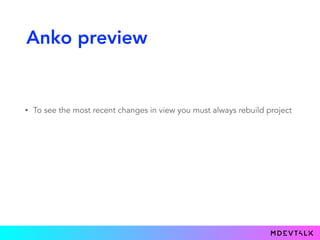

Anko preview
• To see the most recent changes in view you must always rebuild project

Anko preview
• Works only with AnkoComponent as a class of your layout definition

Anko preview
• Works only with AnkoComponent as a class of your layout definition
• Does not provide Visual Editor of your layout or its view attributes

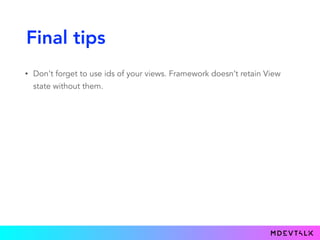

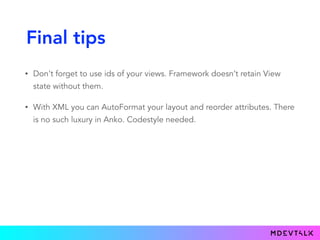

Final tips
• Don't forget to use ids of your views. Framework doesn’t retain View
state without them.

Final tips
state without them.
• With XML you can AutoFormat your layout and reorder attributes. There
is no such luxury in Anko. Codestyle needed.

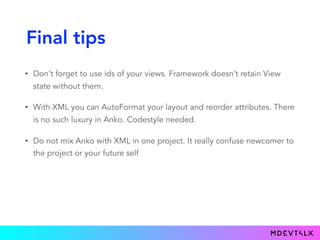

Final tips
state without them.
• Do not mix Anko with XML in one project. It really confuse newcomer to
the project or your future self

Final tips
state without them.
• Do not mix Anko with XML in one project. It really confuse newcomer to
the project or your future self
• Always define your layout in separate class. It allows abstraction and it
strictly defines coupling between logic and UI definition

QUESTIONS?
david.bilik@ackee.cz
twitter.com/bilikdavid

David Bilík: Anko – modern way to build your layouts?

More Related Content

What's hot

Similar to David Bilík: Anko – modern way to build your layouts?

More from mdevtalk

David Bilík: Anko – modern way to build your layouts?
