1. Helium makes Fly!
Moon soo Lee (moon@zepl.com)

2. What is Apache Zeppelin?
A web-based notebook that enables interactive data analytics. You can make beautiful data-driven,
interactive and collaborative documents with SQL, Scala and more.

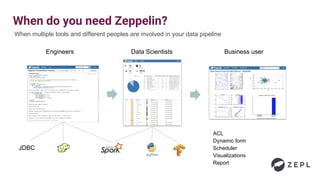

3. When do you need Zeppelin?
Engineers Data Scientists Business user
ACL
Dynamic form
Scheduler
Visualizations
Report
When multiple tools and different peoples are involved in your data pipeline
JDBC

4. Notebook
Zeppelin allows use multiple interpreter
(language backend) at the same time
● Real-time collaboration
● Authentication
● Notebook ACL
● Interpreter ACL
● Fine grained interpreter session -
notebook/user mapping
● Built-in scheduler
● Pluggable notebook storage
● Pluggable interpreter
Zeppelin supports multi-user environment

5. Built-in Visualization
6 Basic visualizations are built-in, (in addition to matplotlib, ggplot integration)
(Table, Bar chart, Pie chart, Area chart, Scatter chart, Line chart)

6. Helium

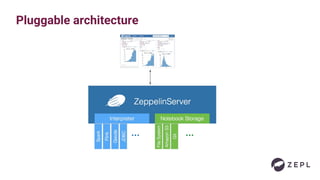

7. Pluggable architecture

8. Pluggable visualization

9. Built-in Helium

10. Helium Visualization Examples

11. How to write new visualization?
http://zeppelin.apache.org/docs/latest/development/writingzeppelinvisualization.html
1. Create standard npm project with ‘zeppelin-vis’ dependency
2. Extend zeppelin-vis/Visualization class
3. Run Zeppelin front-end in development mode
4. Change code and refresh browser to run your Visualization in Zeppelin
$ cd zeppelin-web
$ npm run dev:helium
A Helium visualization is a Standard NPM package

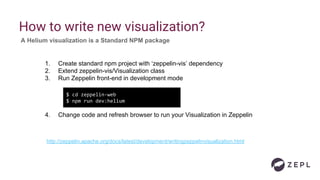

12. How to write new visualization?
http://zeppelin.apache.org/docs/latest/development/writingzeppelinvisualization.html
1. Create standard npm project with ‘zeppelin-vis’ dependency
2. Extend zeppelin-vis/Visualization class
3. Run Zeppelin front-end in development mode
4. Change code and refresh browser to run your Visualization in Zeppelin
$ cd zeppelin-web
$ npm run dev:helium
A Helium visualization is a Standard NPM package

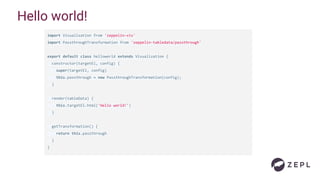

13. import Visualization from 'zeppelin-vis'
import PassthroughTransformation from 'zeppelin-tabledata/passthrough'
export default class helloworld extends Visualization {
constructor(targetEl, config) {
super(targetEl, config)
this.passthrough = new PassthroughTransformation(config);
}
render(tableData) {
this.targetEl.html('Hello world!')
}
getTransformation() {
return this.passthrough
}
}
Hello world!

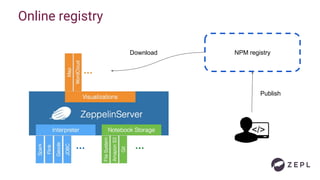

14. Online registry
NPM registry
Publish
Download

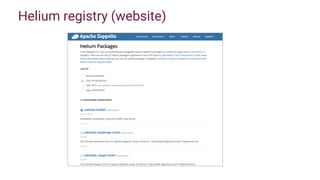

15. Helium registry (website)

16. Helium package management

17. Helium framework
● Pluggable architecture
● Development environment
● Online registry
● Package management
Leverage Helium framework to extend other features, too!

18. Helium
Visualization
Transformation
SPELL
Application

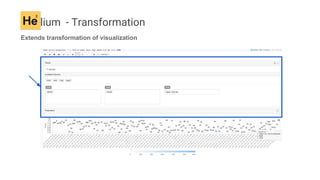

19. Helium - Transformation
Extends transformation of visualization

20. Helium - SPELL
Front-end side interpreter / Display system

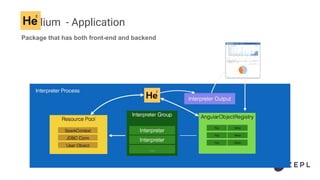

21. Helium - Application
Package that has both front-end and backend

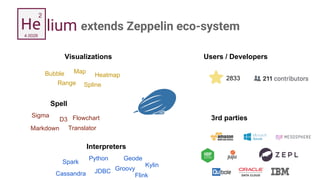

22. extends Zeppelin eco-system
Interpreters
liumHe
2
4.0026
Visualizations
Spell
Map
Heatmap
Range
Bubble
Spline
Sigma
D3
Markdown Translator
Flowchart
Spark
Python
JDBC Groovy
Geode
FlinkCassandra
Kylin
Users / Developers
2833
3rd parties

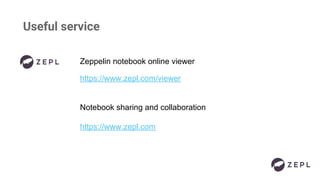

23. Useful service
Zeppelin notebook online viewer
https://www.zepl.com/viewer
Notebook sharing and collaboration
https://www.zepl.com

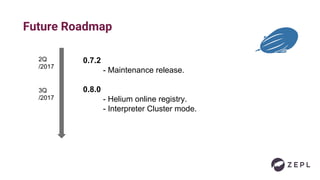

24. Future Roadmap
0.7.2
- Maintenance release.
0.8.0
- Helium online registry.
- Interpreter Cluster mode.
2Q
/2017
3Q
/2017

25. Thank you.
See also
● Package registry
http://zeppelin.apache.org/helium_packages.html
● Write Visualization
http://zeppelin.apache.org/docs/latest/development/writingzeppelinvisualization.html
● Write Transformation
http://zeppelin.apache.org/docs/latest/development/writingzeppelinvisualization_transformation.html
● Write SPELL
http://zeppelin.apache.org/docs/latest/development/writingzeppelinspell.html
● Write Application
http://zeppelin.apache.org/docs/latest/development/writingzeppelinapplication.html
