The document summarizes a tutorial presentation about the Open Grid Computing Environments (OGCE) software tools for building science gateways. The OGCE tools include a gadget container, workflow composer called XBaya, and application factory service called GFac. The presentation demonstrates how these tools can be used to build portals and compose workflows to access resources like the TeraGrid.

1. CloudCom 2010

2. Gateway Computing Environments (GCE10)

3. Software for Science Gateways: Open Grid Computing Environments Marlon Pierce, Suresh Marru Pervasive Technology Institute Indiana University www.collab-ogce.org

4. Tutorial Agenda 1:00-2:15 Introduction Computational chemistry workflow example Building the software 2:15-2:30: Break 2:30-5:00 Hands on workflow: OREChem Hands on portal: Data mining Demo: gadget container

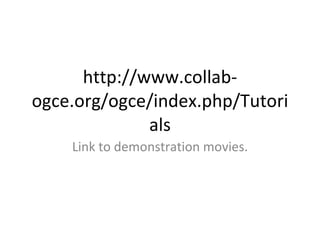

5. http://www.collab-ogce.org/ogce/index.php/Tutorials Link to demonstration movies.

6. TeraGrid is one of the largest investments in shared CI from NSF’s Office of Cyberinfrastructure

7. TeraGrid resources today include: Tightly Coupled Distributed Memory Systems, 2 systems in the top 10 at top500.org Kraken (NICS): Cray XT5, 99,072 cores, 1.03 Pflop Ranger (TACC): Sun Constellation, 62,976 cores, 579 Tflop, 123 TB RAM Shared Memory Systems Cobalt (NCSA): Altix, 8 Tflop, 3 TB shared memory Pople (PSC): Altix, 5 Tflop, 1.5 TB shared memory Clusters with Infiniband Abe (NCSA): 90 Tflops Lonestar (TACC): 61 Tflops QueenBee (LONI): 51 Tflops Condor Pool (Loosely Coupled) Purdue- up to 22,000 cpus Gateway hosting Quarry (IU): virtual machine support Visualization Resources TeraDRE (Purdue): 48 node nVIDIA GPUs Spur (TACC): 32 nVIDIA GPUs Storage Resources GPFS-WAN (SDSC) Lustre-WAN (IU) Various archival resources Source: Dan Katz, U Chicago But change is constant - new systems: Data Analysis and Vis systems Longhorn (TACC): Dell/NVIDIA, CPU and GPU Nautilus (NICS): SGI UltraViolet, 1024 cores, 4TB global shared memory Data-Intensive Computing Dash (SDSC): Intel Nehalem, 544 processors, 4TB flash memory FutureGrid Experimental computing grid and cloud test-bed to tackle research challenges in computer science Keeneland Experimental, high-performance computing system with NVIDIA Tesla accelerators

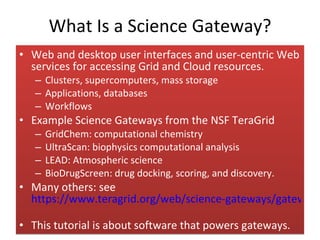

8. What Is a Science Gateway? Web and desktop user interfaces and user-centric Web services for accessing Grid and Cloud resources. Clusters, supercomputers, mass storage Applications, databases Workflows Example Science Gateways from the NSF TeraGrid GridChem: computational chemistry UltraScan: biophysics computational analysis LEAD: Atmospheric science BioDrugScreen: drug docking, scoring, and discovery. Many others: see https://www.teragrid.org/web/science-gateways/gateway_list This tutorial is about software that powers gateways.

9. When is a gateway appropriate? Provide access to community applications WRF, Gaussian, CHARMM, Amber, BLAST, CCSM, UltraScan Create multi-scale workflows Provide access to community data sets National Virtual Observatory Earth System Grid Some groups have invested significant efforts here caBIG, extensive discussions to develop common terminology and formats BIRN, extensive data sharing agreements Difficult to access data/advanced workflows Sensor/radar input LEAD, GEON

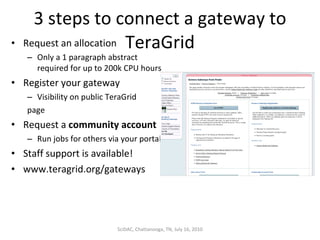

10. 3 steps to connect a gateway to TeraGrid Request an allocation Only a 1 paragraph abstract required for up to 200k CPU hours Register your gateway Visibility on public TeraGrid page Request a community account Run jobs for others via your portal Staff support is available! www.teragrid.org/gateways SciDAC, Chattanooga, TN, July 16, 2010

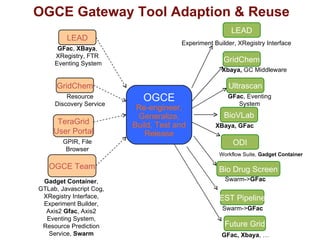

11. OVP/ RST/ MIG OGCE Re-engineer, Generalize, Build, Test and Release LEAD OGCE Gateway Tool Adaption & Reuse GridChem TeraGrid User Portal OGCE Team GridChem Ultrascan BioVLab ODI Bio Drug Screen EST Pipeline Future Grid GFac , XBaya , XRegistry, FTR Eventing System LEAD Resource Discovery Service GPIR, File Browser Gadget Container , GTLab, Javascript Cog, XRegistry Interface, Experiment Builder, Axis2 Gfac , Axis2 Eventing System, Resource Prediction Service, Swarm Experiment Builder, XRegistry Interface Xbaya, GC Middleware GFac , Eventing System XBaya, GFac Workflow Suite, Gadget Container Swarm-> GFac Swarm-> GFac GFac, Xbaya , …

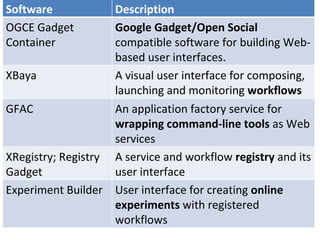

12. Software Description OGCE Gadget Container Google Gadget/Open Social compatible software for building Web-based user interfaces. XBaya A visual user interface for composing, launching and monitoring workflows GFAC An application factory service for wrapping command-line tools as Web services XRegistry; Registry Gadget A service and workflow registry and its user interface Experiment Builder User interface for creating online experiments with registered workflows

13. Science Gateways Layer Cake Color Coding Dependent resource provider components Complimentary Gateway Components OGCE Gateway Components Compute Resources Resource Middleware Cloud Interfaces Grid Middleware SSH & Resource Managers Computational Clouds Computational Grids Gateway Services User Interfaces Web/Gadget Container Web Enabled Desktop Applications User Management Auditing & Reporting Fault Tolerance Application Abstractions Workflow System Information Services Application Monitoring Registry Security Provenance & Metadata Management Local Resources Web/Gadget Interfaces Gateway Abstraction Interfaces

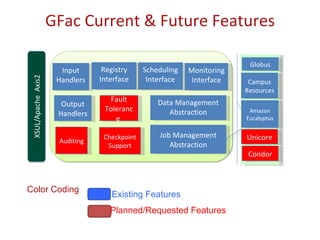

14. GFac Current & Future Features Color Coding Planned/Requested Features Existing Features Input Handlers Scheduling Interface Auditing Monitoring Interface Data Management Abstraction Job Management Abstraction Fault Tolerance Output Handlers Registry Interface Checkpoint Support Globus Campus Resources Unicore Condor Amazon Eucalyptus

15. OGCE Layered Workflow Architecture: Derived from LEAD Workflow System Workflow Execution & Control Engines Apache ODE Workflow Specification Workflow Interfaces (Design & Definition) Python BPEL 2.0 BPEL 1.0 Java Code Pegasus DAG Scufl XBaya GUI (Composition, Deploying, Steering & Monitoring) Gadget Interface for Input Binding Condor DAGMan Taverna Dynamic Enactor Jython Interpreter GBPEL Flex/Web Composition

16. Putting It All Together

17. Software Strategy Focus on gadget container and tools for running science applications on grids and clouds. Provide a tool set that can be used in whole or in part. If you just want GFac, then you can use it without buying an entire framework. Outsource security, information services, data and metadata, etc to other providers. MyProxy, TG IIS, Globus, Condor, XMC Cat, iRods, etc.

18. More Information This is downloadable, packaged software. Apache Maven build system provides everything you need to to build the gadget container, gadgets, workflow composer, and backing services. Get code by anonymous SVN checkout. Email: [email_address] , [email_address] , [email_address] OGCE Web Site: www.collab-ogce.org Blog/News Feed: http://collab-ogce.blogspot.com/

19. Acknowledgements and People Funding by TeraGrid GIG, RP and by OCI SDCI IU: Marlon Pierce, Suresh Marru, Raminder Singh, Archit Kulshrestha, Zhenhua Guo TACC: Maytal Dahan, Rion Dooley SDSC: Nancy Wilkins-Diehr, Jeff Sale SDSU: Mary Thomas

20. Demos Next

21. The OGCE Application Registry gadget allows users to interactively register hosts and applications that are dynamically wrapped as Web services.

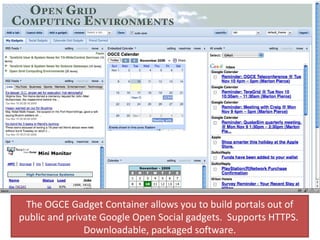

22. The OGCE Gadget Container allows you to build portals out of public and private Google Open Social gadgets. Supports HTTPS. Downloadable, packaged software.

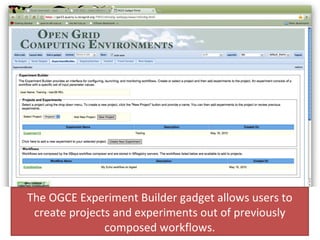

23. The OGCE Experiment Builder gadget allows users to create projects and experiments out of previously composed workflows.

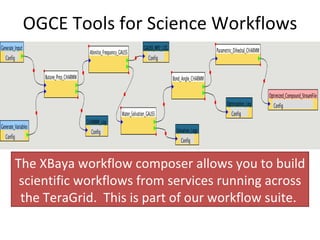

24. OGCE Tools for Science Workflows The XBaya workflow composer allows you to build scientific workflows from services running across the TeraGrid. This is part of our workflow suite.

25. What Is a Science Gateway? Web and desktop user interfaces and user-centric Web services for accessing Grid and Cloud resources. Clusters, supercomputers, mass storage Applications, databases Workflows Example Science Gateways from the NSF TeraGrid GridChem: computational chemistry UltraScan: biophysics computational analysis LEAD: Atmospheric science BioDrugScreen: drug docking, scoring, and discovery. Many others: see https://www.teragrid.org/web/science-gateways/gateway_list This demo is about software that powers gateways.

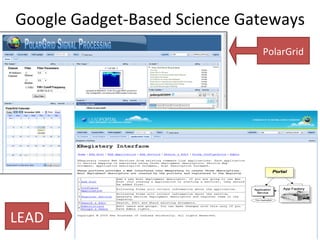

26. Google Gadget-Based Science Gateways LEAD PolarGrid
