SQL Database Proxy
Roland Lee

Copyright © 2016 Heimdall Data, Inc.| www.heimdalldata.comCopyright © 2018 Heimdall Data, Inc. www.heimdalldata.com 2

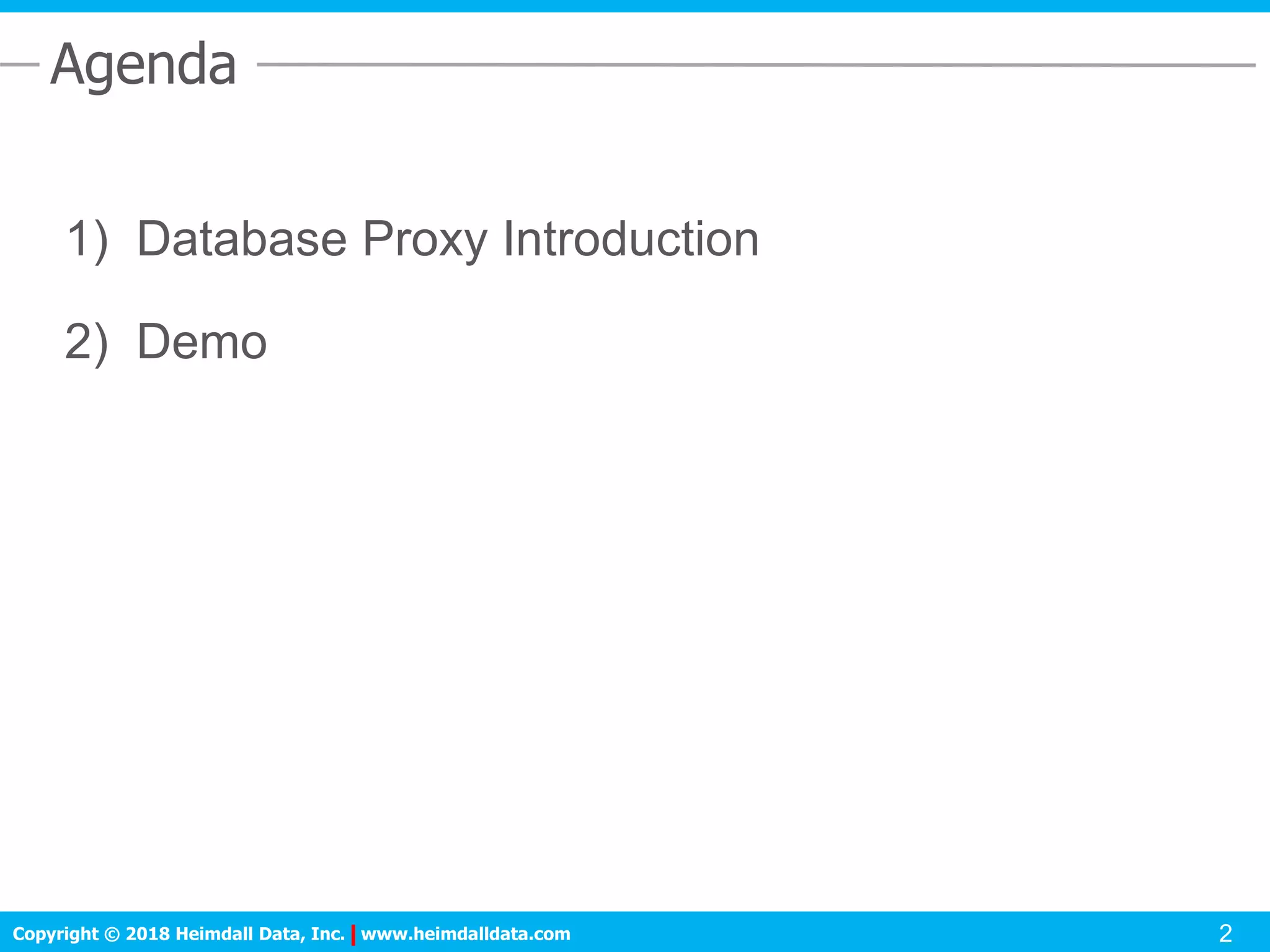

Agenda
1) Database Proxy Introduction
2) Demo

Web scale Challenges
More users and applications implies
• Higher data volumes
• More tables, changes to schema
• Higher latency responses

Feature ProxySQL
Automated Failover
SQL Read/Write Splitting
Database Vendor Neutral
Automated Cache
invalidation
Reduces network latency
Database Proxy Vendors
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓

Heimdall Database Proxy
• No code changes
• Database vendor neutral

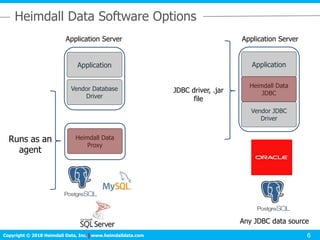

Heimdall Data Software Options
Application
Heimdall Data
Proxy
Vendor Database
Driver
Application Server
Runs as an
agent
Application
Heimdall Data
JDBC
Vendor JDBC
Driver
JDBC driver, .jar
file
Application Server
Any JDBC data source

Heimdall Distributed Database Proxy
Removes network
latency
Auto-caching
Auto-invalidation
Distributed, client
SQL Optimization

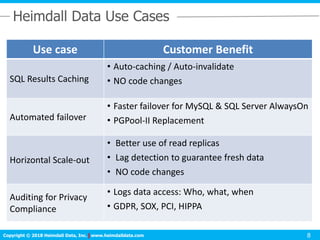

Heimdall Data Use Cases
Use case Customer Benefit
SQL Results Caching
• Auto-caching / Auto-invalidate
• NO code changes
Automated failover
• Faster failover for MySQL & SQL Server AlwaysOn
• PGPool-II Replacement
Horizontal Scale-out
• Better use of read replicas
• Lag detection to guarantee fresh data
• NO code changes
Auditing for Privacy
Compliance
• Logs data access: Who, what, when
• GDPR, SOX, PCI, HIPPA

Application Server
Application
Heimdall
Data

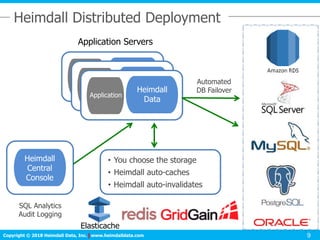

Heimdall Distributed Deployment
Application Servers
Application Server
Application
Heimdall
Data
Application Server
Application
Heimdall
Data
Application Server
Heimdall
Central
Console
• You choose the storage
• Heimdall auto-caches
• Heimdall auto-invalidates
Automated
DB Failover
Elasticache
SQL Analytics
Audit Logging

L2 Cache
Heimdall
DB Proxy
Removes network
latency
Application Server
Local
Cache
Application
SQL SQL
Application Server - SQL Caching
Elasticache

How it Works
1) Heimdall proxy intercepts and forwards SQL
traffic between app & database.
2) Heimdall caches SQL results only if there is a
performance benefit.
3) Heimdall acts as a look-aside cache
4) Not a write-through or read-through cache
5) Heimdall insures data consistency.

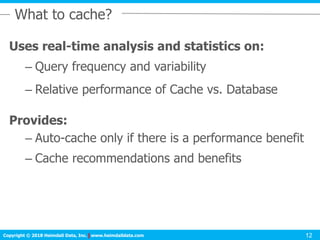

What to cache?
Uses real-time analysis and statistics on:
– Query frequency and variability
– Relative performance of Cache vs. Database
Provides:
– Auto-cache only if there is a performance benefit
– Cache recommendations and benefits

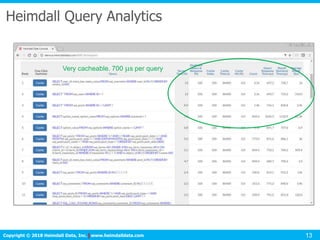

Heimdall Query Analytics
Very cacheable. 700 s per query

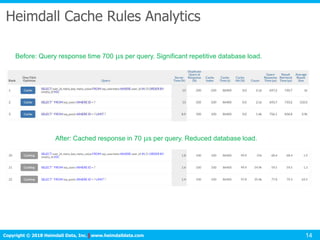

Heimdall Cache Rules Analytics
After: Cached response in 70 s per query. Reduced database load.
Before: Query response time 700 s per query. Significant repetitive database load.

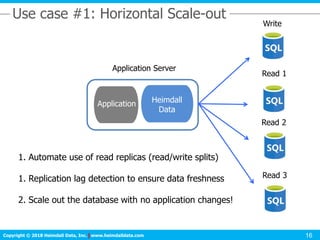

Use case #1: Horizontal Scale-out
1. Automate use of read replicas (read/write splits)
1. Replication lag detection to ensure data freshness
2. Scale out the database with no application changes!
Write
Application Server
Application Heimdall
Data
Read 1
Read 2
Read 3
Application Server

Data
Consumers
Heimdall Data
SQL Traffic Manager
OLTP
Analytics
Data Federation

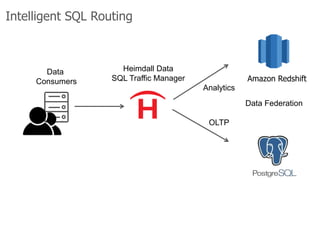

Intelligent SQL Routing
Amazon Redshift

Heimdall
DB Proxy
Application Server
Application
SQL
Heimdall
Central
Console

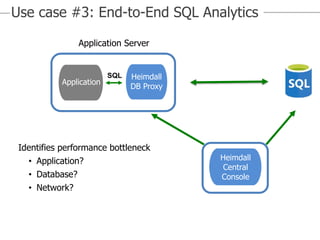

Use case #3: End-to-End SQL Analytics
Identifies performance bottleneck
• Application?
• Database?
• Network?

Thank You
