HDF OPeNDAP Project Update and Demo
The HDF Group gave a presentation on updates to the HDF-OPeNDAP project. They summarized the redesign of the HDF5 handler to support more NASA HDF5 data products, including grids, swaths, and zonal averages. They also discussed updates to the HDF4 handler to improve support for MODIS products and add new map projections. Live demonstrations showed example data from instruments like OMI, MLS, and Aquarius being served through the updated HDF handlers.
More Related Content
Similar to HDF OPeNDAP Project Update and Demo
More from The HDF-EOS Tools and Information Center
HDF OPeNDAP Project Update and Demo

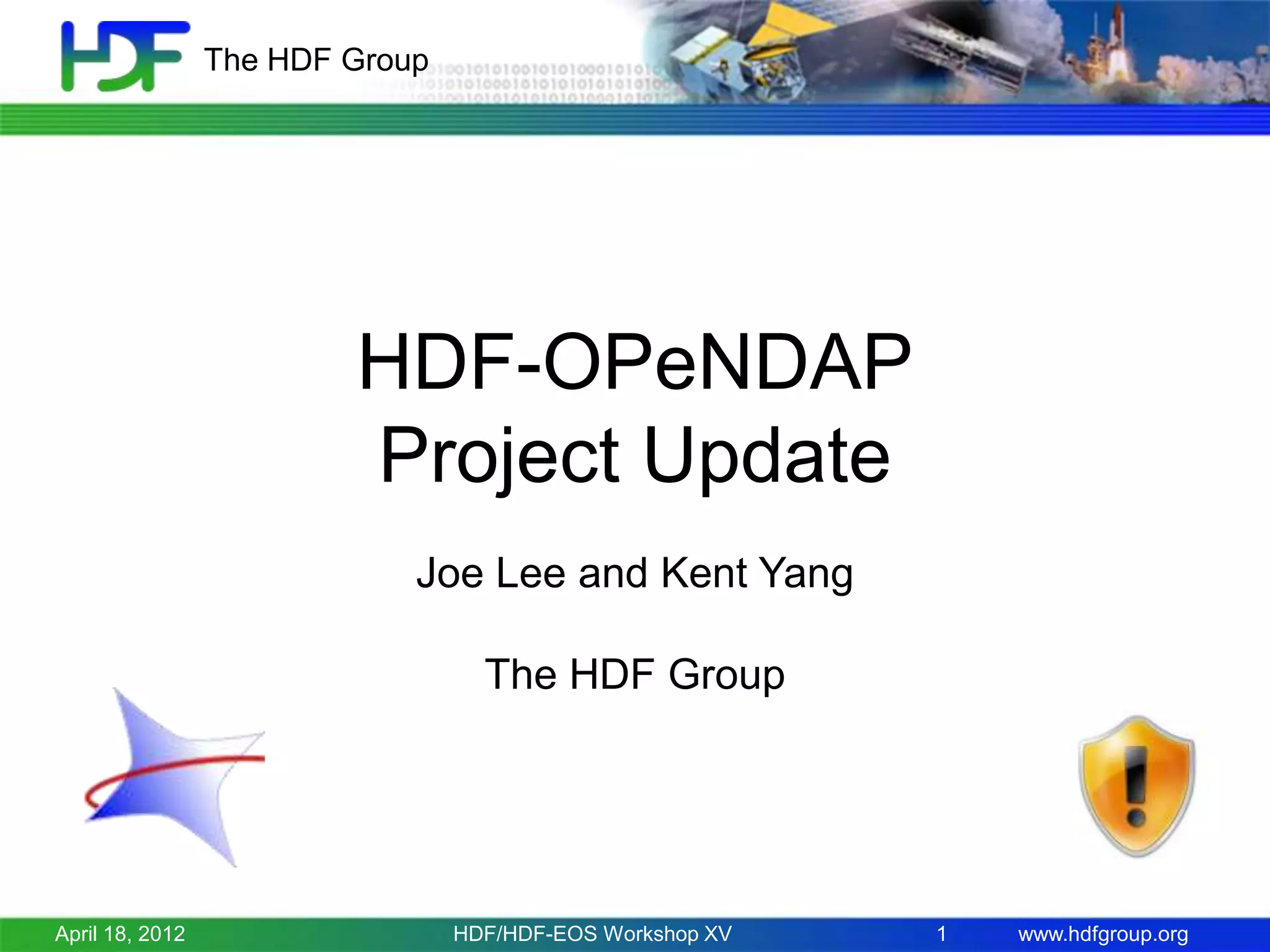

- 1. The HDF Group HDF-OPeNDAP ProjectUpdate Joe Lee and Kent Yang The HDF Group April 18, 2012 HDF/HDF-EOS Workshop XV 1 www.hdfgroup.org

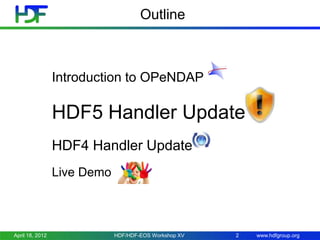

- 2. Outline Introduction to OPeNDAP HDF5Handler Update HDF4 Handler Update Live Demo April 18, 2012 HDF/HDF-EOS Workshop XV 2 www.hdfgroup.org

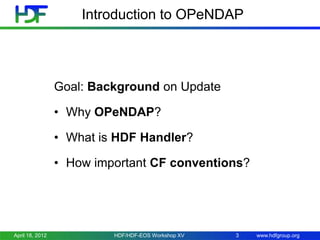

- 3. Introduction to OPeNDAP Goal:Background on Update • Why OPeNDAP? • What is HDF Handler? • How important CF conventions? April 18, 2012 HDF/HDF-EOS Workshop XV 3 www.hdfgroup.org
- 4. Access HDF viaFTP Aqua/Aura Users IDL AIRS/OMI FTP Local HDF Files April 18, 2012 FTP Clients FTP Servers HDF/HDF-EOS Workshop XV HDF Files 4 www.hdfgroup.org
- 5. OPeNDAP access Typical remoteconceptproblem View Data (User) FTP/HTTP Remote Data (HDF4/5) Visualization Tools tools (e.g., GrADS) (gradsdap) Handler (hdf4/5_handler) Client Library (libnc_dap) Server (Hyrax) Data Access Protocol (DAP) via Internet April 18, 2012 HDF/HDF-EOS Workshop XV 5 www.hdfgroup.org
- 6. Access remote dataeasily April 18, 2012 HDF/HDF-EOS Workshop XV 6 www.hdfgroup.org
- 7. without worrying aboutdata plans. April 18, 2012 HDF/HDF-EOS Workshop XV 7 www.hdfgroup.org

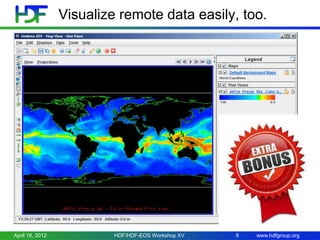

- 8. Visualize remote dataeasily, too. April 18, 2012 HDF/HDF-EOS Workshop XV 8 www.hdfgroup.org
- 9. HDF handler iskey Aqua/Aura HDF HANDLER Users IDV Hyrax NetCDF Java AIRS/OMI DAP Visualization Tools April 18, 2012 OPeNDAP Clients OPeNDAP Servers HDF/HDF-EOS Workshop XV HDF Files 9 www.hdfgroup.org

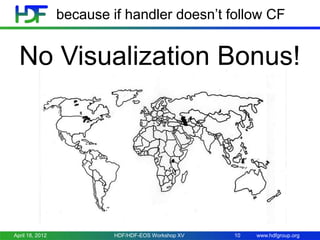

- 10. because if handlerdoesn’t follow CF No Visualization Bonus! April 18, 2012 HDF/HDF-EOS Workshop XV 10 www.hdfgroup.org

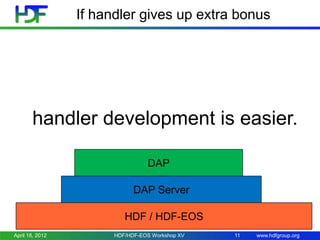

- 11. If handler givesup extra bonus handler development is easier. DAP DAP Server HDF / HDF-EOS April 18, 2012 HDF/HDF-EOS Workshop XV 11 www.hdfgroup.org

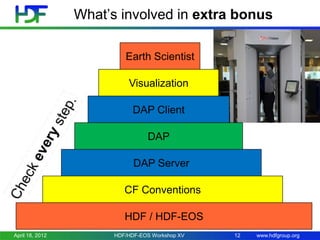

- 12. What’s involved inextra bonus Earth Scientist Visualization DAP Client DAP DAP Server CF Conventions HDF / HDF-EOS April 18, 2012 HDF/HDF-EOS Workshop XV 12 www.hdfgroup.org
- 13. How handler developersfeel April 18, 2012 HDF/HDF-EOS Workshop XV 13 www.hdfgroup.org
- 14. Because we careall NASA products. AURA MISR ? AQUA TERRA NPP April 18, 2012 HDF/HDF-EOS Workshop XV 14 www.hdfgroup.org

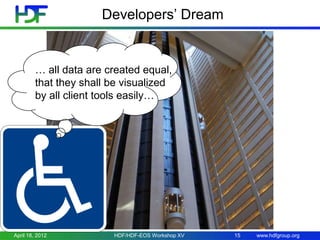

- 15. Developers’ Dream … alldata are created equal, that they shall be visualized by all client tools easily… April 18, 2012 HDF/HDF-EOS Workshop XV 15 www.hdfgroup.org
- 16. What if allpeople agreed… development might have been much easier. Earth Scientist Visualization DAP Client DAP DAP Server Check once. April 18, 2012 UDF (Imaginary) HDF/HDF-EOS Workshop XV 16 www.hdfgroup.org

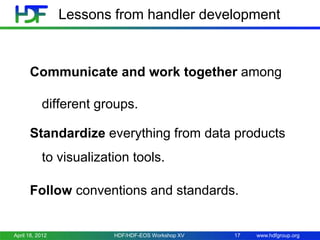

- 17. Lessons from handlerdevelopment Communicate and work together among different groups. Standardize everything from data products to visualization tools. Follow conventions and standards. April 18, 2012 HDF/HDF-EOS Workshop XV 17 www.hdfgroup.org
- 18. Outline Introduction to OPeNDAP HDF5-OPeNDAPHandler Update HDF4-OPeNDAP Handler Update Live Demo April 18, 2012 HDF/HDF-EOS Workshop XV 18 www.hdfgroup.org

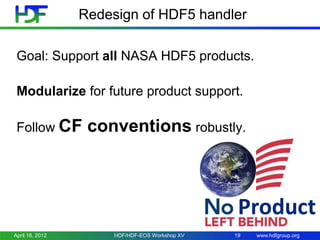

- 19. Redesign of HDF5handler Goal: Support all NASA HDF5 products. Modularize for future product support. Follow CF conventions robustly. Product April 18, 2012 HDF/HDF-EOS Workshop XV 19 www.hdfgroup.org
- 20. Why did weredesign? In 2007, HDF5 handler AURA Grid was enough for April 18, 2012 HDF/HDF-EOS Workshop XV 20 www.hdfgroup.org
- 21. Why did weredesign? In 2011, wasn’t enough for AURA Grid April 18, 2012 AURA Swath HDF/HDF-EOS Workshop XV AURA ZA 21 GSSTF www.hdfgroup.org
- 22. Why did weredesign? In 2011, wasn’t enough for AURA Grid April 18, 2012 AURA Swath HDF/HDF-EOS Workshop XV AURA ZA 22 GSSTF www.hdfgroup.org
- 23. and more… sowe gave up! ICESat-2 Aquarius GOSAT SMAP April 18, 2012 HDF/HDF-EOS Workshop XV 23 www.hdfgroup.org
- 24. We rebuilt onethat can scale up April 18, 2012 HDF/HDF-EOS Workshop XV 24 www.hdfgroup.org

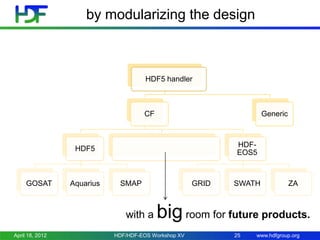

- 25. by modularizing thedesign HDF5 handler CF Generic HDFEOS5 HDF5 GOSAT Aquarius SMAP with a April 18, 2012 GRID SWATH ZA big room for future products. HDF/HDF-EOS Workshop XV 25 www.hdfgroup.org

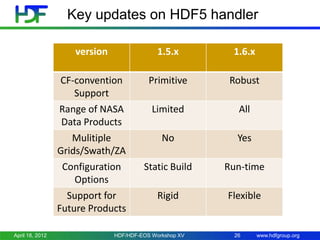

- 26. Key updates onHDF5 handler version 1.6.x CF-convention Support Range of NASA Data Products Mulitiple Grids/Swath/ZA Configuration Options Support for Future Products April 18, 2012 1.5.x Primitive Robust Limited All No Yes Static Build Run-time Rigid Flexible HDF/HDF-EOS Workshop XV 26 www.hdfgroup.org

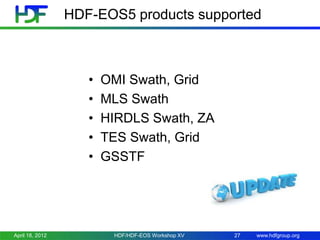

- 27. HDF-EOS5 products supported • • • • • April18, 2012 OMI Swath, Grid MLS Swath HIRDLS Swath, ZA TES Swath, Grid GSSTF HDF/HDF-EOS Workshop XV 27 www.hdfgroup.org

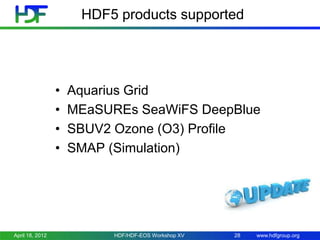

- 28. HDF5 products supported • • • • April18, 2012 Aquarius Grid MEaSUREs SeaWiFS DeepBlue SBUV2 Ozone (O3) Profile SMAP (Simulation) HDF/HDF-EOS Workshop XV 28 www.hdfgroup.org

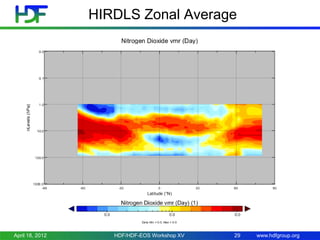

- 29. HIRDLS Zonal Average April18, 2012 HDF/HDF-EOS Workshop XV 29 www.hdfgroup.org
- 30. New TES Swath April18, 2012 HDF/HDF-EOS Workshop XV 30 www.hdfgroup.org

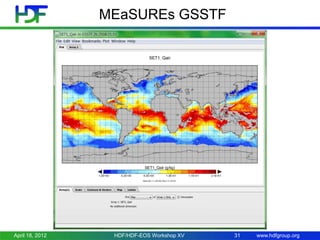

- 31. MEaSUREs GSSTF April 18,2012 HDF/HDF-EOS Workshop XV 31 www.hdfgroup.org

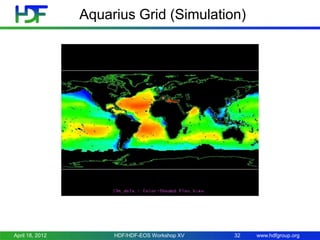

- 32. Aquarius Grid (Simulation) April18, 2012 HDF/HDF-EOS Workshop XV 32 www.hdfgroup.org
- 33. MEaSUREs SeaWiFS DeepBlue April18, 2012 HDF/HDF-EOS Workshop XV 33 www.hdfgroup.org

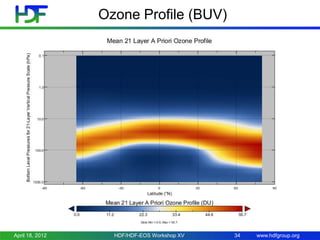

- 34. Ozone Profile (BUV) April18, 2012 HDF/HDF-EOS Workshop XV 34 www.hdfgroup.org

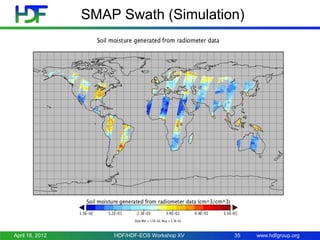

- 35. SMAP Swath (Simulation) April18, 2012 HDF/HDF-EOS Workshop XV 35 www.hdfgroup.org

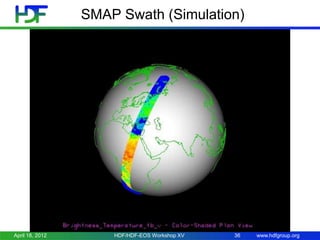

- 36. SMAP Swath (Simulation) April18, 2012 HDF/HDF-EOS Workshop XV 36 www.hdfgroup.org
- 37. No CF magicfor some products Tool / CF Limitation • GOSAT/acos: 1-D trajectory • ICESat-2 • OMI L2G: Lat/Lon with 3-D Java-NetCDF Client Limitation • Dataset w/ long string April 18, 2012 HDF/HDF-EOS Workshop XV 37 www.hdfgroup.org
- 38. It doesn’t meanhandler failure because other tools like can still access and visualize data. April 18, 2012 HDF/HDF-EOS Workshop XV 38 www.hdfgroup.org

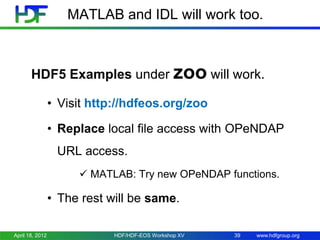

- 39. MATLAB and IDLwill work too. HDF5 Examples under zoo will work. • Visit http://hdfeos.org/zoo • Replace local file access with OPeNDAP URL access. MATLAB: Try new OPeNDAP functions. • The rest will be same. April 18, 2012 HDF/HDF-EOS Workshop XV 39 www.hdfgroup.org
- 40. Read if youcan’t see http://acdisc.sci.gsfc.nasa.gov/opendap/HDF-EOS5/Aura_OMI_Level3/OMTO3e.003/2012/OMI-Aura_L3OMTO3e_2012m0416_v0032012m0418t020608.he5.ascii?lon[1029:1:1029],lat[513:1:513],_HDFEOS_GRIDS_OMI_Column_Amount_O3_Data_Fields_ColumnAmountO3[513:1:513][1029:1:1029] 2012m0418t020608.he5 lon, Dataset: OMI-Aura_L3-OMTO3e_2012m0416_v003- 77.375 lat, 38.375 _HDFEOS_GRIDS_OMI_Column_Amount_O3_Data_Fields_ColumnAmountO3.lon, 77.375 _HDFEOS_GRIDS_OMI_Column_Amount_O3_Data_Fields_ColumnAmountO3._HDFEOS_GRIDS_O MI_Column_Amount_O3_Data_Fields_ColumnAmountO3[_HDFEOS_GRIDS_OMI_Column_Amount_ O3.lat=38.375], O3_Data_Fields_ColumnAmount April 18, 2012 309.6 HDF/HDF-EOS Workshop XV 40 www.hdfgroup.org
- 41. or hear fromSiri? April 18, 2012 HDF/HDF-EOS Workshop XV 41 www.hdfgroup.org

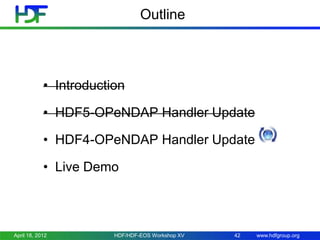

- 42. Outline • Introduction • HDF5-OPeNDAPHandler Update • HDF4-OPeNDAP Handler Update • Live Demo April 18, 2012 HDF/HDF-EOS Workshop XV 42 www.hdfgroup.org
- 43. HDF4 OPeNDAP handlerupdate • Corrected the handling the scale/offset for MODIS products. • Added the support for Lambert azimuthal equal-area (LAMAZ). • Added the support for Space-oblique Mercator projection (SOM). • Other minor bug fixes. April 18, 2012 HDF/HDF-EOS Workshop XV 43 www.hdfgroup.org

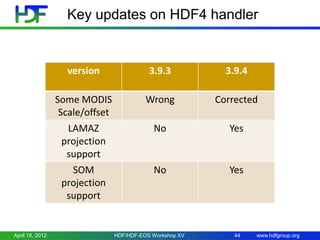

- 44. Key updates onHDF4 handler version 3.9.4 Some MODIS Scale/offset LAMAZ projection support SOM projection support April 18, 2012 3.9.3 Wrong Corrected No Yes No Yes HDF/HDF-EOS Workshop XV 44 www.hdfgroup.org

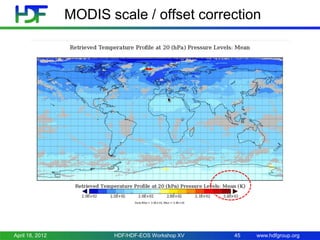

- 45. MODIS scale /offset correction April 18, 2012 HDF/HDF-EOS Workshop XV 45 www.hdfgroup.org
- 46. Support for LAMAZprojection April 18, 2012 HDF/HDF-EOS Workshop XV 46 www.hdfgroup.org
- 47. Support for SOMprojection Dataset { UInt16 Blue_Radiance_RDQIU1[SOMBlockDimD1 = 180][XDimD2 = 128][YDimD3 = 512]; Int32 SOMBlockDimU2[SOMBlockDimD1 = 180]; Float32 LatitudeU3[XDimD2 = 128][YDimD3 = 512]; Float32 LongitudeU4[XDimD2 = 128][YDimD3 = 512]; … } Dataset { UInt16 Blue_Radiance_RDQIU1[SOMBlockDimD1 = 180][XDimD2 = 128][YDimD3 = 512]; Int32 SOMBlockDimU2[SOMBlockDimD1 = 180]; Float32 LatitudeU3[SOMBlockDim = 180][XDimD2 = 128][YDimD3 = 512]; Float32 LongitudeU4[SOMBlockDim = 180][XDimD2 = 128][YDimD3 = 512]; … } April 18, 2012 HDF/HDF-EOS Workshop XV 47 www.hdfgroup.org

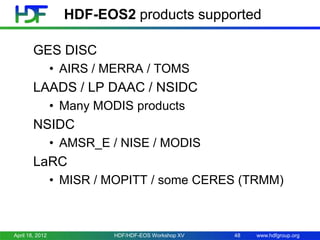

- 48. HDF-EOS2 products supported GESDISC • AIRS / MERRA / TOMS LAADS / LP DAAC / NSIDC • Many MODIS products NSIDC • AMSR_E / NISE / MODIS LaRC • MISR / MOPITT / some CERES (TRMM) April 18, 2012 HDF/HDF-EOS Workshop XV 48 www.hdfgroup.org

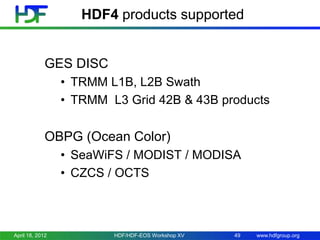

- 49. HDF4 products supported GESDISC • TRMM L1B, L2B Swath • TRMM L3 Grid 42B & 43B products OBPG (Ocean Color) • SeaWiFS / MODIST / MODISA • CZCS / OCTS April 18, 2012 HDF/HDF-EOS Workshop XV 49 www.hdfgroup.org

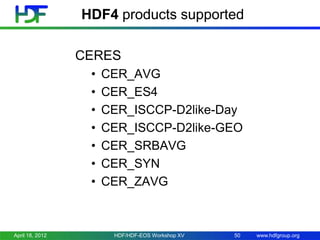

- 50. HDF4 products supported CERES • • • • • • • April18, 2012 CER_AVG CER_ES4 CER_ISCCP-D2like-Day CER_ISCCP-D2like-GEO CER_SRBAVG CER_SYN CER_ZAVG HDF/HDF-EOS Workshop XV 50 www.hdfgroup.org

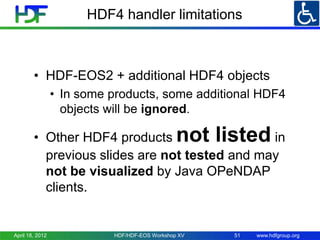

- 51. HDF4 handler limitations •HDF-EOS2 + additional HDF4 objects • In some products, some additional HDF4 objects will be ignored. not listed • Other HDF4 products in previous slides are not tested and may not be visualized by Java OPeNDAP clients. April 18, 2012 HDF/HDF-EOS Workshop XV 51 www.hdfgroup.org

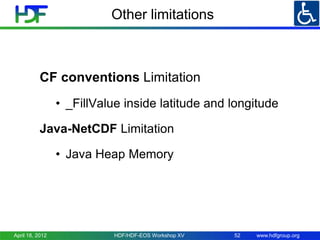

- 52. Other limitations CF conventionsLimitation • _FillValue inside latitude and longitude Java-NetCDF Limitation • Java Heap Memory April 18, 2012 HDF/HDF-EOS Workshop XV 52 www.hdfgroup.org

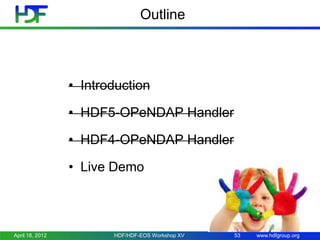

- 53. Outline • Introduction • HDF5-OPeNDAPHandler • HDF4-OPeNDAP Handler • Live Demo April 18, 2012 HDF/HDF-EOS Workshop XV 53 www.hdfgroup.org

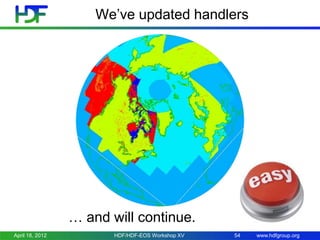

- 54. We’ve updated handlers HDFEOS2 HDF4 OPeNDAP HDF Handlers HDF5 HDFEOS5 …and will continue. April 18, 2012 HDF/HDF-EOS Workshop XV 54 www.hdfgroup.org

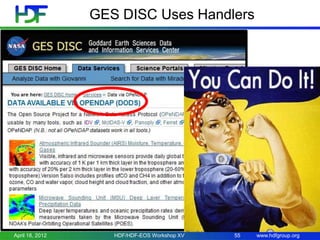

- 55. GES DISC UsesHandlers April 18, 2012 HDF/HDF-EOS Workshop XV 55 www.hdfgroup.org

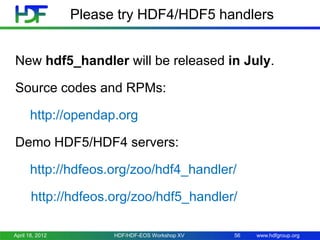

- 56. Please try HDF4/HDF5handlers New hdf5_handler will be released in July. Source codes and RPMs: http://opendap.org Demo HDF5/HDF4 servers: http://hdfeos.org/zoo/hdf4_handler/ http://hdfeos.org/zoo/hdf5_handler/ April 18, 2012 HDF/HDF-EOS Workshop XV 56 www.hdfgroup.org
- 57. and give usfeedback. April 18, 2012 HDF/HDF-EOS Workshop XV 57 www.hdfgroup.org
- 58. The HDF Group Thankyou! April 18, 2012 HDF/HDF-EOS Workshop XV 58 www.hdfgroup.org

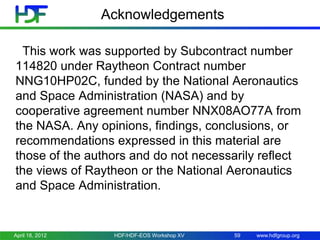

- 59. Acknowledgements This work wassupported by Subcontract number 114820 under Raytheon Contract number NNG10HP02C, funded by the National Aeronautics and Space Administration (NASA) and by cooperative agreement number NNX08AO77A from the NASA. Any opinions, findings, conclusions, or recommendations expressed in this material are those of the authors and do not necessarily reflect the views of Raytheon or the National Aeronautics and Space Administration. April 18, 2012 HDF/HDF-EOS Workshop XV 59 www.hdfgroup.org

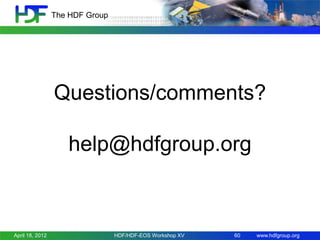

- 60. The HDF Group Questions/comments? help@hdfgroup.org April18, 2012 HDF/HDF-EOS Workshop XV 60 www.hdfgroup.org
