1. CS8079 - Human
Computer Interaction
UNIT - II
DESIGN & SOFTWARE PROCESS
Year: IV
Semester: VII
Date: 14-09-2020
Prepared by,
Mrs.T. SUGANYA, M.E.,

2. Topics
 HCI in Software Process
◦ Software Life Cycle
◦ Prototyping in Practice
◦ Design Rationale
◦ Usability Engineering

3. SDLC – Waterfall Model
 Waterfall Model provides a good starting
point for discussing the logical flow of
activity
1. Activities in the life cycle
2. Validation &Verification
3. Management & Contractual Issues
4. Interactive Systems & Software Life Cycle

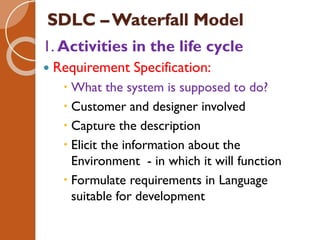

4. SDLC – Waterfall Model
1. Activities in the life cycle
 Requirement Specification:
 What the system is supposed to do?
 Customer and designer involved
 Capture the description
 Elicit the information about the
Environment - in which it will function
 Formulate requirements in Language
suitable for development

6. SDLC – Waterfall Model
 Architectural Design:
◦ How the System Provides services?
◦ Decompose the system into components
◦ Determine which component for which service
 Detailed Design:
◦ Refinement of the component
◦ Choosing best refinement(optimization)
 Try to satisfy many of the non functional requirements
 Coding & UnitTesting
◦ Implement – Programming Language
◦ Test the components - Units

7. SDLC – Waterfall Model
 Integration &Testing
◦ Integrate the components described in
architectural design & test it
◦ AcceptanceTesting – Customer
◦ After acceptance, release the product
◦ Certify the final system
 Maintenance
◦ Correction of errors discovered after release
◦ Revise the requirements

8. SDLC – Waterfall Model
2.Verification &Validation
 Verification
 process of checking that a software achieves its
goal without any bugs.
 product that is developed is right or not
 Are we building the product right?
 Validation
 it satisfies all the customer's stated and implied
needs
 Are we building the right product?

9. SDLC – Waterfall Model

10. SDLC – Waterfall Model
 Gap Analysis
◦ Need Abstract Model to bridge the gap

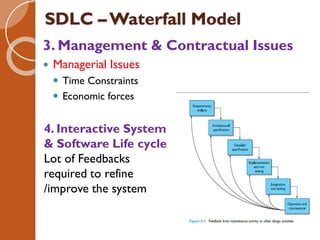

11. SDLC –Waterfall Model
3. Management & Contractual Issues
 Managerial Issues
 Time Constraints
 Economic forces
4. Interactive System
& Software Life cycle
Lot of Feedbacks
required to refine
/improve the system

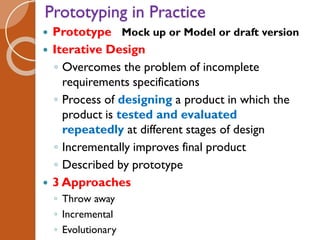

12. Prototyping in Practice
 Prototype Mock up or Model or draft version
 Iterative Design
◦ Overcomes the problem of incomplete
requirements specifications
◦ Process of designing a product in which the
product is tested and evaluated
repeatedly at different stages of design
◦ Incrementally improves final product
◦ Described by prototype
 3 Approaches
◦ Throw away
◦ Incremental
◦ Evolutionary

13. Prototyping in Practice
The process of prototyping involves the following steps
Identify basic requirements
• Determine basic requirements including the input and
output information desired. Details, such as security, can
typically be ignored.
2.Develop initial prototype
• The initial prototype is developed that includes only user
interfaces.
3. Review
• The customers, including end-users, examine the
prototype and provide feedback on potential additions
or changes.
4.Revise and enhance the prototype
• Using the feedback both the specifications and the
prototype can be improved.

14. Prototyping in Practice

15. Prototyping in Practice

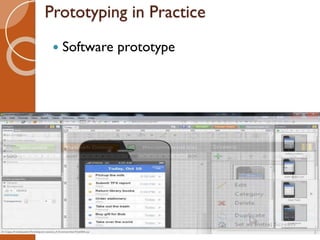

 Software prototype

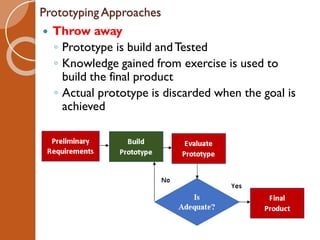

16. Prototyping Approaches
 Throw away
◦ Prototype is build andTested
◦ Knowledge gained from exercise is used to
build the final product
◦ Actual prototype is discarded when the goal is
achieved

17. Steps:
 Write preliminary requirements
 Design the prototype
 User experiences/uses the prototype,
specifies new requirements
 Repeat if necessary
 Write the final requirements

18.  Incremental
◦ Overall product is partitioned into independent
and smaller components
◦ Build the prototype for each component and
merge all prototypes
◦ Final product is released as a series of products
◦ the time gap between user and software
developer is reduced.

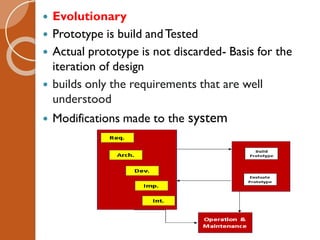

19.  Evolutionary
 Prototype is build andTested
 Actual prototype is not discarded- Basis for the
iteration of design
 builds only the requirements that are well
understood
 Modifications made to the system

20. Techniques &Tools for Prototyping
 Story Board
◦ Snapshots of the interface
◦ Annotations, script
◦ Limited functionality simulation
 Simulation
◦ HyperCard
 Combines a flat-file database with a graphical,
flexible, user-modifiable interface.
 includes a built-in programming
language called HyperTalk for manipulating data and
the user interface.

21. Design Rationale
 What?
◦ Information describes
 Structure of a system
 Functionality/Behavior of a system
 Types of DR:
◦ Process-oriented
 preserves order of deliberation and decision-
making
◦ Structure-oriented
 emphasizes post hoc structuring of considered
design alternatives
 Two examples:
◦ Issue-based information system (IBIS)
◦ Design space analysis

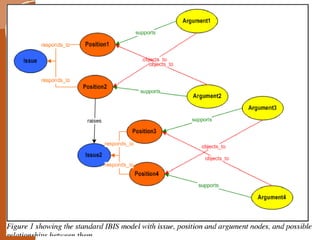

22. Process-oriented
Main elements:
o Issues
hierarchical structure with one ‘root’
issue
o Positions
Potential resolutions of an issue
o Arguments
modify the relationship between
positions and issues
Eg: Login Form – Issue :Authenticated
User

24. Design Space Analysis
Questions, options, criterion (QOC)
Eg: Ride booking Application- Q: to, from, No. of persons
Option : Km , Criteria (No. of km : price)

25. Usability Engineering
 What?
◦ is a professional discipline
◦ focuses on improving the usability of
interactive systems
◦ Usability
◦ capacity of a system to provide a condition for
its users to perform the tasks safely, effectively,
and efficiently

26. Usability Engineering
