The document discusses Havells cables and wires product range and certifications. It summarizes that Havells produces various types of low and high voltage PVC and XLPE power and control cables that are certified according to Indian and international standards. It also produces special cables, overhead cables, and wires. Havells uses quality raw materials from reputed suppliers and has state-of-the-art manufacturing facilities.

1. Cables & Wires

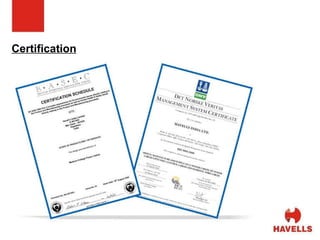

2. Certification

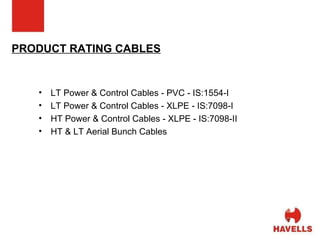

3. PRODUCT RATING CABLES LT Power & Control Cables - PVC - IS:1554-I LT Power & Control Cables - XLPE - IS:7098-I HT Power & Control Cables - XLPE - IS:7098-II HT & LT Aerial Bunch Cables

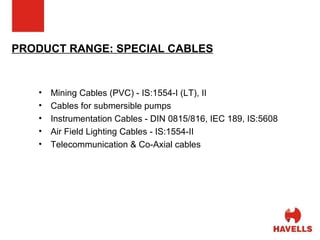

4. PRODUCT RANGE: SPECIAL CABLES Mining Cables (PVC) - IS:1554-I (LT), II Cables for submersible pumps Instrumentation Cables - DIN 0815/816, IEC 189, IS:5608 Air Field Lighting Cables - IS:1554-II Telecommunication & Co-Axial cables

5. Confirming to BS 5487 and IEC 60502 PRODUCT RANGE XLPE Cable L.T. & H.T from 1.1 KV to 33 KV Single core and 3 Core from 16 to 1000 sq.mm.

6. PRODUCT RANGE Confirming to BS 6346 IEC 60502 BS 6004 PVC Cables from 1 KV to 5 KV PVC wires, Control cables multicore

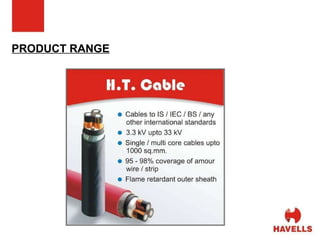

7. PRODUCT RANGE

8. PRODUCT RANGE

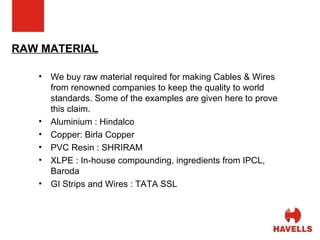

9. RAW MATERIAL We buy raw material required for making Cables & Wires from renowned companies to keep the quality to world standards. Some of the examples are given here to prove this claim. Aluminium : Hindalco Copper: Birla Copper PVC Resin : SHRIRAM XLPE : In-house compounding, ingredients from IPCL, Baroda GI Strips and Wires : TATA SSL

10. LT-HT FR FR-LSH ZHLS Telephone Switch Board Cables

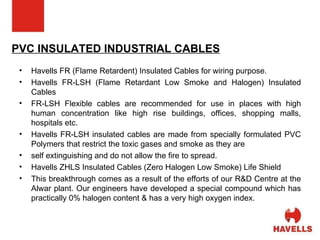

11. PVC INSULATED INDUSTRIAL CABLES Havells FR (Flame Retardent) Insulated Cables for wiring purpose. Havells FR-LSH (Flame Retardant Low Smoke and Halogen) Insulated Cables FR-LSH Flexible cables are recommended for use in places with high human concentration like high rise buildings, offices, shopping malls, hospitals etc. Havells FR-LSH insulated cables are made from specially formulated PVC Polymers that restrict the toxic gases and smoke as they are self extinguishing and do not allow the fire to spread. Havells ZHLS Insulated Cables (Zero Halogen Low Smoke) Life Shield This breakthrough comes as a result of the efforts of our R&D Centre at the Alwar plant. Our engineers have developed a special compound which has practically 0% halogen content & has a very high oxygen index.

12. WHY

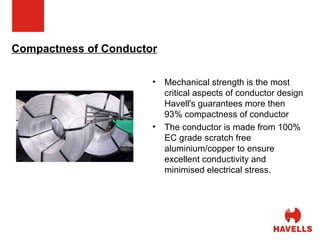

13. Compactness of Conductor Mechanical strength is the most critical aspects of conductor design Havell's guarantees more then 93% compactness of conductor The conductor is made from 100% EC grade scratch free aluminium/copper to ensure excellent conductivity and minimised electrical stress.

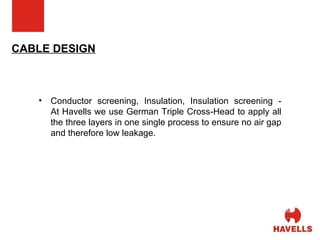

14. CABLE DESIGN Conductor screening, Insulation, Insulation screening - At Havells we use German Triple Cross-Head to apply all the three layers in one single process to ensure no air gap and therefore low leakage.

15. BEDDING We use extruded inner sheath as a standard company policy to improve hygroscopic properties of the cable & to provide uniform bedding for better armour placement.

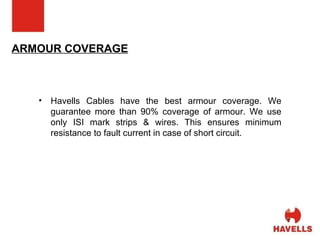

16. ARMOUR COVERAGE Havells Cables have the best armour coverage. We guarantee more than 90% coverage of armour. We use only ISI mark strips & wires. This ensures minimum resistance to fault current in case of short circuit.

17. MANUFACTURING INFRASTURCTUR State-of-the-art CCV Line Curing process is one of the most crucial aspect of cable performance. We use one of the best CCV Line to ensure uniform curing of XLPE insulation. Drum twister laying-up machine Havells is among a hand full of companies world wide to possess such a large drum twister. It allows us the flexibility to provide longer cable lengths & excellent compactness of design.

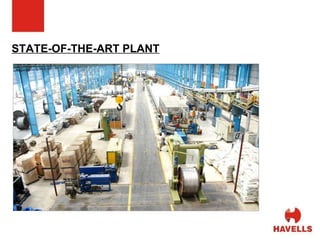

18. STATE-OF-THE-ART PLANT

19. CURING PROCESS What is curing? Polyethylene is a thermoplastic material consisting of long chain of hydrocarbon molecules. At elevated temperatures these molecules tend to mover relative to one another so material becomes increasingly deformable and will eventually melt at a temperature around 110 degree C. The process of cross-linking or vulcanisation, consists of producing chemical bonds at intervals between the long molecular chains to give a “ladder effect which prevents slippage between molecules and results in good thermal form stability.

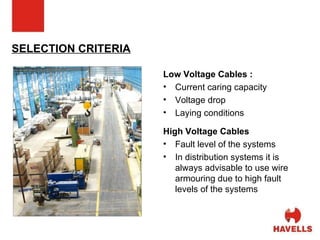

20. SELECTION CRITERIA Low Voltage Cables : Current caring capacity Voltage drop Laying conditions High Voltage Cables Fault level of the systems In distribution systems it is always advisable to use wire armouring due to high fault levels of the systems

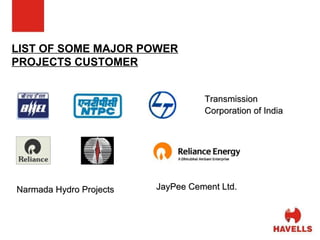

21. LIST OF SOME MAJOR POWER PROJECTS CUSTOMER Transmission Corporation of India Narmada Hydro Projects JayPee Cement Ltd.

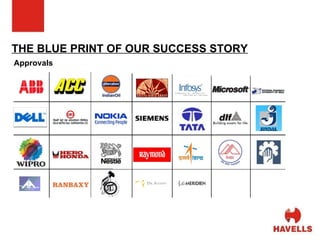

22. THE BLUE PRINT OF OUR SUCCESS STORY Approvals

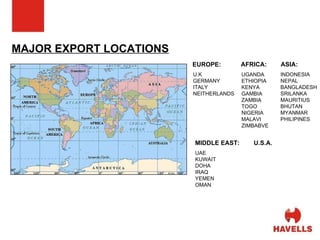

23. MAJOR EXPORT LOCATIONS EUROPE: U.K GERMANY ITALY NEITHERLANDS MIDDLE EAST: ASIA: U.S.A. UGANDA ETHIOPIA KENYA GAMBIA ZAMBIA TOGO NIGERIA MALAVI ZIMBABVE AFRICA: INDONESIA NEPAL BANGLADESH SRILANKA MAURITIUS BHUTAN MYANMAR PHILIPINES UAE KUWAIT DOHA IRAQ YEMEN OMAN

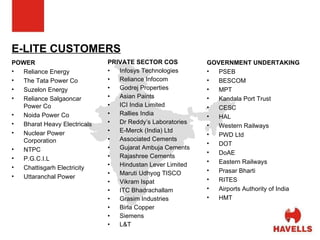

24. E-LITE CUSTOMERS POWER Reliance Energy The Tata Power Co Suzelon Energy Reliance Salgaoncar Power Co Noida Power Co Bharat Heavy Electricals Nuclear Power Corporation NTPC P.G.C.I.L Chattisgarh Electricity Uttaranchal Power PRIVATE SECTOR COS Infosys Technologies Reliance Infocom Godrej Properties Asian Paints ICI India Limited Rallies India Dr Reddy’s Laboratories E-Merck (India) Ltd Associated Cements Gujarat Ambuja Cements Rajashree Cements Hindustan Lever Limited Maruti Udhyog TISCO Vikram Ispat ITC Bhadrachallam Grasim Industries Birla Copper Siemens L&T GOVERNMENT UNDERTAKING PSEB BESCOM MPT Kandala Port Trust CESC HAL Western Railways PWD Ltd DOT DoAE Eastern Railways Prasar Bharti RITES Airports Authority of India HMT

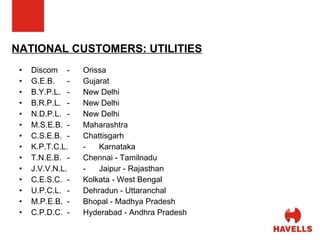

25. NATIONAL CUSTOMERS: UTILITIES Discom - Orissa G.E.B. - Gujarat B.Y.P.L. - New Delhi B.R.P.L. - New Delhi N.D.P.L. - New Delhi M.S.E.B. - Maharashtra C.S.E.B. - Chattisgarh K.P.T.C.L. - Karnataka T.N.E.B. - Chennai - Tamilnadu J.V.V.N.L. - Jaipur - Rajasthan C.E.S.C. - Kolkata - West Bengal U.P.C.L. - Dehradun - Uttaranchal M.P.E.B. - Bhopal - Madhya Pradesh C.P.D.C. - Hyderabad - Andhra Pradesh

26. Thank You.
