1. PRESENTATION
DISCRETE
STRUCTURE
MAHESH SINGH MADAI
PREPARED BY

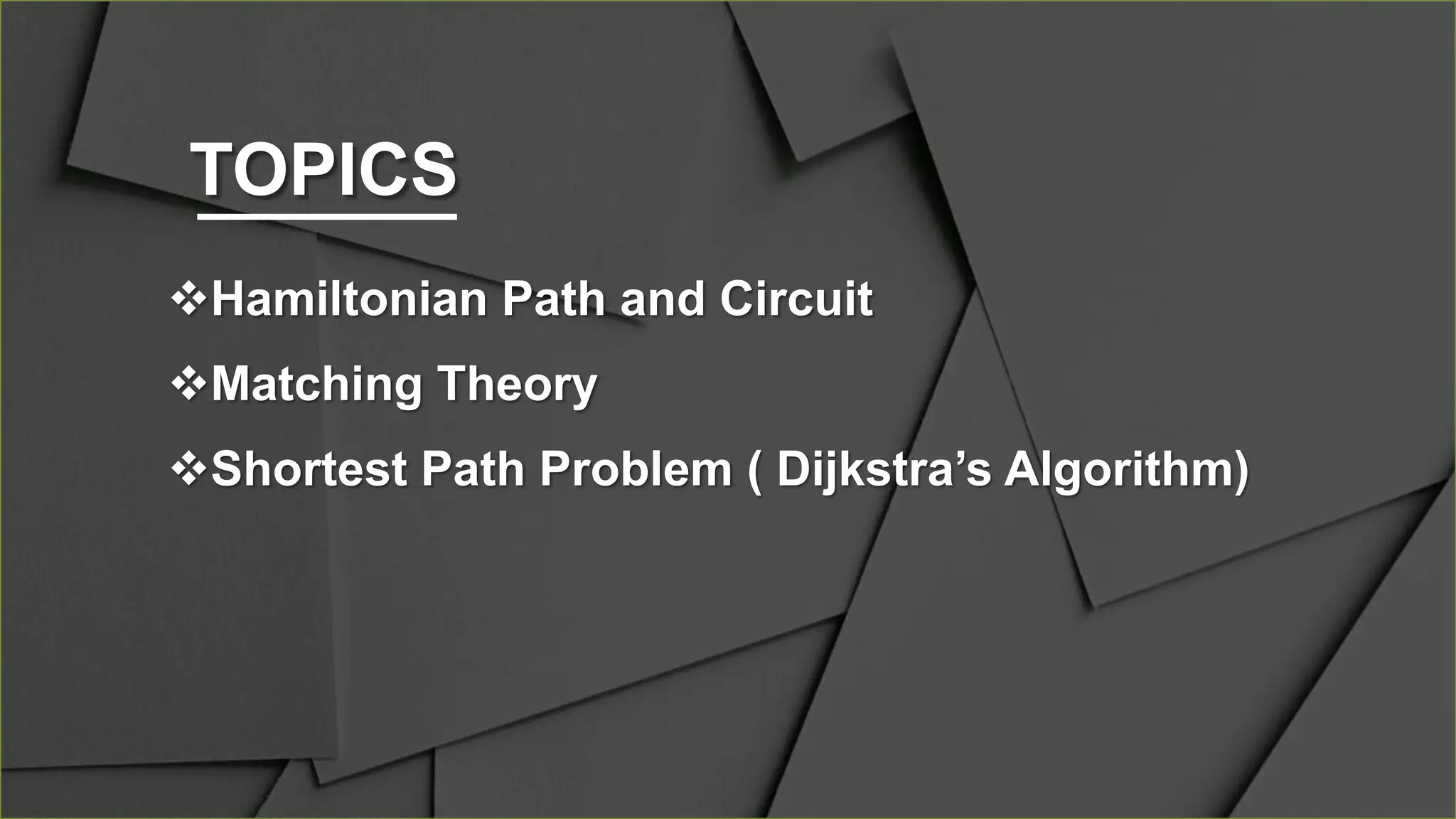

2. TOPICS
Hamiltonian Path and Circuit
Matching Theory
Shortest Path Problem ( Dijkstra’s Algorithm)

3. #1. HAMILTONIAN PATH & CIRCUIT
• Let the graph be G = (V,E); where |V|>=3 (vertices/nodes) and E denote the Edges(connector
of endpoints)
• A simple path in such graph G that passes through every vertex exactly once is called
Hamiltonian path. Every edge mayn't be used here.
• A circuit is that path where starting and endpoints are same.
• For example:
A B A B
D C
D C
Path -> A –B –C –D
Circuit -> A-B-C-D-A

4. More Examples:
A B
C A B C D
D E E F G H
Hamilton Path Exists Hamilton Path Does not Exists
a b
c d

5. #THEOROM:
Let G be a graph of n>=3 vertices, then G has a Hamiltonian path if for only two
non adjacent vertices u and v of G satisfy the following condition
deg (u) + deg (v) >= n
For example:
a b
c d
Here, total vertices (n) = 4
Take vertex a and d
deg(a) = 1 & deg(d) = 2
1+ 2 < 4  So, Hamiltonian circuit does not exists.

6. #2. MATCHING THEORY
• A matching graph is a subgraph of a graph where there are no edges adjacent
to each other.
• Simply, there should not be any common vertex between any two edges
• A vertex is said to be a matched if it is incident to an edge otherwise
unmatched.
• The vertices should have a degree of 1 or 0
• Notation  M(G)
• In a matching, deg(V) = 1, then (V) is said to be matched
deg(V) = 0, then (V) is said to be unmatched

7. MAXIMAL MATCHING
• A maximal matching is a matching M of a graph G with the property that if any
edge not in M is added to M, it is no longer a matching
• A matching M of a graph G is maximal if every edge in G has a non-empty
intersection with at least one edge in M.
• It is also known as maximum cardinality matching.
• It is a matching that contains the largest possible number of edges.
• The number of edges in the maximum matching of ‘G’ is called its matching
number.
MAXIMUM MATCHING

8. PERFECT MATCHING
• A matching (M) of graph (G) is said to be a perfect match, if every vertex of graph
g (G) is incident to exactly one edge of the matching
(M), i.e., deg(V) = 1 ∀V
• Every perfect matching of graph is also a maximum matching of graph, because
there is no chance of adding one more edge in a perfect matching graph.

10. #3. SHORTEST PATH PROBLEM
Weighted Graph(Labelled Graph):
A weighted graph is a graph G, in which each edge e, is assigned a non-
negative real number. The number is the weight of the e.
The length of a path in a weighted graph is the sum of the weights of the
edges of this path
The shortest path is the minimum length of the path.

12. #3.DIJKSTRA’S ALGORITHM (/DEIK-STRAS/)
• Formulated by Edsgar W. Dijkstra
• Dijkstra’s algorithm can be used to determine the shortest path from
one node in a graph to every other node within the same graph data
structure, provided that the nodes are reachable from the starting node.
• This algorithm will continue to run until all of the reachable vertices in a
graph have been visited.
• Application: Google Maps, Satellite Navigation, Finding Shortest Path
etc.

13. #3.DIJKSTRA’S ALGORITHM (/DEIK-STRAS/)
Steps:
a) Assign every node a tentative distance
b) Set initial node as current and mark all nodes as
unvisited.
c) For current node, consider all unvisited nodes and
calculate distance
d) Compare current and calculated distance and assign
the smaller value.
e) When all neighbors are considered, mark them
f) If the destination node is marked, Stop

15. Qn: Find the shortest path between a and z

16. THANK YOU!!!
