A gyroscope is a device that uses angular momentum to detect orientation and maintain stability. It works based on the principle that a torque applied perpendicular to the gyroscope's axis of rotation causes it to precess around an axis perpendicular to both the torque and its angular momentum. Modern gyroscopes use electronics and include microelectromechanical systems, fiber optic gyroscopes, vibrating structure gyroscopes, dynamically tuned gyroscopes, and laser-based gyroscopes.

3. P Venkat Vijay Kumar
09101291
Department of Mechanical

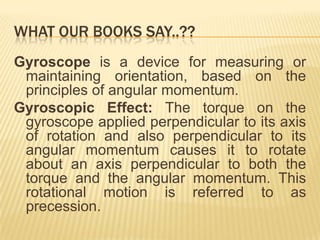

4. WHAT OUR BOOKS SAY..??
Gyroscope is a device for measuring or
maintaining orientation, based on the
principles of angular momentum.
Gyroscopic Effect: The torque on the
gyroscope applied perpendicular to its axis
of rotation and also perpendicular to its
angular momentum causes it to rotate
about an axis perpendicular to both the
torque and the angular momentum. This
rotational motion is referred to as
precession.

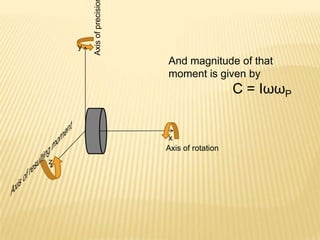

6. Axis of precisio
y
And magnitude of that
moment is given by
C = IωωP
x
Axis of rotation
z

11. Modern Gyroscopes, with advent of
electronics
1.MEMS
2. FOG (figure optic Gyroscope)
3. VSG( Vibrating Structure vs coriolis
vibratory gyroscope
4. DTG(dynamically tuned gyroscope)
5. Laser based Gyro
