1. GroovyFX - Groove JavaFX_
Alexander Klein
 
1

2. About me
Alexander Klein
Branchmanager
codecentric AG
Curiestr. 2
70563 Stuttgart, Germany
+49 (0) 172 529 40 20
alexander.klein@codecentric.de
www.codecentric.de
blog.codecentric.de
@saschaklein
 
2

3. What is GroovyFX
 
3

4. GroovyFX
library for JavaFX using Groovy
Groovy Builder Pattern
DSL on top of JavaFX
declarative
simpler to write
easier to read
more natural
http://groovyfx.org
https://github.com/groovyfx-project/groovyfx
http://groovy.jmiguel.eu/groovy.codehaus.org/GroovyFX.html
 
4

5. Example
groovyx.javafx.GroovyFX.start {
stage(title: 'Hello GroovyFX', visible: true) {
scene(fill: DARKSLATEGREY, width: 860, height: 430) {
borderPane {
top {
hbox(padding: [20, 60, 20, 60]) {
text(text: 'Hello ', font: '80pt sanserif') {
fill linearGradient(endX: 0, stops: [PALEGREEN, SEAGREEN])
}
text(text: 'GroovyFX', font: '80pt sanserif') {
fill linearGradient(endX: 0, stops: [CYAN, DODGERBLUE])
effect dropShadow(color: DODGERBLUE, radius: 25, spread: 0.25)
}
}
}
group(id: 'logo', scaleX: 2, scaleY: 2) {
transitions = parallelTransition()
star delegate, 12, [LIGHTGREEN, GREEN]*.brighter()
star delegate, 6, [LIGHTBLUE, BLUE]*.brighter()
star delegate, 0, [YELLOW, ORANGE]
fxLabel delegate
onMouseClicked { transitions.playFromStart() }
}
} } }
transitions.delay = Duration.seconds(1)
transitions.playFromStart()
transitions.delay = Duration.seconds(0)
}
 
5

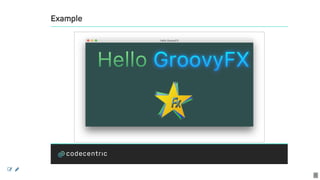

6. Example
 
6

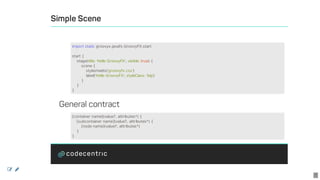

7. Simple Scene
General contract
import static groovyx.javafx.GroovyFX.start
start {
stage(title: 'Hello GroovyFX', visible: true) {
scene {
stylesheets('groovyfx.css')
label('Hello GroovyFX', styleClass: 'big')
}
}
}
[container name](value?, attributes*) {
[subcontainer name](value?, attributes*) {
[node name](value?, attributes*)
}
}
 
7

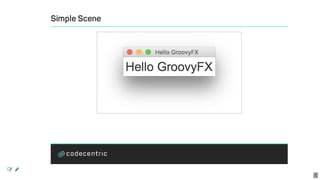

8. Simple Scene
 
8

9. Forms and components
 
9

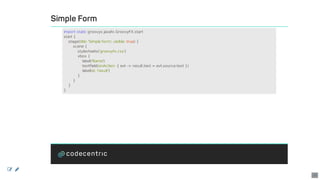

10. Simple Form
import static groovyx.javafx.GroovyFX.start
start {
stage(title: 'Simple form', visible: true) {
scene {
stylesheets('groovyfx.css')
vbox {
label('Name')
textField(onAction: { evt -> result.text = evt.source.text })
label(id: 'result')
}
}
}
}
 
10

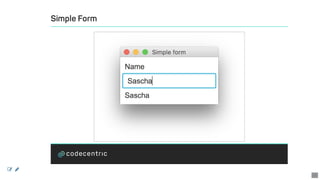

11. Simple Form
 
11

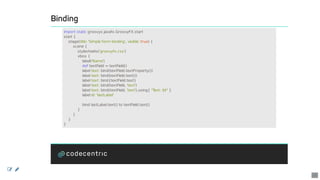

12. Binding
import static groovyx.javafx.GroovyFX.start
start {
stage(title: 'Simple form binding', visible: true) {
scene {
stylesheets('groovyfx.css')
vbox {
label('Name')
def textField = textField()
label text: bind(textField.textProperty())
label text: bind(textField.text())
label text: bind{textField.text}
label text: bind(textField, 'text')
label text: bind(textField, 'text').using{ "Text: $it" }
label id: 'lastLabel'
bind lastLabel.text() to textField.text()
}
}
}
}
 
12

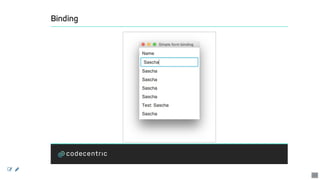

13. Binding
 
13

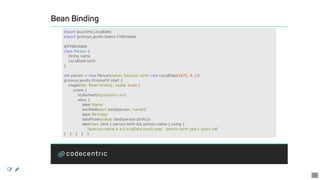

14. Bean Binding
import java.time.LocalDate
import groovyx.javafx.beans.FXBindable
@FXBindable
class Person {
String name
LocalDate birth
}
def person = new Person(name: 'Sascha', birth: new LocalDate(1975, 4, 1))
groovyx.javafx.GroovyFX.start {
stage(title: 'Bean binding', visible: true) {
scene {
stylesheets('groovyfx.css')
vbox {
label 'Name'
textField(text: bind(person, 'name'))
label 'Birthday'
datePicker(value: bind(person.birth()))
label text: bind { person.birth && person.name }.using {
"$person.name is ${LocalDate.now().year - person.birth.year} years old"
} } } } }
 
14

15. Bean Binding
 
15

16. Layouting
import static groovyx.javafx.GroovyFX.start
start {
stage(title: 'Border Pane Demo', visible: true) {
scene {
stylesheets('groovyfx.css')
borderPane {
top {
label('Header')
}
// center {
textField(id: 'tf')
// }
bottom {
label text: bind(tf.textProperty())
}
right {
imageView('GroovyFX_logo.png')
}
}
}
}
}
 
16

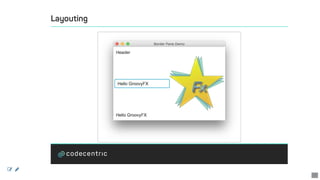

17. Layouting
 
17

18. GridLayout
groovyx.javafx.GroovyFX.start {
stage(title: 'GridLayout form', visible: true) {
scene {
stylesheets('groovyfx.css')
gridPane(hgap: 5, vgap: 10, padding: 25, alignment: TOP_CENTER) {
columnConstraints(minWidth: 50, halignment: RIGHT)
columnConstraints(prefWidth: 250, hgrow: 'always')
label("Please send us your feedback", style: "-fx-font-size: 18px;",
row: 0, columnSpan: 2, halignment: "center", margin: [0, 0, 10]) {
onMouseEntered { e -> e.source.parent.gridLinesVisible = true }
onMouseExited { e -> e.source.parent.gridLinesVisible = false }
}
label("Name", hgrow: "never", row: 1, column: 0)
textField(promptText: "Your name", row: 1, column: 1 )
label("Email", row: 2, column: 0)
textField(promptText: "Your email address", row: 2, column: 1)
label("Message", row: 3, column: 0, valignment: "baseline")
textArea(prefRowCount: 8, row: 3, column: 1, vgrow: 'always')
button("Send Message", row: 4, column: 1, halignment: "right")
} } } }
 
18

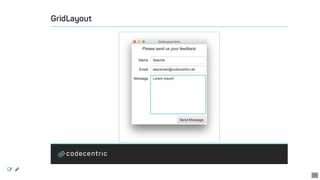

19. GridLayout
 
19

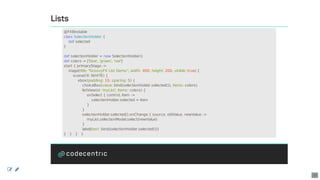

20. Lists
@FXBindable
class SelectionHolder {
def selected
}
def selectionHolder = new SelectionHolder()
def colors = ['blue', 'green', 'red']
start { primaryStage ->
stage(title: "GroovyFX List Demo", width: 400, height: 200, visible: true) {
scene(fill: WHITE) {
vbox(padding: 10, spacing: 5) {
choiceBox(value: bind(selectionHolder.selected()), items: colors)
listView(id: 'myList', items: colors) {
onSelect { control, item ->
selectionHolder.selected = item
}
}
selectionHolder.selected().onChange { source, oldValue, newValue ->
myList.selectionModel.select(newValue)
}
label(text: bind(selectionHolder.selected()))
} } } }
 
20

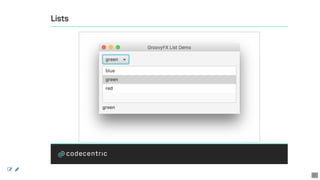

21. Lists
 
21

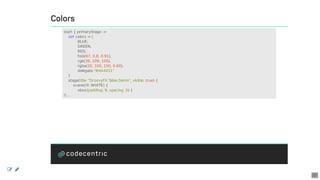

22. Colors
start { primaryStage ->
def colors = [
BLUE,
GREEN,
RED,
hsb(67, 0.8, 0.91),
rgb(39, 209, 100),
rgba(20, 100, 150, 0.60),
delegate."#AA4411"
]
stage(title: "GroovyFX Table Demo", visible: true) {
scene(fill: WHITE) {
vbox(padding: 9, spacing: 5) {
//...
 
22

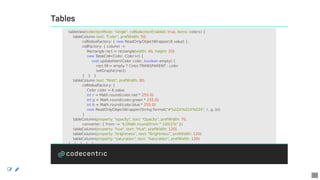

23. Tables
tableView(selectionMode: "single", cellSelectionEnabled: true, items: colors) {
tableColumn text: "Color", prefWidth: 50,
cellValueFactory: { new ReadOnlyObjectWrapper(it.value) },
cellFactory: { column ->
Rectangle rect = rectangle(width: 40, height: 20)
new TableCell<Color, Color>() {
void updateItem(Color color, boolean empty) {
rect.fill = empty ? Color.TRANSPARENT : color
setGraphic(rect)
} } }
tableColumn text: "Web", prefWidth: 80,
cellValueFactory: {
Color color = it.value
int r = Math.round(color.red * 255.0)
int g = Math.round(color.green * 255.0)
int b = Math.round(color.blue * 255.0)
new ReadOnlyObjectWrapper(String.format("#%02X%02X%02X", r, g, b))
}
tableColumn(property: "opacity", text: "Opacity", prefWidth: 70,
converter: { from -> "${Math.round(from * 100)}%" })
tableColumn(property: "hue", text: "Hue", prefWidth: 120)
tableColumn(property: "brightness", text: "Brightness", prefWidth: 120)
tableColumn(property: "saturation", text: "Saturation", prefWidth: 120)
} } } } }
 
23

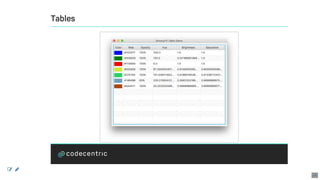

24. Tables
 
24

25. Actions
start {
actions {
fxaction(id: 'saveAction',
name: 'Save',
description: 'This saves something',
accelerator: 'Ctrl+S',
enabled: false,
onAction: { println "Save" })
fxaction(id: 'exitAction',
name: 'Exit',
onAction: { primaryStage.close() })
fxaction(id: 'copyAction',
name: 'Copy', icon: 'icons/copy.png',
onAction: { println "Copy" }
)
fxaction(id: 'pasteAction',
name: 'Paste', icon: 'icons/paste.png',
onAction: { println "Paste" }
)
fxaction(id: 'checkAction',
name: 'Check',
selected: true,
onAction: { println "Check" }
)
}
// ...
 
25

26. Actions
stage(title: "GroovyFX Menu Demo", width: 650, height: 450, visible: true) {
scene(fill: WHITE) {
borderPane {
top {
menuBar {
menu("File") {
menuItem("Open", onAction: { println "Open" }) {
rectangle(width: 16, height: 16, fill: RED)
}
menuItem(saveAction) {
graphic(circle(radius: 8, fill: BLUE))
}
separatorMenuItem()
menuItem(exitAction)
}
menu(text: "Edit") {
menuItem(text: "Cut", onAction: { println "Cut" }) {
imageView('/icons/cut.png')
}
menuItem(copyAction)
menuItem(pasteAction)
separatorMenuItem()
checkMenuItem(checkAction)
def toggleGroup = new ToggleGroup()
radioMenuItem("Radio1", toggleGroup: toggleGroup, selected: true)
radioMenuItem("Radio2", toggleGroup: toggleGroup)
menu("Foo") {
menuItem("Bar")
menuItem("FooBar")
} } } }
// ...
 
26

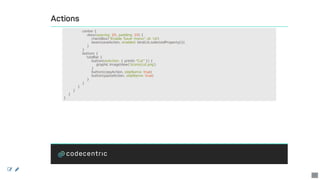

27. Actions
center {
vbox(spacing: 20, padding: 10) {
checkBox("Enable 'Save' menu", id: 'cb')
bean(saveAction, enabled: bind(cb.selectedProperty()))
}
}
bottom {
toolBar {
button(onAction: { println "Cut" }) {
graphic imageView('/icons/cut.png')
}
button(copyAction, skipName: true)
button(pasteAction, skipName: true)
}
}
}
}
}
}
 
27

28. Actions
 
28

29. Charts
def pieData = FXCollections.observableArrayList([
new PieChart.Data("Yours", 42),
new PieChart.Data("Mine", 58)
])
start {
Map data = [first: 0.25f, second: 0.25f, third: 0.25f]
stage(title: 'Chart Demo', visible: true, width: 1024, height: 960) {
scene {
stylesheets('groovyfx.css')
stackPane {
scrollPane {
tilePane(padding: 10, prefTileWidth: 480, prefColumns: 2) {
pieChart(data: [first: 0.25f, second: 0.25f, third: 0.25f])
stackPane(alignment: TOP_RIGHT) {
pieChart(data: pieData, animated: true)
button('Add Slice') {
onAction {
pieData.add(new PieChart.Data('Other', 25))
}
}
}
// ...
 
29

30. Charts
lineChart(data: [First: [0,0.25,0.5,1.5,2,1], Second: [0.25,0,0.5,0.5,1.5,0.75]])
final yAxis = numberAxis(label: "Y Axis", lowerBound: -1.2, upperBound: 1.2,
tickUnit: 0.2, autoRanging: false)
lineChart(xAxis: categoryAxis(label: "X Axis"), yAxis: yAxis) {
series(name: 'First Series', data: ["A", 0, "B", 1, "C", -1])
series(name: 'Second Series', data: [["A", 0], ["B", -1], ["C", 1], ["D", 0]])
}
areaChart {
series(name: 'First Series', data: [0, 0, 0.5, 0.2, 1.5, 0.6, 2, 0.8])
series(name: 'Second Series', data: [0, 0, 0.25, 0.2, 0.5, 0.6, 2.25, 0.4])
}
bubbleChart {
series(name: 'First Series', data: [[0,0.2,0.1], [0.5,0.2,0.25], [1.5,0.1,0.5]])
series(name: 'Second Series', data: [[0, 0.1, 0.25], [0.2, 0.5, 0.2]])
}
scatterChart {
series(name: 'First Series', data: [0, 0, 0.5, 0.2, 1.5, 0.6, 2, 0.8])
series(name: 'Second Series', data: [0, 0, 0.25, 0.2, 0.5, 0.6, 2.25, 0.4])
}
barChart(barGap: 0, categoryGap: 0) {
series(name: '2010', data: ['Q1', 1534, 'Q2', 2698, 'Q3', 1945, 'Q4', 3156])
series(name: '2012', data: ['Q1', 2200, 'Q2', 2750, 'Q3', 2125, 'Q4', 3100])
} } } } } } }
 
30

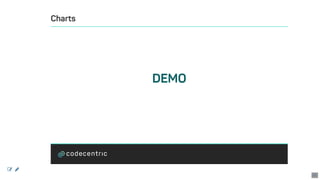

31. Charts
DEMO
 
31

32. Graphics and animations
 
32

33. Paths
start {
stage(title: "GroovyFX Path Demo", visible: true) {
scene(fill: BLACK) {
path(translateX: 0, translateY: 493.672 + 10, fill: WHITE, stroke: GREY,
strokeWidth: 1,
strokeLineCap: StrokeLineCap.BUTT,
strokeLineJoin: StrokeLineJoin.MITER,
strokeMiterLimit: 4.00000000) {
moveTo(x: 105.367, y: -493.672)
cubicCurveTo(
controlX1: 128.507, controlY1: -478.22,
controlX2: 151.465, controlY2: -462.40,
x: 173.917, y: -446.100
)
cubicCurveTo(
controlX1: 128.862, controlY1: -466.995,
controlX2: 79.407, controlY2: -482.018,
x: 24.547, y: -490.346
)
// ...
 
33

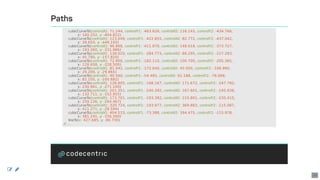

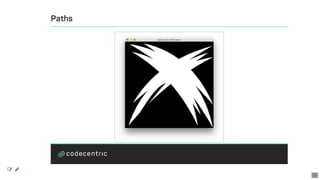

34. Paths
cubicCurveTo(controlX1: 71.244, controlY1: -463.626, controlX2: 116.143, controlY2: -434.766,
x: 160.252, y: -404.822)
cubicCurveTo(controlX1: 123.049, controlY1: -422.855, controlX2: 82.772, controlY2: -437.042,
x: 38.650, y: -446.192)
cubicCurveTo(controlX1: 96.868, controlY1: -411.870, controlX2: 148.018, controlY2: -373.727,
x: 193.360, y: -331.986)
cubicCurveTo(controlX1: 136.020, controlY1: -284.773, controlX2: 86.295, controlY2: -227.283,
x: 45.790, y: -157.820)
cubicCurveTo(controlX1: 72.900, controlY1: -182.110, controlX2: 100.700, controlY2: -205.365,
x: 128.658, y: -228.500)
cubicCurveTo(controlX1: 81.942, controlY1: -172.640, controlX2: 45.050, controlY2: -106.990,
x: 20.200, y: -29.865)
cubicCurveTo(controlX1: 40.560, controlY1: -54.485, controlX2: 61.188, controlY2: -78.068,
x: 82.105, y: -100.682)
cubicCurveTo(controlX1: 126.805, controlY1: -168.167, controlX2: 171.672, controlY2: -247.792,
x: 230.961, y: -271.100)
cubicCurveTo(controlX1: 201.351, controlY1: -240.392, controlX2: 167.601, controlY2: -195.936,
x: 132.711, y: -152.955)
cubicCurveTo(controlX1: 173.701, controlY1: -193.392, controlX2: 215.801, controlY2: -230.415,
x: 259.126, y: -264.467)
cubicCurveTo(controlX1: 320.724, controlY1: -193.977, controlX2: 369.883, controlY2: -115.087,
x: 411.271, y: -28.594)
cubicCurveTo(controlX1: 404.533, controlY1: -73.388, controlX2: 394.475, controlY2: -115.978,
x: 381.241, y: -156.260)
lineTo(x: 427.685, y: -90.730)
// ...
 
34

35. Paths
cubicCurveTo(controlX1: 427.685, controlY1: -90.730, controlX2: 401.648, controlY2: -163.420,
x: 384.025, y: -192.717)
cubicCurveTo(controlX1: 424.785, controlY1: -136.807, controlX2: 462.233, controlY2: -78.289,
x: 496.353, y: -17.512)
cubicCurveTo(controlX1: 477.679, controlY1: -106.966, controlX2: 445.841, controlY2: -187.284,
x: 397.460, y: -255.736)
cubicCurveTo(controlX1: 432.366, controlY1: -221.046, controlX2: 466.097, controlY2: -184.636,
x: 498.390, y: -146.691)
cubicCurveTo(controlX1: 465.048, controlY1: -223.173, controlX2: 423.580, controlY2: -290.180,
x: 372.214, y: -345.000)
cubicCurveTo(controlX1: 412.438, controlY1: -370.887, controlX2: 453.694, controlY2: -394.730,
x: 496.077, y: -416.783)
cubicCurveTo(controlX1: 464.052, controlY1: -411.223, controlX2: 433.587, controlY2: -403.863,
x: 404.071, y: -394.849)
cubicCurveTo(controlX1: 425.907, controlY1: -411.022, controlX2: 448.481, controlY2: -426.973,
x: 471.095, y: -442.372)
cubicCurveTo(controlX1: 433.108, controlY1: -430.462, controlX2: 396.462, controlY2: -416.597,
x: 362.028, y: -400.939)
cubicCurveTo(controlX1: 404.696, controlY1: -428.612, controlX2: 448.348, controlY2: -454.607,
x: 493.032, y: -479.541)
lineTo(x: 493.029, y: -479.541)
cubicCurveTo(controlX1: 425.559, controlY1: -461.486, controlX2: 362.199, controlY2: -437.351,
x: 304.031, y: -405.993)
cubicCurveTo(controlX1: 247.737, controlY1: -447.783, controlX2: 182.021, controlY2: -477.780,
x: 105.368, y: -493.673)
lineTo(x: 105.367, y: -493.672)
closePath()
} } } }
 
35

36. Paths
 
36

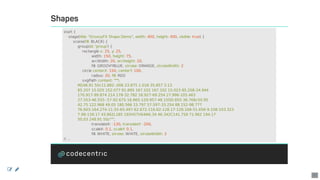

37. Shapes
start {
stage(title: "GroovyFX Shape Demo", width: 400, height: 400, visible: true) {
scene(fill: BLACK) {
group(id: 'group') {
rectangle x: 25, y: 25,
width: 150, height: 75,
arcWidth: 20, arcHeight: 20,
fill: GROOVYBLUE, stroke: ORANGE, strokeWidth: 2
circle centerX: 150, centerY: 100,
radius: 20, fill: RED
svgPath content: """
M248.91 50c11.882-.006 23.875 1.018 35.857 3.13
85.207 15.025 152.077 81.895 167.102 167.102 15.023 85.208-24.944
170.917-99.874 214.178-32.782 18.927-69.254 27.996-105.463
27.553-46.555-.57-92.675-16.865-129.957-48.15l30.855-36.768c50.95
42.75 122.968 49.05 180.566 15.797 57.597-33.254 88.152-98.777
76.603-164.274-11.55-65.497-62.672-116.62-128.17-128.168-51.656-9.108-103.323
7.98-139.17 43.862L185 192H57V64l46.34 46.342C141.758 71.962 194.17
50.03 248.91 50z""",
translateX: -130, translateY: -200,
scaleX: 0.1, scaleY: 0.1,
fill: WHITE, stroke: WHITE, strokeWidth: 2
// ...
 
37

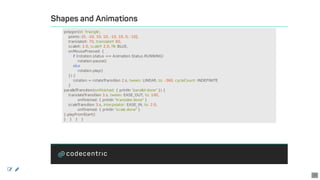

38. Shapes and Animations
polygon(id: 'triangle',
points: [0, -10, 10, 10, -10, 10, 0, -10],
translateX: 70, translateY: 60,
scaleX: 2.0, scaleY: 2.0, fill: BLUE,
onMousePressed: {
if (rotation.status == Animation.Status.RUNNING)
rotation.pause()
else
rotation.play()
}) {
rotation = rotateTransition 2.s, tween: LINEAR, to: -360, cycleCount: INDEFINITE
}
parallelTransition(onFinished: { println "parallel done" }) {
translateTransition 3.s, tween: EASE_OUT, to: 100,
onFinished: { println "translate done" }
scaleTransition 3.s, interpolator: EASE_IN, to: 2.0,
onFinished: { println "scale done" }
}.playFromStart()
} } } }
 
38

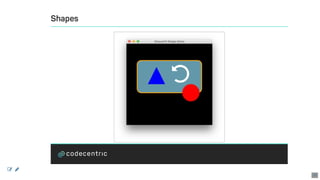

39. Shapes
 
39

40. Effects
start {
stage(title: 'Animation Demo', visible: true) {
scene {
rectangle(width: 800, height: 600,
effect: blend(mode: "screen") {
topInput {
imageInput(source: "background-ripples.png", x: 0, y: 0)
}
bottomInput {
color = colorInput(
paint: radialGradient(
center: [0.7, 0.05],
radius: 0.6,
stops: ["#767A7B", "#222222"]
).build(),
x: 0, y: 0,
width: 800, height: 600
)
}
}
)
// ...
 
40

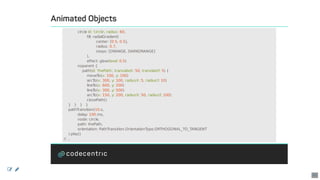

41. Animated Objects
circle id: 'circle', radius: 60,
fill: radialGradient(
center: [0.5, 0.5],
radius: 0.7,
stops: [ORANGE, DARKORANGE]
),
effect: glow(level: 0.5)
noparent {
path(id: 'thePath', translateX: 50, translateY: 5) {
moveTo(x: 100, y: 100)
arcTo(x: 300, y: 100, radiusX: 5, radiusY: 10)
lineTo(x: 600, y: 200)
lineTo(x: 300, y: 500)
arcTo(x: 150, y: 200, radiusX: 50, radiusY: 100)
closePath()
} } } }
pathTransition(10.s,
delay: 100.ms,
node: circle,
path: thePath,
orientation: PathTransition.OrientationType.ORTHOGONAL_TO_TANGENT
).play()
// ...
 
41

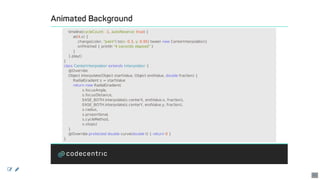

42. Animated Background
timeline(cycleCount: -1, autoReverse: true) {
at(4.s) {
change(color, "paint") to(x: 0.3, y: 0.95) tween new CenterInterpolator()
onFinished { println "4 seconds elapsed" }
}
}.play()
}
class CenterInterpolator extends Interpolator {
@Override
Object interpolate(Object startValue, Object endValue, double fraction) {
RadialGradient s = startValue
return new RadialGradient(
s.focusAngle,
s.focusDistance,
EASE_BOTH.interpolate(s.centerX, endValue.x, fraction),
EASE_BOTH.interpolate(s.centerY, endValue.y, fraction),
s.radius,
s.proportional,
s.cycleMethod,
s.stops)
}
@Override protected double curve(double t) { return 0 }
}
 
42

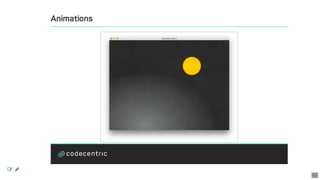

43. Animations
 
43

44. Animations
DEMO
 
44

45. Enhancing GroovyFX
 
45

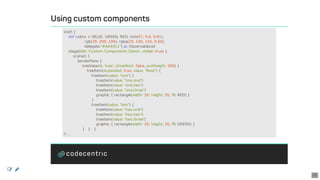

46. Using custom components
start {
def colors = [BLUE, GREEN, RED, hsb(67, 0.8, 0.91),
rgb(39, 209, 100), rgba(20, 100, 150, 0.60),
delegate."#AA4411"] as ObservableList
stage(title: 'Custom Components Demo', visible: true) {
scene() {
borderPane {
treeView(id: 'tree', showRoot: false, prefHeight: 300) {
treeItem(expanded: true, value: "Root") {
treeItem(value: "one") {
treeItem(value: "one.one")
treeItem(value: "one.two")
treeItem(value: "one.three")
graphic { rectangle(width: 20, height: 20, fill: RED) }
}
treeItem(value: "two") {
treeItem(value: "two.one")
treeItem(value: "two.two")
treeItem(value: "two.three")
graphic { rectangle(width: 20, height: 20, fill: GREEN) }
} } }
// ...
 
46

47. Using custom components
tree.selectionModel.selectionMode = SelectionMode.SINGLE
top {
node new BreadCrumbBar(tree.root),
selectedCrumb: bind(tree.selectionModel, 'selectedItem'),
prefHeight: 30
}
bottom {
container new MigPane("wrap 2", "20[]5[fill, grow]20", ""), {
4.times {
button("Button $it")
}
}
}
}
}
}
}
 
47

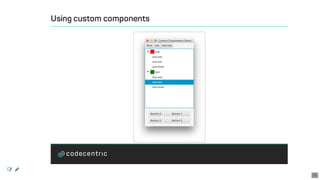

48. Using custom components
 
48

49. Own Factories
import groovyfx.javafx.factory.MessageFactory
import org.controlsfx.control.GridView
import org.controlsfx.control.cell.ColorGridCell
groovyx.javafx.GroovyFX.start {
delegate.registerBeanFactory('gridView', GridView)
delegate.registerFactory('message', new MessageFactory())
stage(title: 'Custom Factory Demo', visible: true) {
scene {
stylesheets('groovyfx.css')
vbox {
label('Hello GroovyFX', styleClass: 'big')
gridView(items: [RED, GREEN, YELLOW, SLATEGREY],
prefHeight: 200,
cellFactory: { new ColorGridCell() }
)
message(message: 'This is a message')
}
}
}
}
 
49

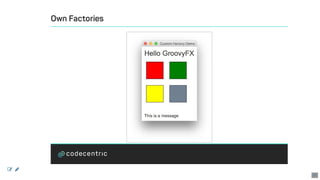

50. Own Factories
 
50

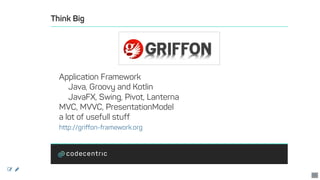

51. Think Big
Application Framework
Java, Groovy and Kotlin
JavaFX, Swing, Pivot, Lanterna
MVC, MVVC, PresentationModel
a lot of usefull stuff
http://griffon-framework.org
 
51

52. Questions?
Alexander Klein
Branchmanager
codecentric AG
Curiestr. 2
70563 Stuttgart, Germany
+49 (0) 172 529 40 20
alexander.klein@codecentric.de
www.codecentric.de
blog.codecentric.de
@saschaklein
 
52
