Its about the integration of plants onto the skyscrapers which helps to reduce the temperature inside the building to a maximum extents and also helps to promote the greenery in the environment.

1. Green Skyscraper
Integrationof plants
into Skyscrapers
Submittedto :
Asst.Prof.Jagriti Gupta
Submittedby:
AnshuKumarGupta
Priyabaria
SanjeevJaiswal
B-techCivil Engg.
Final Year8th Sem

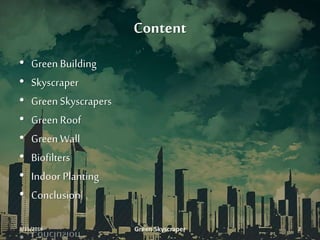

2. Content
• Green Building
• Skyscraper
• Green Skyscrapers
• Green Roof
• Green Wall
• Biofilters
• Indoor Planting
• Conclusion
3/11/2016 Green Skyscraper 2

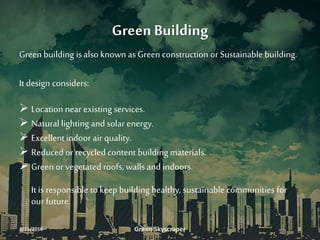

3. Green Building
Green building is also known as Green construction or Sustainable building.
It design considers:
 Location near existing services.
 Naturallighting and solar energy.
 Excellentindoor air quality.
 Reduced or recycled content building materials.
 Green or vegetated roofs, walls and indoors.
It is responsible to keepbuilding healthy, sustainable communities for
our future.
3/11/2016 Green Skyscraper 3

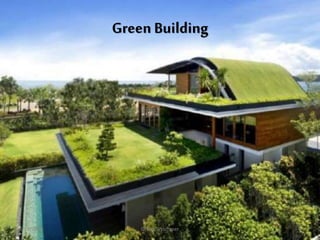

4. Green Building
3/11/2016 Green Skyscraper 4

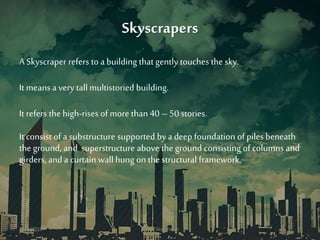

5. Skyscrapers
A Skyscraper refers to a building that gently touches the sky.
It means a very tall multistoried building.
It refers the high-rises of more than 40 – 50 stories.
It consist of a substructure supported by a deep foundation of piles beneath
the ground, and superstructure above the ground consisting of columns and
girders, and a curtain wallhung on the structural framework.
3/11/2016 Green Skyscraper 5

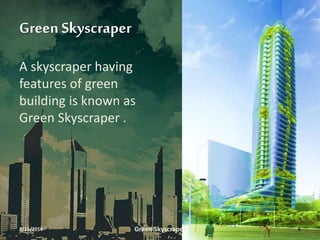

6. Green Skyscraper
A skyscraper having
features of green
building is known as
Green Skyscraper .
3/11/2016 Green Skyscraper 6

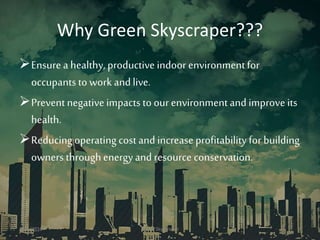

7. Why Green Skyscraper???
Ensurea healthy, productive indoor environmentfor
occupants to work andlive.
Preventnegativeimpacts to our environmentand improve its
health.
Reducingoperating cost and increase profitability for building
owners throughenergyand resource conservation.
3/11/2016 Green Skyscraper 7

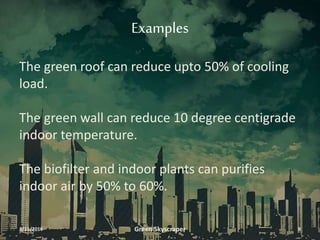

8. Examples
The green roof can reduce upto 50% of cooling
load.
The green wall can reduce 10 degree centigrade
indoor temperature.
The biofilter and indoor plants can purifies
indoor air by 50% to 60%.
3/11/2016 Green Skyscraper 8

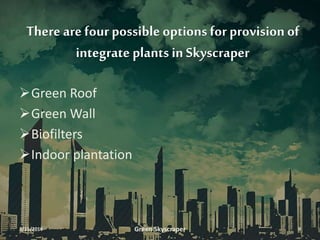

9. There are four possible options for provision of
integrate plants in Skyscraper
Green Roof
Green Wall
Biofilters
Indoor plantation
3/11/2016 Green Skyscraper 9

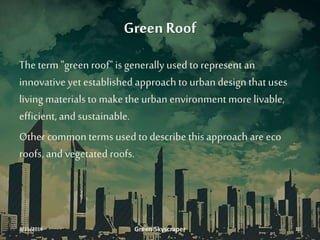

10. Green Roof
Theterm "green roof" is generally used to represent an
innovativeyet established approach to urban design thatuses
living materialsto makethe urban environment more livable,
efficient,and sustainable.
Other common terms used to describe thisapproach are eco
roofs, and vegetated roofs.
3/11/2016 Green Skyscraper 10

11. Green Roof
3/11/2016 Green Skyscraper 11

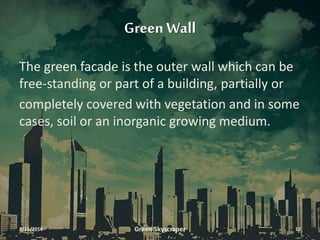

12. Green Wall
The green facade is the outer wall which can be
free-standing or part of a building, partially or
completely covered with vegetation and in some
cases, soil or an inorganic growing medium.
3/11/2016 Green Skyscraper 12

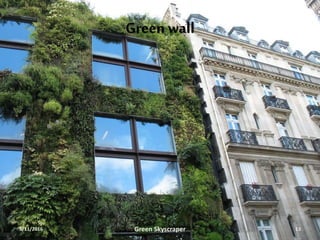

13. Green wall
3/11/2016 Green Skyscraper 13

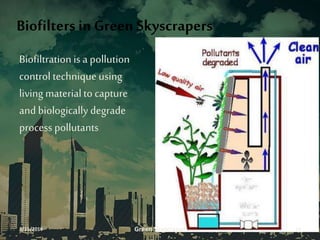

14. Biofilters in Green Skyscrapers
Biofiltration is a pollution
control techniqueusing
living materialto capture
and biologically degrade
process pollutants
3/11/2016 Green Skyscraper 14

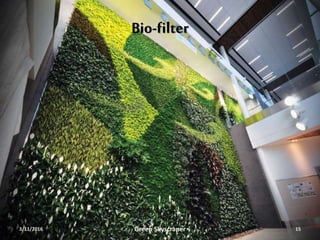

15. Bio-filter
3/11/2016 Green Skyscraper 15

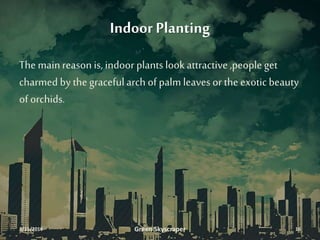

16. Indoor Planting
The mainreason is, indoor plants lookattractive ,people get
charmed by the gracefularch of palm leaves or the exoticbeauty
of orchids.
3/11/2016 Green Skyscraper 16

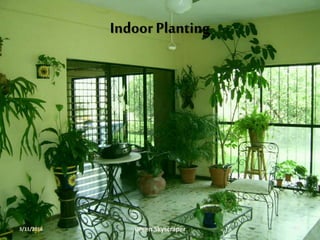

17. Indoor Planting
3/11/2016 Green Skyscraper 17

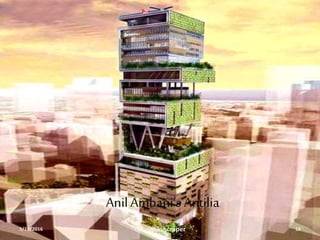

18. AnilAmbani’s Antilia
3/11/2016 Green Skyscraper 18

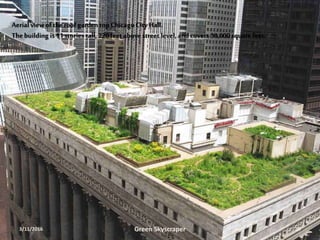

19. Example
Aerialview of theroof garden topChicagoCityHall.
Thebuilding is11 stories tall, 220feet abovestreet level, andcovers 38,000squarefeet.
3/11/2016 Green Skyscraper 19

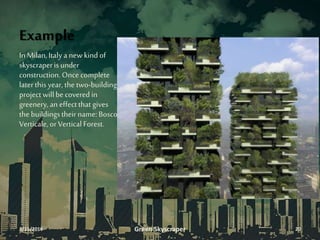

20. Example
In Milan,Italya new kindof
skyscraperisunder
construction. Once complete
laterthisyear, the two-building
project willbe covered in
greenery,an effectthat gives
the buildingstheirname: Bosco
Verticale,or Vertical Forest.
3/11/2016 Green Skyscraper 20

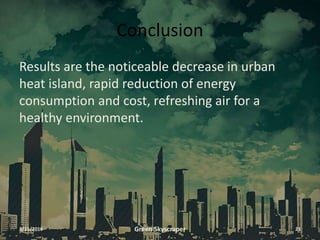

21. Conclusion
Results are the noticeable decrease in urban
heat island, rapid reduction of energy
consumption and cost, refreshing air for a
healthy environment.
3/11/2016 Green Skyscraper 21

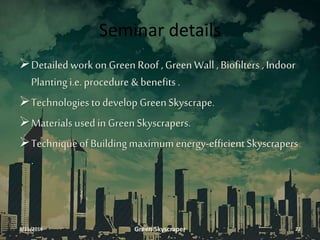

22. Seminar details
Detailedwork on Green Roof , Green Wall , Biofilters , Indoor
Plantingi.e. procedure & benefits.
Technologies to develop GreenSkyscrape.
Materialsused in GreenSkyscrapers.
Techniqueof Buildingmaximum energy-efficientSkyscrapers
.
3/11/2016 Green Skyscraper 22

23. 3/11/2016 Green Skyscraper 23

24. Thank You !!
3/11/2016 Green Skyscraper 24
