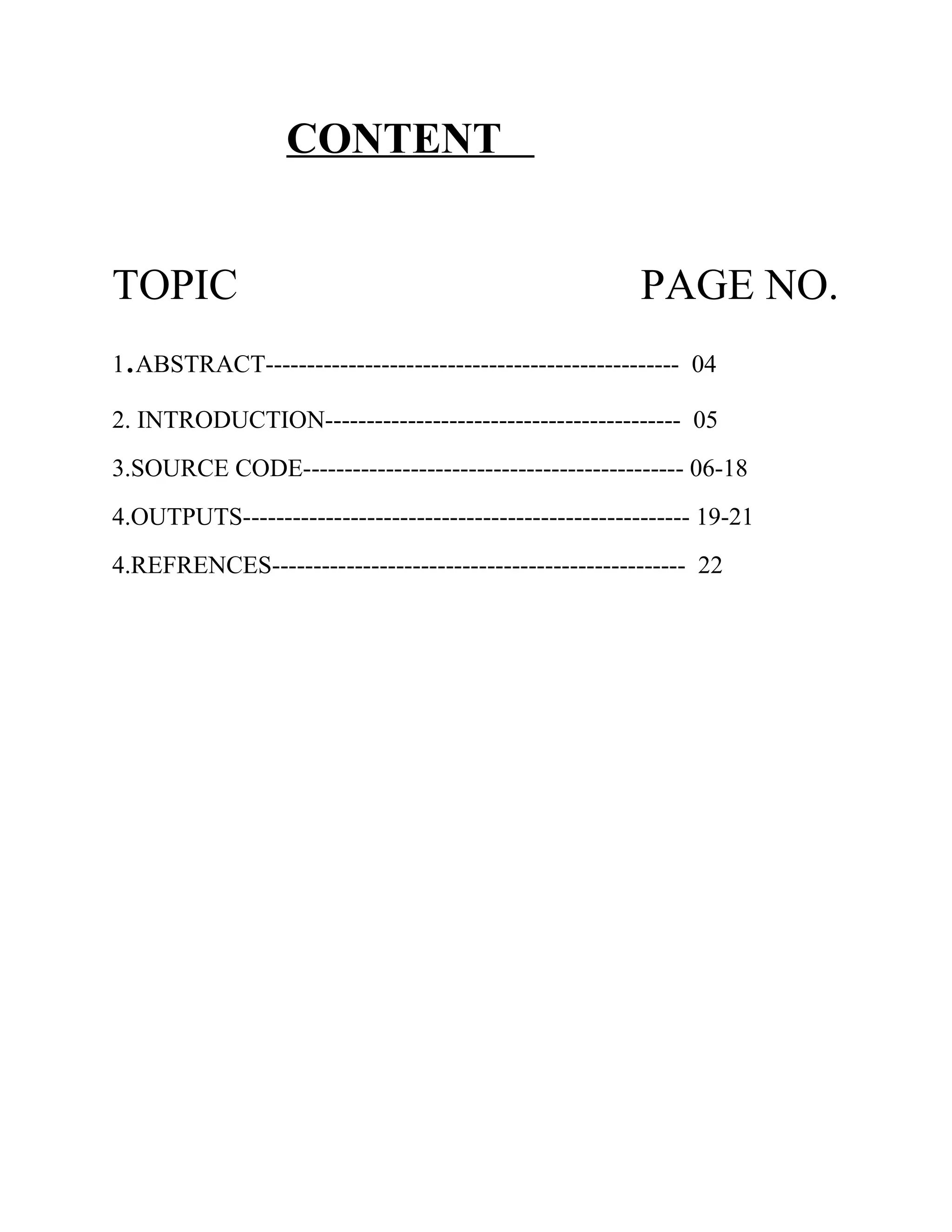

3. CONTENT
TOPIC PAGE NO.
.
1 ABSTRACT-------------------------------------------------- 04
2. INTRODUCTION------------------------------------------- 05
3.SOURCE CODE---------------------------------------------- 06-18
4.OUTPUTS------------------------------------------------------ 19-21
4.REFRENCES-------------------------------------------------- 22

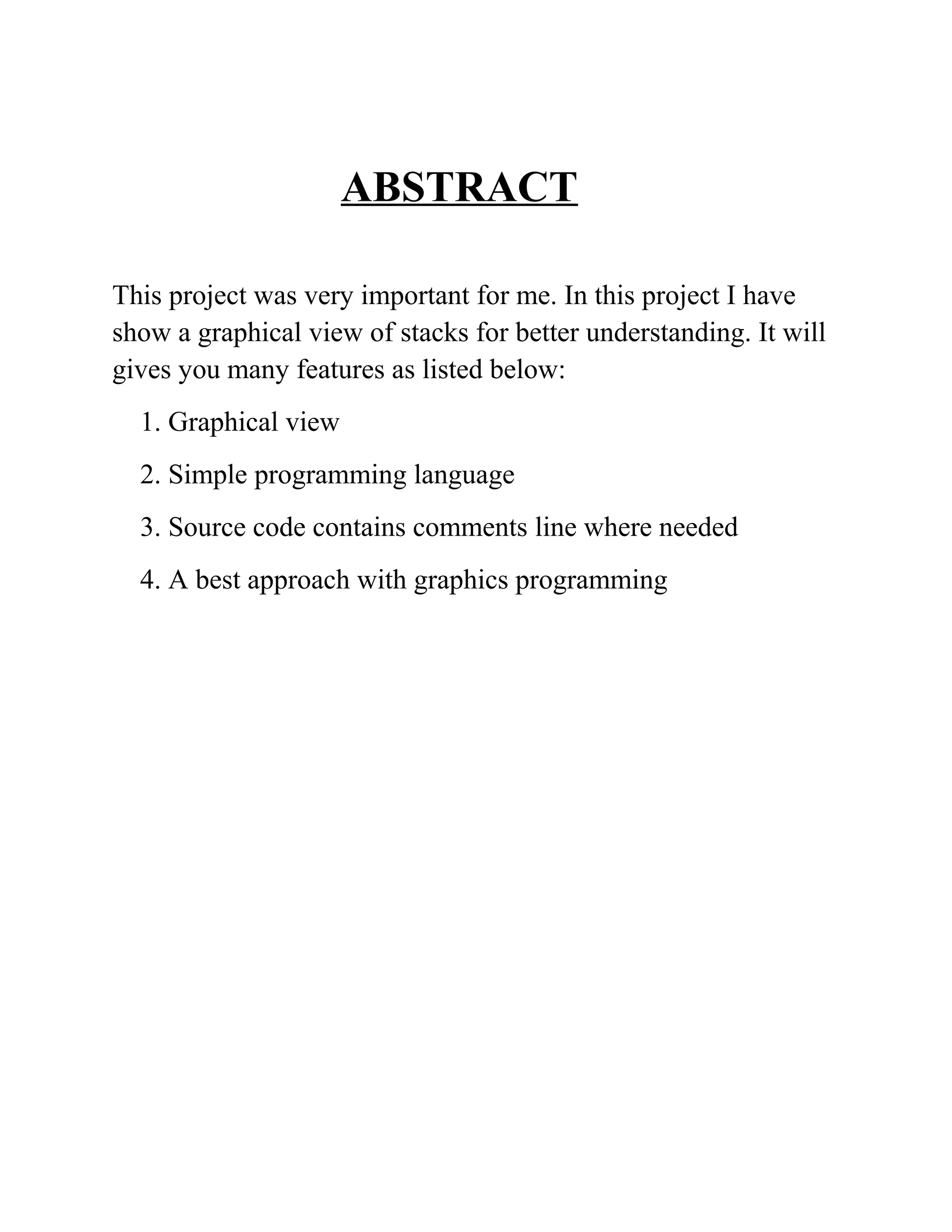

4. ABSTRACT
This project was very important for me. In this project I have
show a graphical view of stacks for better understanding. It will
gives you many features as listed below:
1. Graphical view
2. Simple programming language
3. Source code contains comments line where needed
4. A best approach with graphics programming

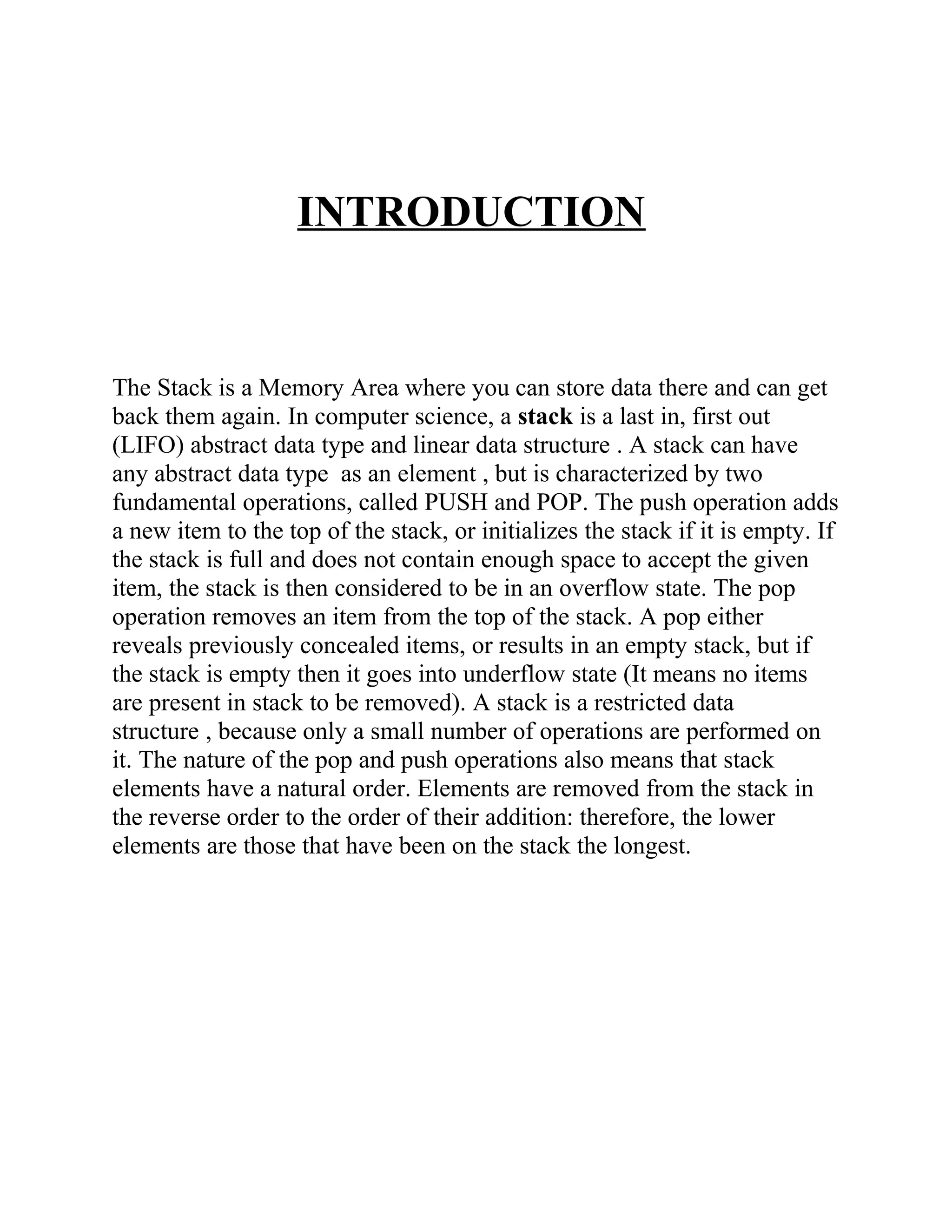

5. INTRODUCTION
The Stack is a Memory Area where you can store data there and can get
back them again. In computer science, a stack is a last in, first out
(LIFO) abstract data type and linear data structure . A stack can have
any abstract data type as an element , but is characterized by two
fundamental operations, called PUSH and POP. The push operation adds
a new item to the top of the stack, or initializes the stack if it is empty. If
the stack is full and does not contain enough space to accept the given
item, the stack is then considered to be in an overflow state. The pop
operation removes an item from the top of the stack. A pop either
reveals previously concealed items, or results in an empty stack, but if
the stack is empty then it goes into underflow state (It means no items
are present in stack to be removed). A stack is a restricted data
structure , because only a small number of operations are performed on
it. The nature of the pop and push operations also means that stack
elements have a natural order. Elements are removed from the stack in
the reverse order to the order of their addition: therefore, the lower
elements are those that have been on the stack the longest.

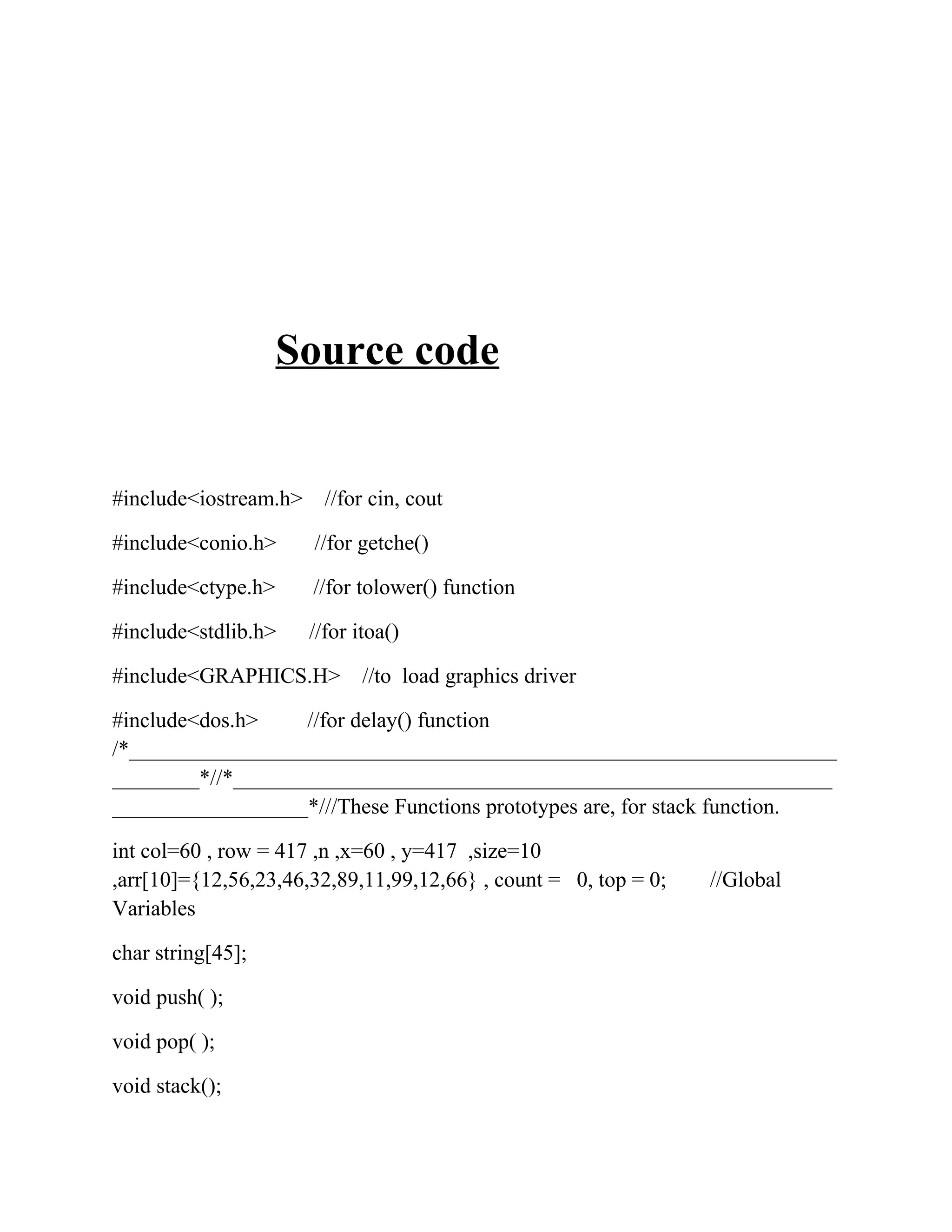

6. Source code
#include<iostream.h> //for cin, cout
#include<conio.h> //for getche()
#include<ctype.h> //for tolower() function
#include<stdlib.h> //for itoa()
#include<GRAPHICS.H> //to load graphics driver
#include<dos.h> //for delay() function
/*_________________________________________________________________
________*//*_______________________________________________________
__________________*///These Functions prototypes are, for stack function.
int col=60 , row = 417 ,n ,x=60 , y=417 ,size=10
,arr[10]={12,56,23,46,32,89,11,99,12,66} , count = 0, top = 0; //Global
Variables
char string[45];
void push( );
void pop( );
void stack();

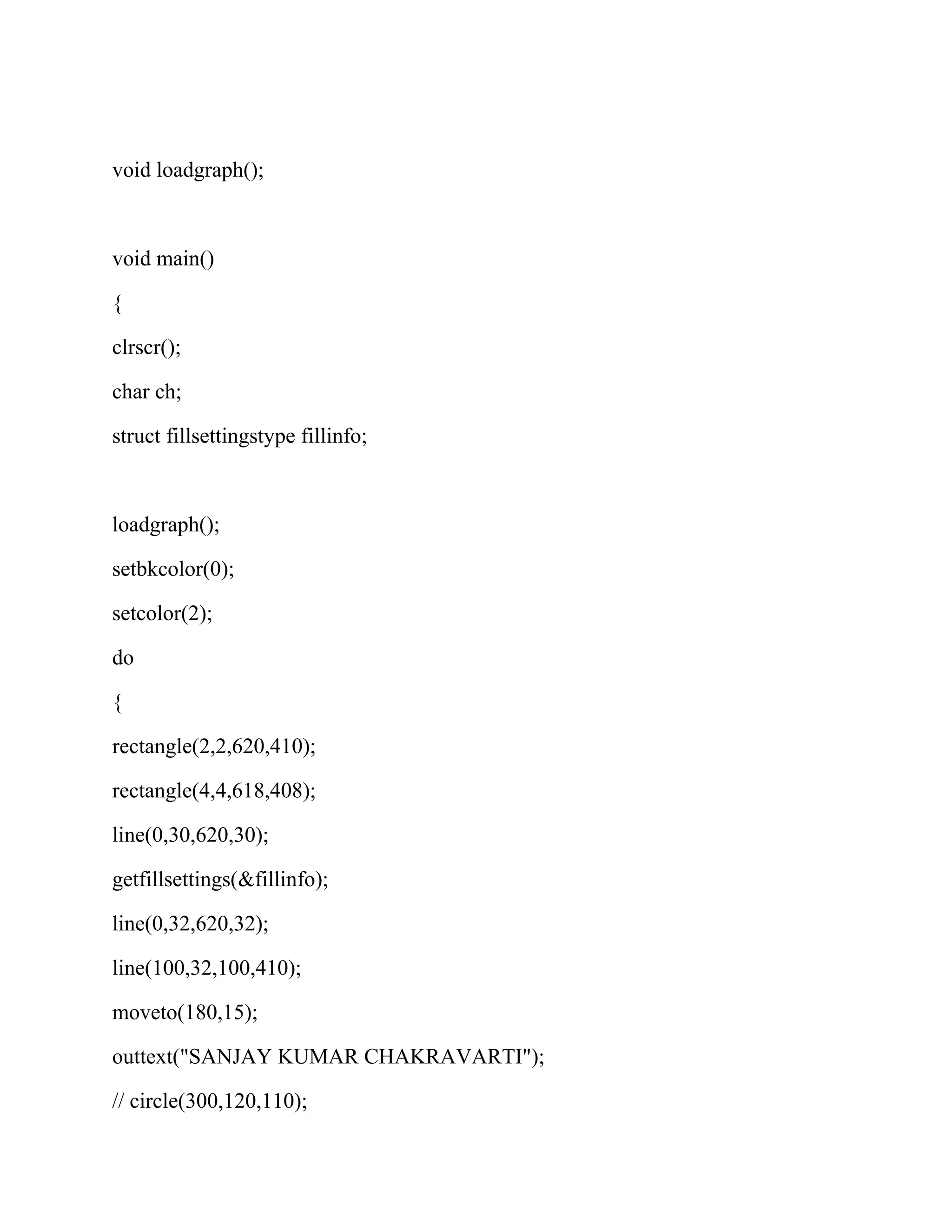

7. void loadgraph();
void main()
{
clrscr();
char ch;
struct fillsettingstype fillinfo;
loadgraph();
setbkcolor(0);
setcolor(2);
do
{
rectangle(2,2,620,410);
rectangle(4,4,618,408);
line(0,30,620,30);
getfillsettings(&fillinfo);
line(0,32,620,32);
line(100,32,100,410);
moveto(180,15);
outtext("SANJAY KUMAR CHAKRAVARTI");
// circle(300,120,110);

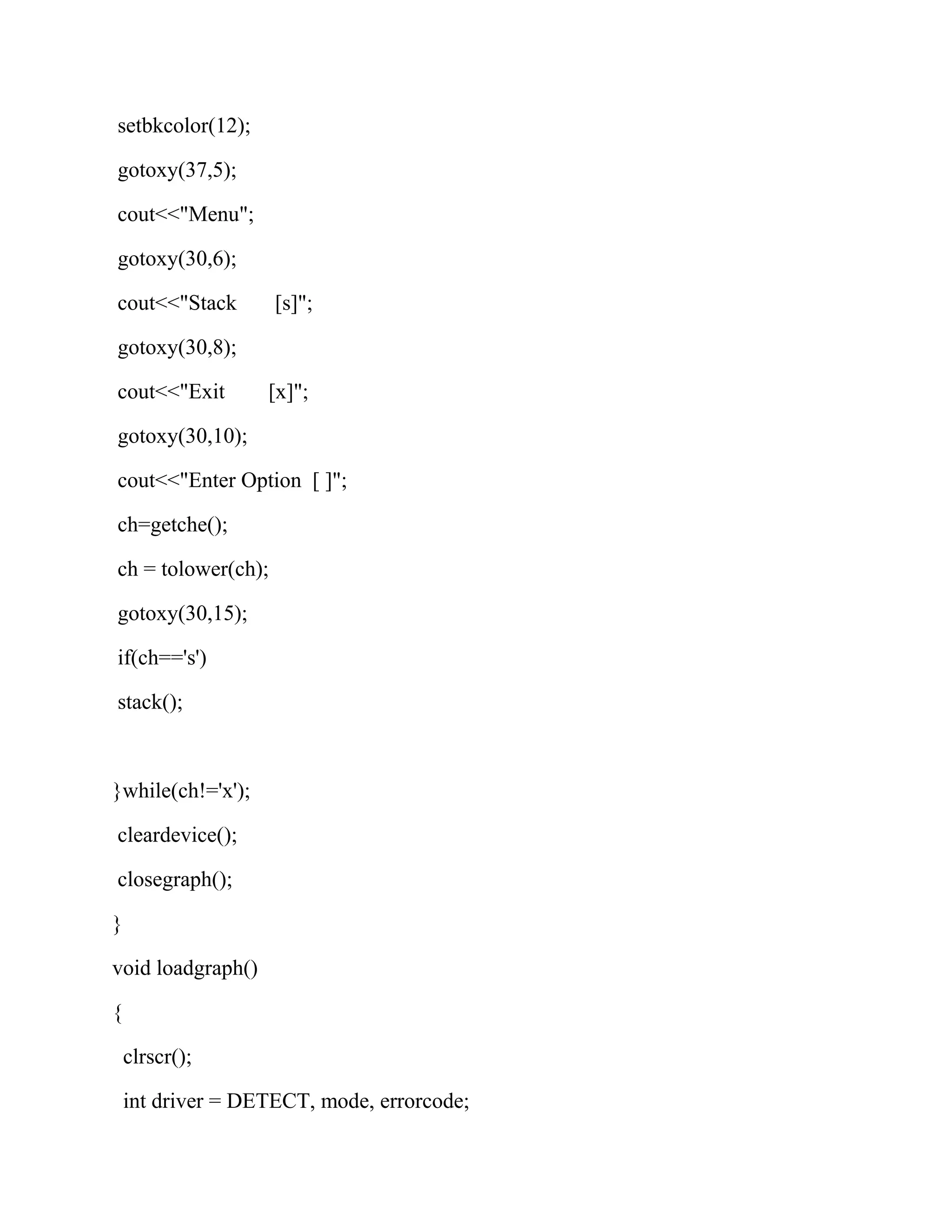

8. setbkcolor(12);
gotoxy(37,5);
cout<<"Menu";
gotoxy(30,6);
cout<<"Stack [s]";
gotoxy(30,8);
cout<<"Exit [x]";
gotoxy(30,10);
cout<<"Enter Option [ ]";
ch=getche();
ch = tolower(ch);
gotoxy(30,15);
if(ch=='s')
stack();
}while(ch!='x');
cleardevice();
closegraph();
}
void loadgraph()
{
clrscr();
int driver = DETECT, mode, errorcode;

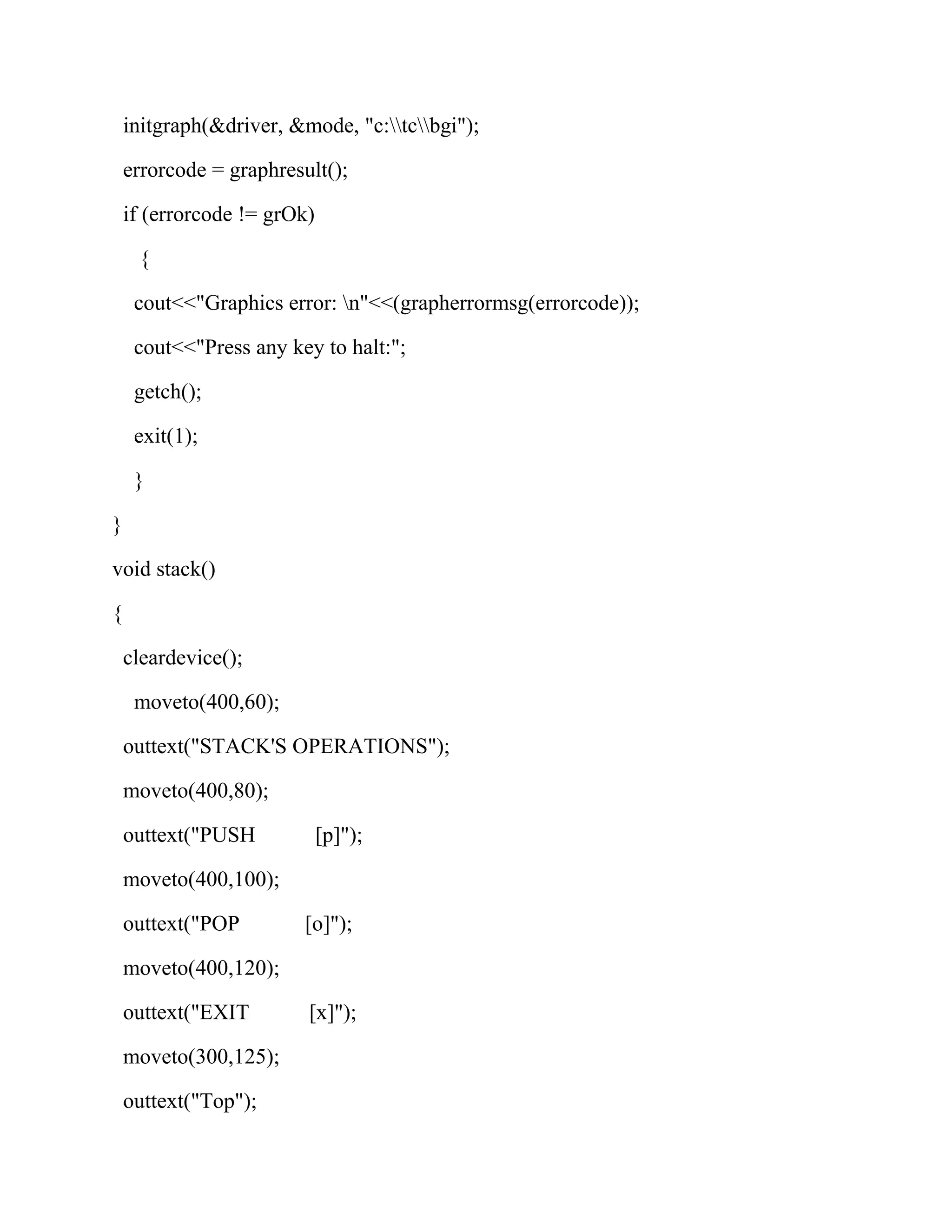

9. initgraph(&driver, &mode, "c:tcbgi");
errorcode = graphresult();
if (errorcode != grOk)
{
cout<<"Graphics error: n"<<(grapherrormsg(errorcode));
cout<<"Press any key to halt:";
getch();
exit(1);
}
}
void stack()
{
cleardevice();
moveto(400,60);
outtext("STACK'S OPERATIONS");
moveto(400,80);
outtext("PUSH [p]");
moveto(400,100);
outtext("POP [o]");
moveto(400,120);
outtext("EXIT [x]");
moveto(300,125);
outtext("Top");

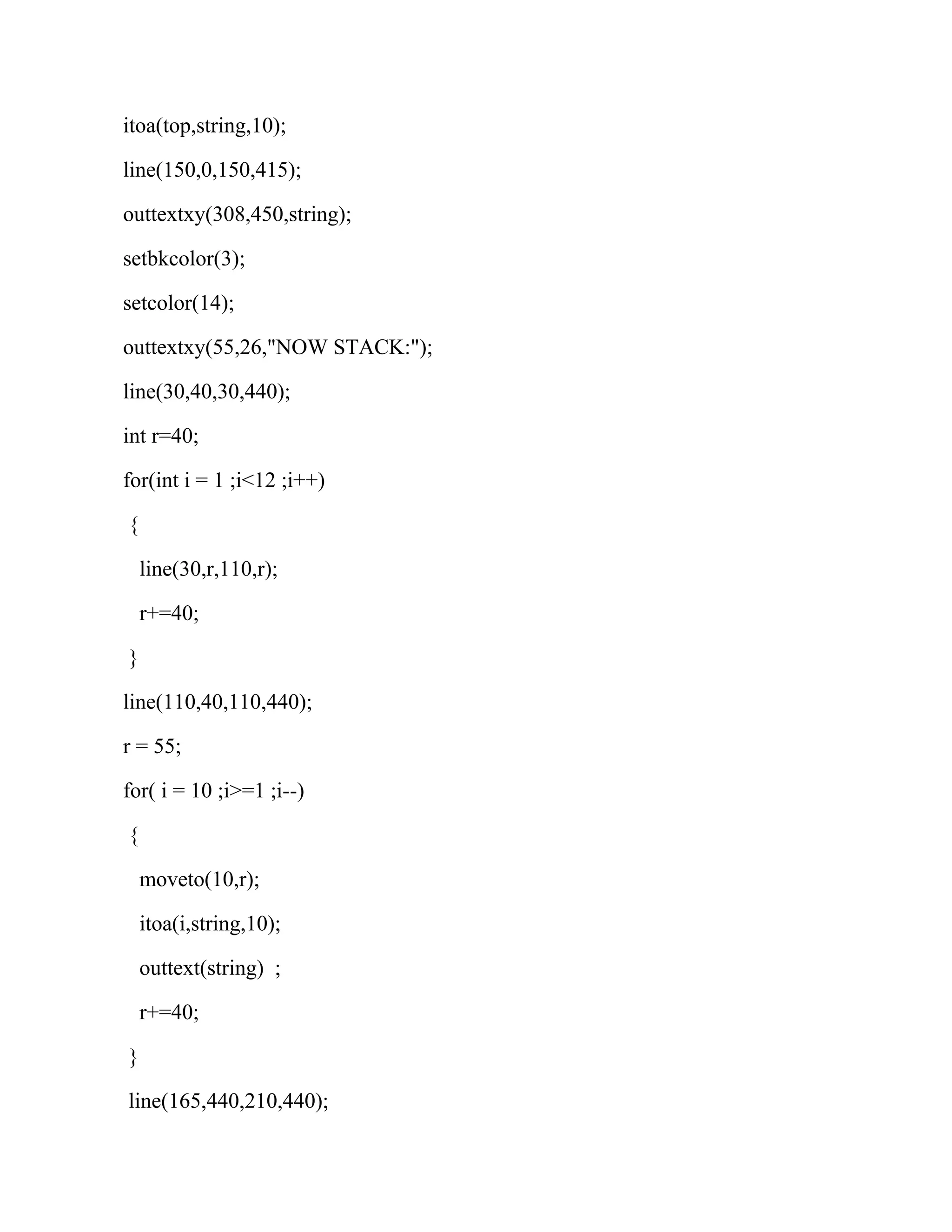

10. itoa(top,string,10);
line(150,0,150,415);
outtextxy(308,450,string);
setbkcolor(3);
setcolor(14);
outtextxy(55,26,"NOW STACK:");
line(30,40,30,440);
int r=40;
for(int i = 1 ;i<12 ;i++)
{
line(30,r,110,r);
r+=40;
}
line(110,40,110,440);
r = 55;
for( i = 10 ;i>=1 ;i--)
{
moveto(10,r);
itoa(i,string,10);
outtext(string) ;
r+=40;
}
line(165,440,210,440);

11. line(165,440,165,460);
line(210,440,210,460);
line(165,460,210,460);

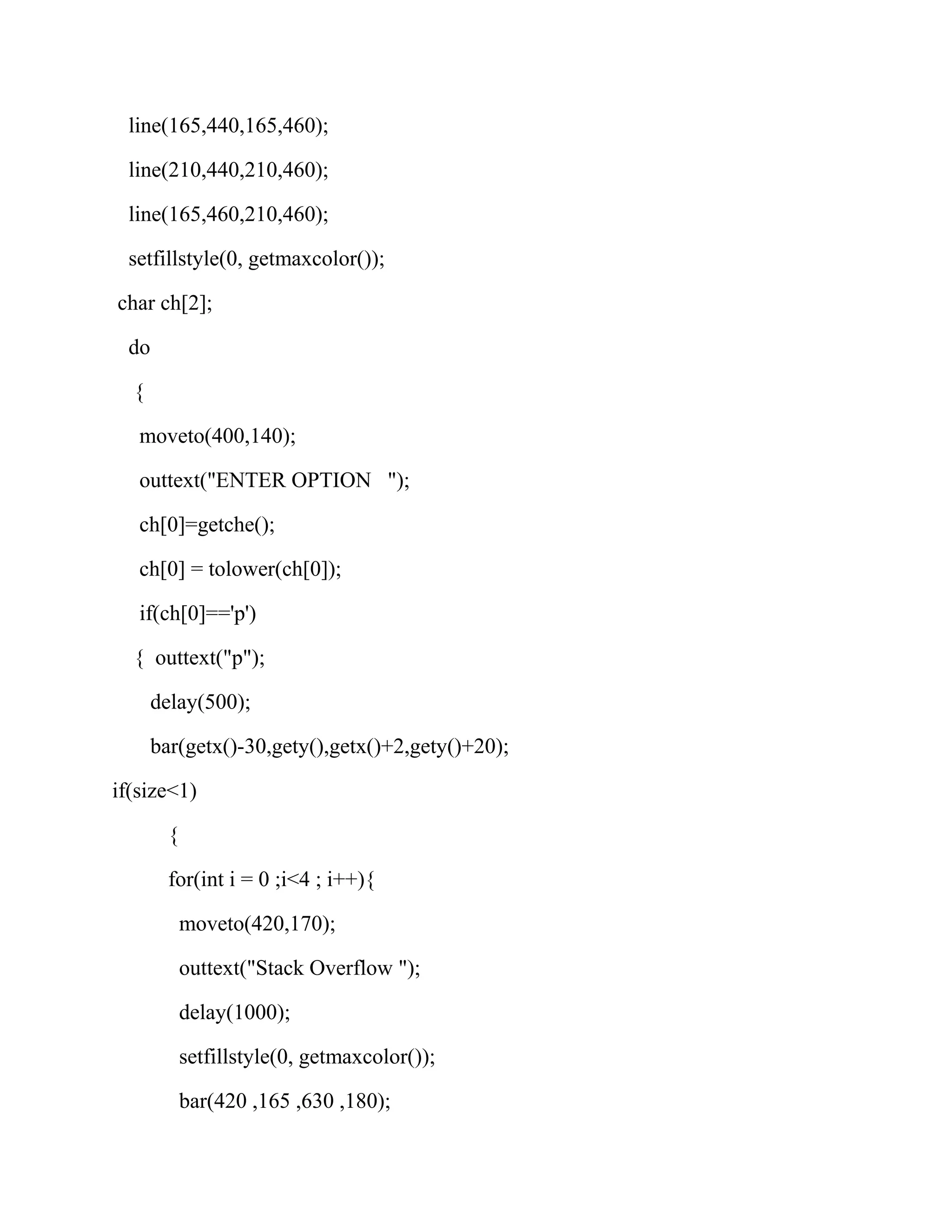

setfillstyle(0, getmaxcolor());
char ch[2];
do
{
moveto(400,140);
outtext("ENTER OPTION ");
ch[0]=getche();
ch[0] = tolower(ch[0]);
if(ch[0]=='p')
{ outtext("p");
delay(500);
bar(getx()-30,gety(),getx()+2,gety()+20);
if(size<1)
{
for(int i = 0 ;i<4 ; i++){
moveto(420,170);
outtext("Stack Overflow ");
delay(1000);
setfillstyle(0, getmaxcolor());
bar(420 ,165 ,630 ,180);

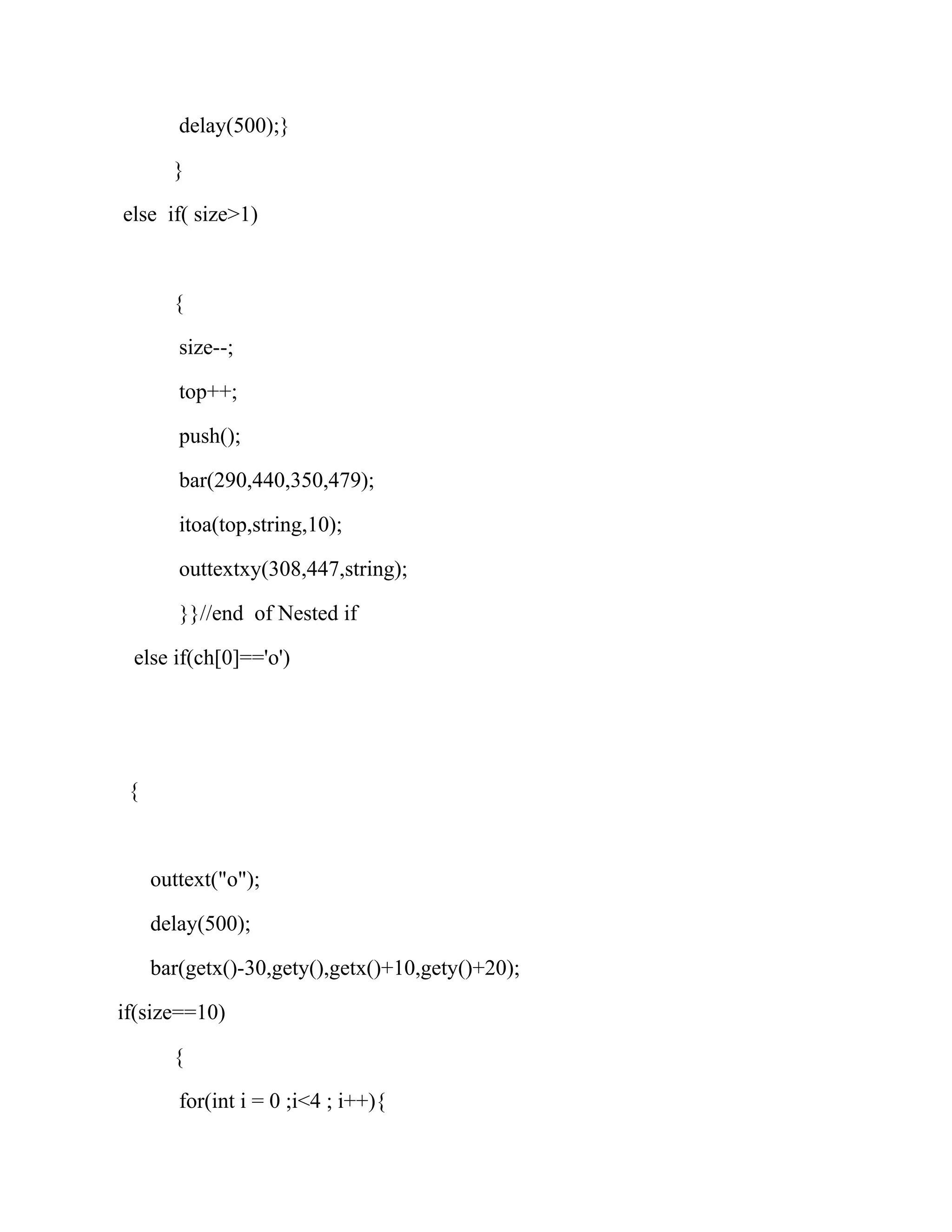

12. delay(500);}
}
else if( size>1)
{
size--;
top++;
push();
bar(290,440,350,479);
itoa(top,string,10);
outtextxy(308,447,string);
}}//end of Nested if
else if(ch[0]=='o')
{
outtext("o");
delay(500);
bar(getx()-30,gety(),getx()+10,gety()+20);
if(size==10)
{
for(int i = 0 ;i<4 ; i++){

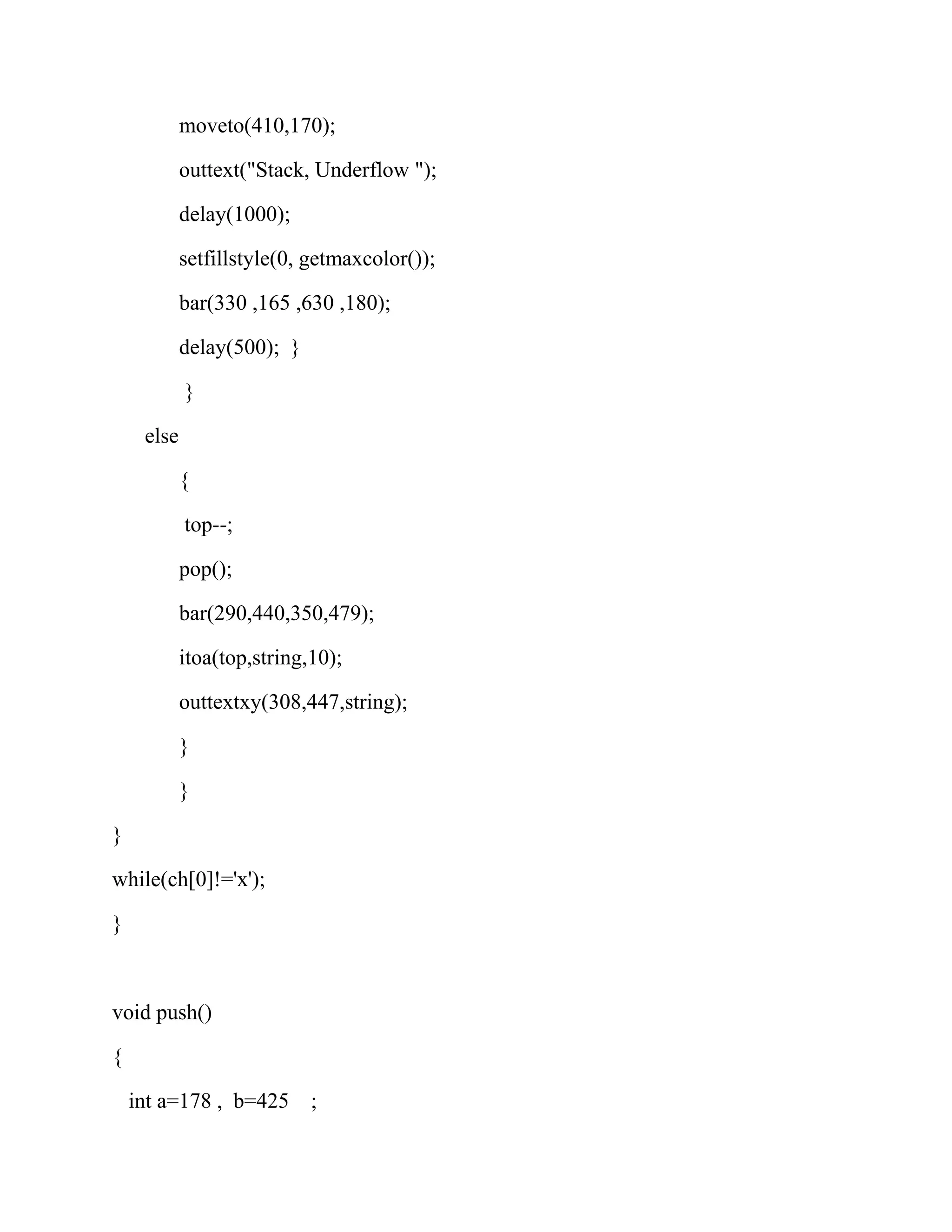

13. moveto(410,170);
outtext("Stack, Underflow ");
delay(1000);
setfillstyle(0, getmaxcolor());
bar(330 ,165 ,630 ,180);
delay(500); }
}
else
{
top--;
pop();
bar(290,440,350,479);
itoa(top,string,10);
outtextxy(308,447,string);
}
}
}
while(ch[0]!='x');
}
void push()
{
int a=178 , b=425 ;

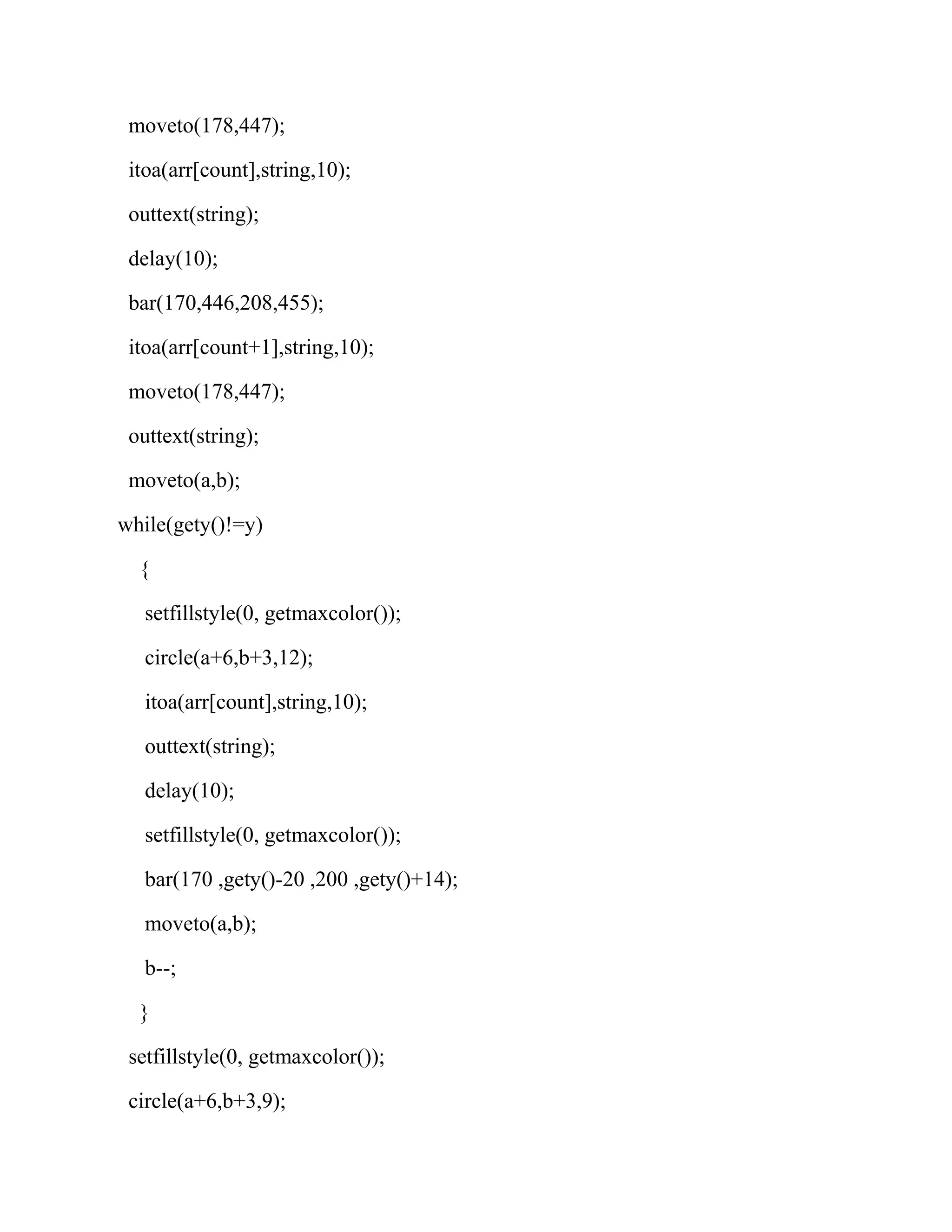

14. moveto(178,447);
itoa(arr[count],string,10);
outtext(string);
delay(10);
bar(170,446,208,455);
itoa(arr[count+1],string,10);
moveto(178,447);
outtext(string);
moveto(a,b);
while(gety()!=y)
{
setfillstyle(0, getmaxcolor());
circle(a+6,b+3,12);
itoa(arr[count],string,10);
outtext(string);
delay(10);
setfillstyle(0, getmaxcolor());
bar(170 ,gety()-20 ,200 ,gety()+14);
moveto(a,b);
b--;
}
setfillstyle(0, getmaxcolor());
circle(a+6,b+3,9);

15. outtext(string);
moveto(125,b);

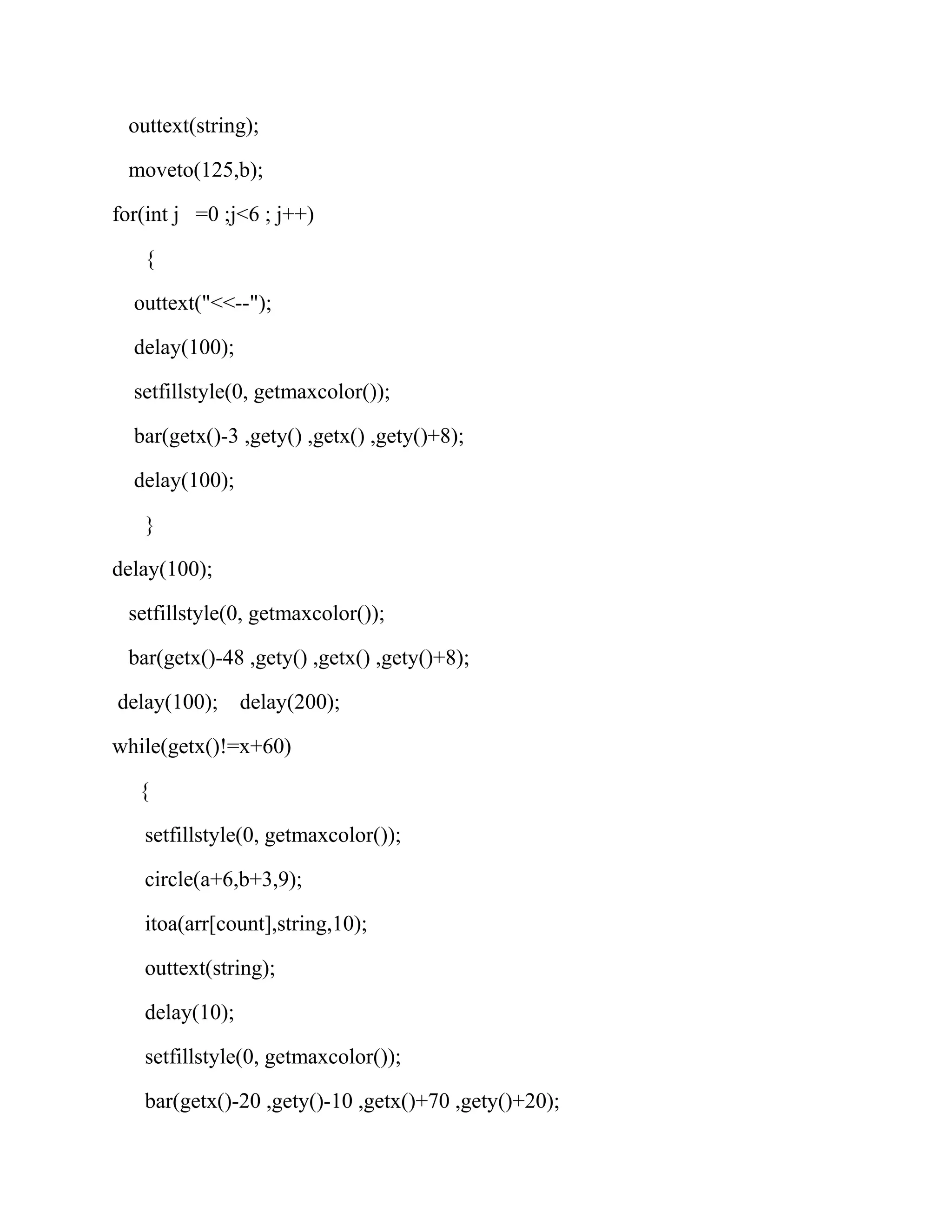

for(int j =0 ;j<6 ; j++)
{
outtext("<<--");
delay(100);
setfillstyle(0, getmaxcolor());
bar(getx()-3 ,gety() ,getx() ,gety()+8);
delay(100);
}
delay(100);
setfillstyle(0, getmaxcolor());
bar(getx()-48 ,gety() ,getx() ,gety()+8);
delay(100); delay(200);
while(getx()!=x+60)
{
setfillstyle(0, getmaxcolor());
circle(a+6,b+3,9);
itoa(arr[count],string,10);
outtext(string);
delay(10);
setfillstyle(0, getmaxcolor());
bar(getx()-20 ,gety()-10 ,getx()+70 ,gety()+20);

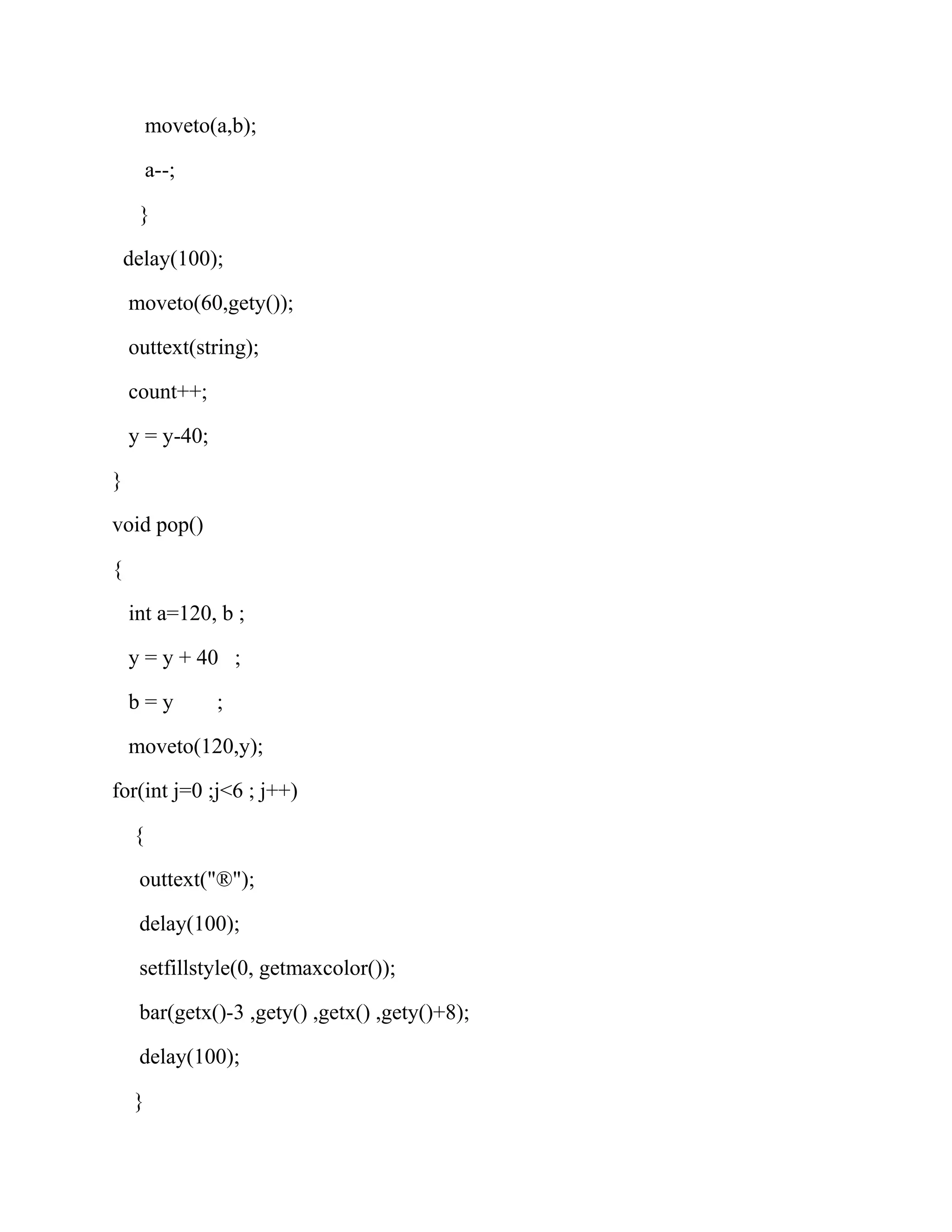

16. moveto(a,b);
a--;
}
delay(100);
moveto(60,gety());
outtext(string);
count++;
y = y-40;
}
void pop()
{
int a=120, b ;
y = y + 40 ;
b=y ;
moveto(120,y);
for(int j=0 ;j<6 ; j++)
{
outtext("®");
delay(100);
setfillstyle(0, getmaxcolor());
bar(getx()-3 ,gety() ,getx() ,gety()+8);
delay(100);
}

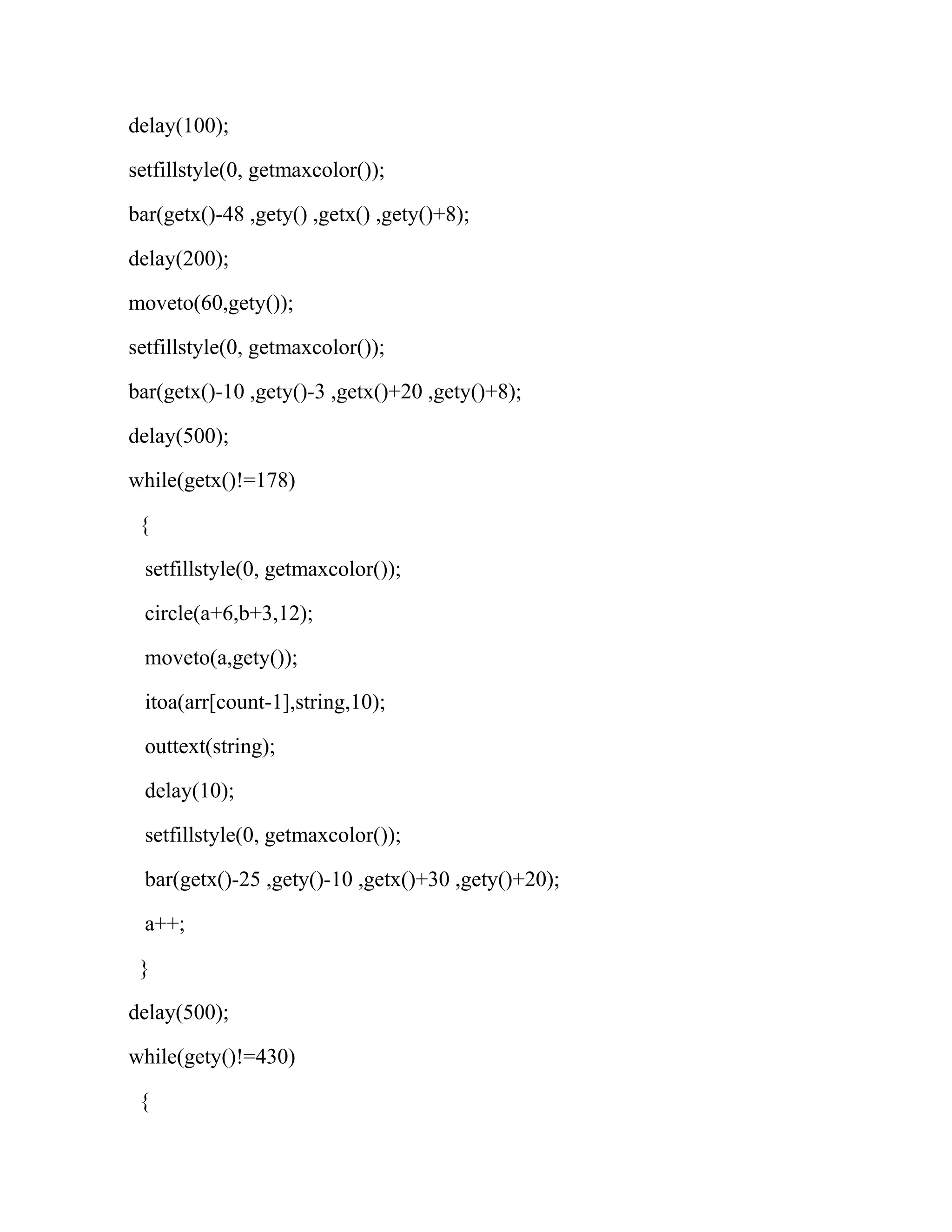

17. delay(100);
setfillstyle(0, getmaxcolor());
bar(getx()-48 ,gety() ,getx() ,gety()+8);
delay(200);
moveto(60,gety());
setfillstyle(0, getmaxcolor());
bar(getx()-10 ,gety()-3 ,getx()+20 ,gety()+8);
delay(500);
while(getx()!=178)
{
setfillstyle(0, getmaxcolor());
circle(a+6,b+3,12);
moveto(a,gety());
itoa(arr[count-1],string,10);
outtext(string);
delay(10);
setfillstyle(0, getmaxcolor());
bar(getx()-25 ,gety()-10 ,getx()+30 ,gety()+20);
a++;
}
delay(500);
while(gety()!=430)
{

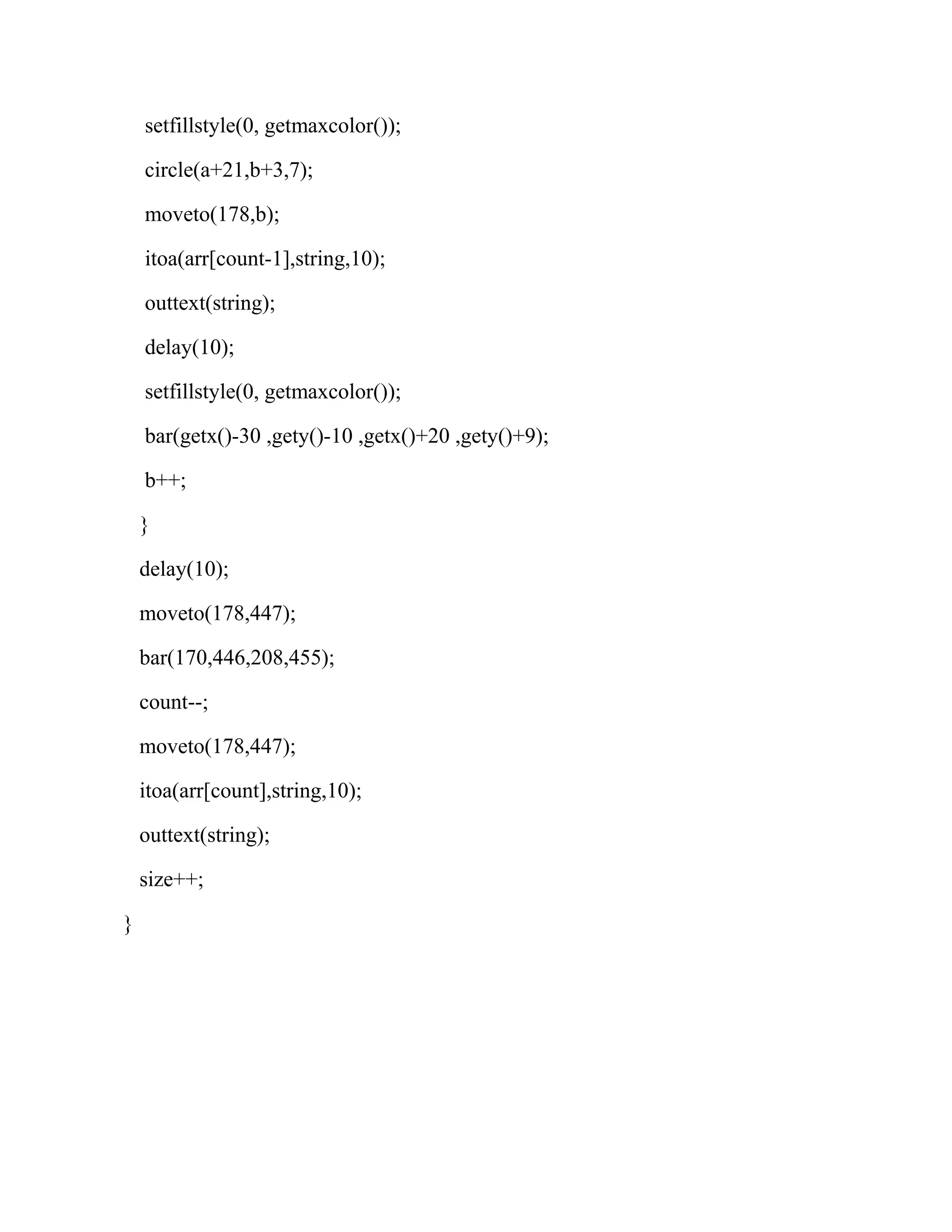

18. setfillstyle(0, getmaxcolor());
circle(a+21,b+3,7);
moveto(178,b);
itoa(arr[count-1],string,10);
outtext(string);
delay(10);
setfillstyle(0, getmaxcolor());
bar(getx()-30 ,gety()-10 ,getx()+20 ,gety()+9);
b++;
}
delay(10);
moveto(178,447);
bar(170,446,208,455);
count--;
moveto(178,447);
itoa(arr[count],string,10);
outtext(string);
size++;
}

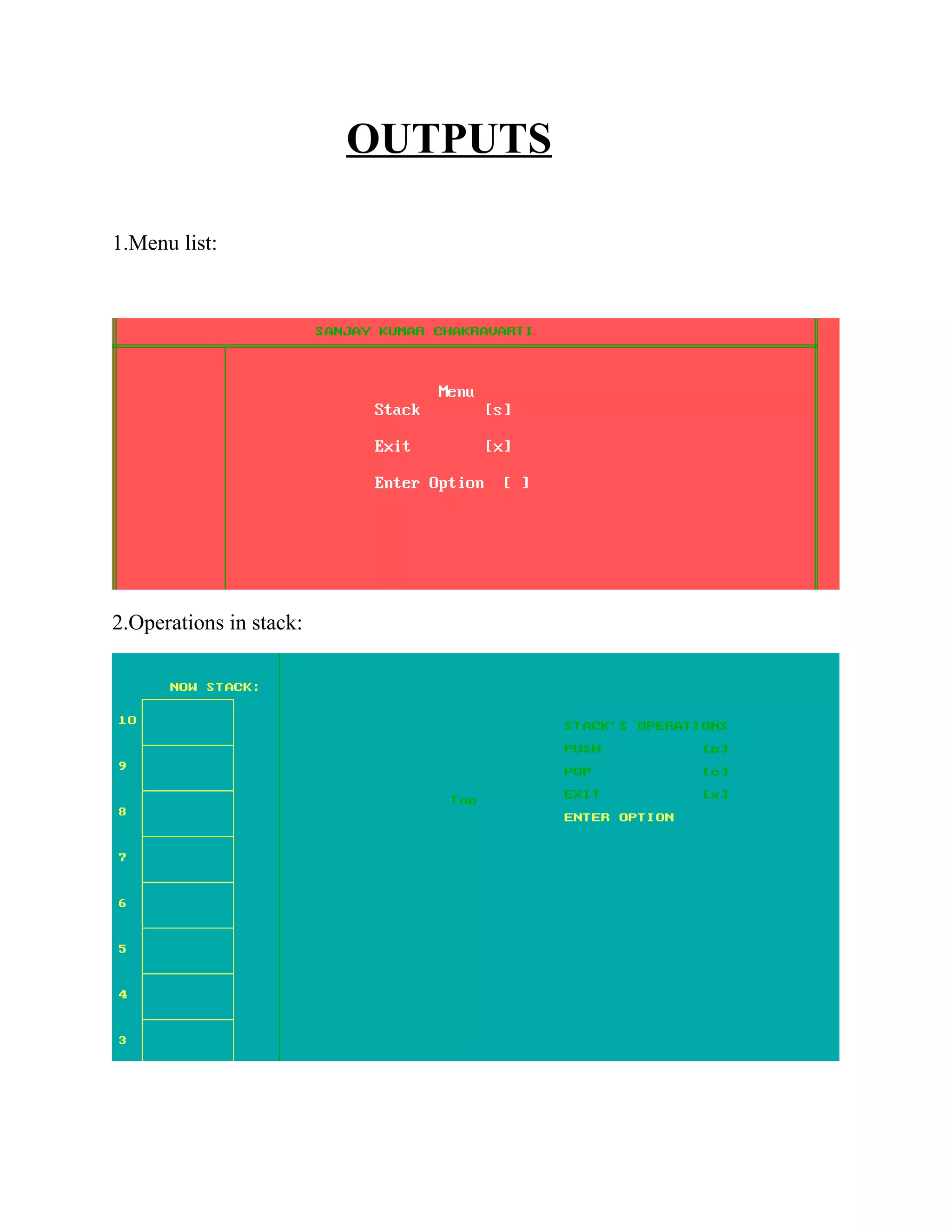

19. OUTPUTS

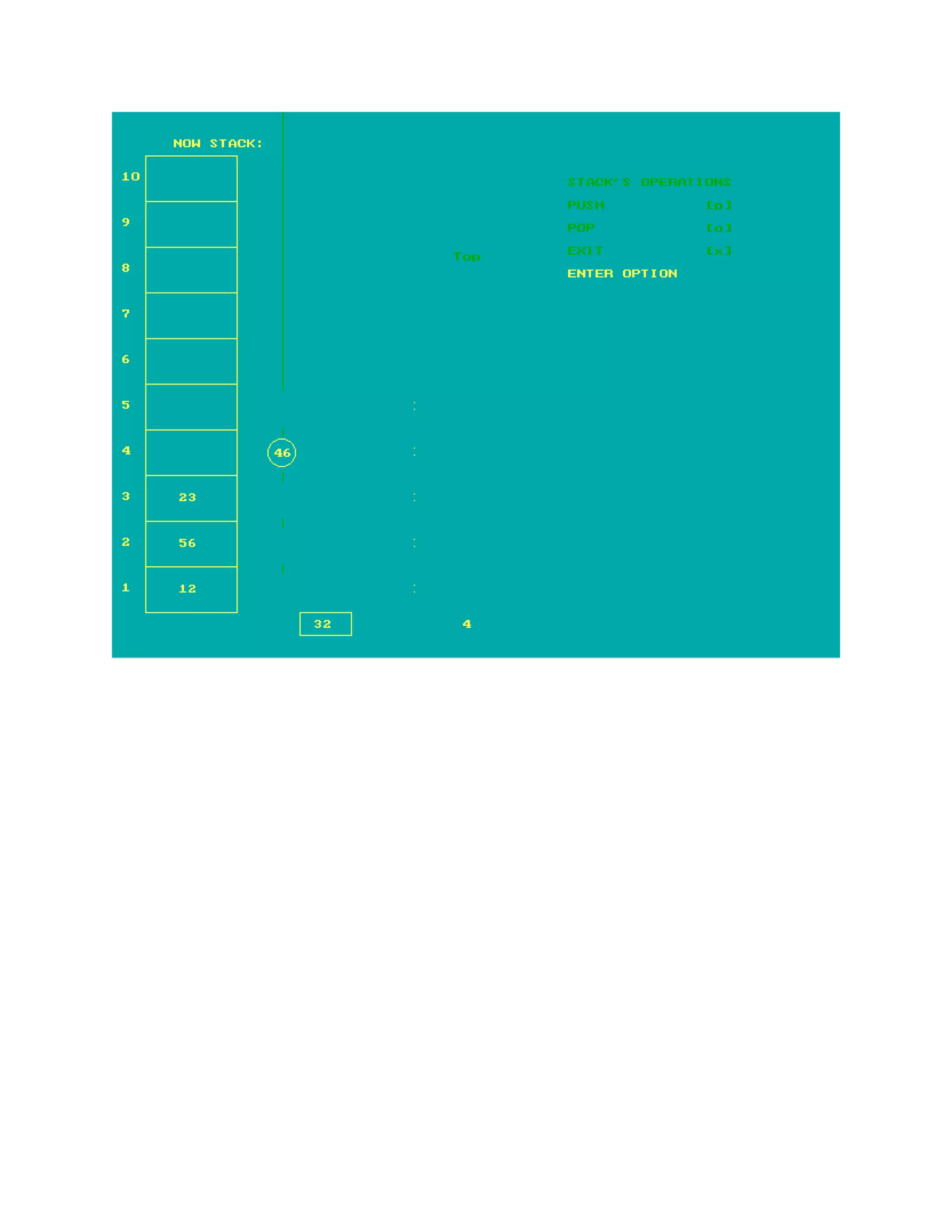

1.Menu list:
2.Operations in stack:

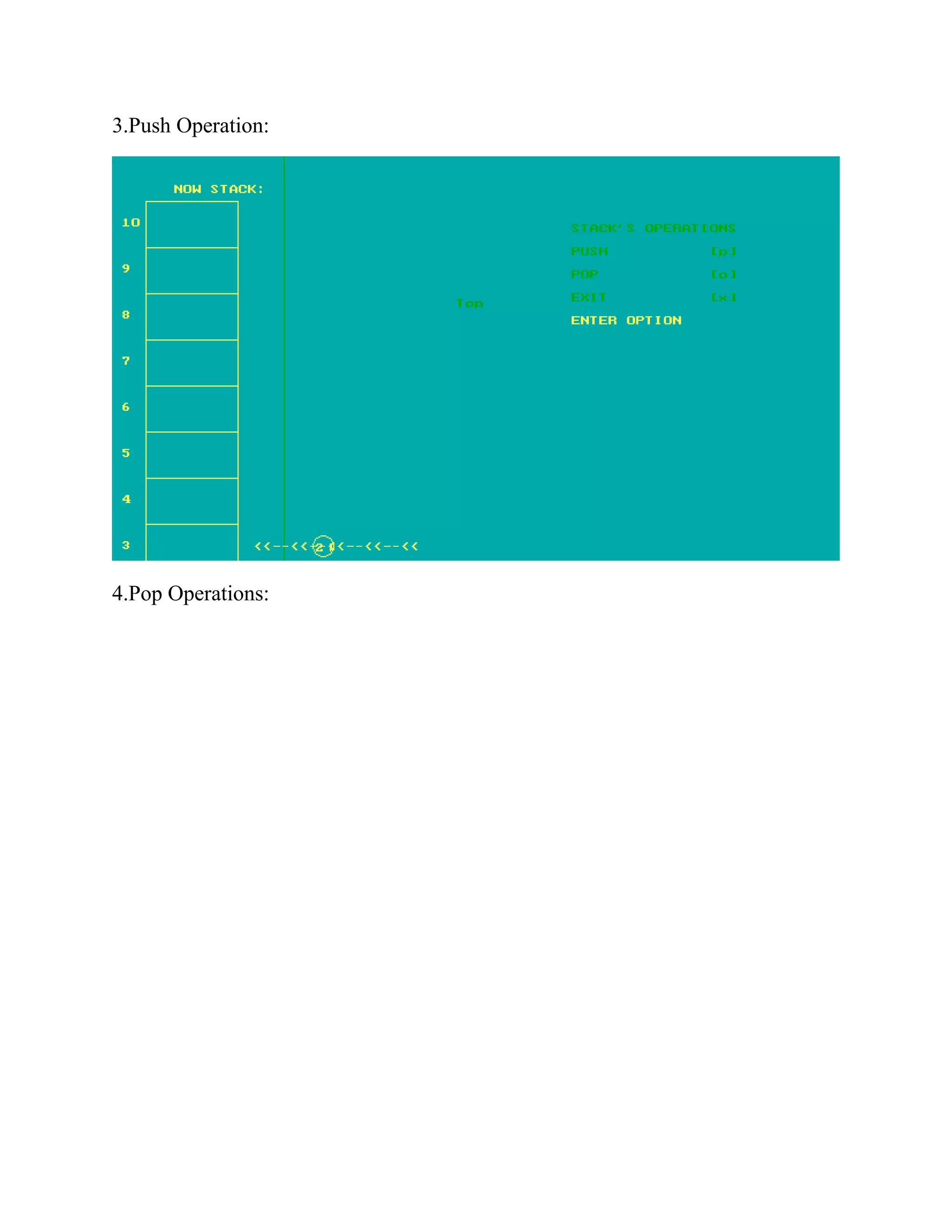

20. 3.Push Operation:
4.Pop Operations:

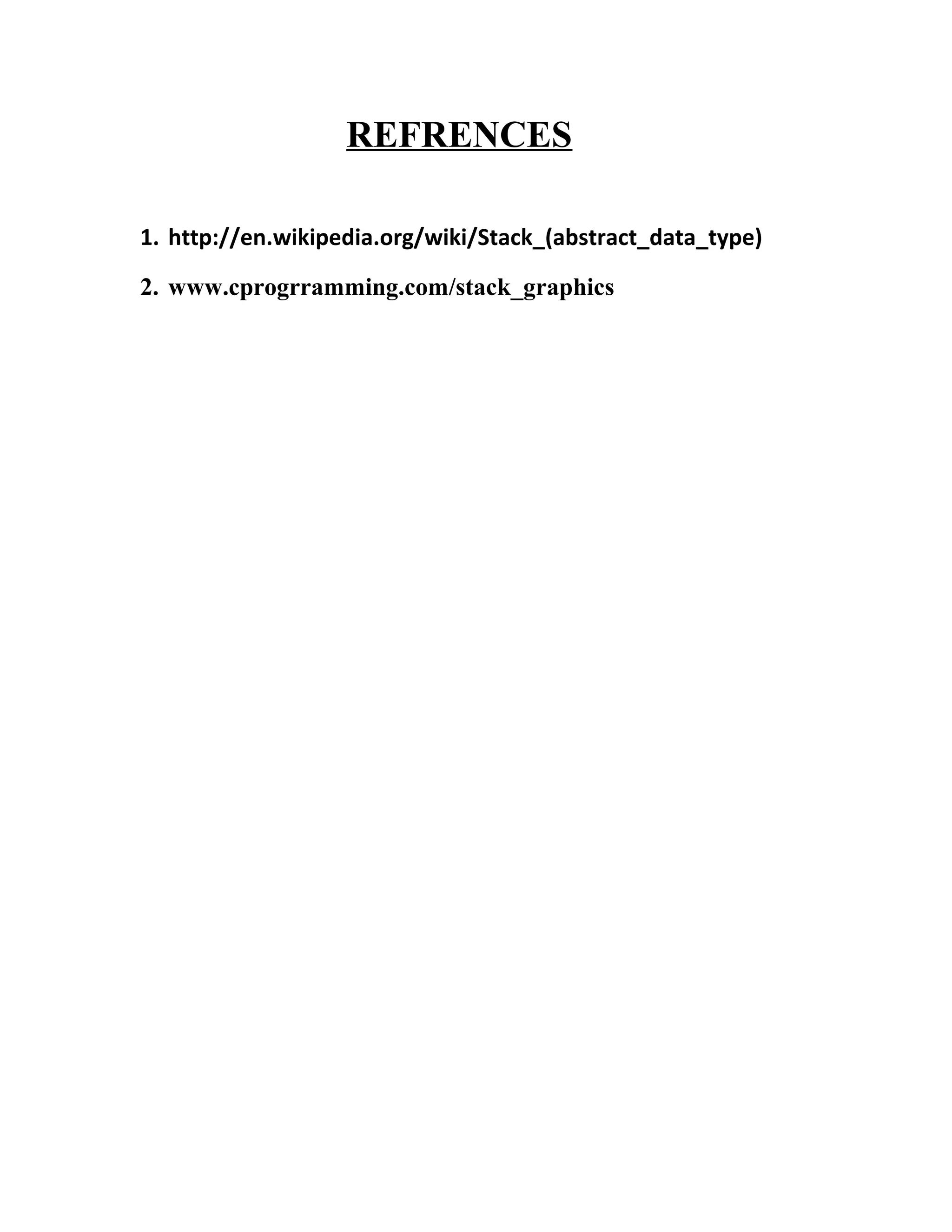

22. REFRENCES
1. http://en.wikipedia.org/wiki/Stack_(abstract_data_type)
2. www.cprogrramming.com/stack_graphics
