The document describes a C++ implementation of Conway's Game of Life, utilizing classes to represent various life forms and a world to simulate their interactions. It provides instructions for organizing the code into separate header and implementation files, as well as recommendations for enhancing the functionality of the simulation. Additionally, it emphasizes compliance with coding standards and the requirement for compiled code within Visual Studio 2019.

1. #include <iostream>
#include <string>
#include <cstdlib>
#include <chrono>
#include <thread>
#ifdef _MSC_VER // DO NOT BREAK APART THE PREPROCESSOR DIRECTIVES
#include <windows.h>
#else // DO NOT BREAK APART THE PREPROCESSOR DIRECTIVES
// not Microsoft Visual C++, so assume UNIX interface
#include <iostream>
#include <cstring>
#include <cstdlib>
#endif // DO NOT BREAK APART THE PREPROCESSOR DIRECTIVES
///////////////////////////////////////////////////////////////////////////
// Global Constants
///////////////////////////////////////////////////////////////////////////
const int CANVAS_ROW = 24;
const int CANVAS_COL = 24;
const int SQUARE_SIZE = 2;
const int PENT_SIZE = 3;
const int BLINK4_SIZE = 9;
const int SLIDER_SIZE = 3;
const int MAX_STEPS = 30;
const char ALIVE = 'X';
const char DEAD = '.';
///////////////////////////////////////////////////////////////////////////
// Type Definitions
///////////////////////////////////////////////////////////////////////////
class World;
class Simulation;
class Life {
public:
int getCol() const {
return m_col;
}
int getRow() const {
return m_row;
}
int getHeight() const {
return m_height;
}
int getWidth() const {

2. return m_width;
}
char getFigure(int r, int c) const {
return m_pattern[r][c];
}
void inWorld(World *w) {
m_world = w;
}
void inSimulation(Simulation *s) {
m_simulation = s;
}
bool areWeInASimulation() {
return m_simulation != nullptr;
}
protected:
int m_col;
int m_row;
int m_height;
int m_width;
char **m_pattern;
World *m_world;
Simulation *m_simulation;
};
class Pent : public Life {
public:
Pent(int r, int c) {
m_col = c;
m_row = r;
m_height = PENT_SIZE;
m_width = PENT_SIZE;
//Allocate space for figure
m_pattern = new char*[m_height];
for (int i = 0; i < m_height; i++) {
m_pattern[i] = new char[m_width];
}
//Initialize figure
for (int i = 0; i < m_height; i++) {
for (int j = 0; j < m_width; j++) {
m_pattern[i][j] = ALIVE;
}
}
m_pattern[0][0] = DEAD;

3. m_pattern[0][2] = DEAD;
m_pattern[2][1] = DEAD;
m_pattern[2][2] = DEAD;
}
~Pent() {
for (int i = 0; i < m_height; i++) {
delete[] m_pattern[i];
}
delete[] m_pattern;
}
};
class Square : public Life {
public:
Square(int r, int c) {
m_col = c;
m_row = r;
m_height = SQUARE_SIZE;
m_width = SQUARE_SIZE;
//Allocate space for figure
m_pattern = new char*[m_height];
for (int i = 0; i < m_height; i++) {
m_pattern[i] = new char[m_width];
}
//Initialize figure
for (int i = 0; i < m_height; i++) {
for (int j = 0; j < m_width; j++) {
m_pattern[i][j] = ALIVE;
}
}
}
~Square() {
for (int i = 0; i < m_height; i++) {
delete[] m_pattern[i];
}
delete[] m_pattern;
}
};
class Slider : public Life {
public:
Slider(int r, int c) {
m_col = c;
m_row = r;

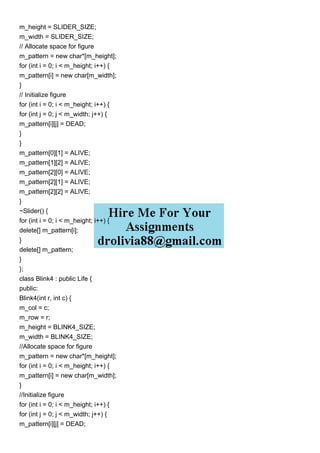

4. m_height = SLIDER_SIZE;
m_width = SLIDER_SIZE;
// Allocate space for figure
m_pattern = new char*[m_height];
for (int i = 0; i < m_height; i++) {
m_pattern[i] = new char[m_width];
}
// Initialize figure
for (int i = 0; i < m_height; i++) {
for (int j = 0; j < m_width; j++) {
m_pattern[i][j] = DEAD;
}
}
m_pattern[0][1] = ALIVE;
m_pattern[1][2] = ALIVE;
m_pattern[2][0] = ALIVE;
m_pattern[2][1] = ALIVE;
m_pattern[2][2] = ALIVE;
}
~Slider() {
for (int i = 0; i < m_height; i++) {
delete[] m_pattern[i];
}
delete[] m_pattern;
}
};
class Blink4 : public Life {
public:
Blink4(int r, int c) {
m_col = c;
m_row = r;
m_height = BLINK4_SIZE;
m_width = BLINK4_SIZE;
//Allocate space for figure
m_pattern = new char*[m_height];
for (int i = 0; i < m_height; i++) {
m_pattern[i] = new char[m_width];
}
//Initialize figure
for (int i = 0; i < m_height; i++) {
for (int j = 0; j < m_width; j++) {
m_pattern[i][j] = DEAD;

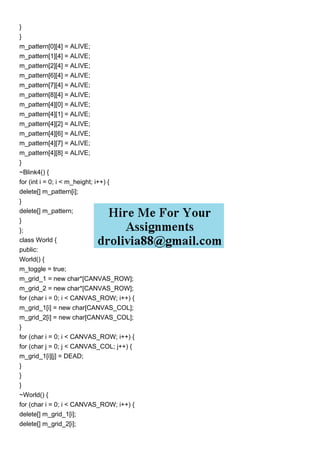

5. }
}
m_pattern[0][4] = ALIVE;
m_pattern[1][4] = ALIVE;
m_pattern[2][4] = ALIVE;
m_pattern[6][4] = ALIVE;
m_pattern[7][4] = ALIVE;
m_pattern[8][4] = ALIVE;
m_pattern[4][0] = ALIVE;
m_pattern[4][1] = ALIVE;
m_pattern[4][2] = ALIVE;
m_pattern[4][6] = ALIVE;
m_pattern[4][7] = ALIVE;
m_pattern[4][8] = ALIVE;
}
~Blink4() {
for (int i = 0; i < m_height; i++) {
delete[] m_pattern[i];
}
delete[] m_pattern;
}
};
class World {
public:
World() {
m_toggle = true;
m_grid_1 = new char*[CANVAS_ROW];
m_grid_2 = new char*[CANVAS_ROW];
for (char i = 0; i < CANVAS_ROW; i++) {
m_grid_1[i] = new char[CANVAS_COL];
m_grid_2[i] = new char[CANVAS_COL];
}
for (char i = 0; i < CANVAS_ROW; i++) {
for (char j = 0; j < CANVAS_COL; j++) {
m_grid_1[i][j] = DEAD;
}
}
}
~World() {
for (char i = 0; i < CANVAS_ROW; i++) {
delete[] m_grid_1[i];
delete[] m_grid_2[i];

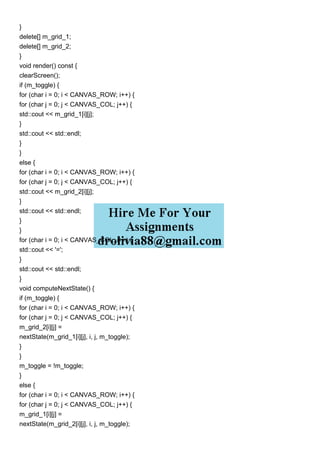

6. }
delete[] m_grid_1;
delete[] m_grid_2;
}
void render() const {
clearScreen();
if (m_toggle) {
for (char i = 0; i < CANVAS_ROW; i++) {
for (char j = 0; j < CANVAS_COL; j++) {
std::cout << m_grid_1[i][j];
}
std::cout << std::endl;
}
}
else {
for (char i = 0; i < CANVAS_ROW; i++) {
for (char j = 0; j < CANVAS_COL; j++) {
std::cout << m_grid_2[i][j];
}
std::cout << std::endl;
}
}
for (char i = 0; i < CANVAS_COL; i++) {
std::cout << '=';
}
std::cout << std::endl;
}
void computeNextState() {
if (m_toggle) {
for (char i = 0; i < CANVAS_ROW; i++) {
for (char j = 0; j < CANVAS_COL; j++) {
m_grid_2[i][j] =
nextState(m_grid_1[i][j], i, j, m_toggle);
}
}
m_toggle = !m_toggle;
}
else {
for (char i = 0; i < CANVAS_ROW; i++) {
for (char j = 0; j < CANVAS_COL; j++) {
m_grid_1[i][j] =
nextState(m_grid_2[i][j], i, j, m_toggle);

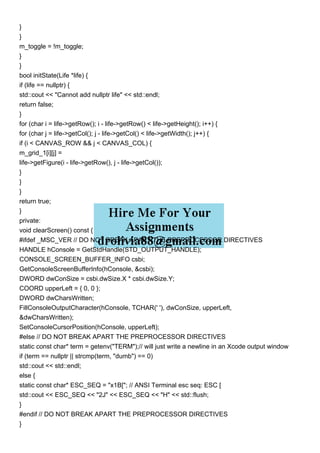

7. }
}
m_toggle = !m_toggle;
}
}
bool initState(Life *life) {
if (life == nullptr) {
std::cout << "Cannot add nullptr life" << std::endl;
return false;
}
for (char i = life->getRow(); i - life->getRow() < life->getHeight(); i++) {
for (char j = life->getCol(); j - life->getCol() < life->getWidth(); j++) {
if (i < CANVAS_ROW && j < CANVAS_COL) {
m_grid_1[i][j] =
life->getFigure(i - life->getRow(), j - life->getCol());
}
}
}
return true;
}
private:
void clearScreen() const {
#ifdef _MSC_VER // DO NOT BREAK APART THE PREPROCESSOR DIRECTIVES
HANDLE hConsole = GetStdHandle(STD_OUTPUT_HANDLE);
CONSOLE_SCREEN_BUFFER_INFO csbi;
GetConsoleScreenBufferInfo(hConsole, &csbi);
DWORD dwConSize = csbi.dwSize.X * csbi.dwSize.Y;
COORD upperLeft = { 0, 0 };
DWORD dwCharsWritten;
FillConsoleOutputCharacter(hConsole, TCHAR(' '), dwConSize, upperLeft,
&dwCharsWritten);
SetConsoleCursorPosition(hConsole, upperLeft);
#else // DO NOT BREAK APART THE PREPROCESSOR DIRECTIVES
static const char* term = getenv("TERM");// will just write a newline in an Xcode output window
if (term == nullptr || strcmp(term, "dumb") == 0)
std::cout << std::endl;
else {
static const char* ESC_SEQ = "x1B["; // ANSI Terminal esc seq: ESC [
std::cout << ESC_SEQ << "2J" << ESC_SEQ << "H" << std::flush;
}
#endif // DO NOT BREAK APART THE PREPROCESSOR DIRECTIVES
}

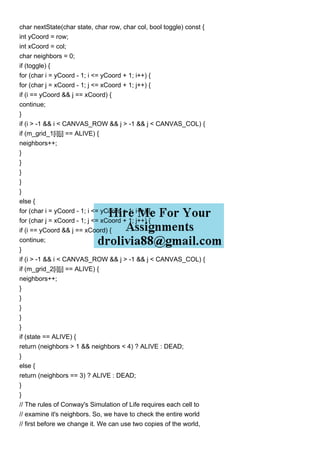

8. char nextState(char state, char row, char col, bool toggle) const {
int yCoord = row;
int xCoord = col;
char neighbors = 0;
if (toggle) {
for (char i = yCoord - 1; i <= yCoord + 1; i++) {
for (char j = xCoord - 1; j <= xCoord + 1; j++) {
if (i == yCoord && j == xCoord) {
continue;
}
if (i > -1 && i < CANVAS_ROW && j > -1 && j < CANVAS_COL) {
if (m_grid_1[i][j] == ALIVE) {
neighbors++;
}
}
}
}
}
else {
for (char i = yCoord - 1; i <= yCoord + 1; i++) {
for (char j = xCoord - 1; j <= xCoord + 1; j++) {
if (i == yCoord && j == xCoord) {
continue;
}
if (i > -1 && i < CANVAS_ROW && j > -1 && j < CANVAS_COL) {
if (m_grid_2[i][j] == ALIVE) {
neighbors++;
}
}
}
}
}
if (state == ALIVE) {
return (neighbors > 1 && neighbors < 4) ? ALIVE : DEAD;
}
else {
return (neighbors == 3) ? ALIVE : DEAD;
}
}
// The rules of Conway's Simulation of Life requires each cell to
// examine it's neighbors. So, we have to check the entire world
// first before we change it. We can use two copies of the world,

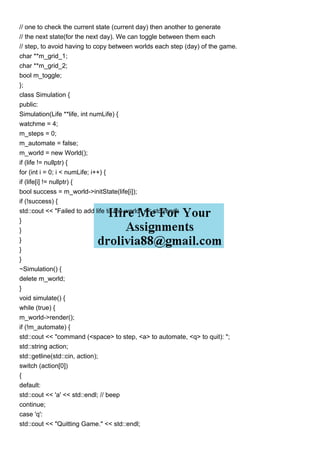

9. // one to check the current state (current day) then another to generate
// the next state(for the next day). We can toggle between them each
// step, to avoid having to copy between worlds each step (day) of the game.
char **m_grid_1;
char **m_grid_2;
bool m_toggle;
};
class Simulation {
public:
Simulation(Life **life, int numLife) {
watchme = 4;
m_steps = 0;
m_automate = false;
m_world = new World();
if (life != nullptr) {
for (int i = 0; i < numLife; i++) {
if (life[i] != nullptr) {
bool success = m_world->initState(life[i]);
if (!success) {
std::cout << "Failed to add life to the world" << std::endl;
}
}
}
}
}
~Simulation() {
delete m_world;
}
void simulate() {
while (true) {
m_world->render();
if (!m_automate) {
std::cout << "command (<space> to step, <a> to automate, <q> to quit): ";
std::string action;
std::getline(std::cin, action);
switch (action[0])
{
default:
std::cout << 'a' << std::endl; // beep
continue;
case 'q':
std::cout << "Quitting Game." << std::endl;

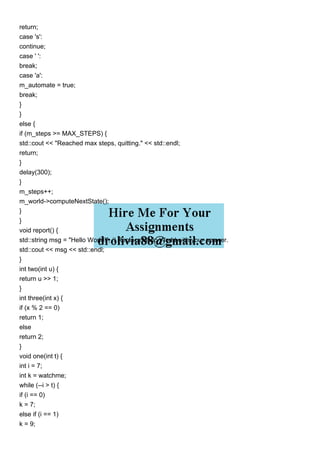

10. return;
case 's':
continue;
case ' ':
break;
case 'a':
m_automate = true;
break;
}
}
else {
if (m_steps >= MAX_STEPS) {
std::cout << "Reached max steps, quitting." << std::endl;
return;
}
delay(300);
}
m_steps++;
m_world->computeNextState();
}
}
void report() {
std::string msg = "Hello World!"; // Replace Hello World with your answer.
std::cout << msg << std::endl;
}
int two(int u) {
return u >> 1;
}
int three(int x) {
if (x % 2 == 0)
return 1;
else
return 2;
}
void one(int t) {
int i = 7;
int k = watchme;
while (--i > t) {
if (i == 0)
k = 7;
else if (i == 1)
k = 9;

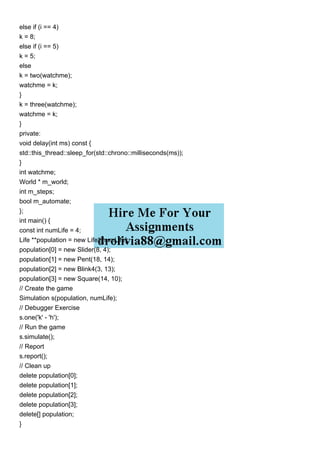

11. else if (i == 4)
k = 8;
else if (i == 5)
k = 5;
else
k = two(watchme);
watchme = k;
}
k = three(watchme);
watchme = k;
}
private:
void delay(int ms) const {
std::this_thread::sleep_for(std::chrono::milliseconds(ms));
}
int watchme;
World * m_world;
int m_steps;
bool m_automate;
};
int main() {
const int numLife = 4;
Life **population = new Life*[numLife];
population[0] = new Slider(8, 4);
population[1] = new Pent(18, 14);
population[2] = new Blink4(3, 13);
population[3] = new Square(14, 10);
// Create the game
Simulation s(population, numLife);
// Debugger Exercise
s.one('k' - 'h');
// Run the game
s.simulate();
// Report
s.report();
// Clean up
delete population[0];
delete population[1];
delete population[2];
delete population[3];
delete[] population;
}

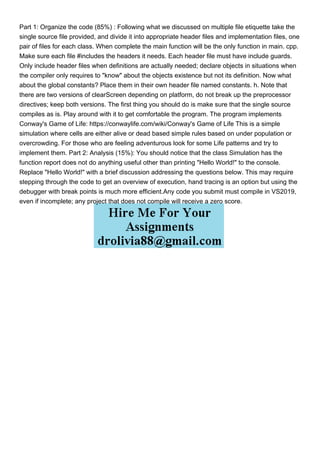

12. Part 1: Organize the code (85%) : Following what we discussed on multiple file etiquette take the
single source file provided, and divide it into appropriate header files and implementation files, one
pair of files for each class. When complete the main function will be the only function in main. cpp.
Make sure each file #includes the headers it needs. Each header file must have include guards.
Only include header files when definitions are actually needed; declare objects in situations when
the compiler only requires to "know" about the objects existence but not its definition. Now what
about the global constants? Place them in their own header file named constants. h. Note that
there are two versions of clearScreen depending on platform, do not break up the preprocessor
directives; keep both versions. The first thing you should do is make sure that the single source
compiles as is. Play around with it to get comfortable the program. The program implements
Conway's Game of Life: https://conwaylife.com/wiki/Conway's Game of Life This is a simple
simulation where cells are either alive or dead based simple rules based on under population or
overcrowding. For those who are feeling adventurous look for some Life patterns and try to
implement them. Part 2: Analysis (15%): You should notice that the class Simulation has the
function report does not do anything useful other than printing "Hello World!" to the console.
Replace "Hello World!" with a brief discussion addressing the questions below. This may require
stepping through the code to get an overview of execution, hand tracing is an option but using the
debugger with break points is much more efficient.Any code you submit must compile in VS2019,
even if incomplete; any project that does not compile will receive a zero score.
