1) Researchers at the University of Manchester isolated graphene in 2004 and were awarded the Nobel Prize in Physics in 2010 for their work. 2) Plans were announced in 2013 and 2014 to build the £61m National Graphene Institute and £60m Graphene Engineering Innovation Centre to further research and commercialize graphene. 3) The document outlines ongoing graphene research at Manchester in areas such as energy storage, membranes, composites, printing, and 2D materials beyond graphene, as well as production methods and potential applications of graphene.
More Related Content
Similar to Graphene@Manchester …beyond the sticky tape
Graphene@Manchester …beyond the sticky tape
- 1. Graphene@Manchester …beyond the stickytape ACES: The European Dimension 21th May 2015 Paul Wiper, PhD, MSc. Research Associate paul.wiper@manchester.ac.uk
- 2. Andre Geim andKonstatin Novoselov isolate graphene at Manchester2004 2010 Awarded Nobel prize in physics for “ground-breaking experiments…” 2013 Plans for £61 m (€77 m) National Graphene Institute (NGI) Open 2014 Plans for £60 m (€76 m) Graphene Engineering Innovation Centre (GEIC) Opens: 2017 Graphene@Manchester
- 3. National Graphene Institute TheUniversity of Manchester Engineering Feasibility!

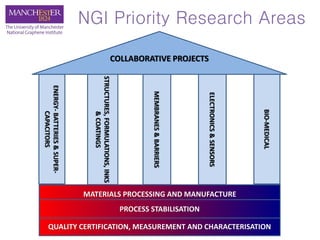

- 4. COLLABORATIVE PROJECTS ENERGY-BATTERIES&SUPER- CAPACITORS STRUCTURES,FORMULATIONS,INKS &COATINGS MEMBRANES&BARRIERS ELECTRONICS&SENSORS BIO-MEDICAL QUALITY CERTIFICATION,MEASUREMENT AND CHARACTERISATION MATERIALS PROCESSING AND MANUFACTURE PROCESS STABILISATION NGI Priority Research Areas
- 5. Strategic Partner Project Partners:Graphene-based membranes Project Partners: Electrochemical Energy Storage Project Partners: Other Industry Partners
- 6. Graphene Engineering InnovationCentre (GEIC) The GEIC focus is on industry led technology development in graphene and related 2-D materials in collaboration with academia. • ~ £30 m from Masdar, Abu Dhabi • Masdar Institute; applied research
- 7. Graphene membranes, barriers andadsorbents

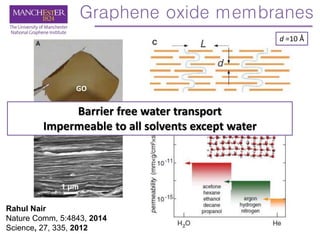

- 8. Graphene oxide membranes GO d=10 Å Rahul Nair Nature Comm, 5:4843, 2014 Science, 27, 335, 2012 Barrier free water transport Impermeable to all solvents except water

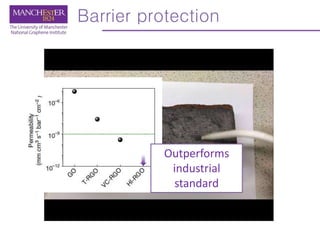

- 9.

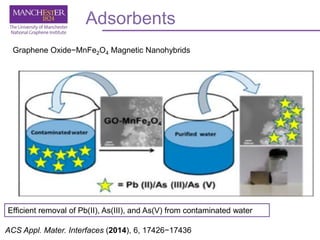

- 10. ACS Appl. Mater.Interfaces (2014), 6, 17426−17436 Graphene Oxide−MnFe2O4 Magnetic Nanohybrids Adsorbents Efficient removal of Pb(II), As(III), and As(V) from contaminated water
- 11. Graphene energy storage andconversion devices

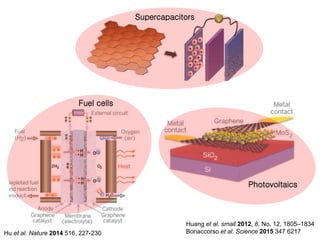

- 12. Huang et al.small 2012, 8, No. 12, 1805–1834 Bonaccorso et al. Science 2015 347 6217 Supercapacitors Photovoltaics Fuel cells Hu et al. Nature 2014 516, 227-230
- 13. Graphene Nanocomposites The HEAD GrapheneTMTennis Racquet and Skis

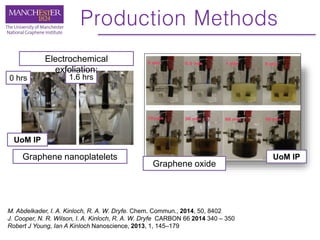

- 14. Production Methods 0 hrs1.6 hrs UoM IP UoM IP Electrochemical exfoliation: Graphene nanoplatelets Graphene oxide M. Abdelkader, I. A. Kinloch, R. A. W. Dryfe. Chem. Commun., 2014, 50, 8402 J. Cooper, N. R. Wilson, I. A. Kinloch, R. A. W. Dryfe CARBON 66 2014 340 – 350 Robert J Young, Ian A Kinloch Nanoscience, 2013, 1, 145–179

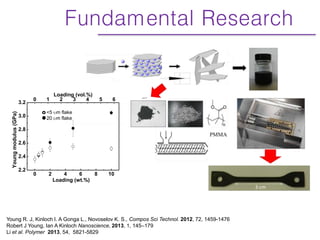

- 15. Fundamental Research Young R.J, Kinloch I. A Gonga L., Novoselov K. S., Compos Sci Technol. 2012, 72, 1459-1476 Robert J Young, Ian A Kinloch Nanoscience, 2013, 1, 145–179 Li et al. Polymer 2013, 54, 5821-5829 0 2 4 6 8 10 2.2 2.4 2.6 2.8 3.0 3.2 Youngmodulus(GPa) Loading (wt.%) 0 1 2 3 4 5 6 Loading (vol.%) <5 um flake 20 um flake

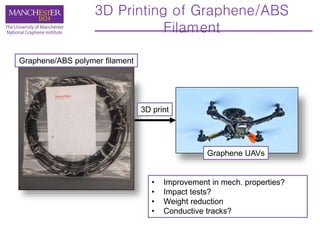

- 16. 3D Printing ofGraphene/ABS Filament Graphene/ABS polymer filament Graphene UAVs 3D print • Improvement in mech. properties? • Impact tests? • Weight reduction • Conductive tracks?

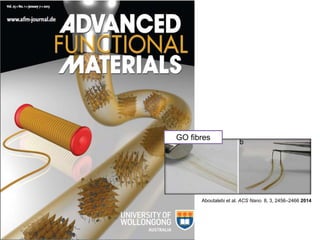

- 17. GO fibres Aboutalebi etal. ACS Nano. 8, 3, 2456–2466 2014

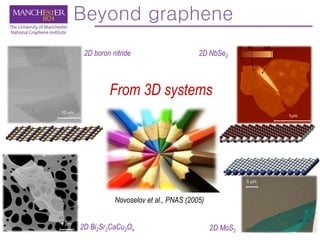

- 18. Beyond graphene Novoselov etal., PNAS (2005) 1 m 2D Bi2Sr2CaCu2Ox From 3D systems 2D MoS2 5 m 1m 0Å 8Å 23Å 2D NbSe2 10 m 2D boron nitride

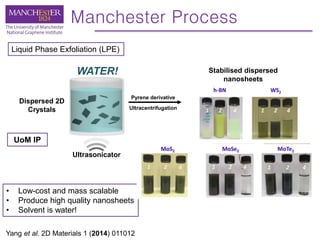

- 19. WATER! Ultrasonicator Dispersed 2D Crystals Liquid PhaseExfoliation (LPE) • Low-cost and mass scalable • Produce high quality nanosheets • Solvent is water! Yang et al. 2D Materials 1 (2014) 011012 Manchester Process Ultracentrifugation Pyrene derivative Stabilised dispersed nanosheets UoM IP

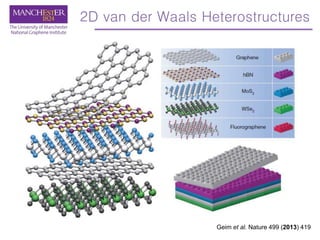

- 20. Geim et al.Nature 499 (2013) 419 2D van der Waals Heterostructures

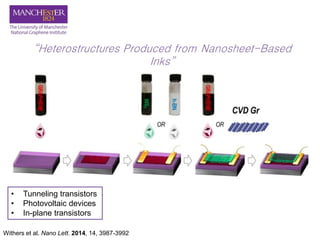

- 21. “Heterostructures Produced fromNanosheet-Based Inks” Withers et al. Nano Lett. 2014, 14, 3987-3992 • Tunneling transistors • Photovoltaic devices • In-plane transistors
- 22. “band-structure engineering…combining several different2D crystals one can create a designer potential landscape for electrons to live in” Withers et al. Nature Mat. 2015 Bright-field STEM SQW MQWs “Light-emitting diodes by band-structure engineering in van der Waals heterostructures” “…the quantum efficiency (photons emitted per electron injected) is already comparable to organic LED…”
- 23.
- 24.

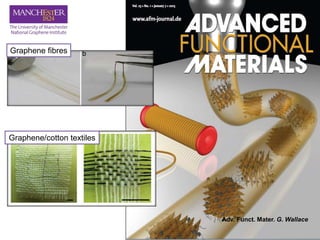

- 25. Adv. Funct. Mater.G. Wallace Graphene fibres Graphene/cotton textiles

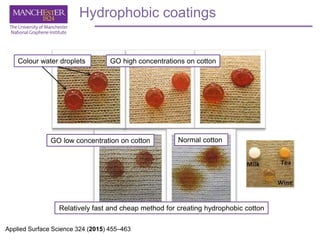

- 26. Hydrophobic coatings Colour waterdroplets Normal cotton GO high concentrations on cotton Relatively fast and cheap method for creating hydrophobic cotton Applied Surface Science 324 (2015) 455–463 GO low concentration on cotton

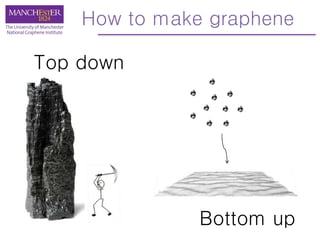

- 27. Top down Bottom up Howto make graphene

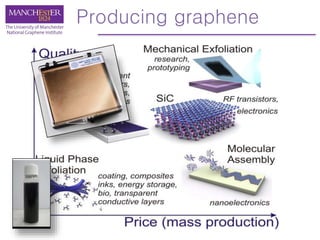

- 28.

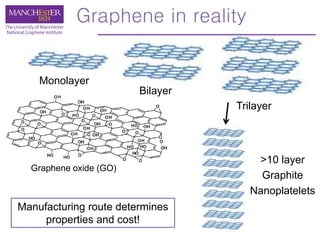

- 29. Graphene in reality Monolayer Bilayer Trilayer >10layer Graphite Nanoplatelets Graphene oxide (GO) Manufacturing route determines properties and cost!
