Graduate Research Thesis Defense Presentation

DESIGN AND DEVELOPMENT OF CADASTRAL
DATABASE IN THE CONTEXT OF PAKISTAN
JOHUMFATIMAHMIRZA
2010-NUST-MS PhD-GIS-03
IGIS - NUST
Final Defense

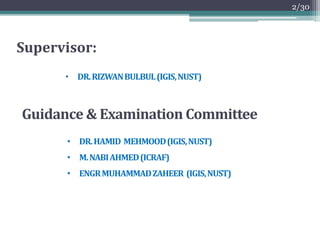

Supervisor:
2/30
• DR.RIZWANBULBUL(IGIS,NUST)
Guidance & Examination Committee
• DR.HAMID MEHMOOD(IGIS,NUST)
• M.NABIAHMED(ICRAF)
• ENGRMUHAMMADZAHEER (IGIS,NUST)

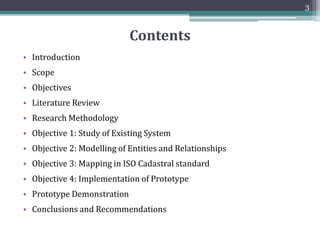

Contents
3
• Introduction
• Scope
• Objectives
• Literature Review
• Research Methodology
• Objective 1: Study of Existing System
• Objective 2: Modelling of Entities and Relationships
• Objective 3: Mapping in ISO Cadastral standard
• Objective 4: Implementation of Prototype
• Prototype Demonstration
• Conclusions and Recommendations

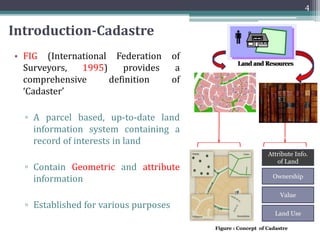

Introduction-Cadastre
• FIG (International Federation of
Surveyors, 1995) provides a
comprehensive definition of
‘Cadaster’
▫ A parcel based, up-to-date land
information system containing a
record of interests in land
▫ Contain Geometric and attribute
information
▫ Established for various purposes
4
Land and Resources
Attribute Info.
of Land
Ownership
Value
Land Use
Figure : Concept of Cadastre
Land and Resources

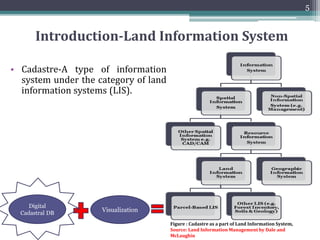

Introduction-Land Information System
• Cadastre-A type of information
system under the category of land
information systems (LIS).
5
Figure : Cadastre as a part of Land Information System,
Source: Land Information Management by Dale and
McLaughin
Digital
Cadastral DB
Visualization

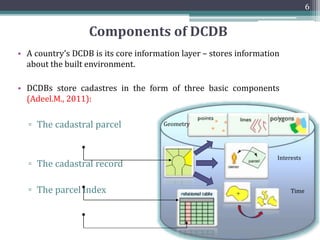

• A country’s DCDB is its core information layer – stores information
about the built environment.
• DCDBs store cadastres in the form of three basic components
(Adeel.M., 2011):
▫ The cadastral parcel
▫ The cadastral record
▫ The parcel index
6
Geometry
Interests
Time
Components of DCDB

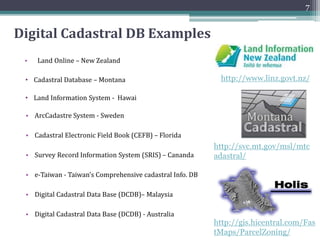

Digital Cadastral DB Examples
• ArcCadastre System - Sweden
• Cadastral Electronic Field Book (CEFB) – Florida
• Survey Record Information System (SRIS) – Cananda
• e-Taiwan - Taiwan’s Comprehensive cadastral Info. DB
• Digital Cadastral Data Base (DCDB)– Malaysia
• Digital Cadastral Data Base (DCDB) - Australia
7
• Land Online – New Zealand
• Cadastral Database – Montana
• Land Information System - Hawai
http://www.linz.govt.nz/
http://svc.mt.gov/msl/mtc
adastral/
http://gis.hicentral.com/Fas
tMaps/ParcelZoning/

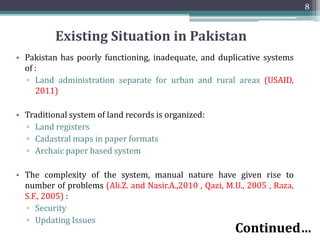

Existing Situation in Pakistan
• Pakistan has poorly functioning, inadequate, and duplicative systems
of :
▫ Land administration separate for urban and rural areas (USAID,
2011)
• Traditional system of land records is organized:
▫ Land registers
▫ Cadastral maps in paper formats
▫ Archaic paper based system
• The complexity of the system, manual nature have given rise to
number of problems (Ali.Z. and Nasir.A.,2010 , Qazi, M.U., 2005 , Raza,
S.F., 2005) :
▫ Security
▫ Updating Issues
8

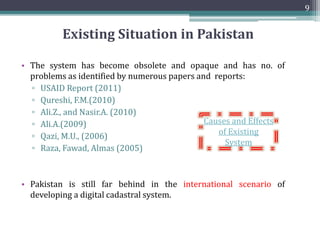

Continued…

• The system has become obsolete and opaque and has no. of
problems as identified by numerous papers and reports:
▫ USAID Report (2011)
▫ Qureshi, F.M.(2010)
▫ Ali.Z., and Nasir.A. (2010)
▫ Ali.A.(2009)
▫ Qazi, M.U., (2006)
▫ Raza, Fawad, Almas (2005)
• Pakistan is still far behind in the international scenario of
developing a digital cadastral system.
9
Existing Situation in Pakistan
Causes and Effects
of Existing
System

10
Figure : Existing situation of Manual Cadastral System in Pakistan, Causes and Effects

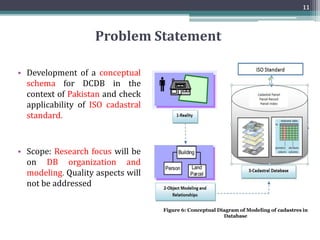

Problem Statement
• Development of a conceptual
schema for DCDB in the
context of Pakistan and check
applicability of ISO cadastral
standard.
• Scope: Research focus will be
on DB organization and
modeling. Quality aspects will
not be addressed
11
Figure 6: Conceptual Diagram of Modeling of cadastres in
Database

Objectives
• The overall objective of this research is:
▫ To understand the basic principles of existing cadastral system of
Pakistan
▫ To design and model the basic entities of existing cadastral system.
▫ To model selected designed entities into a specific cadastral data
model so as to make it standard compliant.
▫ To Implement adapted design in spatial DBMS software.
12

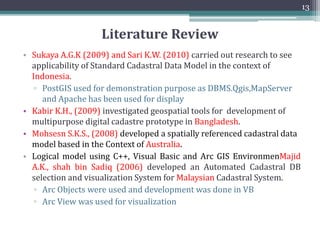

Literature Review
• Sukaya A.G.K (2009) and Sari K.W. (2010) carried out research to see
applicability of Standard Cadastral Data Model in the context of
Indonesia.
▫ PostGIS used for demonstration purpose as DBMS.Qgis,MapServer
and Apache has been used for display
• Kabir K.H., (2009) investigated geospatial tools for development of
multipurpose digital cadastre prototype in Bangladesh.
• Mohsesn S.K.S., (2008) developed a spatially referenced cadastral data
model based in the Context of Australia.
• Logical model using C++, Visual Basic and Arc GIS EnvironmenMajid
A.K., shah bin Sadiq (2006) developed an Automated Cadastral DB
selection and visualization System for Malaysian Cadastral System.
▫ Arc Objects were used and development was done in VB
▫ Arc View was used for visualization
13

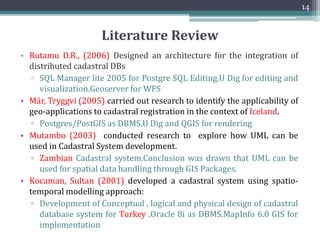

Literature Review
• Rutamu D.R., (2006) Designed an architecture for the integration of
distributed cadastral DBs
▫ SQL Manager lite 2005 for Postgre SQL Editing.U Dig for editing and
visualization.Geoserver for WFS
• Már, Tryggvi (2005) carried out research to identify the applicability of
geo-applications to cadastral registration in the context of Iceland.
▫ Postgres/PostGIS as DBMS.U Dig and QGIS for rendering
• Mutambo (2003) conducted research to explore how UML can be
used in Cadastral System development.
▫ Zambian Cadastral system.Conclusion was drawn that UML can be
used for spatial data handling through GIS Packages.
• Kocaman, Sultan (2001) developed a cadastral system using spatio-
temporal modelling approach:
▫ Development of Conceptual , logical and physical design of cadastral
database system for Turkey .Oracle 8i as DBMS.MapInfo 6.0 GIS for
implementation
14

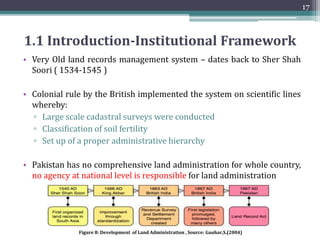

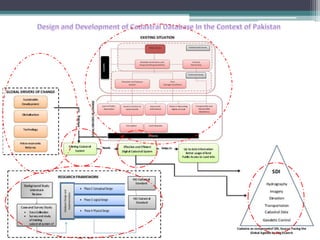

To understand the basic principles of
existing cadastral system of Pakistan
Objective 1:

1.1 Introduction-Institutional Framework
• Very Old land records management system – dates back to Sher Shah
Soori ( 1534-1545 )
• Colonial rule by the British implemented the system on scientific lines
whereby:
▫ Large scale cadastral surveys were conducted
▫ Classification of soil fertility
▫ Set up of a proper administrative hierarchy
• Pakistan has no comprehensive land administration for whole country,
no agency at national level is responsible for land administration
17
Figure 8: Development of Land Administration , Source: Gauhar,S.(2004)

18

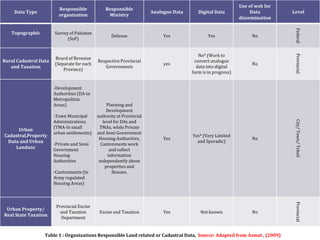

Data Type
Responsible
organization
Responsible
Ministry
Analogue Data Digital Data
Use of web for
Data
dissemination
Level
Topographic Survey of Pakistan
(SoP)
Defense Yes Yes No
Federal
Rural Cadastral Data
and Taxation
Board of Revenue
(Separate for each
Province)
Respective Provincial
Governments
yes
No* (Work to
convert analogue
data into digital
form is in progress)
No
Provincial
Urban
Cadastral,Property
Data and Urban
Landuse
-Development
Authorities (DA-in
Metropolitan
Areas)
-Town Municipal
Administrations
(TMA-In small
urban settlements)
-Private and Semi
Government
Housing
Authorities
-Cantonments (In
Army regulated
Housing Areas)
Planning and
Development
authority at Provincial
level for DAs and
TMAs, while Private
and Semi Government
Housing Authorities,
Cantonments work
and collect
information
independently about
properties and
Houses.
Yes
Yes* (Very Limited
and Sporadic)
No
City/Town/Tehsil
Urban Property/
Real State Taxation
Provincial Excise
and Taxation
Department
Excise and Taxation Yes Not known No
Provincial
Table 1 : Organizations Responsible Land related or Cadastral Data, Source: Adapted from Asmat , (2009)

1.3 Current Cadastral System-Processes
1) Land Registration Process (Carried out after four years):
▫ Ownership in land is recorded and registered by government so
as to provide evidence of ownership and to facilitate dealing
▫ Entries of ownership are added in Register Haqdarane Zameen
(RHZ)
2) (Individual) Ownership Document Preparation Process:
▫ The document showing ownership of land of an individual is
called the "Fard Malkiyat"
19

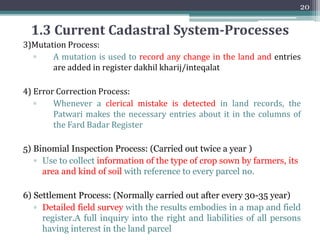

3)Mutation Process:
▫ A mutation is used to record any change in the land and entries
are added in register dakhil kharij/inteqalat

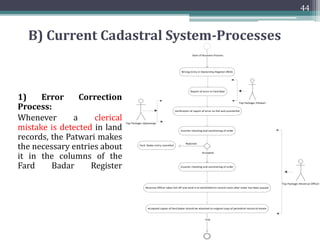

4) Error Correction Process:
▫ Whenever a clerical mistake is detected in land records, the
Patwari makes the necessary entries about it in the columns of
the Fard Badar Register
5) Binomial Inspection Process: (Carried out twice a year )
▫ Use to collect information of the type of crop sown by farmers, its
area and kind of soil with reference to every parcel no.
6) Settlement Process: (Normally carried out after every 30-35 year)
▫ Detailed field survey with the results embodies in a map and field
register.A full inquiry into the right and liabilities of all persons
having interest in the land parcel
20

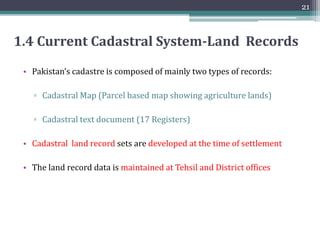

1.4 Current Cadastral System-Land Records
• Pakistan’s cadastre is composed of mainly two types of records:
▫ Cadastral Map (Parcel based map showing agriculture lands)
▫ Cadastral text document (17 Registers)
• Cadastral land record sets are developed at the time of settlement
• The land record data is maintained at Tehsil and District offices
21

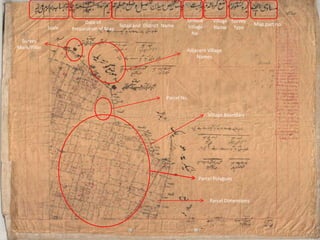

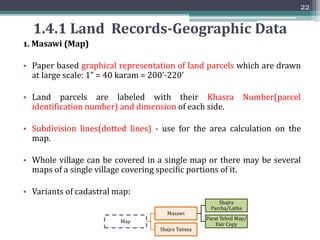

1.4.1 Land Records-Geographic Data
1. Masawi (Map)
• Paper based graphical representation of land parcels which are drawn
at large scale: 1” = 40 karam = 200’-220’
• Land parcels are labeled with their Khasra Number(parcel
identification number) and dimension of each side.
• Subdivision lines(dotted lines) - use for the area calculation on the
map.
• Whole village can be covered in a single map or there may be several
maps of a single village covering specific portions of it.
• Variants of cadastral map:
22
Map
Masawi
Shajra
Parcha/Latha
Parat Tehsil Map/
Fair Copy
Shajra Tatima

23

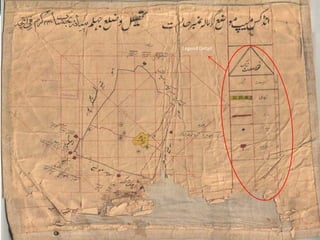

Map part no.
Survey
Type
Village
Name
Unique
Village
No.
Tehsil and District Name
Date of
Preparation of MapScale
Parcel Polygons
Parcel No.
Parcel Dimensions
Village Boundary
Adjacent Village
Names
Survey
Mark/Pillar

25

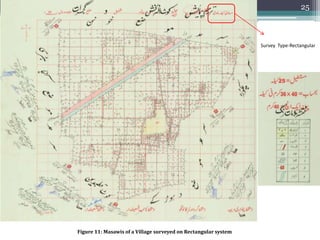

Figure 11: Masawis of a Village surveyed on Rectangular system
Survey Type-Rectangular

26

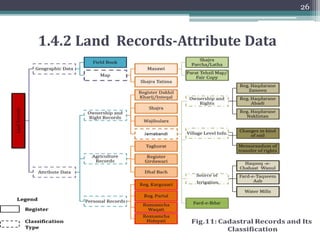

1.4.2 Land Records-Attribute Data

1.5 Linkage of Registers in Existing System
27
Main Keys in the Existing Registers
• Owner ID (Khewat No.) - OID
• Parcel ID/ Survey No. (Khasra No.) - PID
• Farmer ID (Khatooni No.) - FID
Field Book
PID
FID
Masawi
PID
Shajra Tatima
PID
OID
Register Dakhil
Kharij/Inteqal
Mutation No.
OID
PID
Shajra
Family No.
OID
Wajibularz
Village ID
Reg. Haqdarane
Zameen/Abadi/Na
klistan
OID
PID
FID
Changes in kind of
soil
Village ID
Memorandum of
transfer of rights
Mutation No.
Haqooq -e-
Chahaat
PID
FID
Fard Taqseem Aab
OID
Water Mills
PID
FID
Fard-e-Bdar
Sr.No.
OID
Taghurat
Date and Yr.
PID
Register Girdawari
PID
OID
FID
Dhal Bach
OID
PID
OID
PID
MutationNo
Agriculture Records
Ownership and Rights
Village ID
Irrigation Source

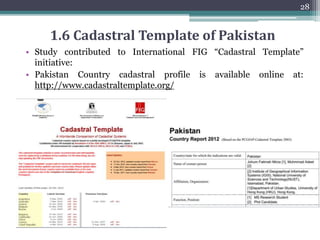

• Study contributed to International FIG “Cadastral Template”
initiative:
• Pakistan Country cadastral profile is available online at:
http://www.cadastraltemplate.org/
28
1.6 Cadastral Template of Pakistan

To Model the Entities and Processes of
Existing Cadastral System
Objective 2:

30
2.1-Modeling Entities of Existing Cadastral System
Entities
Study of
Existing
System
Literature
Review
Relationships
Identify
Attribute
Type
Key
Determine
Identify
Attribute
Optionality
Cardinality
Draw
Preliminary
E/R Diagram
Ok
?
Translated
Tables
Graphical notation
and diagramming
tools
Identify
No
Verify
Yes E/R Diagram
Figure3:WorkflowofERmodeling

31

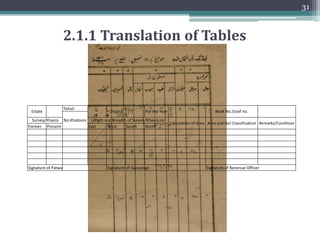

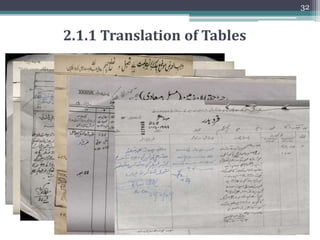

2.1.1 Translation of Tables
Tehsil
Former Present East West South North
Signature of Patwari Signature of Qanoongo Signature of Revenue Officer
District
Remarks/Condition
Survey/Khasra Length and Breadth of Survey/Khasra no.
Calculation of Area Area and Soil Classification
No.Khatooni
Estate Book No./Leaf no.For the Year

32
2.1.1 Translation of Tables

33
Kharif Crop Rabi Crop
Changes of Rights,
cultivation, Possession
and rent with referene
to Mutation Register
Kharif Crop Rabi Crop
Changes of Rights,
Kharif CropRabi Crop
Changes of Rights,
Remarks
Rabi/Kharif Rabi/Kharif Rabi/Kharif
Survey/Khasra No.
Name of Owner
and Khewat No.
Name of
Cultivator and
Khatuni No.
Area including
class of soil
Harvest Inspection - Girdawari
Name of
Crop
Date of
Harvest
Inspection
Khasra No.
Area of
Khasra Under
Cultivation
Entry in Last
Settlement
Entry in Current
Settlement
Signatre of
Ptwari Along
with Date
Signatre of
Grdawar
Qanoongo Along
with Date
Signatre of
Revenue Officer
Along with Date
Condition
Changes in Cultivation - Taghurat
No.KhewatRegisterHaqDaran-e-Zameen
NameofOwner
WithDescription
Nameof
CultivatorWith
Description
Survey/Khasra
No.withName
Areaand
kindof
soil
No.ofKhewatwhichwill
besubstitutedinthenew
RegisterHaqDaran-e-
Zameen
Nameoftheownerwith
description
NameofCultivator
WithDescription
Survey/Khasra
No.withName
AreaandKindof
Soil
Reportand
Orders,Signature
ofWitness
EntryinRegisterHaqDaran-e-ZameenorLastEntryinRegisterDakhilKharijwhichisProposedtobeCorrected NewEntrywhichisPropsedtobesubstituted
Sr.No.
NatureanddateofMutationswithprice
incaseofincaseofsaleandamountof
mortgagedebtincaseofmortgage
LandRevenue
andDakhil
KharijFee
Mutation Register- Dakhil Kharij

34

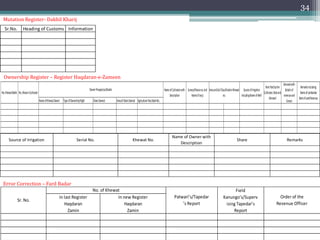

Sr.No. Heading of Customs Information
NameofKhewatOwner TypeofOwnershipRight ShareOwned AreaofShareOwned AgriculturePassBookNo.
No.KhewatMalik
OwnerProspectus/Details NameofCultivatorwith
Description
Survey/Khasrano.and
Name(ifany)
AreaandSoilClassificationKhewat
no.
No.KhatuniCultivator
SourceofIrrigation
IncludingNameofWell
RentPaidbythe
Cultivator,Rateand
Demand
Demandwith
Detailsof
revenueand
Cesses
RemarksIncluding:
NameofLambardar
RateofLandRevenue
In last Register
Haqdaran
Zamin
In new Register
Haqdaran
Zamin
No. of Khewat
Sr. No.
Patwari’s/Tapedar
’s Report
Field
Kanungo’s/Superv
ising Tapedar’s
Report
Order of the
Revenue Officer
Source of Irrigation Serial No. Khewat No.
Name of Owner with
Description
Share Remarks
Mutation Register- Dakhil Kharij
Ownership Register – Register Haqdaran-e-Zameen
Error Correction – Fard Badar

35
2.1.2 Entities and Relationships
Parcel
( Khasra)
Land Type
Block
Farmer/ Tenant
(Khatooni)
Estate
Owner
(Khewat)
Statement of
customs
(Wajibularz)
District
Notes in Changes
in kind of soil
Mutation
(Dakhil
Kharij)
Old entry
New Entry
Family/Cast/Tribe
(Shajra)
Person
Belongs
to
Belongs
to
Belongs
to
Owned
by
has
has
Belongs
to
Belongs
to
Belongs
to
has
has
Irrigation
Source
has
Tax,
Demands,
Revenue
has
Obligations
and
Liabilities
has
Change
enters in
Change
enters in
Change
enters in
has
has
Error
(Farde Badar)
Wrong
Entry
Corrected
Entry
Mistakes r
Entered in
Mistake r
Entered in
has
has
Agriculture
Info.
(Tagyurat ,
Girdawari)
*
1
*
1
* 1
1
11
*
*
1
*
* *
*
*
*
1 1
1
1
1
1
*
*
*
* *
1
*
*
1
1
*
*
*
*
*
*
*
*
*

36
2.1.3 Modeling Entities of Existing Cadastral
System
Ok
?
Conceptual to logical mapping
No Yes
Figure 4: Workflow for developing Logical Schema
E/R
Diagram
Re-examination and
decomposition of entities
Re-examine and define
relationships
Define Keys
Normalize Table Structure
DB
Implementation
Diagram

37
Parcel
PK Present_Servey_No
Field_Name
East
West
North
South
Area
Area_in_Words
Geometry
FK1 Remarks_ID
FK2 Block_No
FK3 Village_ID
Remarks
PK Remarks_ID
Remarks
FK1 Present_Servey_No
Former_Survey No. Detail
PK FSD_ID
Former_Survey_No
Block
PK Block_No
Geometry
Land_Type
PK Land_Type_ID
Land_Type
Irrigation_Status
Source_of_Irrigation
Land_Part
Extent_geom
Farmer
PK Farmer_ID
Farmer_Name
R_FormerSurveyNo_Parcel
PK,FK1 FSD_ID
PK,FK2 Present_Servey_No
ID
R_LandType_Parcel
PK,FK2 Land_Type_ID
ID
R_Farmer_Parcel
PK,FK2 Farmer_ID
ID
Estate
PK Village_ID
Name_of_Village
Geometry
Common_Land
FK2 Tehsil_ID
FK3 Serial_No
FK4 Kind_of_Soil_ID
Tehsil
PK Tehsil_ID
Name_of_Tehsil
Geometry
FK1 Village_ID
FK2 District_ID
District
PK District_ID
Name_of_District
Geometry
FK1 Tehsil_ID

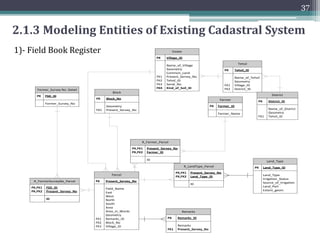

2.1.3 Modeling Entities of Existing Cadastral System
1)- Field Book Register

38

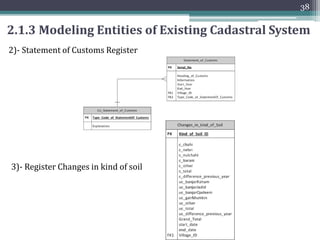

2)- Statement of Customs Register
3)- Register Changes in kind of soil

39

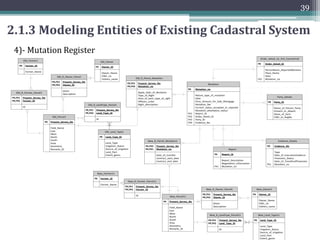

4)- Mutation Register
Mutation
PK Mutation_no
Nature_type_of_mutation
Date
Price_Amount_for_Sale_Mortgage
Mutation_fee
Current_status_accepted_or_rejected
Mutation_attestation_status
FK1 Report_ID
FK2 Order_Detail_ID
FK3 Party_ID
FK4 Evidence_No
Old_Parcel1
Field_Name
East
West
North
South
Area
Geometry
Remarks_ID
Old_Land_Type1
PK Land_Type_ID
Land_Type
Irrigation_Status
Land_Part
Extent_geom
Old_Farmer1
PK Farmer_ID
Farmer_Name
Old_R_LandType_Parcel1
PK,FK2 Land_Type_ID
ID
Old_R_Farmer_Parcel1
PK,FK2 Farmer_ID
ID
Old_Owner
PK Owner_ID
Owner_Name
CNIC_no
Fathers_name
Old_R_Owner_Parcel
PK,FK2 Owner_ID
Share
Description
New_Parcel11
Field_Name
East
West
North
South
Area
Geometry
Remarks_ID
New_Land_Type11
PK Land_Type_ID
Land_Type
Irrigation_Status
Land_Part
Extent_geom
New_Farmer11
PK Farmer_ID
Farmer_Name
New_R_LandType_Parcel11
PK,FK2 Land_Type_ID
ID
New_R_Farmer_Parcel11
PK,FK2 Farmer_ID
ID
New_Owner1
PK Owner_ID
Owner_Name
CNIC_no
Fathers_name
New_R_Owner_Parcel1
PK,FK2 Owner_ID
Share
Description
Old_R_Parcel_Mutation
PK,FK2 Mutation_no
Apply_Date_of_Mutation
Type_of_Right
Area_of_each_type_of_right
Officers_order
Right_description
New_R_Parcel_Mutation1
PK,FK1 Mutation_no
Date_of_transfer
Contract_start_date
Contract_end_date
Order_Detail_on_Foil_CounterFoil
PK Order_Detail_ID
PersonName_ReportedMutaion
Place_Name
Date
FK1 Mutation_no
Report
PK Report_ID
Report_Description
Negotiation_Information
FK1 Mutation_no
Party_Details
PK Party_ID
Name_of_Person_Party
Present_or_Absent
Share_of_Each
CNIC_or_RegNo
Evidence_Details
PK Evidence_No
Type
Date_of_ExecutionEvidence
Posession_Status
Date_of_TransferofPosession
FK1 Mutation_no

40

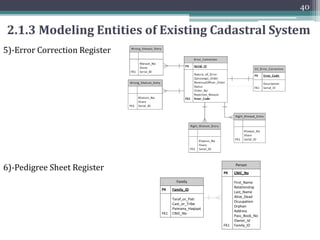

5)-Error Correction Register
6)-Pedigree Sheet Register
Family
PK Family_ID
Taraf_or_Pati
Cast_or_Tribe
Paimana_Haqiqat
FK1 CNIC_No
Person
PK CNIC_No
First_Name
Relationship
Last_Name
Alive_Dead
Ocuupation
Orphan
Address
Pass_Book_No
Owner_Id
FK1 Family_ID

41

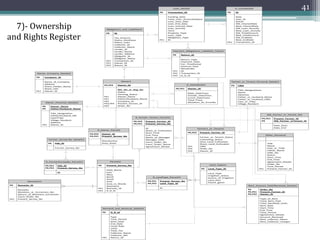

7)- Ownership
and Rights Register
Parcel12
Field_Name
East
West
North
South
Area
Area_in_Words
Geometry
FK1 Remarks_ID
FK2 D_R_Id
Remarks11
PK Remarks_ID
Remarks
Mutation_or_Correction_No
Nature_of_Mutation_Correction
Court_Order_No
Former_Survey No. Detail12
PK FSD_ID
Former_Survey_No
Land_Type12
PK Land_Type_ID
Land_Type
Irrigation_Status
Land_Part
Extent_geom
Farmer1_or_Tenant1
PK,FK2 Present_Farmer_ID
Farmer_or_Tenant_Status
Cultivating_Status
Area_Land_Cultivated
Share_Land_Cultivated
FK1 CNIC
FK2 Order_No
FK2 Owner_ID
R_FormerSurveyNo_Parcel12
PK,FK1 FSD_ID
ID
R_LandType_Parcel12
PK,FK2 Land_Type_ID
ID
R_Farmer_Tenant_Parcel12
ID
Share_in_Cultivation
Start_Time
End_Time
Name_of_Manager
Manager_CNIC
Court_Order_No
Court_Order_Name
Agreement_Details
Owner1
PK,FK4 Owner_ID
NIC_No_or_Reg_No
Status
Farming_Status
FK1 Owner_Name
FK1 Father/Husband_Name
FK2 Company_ID
FK3,FK4 Present_Farmer_ID
FK4 Order_No
R_Owner_Parcel2
PK,FK2 Owner_ID
Share(units)
Area_share
Owner_Personal_Details2
PK Owner_Name
PK Father/Husband_Name
Title_Designation
Father/Husband_NIC
Cast/Tribe
Village_Resident
Address
FK1 Owner_ID
Owner_Company_Details2
PK Company_ID
Name_of_Company
Address
Share_Holder_Name
Share_Info
FK1 Owner_ID
Obligations_and_Liabilities2
PK ID
Tax_Amount
Status_GovtDues
Status_Loan
Collector_ID
Collector_Name
Lender_ID
Lender_Name
Lender_Address
Obligator_ID
Obligator_Name
FK2 Transaction_ID
FK1 Owner_ID
FK3 Return_ID
Loan_Detail2
PK Transaction_ID
Funding_Date
Total_Loan_Amount(taken)
Loan_start_date
Loan_End_date
Loan_Interest_Rate
Loan_Annuity
Term
Property_Type
Loan_Type
Obligation_Type
FK1 ID
H_LoanDetail2
PK ID
Date
User_ID
Action
Old_InterestRate
New_InterestRate
Old_Loan_Annuity
New_Loan_Annuity
Old_TotalAmount
New_totalAmount
Old_EndDate
New_EndDate
FK1 Transaction_ID
Payment_Obligations_Liabilities_Taxes2
PK Return_ID
Return_Type
Payment_Date
For_TimePeriod
Amount_Paid
Remainder
FK1 ID
FK2 Transaction_ID
FK3 D_R_Id
O_OasisDetail1
PK,FK1 Owner_ID
Male_DateTrees
Female_DateTrees
Eunch_DateTrees
Total_Trees
Mutation_Or_ErrorNo
Old_Farmer_or_Tenant_ID2
PK Old_Farmer_orTenant_ID
Date_Start
Date_End
Farmer_or_Tenant_Personal_Details1
PK CNIC
Title_Designatioon
Name
Adreress
Father_or_Husband_Name
Father_or_Husband_CNIC
Cast_or_Tribe
Village_Resident
Other_Persons2
Title
Name
Cast_or_Tribe
Father_Name
CNIC_No
Status
Start_Time
End_Time
Agreement_Details
Order_No
Time_Period
FK1 Present_Farmer_ID
Rent_Amount_Paid/Recieved_Details1
PK Order_No
PK,FK2 Owner_ID
Type_of_Rent
Total_Rent_Paid
Total_RentPaid_Units
Rent_Rate
Start_Time
End_Time
Time_Period
Agreement_Details
Amount_Recieved
Rent_collector_Name
Rent_Collector_charges
Demand_and_Revenue_Details2
PK D_R_Id
Type
Time_Period
Start_Date
End_Date
Local_Rate
Units
Total_Tax
Collector_Name
Collector_NIC
FK1 Return_ID

42

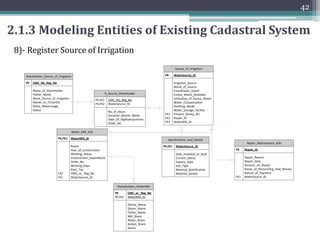

8)- Register Source of Irrigation
Field_Name
East
West
North
South
Area
Area_in_Words
Geometry
FK1 Remarks_ID
FK2 D_R_Id
FK3 WaterSource_ID
PK WaterSource_ID
Irrigation_Source
Name_of_Source
Coordinates_Geom
Excess_Water_Available
Utilization_of_Excess_Water
Water_Compensation
Desilting_Mode
Water_Storage_Facility
FK2 Repair_ID
FK3 WaterMill_ID
Specifications_and_Details
PK,FK1 WaterSource_ID
Date_Installed_or_Built
Current_Status
Expairy_Date
Soil_Type
Material_Specification
Material_Details
Repair_Maintenance_Info
PK Repair_ID
Rapair_Reason
Repair_Date
Amount_on_Repair
Name_of_Person/Org_Paid_Money
Nature_of_Payment
FK1 WaterSource_ID
ShareHolder_Source_of_Irrigation
PK CNIC_No_Reg_No
Name_of_ShareHolder
Father_Name
Share_Source_of_Irrigation
Owner_or_TenantID
Share_WaterUsage
Status
R_Source_ShareHolder
PK,FK1 CNIC_No_Reg_No
PK,FK2 WaterSource_ID
No_of_Hours
Duration_Month_Week
Date_Of_RightsAcquisition
Order_No
Water_Mill_Info
PK,FK2 WaterMill_ID
Name
Year_of_Construction
Working_Status
Construction_Expenditure
Order_No
Working_Days
Govt_Tax
FK2 CNIC_or_ Reg_No
FK1 WaterSource_ID
ShareHolders_WaterMill
PK CNIC_or_ Reg_No
PK,FK1 WaterMill_ID
Owner_Name
Sharer_Name
Father_Name
Mill_Share
Water_Share
Asiban_Share
Status

43

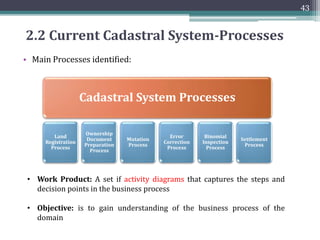

• Main Processes identified:
Cadastral System Processes
Land
Registration
Process
Ownership
Document
Preparation
Process
Mutation
Process
Error
Correction
Process
Binomial
Inspection
Process
Settlement
Process
• Work Product: A set if activity diagrams that captures the steps and
decision points in the business process
• Objective: is to gain understanding of the business process of the
domain

1) Error Correction
Process:
Whenever a clerical
mistake is detected in land
records, the Patwari makes
the necessary entries about
it in the columns of the
Fard Badar Register
44
Start of Business Process
Wrong Entry in Ownership Register (RHZ)
Report of error in Fard Bdar
Verification of report of error on foil and counterfoil
Counter checking and sanctioning of order
Rejected
Accepted
Fard Badar entry cancelled
Counter checking and sanctioning of order
Revenue Officer takes foil off and send it to tehsil/district record room after order has been passed
Accepted copies of fard badar should be attached to original copy of periodical record of estate
End
Top Package::Patwari
Top Package::Revenue Officer
Top Package::Qanoongo

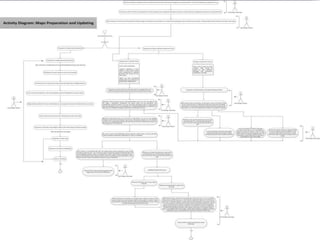

B) Current Cadastral System-Processes

To model the designed entities and
relationships into a ISO cadastral data
model so as to make it standard compliant
Objective 3:

49

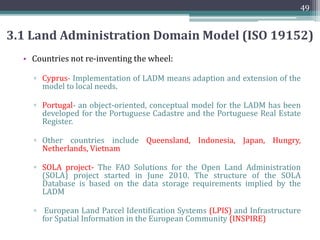

3.1 Land Administration Domain Model (ISO 19152)
• Countries not re-inventing the wheel:
▫ Cyprus- Implementation of LADM means adaption and extension of the
model to local needs.
▫ Portugal- an object-oriented, conceptual model for the LADM has been
developed for the Portuguese Cadastre and the Portuguese Real Estate
Register.
▫ Other countries include Queensland, Indonesia, Japan, Hungry,
Netherlands, Vietnam
▫ SOLA project- The FAO Solutions for the Open Land Administration
(SOLA) project started in June 2010. The structure of the SOLA
Database is based on the data storage requirements implied by the
LADM
▫ European Land Parcel Identification Systems (LPIS) and Infrastructure
for Spatial Information in the European Community (INSPIRE)

50

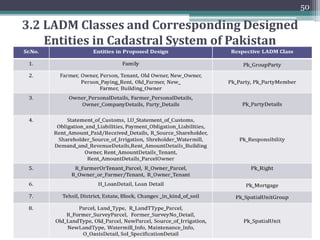

3.2 LADM Classes and Corresponding Designed
Entities in Cadastral System of Pakistan

• Methodology
51

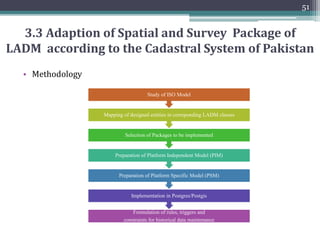

3.3 Adaption of Spatial and Survey Package of
LADM according to the Cadastral System of Pakistan
Formulation of rules, triggers and
constraints for historical data maintenance
Implementation in Postgres/Postgis
Preparation of Platform Specific Model (PSM)
Preparation of Platform Independent Model (PIM)
Selection of Packages to be implemented
Mapping of designed entities in correponding LADM classes
Study of ISO Model

• For mapping and implementation purpose spatial and survey
package has been selected
• Software used : Enterprise Architect
• Adapted LADM ‘survey and spatial representation package‘ has been
created based on the LADM Survey Package, extended and adapted
with a number of classes, present in the existing cadastral data
• Adapted profile has ISO standard attributes and functions where
LADM has standard provisions.
52

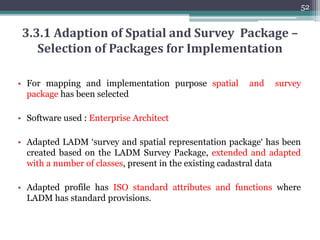

3.3.1 Adaption of Spatial and Survey Package –
Selection of Packages for Implementation

53

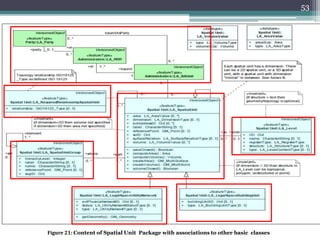

Figure 21: Content of Spatial Unit Package with associations to other basic classes

54

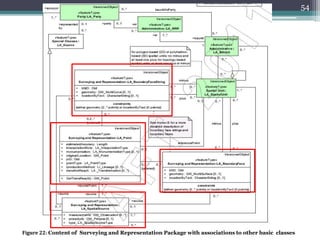

Figure 22: Content of Surveying and Representation Package with associations to other basic classes

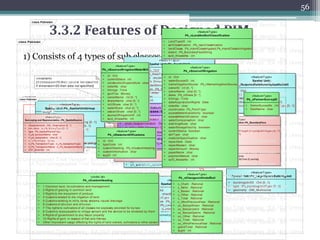

class Pakistan
10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistere
«featureType»
Party::Pk_Party
Each spatial unit has a dimension. There can be
a 2D spatial unit, or a 3D spatial unit, with a
spatial unit with dimension "liminal" in
between. See Annex B.
«featureType»
Administrative::Pk_RRR
«featureType»
Administrative::Pk_BAUnit
«featureType»
Spatial Unit::Pk_SpatialUnit
+ extAddressID :Oid [0..*]
+ area :Pk_AreaValue [0..*]
+ dimension :Pk_DimensionType [0..1]
+ label :CharacterString [0..1]
+ referencePoint :GM_Point [0..1]
+ suID_khasraNo :Oid
+ surfaceRelation :Pk_SurfaceRelationType [0..1]
+ n_LB_East :int
+ n_LB_West :int
+ n_LB_North :int
+ n_LB_South :int
+ n_fieldName :char [0..1]
+ n_remarks :char [0..*]
+ n_areaWritten :double [0..1]
+ n_status :boolean [0..1]
+ areaClosed() :Boolean
+ computeArea() :Area
+ createArea() :GM_MultiSurface
«featureType»
Spatial Unit::Pk_SpatialUnitGroup
+ hierachyLevel :Integer
+ name :CharacterString [0..1]
+ sugID :Oid
+ geometry :Pk_BoundaryFaceString
«featureType»
Spatial Unit::Pk_LegalSpaceBuildingUnit
+ buildingUnitID :Oid [0..1]
+ type :Pk_BuildingUnitType [0..1]
«featureType»
Spatial Unit::Pk_Level
+ extPhysicalNetworkID :Oid [0..1]
+ status [0..1]
+ type [0..1]
+ getGeometry() :GM_Geometry
«featureType»
Spatial Unit::
Pk_RequiredRelationshipSpatialUnit
+ lID :Oid
+ registerType
+ structure [0..1]
+ type [0..1]
«invariant»
{If structure = text then
geometry/topology is optional}
«invariant»
{If dimension = 3D than structure in
LA_Level can be toplogical,
polygon, unstructured or point}
«featureType»
Spatial Unit::Pk_AreaValue
+ relationship :ISO19125_Type [0..1]
Topology relationship ISO19125
_Type as defined ISO 19125
«invariant»
{if dimension=2D then volume not specified
if dimension=3D then area not specified}
«featureType»
Surveying and Representation::Pk_BoundaryFaceString
+ bfsID :Oid
+ geometry :GM_MultiCurve [0..1]
+ locationByText :CharacterString [0..1]
constraints
{either geometry (2..* points) or locationByText (0 points)}
«featureType»
Surveying and Representation::Pk_Point
+ estimatedAccuracy :Length
+ interpolationRole :Pk_InterpolationType
+ monumentation :Pk_MonumentationType [0..1]
+ originalLocation :GM_Point
+ pID :Oid
+ pointType :Pk_PointType
+ /productionMethod :LI_Lineage [0..1]
+ transAndResult :LA _Transformation [0..*]
+ GetTransResult() :GM_Point
«featureType»
Surveying and Representation::
Pk_SpatialSource
+ measurements :OM_Observation [0..*]
+ procedure :OM_Process [0..1]
+ type :Pk_SpatialSourceType
+ pk_surveyorName :char
+ pk_designation :char [0..*]
+ tatimaShajra :binary
+ transactionType :Pk_transactionType
+ transactionName :Pk_transactionName
«featureType»
Surveying and Representation::Pk_BoundaryFace
+ bfID :Oid
+ geometry :GM_MultiSurface [0..1]
+ locationByText :CharaterString [0..1]
constraints
{either geometry (3..* points) or locationByText (0 points)}
«featureType»
Pk_nLandAndSoilClassification
+ LandTypeID :int
+ soilClassification :Pk_nsoilClassification
+ landClasss :Pk_nlandClassIrrigated,Pk_nlandClassUnIrrigated
+ extent :Pk_BoundaryFaceString
«interface»
Interface Classes::
Pk_SpatialUnitOverview
+ overviewId :Oid
+ overviewDate :DateTime
LA_RegionMap is an interface class, containing a
map representation (at mapDate) of all relevant
information concerning spatial units in a given
region of the specified levels (lId). If no level is
specified, then all spatial units are contained in
the map. As it is an interface object, it is more of
a view on aggregated data from other classes
than containing actual data itself.
«interface»
Interface Classes::
Pk_RegionMap
+ lID :Oid [0..*]
+ mapDate :DateTime
+ mapId :Oid
+ region :GM_Envelope

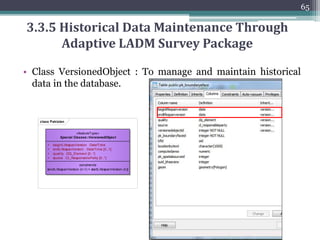

«featureType»
Special Classes::VersionedObject
+ beginLifespanVersion :DateTime
+ endLifespanVersion :DateTime [0..1]
+ quality :DQ_Element [0..*]
+ source :CI_ResponsibleParty [0..*]
constraints
{endLifespanVersion (n-1) = startLifespanVersion (n)}
«DataType»
Cl_ResponsibleParty
+ individualName :char [0..1]
+ organizationName :char [0..1]
+ positionName :char [0..1]
+ contactInfo :Cl_Contact
+ role :Cl_RoleCode
«DataType»
Cl_Contact
+ phone :int [0..1]
+ address :char [0..1]
+ onlineResource :char [0..1]
+ hoursOfService :char [0..1]
+ contactInstructions :char [0..1]
«codeList»
Cl_RoleCode
+ resourceProvider
+ custodian
+ owner
+ user
+ distributor
+ originator
+ pointofContact
+ principalInvestigator
+ publisher
+ processor
+ author
«DataType»
DQ_Element
+ nameOfMeasure :char [0..1]
+ measureIdentification :int [0..1]
+ measureDescription :char [0..1]
+ evaluationMethodType :DQ_EvaluationMethodTypeCode [0..1]
+ evaluationMethodDescription :char [0..1]
+ evaluationProcedure :Cl_Citation
+ dateTime :DateTime [0..*]
+ result :DQ_Result [1..2]
«codeList»
DQ_EvaluationMethodTypeCode
+ directExternal
+ directInternal
+ inderict
«DataType»
Cl_Citation
+ title :char
+ alternateTitle :char [0..*]
+ date :Cl_date
+ edition :char [0..1]
+ editionDate :Date [0..1]
+ identifier :MD_Identifier [0..*]
+ citedResponsibleParty :char [0..*]
+ PresentationForm :char [0..*]
+ series :char [0..1]
+ otherCitationDetail :char [0..1]
+ collectiveTitle :char [0..1]
+ ISBN :char [0..1]
+ ISSN :char [0..1]
«codeList»
Spatial Unit::
Pk_RegisterType
+ urban
+ rural
+ mining
+ publicSpace
+ forest
+ all
«codeList»
Spatial Unit::
Pk_DimensionType
+ 0D
+ 1D
+ 2D
+ 3D
+ liminal
«featureType»
Pk_nFormerSurveyID
+ id :Oid
+ formerSurveyNo :int
+ fieldName :char
«featureType»
Pk_nKhatooni
+ id :Oid
+ khatooniNo :int
«datatype»
Special Classes::Oid
+ localId :CharacterString
+ namespace :CharacterString
«codeList»
Pk_nsoilClassification
+ irrigated :int
+ unirrigated :int
«codeList»
Pk_nlandClassIrrigated
+ Barani
+ Sailabi
+ Abi
+ Rodkohi
+ Chahi
+ Nehri
+ Chahi-Nehri
+ NulChahi
«codeList»
Pk_nlandClassUnirrigated
+ BanjarJadid
+ Banjarqadim
+ GhairMumkin
+ Banjarkham
«featureType»
Pk_nSourceOfIrrigation
+ id :Oid
+ waterSourceID :int
+ nameIrrigationSource :Pk_nNameIrrigationSource
+ ownerID :int [0..*]
+ ownerName :char [0..*]
+ share :Pk_nShare [0..*]
+ timings :Time
+ dateAcquisiotionRights :Date
+ orderNo :char
+ coordinates :Pk_PointType
+ excessWaterAvaialbility :boolean
+ excessWaterUtilization :char
+ waterCompensation :char
+ disilitingMode :char
+ waterStorageFacility :boolean
+ currentStatus :boolean
+ soilType :char
+ materialSpecification :char
+ repairDate :Date
+ repairReason :char
+ repairAmount :Money
+ payerName :char
+ paymentNature :char
«codeList»
Pk_nNameIrrigationSource
+ karezTazi
+ karezGulzar
+ vialaSamil
+ vialaKatir
+ chashmaBalei
«codeList»
Pk_nShare
+ oneShabanaroz
+ oneWali
+ twoSayas
+ oneGuki
Pk_nSourceofIrrigationWaterMill
+ id :Oid
+ currentStatus :int
+ constructionExpenditure :char
+ orderNo :char
+ timings :Time
+ govtTax :Money
+ ownerName :int [0..*]
+ sharerName :char [0..*]
+ millShare :char [0..*]
+ waterShare :char [0..*]
+ asbianShare :char [0..*]
«featureType»
Pk_nChangesInKindofSoil
+ c_Chahi :Rational
+ c_Nehri :Rational
+ c_Barani :Rational
+ c_Other :Rational
+ c_Total :Rational
+ c_dfrncPreviousYear :Rational
+ uc_BanjarKham :Rational
+ uc_BanjarJadid :Rational
+ uc_BanjarQadim :Rational
+ uc_Other :Rational
+ uc_Total :Rational
+ uc_dfrncPreviousYear :Rational
+ grandTotal :Rational
«featureType»
Pk_nStatementOfCustoms
+ id :Oid
+ typeCode :int
+ customHeading :Pk_nCustomHeading
+ customInformation :char
«codeList»
Pk_nCustomHeading
+ 1 Common land, its cultivation and management
+ 2 Rights of grazing in common land
+ 3 Rights to the enjoyment of produce
+ 4 Customs related to the irrigation of land
+ 5 Customs relating to mills, tanks, streams, naural drainage
+ 6 Customs of alluvion and dilluvion
+ 7 The rights to cultivators of all classes not expressly provided for by-law
+ 8 Customry dues payable to village servant and the service to be rendered by them
+ 9 Rights of government to any Nazul property
+ 10 Rights of govt. in respect of fish and fishries
+ Other imporatant usage affecting the rights of land owners, cultivators or other person
«codeList»
Spatial Unit::
Pk_SurfaceRelationType
+ mixed
+ below
+ above
+ onSurface
«codeList»
Spatial Unit::
Pk_BuildingUnitType
+ shared
+ individual
«codeList»
Spatial Unit::
Pk_LevelContentType
+ building
+ customary
+ mixed
+ network
+ primaryRight
+ responsibility
+ restriction
+ informal
«codeList»
Spatial Unit::
Pk_AreaType
+ officialArea
+ nonOfficalArea
+ calculatedArea
+ surveyedArea
«codeList»
Spatial Unit::
Pk_StructureType
+ point
+ polygon
+ text
+ topological
+ unstructuredLine
+ sketch
«featureType»
Special Classes::LA_Source
+ acceptance :DateTime [0..1]
+ extArchiveID :Oid [0..1]
+ lifeSpanStamp :DateTime [0..1]
+ maintype :CI_PresentationFormCode [0..1]
+ recordation :DateTime [0..1]
+ sID :Oid
+ submission :DateTime [0..1]
«invariant»
{if no link to ExtArchive then text in
LA_AdministrativeSource or
measurements in LA_SpatialSource}
«codeList»
Surveying and Representation::
Pk_MonumentationType
+ MasonaryOrStonePillar
+ MudPillar
+ notMarked
+ TrijunctionPillars
«codeList»
Surveying and
Representation::
Pk_SpatialSourceType
+ fieldSketch
+ gnssSurvey
+ relativeMeasurement
+ orthoPhoto
+ topoMap
+ video
«codeList»
Surveying and
Representation::
Pk_InterpolationType
+ midArc
+ start
+ end
+ mid
+ isolated
«codeList»
Surveying and
Representation::
Pk_PointType
+ source
+ control
+ noSource
«codeList»
Pk_transactionType
+ originalSurveyedParcel
+ mergingParcelTransaction
+ splittingParcelTransaction
+ addingParcelTransaction
+ updatingParcelTrasaction
«codeList»
Pk_transactionName
+ partition
+ sales
+ mortgageWithPosession
+ redemption
+ excahnge
+ gifts
+ nautor
+ conversionOfBaranFieldIntoIrrigatedLand
+ separateCultivationOfShareholders
+party 0..1
+rrr
0..*
0..*
baunitAsParty
0..*
+rrr 1..*
+baunit
1
0..*
0..*
0..*
0..*
+whole
0..*
+part
1..*
+element
1..*
+set
0..1
+level
0..1
+su
0..*
0..*
minus
0..*0..*
plus 0..*
0..1
referencePoint
0..1
0..*
0,2..*
{ordered}
0..*
0..*
+surveyor
1..*
0..*
+source
0..1
0..*
+sourcePoint
1..*
+source
1..*
1..*
1..*
0..*
plus
0..*
0..*0,3..*
{ordered}
+source
0..1 0..*
0..*
minus
0..*
+baunit 0..*
+overview 0..*
+rrr
0..*
+overview
0..*
+party
0..*
+overview 0..*
+overview 0..*
+spatialUnit
1
+spatialUnit
0..*
+map
0..*
+map
0..*
+level
0..*
+represented by 0..1
0..*
3.3.2 Iteration 1-PIM
55

56
3.3.2 Features of Designed PIM
1) Consists of 4 types of sub classes
class Pakistan
Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Ve
«featureType»
+ areaType :Pk_AreaType [0..*]
+ sourceParcel :array
+ n_LB_East :int
+ n_LB_West :int
+ n_LB_North :int
+ n_LB_South :int
+ n_status :boolean
+ pk_spatialunit_current() :Pk_SpatialUnit
+ pk_spatialunit_update()
+ pk_spatialunit_del()
+ pk_spatialunit_insert()
«rule»
«trigger»
«featureType»
+ sugID :Oid
+ hierachyLevelID :Integer
+ hierarchyName :CharacterString [0..1]
+ labelName :CharacterString [0..1]
+ geometry :GM_Multisurface
constraints
{relavant spatial units within spatial unit group}
«featureType»
+ geometry :GM_Multicurve
«featureType»
Spatial Unit::Pk_Lev el
+ IID :Oid
+ name :char(50) [0..1]
+ registerType :Pk_RegisterType
+ structure :Pk_StructureType
+ type :Pk_LevelContentType [0..1]
+ status :boolean [0..1]
«featureType»
Spatial Unit::
+ lID :Oid
+ structure :Pk_StructureType [0..1]
+ contentType :Pk_LevelContentType [0..1]
«invariant»
+level
0..1
+su
0..*
+whole
*
+part
*
+element
1..*
+set
0..1

57
1) Consists of 4 types of sub classes
class Pakistan
EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered
«featureType»
+ n_LB_East :int
+ n_LB_West :int
+ n_LB_North :int
+ n_LB_South :int
+ n_status :boolean
«rule»
«trigger»
«featureType»
+ sugID :Oid
+ hierachyLevelID :Integer
+ hierarchyName :CharacterString [0..1]
+ labelName :CharacterString [0..1]
+ geometry :GM_Multisurface
constraints
{relavant spatial units within spatial unit group}
«featureType»
+ geometry :GM_Multicurve
«featureType»
Spatial Unit::Pk_Lev el
+ IID :Oid
+ name :char(50) [0..1]
+ structure :Pk_StructureType
+ type :Pk_LevelContentType [0..1]
+ status :boolean [0..1]
«featureType»
Spatial Unit::
+ lID :Oid
+ structure :Pk_StructureType [0..1]
+ contentType :Pk_LevelContentType [0..1]
«invariant»
+level
0..1
+su
0..*
+whole
*
+part
*
+element
1..*
+set
0..1

2) Standard LADM Attributes and
Specific attributes related to a
particular country.

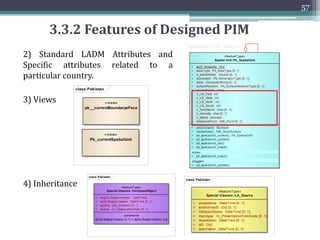

3) Views
4) Inheritance
58

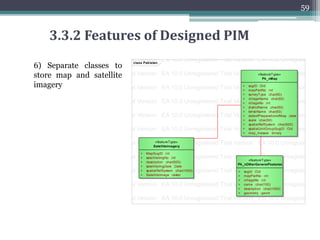

3.3.2 Features of Designed PIMclass Pakistan
0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version
«featureType»
+ n_LB_East :int
+ n_LB_West :int
+ n_LB_North :int
+ n_LB_South :int
+ n_status :boolean
«rule»
«trigger»
«invariant»
class Pakistan
«view»
Pk_currentSpatialUnit
«view»
pk__currentBoundaryeFace
class Pakistan
«featureType»
constraints
class Pakistan
nregistered Trial Version EA 10.0 Unregistered Trial Version
«featureType»
Special Classes::LA_Source
+ acceptance :DateTime [0..1]
+ extArchiveID :Oid [0..1]
+ lifeSpanStamp :DateTime [0..1]
+ maintype :CI_PresentationFormCode [0..1]
+ recordation :DateTime [0..1]
+ sID :Oid
+ submission :DateTime [0..1]

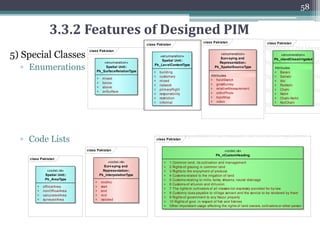

5) Special Classes
▫ Enumerations
▫ Code Lists
59
class Pakistan
«enumaration»
Spatial Unit::
Pk_SurfaceRelationType
+ mixed
+ below
+ above
+ onSurface
class Pakistan
«enumaration»
Spatial Unit::
Pk_LevelContentType
+ building
+ customary
+ mixed
+ network
+ primaryRight
+ responsibility
+ restriction
+ informal
class Pakistan
«enumeration»
Surveying and
Representation::
Pk_SpatialSourceType
Attributes
+ fieldSketch
+ gnssSurvey
+ relativeMeasurement
+ orthoPhoto
+ topoMap
+ video
class Pakistan
EA 10.0 Unregistered Trial Versio
«enumeration»
Pk_nlandClassIrrigated
Attributes
+ Barani
+ Sailabi
+ Abi
+ Rodkohi
+ Chahi
+ Nehri
+ Chahi-Nehri
+ NulChahi
class Pakistan
«codeList»
Spatial Unit::
Pk_AreaType
+ officialArea
+ nonOfficalArea
+ calculatedArea
+ surveyedArea
class Pakistan
EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial
«codeList»
Pk_nCustomHeading
+ 1 Common land, its cultivation and management
+ 2 Rights of grazing in common land
+ 3 Rights to the enjoyment of produce
+ 4 Customs related to the irrigation of land
+ 5 Customs relating to mills, tanks, streams, naural drainage
+ 6 Customs of alluvion and dilluvion
+ 7 The rights to cultivators of all classes not expressly provided for by-law
+ 8 Customry dues payable to village servant and the service to be rendered by them
+ 9 Rights of government to any Nazul property
+ 10 Rights of govt. in respect of fish and fishries
+ Other imporatant usage affecting the rights of land owners, cultivators or other person
class Pakistan
«codeList»
Surveying and
Representation::
Pk_InterpolationType
+ midArc
+ start
+ end
+ mid
+ isolated

60
class Pakistan
EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered T
«featureType»
Pk_nOtherGeneralFeatures
+ sugId :Oid
+ mapPartNo :int
+ villageNo :int
+ name :char(100)
+ description :char(1000)
+ geometry :geom
«featureType»
Pk_nMap
+ sugID :Oid
+ mapPartNo :int
+ surveyType :char(50)
+ villageName :char(50)
+ villageNo :int
+ districtName :char(50)
+ tehsilName :char(50)
+ dateofPreparationofMap :date
+ scale :char(50)
+ spatialRefSystem :char(500)
+ spatialUnitGroupSugID :Oid
+ map_masawi :binary
«featureType»
SatelliteImagery
+ MapSugID :int
+ satelliteImgNo :int
+ description :char(500)
+ satelliteImgDate :Date
+ spatialRefSystem :char(1000)
+ SatelliteImage :raster
6) Separate classes to
store map and satellite
imagery

61

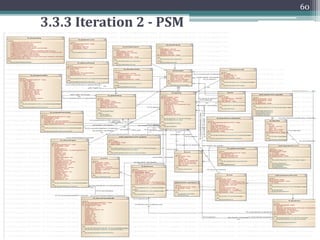

class DDL
EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version EA 1
«enumeration»
Pakistan::Cl_RoleCode
Attributes
+ resourceProvider
+ custodian
+ owner
+ user
+ distributor
+ originator
+ pointofContact
+ principalInvestigator
+ publisher
+ processor
+ author
«enumeration»
Pakistan::
DQ_Ev aluationMethodTypeCode
Attributes
+ directExternal
+ directInternal
+ inderict
«DataType»
Pakistan::Cl_Contact
+ phone :int [0..1]
+ address :char [0..1]
+ onlineResource :char [0..1]
+ hoursOfService :char [0..1]
+ contactInstructions :char [0..1]
«D
Pakista
+ title :char(100
+ alternateTitle
+ date :DateTim
+ edition :char(
+ editionDate :
+ identifier :int
+ citedResponsi
+ PresentationF
+ series :char(1
+ otherCitationD
+ collectiveTitle
+ ISBN :char(20
+ ISSN :char(20
«DataType»
Pakistan::Cl_ResponsibleParty
+ individualName :char [0..1]
+ organizationName :char [0..1]
+ positionName :char [0..1]
+ contactInfo :Cl_Contact
+ role :Cl_RoleCode
«DataType»
Pakistan::DQ_Element
+ nameOfMeasure :char [0..1]
+ measureIdentification :int [0..1]
+ measureDescription :char [0..1]
+ evaluationMethodType :DQ_EvaluationMethodTypeCode [0..1]
+ evaluationMethodDescription :char [0..1]
+ evaluationProcedure :Cl_Citation
+ dateTime :DateTime [0..*]
+ result :DQ_Result [1..2]
VersionedObject
«column»
beginLifespanVersion :DateTime
endLifespanVersion :DateTime
quality :DQ_Element
source :CI_ResponsibleParty
*PK versionedObjectID :integer
«PK»
+ PK_VersionedObject(integer)
Pk_nParentCodeLists
«column»
codeListName :char(200)
codeListDescription :char(1000)
className :char(50)
tableName :char(50)
*PK pk_nParentCodeListsID :Integer
«PK»
+ PK_Pk_nParentCodeLists(smallint)
«index»
+ idx_Pk_nParentCodeLists()
Pk_nParentDataTypeList
«column»
dataTypeName :char(100)
dataTypeDescription :char(1000)
className :char(50)
tableName :char(50)
*PK pk_nParentDataTypeListID :Integer
«PK»
+ PK_Pk_nParentDataTypeList(smallint)
«index»
+ idx_Pk_nParentDataTypeList()
Pk_nParentEnumaration
«column»
enumerationName :char(200)
enumerationDescription :char(1000)
className :char(50)
tableName :char(50)
*PK pk_nParentEnumarationID :Integer
«PK»
+ PK_Pk_nParentEnumaration(smallint)
«index»
+ idx_Pk_nParentEnumaration()
Pk_SpatialUnit
«column»
*pfK suID_khasraNo :integer
FK pk_LevelID :integer
n_areaWritten :double
dimension :Pk_DimensionType
label :CharacterString
surfaceRelation :Pk_SurfaceRelationType
n_LB_East :int
n_LB_West :int
n_LB_North :int
n_LB_South :int
n_fieldName :char
n_status :boolean
referencePoint :GM_Point
«FK»
+ FK_Pk_SpatialUnit_Pk_SpatialUnit(integer)
+ FK_Pk_SpatialUnit_Pk_Leve()
«PK»
+ PK_Pk_SpatialUnit(integer)
«index»
+ idx_suID_khasraNo()
JoinPk_SpatialUnitGroupToPk_SpatialUnit
«column»
*PK Id :integer
FK suID_khasraNo :integer
sugID :integer
«FK»
+ FK_JoinPk_SpatialUnitGroupToPk_SpatialUnit_Pk_SpatialUnit(integer)
+ FK_JoinTableToSpatialUnitGroup(integer)
«PK»
+ PK_JoinPk_SpatialUnitGroupToPk_SpatialUnit(integer)
JoinPk_SpatialUnitToPk_RegionMap
«column»
*pfK pk_SuidKhasraNo :integer
*pfK pk_RegionMapID :integer
Id :integer
FK pk_SpatialUnitID :Integer
«PK»
+ PK_JoinPk_SpatialUnitToPk_RegionMap(integer, integer)
«FK»
+ Fk_Pk_RegionMap(smallint)
+ Fk_Pk_SpatialUnit(smallint)
+ Pk_RegionMap(integer)
+ Pk_SpatialUnit(Integer)
«codeList»
Spatial Unit::
Pk_RegisterType
+ urban
+ rural
+ mining
+ publicSpace
+ forest
+ all
«codeList»
Spatial Unit::
Pk_DimensionTy
+ 0D
+ 1D
+ 2D
+ 3D
+ liminal
«codeList»
Spatial Unit::
Pk_AreaType
+ officialArea
+ nonOfficalArea
+ calculatedArea
+ surveyedArea
«cod
Spatia
Pk_Struc
+ point
+ polygon
+ text
+ topolog
+ unstruct
+ sketch
Remarks
«column»
*PK Id :integer
reamarksDescription :char(1000)
areaType :char(10)
«FK»
+ FK_Remarks_Pk_SpatialUnit(integer)
«PK»
+ PK_Remarks(integer)
Pk_SpatialUnitGroup
«column»
*PK sugID :integer
hierachyLevelID :Integer
hierarchyName :CharacterString
geometry :GM_Multisurface
«PK»
+ PK_Pk_sugID(integer)
«index»
+ idx_Pk_sugID()
+ idx_Pk_geometry()
«column»
*PK pk_RequiredRelationshipSpatialUnitID :Integer
lID :Oid
name :CharacterString
registerType :Pk_RegisterType
structure :Pk_StructureType
contentType :Pk_LevelContentType
FK suId_khasraNo :integer
«FK»
+ FK_Pk_RequiredRelationshipSpatialUnit_Pk_SpatialUnit(integer)
«PK»
+ PK_Pk_RequiredRelationshipSpatialUnit(smallint)
JoinPk_RegionMapToPk_Lev el
«column»
*pfK LevelID :integer
*pfK RegionMapID :integer
* Id :integer
FK pk_LevelID :Integer
FK pk_RegionMapID :Integer
«PK»
+ PK_JoinPk_RegionMapToPk_Level(integer, integer)
«FK»
+ FK_Pk_Level(smallint)
+ FK_Pk_RegionMap(smallint)
+ Pk_Level(Integer)
+ Pk_RegionMap(Integer)
Pk_Lev el
«column»
*PK pk_LevelID :integer
IID :Oid
name :char(50)
registerType :Pk_RegisterType
structure :Pk_StructureType
type :Pk_LevelContentType
status :boolean
«PK»
+ PK_Pk_Level(integer)
Pk_LegalSpaceBuildingUnit
«column»
*PK pk_LegalSpaceBuildingUnitID :Integer
buildingUnitID :Oid
type :Pk_BuildingUnitType
geometry :GM_Multicurve
«PK»
+ PK_Pk_LegalSpaceBuildingUnit(smallint)
«trigger»
+ populateRegionMap()
Pk_nFormerSurv eyID
«column»
*PK ID :integer
formerSurveyNo :int
fieldName :char
FK pk_suID_khasraNo :integer
«FK»
+ FK_Pk_nFormerSurveyID_Pk_SpatialUnit(integer)
«PK»
+ PK_Pk_nFormerSurveyID(integer)
Pk_SpatialUnitOv erv iew
«column»
*PK pk_SpatialUnitOverviewID :Integer
overviewId :Oid
overviewDate :DateTime
suID_khasraNo :integer
«PK»
+ PK_Pk_SpatialUnitOverview(smallint)
Pk_RegionMap
«column»
lID :Oid
mapDate :DateTime
mapId :Oid
region :GM_Envelope
spatialUnitInfo :Array
*PK pk_RegionMapID :Integer
«PK»
+ PK_Pk_RegionMap(Integer)
«proc»
+ populateRegionMapTable()
LA_Source
«column»
*PK lA_SourceID :Integer
acceptance :DateTime
extArchiveID :Oid
lifeSpanStamp :DateTime
maintype :CI_PresentationFormCode
recordation :DateTime
sID :Oid
submission :DateTime
«PK»
+ PK_LA_Source(smallint)
Pk_SpatialSource
«column»
*PK pk_SpatialSourceID :Integer
measurements :OM_Observation
procedure :n_Pk_SurveyType
type :Pk_SpatialSourceType
n_pk_surveyorName :char
n_pk_designation :char
n_tatimaShajra :binary
n_Pk_TransactionType :n_Pk_transactionType
n_Pk_TransactionName :n_Pk_transactionName
«FK»
+ FK_Pk_SpatialSource_Pk_SpatialUnit(integer)
«unique»
+ UQ_Pk_SpatialSource_suID_khasraNo(integer)
«PK»
+ PK_Pk_SpatialSource(smallint)
JoinPk_PointToPk_SpatialSource
«column»
FK pk_SpatialSourceID :Integer
FK pk_PointID :Integer
Id
«FK»
+ Pk_SpatialSource(Integer)
+ Pk_Point(Integer)
Pk_Point
«column»
*PK pk_PointID :Integer
estimatedAccuracy :Length
interpolationRole :Pk_InterpolationType
monumentation :Pk_MonumentationType
originalLocation :GM_Point
pID :Oid
pointType :Pk_PointType
productionMethod :LI_Lineage
transAndResult :LA _Transformation
«FK»
+ FK_Pk_Point_Pk_SpatialUnit(integer)
«PK»
+ PK_Pk_Point(smallint)
JoinPk_BoundaryFaceToPk_Point
«column»
*PK pk_PointID :integer
*pfK pk_BoundaryFaceID :integer
Id :integer
«PK»
+ PK_JoinPk_BoundaryFaceToPk_Point(integer, integer)
«FK»
+ Pk_Point(integer)
+ Pk_BoundaryFace(smallint)
Pk_BoundaryFace
«column»
*PK pk_BoundaryFaceID :Integer
bfID :Oid
geometry :GM_MultiSurface(simplePolygon or toplogicalPolygon)
locationByText :CharaterString
computedArea :ST_Area(Polygon)
FK Pk_SpatialSourceID :integer
FK suID_KhasraNo :integer
«FK»
+ FK_Pk_BoundaryFace_Pk_SpatialSource(integer)
+ FK_Pk_BoundaryFace_Pk_SpatialUnit(integer)
«PK»
+ PK_Pk_BoundaryFace(smallint)
«column»
*PK pk_nLandAndSoilClassificationID :Integer
FK suId_KhasraNo :integer
LandTypeID :int
soilClassification :Pk_nsoilClassification
landClasss :Pk_nlandClassIrrigated,Pk_nlandClassUnIrrigated
extent :Pk_BoundaryFaceString
«FK»
+ FK_Pk_nLandAndSoilClassification_Pk_SpatialUnit(integer)
«PK»
+ PK_Pk_nLandAndSoilClassification(smallint)
Pk_nSourceOfIrrigation
«column»
*PK pk_nSourceOfIrrigationID :Integer
id :Oid
waterSourceID :int
nameIrrigationSource :Pk_nNameIrrigationSource
ownerID :int
ownerName :char
share :Pk_nShare
timings :Time
dateAcquisiotionRights :Date
orderNo :char
coordinates :Pk_PointType
excessWaterAvaialbility :boolean
excessWaterUtilization :char
waterCompensation :char
disilitingMode :char
waterStorageFacility :boolean
currentStatus :boolean
soilType :char
materialSpecification :char
repairDate :Date
repairReason :char
repairAmount :Money
payerName :char
paymentNature :char
«FK»
+ FK_Pk_nSourceOfIrrigation_Pk_SpatialUnit(integer)
«PK»
+ PK_Pk_nSourceOfIrrigation(smallint)
Pk_nSourceofIrrigationWaterMill
«column»
*PK pk_nSourceofIrrigationWaterMillID :Integer
FK pk_nSourceOfIrrigationID :Integer
FK pk_SpatialUnitID :Integer
id :Oid
currentStatus :int
constructionExpenditure :char
orderNo :char
timings :Time
govtTax :Money
ownerName :int
sharerName :char
millShare :char
waterShare :char
asbianShare :char
sourceOfIrrigationID :int
suid_KhasraNo :int
«FK»
+ FK_Pk_nSourceofIrrigationWaterMill_Pk_nSourceOfIrrigation(Integer)
+ FK_Pk_nSourceofIrrigationWaterMill_Pk_SpatialUnit(Integer)
«PK»
+ PK_Pk_nSourceofIrrigationWaterMill(smallint)
Pk_nChangesInKindofSoil
«column»
*PK pk_nChangesInKindofSoilID :Integer
FK sugId :integer
c_Chahi :Rational
c_Nehri :Rational
c_Barani :Rational
c_Other :Rational
c_Total :Rational
c_dfrncPreviousYear :Rational
uc_BanjarKham :Rational
uc_BanjarJadid :Rational
uc_BanjarQadim :Rational
uc_Other :Rational
uc_Total :Rational
uc_dfrncPreviousYear :Rational
grandTotal :Rational
«FK»
+ FK_Pk_nChangesInKindofSoil_Pk_SpatialUnitGroup(integer)
«PK»
+ PK_Pk_nChangesInKindofSoil(smallint)
Pk_nStatementOfCustoms
«column»
*PK pk_nStatementOfCustomsID :Integer
FK sugID :integer
id :Oid
typeCode :int
customHeading :Pk_nCustomHeading
customInformation :char
«FK»
+ FK_Pk_nStatementOfCustoms_Pk_SpatialUnitGroup(integer)
«PK»
+ PK_Pk_nStatementOfCustoms(smallint)
Pk_nCustomHeading
«column»
1 Common land, its cultivation and management
2 Rights of grazing in common land
3 Rights to the enjoyment of produce
4 Customs related to the irrigation of land
5 Customs relating to mills, tanks, streams, naural drainage
6 Customs of alluvion and dilluvion
7 The rights to cultivators of all classes not expressly provided for by-law
8 Customry dues payable to village servant and the service to be rendered by them
9 Rights of government to any Nazul property
10 Rights of govt. in respect of fish and fishries
Other imporatant usage affecting the rights of land owners, cultivators or other person
*PK pk_nCustomHeadingID :Integer
«PK»
+ PK_Pk_nCustomHeading(Integer)
+FK_Remarks_Pk_SpatialUnit
0..*
(suID_khasraNo = suID_khasraNo)
«FK»
+PK_Pk_SpatialUnit
1
+FK_Pk_RequiredRelationshipSpatialUnit_Pk_Spatia...
0..*
(suId_khasraNo=suID_khasraNo)
«FK»
+PK_Pk_SpatialUnit
1
+FK_JoinTableToSpatialUnitGroup 0..*
(suID_khasraNo = sugID)
«FK»
+PK_Pk_sugID
1
+FK_JoinPk_SpatialUnitGroupToPk_SpatialUnit_Pk_S...
0..*
«FK»
+PK_Pk_SpatialUnit
1
+FK_Pk_SpatialUnit_Pk_SpatialUnit
0..*
«FK»
+PK_Pk_SpatialUnit
1
+FK_Pk_SpatialUnitGroup_Pk_SpatialUnitGroup0..*
(sugID = sugID)
«FK»
+PK_Pk_sugID
1
+FK_Pk_nFormerSurveyID_Pk_SpatialUnit
0..*
(pk_suID_khasraNo = suID_khasraNo)
«FK»
+PK_Pk_SpatialUnit
1
+FK_Pk_SpatialUnit_Pk_Level 0..*
«FK»
+PK_Pk_Level 1
*1
+FK_JoinPk_RegionMapToPk_Le
*
«FK»
+PK_Pk_RegionMap
1
+FK_JoinPk_SpatialUnitToPk_RegionMap_Pk_RegionMap
*
1
1
+FK_Pk_SpatialSource_Pk_SpatialUnit 0..*
«FK»
+PK_Pk_SpatialUnit 1
+FK_Pk_Point_Pk_SpatialUnit
0..*
«FK»
+FK_Pk_BoundaryFace_Pk_SpatialUnit
0..*
(suID_KhasraNo = suID_khasraNo)
«FK»
+PK_Pk_SpatialUnit
1
+FK_Pk_BoundaryFace_Pk_SpatialSource
0..*
(Pk_SpatialSourceID = pk_SpatialSourceID)
«FK»
+PK_Pk_SpatialSource 1
+FK_Pk_nLandAndSoilClassification_Pk_SpatialUnit
0..*
(suId_KhasraNo = suID_khasraNo)
«FK»
+PK_Pk_SpatialUnit
1
+FK_Pk_nSourceOfIrrigation_Pk_SpatialUnit
0..*
«FK»
+PK_Pk_SpatialUnit
1
+FK_Pk_nSourceofIrrigationWaterMill_Pk_nSourceOf... 0..*
(pk_nSourceOfIrrigationID = pk_nSourceOfIrrigationID)
«FK»
+PK_Pk_nSourceOfIrrigation
1
+FK_Pk_nSourceofIrrigationWaterMill_Pk_SpatialUnit 0..*
(pk_SpatialUnitID = suID_khasraNo)
«FK»
+FK_Pk_nChangesInKindofSoil_Pk_SpatialUnitGroup
0..*
(sugId = sugID)
«FK»
+PK_Pk_sugID
1
+FK_Pk_nStatementOfCustoms_Pk_SpatialUnitGroup 0..*
(sugID = sugID)
«FK»
+PK_Pk_sugID 1
3.3.3 Iteration 2 - PSM

• Transformation from object oriented UML model (PIM) to a
Platform Specifc Model, targeting an object relational PostgreSQL
databse, with a PostGIS extension for spatial data and functions
• Transformation will convert:
▫ Classes = Tables
▫ Attributes = Columns
▫ Association = Relationship Tables (in case of RDBMS relationships and
intersection tables to represent many to many associations)
▫ Generate primary and foreign keys
▫ Code Lists = Look up tables
▫ ISO 19107 data types GM_Point, GM_Multisurface = PostGIS geometry
data type.
▫ Generate simple and geometry indices
62

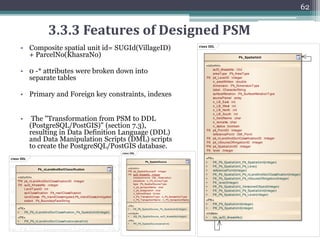

3.3.3 Features of Designed PSM

• Composite spatial unit id= SUGId(VillageID)
+ ParcelNo(KhasraNo)
• 0 -* attributes were broken down into
separate tables
• Primary and Foreign key constraints, indexes
• The "Transformation from PSM to DDL
(PostgreSQL/PostGIS)" (section 7.3),
resulting in Data Definition Language (DDL)
and Data Manipulation Scripts (DML) scripts
to create the PostgreSQL/PostGIS database.
63
3.3.3 Features of Designed PSM
class DDL
Version EA 10.0 Unregistered Trial Version
Pk_SpatialUnit
«column»
suID_khasraNo :Oid
areaType :Pk_AreaType
FK pk_LevelID :integer
n_areaWritten :double
dimension :Pk_DimensionType
surfaceRelation :Pk_SurfaceRelationType
sourceParcel :array
n_LB_East :int
n_LB_West :int
n_LB_North :int
n_LB_South :int
n_fieldName :char
n_remarks :char
n_status :boolean
FK pk_PointID :Integer
FK pk_nLandAndSoilClassificationID :Integer
FK pk_nSourceOfIrrigationID :Integer
*PK pk_SpatialUnitID :Integer
FK level :Integer
«FK»
+ FK_Pk_SpatialUnit_Pk_SpatialUnit(integer)
+ FK_Pk_SpatialUnit_Pk_Leve()
+ referencePoint(Integer)
+ FK_Pk_SpatialUnit_Pk_nLandAndSoilClassification(Integer)
+ FK_Pk_SpatialUnit_Pk_nSourceOfIrrigation(Integer)
+ FK_level(Integer)
+ FK_Pk_SpatialUnit_VersionedObject(Integer)
+ FK_Pk_SpatialUnit_Pk_SpatialUnit(Integer)
+ FK_Pk_SpatialUnit_Pk_Level(integer)
«PK»
+ PK_Pk_SpatialUnit(Integer)
+ PK_Pk_SpatialUnit(integer)
«index»
+ idx_suID_khasraNo()
class DDL
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version
red Trial Version Pk_SpatialSource
«column»
*PK pk_SpatialSourceID :Integer
measurements :OM_Observation
procedure :n_Pk_SurveyType
type :Pk_SpatialSourceType
n_pk_surveyorName :char
n_pk_designation :char
n_tatimaShajra :binary
n_Pk_TransactionType :n_Pk_transactionType
n_Pk_TransactionName :n_Pk_transactionName
«FK»
+ FK_Pk_SpatialSource_Pk_SpatialUnit(integer)
«unique»
+ UQ_Pk_SpatialSource_suID_khasraNo(integer)
«PK»
+ PK_Pk_SpatialSource(smallint)
class DDL
Version EA 10.0 Unregistered Trial Version EA 10.0 Unregistered Trial Version
«column»
*PK pk_nLandAndSoilClassificationID :Integer
FK suId_KhasraNo :integer
LandTypeID :int
soilClassification :Pk_nsoilClassification
landClasss :Pk_nlandClassIrrigated,Pk_nlandClassUnIrrigated
extent :Pk_BoundaryFaceString
«FK»
+ FK_Pk_nLandAndSoilClassification_Pk_SpatialUnit(integer)
«PK»
+ PK_Pk_nLandAndSoilClassification(smallint)

64

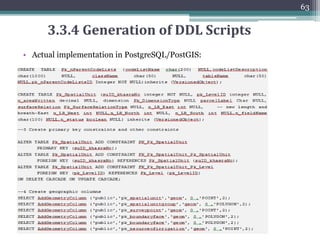

3.3.4 Generation of DDL Scripts
• Actual implementation in PostgreSQL/PostGIS:

1) Create enumerations and Data Types - For example
Pk_DimensionType.
2) Create Tables
3) Create Geographic Columns
4) Create Primary Key Constraints Primary key constraints.
5) Create Constraints The non-primary key base table constraints are
generated (Unique key [uk], Check [check], and Foreign key [fk]
constraint).
6) Create Indexes
7) Create Views
8) Populate Look-up Tables <<CodeList>> tables will be populated with
a DML insert script
65

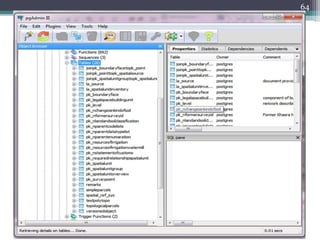

3.3.4 Implementation of the Adapted
LADM Packages in PostgreSQL

3.3.5 Historical Data Maintenance Through
Adaptive LADM Survey Package
• Class VersionedObject : To manage and maintain historical
data in the database.
66
class Pakistan
«featureType»
constraints

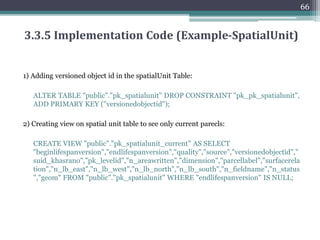

1) Adding versioned object id in the spatialUnit Table:
ALTER TABLE "public"."pk_spatialunit" DROP CONSTRAINT "pk_pk_spatialunit",
ADD PRIMARY KEY ("versionedobjectid");
2) Creating view on spatial unit table to see only current parecls:
CREATE VIEW "public"."pk_spatialunit_current" AS SELECT
"beginlifespanversion","endlifespanversion","quality","source","versionedobjectid","
suid_khasrano","pk_levelid","n_areawritten","dimension","parcellabel","surfacerela
tion","n_lb_east","n_lb_west","n_lb_north","n_lb_south","n_fieldname","n_status
","geom" FROM "public"."pk_spatialunit" WHERE "endlifespanversion" IS NULL;
67

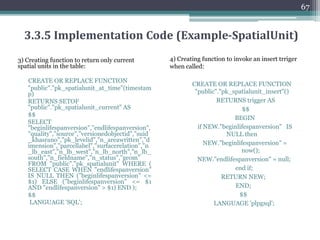

3.3.5 Implementation Code (Example-SpatialUnit)

3) Creating function to return only current
spatial units in the table:
CREATE OR REPLACE FUNCTION
"public"."pk_spatialunit_at_time"(timestam
p)
RETURNS SETOF
"public"."pk_spatialunit_current" AS
$$
SELECT
"beginlifespanversion","endlifespanversion",
"quality","source","versionedobjectid","suid
_khasrano","pk_levelid","n_areawritten","d
imension","parcellabel","surfacerelation","n
_lb_east","n_lb_west","n_lb_north","n_lb_
south","n_fieldname","n_status","geom"
FROM "public"."pk_spatialunit" WHERE (
SELECT CASE WHEN "endlifespanversion"
IS NULL THEN ("beginlifespanversion" <=
$1) ELSE ("beginlifespanversion" <= $1
AND "endlifespanversion" > $1) END );
$$
LANGUAGE 'SQL';
68
4) Creating function to invoke an insert trriger
when called:
CREATE OR REPLACE FUNCTION
"public"."pk_spatialunit_insert"()
RETURNS trigger AS
$$
BEGIN
if NEW."beginlifespanversion" IS
NULL then
NEW."beginlifespanversion" =
now();
NEW."endlifespanversion" = null;
end if;
RETURN NEW;
END;
$$
LANGUAGE 'plpgsql';

69

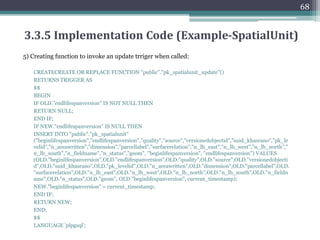

5) Creating function to invoke an update trriger when called:
CREATECREATE OR REPLACE FUNCTION "public"."pk_spatialunit_update"()
RETURNS TRIGGER AS
$$
BEGIN
IF OLD."endlifespanversion" IS NOT NULL THEN
RETURN NULL;
END IF;
IF NEW."endlifespanversion" IS NULL THEN
INSERT INTO "public"."pk_spatialunit"
("beginlifespanversion","endlifespanversion","quality","source","versionedobjectid","suid_khasrano","pk_le
velid","n_areawritten","dimension","parcellabel","surfacerelation","n_lb_east","n_lb_west","n_lb_north","
n_lb_south","n_fieldname","n_status","geom", "beginlifespanversion", "endlifespanversion") VALUES
(OLD."beginlifespanversion",OLD."endlifespanversion",OLD."quality",OLD."source",OLD."versionedobjecti
d",OLD."suid_khasrano",OLD."pk_levelid",OLD."n_areawritten",OLD."dimension",OLD."parcellabel",OLD.
"surfacerelation",OLD."n_lb_east",OLD."n_lb_west",OLD."n_lb_north",OLD."n_lb_south",OLD."n_fieldn
ame",OLD."n_status",OLD."geom", OLD."beginlifespanversion", current_timestamp);
NEW."beginlifespanversion" = current_timestamp;
END IF;
RETURN NEW;
END;
$$
LANGUAGE 'plpgsql';

6) Creating rule to set
endlifspanversion attribute in
case of delete:
CREATE RULE
"pk_spatialunit_del" AS ON
DELETE TO
"public"."pk_spatialunit“ DO
INSTEAD UPDATE
"public"."pk_spatialunit" SET
"endlifespanversion" =
current_timestamp WHERE
"versionedobjectid" =
OLD."versionedobjectid" AND
"endlifespanversion" IS NULL;
70
7) Creating triggers to call update and
insert function upon each row update
or insert:
CREATE TRIGGER "pk_spatialunit_update"
BEFORE UPDATE ON
"public"."pk_spatialunit"
FOR EACH ROW EXECUTE PROCEDURE
"public"."pk_spatialunit_update"();
CREATE TRIGGER "pk_spatialunit_insert"
BEFORE INSERT ON
"public"."pk_spatialunit"
FOR EACH ROW EXECUTE PROCEDURE
"public"."pk_spatialunit_insert"();

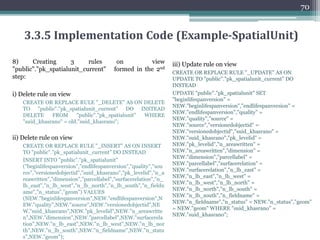

8) Creating 3 rules on view
"public"."pk_spatialunit_current" formed in the 2nd
step:
i) Delete rule on view
CREATE OR REPLACE RULE "_DELETE" AS ON DELETE
TO "public"."pk_spatialunit_current" DO INSTEAD
DELETE FROM "public"."pk_spatialunit" WHERE
"suid_khasrano" = old."suid_khasrano";
ii) Delete rule on view
CREATE OR REPLACE RULE "_INSERT" AS ON INSERT
TO "public"."pk_spatialunit_current" DO INSTEAD
INSERT INTO "public"."pk_spatialunit"
("beginlifespanversion","endlifespanversion","quality","sou
rce","versionedobjectid","suid_khasrano","pk_levelid","n_a
reawritten","dimension","parcellabel","surfacerelation","n_
lb_east","n_lb_west","n_lb_north","n_lb_south","n_fieldn
ame","n_status","geom") VALUES
(NEW."beginlifespanversion",NEW."endlifespanversion",N
EW."quality",NEW."source",NEW."versionedobjectid",NE
W."suid_khasrano",NEW."pk_levelid",NEW."n_areawritte
n",NEW."dimension",NEW."parcellabel",NEW."surfacerela
tion",NEW."n_lb_east",NEW."n_lb_west",NEW."n_lb_nor
th",NEW."n_lb_south",NEW."n_fieldname",NEW."n_statu
s",NEW."geom");
71
iii) Update rule on view
CREATE OR REPLACE RULE "_UPDATE" AS ON
UPDATE TO "public"."pk_spatialunit_current" DO
INSTEAD
UPDATE "public"."pk_spatialunit" SET
"beginlifespanversion" =
NEW."beginlifespanversion","endlifespanversion" =
NEW."endlifespanversion","quality" =
NEW."quality","source" =
NEW."source","versionedobjectid" =
NEW."versionedobjectid","suid_khasrano" =
NEW."suid_khasrano","pk_levelid" =
NEW."pk_levelid","n_areawritten" =
NEW."n_areawritten","dimension" =
NEW."dimension","parcellabel" =
NEW."parcellabel","surfacerelation" =
NEW."surfacerelation","n_lb_east" =
NEW."n_lb_east","n_lb_west" =
NEW."n_lb_west","n_lb_north" =
NEW."n_lb_north","n_lb_south" =
NEW."n_lb_south","n_fieldname" =
NEW."n_fieldname","n_status" = NEW."n_status","geom"
= NEW."geom" WHERE "suid_khasrano" =
NEW."suid_khasrano";

72

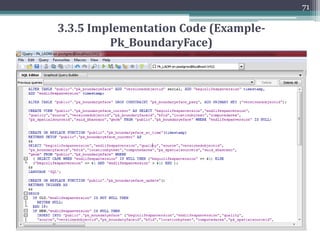

3.3.5 Implementation Code (Example-
Pk_BoundaryFace)

To Implement the Adapted Design
Objective 4:

74

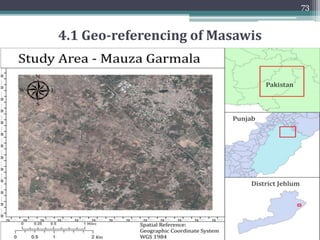

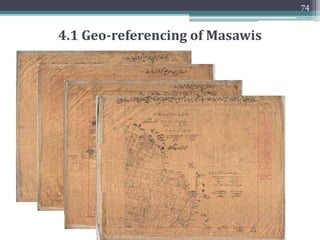

4.1 Geo-referencing of Masawis

75

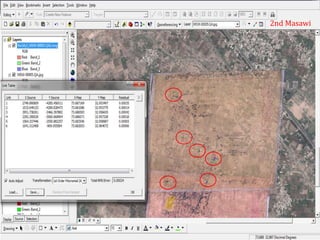

76

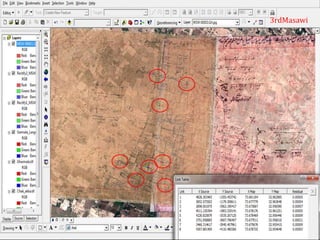

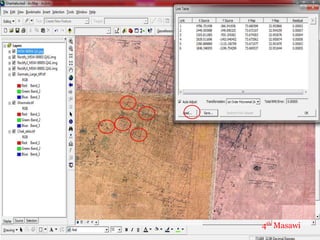

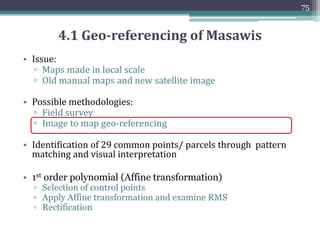

• Issue:
▫ Maps made in local scale
▫ Old manual maps and new satellite image
• Possible methodologies:
▫ Field survey
▫ Image to map geo-referencing

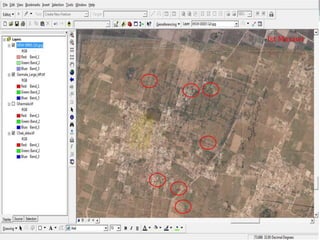

• Identification of 29 common points/ parcels through pattern
matching and visual interpretation

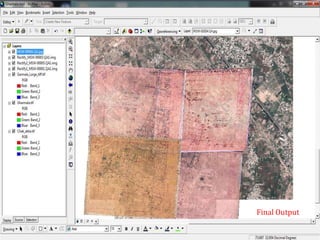

• 1st order polynomial (Affine transformation)
▫ Selection of control points
▫ Apply Affine transformation and examine RMS
▫ Rectification

• Importing digitzed shape files into there respective tables in PostGIS using
to shptopgSQL tool:
▫ Mauza Parcels -> Surveying and Representation:: Pk_Boundary Face
▫ Parcel Nodes -> Surveying and Representation:: Pk_Point
▫ Parcel Edges -> Surveying and Representation:: Pk_BoundaryfaceString
▫ Water Source -> Pk_nSourceOfIrrigation and Pk_nSourceOfIrrigationWaterMill
▫ Survey Marks -> Pk_Point
▫ Mauza boundary -> Pk_SpatialUnitGroup
▫ Other Features(Roads, Urban area) - > Pk_nOtherGeneralFeatures
▫ Masawi and satellite imagery -> Pk_nmap and satelliteImagery
83
4.2 Importing Geometry into DB

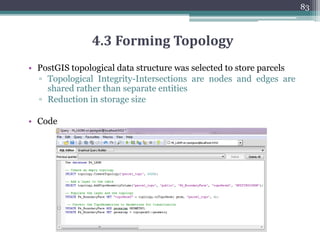

4.3 Forming Topology
• PostGIS topological data structure was selected to store parcels
▫ Topological Integrity-Intersections are nodes and edges are
shared rather than separate entities
▫ Reduction in storage size
• Code
84

85

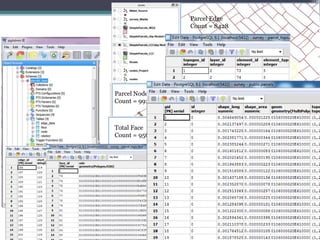

Parcel Edge
Count = 8428
Parcel Node
Count = 9925
Total Face
Count = 956

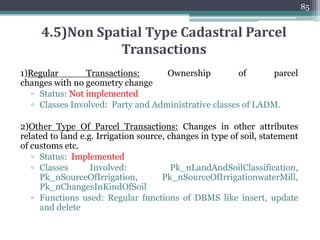

4.5)Non Spatial Type Cadastral Parcel
Transactions
1)Regular Transactions: Ownership of parcel
changes with no geometry change
▫ Status: Not implemented
▫ Classes Involved: Party and Administrative classes of LADM.
2)Other Type Of Parcel Transactions: Changes in other attributes
related to land e.g. Irrigation source, changes in type of soil, statement
of customs etc.
▫ Status: Implemented
▫ Classes Involved: Pk_nLandAndSoilClassification,
Pk_nSourceOfIrrigation, Pk_nSourceOfIrrigationwaterMill,
Pk_nChangesInKindOfSoil
▫ Functions used: Regular functions of DBMS like insert, update
and delete
86

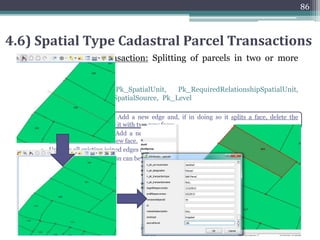

1) Splitting Parcel Transaction: Splitting of parcels in two or more
parts
▫ Classes Involved: Pk_SpatialUnit, Pk_RequiredRelationshipSpatialUnit,
Pk_boundaryFace, Pk_SpatialSource, Pk_Level
▫ Functions used:
▫ ST_AddEdgeNewFaces: Add a new edge and, if in doing so it splits a face, delete the
original face and replace it with two new faces.
▫ ST_AddEdgeModFace: Add a new edge and, if in doing so it splits a face, modify the
original face and add a new face.
▫ Updates all existing joined edges and relationships accordingly.
▫ Parent parcel information can be stored in sourceParcel attribute of table Pk_spatialUnit
87

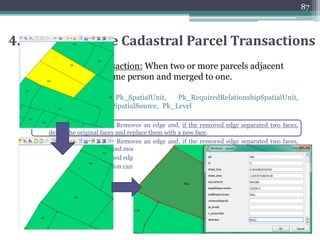

4.6) Spatial Type Cadastral Parcel Transactions

89
2) Merging Parcel Transaction: When two or more parcels adjacent
parcels are owned by same person and merged to one.
▫ Classes Involved: Pk_SpatialUnit, Pk_RequiredRelationshipSpatialUnit,
Pk_boundaryFace, Pk_SpatialSource, Pk_Level
▫ Functions used:
▫ ST_RemEdgeNewFace: Removes an edge and, if the removed edge separated two faces,
delete the original faces and replace them with a new face.
▫ ST_RemEdgeModFace: Removes an edge and, if the removed edge separated two faces,
delete one of the them and modify the other to take the space of both.
▫ Updates all existing joined edges and relationships accordingly.
▫ Parent parcel information can be stored in sourceParcel attribute of table Pk_spatialUnit

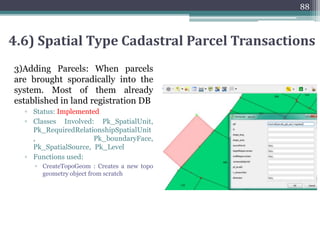

3)Adding Parcels: When parcels
are brought sporadically into the
system. Most of them already
established in land registration DB
▫ Classes Involved: Pk_SpatialUnit,
, Pk_boundaryFace,
Pk_SpatialSource, Pk_Level
▫ Functions used:
▫ CreateTopoGeom : Creates a new topo
geometry object from scratch
91

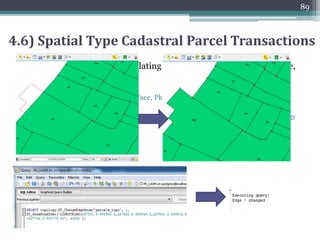

4)Updating Parcels: Manipulating either boundary or attribute,
updating its quality.
▫ Classes Involved: Pk_boundaryFace, Pk_SpatialSource
▫ Functions used:
▫ ST_ChangeEdgeGeom – Changes the shape of an edge without affecting the topology
structure.
92

93

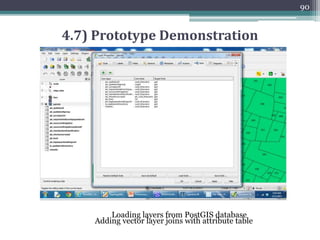

4.7) Prototype Demonstration
94
Loading layers from PostGIS database

4.7) Prototype Demonstration
95
Adding vector layer joins with attribute table

96

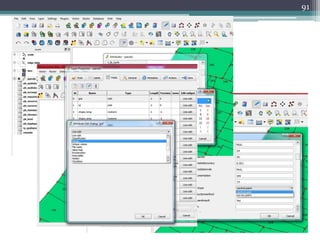

Edit widget and choose a fixed set of values that can be chosen

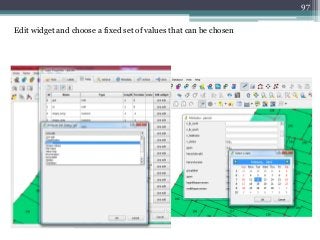

97
Edit widget and choose a fixed set of values that can be chosen

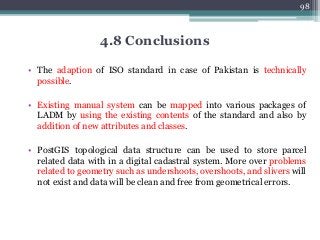

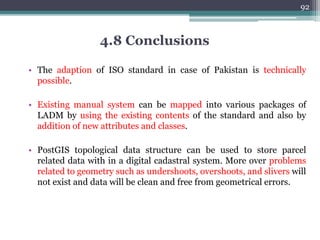

4.8 Conclusions
• The adaption of ISO standard in case of Pakistan is technically
possible.
• Existing manual system can be mapped into various packages of
LADM by using the existing contents of the standard and also by
addition of new attributes and classes.
• PostGIS topological data structure can be used to store parcel
related data with in a digital cadastral system. More over problems
related to geometry such as undershoots, overshoots, and slivers will
not exist and data will be clean and free from geometrical errors.
98

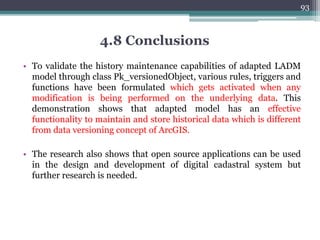

• To validate the history maintenance capabilities of adapted LADM
model through class Pk_versionedObject, various rules, triggers and
functions have been formulated which gets activated when any
modification is being performed on the underlying data. This
demonstration shows that adapted model has an effective
functionality to maintain and store historical data which is different
from data versioning concept of ArcGIS.
• The research also shows that open source applications can be used
in the design and development of digital cadastral system but
further research is needed.
99

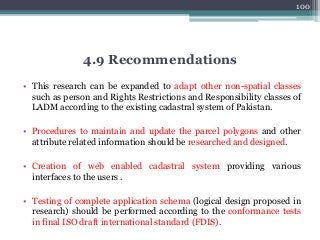

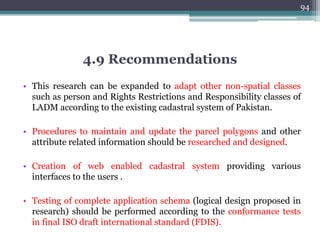

4.8 Conclusions

• This research can be expanded to adapt other non-spatial classes
such as person and Rights Restrictions and Responsibility classes of
LADM according to the existing cadastral system of Pakistan.
• Procedures to maintain and update the parcel polygons and other
attribute related information should be researched and designed.
• Creation of web enabled cadastral system providing various
interfaces to the users .
• Testing of complete application schema (logical design proposed in
research) should be performed according to the conformance tests
in final ISO draft international standard (FDIS).
100

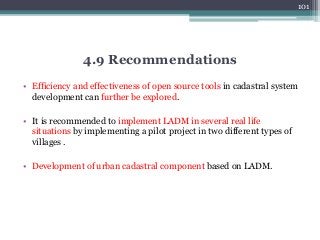

4.9 Recommendations

• Efficiency and effectiveness of open source tools in cadastral system
development can further be explored.
• It is recommended to implement LADM in several real life
situations by implementing a pilot project in two different types of
villages .
• Development of urban cadastral component based on LADM.
101
4.9 Recommendations

Graduate Research Thesis Defense Presentation

More Related Content

What's hot

Similar to Graduate Research Thesis Defense Presentation

Recently uploaded

Graduate Research Thesis Defense Presentation

Editor's Notes
