![@aalmiray

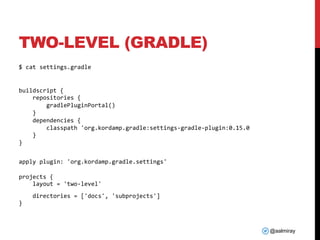

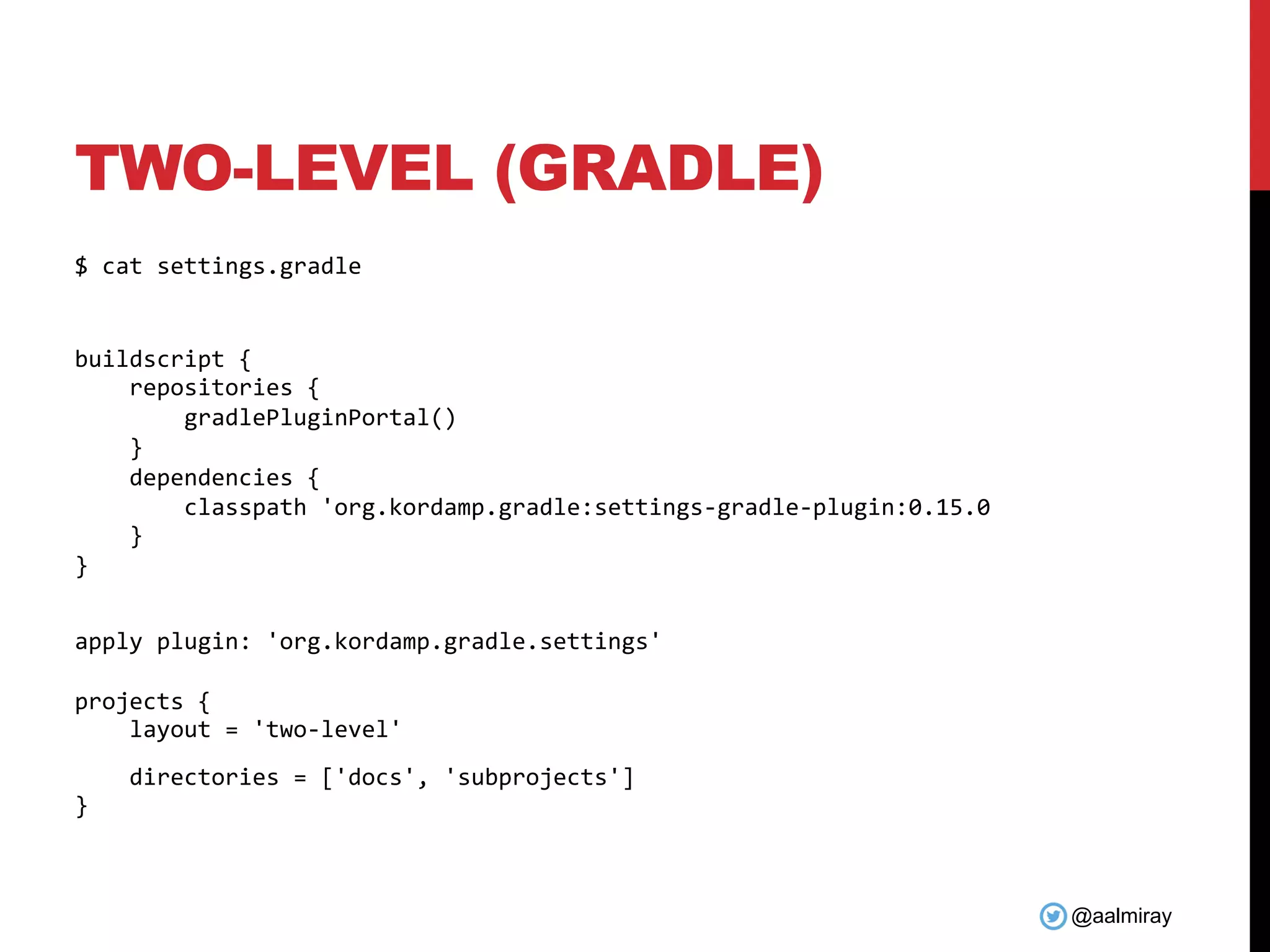

TWO-LEVEL (GRADLE)
$ cat settings.gradle
buildscript {
repositories {
gradlePluginPortal()
}
dependencies {
classpath 'org.kordamp.gradle:settings-gradle-plugin:0.15.0
}
}
apply plugin: 'org.kordamp.gradle.settings'
projects {
layout = 'two-level'
directories = ['docs', 'subprojects']
}](https://image.slidesharecdn.com/gradle-ex-machina-190323080651/75/Gradle-ex-machina-21-2048.jpg)
![@aalmiray
MULTI-LEVEL (GRADLE)
$ cat settings.gradle
buildscript {
repositories {
gradlePluginPortal()
}
dependencies {
classpath 'org.kordamp.gradle:settings-gradle-plugin:0.15.0
}
}
apply plugin: 'org.kordamp.gradle.settings'
projects {
layout = 'multi-level'
directories = [
'guide',
'subprojects/project1',
'subprojects/project2'
]
}](https://image.slidesharecdn.com/gradle-ex-machina-190323080651/75/Gradle-ex-machina-23-2048.jpg)
![@aalmiray
THE PROJECT PLUGIN
plugins {
id 'org.kordamp.gradle.project' version ‘0.15.0’
}
config {
release = (rootProject.findProperty('release') ?: false).toBoolean()
info {
name = 'Sample'
vendor = 'Acme'
description = 'Sample project'
links {
website = 'https://github.com/joecool/sample'
issueTracker = 'https://github.com/joecool/sample/issues'
scm = 'https://github.com/joecool/sample.git'
}
people {
person {
id = 'joecool'
name = 'Joe Cool'
roles = ['developer']
}
}
}
…
}](https://image.slidesharecdn.com/gradle-ex-machina-190323080651/75/Gradle-ex-machina-25-2048.jpg)
Uploaded byAndres Almiray
Gradle ex-machina
This document discusses how to structure Gradle builds in a Maven-like way using plugins. It describes file structures for standard, two-level, and multi-level layouts in Maven and Gradle. It also outlines plugins that add behaviors like a "super POM" for Gradle projects and generating documentation, reports, and publishing artifacts.
More Related Content
![Faster java ee builds with gradle [con4921]](https://cdn.slidesharecdn.com/ss_thumbnails/fasterjavaeebuildswithgradlecon4921-160927042155-thumbnail.jpg?width=640&height=640&fit=bounds)
Gradle ex-machina
- 1.
- 2.
- 3.

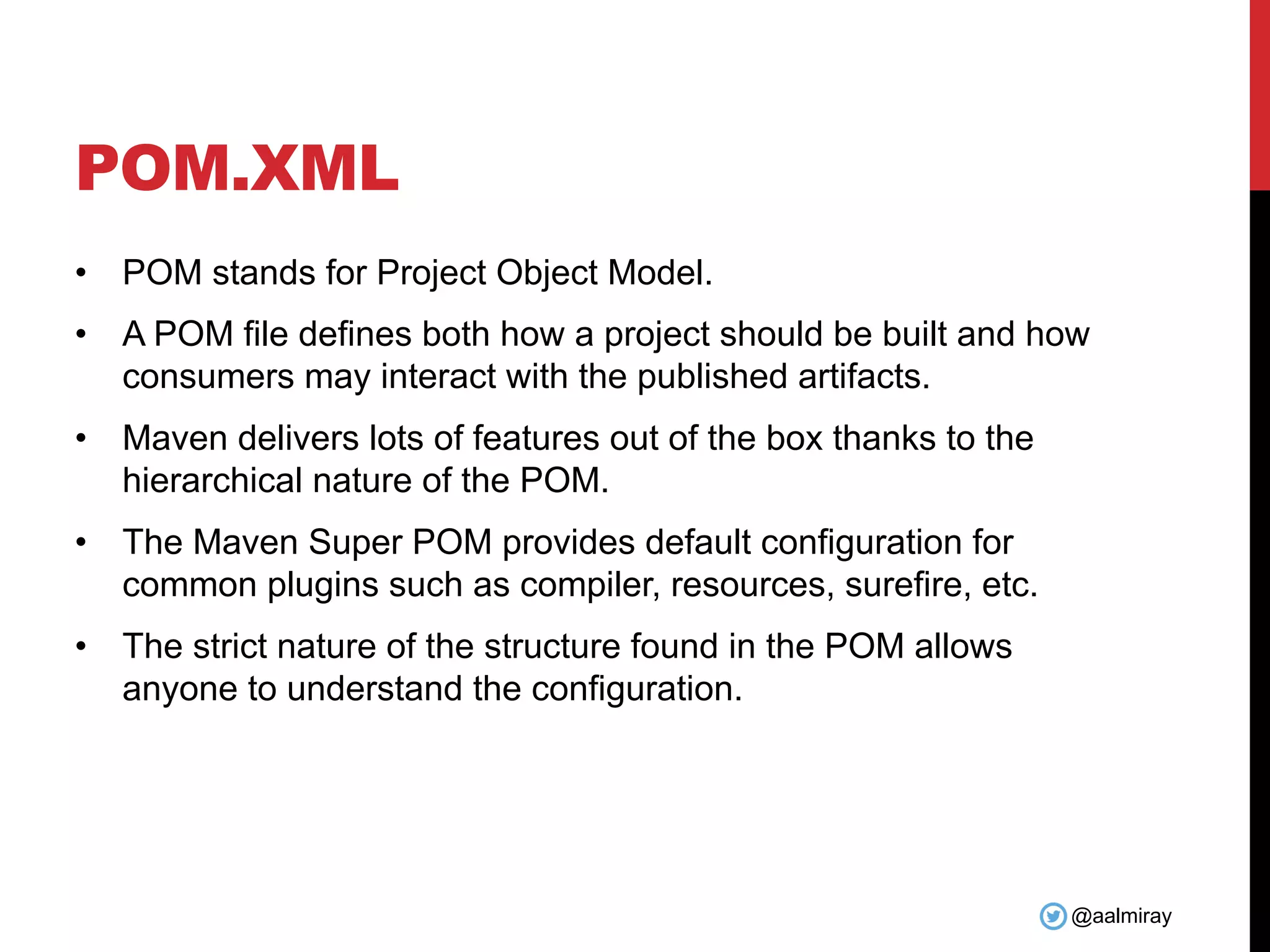

- 4. @aalmiray POM.XML • POM standsfor Project Object Model. • A POM file defines both how a project should be built and how consumers may interact with the published artifacts. • Maven delivers lots of features out of the box thanks to the hierarchical nature of the POM. • The Maven Super POM provides default configuration for common plugins such as compiler, resources, surefire, etc. • The strict nature of the structure found in the POM allows anyone to understand the configuration.
- 5.

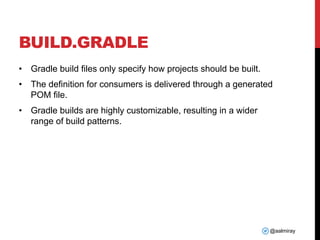

- 6. @aalmiray BUILD.GRADLE • Gradle buildfiles only specify how projects should be built. • The definition for consumers is delivered through a generated POM file. • Gradle builds are highly customizable, resulting in a wider range of build patterns.
- 7. CAN WE HAVEA MAVEN-LIKE STRUCTURE ON TOP OF GRADLE?
- 8.
- 9.

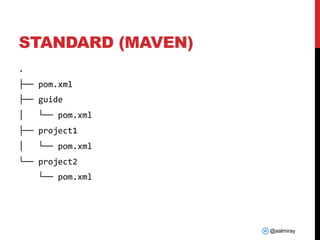

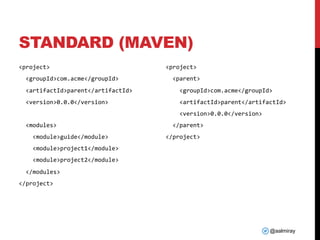

- 10. @aalmiray STANDARD (MAVEN) . ├── pom.xml ├──guide │ └── pom.xml ├── project1 │ └── pom.xml └── project2 └── pom.xml
- 11.

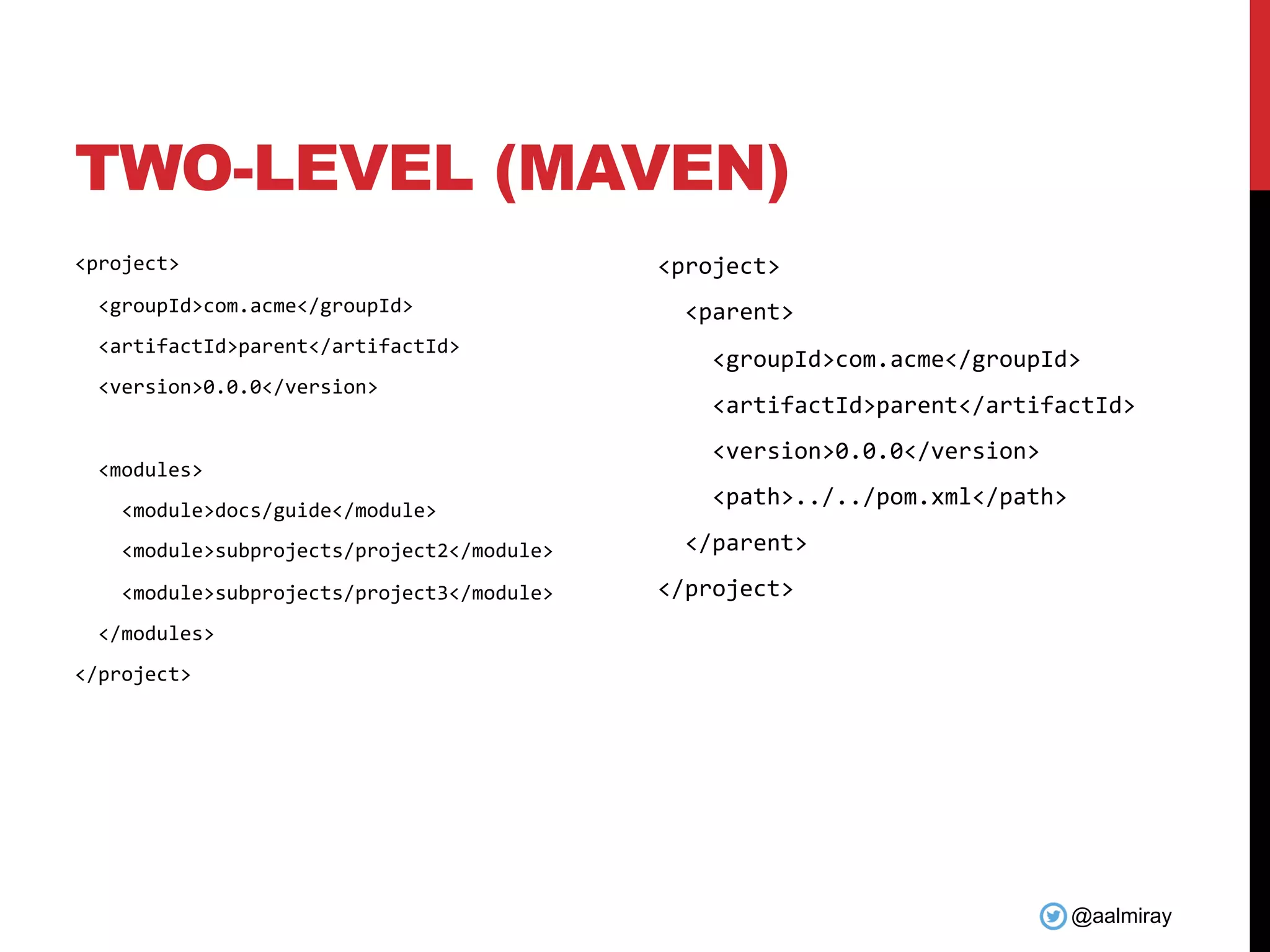

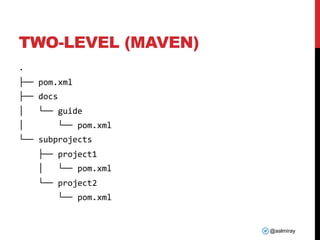

- 12. @aalmiray TWO-LEVEL (MAVEN) . ├── pom.xml ├──docs │ └── guide │ └── pom.xml └── subprojects ├── project1 │ └── pom.xml └── project2 └── pom.xml
- 13.

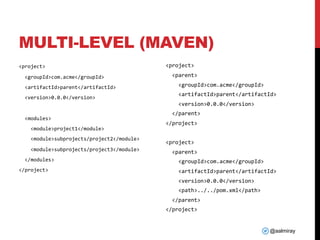

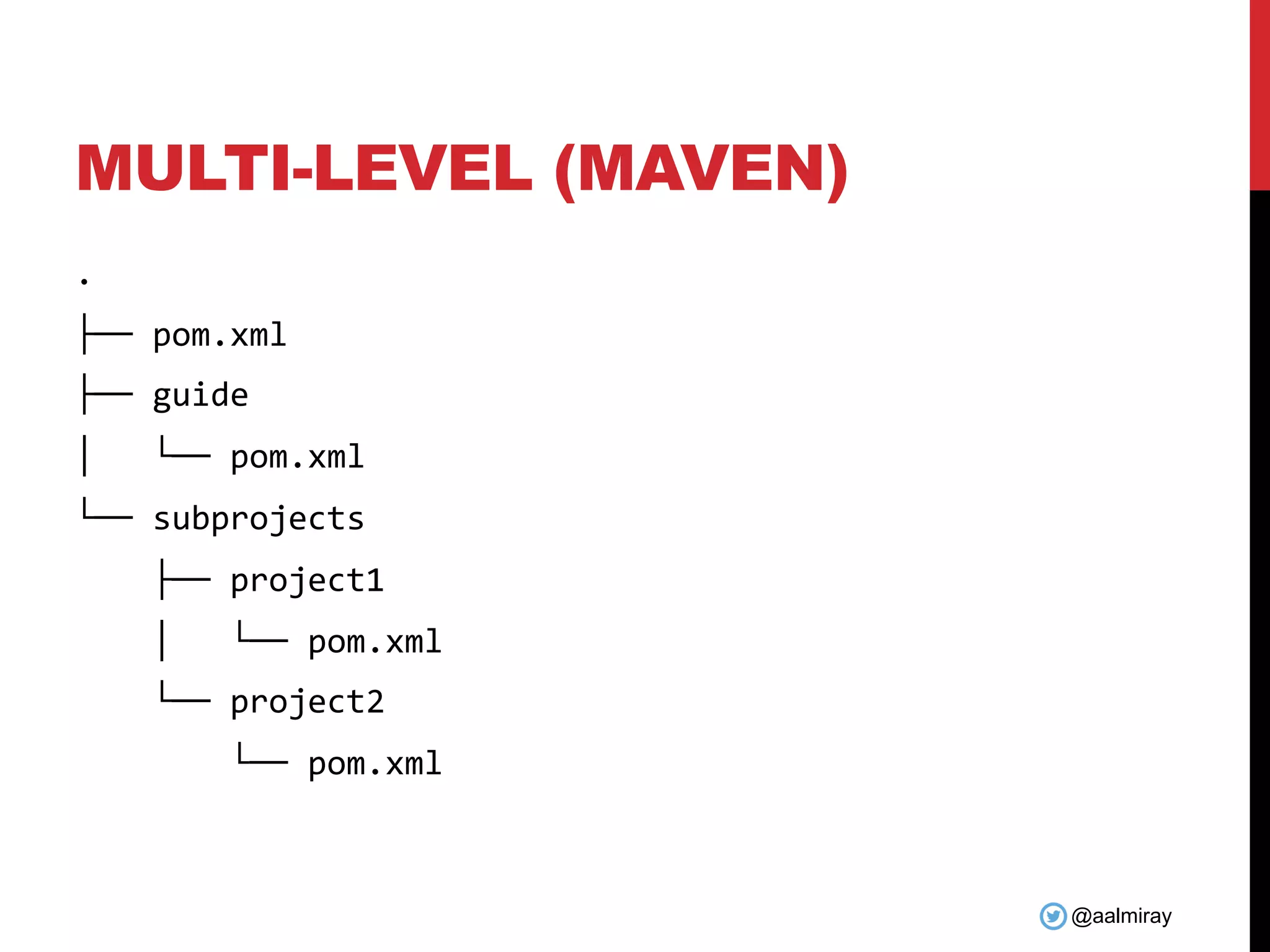

- 14. @aalmiray MULTI-LEVEL (MAVEN) . ├── pom.xml ├──guide │ └── pom.xml └── subprojects ├── project1 │ └── pom.xml └── project2 └── pom.xml
- 15.

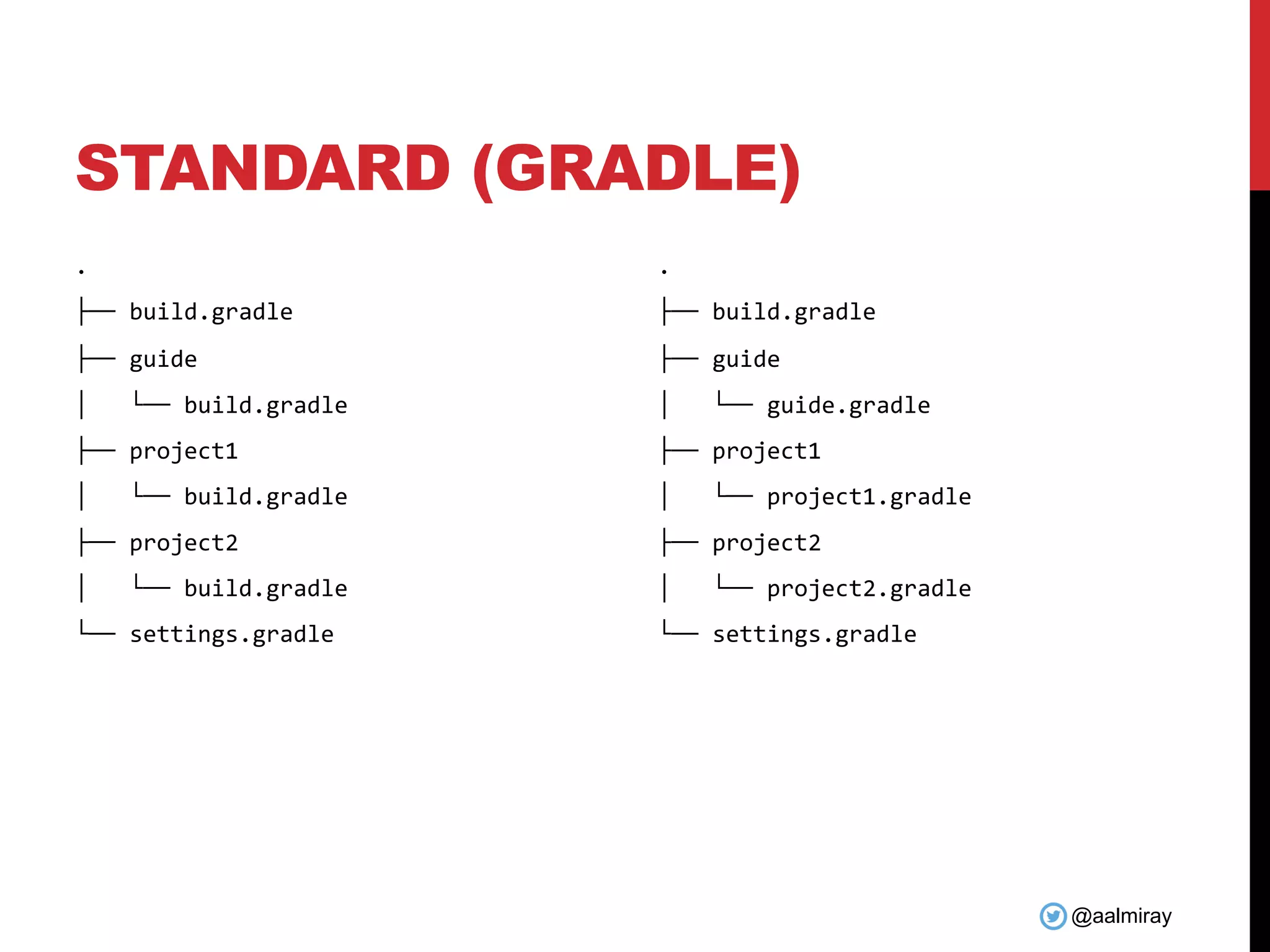

- 16. @aalmiray STANDARD (GRADLE) . ├── build.gradle ├──guide │ └── build.gradle ├── project1 │ └── build.gradle ├── project2 │ └── build.gradle └── settings.gradle . ├── build.gradle ├── guide │ └── guide.gradle ├── project1 │ └── project1.gradle ├── project2 │ └── project2.gradle └── settings.gradle

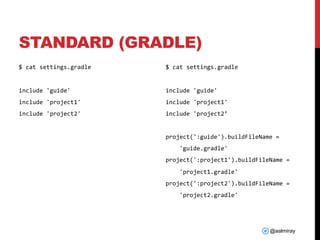

- 17. @aalmiray STANDARD (GRADLE) $ catsettings.gradle include 'guide' include 'project1' include 'project2' $ cat settings.gradle include 'guide' include 'project1' include 'project2’ project(':guide').buildFileName = 'guide.gradle' project(':project1').buildFileName = 'project1.gradle' project(':project2').buildFileName = 'project2.gradle'

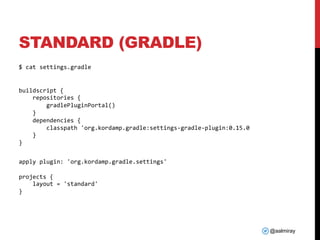

- 18. @aalmiray STANDARD (GRADLE) $ catsettings.gradle buildscript { repositories { gradlePluginPortal() } dependencies { classpath 'org.kordamp.gradle:settings-gradle-plugin:0.15.0 } } apply plugin: 'org.kordamp.gradle.settings' projects { layout = 'standard' }

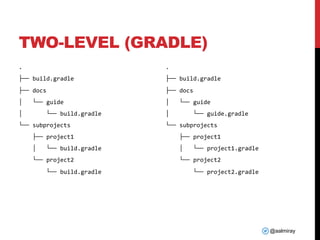

- 19. @aalmiray TWO-LEVEL (GRADLE) . ├── build.gradle ├──docs │ └── guide │ └── build.gradle └── subprojects ├── project1 │ └── build.gradle └── project2 └── build.gradle . ├── build.gradle ├── docs │ └── guide │ └── guide.gradle └── subprojects ├── project1 │ └── project1.gradle └── project2 └── project2.gradle
- 20. @aalmiray TWO-LEVEL (GRADLE) $ catsettings.gradle include 'guide' include 'project1' include 'project2' project(':guide').projectDir = new File(“$settingsDir/docs/guide”) project(':project1').projectDir = new File(“$settingsDir/subprojects/project1”) project(':project2').projectDir = new File(“$settingsDir/subprojects/project2”)
- 21. @aalmiray TWO-LEVEL (GRADLE) $ catsettings.gradle buildscript { repositories { gradlePluginPortal() } dependencies { classpath 'org.kordamp.gradle:settings-gradle-plugin:0.15.0 } } apply plugin: 'org.kordamp.gradle.settings' projects { layout = 'two-level' directories = ['docs', 'subprojects'] }

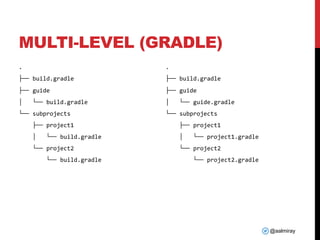

- 22. @aalmiray MULTI-LEVEL (GRADLE) . ├── build.gradle ├──guide │ └── build.gradle └── subprojects ├── project1 │ └── build.gradle └── project2 └── build.gradle . ├── build.gradle ├── guide │ └── guide.gradle └── subprojects ├── project1 │ └── project1.gradle └── project2 └── project2.gradle

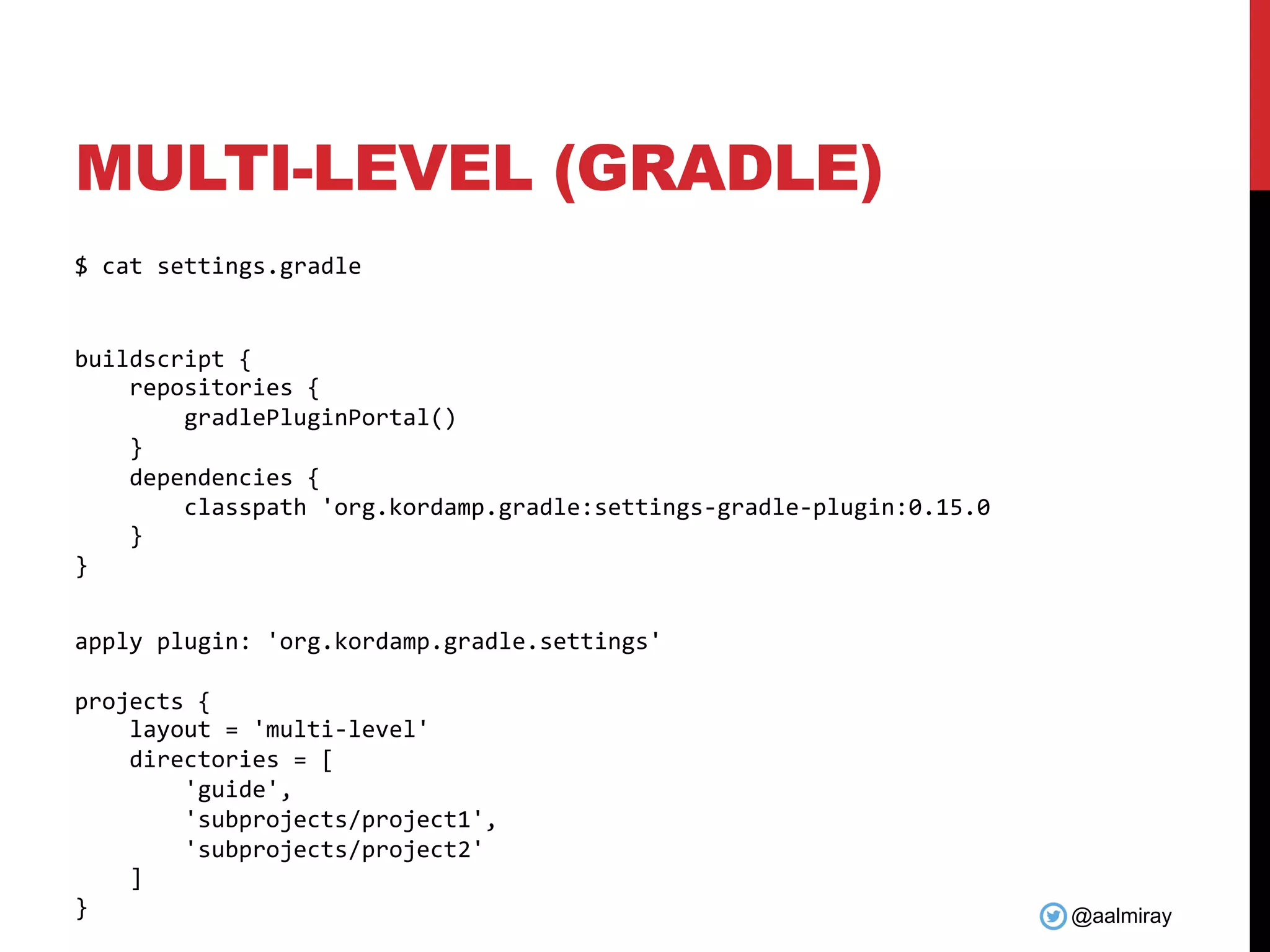

- 23. @aalmiray MULTI-LEVEL (GRADLE) $ catsettings.gradle buildscript { repositories { gradlePluginPortal() } dependencies { classpath 'org.kordamp.gradle:settings-gradle-plugin:0.15.0 } } apply plugin: 'org.kordamp.gradle.settings' projects { layout = 'multi-level' directories = [ 'guide', 'subprojects/project1', 'subprojects/project2' ] }
- 24.

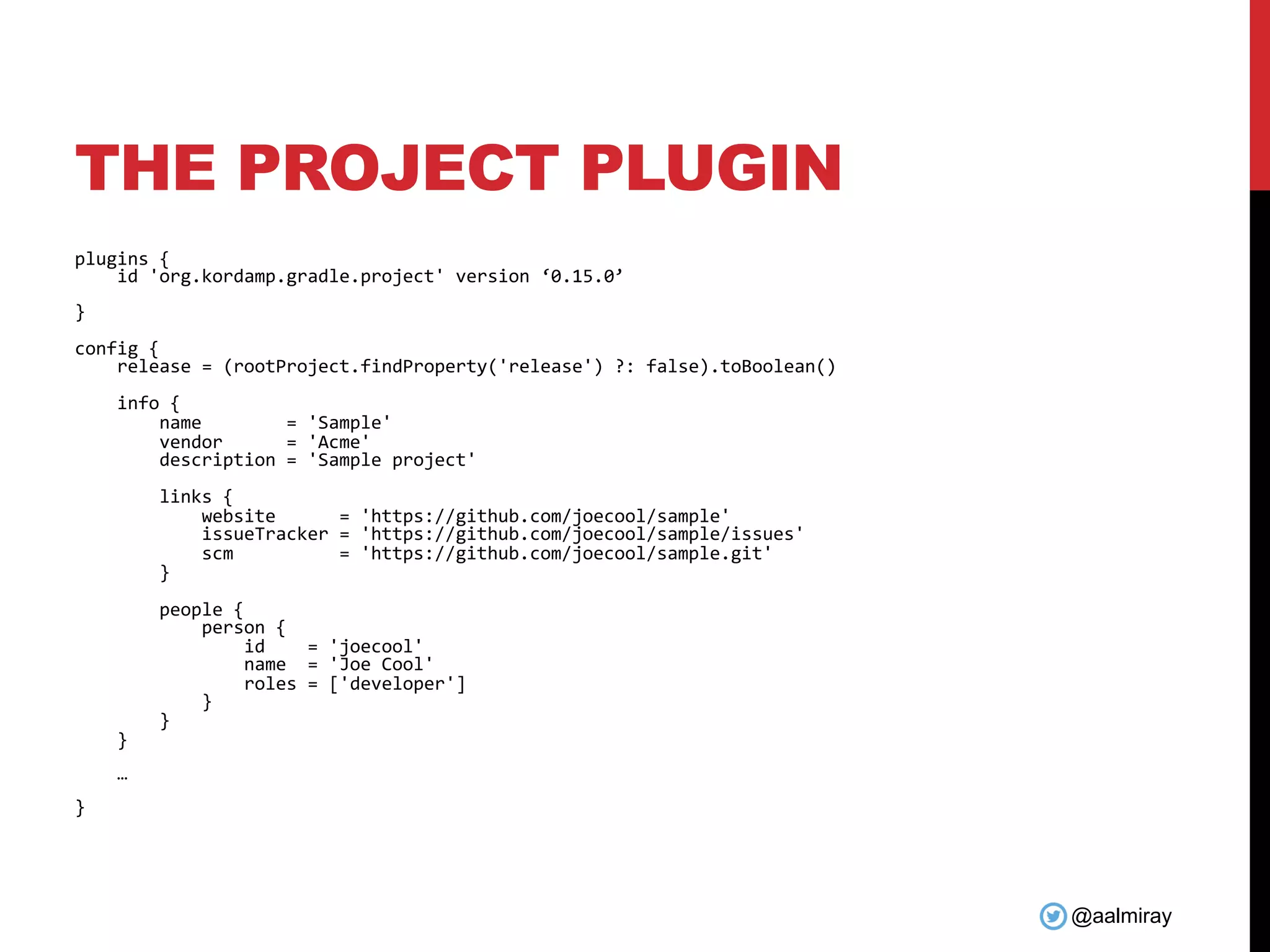

- 25. @aalmiray THE PROJECT PLUGIN plugins{ id 'org.kordamp.gradle.project' version ‘0.15.0’ } config { release = (rootProject.findProperty('release') ?: false).toBoolean() info { name = 'Sample' vendor = 'Acme' description = 'Sample project' links { website = 'https://github.com/joecool/sample' issueTracker = 'https://github.com/joecool/sample/issues' scm = 'https://github.com/joecool/sample.git' } people { person { id = 'joecool' name = 'Joe Cool' roles = ['developer'] } } } … }
- 26. @aalmiray PROVIDED BEHAVIOR • Theproject plugin applies the following plugins • org.kordamp.gradle.base • org.kordamp.gradle.build-info • org.kordamp.gradle.minpom • org.kordamp.gradle.jar • org.kordamp.gradle.source-jar • org.kordamp.gradle.javadoc • org.kordamp.gradle.license • org.kordamp.gradle.jacoco • org.kordamp.gradle.publishing • org.kordamp.gradle.testing • org.kordamp.gradle.apidoc • org.kordamp.gradle.source-stats • org.kordamp.gradle.source-html • org.kordamp.gradle.bintray
- 27.
- 28. @aalmiray DEFAULT TASKS • Gradleprovides the following tasks • projects • dependencies • properties • tasks

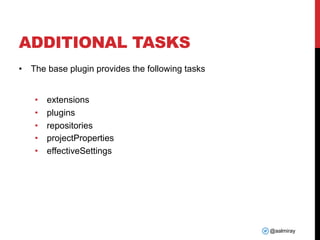

- 29. @aalmiray ADDITIONAL TASKS • Thebase plugin provides the following tasks • extensions • plugins • repositories • projectProperties • effectiveSettings
- 30.
- 31.
- 32.
- 33.

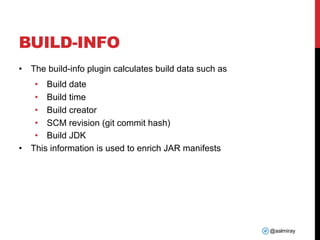

- 34. @aalmiray BUILD-INFO • The build-infoplugin calculates build data such as • Build date • Build time • Build creator • SCM revision (git commit hash) • Build JDK • This information is used to enrich JAR manifests

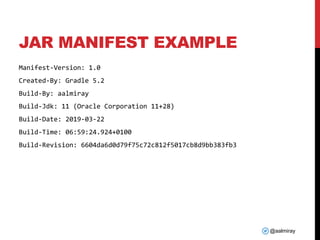

- 35. @aalmiray JAR MANIFEST EXAMPLE Manifest-Version:1.0 Created-By: Gradle 5.2 Build-By: aalmiray Build-Jdk: 11 (Oracle Corporation 11+28) Build-Date: 2019-03-22 Build-Time: 06:59:24.924+0100 Build-Revision: 6604da6d0d79f75c72c812f5017cb8d9bb383fb3
- 36.
- 37. @aalmiray MINPOM • Generates additionalmetafiles for Maven compatibility • META-INF/maven/${project.group}/pom.properties • META-INF/maven/${project.group}/pom.xml
- 38.

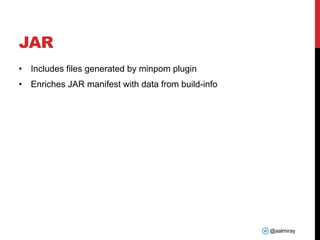

- 39. @aalmiray JAR • Includes filesgenerated by minpom plugin • Enriches JAR manifest with data from build-info
- 40.

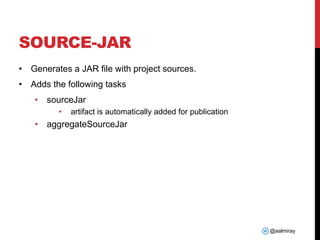

- 41. @aalmiray SOURCE-JAR • Generates aJAR file with project sources. • Adds the following tasks • sourceJar • artifact is automatically added for publication • aggregateSourceJar
- 42.

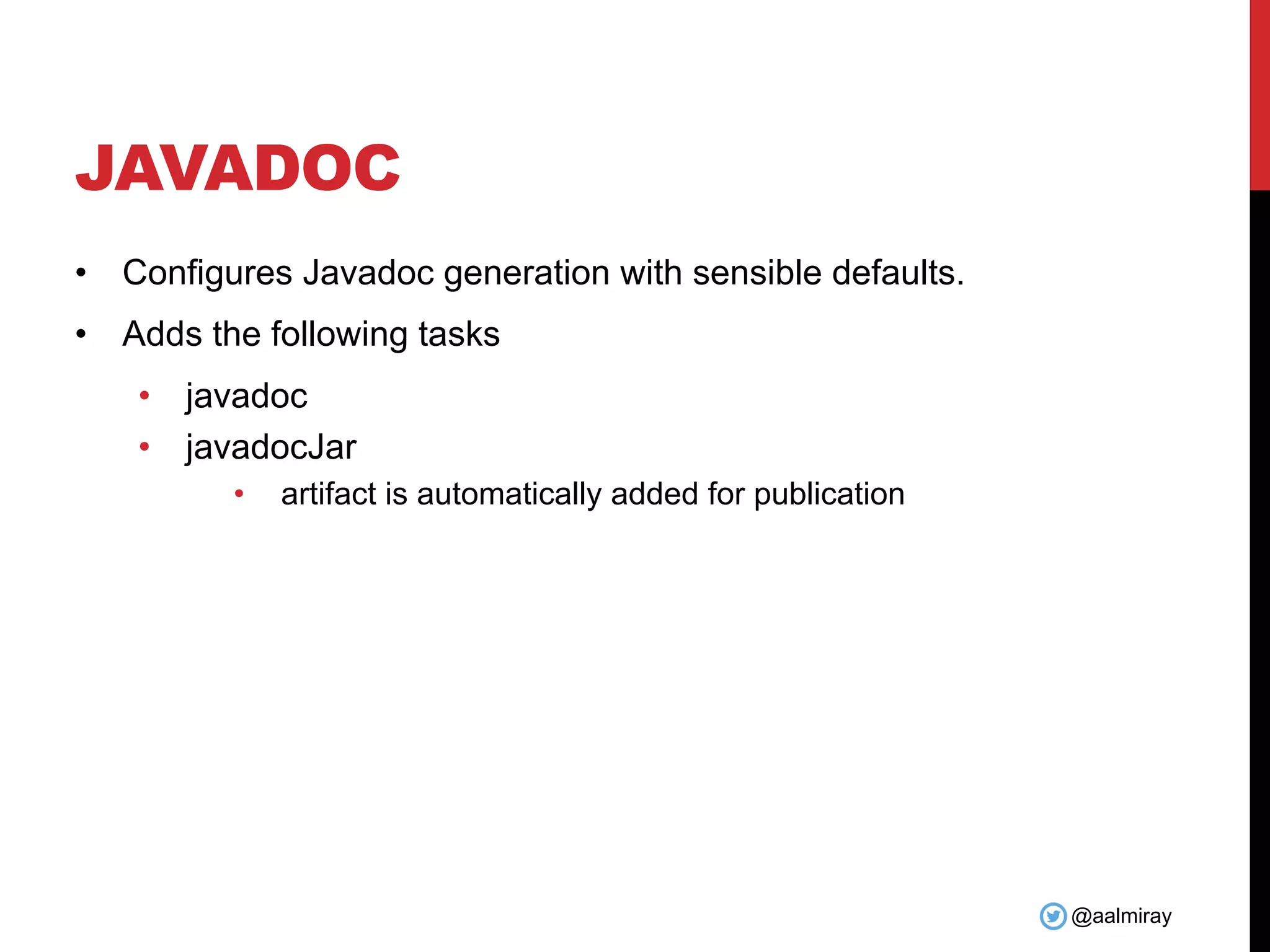

- 43. @aalmiray JAVADOC • Configures Javadocgeneration with sensible defaults. • Adds the following tasks • javadoc • javadocJar • artifact is automatically added for publication
- 44.

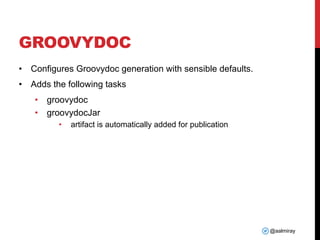

- 45. @aalmiray GROOVYDOC • Configures Groovydocgeneration with sensible defaults. • Adds the following tasks • groovydoc • groovydocJar • artifact is automatically added for publication
- 46.

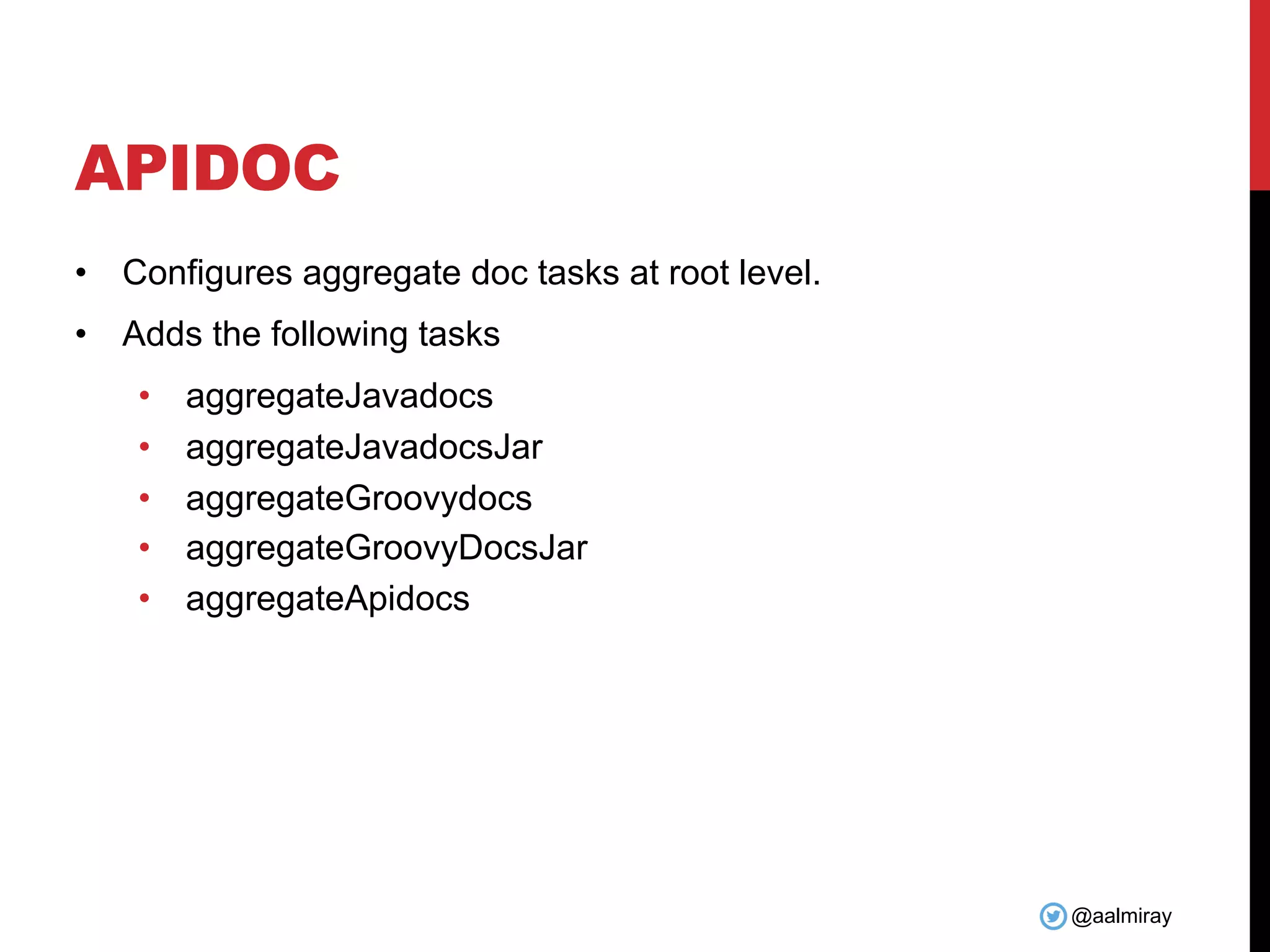

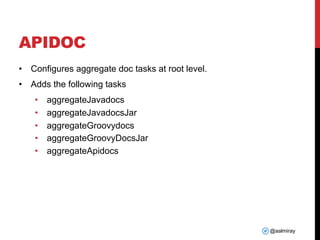

- 47. @aalmiray APIDOC • Configures aggregatedoc tasks at root level. • Adds the following tasks • aggregateJavadocs • aggregateJavadocsJar • aggregateGroovydocs • aggregateGroovyDocsJar • aggregateApidocs
- 48.

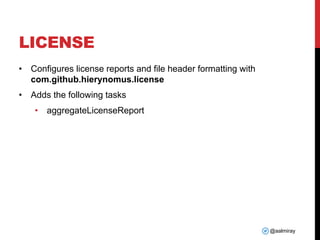

- 49. @aalmiray LICENSE • Configures licensereports and file header formatting with com.github.hierynomus.license • Adds the following tasks • aggregateLicenseReport
- 50.

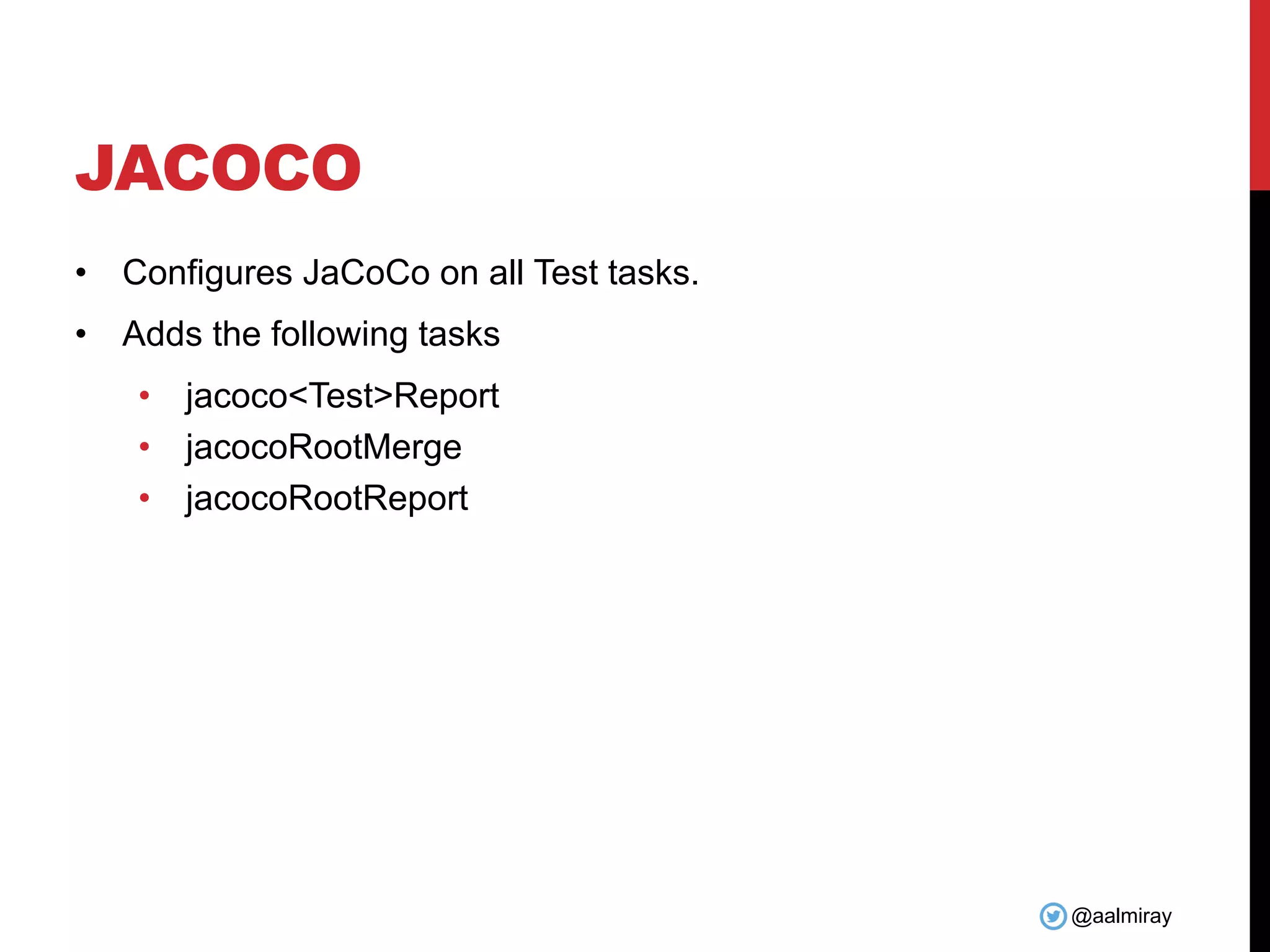

- 51. @aalmiray JACOCO • Configures JaCoCoon all Test tasks. • Adds the following tasks • jacoco<Test>Report • jacocoRootMerge • jacocoRootReport
- 52.
- 53. @aalmiray SOURCE-HTML • Configures prettyprinted API documentation using Java2Html. • Adds the following tasks • convertCodeToHtml • generateSourceHtmlOverview • sourceHtml • aggregateConvertCodeToHtml • aggregateGenerateSourceHtmlOverview • aggregateSourceHtml
- 54.

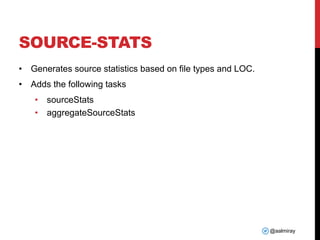

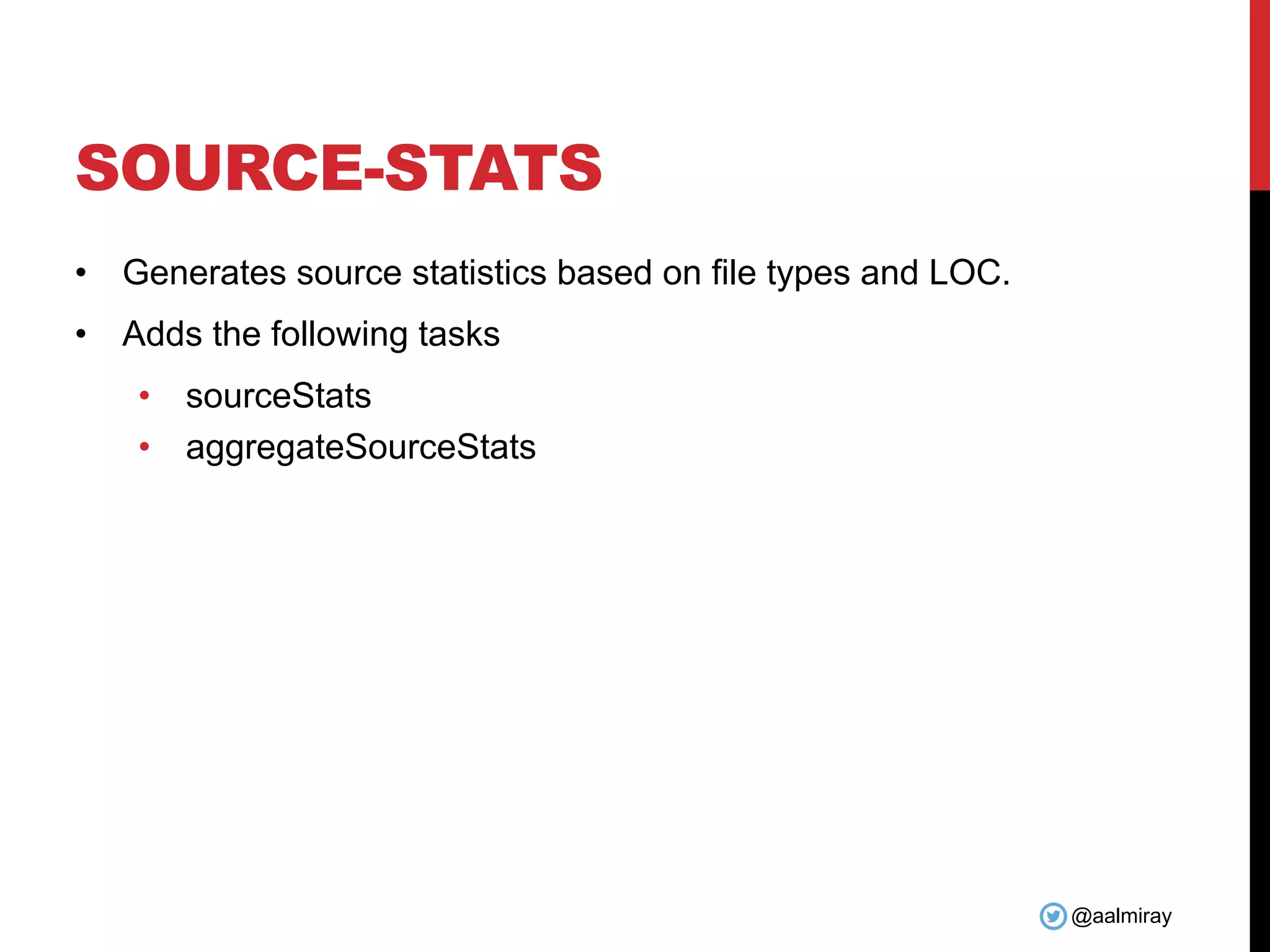

- 55. @aalmiray SOURCE-STATS • Generates sourcestatistics based on file types and LOC. • Adds the following tasks • sourceStats • aggregateSourceStats

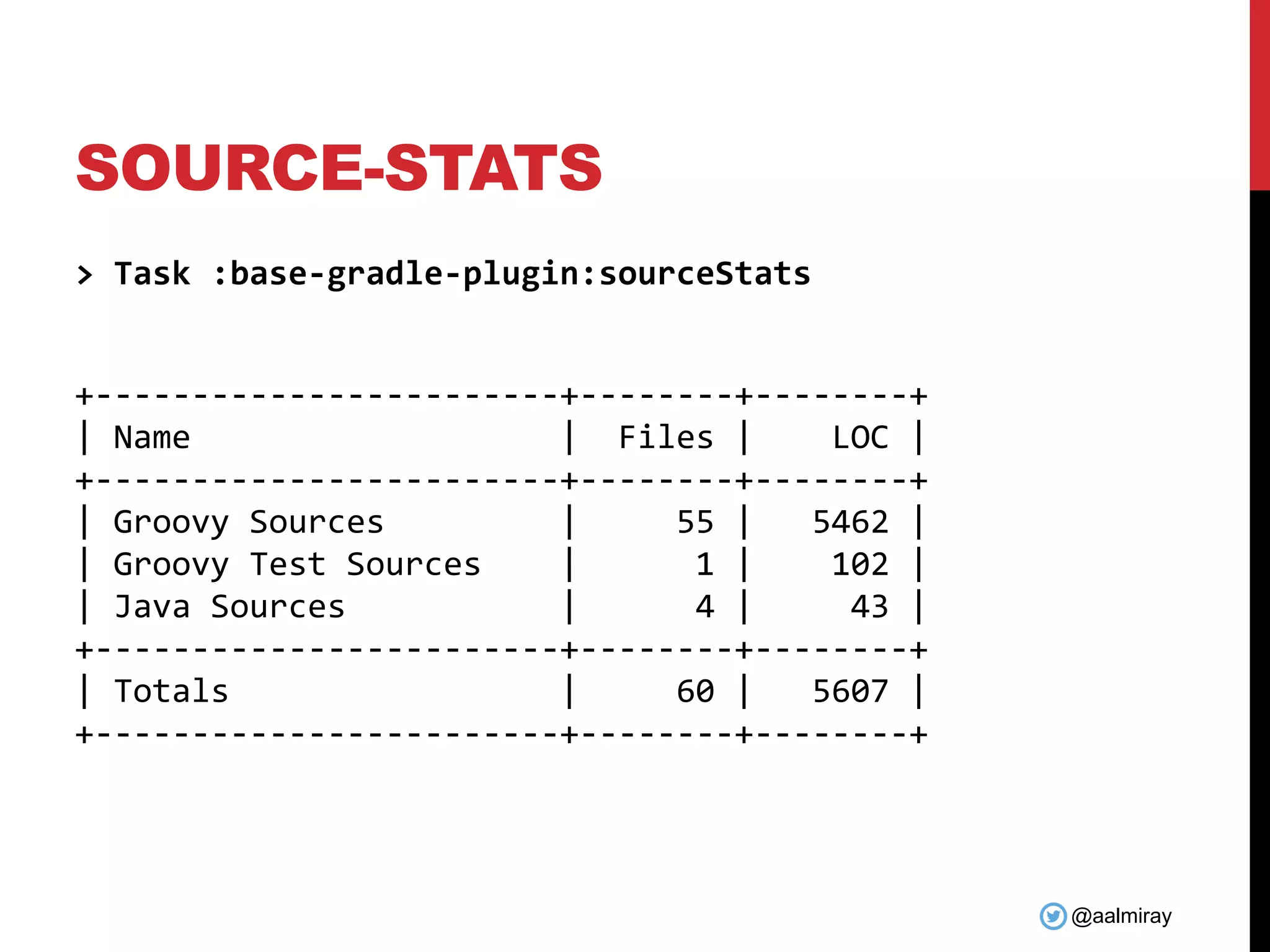

- 56. @aalmiray SOURCE-STATS > Task :base-gradle-plugin:sourceStats +------------------------+--------+--------+ |Name | Files | LOC | +------------------------+--------+--------+ | Groovy Sources | 55 | 5462 | | Groovy Test Sources | 1 | 102 | | Java Sources | 4 | 43 | +------------------------+--------+--------+ | Totals | 60 | 5607 | +------------------------+--------+--------+
- 57.

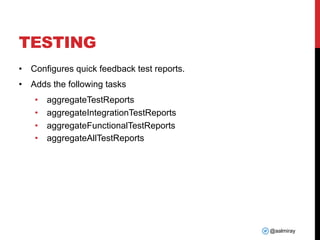

- 58. @aalmiray TESTING • Configures quickfeedback test reports. • Adds the following tasks • aggregateTestReports • aggregateIntegrationTestReports • aggregateFunctionalTestReports • aggregateAllTestReports
- 59.
- 60.

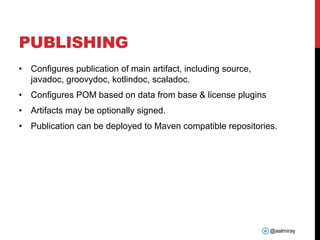

- 61. @aalmiray PUBLISHING • Configures publicationof main artifact, including source, javadoc, groovydoc, kotlindoc, scaladoc. • Configures POM based on data from base & license plugins • Artifacts may be optionally signed. • Publication can be deployed to Maven compatible repositories.
- 62.

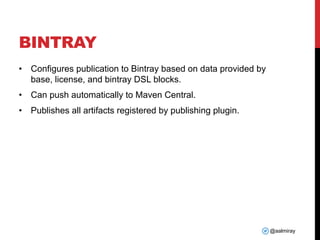

- 63. @aalmiray BINTRAY • Configures publicationto Bintray based on data provided by base, license, and bintray DSL blocks. • Can push automatically to Maven Central. • Publishes all artifacts registered by publishing plugin.

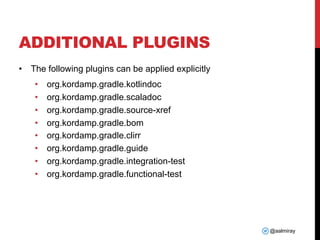

- 64. @aalmiray ADDITIONAL PLUGINS • Thefollowing plugins can be applied explicitly • org.kordamp.gradle.kotlindoc • org.kordamp.gradle.scaladoc • org.kordamp.gradle.source-xref • org.kordamp.gradle.bom • org.kordamp.gradle.clirr • org.kordamp.gradle.guide • org.kordamp.gradle.integration-test • org.kordamp.gradle.functional-test
- 65.

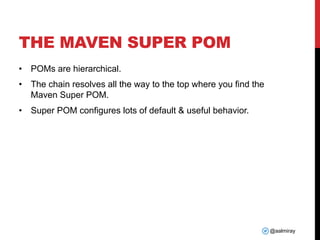

- 66. @aalmiray THE MAVEN SUPERPOM • POMs are hierarchical. • The chain resolves all the way to the top where you find the Maven Super POM. • Super POM configures lots of default & useful behavior.
- 67. @aalmiray THE GRADLE SUPERPOM • Gradle does not offer this behavior out of the box. • But it can be “faked” using a custom plugin. • The plugin applies the default behavior that consuming projects require.
- 68.
- 69.

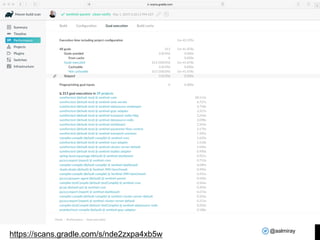

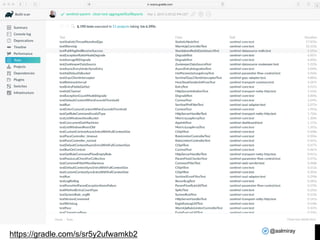

- 70. @aalmiray X-RAY YOUR BUILDS •Capture build data on the go. • Analyze problems on the spot. • Deep linking enables better sharing. • Works for both Maven and Gradle.
