Building modular applications with JPMS and Layrry
The document introduces Layrry, an API and command-line tool for building modular Java applications using JPMS layers. It addresses some limitations with JPMS, such as only allowing one version of a module, by leveraging layers to isolate modules from one another. Layrry allows adding modules at runtime and avoids issues with non-exported package collisions. The document demonstrates using Layrry to launch a modularized application via the command line or a JBang script, and discusses future plans for Layrry including ready-made distributions and configuration options.
More Related Content
Similar to Building modular applications with JPMS and Layrry
Building modular applications with JPMS and Layrry
- 1. @aalmiray | andresalmiray.com Buildingmodular applications with JPMS and Layrry
- 2. Andres Almiray Seasoned Sourceror @ Oracle ApacheGroovy PMC Java Champion Hackergarten github.com/aalmiray
- 3. @aalmiray | andresalmiray.com JPMS •Java Platform Module System (also known as Jigsaw) • Introduced in Java 9 • Designed to break down the JVM monolith • Applicable to user space as well • The promise is to give developers better code encapsulation and design foundations
- 4.
- 5. @aalmiray | andresalmiray.com Someuser statements • JPMS only allows for one version of a module • JPMS doesn’t allow adding modules at runtime • I have to modularize ALL dependencies to reap the benefits of JPMS • It’s so hard to map dependency coordinates to module dependencies • Help, non-exported packages of different modules collide!
- 8. @aalmiray | andresalmiray.com Whatno one ever said “Let’s use JPMS Layers to tackle (some of) these issues”
- 9.

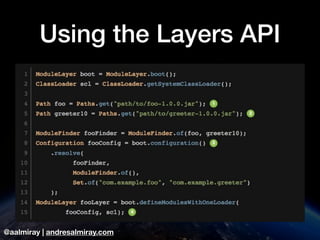

- 10. @aalmiray | andresalmiray.com Usingthe Layers API
- 13.
- 14. Gunnar Morling Open Source Software Engineer @RedHat Java Champion Lead of Debezium Bean Validation 2.0 Spec Lead morling.dev
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21. 1 package org.moditect.layrry.platform; 2 3/** 4 * Implementations get notified about the 5 * addition or removal of plug-in layers. 6 * Retrieved via the service loader API. 7 */ 8 public interface PluginLifecycleListener { 9 10 void pluginAdded(PluginDescriptor plugin); 11 12 void pluginRemoved(PluginDescriptor plugin); 13 }
- 22. 1 @Override 2 publicvoid pluginAdded(PluginDescriptor plugin) { 3 ServiceLoader<MyService> services = ServiceLoader.load( 4 plugin.getModuleLayer(), MyService.class); 5 6 services.forEach(service -> { 7 // only process services declared by the added layer itself, 8 // but not from ancestor layers 9 if (service.getClass().getModule().getLayer() == layer) { 10 // process service ... 11 } 12 }); 13 }
- 23.
- 25. layrry-launcher-1.0-SNAPSHOT-all.jar —layers-config javafx.toml —properties versions.properties

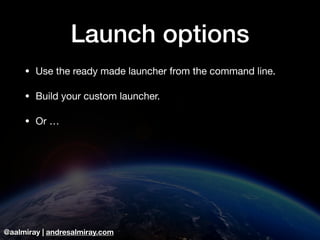

- 26. @aalmiray | andresalmiray.com Launchoptions • Use the ready made launcher from the command line. • Build your custom launcher. • Or …
- 27. jbang layrry@moditect —layers-configjavafx.toml —properties versions.properties
- 28.
- 29. @aalmiray | andresalmiray.com Future •Support remote configuration (?) • Ready made binary distributions • Distribution channels • Github releases • Homebrew (?) •
- 30. @aalmiray | andresalmiray.com Resources •https://www.morling.dev/blog/introducing-layrry-runner- and-api-for-modularized-java-applications/ • https://www.morling.dev/blog/plugin-architectures-with- layrry-and-the-java-module-system/ • https://www.morling.dev/blog/class-unloading-in-layered- java-applications/ • https://github.com/moditect/layrry/ • https://github.com/moditect/layrry-examples/
