Globus Automation
The document outlines the capabilities of Globus automation, highlighting features such as scheduled and recurring transfers, command line interface (CLI) automation, and the Globus flows service for orchestration of data and compute tasks. It provides examples of automation use cases, including data backup, sharing, and integration with existing scripts, as well as information on managing application permissions and utilizing event-driven flows. Additionally, it introduces tools for defined automation processes and resources for further support and documentation.
Globus Automation
- 1. Globus Automation Rachana Ananthakrishnan ranantha@uchicago.edu September8, 2022 Sponsored by

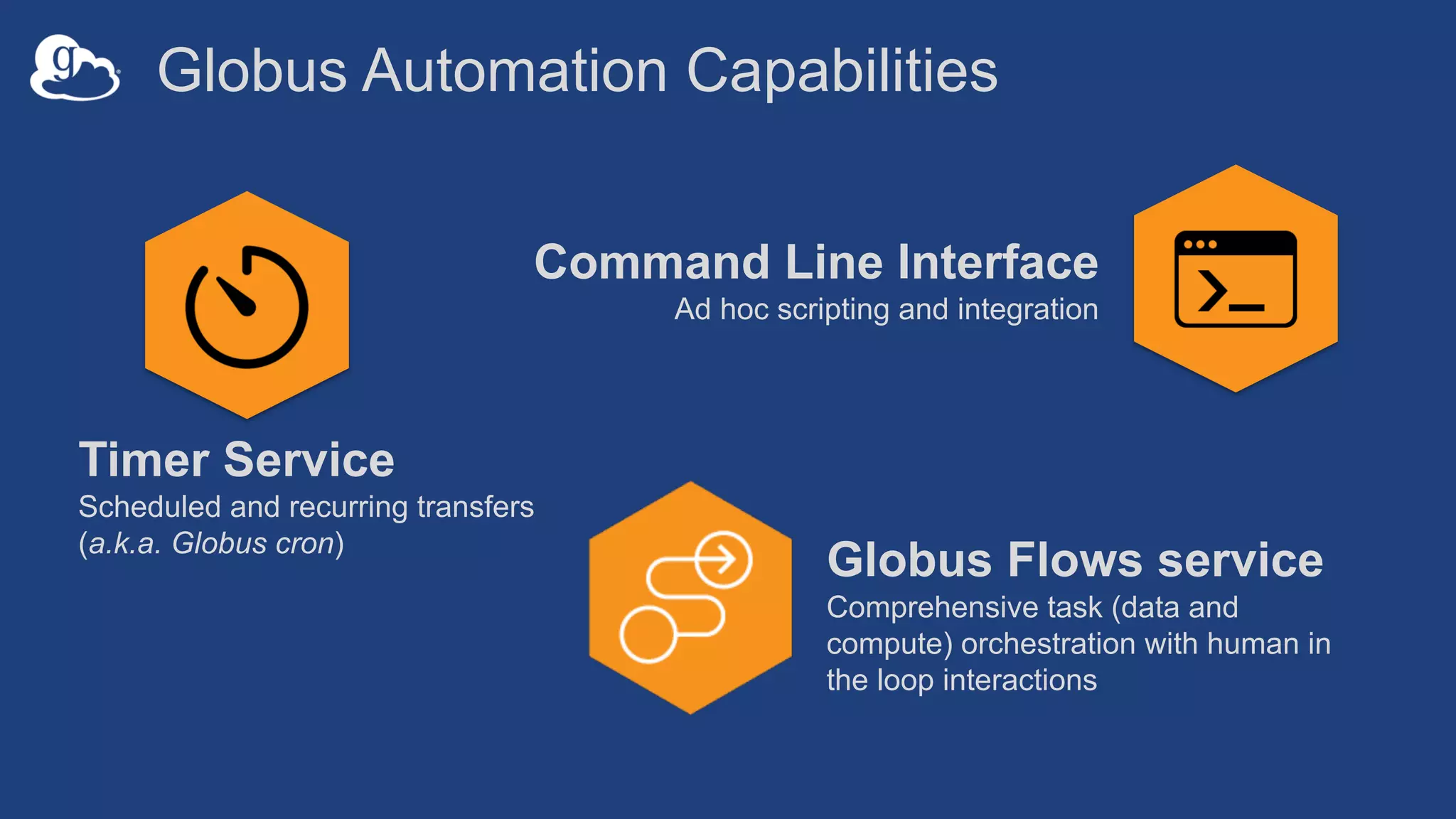

- 2. Globus Automation Capabilities TimerService Scheduled and recurring transfers (a.k.a. Globus cron) Command Line Interface Ad hoc scripting and integration Globus Flows service Comprehensive task (data and compute) orchestration with human in the loop interactions

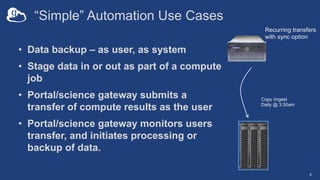

- 3. “Simple” Automation UseCases • Data backup – as user, as system • Stage data in or out as part of a compute job • Portal/science gateway submits a transfer of compute results as the user • Portal/science gateway monitors users transfer, and initiates processing or backup of data. 4 Recurring transfers with sync option Copy /ingest Daily @ 3:30am
- 4.

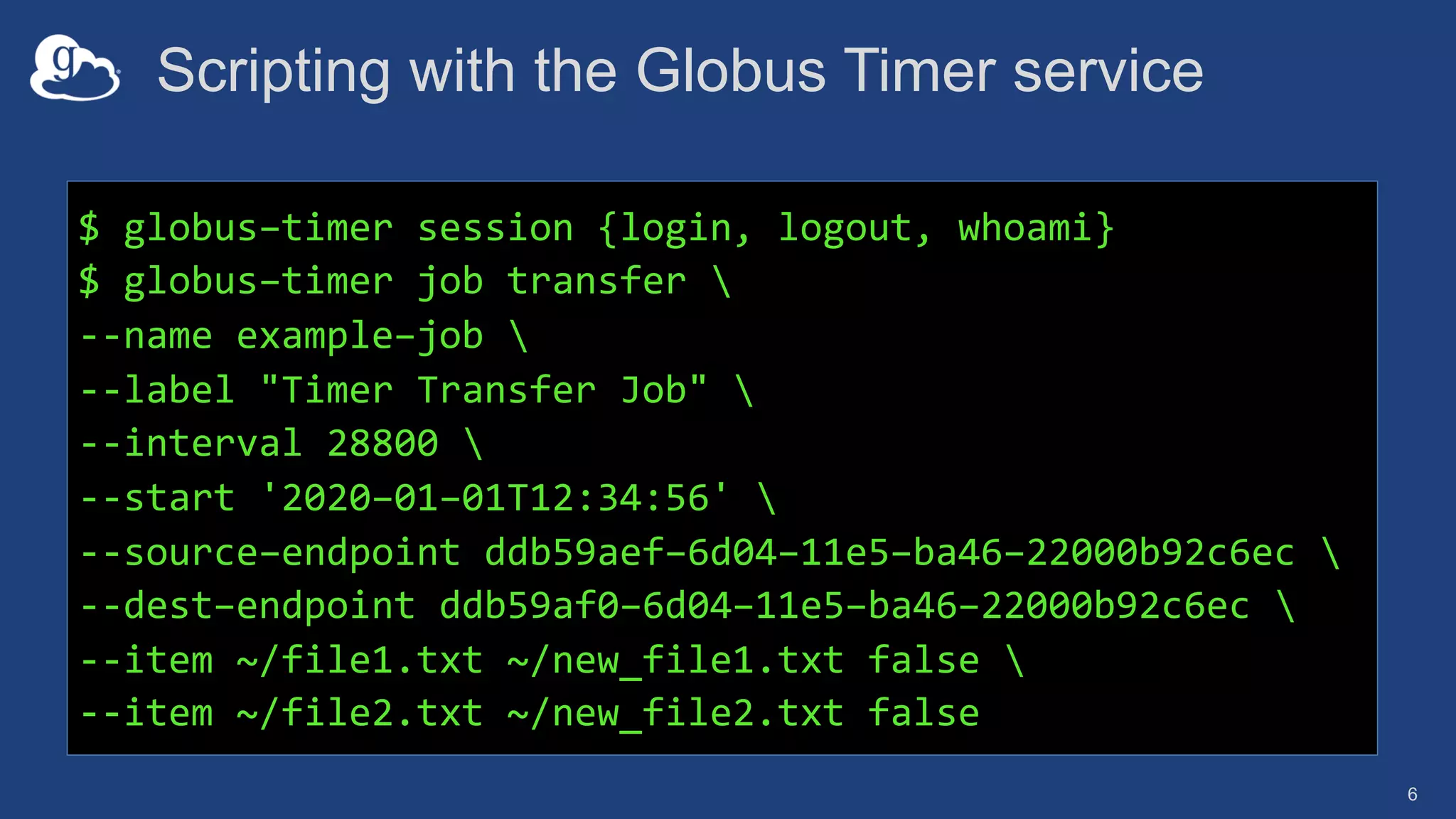

- 5. Scripting with theGlobus Timer service 6 $ globus–timer session {login, logout, whoami} $ globus–timer job transfer --name example–job --label "Timer Transfer Job" --interval 28800 --start '2020–01–01T12:34:56' --source–endpoint ddb59aef–6d04–11e5–ba46–22000b92c6ec --dest–endpoint ddb59af0–6d04–11e5–ba46–22000b92c6ec --item ~/file1.txt ~/new_file1.txt false --item ~/file2.txt ~/new_file2.txt false
- 6.
- 7. Globus Command LineInterface Automation of simple data management tasks Integration with existing scripts (job submission …) Open source, uses the Python SDK

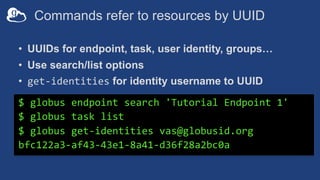

- 8. Commands refer toresources by UUID • UUIDs for endpoint, task, user identity, groups… • Use search/list options • get-identities for identity username to UUID $ globus endpoint search 'Tutorial Endpoint 1' $ globus task list $ globus get-identities vas@globusid.org bfc122a3-af43-43e1-8a41-d36f28a2bc0a
- 9. Parsing CLI output •Default output is text; for JSON output use --format json $ globus endpoint search --filter-scope my-endpoints $ globus endpoint search --filter-scope my-endpoints -- format json • Extract specific attributes using --jmespath <expression> $ globus endpoint search --filter-scope my-endpoints -- jmespath 'DATA[].[id, display_name]'
- 10.

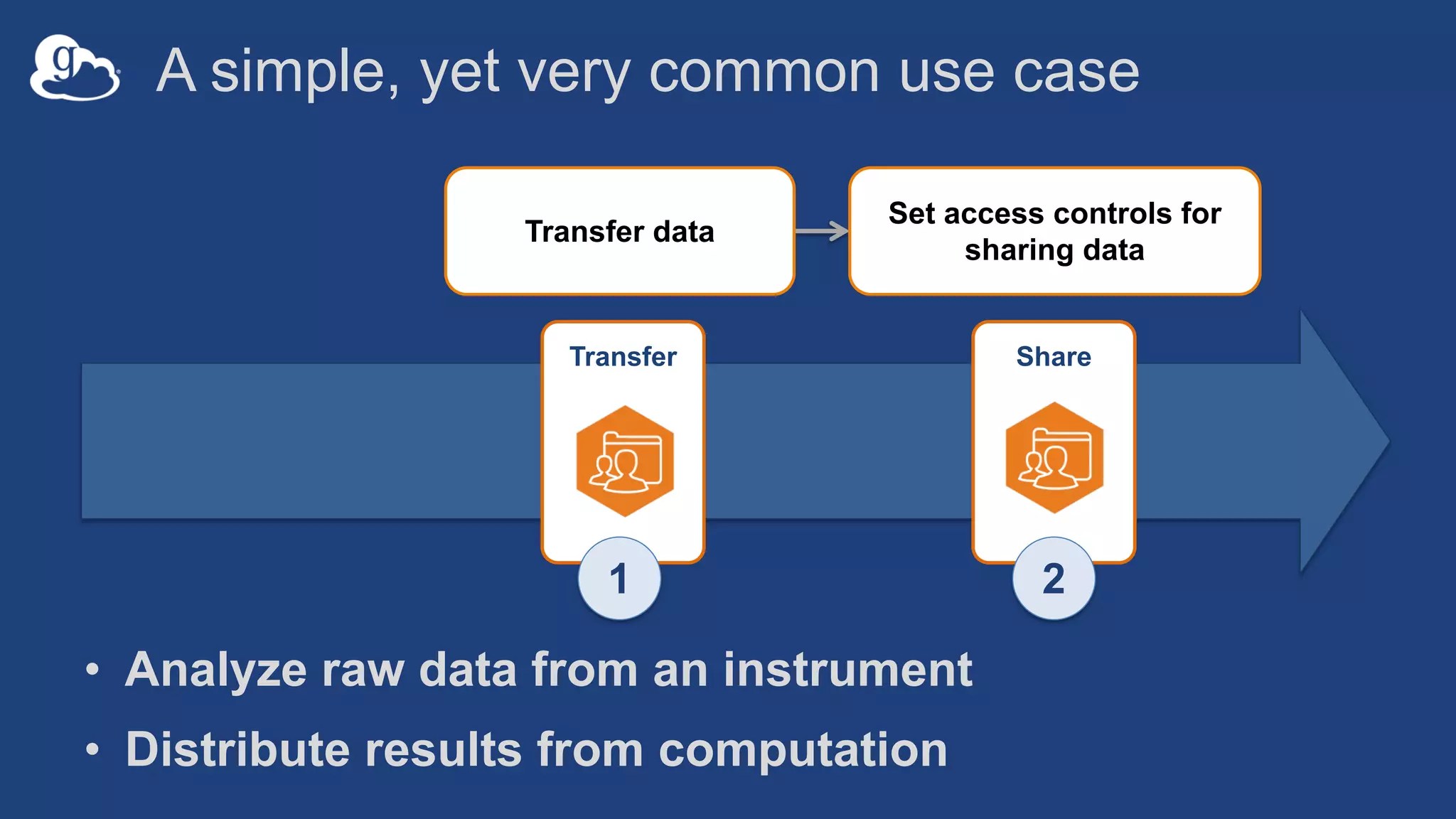

- 11. A simple, yetvery common use case Transfer data Transfer Set access controls for sharing data Share 1 2 • Analyze raw data from an instrument • Distribute results from computation

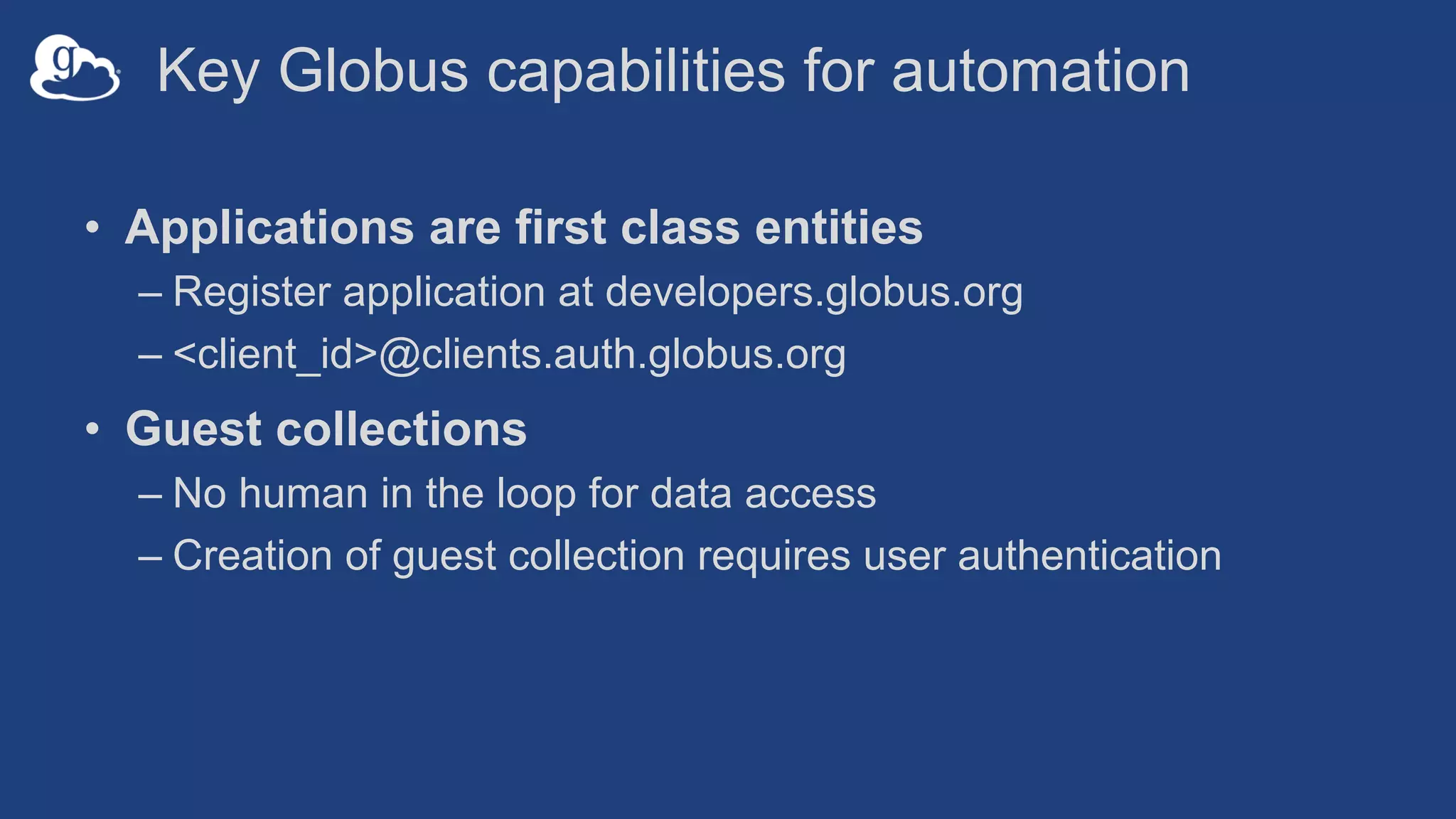

- 12. Key Globus capabilitiesfor automation • Applications are first class entities – Register application at developers.globus.org – <client_id>@clients.auth.globus.org • Guest collections – No human in the loop for data access – Creation of guest collection requires user authentication

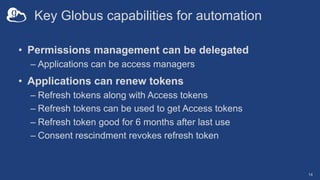

- 13. Key Globus capabilitiesfor automation • Permissions management can be delegated – Applications can be access managers • Applications can renew tokens – Refresh tokens along with Access tokens – Refresh tokens can be used to get Access tokens – Refresh token good for 6 months after last use – Consent rescindment revokes refresh token 14
- 14. Examples: automation usingCLI github.com/globus/automation-examples • ./share_data.sh – Transfer a folder, and set permission for a users • ./cli-sync.sh – Sync one folder with the other • See README for installation • Python scripts that use SDK 15
- 15.

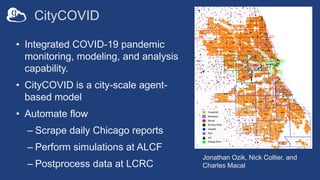

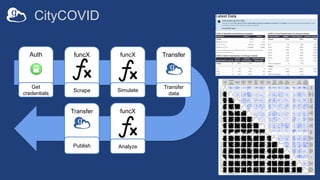

- 16. CityCOVID • Integrated COVID-19pandemic monitoring, modeling, and analysis capability. • CityCOVID is a city-scale agent- based model • Automate flow – Scrape daily Chicago reports – Perform simulations at ALCF – Postprocess data at LCRC Jonathan Ozik, Nick Collier, and Charles Macal

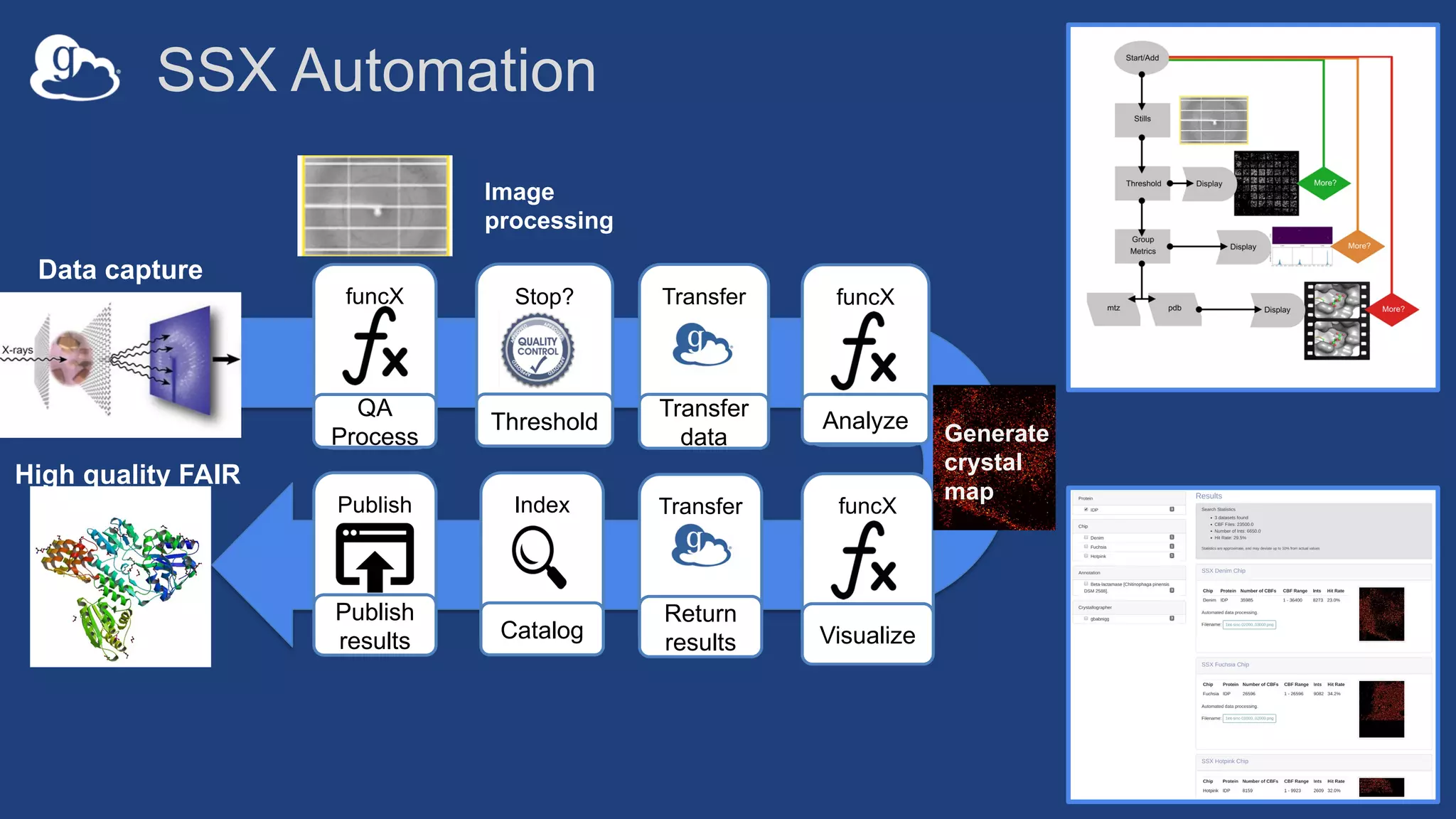

- 17. Enabling serial crystallographyat scale • Serially image chips with thousands of embedded crystals • Quality control first 1,000 to report failures • Analyze batches of images as they are collected • Report statistics and images during experiment • Return crystal structure to scientist Darren Sherrell, Gyorgy Babnigg, Andrzej Joachimiak

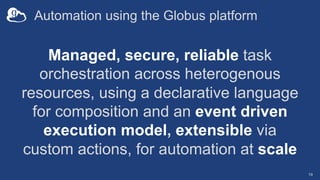

- 18. 19 Automation using theGlobus platform Managed, secure, reliable task orchestration across heterogenous resources, using a declarative language for composition and an event driven execution model, extensible via custom actions, for automation at scale
- 19. The Globus Flowsservice • Flows: A platform service for defining, applying, and sharing distributed research automation flows • Flows comprise Actions • Action Providers: Called by Flows to perform tasks • Triggers*: Start flows based on events * Coming soon

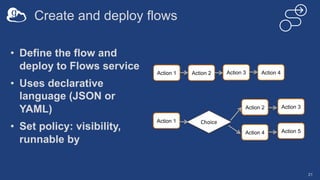

- 20. Create and deployflows 21 • Define the flow and deploy to Flows service • Uses declarative language (JSON or YAML) • Set policy: visibility, runnable by Action 1 Action 2 Action 3 Action 4 Action 1 Action 2 Choice Action 4 Action 5 Action 3

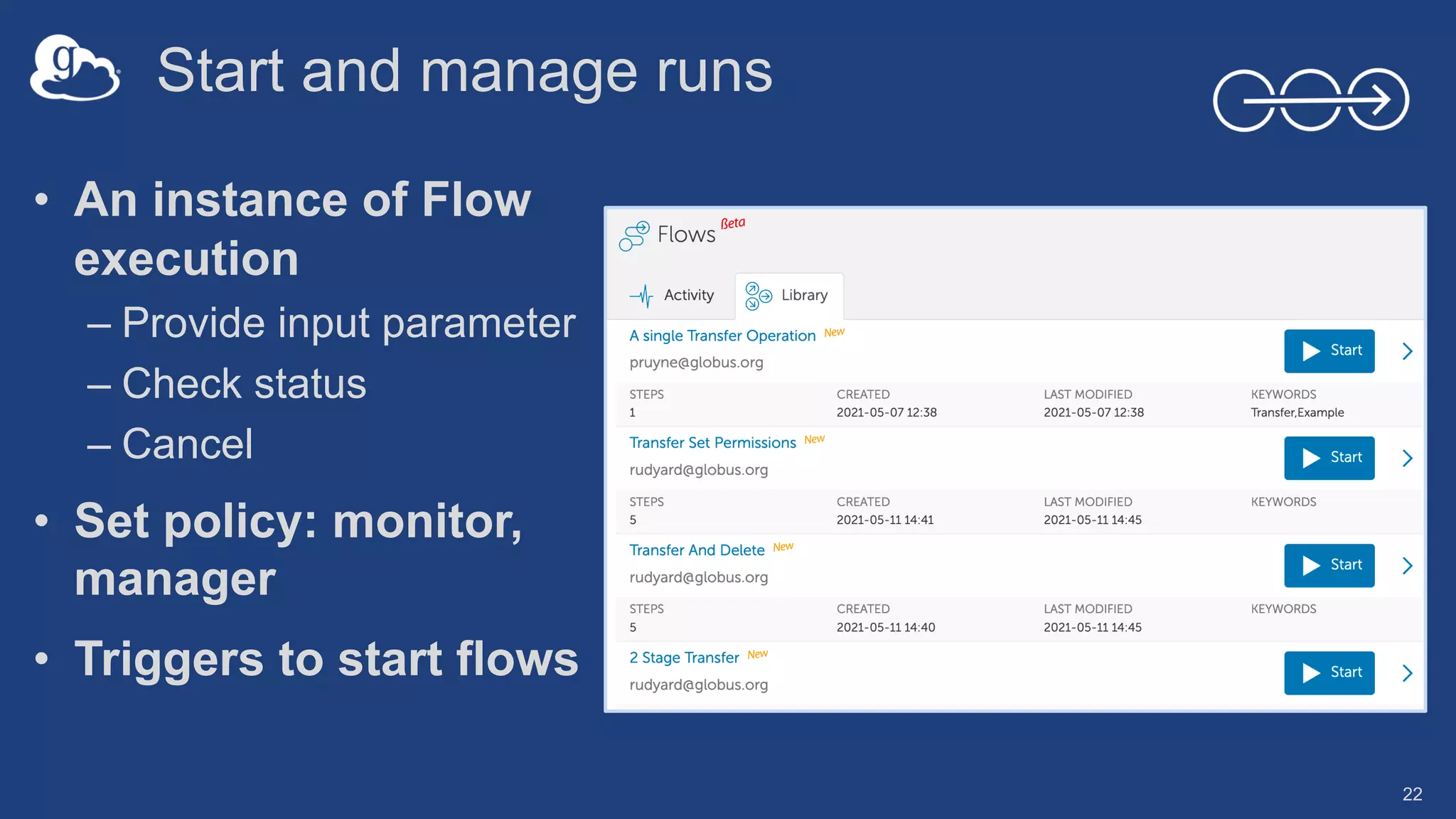

- 21. Start and manageruns 22 • An instance of Flow execution – Provide input parameter – Check status – Cancel • Set policy: monitor, manager • Triggers to start flows

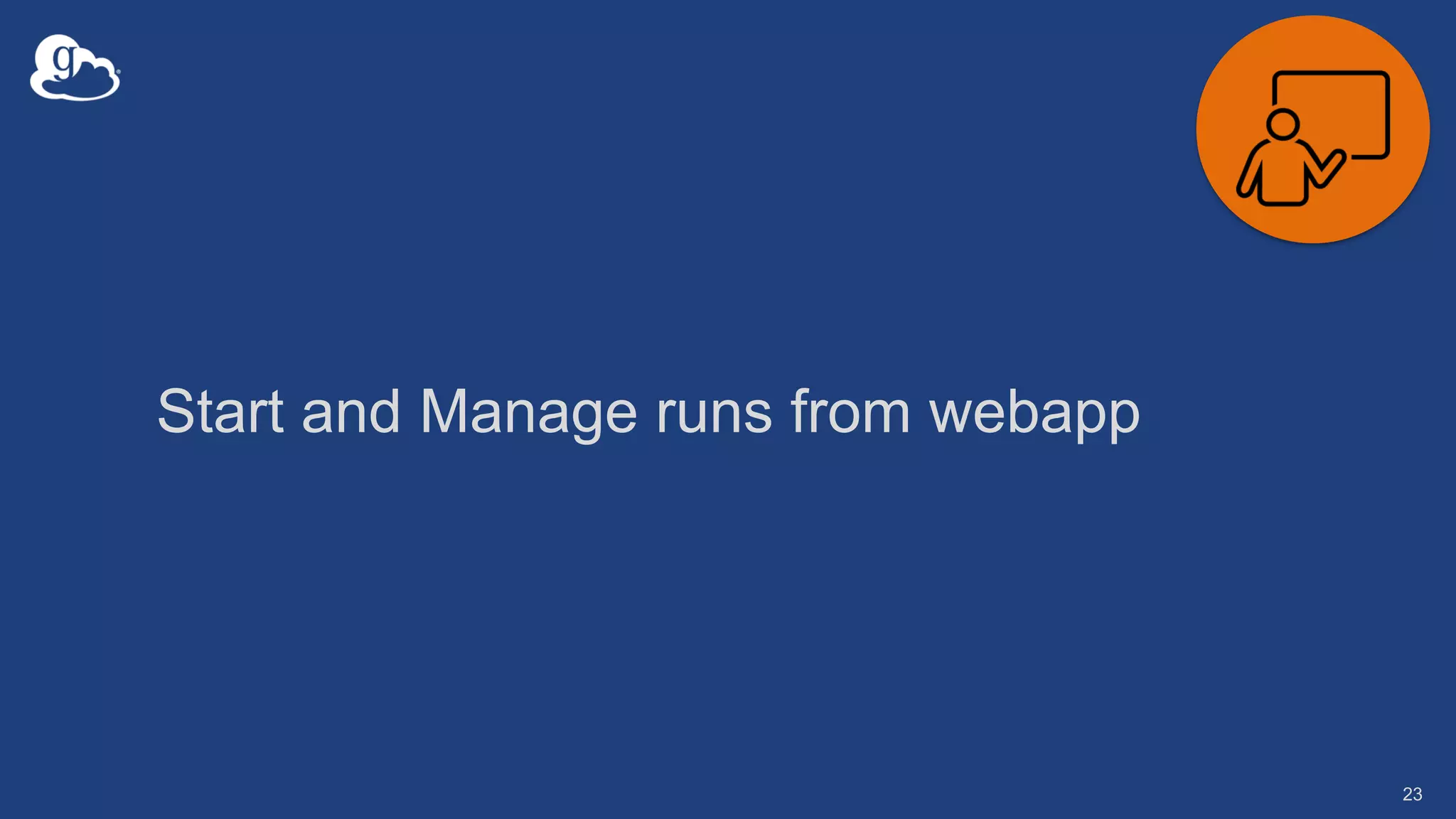

- 22. Start and Manageruns from webapp 23
- 23. Create and deploynew flows 24

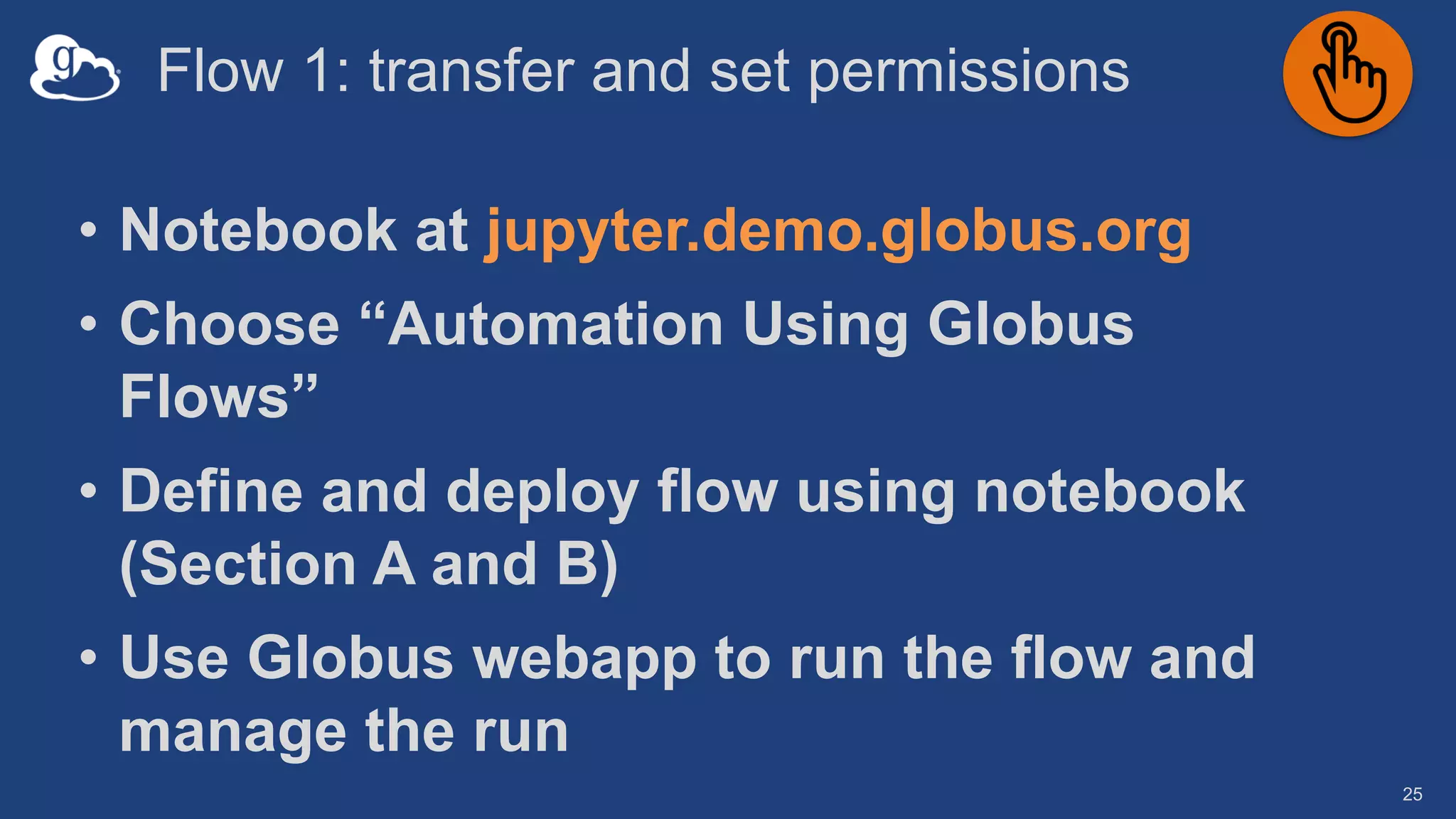

- 24. Flow 1: transferand set permissions 25 • Notebook at jupyter.demo.globus.org • Choose “Automation Using Globus Flows” • Define and deploy flow using notebook (Section A and B) • Use Globus webapp to run the flow and manage the run

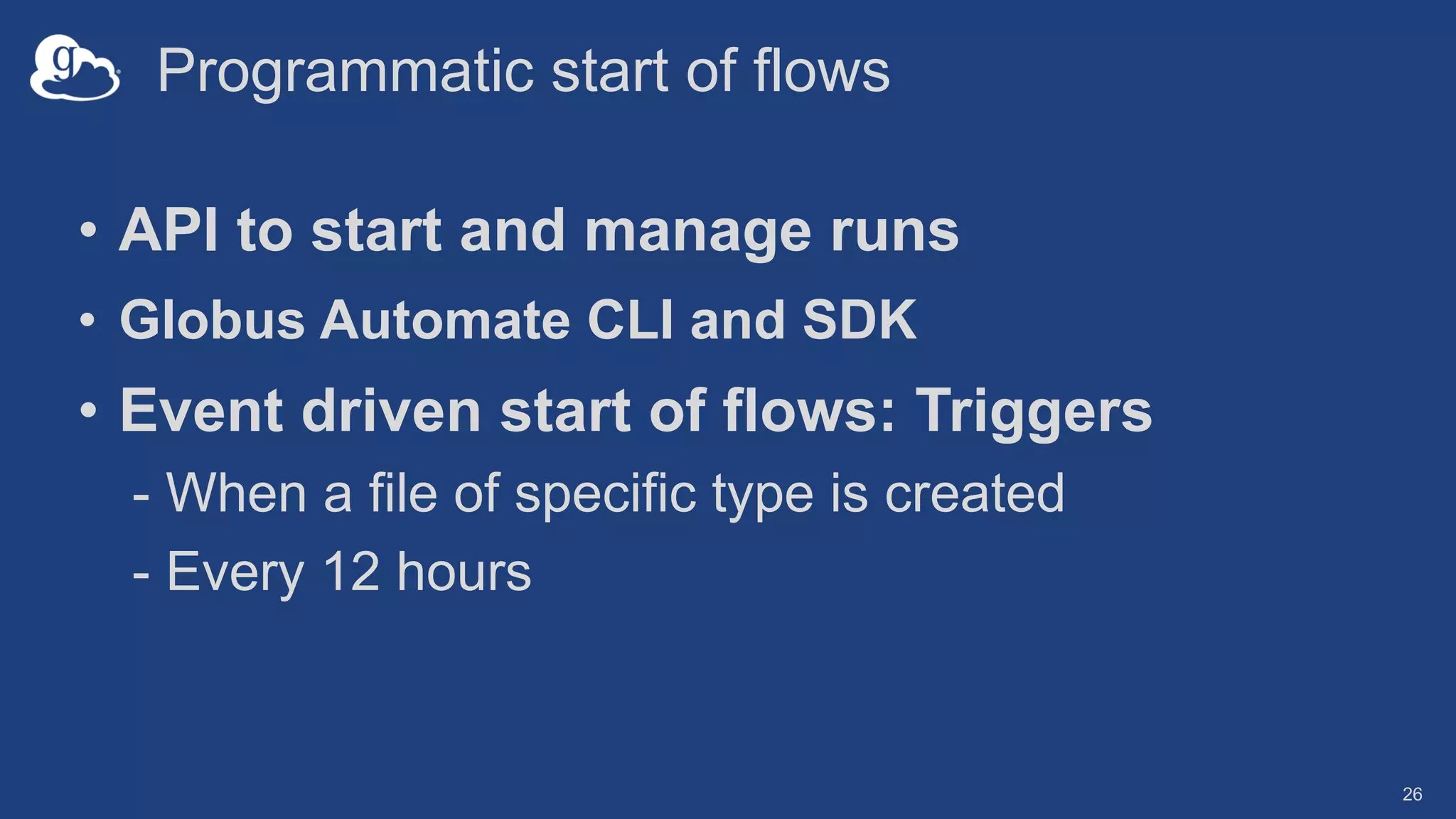

- 25. Programmatic start offlows 26 • API to start and manage runs • Globus Automate CLI and SDK • Event driven start of flows: Triggers - When a file of specific type is created - Every 12 hours

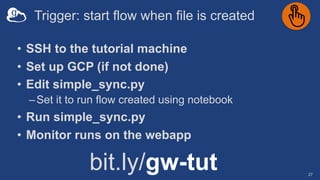

- 26. Trigger: start flowwhen file is created 27 • SSH to the tutorial machine • Set up GCP (if not done) • Edit simple_sync.py –Set it to run flow created using notebook • Run simple_sync.py • Monitor runs on the webapp bit.ly/gw-tut

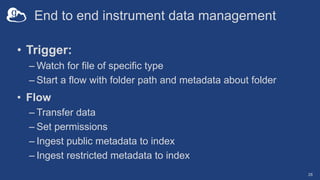

- 27. End to endinstrument data management 28 • Trigger: – Watch for file of specific type – Start a flow with folder path and metadata about folder • Flow – Transfer data – Set permissions – Ingest public metadata to index – Ingest restricted metadata to index
- 28. Flow 2: transfer,set permissions & ingest 29 • Notebook at jupyter.demo.globus.org • Choose “Automation Using Flows with Search” • Define and deploy flow using notebook (Section A and B)
- 29. Trigger: start flowwhen file is created 30 • SSH to the tutorial machine • cd globus-flows-trigger-examples/ • Set up GCP (if not done) • Edit trigger_transfer_share_flow.py – Set it to run flow created using notebooks • Edit and run trigger_transfer_publish_flow.py • Monitor runs on the webapp bit.ly/gw-tut

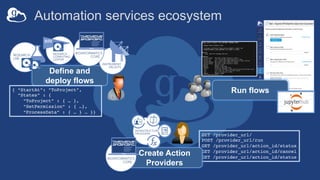

- 30. Automation services ecosystem GET/provider_url/ POST /provider_url/run GET /provider_url/action_id/status GET /provider_url/action_id/cancel GET /provider_url/action_id/status Create Action Providers Define and deploy flows { “StartAt”: ”ToProject”, ”States” : { ”ToProject” : { … }, ”SetPermission” : { …}, “ProcessData” : { … } … }} Run flows

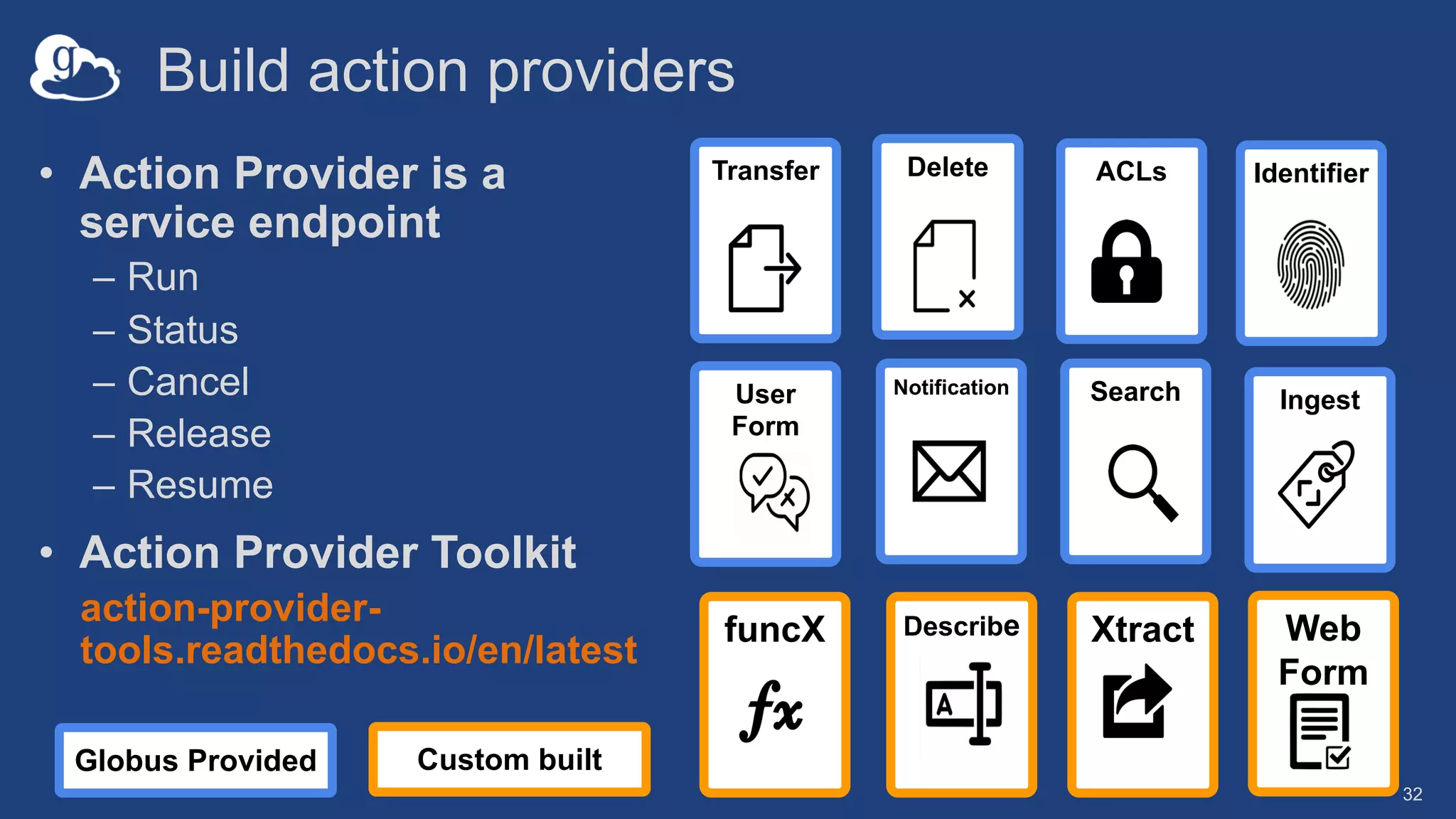

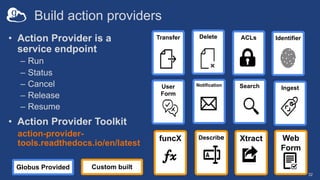

- 31. Build action providers 32 •Action Provider is a service endpoint – Run – Status – Cancel – Release – Resume • Action Provider Toolkit action-provider- tools.readthedocs.io/en/latest Search Transfer Notification ACLs Identifier Delete Ingest User Form Describe Xtract funcX Web Form Custom built Globus Provided
- 32. Automating computation withfuncX* Managed, federated Functions-as-a-Service for reliably, scalably and securely executing functions on remote endpoints from laptops to supercomputers * funcX is in currently under development and in limited production use
- 33.
- 34.
- 35. Thank you, funders... U. S . D E P A R T M E N T O F ENERGY

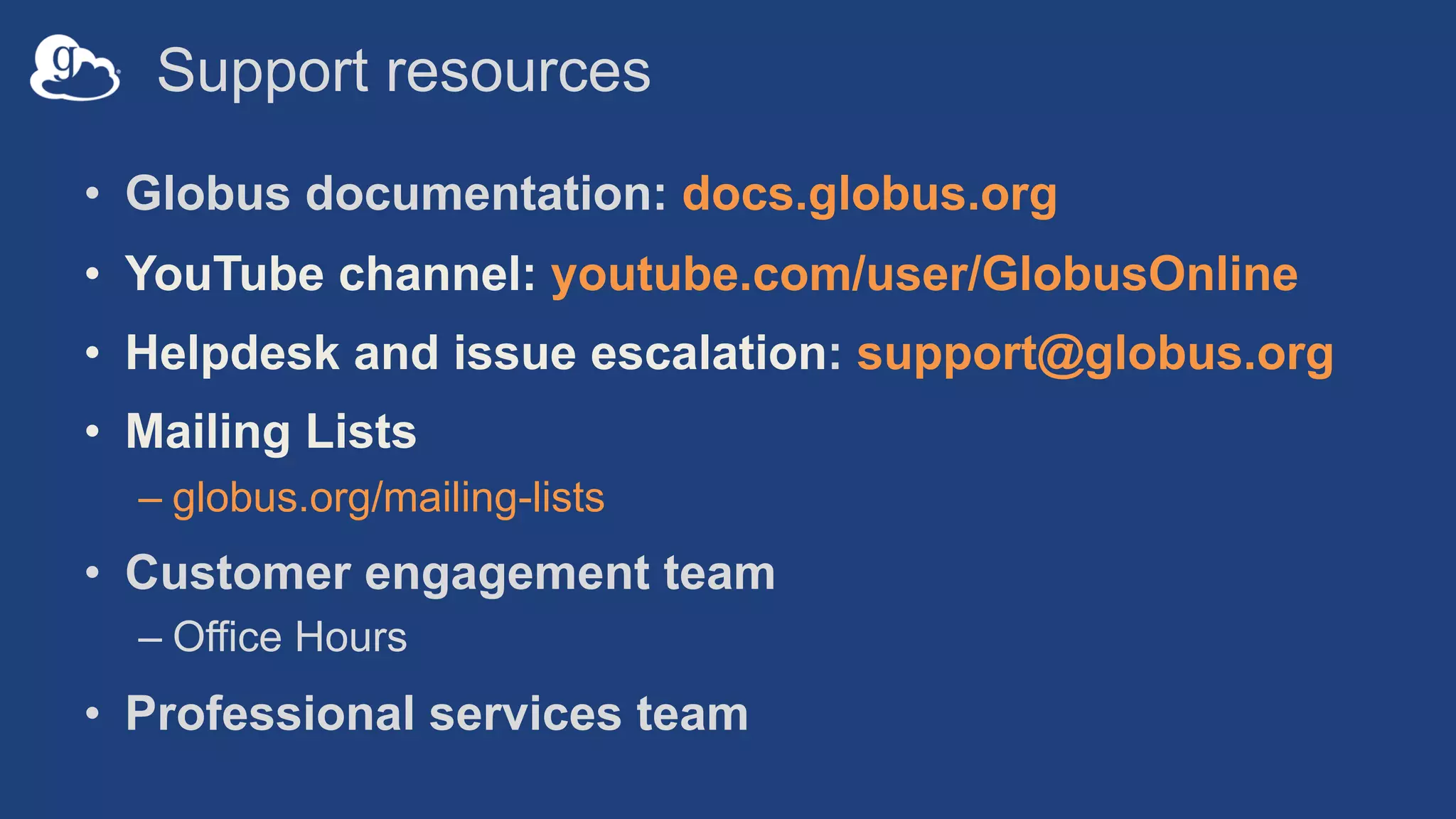

- 36. Support resources • Globusdocumentation: docs.globus.org • YouTube channel: youtube.com/user/GlobusOnline • Helpdesk and issue escalation: support@globus.org • Mailing Lists – globus.org/mailing-lists • Customer engagement team – Office Hours • Professional services team
