Geneva Wheel

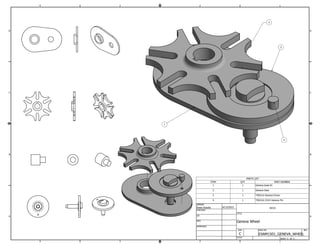

This parts list contains 4 parts needed to build a Geneva wheel mechanism. It includes the Geneva base, Geneva gear, Geneva driver, and Geneva pin. The quantities specified are 1 for each part except for the Geneva driver which has a quantity of 2.

1 / 1

PARTS LIST
PART NUMBERQTYITEM
Geneva base-0111
Geneva Gear12
TDD216 Geneva Driver13
TDD216 CH15 Geneva Pin14
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Drew Kravitz 4/13/2015
DWG NO
EXAM1501_GENEVA_WHEEL
TITLE
Geneva Wheel
SIZE
C
SCALE
DCCC
REV
2
3
4
1
