2016 Q3 Launch - Customer presentation

1. GE Lightech
LED Drivers
Sept 2016

2. Product Portfolio

3. GE LIGHTECHTM
Constant Current LED Drivers
for Point Applications

4. GE LIGHTECHTM
Constant Current LED Drivers
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
96507 LED 55 CC 1.4A ESRDL 1-10V 220-240 55 1.4A 15-40VDC 9.32A 220-240 20 75 Yes 204 50 35
65384 LED 55 CC 1.4A ESRDL 1-10V 230-240V 55 1.4A 15-40VDC 9.32A 230-240 20 75 Yes 204 50 35
96508 LED 55 CC 1.4A ESRDL DALI 220-240 55 1.4A 15-40VDC 9.32A 220-240 20 75 Yes 204 50 35
89878 LED 55 CC 1.4A ESRDL DALI 230-240V 55 1.4A 15-40VDC 9.32A 230-240 20 75 Yes 204 50 35
83444 LED 55 CC 1.4A ETB DALI 220-240V 55 1.4A 15-40VDC 9.32A 220-240 20 75 Yes 170 50 35
55W Infusion
30W Infusion
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
94562 LED 30CC 0.7 1.4A SW ESRDL1-10V 30 0.7 /1.4
0.7A - 3-43V
1.4A - 3-21.5V
limited 220-240 20 75 Yes 170 40 31
94563 LED 30CC 0.7 1.4A SW ESRDL DALI 30 0.7 /1.4
0.7A - 13-43V
1.4A - 6.5-21.5V
limited 220-240 20 75 Yes 170 40 31
CC =
Constant
Current
E = European
product
P = Potted T = Terminal
block
S = Signage D = Phase
Dimmable
M = Metal
case
DL = DALI/ 0-
10V
Dimmable
R = Increased
EMI
protection
0-10V & DALI dimming
0-10V & DALI dimming
Not certified
for EU OEMs

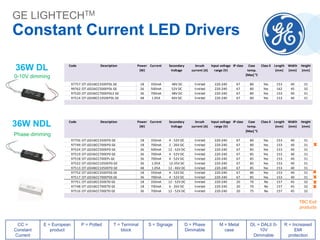

5. GE LIGHTECHTM
Constant Current LED Drivers
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97757 OT LED18CC350EPDL GE 18 350mA 48V DC limited 220-240 67 80 Yes 153 40 31
99762 OT LED26CC500EPDL GE 26 500mA 52V DC limited 220-240 67 80 Yes 162 45 32
97520 OT LED36CC700EPDL3 GE 36 700mA 48V DC limited 220-240 67 80 Yes 153 40 31
97514 OT LED48CC1050EPDL GE 48 1.05A 46V DC limited 220-240 67 80 Yes 153 40 31
36W DL
36W NDL Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97756 OT LED18CC350EPD GE 18 350mA 4 - 52V DC limited 220-240 67 80 Yes 153 40 31
97749 OT LED18CC700EPD GE 18 700mA 2 - 26V DC limited 220-240 67 80 Yes 153 40 31
97524 OT LED26CC500EPD GE 26 500mA 12 - 52V DC limited 220-240 67 85 Yes 153 40 31
97519 OT LED36CC700EPD GE 36 700mA 4 - 52V DC limited 220-240 67 85 Yes 153 40 31
97518 OT LED36CC700EPL GE 36 700mA 4 - 52V DC limited 220-240 67 85 Yes 153 40 31
97522 OT LED36CC1050EPD GE 36 1.05A 12-35V DC limited 220-240 67 85 Yes 153 40 31
97513 OT LED48CC1050EPD GE 48 1.05A 12 - 46V DC limited 220-240 67 85 Yes 153 40 31
97752 OT LED18CC350EPDS GE 18 350mA 4 - 52V DC limited 220-240 67 80 Yes 153 40 31
97517 OT LED36CC700EPDS GE 36 700mA 4 - 52V DC limited 220-240 67 85 Yes 153 40 31
97751 OT LED18CC350ETD GE 18 350mA 12 - 52V DC limited 220-240 20 70 No 157 45 32
97748 OT LED18CC700ETD GE 18 700mA 6 - 26V DC limited 220-240 20 70 No 157 45 32
97516 OT LED36CC700ETD GE 36 700mA 12 - 52V DC limited 220-240 20 75 No 157 45 32
0-10V dimming
CC =
Constant
Current
E = European
product
P = Potted T = Terminal
block
S = Signage D = Phase
Dimmable
M = Metal
case
DL = DALI/ 0-
10V
Dimmable
R = Increased
EMI
protection
Phase dimming
TBC Exit
products

6. GE LIGHTECHTM
Constant Current LED Drivers
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
93010237 LED18CC350EPDL SH 18 350mA 12-48V 13.3A max 220-240 65 90 Yes 153 41 30
93010238 LED26CC500EPDL SH 26 500mA 12-52V 13.9A max 220-240 65 90 Yes 153 41 30
93010236 LED36CC700EPDL SH 36 700mA 12-48V 14.1A max 220-240 65 90 Yes 153 41 30
93010235 LED48CC1050EPDL SH 48 1050mA 12-43V 15.6A max 220-240 65 90 Yes 153 41 30
CC =
Constant
Current
E = European
product
P = Potted T = Terminal
block
S = Signage D = Phase
Dimmable
M = Metal
case
DL = DALI/ 0-
10V
Dimmable
R = Increased
EMI
protection
0-10V dimming
No dimming
36W DL ‘Start’
36W NDL
‘Start’
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
93010304 LED 18 CC 350 P SH 18 350mA 10-52V no limiter 220-240 65 90 Yes 153 41 30
93010306 LED 18 CC 700 EP SH 18 700mA 10-26V no limiter 220-240 65 90 Yes 153 41 30
93010308 LED 26 CC 500 EP SH 26 500mA 10-52V no limiter 220-240 65 90 Yes 153 41 30
93010309 LED 36 CC 700 EP SH 36 700mA 10-52V no limiter 220-240 65 90 Yes 153 41 30
93010310 LED 36 CC 1050 EP SH 36 1050mA 10-35V no limiter 220-240 65 90 Yes 153 41 30
93010311 LED 48 CC 1050 EP SH 48 1050mA 10-46V no limiter 220-240 65 90 Yes 153 41 30
93010305 LED 18 CC 350 TB SH 18 350mA 10-52V no limiter 220-240 20 90 Yes 158 45 32
93010307 LED 18 CC 700 TB SH 18 700mA 10-26V no limiter 220-240 20 90 Yes 158 45 32
93010295 LED 36 CC 700 TB SH 36 700mA 10-52V no limiter 220-240 20 90 Yes 158 45 32

7. GE LIGHTECHTM
Constant Current LED Drivers
15W LiteBeetle
12/18W
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
98444 OT LED15CC350ELB GE 15 350mA 21 - 43V DC limited 220-240 20 75 Yes 113 51 30
98442 OT LED15CC500ELB GE 15 500mA 15 - 30V DC limited 220-240 20 75 Yes 113 51 30
97758 OT LED15CC700ELB GE 15 700mA 11 - 22V DC limited 220-240 20 75 Yes 113 51 30
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97399 OT LED12CC350EP GE 12 350mA 2.3 - 35V DC no limiter 120-240 67 65 Yes 102 35 23
97402 OT LED12CC500EP GE 12 500mA 2.3 - 26V DC no limiter 120-240 67 65 Yes 102 35 23
97404 OT LED12CC700EP GE 12 700mA 2.3 - 18V DC no limiter 120-240 67 65 Yes 102 35 23
97405 OT LED12CC700EPLP GE 12 700mA 2.3 - 18V DC no limiter 120-240 67 65 Yes 97 40 23
97397 OT LED12CC1050EP GE 12 1050mA 2.3-12.5V DC no limiter 120-240 67 65 Yes 102 35 23
97753 OT LED18CC350EPM GE 18 350mA 3 - 55V DC no limiter 220-240 67 70 Yes 102 35 23
97750 OT LED18CC700EPM GE 18 700mA 2 - 30V DC no limiter 220-240 67 70 Yes 102 35 23
97401 OT LED12CC350ET GE 12 350mA 2.3 - 35V DC no limiter 120-240 20 70 Yes 100 40 27
97403 OT LED12CC500ET GE 12 500mA 2.3 - 26V DC no limiter 120-240 20 70 Yes 100 40 27
97407 OT LED12CC700ET GE 12 700mA 2.3 - 18V DC no limiter 120-240 20 70 Yes 100 40 27
97398 OT LED12CC1050ET GE 12 1050mA 2.3 - 12.5V DC no limiter 120-240 20 70 Yes 100 40 27
CC =
Constant
Current
E = European
product
P = Potted T = Terminal
block
S = Signage D = Phase
Dimmable
M = Metal
case
DL = DALI/ 0-
10V
Dimmable
R = Increased
EMI
protection
Phase dimming

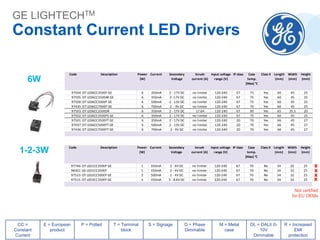

8. GE LIGHTECHTM
Constant Current LED Drivers
6W
1-2-3W
CC =
Constant
Current
E = European
product
P = Potted T = Terminal
block
S = Signage D = Phase
Dimmable
M = Metal
case
DL = DALI/ 0-
10V
Dimmable
R = Increased
EMI
protection
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97504 OT LED6CC350EP GE 6 350mA 2 - 17V DC no limiter 120-240 67 75 Yes 60 45 25
97505 OT LED6CC350EAR GE 6 350mA 2 -17V DC no limiter 120-240 67 75 Yes 60 45 25
97500 OT LED6CC500EP GE 6 500mA 2 - 13V DC no limiter 120-240 67 75 Yes 60 45 25
97435 OT LED6CC700EP GE 6 700mA 2 - 9V DC no limiter 120-240 67 70 Yes 60 45 25
97503 OT LED6CC350EDR 6 350mA 2 - 17V DC 17.6A 120-240 67 90 Yes 65 35.5 20
97502 OT LED6CC350EPS GE 6 350mA 2 - 17V DC no limiter 120-240 67 75 Yes 60 45 25
97501 OT LED6CC350EPT GE 6 350mA 2 - 17V DC no limiter 120-240 20 70 Yes 66 45 27
97437 OT LED6CC500EPT GE 6 500mA 2 - 13V DC no limiter 120-240 20 70 Yes 66 45 27
97436 OT LED6CC700EPT GE 6 700mA 2 - 9V DC no limiter 120-240 20 70 Yes 66 45 27
Code Description Power
(W)
Current Secondary
Voltage
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97746 OT LED1CC350EP GE 1 350mA 2 - 4V DC no limiter 120-240 67 70 No 34 32 25
98301 GE-LED1CC350EP 1 350mA 2 - 4V DC no limiter 120-240 67 70 No 34 32 25
97523 OT LED2CC500EP GE 2 500mA 2 - 4V DC no limiter 120-240 67 70 No 34 32 25
97515 OT LED3CC350EP GE 3 350mA 3 - 8.6V DC no limiter 220-240 67 70 No 34 32 25
Not certified
for EU OEMs

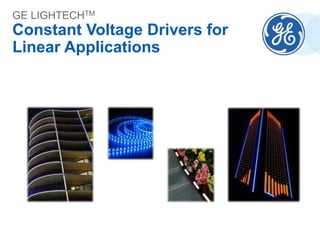

9. GE LIGHTECHTM
Constant Voltage Drivers for
Linear Applications

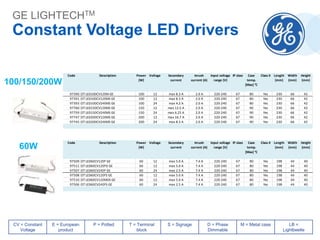

10. GE LIGHTECHTM
Constant Voltage LED Drivers
Code Description Power
(W)
Voltage Secondary
current
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97390 OT LED100CV12EM GE 100 12 max 8.3 A 2.0 A 220-240 67 80 Yes 230 66 42
97391 OT LED100CV12EMS GE 100 12 max 8.3 A 2.0 A 220-240 67 80 Yes 230 66 42
97393 OT LED100CV24EMS GE 100 24 max 4.2 A 2.0 A 220-240 67 80 Yes 230 66 42
97760 OT LED150CV12EMS GE 150 12 max 12.5 A 2.0 A 220-240 67 90 Yes 230 66 42
97759 OT LED150CV24EMS GE 150 24 max 6.25 A 2.0 A 220-240 67 90 Yes 230 66 42
97747 OT LED200CV12EMS GE 200 12 max 16.7 A 2.0 A 220-240 67 90 Yes 230 66 42
97745 OT LED200CV24EMS GE 200 24 max 8.3 A 2.0 A 220-240 67 90 Yes 230 66 42
Code Description Power
(W)
Voltage Secondary
current
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97509 OT LED60CV12EP GE 60 12 max 5.0 A 7.4 A 220-240 67 80 Yes 198 44 40
97511 OT LED60CV12EPD GE 60 12 max 5.0 A 7.4 A 220-240 67 80 Yes 198 44 40
97507 OT LED60CV24EP GE 60 24 max 2.5 A 7.4 A 220-240 67 80 Yes 198 44 40
97508 OT LED60CV12EPS GE 60 12 max 5.0 A 7.4 A 220-240 67 80 Yes 198 44 40
97510 OT LED60CV12EMDS GE 60 12 max 5.0 A 7.4 A 220-240 67 80 Yes 198 44 40
97506 OT LED60CV24EPS GE 60 24 max 2.5 A 7.4 A 220-240 67 80 Yes 198 44 40
CV = Constant
Voltage
E = European
product
P = Potted T = Terminal
block
S = Signage D = Phase
Dimmable
M = Metal case LB =
Lightbeetle
100/150/200W
60W

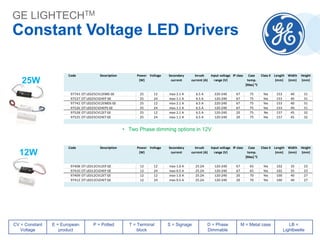

11. GE LIGHTECHTM
Constant Voltage LED Drivers
Code Description Power
(W)
Voltage Secondary
current
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97743 OT LED25CV12EMD GE 25 12 max 2.1 A 6.5 A 220-240 67 75 Yes 153 40 31
97527 OT LED25CV24EP GE 25 24 max 1.1 A 6.5 A 120-240 67 75 Yes 153 40 31
97742 OT LED25CV12EMDS GE 25 12 max 2.1 A 6.5 A 220-240 67 75 Yes 153 40 31
97526 OT LED25CV24EPS GE 25 24 max 1.1 A 6.5 A 120-240 67 75 Yes 153 40 31
97528 OT LED25CV12ET GE 25 12 max 2.1 A 6.5 A 120-240 20 75 No 157 45 32
97525 OT LED25CV24ET GE 25 24 max 1.1 A 6.5 A 120-240 20 75 Yes 157 45 32
Code Description Power
(W)
Voltage Secondary
current
Inrush
current (A)
Input voltage
range (V)
IP class Case
temp.
[Max] °C
Class II Length
(mm)
Width
(mm)
Height
(mm)
97408 OT LED12CV12EP GE 12 12 max 1.0 A 25.2A 120-240 67 65 Yes 102 35 23
97410 OT LED12CV24EP GE 12 24 max 0.5 A 25.2A 120-240 67 65 Yes 102 35 23
97409 OT LED12CV12ET GE 12 12 max 1.0 A 25.2A 120-240 20 70 Yes 100 40 27
97412 OT LED12CV24ET GE 12 24 max 0.5 A 25.2A 120-240 20 70 Yes 100 40 27
• Two Phase dimming options in 12V
25W
12W
CV = Constant
Voltage
E = European
product
P = Potted T = Terminal
block
S = Signage D = Phase
Dimmable
M = Metal case LB =
Lightbeetle

12. Q&A
Thank you.
