Neway Inverter Range
• 1. NWE Series-Economical Series Pure Sine Wave Inverter(400VA-6000VA)
• 2.NW Seires Pure Sine Wave Inverter-High Class(1000VA to 7000VA)
• 3. NP Seires Solar Inverter-High Class (800VA to 7000VA)
• 4. NC Series Inverter/Charger-High Class (800VA to 7000VA)
• 5.NWP Seires Three Phase Inverter(Up to 20KW).
• 6. NW-M Series Modified Sine Wave Inverter (Up to 3000W)
• 7.Solar pump inverter:0.5HP to 100HP
New Way,New Choice!New Power,New Life!01/13/16

01/13/16
1.NWE Series-Economical Series Pure Sine Wave Inverter(400VA-6000VA)
• NEWAY Economical Series(NWE) inverter is an economical series of Neway Power.It is pure
sine wave series. It is a series which to compete the market normal models.
Features:
•Two times surge power
•12/24/48V DC input
•100-120V/220-230V AC output
•Pure sine wave
•Isolated ground & neutral
•Input and output isolated
•Optional:Remote for the model higher
than 2000VA
•Digital display shows input voltage and % of
Max power alternately from NWE1500
•Cooling fans thermally controlled
•Input protection:Reverse polarity(Fuse)/Under
voltage/Over voltage
•Ouput protection:Short sircuit/ Overload/ Over
temperature
•1 year warranty
•CE & Rohs approved

Technical Data Sheet
01/13/16
MODEL NO. NWE400 NWE800 NWE1000 NWE1500 NWE2000 NWE3000 NWE4000 NWE6000
Output Power (Continuous VA) 400 800 1000 1500 2000 3000 4000 6000
Output Power (Peak VA) 800 1600 2000 3000 4000 6000 8000 12000
Nominal Input Voltage (DC) 12V/24V/48V 12V 24V / 48V 12V 24V / 48V
Nominal Output Voltage (AC) 110V / 230V, (regulation: 5%~10%)
Frequency 50Hz / 60Hz
Output Waveform Pure Sine Wave (THD<3%)
Low Battery Alarm (VDC) 10.8+/-0.5(12V); 21.6+/-1(24V); 43.2+/-2(48V)
Low Battery Shutdown (VDC) 10.2+/-0.5(12V); 20.4+/-1(24V); 40.8+/-2(48V)
Over Voltage Shutdown (VDC) 15.5+/-0.5(12V); 31.0+/-1(24V); 62.0+/-2(48V)
Efficiency 85—90%
Battery Polarity Reverse Protection By Fuse
Thermal Protection 65 ±5℃ ℃
Overload Protection Shutdown
Output Short Circuit Protection Shutdown
With Cooling Fan Auto-operation fan (temperature control)
AC Output Outlet
U.S.A. Type:2 AC Outlets
European Type:l AC Outlet
U.S.A. Type: 4 AC Outlets
European Type:2 AC Outlets
U.S.A. Type: 4 AC Outlets
European Type:2 AC Outlets
AC hardwire termina block
Remote Controller / / / Optional
Product Dimension (LxWxH)(MM) 170x118x62 250X150X72 280X150×88 280X150×88 350X210X103
350X210X10
3
470X210X13
0
470X210X130
N.W. (KGS) 1.3 2 3 3 5.5 5.5 9 9
QTY/Carton (PCS) 8 4 4 4 4 4 1 1
Carton Size (MM) 40X35X27 41X36X25
430X410X29
0
430X410X290 590X510X400
590X510X40
0
640X310X25
0
640X310X250
Container 20FT (PCS) 5920 3032 2,254 2,254 864 864 524 524

2. NW Series-Pure Sine Wave Inverter
-High Class
• NEWAY Series(NW) inverter will be ideal for running
nonlinear loads (such as variable speed motors and small
compressors and air conditioner). Pure sine power is also
preferred for LaserJet printers, sensitive electronics,
computer servers, microwaves and cordless drill battery
chargers.The digital display will guide you to monitor your
battery capacity and power consumption.
•Three times surge power
•100-120V/220-230V AC output
•Pure sine wave
•Optional:Remote port for on/off switch
•Digital display shows input voltage and % of
Max power alternately
•Ouput protection:Short sircuit/ Overload/ Over
temperature
•18 months warranty
Features:
01/13/16

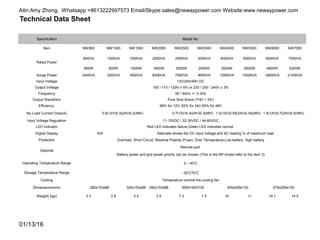

Specification Model No.
Item NW800 NW1000 NW1500 NW2000 NW2500 NW3000 NW4000 NW5000 NW6000 NW7000
Rated Power
800VA 1000VA 1500VA 2000VA 2500VA 3000VA 4000VA 5000VA 6000VA 7000VA
650W 800W 1000W 1600W 2000W 2400W 3000W 3500W 4800W 5300W
Surge Power 2400VA 3000VA 4500VA 6000VA 7500VA 9000VA 12000VA 15000VA 18000VA 21000VA
Input Voltage 12V/24V/48V DC
Output Voltage 100 / 110 / 120V ± 5% or 220 / 230 / 240V ± 3%
Frequency 50 / 60Hz +/- 0.3Hz
Output Waveform Pure Sine Wave (THD < 3%)
Efficiency 88% for 12V; 92% for 24V;93% for 48V
No Load Current Draw(A) 0.6(12V)0.3(24V)0.2(48V) 0.7(12V)0.4(24V)0.3(48V) 1.0(12V)0.55(24V)0.35(48V) 1.5(12V)0.7(24V)0.5(48V)
Input Voltage Regulation 11-15VDC / 22-30VDC / 44-60VDC
LED Indicator Red LED indicates failure,Green LED indicates normal
Digital Display N/A Alternate shows the DC input voltage and AC loading % of maximum load
Protection Overload, Short Circuit, Reverse Polarity (Fuse), Over Temperature,Low battery, High battery
Optional
Remote port
Battery power and grid power priority can be chosen (This is the NP model,refer to the item 3)
Operating Temperature Range 0 – 40℃
Storage Temperature Range -30℃70℃
Cooling Temperature controll the cooling fan
Dimensions(mm) 280x153x88 320x153x88 350x153x88 365X192X130 455x209x130 575x209x130
Weight( kgs) 2.7 2.8 3.2 3.5 7.3 7.5 10 11 14.1 14.5
01/13/16

3. NP Series-Solar Inverter
• NEWAY Series(NP) inverter will be ideal for the solar power
system, Battery power and grid power priority can be chosen
function is our special design for the solar power system, you can
choose AC power Priority or Battery Power Priority. For the solar
power system, you usually need solar power firstly so you choose
battery priority,and when the battery is low, the system will transfer
AC power automatically. If for home use, we usually choose AC
power priority. When there is no AC power, the inverter transfers
into battery and inverter mode automatcially. when the AC comes,
it transfer to AC power automatically.It is the best choice for the
solar power system!
•100-120V/220-230V AC output
•Pure sine wave
•Priority between battery power and AC power can be chosen
•Optional:Remote port for on/off switch
•Digital display shows input voltage and % of Max
power alternately
•Ouput protection:Short circuit/Overload/Over
temperature
Features:
01/13/16

Item NP800 NP1000 NP1500 NP2000 NP2500 NP3000 NP4000 NP5000 NP6000 NP7000
Rated Power
650W 800W 1000W 1600W 2000W 2400W 3000W 3500W 4800W 5300W
Surge Power 2400VA 3000VA 4500VA 6000VA 7500VA 9000VA 12000VA 15000VA 18000VA 21000VA
Efficiency 88% for 12V; 92% for 24V;93% for 48V
No Load Current Draw(A) 0.6(12V)0.3(24V)0.2(48V)
0.7(12V)0.4(24V)0.3(48
V)
1.0(12V)0.55(24V)0.35(
48V)
1.5(12V)0.7(24V)0.5(48
V)
Input Voltage Regulation 11-15VDC / 22-30VDC / 44-60VDC
Digital Display N/A Alternate shows the DC input voltage and AC loading % of maximum load
Optional Remote port
Priority Battery power and grid power priority can be chosen
Operating Temperature
Range
0 – 40℃
Storage Temperature Range -30℃70℃
Dimensions(mm) 280x153x88
320x153x8
8
350x153x8
8
365X192X130 455x209x130 575x209x130
Weight( kgs) 2.7 2.8 3.2 3.5 7.3 7.5 10 11 14.1 14.5
01/13/16

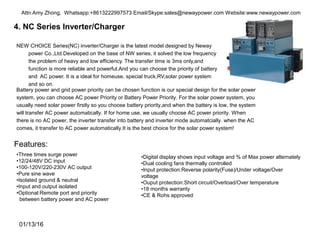

4. NC Series Inverter/Charger
NEW CHOICE Series(NC) inverter/Charger is the latest model designed by Neway
power Co.,Ltd.Developed on the base of NW series, it solved the low frequency
the problem of heavy and low efficiency. The transfer time is 3ms only,and
function is more reliable and powerful.And you can choose the priority of battery
and AC power. It is a ideal for homeuse, special truck,RV,solar power system
and so on.
•100-120V/220-230V AC output
•Pure sine wave
•Optional:Remote port and priority
between battery power and AC power
•Digital display shows input voltage and % of Max power alternately
•Dual cooling fans thermally controlled
•Input protection:Reverse polarity(Fuse)/Under voltage/Over
voltage
•Ouput protection:Short circuit/Overload/Over temperature
Battery power and grid power priority can be chosen function is our special design for the solar power
system, you can choose AC power Priority or Battery Power Priority. For the solar power system, you
usually need solar power firstly so you choose battery priority,and when the battery is low, the system
will transfer AC power automatically. If for home use, we usually choose AC power priority. When
there is no AC power, the inverter transfer into battery and inverter mode automatcially. when the AC
comes, it transfer to AC power automatically.It is the best choice for the solar power system!
Features:
01/13/16

Item NC800 NC1000 NC1500 NC2000 NC2500 NC3000 NC4000 NC5000 NC6000 NC7000
Continuous Output
Power
Surge Rating 2400VA 3000VA 4500VA 6000VA 7500VA 9000VA 12000VA 15000VA 18000VA 21000VA
Frequency 50 / 60Hz +/- 0.5%
Efficiency (full load) 88% for 12V;92% for 24V;93% for 48V
No Load Current
Draw(12V)
0.6(12V)0.3(24V)0.2(48V)
0.7(12V)0.4(24V)0.3
(48V)
1(12V)0.55(24V)0.35(
48V)
1.5(12V)0.7(24V)0.5(48V)
Input Voltage
Regulation
11-15VDC/22-30VDC/ 44-60VDC
LED Indicator Red LED indicates failure,Green LED indicates normal , Yellow LED indicates charging
Digital Display Alternate shows the DC input and AC loading % of maximum load
Charger
AC Input Volt 110VAC±10 ％ 220VAC±10 ％
Charge
Current
10/5/2.5A 30/15/7.5A 50/25/12.5A
Charge
Mode
3 stages charge mode
01/13/16

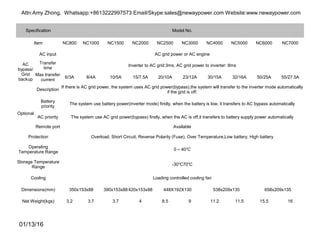

Item NC800 NC1000 NC1500 NC2000 NC2500 NC3000 NC4000 NC5000 NC6000 NC7000
AC
bypass/
Grid
backup
AC input AC grid power or AC engine
Transfer
time
Inverter to AC grid:3ms, AC grid power to inverter: 8ms
Max transfer
current
6/3A 8/4A 10/5A 15/7.5A 20/10A 23/12A 30/15A 32/16A 50/25A 55/27.5A
Description
If there is AC grid power, the system uses AC grid power(bypass),the system will transfer to the inverter mode automatically
if the grid is off.
Optional
Battery
priority
The system use battery power(inverter mode) firstly, when the battery is low, it transfers to AC bypass automatically
AC priority The system use AC grid power(bypass) firstly, when the AC is off,it transfers to battery supply power automatically
Remote port Available
Operating
Temperature Range
0 – 40℃
Storage Temperature
Range
-30 70℃ ℃
Cooling Loading controlled cooling fan
Dimensions(mm) 350x153x88 390x153x88420x153x88 448X192X130 538x209x135 658x209x135
Net Weight(kgs) 3.2 3.7 3.7 4 8.5 9 11.2 11.5 15.5 16
01/13/16

5. NWP Seires Three Phase Inverter
NEWAY Power Series(NWP) inverter will be ideal for running three
phase nonlinear loads (such as variable speed motors and small
compressors and air conditioner). Pure sine power is also preferred for
LaserJet printers, sensitive electronics, computer servers, microwaves and
cordless drill battery chargers.The digital display will guide you to monitor
your battery capacity and power consumption.
Features:
•24/48V DC input
•208V/380V AC output
•Pure sine wave
•Connector for remote on/off switch
•Digital display shows input voltage/current and output
voltage/current
•Three Phase Four Wire
•Input protection: Reverse polarity(Fuse)/Under
•Ouput protection:Short circuit/Overload/Over
temperature
•1 year warranty
01/13/16

Item NWP5K NWP6K NWP8K NWP10K NWP12K NWP15K NWP20K
Rated Power
5KW 6KW 8KW 10KW 12KW 15KW 20KW
6KVA 8KVA 10KVA 12KVA 15KVA 18KVA 22KVA
Surge Power 15KW 18KW 24KW 30KW 36KW 45KW 60KW
Input Voltage 24V/48V DC
Input Current (DC) 208A or 104A 250A or 125A 333A or 166A 416A or 208A 500A or 250A 625A or 312.5A 833A or 416A
Output Phase Voltage 208V ± 10% or 380 ± 5%
Output Line Voltage 100 / 110 / 120V ± 5% or 220 / 230 / 240V ± 3%
Output Current(A AC per
phase)
Up to 16 or 8 Up to 18 or 9 Up to 24 or 12 Up to 30 or 15 Up to 37 or 19 Up to 46 or 23 Up to 55 or 28
Peak Output (a AC per
phase)
Up to 48 or 24 Up to 54 or 27 Up to 72 or 36 Up to 90 or 45 Up to 111 or 57 Up to 138 or 69 Up to 165 or 84
Efficiency >88%
Input Voltage Regulation 22-30VDC / 44-60VDC
Operating Temperature
Range
0 – 40℃
Storage Temperature
Range
-30℃70℃
Dimensions(mm) 660X465X220 660X595X220
Package 896X666X432MM 1pc/Wooden case 896X796X432MM 1pc/Wooden case
01/13/16

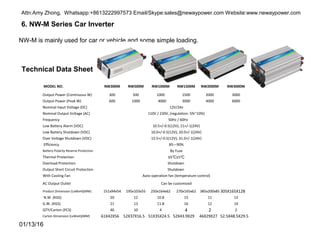

6. NW-M Series Car Inverter
NW-M is mainly used for car or vehicle and some simple loading.
01/13/16
MODEL NO. NW300M NW500M NW1000M NW1500M NW2000M NW3000M
Output Power (Continuous W) 300 500 1000 1500 2000 3000
Output Power (Peak W) 600 1000 4000 3000 4000 6000
Nominal Input Voltage (DC) 12V/24v
Nominal Output Voltage (AC) 110V / 230V, (regulation: 5%~10%)
Frequency 50Hz / 60Hz
Low Battery Alarm (VDC) 10.5+/-0.5(12V); 21+/-1(24V)
Low Battery Shutdown (VDC) 10.0+/-0.5(12V); 20.0+/-1(24V)
Over Voltage Shutdown (VDC) 15.5+/-0.5(12V); 31.0+/-1(24V)
Efficiency 85—90%
Battery Polarity Reverse Protection By Fuse
Thermal Protection 65℃±5℃
Overload Protection Shutdown
Output Short Circuit Protection Shutdown
With Cooling Fan Auto-operation fan (temperature control)
AC Output Outlet Can be customized
Product Dimension (LxWxH)(MM) 151x94x54 195x103x55 250x164x62 270x165x62 385x200x85 305X165X128
N.W. (KGS) 20 12 10.8 15 11 13
G.W. (KGS) 21 13 11.8 16 12 14
QTY/Carton (PCS) 40 10 4 4 2 2
Carton Dimension (LxWxH)(MM) 61X42X56 52X37X16.5 51X35X24.5 52X43.9X29 46X29X27 52.5X48.5X29.5

2016-1-10
Model NPP7.5 NPP15 NPP22 NPP37 NPP55 NPP75 NPP11K
Solar Pumping Controller Power (W) 750 1500 2200 3700 5500 7500 11k
Recommend Pump Power(W) 370-550 750-1100 1500 2200-3000 3700-4500 5500-6000 7500-9200
Recommend Pump Power(HP) 0.5-0.75 1-1.5 2 3-4 5-6 7.5-8 10-12.5
Input Volt
PV Open Volt: 450-750VDC or AC
input:Three−phase AC 380V (220V or 380V)
PV Open Volt:450-750VDC or AC input:Three−phase AC
380V (Optional)
Recommended MPPT Volt (V) 480-600V DC
Recommend Power of Solar Panel (Wp) 600-825 1125-1650 2250 3300-4500 5650-6750 8250-9000 11250-13800
Output Frequency 50Hz/60Hz
Model NPP15K NPP18K NPP22K NPP30K NPP37K NPP45K NPP55K NPP75K
Solar Pumping Controller Power (W) 15K 18K 22K 30K 37K 45K 55K 75K
Recommend Pump Power(W) 11K 15K 18.5K 22K-26K 30K 37K 45K 55K-65K
Recommend Pump Power(HP) 15-18.5 20 25 30-35 40 50 60 73-86
Input Volt PV Open Volt: 450-750VDC or AC input: Three−phase AC 380V (Optional)
Recommended MPPT Volt (V) 480-600V DC
Recommend Power of Solar Panel (Wp) 16.5K-19.5K 22.5K 27.8K 33K-39K 45K 56K 68K 83K-98K
7. NPP Series Solar Pump Inverter
Solar pumping controller/inverter converts DC voltage from the solar array
into AC voltage to drive the pump. With the function of MPPT (maximum
power point tracking), it regulates the output frequency according to
irradiation in real time to achieve the maximum power.
•Designed with VFD
•IP65 protection class.
•Optimizes pure sine wave PWM control
•Adjustable speed range of pump based on the actual situation of the
system.

Neway inverter range

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Neway inverter range

Similar to Neway inverter range (20)

Recently uploaded

Recently uploaded (20)

Neway inverter range
