![3

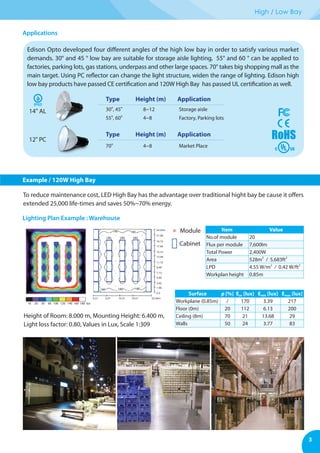

High / Low Bay
Item Value
No.of module 20
Flux per module 7,600lm
Total Power 2,400W
Area 528m2
/ 5,683ft2
LPD 4.55 W/m2
/ 0.42 W/ft2
Workplan height 0.85m
Surface ρ [%] Eav [lux] Emin [lux] Emax [lux]
Workplane (0.85m) / 170 3.39 217
Floor (0m) 20 112 6.13 200
Ceiling (8m) 70 21 13.68 29
Walls 50 24 3.77 83
Applications
Lighting Plan Example : Warehouse
To reduce maintenance cost, LED High Bay has the advantage over traditional hight bay be cause it offers
extended 25,000 life-times and saves 50%~70% energy.
Height of Room: 8.000 m, Mounting Height: 6.400 m,
Light loss factor: 0.80, Values in Lux, Scale 1:309
Module
Cabinet
Type
30o
, 45o
55o
, 60o
70o
8~12
4~8
4~8
Storage aisle
Factory, Parking lots
Market Place
Type
Height (m)
Height (m)
Application
Application
14" AL
12" PC
IP65
Example / 120W High Bay
10 20 30 60 100 120 140 160 180 lux
180
180 180 180
180
180 180 180
Edison Opto developed four different angles of the high low bay in order to satisfy various market
demands. 30° and 45 ° low bay are suitable for storage aisle lighting, 55° and 60 ° can be applied to
factories, parking lots, gas stations, underpass and other large spaces. 70° takes big shopping mall as the
main target. Using PC reflector can change the light structure, widen the range of lighting. Edison high
low bay products have passed CE certification and 120W High Bay has passed UL certification as well.](https://image.slidesharecdn.com/edisonoptoallseriesdm-140422051150-phpapp01/85/all-series-dm-16-320.jpg)
all series dm

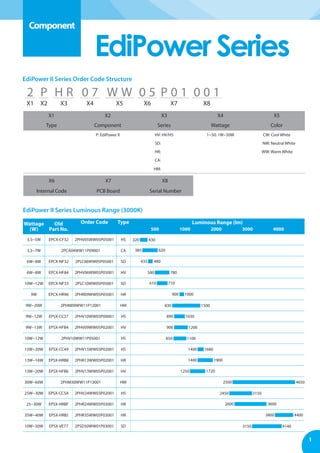

- 2. 1 EdiPower Series Component Wattage (W) Old Part No. OrderCode Type Luminous Range (lm) 500 1000 2000 3000 4000 3.5~5W EPCX-CF32 2PHV05WW05P05001 HS 3.5~7W 2PCA04WW11P09001 CA 6W~8W EPCX-NF32 2PLC06WW05P05001 SD 6W~8W EPCX-HF84 2PHV06WW05P05001 HV 10W~12W EPCX-NF33 2PLC10WW05P05001 SD 9W EPCX-HR96 2PHR09WW05P05001 HR 9W~20W 2PHM09WW11P12001 HM 9W~12W EPSX-CC37 2PHV10WW03P00001 HS 9W~13W EPSX-HFB4 2PHV09WW05P02001 HV 10W~12W 2PHV10WW11P05001 HS 15W~20W EPSX-CC49 2PHV15WW03P02001 HS 13W~16W EPSX-HRB8 2PHR13WW05P02001 HR 13W~20W EPSX-HFB6 2PHV13WW05P02001 HV 30W~60W 2PHM30WW11P13001 HM 25W~30W EPSX-CC5A 2PHV24WW03P02001 HS 25~30W EPSX-HRBF 2PHR24WW05P03001 HR 35W~40W EPSX-HRBJ 2PHR35WW05P03001 HR 10W~50W EPSX-VE77 2PSD50WW01P03001 SD EdiPower II Series Luminous Range (3000K) 320 385 435 580 610 900 830 850 1400 1400 1250 2450 3150 2600 3800 2500 890 900 430 620 480 780 710 1000 1500 1100 1680 1900 1720 3150 4140 3600 4400 4650 1030 1200 EdiPower II Series Order Code Structure 2 P H R 0 7 W W 0 5 P 0 1 0 0 1 X1 X2 X3 X4 X5 X6 X7 X8 X1 X2 X3 X4 X5 Type Component Series Wattage Color P: EdiPower II HV: HV/HS 1~50: 1W~50W CW: Cool White SD: NW: Neutral White HR: WW: Warm White CA: HM: X6 X7 X8 Internal Code PCB Board Serial Number

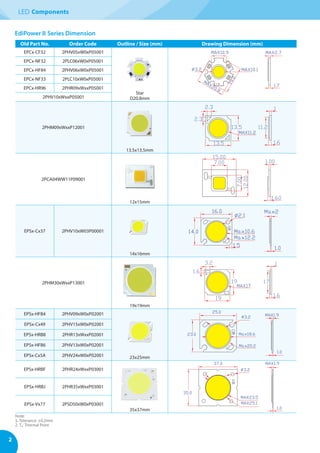

- 3. LED Components 2 EdiPower IISeries Dimension Old Part No. Order Code Outline / Size (mm) Drawing Dimension (mm) EPCx-CF32 2PHV05xW0xP05001 Star D20.8mm EPCx-NF32 2PLC06xW0xP05001 EPCx-HF84 2PHV06xW0xP05001 EPCx-NF33 2PLC10xW0xP05001 EPCx-HR96 2PHR09xWxxP05001 2PHV10xWxxP05001 2PHM09xWxxP12001 13.5x13.5mm 2PCA04WW11P09001 12x15mm EPSx-Cx37 2PHV10xW03P00001 14x16mm 2PHM30xWxxP13001 19x19mm EPSx-HFB4 2PHV09xW0xP02001 23x25mm EPSx-Cx49 2PHV15xW0xP02001 EPSx-HRB8 2PHR13xWxxP02001 EPSx-HFB6 2PHV13xW0xP02001 EPSx-Cx5A 2PHV24xW0xP02001 EPSx-HRBF 2PHR24xWxxP03001 35x37mm EPSx-HRBJ 2PHR35xWxxP03001 EPSx-Vx77 2PSD50xW0xP03001 MAX10.9 MAX10.1 MAX20.8 19.0 1.7 MAX2.7 ∅3.2 - - + + TP ∅3.2 Max20.2 Max18.623.0 25.0 1.0 MAX1.9 ∅3.2 MAX25.1 MAX23.5 35.0 37.0 1.0 MAX1.9 ∅2.1 Max12.2 Max10.614.0 16.0 1.5 1.0 Max2 15.00 12.00 7.00 7.00 1.00 1.60 + - 11.2 1.6 12.3 13.5 13.5 2.3 MAX11.2 1.6 + - 3.2 19 19 1.6 1 17 MAX17 Note: 1. Tolerance: ±0.2mm 2. TP: Thermal Point
- 4. 3 LED Components EdiPower IISeries Spec. Wattage (W) Image Old Part No. Order Code Size (mm) Type CCT (K) IF (mA) VF (V) Flux (lm) CRI Efficacy (lm/W) 3.5W~5W EPCW-CF32 2PHV05CW06P05001 Star D: 20.8 HS 6000K 500 9.3 490 70 106 EPCX-CF32 2PHV05WW05P05001 3000K 430 75 93 2PCA04WW11P09001 12x15 CA 3000K 200 18.5 385 80 105 4W~7W 2T0705CW06000001 12x8 ET- 1208 6000K 500 10 500 70 100 2T0705WW11000001 3000K 450 80 90 7W~10W 2T0707CW06000001 12x8 ET- 1208 6000K 350 20 730 70 100 2T0707WW11000001 3000K 630 80 90 6W~8W EPCW-NF32 2PLC06CW06P05001 Star D: 20.8 SD 6000K 700 9.3 540 70 84 EPCX-NF32 2PLC06WW05P05001 3000K 435 80 67 EPCW-HF84 2PHV06CW06P05001 Star D: 20.8 HV 6000K 250 25 660 70 106 EPCX-HF84 2PHV06WW05P05001 3000K 590 75 93 9W~13W EPCW-NF33 2PLC10CW06P05001 Star D: 20.8 SD 6000K 1000 9.3 760 70 83 EPCX-NF33 2PLC10WW05P05001 3000K 620 80 67 EPCW-HR96 2PHR09CW11P05001 Star D: 20.8 HR 6000K 350 25 900 90 103 EPCX-HR96 2PHR09WW05P05001 3000K 900 90 2PHV10CW06P05001 Star D: 20.8 HS 6000K 500 19.2 1100 70 119 2PHV10WW11P05001 3000K 860 80 93 Order Code Outline / Size (mm) Drawing Dimension (mm) 2T0705xWxx000001 12x8mm 2T0707xW0xx00001 NEW NEW NEW 11.90 11.00 1.00 0.45 0.25 0.50 0.80 7.80 0.45 ∅7.25 ∅1.72 NEW NEW

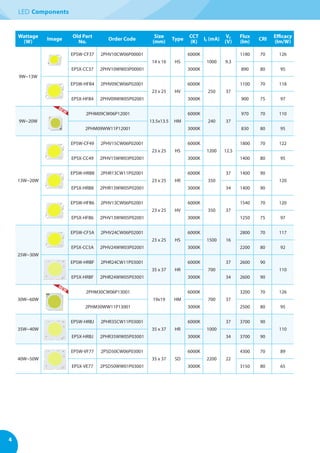

- 5. LED Components 4 Wattage (W) Image Old Part No. OrderCode Size (mm) Type CCT (K) IF (mA) VF (V) Flux (lm) CRI Efficacy (lm/W) 9W~13W EPSW-CF37 2PHV10CW06P00001 14 x 16 HS 6000K 1000 9.3 1180 70 126 EPSX-CC37 2PHV10WW03P00001 3000K 890 80 95 EPSW-HFB4 2PHV09CW06P02001 23 x 25 HV 6000K 250 37 1100 70 118 EPSX-HFB4 2PHV09WW05P02001 3000K 900 75 97 9W~20W 2PHM09CW06P12001 13.5x13.5 HM 6000K 240 37 970 70 110 2PHM09WW11P12001 3000K 830 80 95 13W~20W EPSW-CF49 2PHV15CW06P02001 23 x 25 HS 6000K 1200 12.5 1800 70 122 EPSX-CC49 2PHV15WW03P02001 3000K 1400 80 95 EPSW-HRB8 2PHR13CW11P02001 23 x 25 HR 6000K 350 37 1400 90 120 EPSX-HRB8 2PHR13WW05P02001 3000K 34 1400 90 EPSW-HFB6 2PHV13CW06P02001 23 x 25 HV 6000K 350 37 1540 70 120 EPSX-HFB6 2PHV13WW05P02001 3000K 1250 75 97 25W~30W EPSW-CF5A 2PHV24CW06P02001 23 x 25 HS 6000K 1500 16 2800 70 117 EPSX-CC5A 2PHV24WW03P02001 3000K 2200 80 92 EPSW-HRBF 2PHR24CW11P03001 35 x 37 HR 6000K 700 37 2600 90 110 EPSX-HRBF 2PHR24WW05P03001 3000K 34 2600 90 30W~60W 2PHM30CW06P13001 19x19 HM 6000K 700 37 3200 70 126 2PHM30WW11P13001 3000K 2500 80 95 35W~40W EPSW-HRBJ 2PHR35CW11P03001 35 x 37 HR 6000K 1000 37 3700 90 110 EPSX-HRBJ 2PHR35WW05P03001 3000K 34 3700 90 40W~50W EPSW-VF77 2PSD50CW06P03001 35 x 37 SD 6000K 2200 22 4300 70 89 EPSX-VE77 2PSD50WW01P03001 3000K 3150 80 65 NEW NEW
- 7. 1 Edixeon/FederalSeries Edixeon / FederalSeries Luminous Range Component Wattage (W) Old Part No. Order Code Type Luminous Range (lm) 100 200 300 400 500 1W EDEW-1LA1-F1 2EA101CW06000001 Edixeon 1W EDEW-1LA5-F1 2EA101CW06000002 Edixeon 1W EDEW-1LSC-xR 2ER101CW02000002 Edixeon 1W EDEW-1LS5-FR 2ER101CW06000001 Edixeon 3W EDEW-3LS5-FR 2ER103CW06000002 Edixeon 1/3W EFEW-1BE1-F1 2FX001CW06F02001 Federal 1/3W EFEW-1AE1 2FR001CW02F01001 Federal 4/10W EFE4W-1CE1 2FM004CW06F03001 Federal 90 90 100 100 100 120 190 370 120 120 130 130 130 150 230 470 Edixeon Series Order Code Structure Federal Series Order Code Structure 2 E x x 0 x x x x x 0 0 0 x x x X1 X2 X3 X4 X5 X6 X7 X8 2 F x x 0 x x x x x 0 0 0 x x x X1 X2 X3 X4 X5 X6 X7 X8 X1 X2 X3 X4 X5 Type Component Series Wattage Color E: Edixeon A1: A Series 01: 1W CW: Cool White R1: S Series 03: 3W NW: Neutral White WW: Warm White M1: RTB X1 X2 X3 X4 X5 Type Component Series Wattage Color F: Federal X0: 3535 01: 1W CW: Cool White R0: 3045 04: 4W NW: Neutral White M0: 5050 WW: Warm White RX: Red TX: True Green BX: Blue AX: Amber M2: RGBW M3: RGBA M4: RGGB M6: RGBH X6 X7 X8 Internal Code PCB Board Serial Number X6 X7 X8 Internal Code PCB Board Serial Number

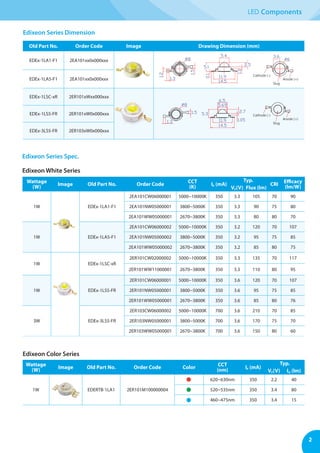

- 8. 2 LED Components Wattage (W) Image OldPart No. Order Code Color CCT (nm) IF (mA) Typ. VF(V) IV (lm) 1W EDERTB-1LA1 2ER101M100000004 620~630nm 350 2.2 40 520~535nm 350 3.4 80 460~475nm 350 3.4 15 Edixeon Series Dimension LED Components Old Part No. Order Code Image Drawing Dimension (mm) EDEx-1LA1-F1 2EA101xx0x000xxx EDEx-1LA5-F1 2EA101xx0x000xxx EDEx-1LSC-xR 2ER101xWxx000xxx EDEx-1LS5-FR 2ER101xW0x000xxx EDEx-3LS5-FR 2ER103xW0x000xxx Cathode (-) Anode (+) Slug 6.5 14.5 2.7 1.05 1.5 1.3 5.3 11.9 5.69∅8 Cathode (-) Anode (+) Slug 3.6 14.5 11.9 5.1 1.3 5.4 2.5 0.1 1.5 1.2 1.0 ∅8 ∅6 Edixeon Series Spec. Wattage (W) Image Old Part No. Order Code CCT (K) IF (mA) Typ. CRI Efficacy (lm/W)VF(V) Flux (lm) 1W EDEx-1LA1-F1 2EA101CW06000001 5000~10000K 350 3.3 105 70 90 2EA101NW05000001 3800~5000K 350 3.3 90 75 80 2EA101WW05000001 2670~3800K 350 3.3 80 80 70 1W EDEx-1LA5-F1 2EA101CW06000002 5000~10000K 350 3.2 120 70 107 2EA101NW05000002 3800~5000K 350 3.2 95 75 85 2EA101WW05000002 2670~3800K 350 3.2 85 80 75 1W EDEx-1LSC-xR 2ER101CW02000002 5000~10000K 350 3.3 135 70 117 2ER101WW11000001 2670~3800K 350 3.3 110 80 95 1W EDEx-1LS5-FR 2ER101CW06000001 5000~10000K 350 3.6 120 70 107 2ER101NW05000001 3800~5000K 350 3.6 95 75 85 2ER101WW05000001 2670~3800K 350 3.6 85 80 76 3W EDEx-3LS5-FR 2ER103CW06000002 5000~10000K 700 3.6 210 70 85 2ER103NW05000001 3800~5000K 700 3.6 170 75 70 2ER103WW05000001 2670~3800K 700 3.6 150 80 60 Edixeon White Series Edixeon Color Series
- 9. 3 LED Components Federal WhiteSeries Wattage (W) Image Old Part No. Order Code CCT (K) IF (mA) Typ. CRI Efficacy (lm/W)VF(V) Flux (lm) 1/3W EFEx-1BE1-F1 2FX001CW06F02001 5000~10000K 350/700 3.2 / 3.5 115 / 205 70 105 2FX001NW05F02001 3800~5000K 350/700 3.2 / 3.5 100 / 175 75 90 2FX001WW05F02001 2670~3800K 350/700 3.2 / 3.5 85 / 150 80 80 1/3W EFEx-1AE1 2FR001CW02F01001 5000~10000K 350/700 3.2 / 3.5 100 / 170 70 95 2FR001NW01F01001 3800~5000K 350/700 3.2 / 3.5 85 / 150 75 80 2FR001WW01F01001 2670~3800K 350/700 3.2 / 3.5 70 / 115 80 70 4/10W EFE4x-1CE1 2FM004CW06F03001 5000~10000K 350/700 3.2/chip / 3.5 410 / 710 70 100 2FM004NW05F03001 3800~5000K 350/700 3.2/chip / 3.5 350 / 610 75 85 2FM004WW05F03001 2670~3800K 350/700 3.2/chip / 3.5 310 / 540 80 75 Residential Lighting Hospitality LightingOutdoor Lighting Federal Series Dimension Old Part No. Image Outline Drawing Dimension (mm) EFEx-1BE1-F1 2FX001xW0xF02001 EFEx-1AE1 2FR001xW0xF01001 EFE4x-1CE1 2FM004xW0xF03001 2.5 0.56 0.5 3.69 5 2.69 2.5 3.0 0.83 0.5 5 3.45 0.5 0.5 3.3 1.3 0.1 3.45 2.3 3.3 0.3 0.2 1.5 3.0 4.5 1.96 0.4 1.7 0.1 0.67 1.8 1.77 2.8 1.3 1.53 1.5 Federal Series Spec.
- 10. 4 LED Components Wattage (W) Image OldPart No. Order Code Color CCT/λd (K/nm) IF (mA) Typ. 2θ1/2(TYP.) VF(V) Flux (lm/mW) Lambertian 1/3W EFER-1BE1 2FX001RX00F02001 620~630nm 350/700 2.1 / 2.4 50 / 95 105° EFEA-1BE1 2FX001AX00F02001 585~595nm 350/700 2.1 / 2.4 50 / 95 105° EFET-1BE1 2FX001TX00F02001 520~535nm 350/700 3.4 / 3.8 80 / 140 110° EFEB-1BE1 2FX001BX00F02001 455~475nm 350/700 3.2 / 3.6 20 / 35 105° EFEI-1BE2 2FX001IX00F02001 835~870nm* 700 1.8 380mW 110° EFEE-1BE1 2FX001EX00F02001 650~670nm* 350 2.1 150mW /275mW 110° EFEV-1BE1 2FX001VX00F02001 395~410nm* 350 3.4 330mW / 600mW 120° 4/10W EFE4R-1CE1 2FM004RX00F03001 620~630nm 350/700 2.1/chip / 2.4 210 / 400 120° EFE4T-1CE1 2FM004TX00F03001 520~535nm 350/700 3.3/chip / 3.6 330 / 530 135° EFE4B-1CE1 2FM004BX00F03001 455~475nm 350/700 3.2/chip / 3.5 80 / 130 125° EFE4I-1CE2 2FM004IX00F03001 835~870nm* 700 1.8/chip 1700mW 125° EFE4E-1CE1 2FM004EX00F03001 650~670nm* 350 2.1/chip 600mW / 1100mW 125° EFE4V-1CE1 2FM004VX00F03001 395~410nm* 350 3.4/chip 1250mW / 2250mW 135° EFERTBW-1CE1 2FM004M206F03001 620~630nm 350/700 2.1 / 2.4 50 / 95 120° 520~535nm 3.3 / 3.6 80 / 140 120° 455~475nm 3.2 / 3.5 20 / 35 120° 5000~10000k 3.2 / 3.5 105 / 180 120° EFERTBA-1CE1 2FM004M300F03001 620~630nm 350/700 2.1 / 2.4 50 / 95 120° 520~535nm 3.3 / 3.6 80 / 140 120° 455~475nm 3.2 / 3.5 20 / 35 120° 585~595nm 2.1 / 2.4 50 / 95 120° Federal Color Series ModuleApplications SecurityCamera PlantGrowLight StageLight

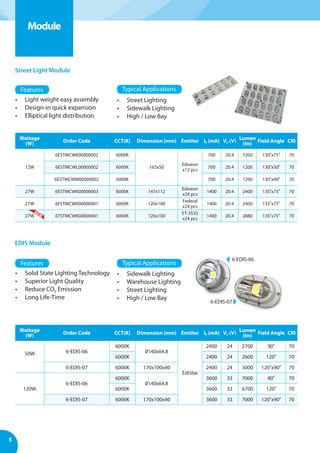

- 11. 5 LED Module Module Street LightModule EDIS Module 6-EDIS-06 6-EDIS-07 • Light weight easy assembly • Design-in quick expansion • Elliptical light distribution • Solid State Lighting Technology • Superior Light Quality • Reduce CO2 Emission • Long Life-Time • Street Lighting • Sidewalk Lighting • High / Low Bay • Sidewalk Lighting • Warehouse Lighting • Street Lighting • High / Low Bay Wattage (W) Order Code CCT(K) Dimension (mm) Emitter IF (mA) VF (V) Lumen (lm) Field Angle CRI 12W 6ESTMCWK00000002 6000K 165x50 Edixeon x12 pcs 700 20.4 1200 130o x75o 70 6ESTMCWL00000002 6000K 700 20.4 1200 130o x50o 70 6ESTMCWM00000002 6000K 700 20.4 1200 130o x40o 70 27W 6ESTMCWK00000003 6000K 147x112 Edixeon x24 pcs 1400 20.4 2400 135o x75o 70 27W 6FSTMCWK00000001 6000K 120x100 Federal x24 pcs 1400 20.4 2400 135o x75o 70 27W 6TSTMCWK00000001 6000K 120x100 ET-3535 x24 pcs 1400 20.4 2880 135o x75o 70 Wattage (W) Order Code CCT(K) Dimension (mm) Emitter IF (mA) VF (V) Lumen (lm) Field Angle CRI 50W 6-EDIS-06 6000K 140x64.8 EdiStar 2400 24 2700 90o 70 6000K 2400 24 2600 120o 70 6-EDIS-07 6000K 170x100x40 2400 24 3000 120o x90o 70 120W 6-EDIS-06 6000K 140x64.8 3600 33 7000 90o 70 6000K 3600 33 6700 120o 70 6-EDIS-07 6000K 170x100x40 3600 33 7000 120o x90o 70 NEW Features Typical Applications Features Typical Applications

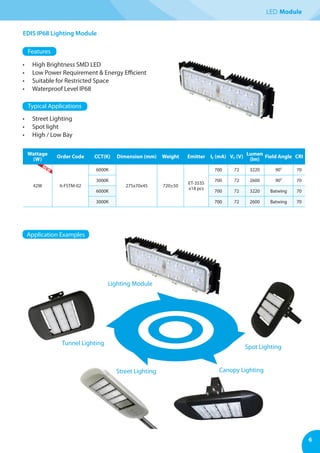

- 12. 6 LED Module EDIS IP68Lighting Module Lighting Module Tunnel Lighting • High Brightness SMD LED • Low Power Requirement & Energy Efficient • Suitable for Restricted Space • Waterproof Level IP68 • Street Lighting • Spot light • High / Low Bay Application Examples Wattage (W) Order Code CCT(K) Dimension (mm) Weight Emitter IF (mA) VF (V) Lumen (lm) Field Angle CRI 42W 6-FSTM-02 6000K 275x70x45 720±50 ET-3535 x18 pcs 700 72 3220 90o 70 3000K 700 72 2600 90o 70 6000K 700 72 3220 Batwing 70 3000K 700 72 2600 Batwing 70 NEW Street Lighting Spot Lighting Canopy Lighting Features Typical Applications

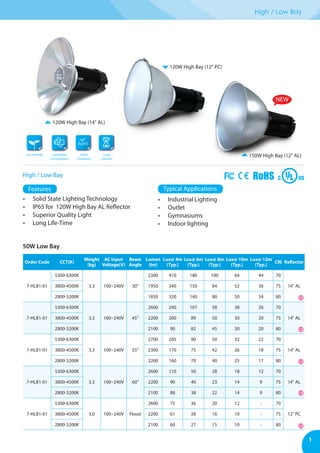

- 14. 1 High / LowBay 120W High Bay (14" AL) 120W High Bay (12" PC) 150W High Bay (12" AL) High / Low Bay 50W Low Bay • Solid State Lighting Technology • IP65 for 120W High Bay AL Reflector • Superior Quality Light • Long Life-Time • Industrial Lighting • Outlet • Gymnasiums • Indoor lighting Order Code CCT(K) Weight (kg) AC Input Voltage(V) Beam Angle Lumen (lm) Lux@ 4m (Typ.) Lux@ 6m (Typ.) Lux@ 8m (Typ.) Lux@ 10m (Typ.) Lux@ 12m (Typ.) CRI Reflector 7-HLB1-01 5300-6300K 3.3 100~240V 30o 2300 410 180 100 64 44 70 14" AL3800-4500K 1950 340 150 84 52 36 75 2800-3200K 1850 320 140 80 50 34 80 7-HLB1-01 5300-6300K 3.3 100~240V 45o 2600 240 107 58 38 26 70 14" AL3800-4500K 2200 200 89 50 30 20 75 2800-3200K 2100 90 82 45 30 20 80 7-HLB1-01 5300-6300K 3.3 100~240V 55o 2700 205 90 50 32 22 70 14" AL3800-4500K 2300 170 75 42 26 18 75 2800-3200K 2200 160 70 40 25 17 80 7-HLB1-01 5300-6300K 3.3 100~240V 60o 2600 110 50 28 18 12 70 14" AL3800-4500K 2200 90 40 23 14 9 75 2800-3200K 2100 88 38 22 14 9 80 7-HLB1-01 5300-6300K 3.0 100~240V Flood 2600 75 36 20 12 - 70 12" PC3800-4500K 2200 61 28 16 10 - 75 2800-3200K 2100 60 27 15 10 - 80 Eco-Friendly Low Power Consumption RoHS Compliant Long Lifespan CE CE CE CE CE Features Typical Applications

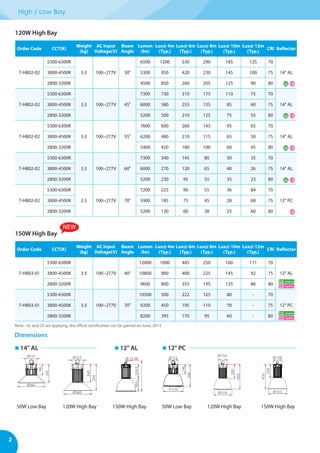

- 15. High / LowBay 2 Dimensions 120W High Bay 150W High Bay 50W Low Bay Note : UL and CE are applying, the offical certification can be gained on June, 2013 14" AL 12" AL 12" PC 120W High Bay 150W High Bay 50W Low Bay 120W High Bay 150W High Bay Order Code CCT(K) Weight (kg) AC Input Voltage(V) Beam Angle Lumen (lm) Lux@ 4m (Typ.) Lux@ 6m (Typ.) Lux@ 8m (Typ.) Lux@ 10m (Typ.) Lux@ 12m (Typ.) CRI Reflector 7-HB02-02 5300-6300K 3.3 100~277V 30o 6500 1200 530 290 185 125 70 14" AL3800-4500K 5300 950 420 230 145 100 75 2800-3200K 4500 850 260 205 125 90 80 7-HB02-02 5300-6300K 3.3 100~277V 45o 7300 730 310 175 110 75 70 14" AL3800-4500K 6000 580 253 135 85 60 75 2800-3200K 5200 500 210 125 75 55 80 7-HB02-02 5300-6300K 3.3 100~277V 55o 7600 600 260 145 95 65 70 14" AL3800-4500K 6200 480 210 115 65 50 75 2800-3200K 5400 420 180 100 60 45 80 7-HB02-02 5300-6300K 3.3 100~277V 60o 7300 340 145 80 50 35 70 14" AL3800-4500K 6000 270 120 65 40 26 75 2800-3200K 5200 230 95 55 35 23 80 7-HB02-02 5300-6300K 2.5 100~277V 70o 7200 225 90 55 36 84 70 12" PC3800-4500K 5900 185 75 45 28 68 75 2800-3200K 5200 130 60 38 25 60 80 Order Code CCT(K) Weight (kg) AC Input Voltage(V) Beam Angle Lumen (lm) Lux@ 4m (Typ.) Lux@ 6m (Typ.) Lux@ 8m (Typ.) Lux@ 10m (Typ.) Lux@ 12m (Typ.) CRI Reflector 7-HB03-01 5300-6300K 3.3 100~277V 40o 12000 1000 445 250 160 111 70 12" AL3800-4500K 10800 900 400 225 145 92 75 2800-3200K 9600 800 355 195 125 86 80 7-HB03-01 5300-6300K 3.3 100~277V 70o 10500 500 222 125 80 - 70 12" PC3800-4500K 9200 450 195 110 70 - 75 2800-3200K 8200 395 170 95 60 - 80 CEUL UL UL UL CE CE CE CE CE Applying CE Applying UL Applying UL Applying 203224.5 Ø 25.00 Ø153 Ø156 Ø315 435 470 245 225 Ø310Ø360 Ø153 345 245
- 16. 3 High / LowBay Item Value No.of module 20 Flux per module 7,600lm Total Power 2,400W Area 528m2 / 5,683ft2 LPD 4.55 W/m2 / 0.42 W/ft2 Workplan height 0.85m Surface ρ [%] Eav [lux] Emin [lux] Emax [lux] Workplane (0.85m) / 170 3.39 217 Floor (0m) 20 112 6.13 200 Ceiling (8m) 70 21 13.68 29 Walls 50 24 3.77 83 Applications Lighting Plan Example : Warehouse To reduce maintenance cost, LED High Bay has the advantage over traditional hight bay be cause it offers extended 25,000 life-times and saves 50%~70% energy. Height of Room: 8.000 m, Mounting Height: 6.400 m, Light loss factor: 0.80, Values in Lux, Scale 1:309 Module Cabinet Type 30o , 45o 55o , 60o 70o 8~12 4~8 4~8 Storage aisle Factory, Parking lots Market Place Type Height (m) Height (m) Application Application 14" AL 12" PC IP65 Example / 120W High Bay 10 20 30 60 100 120 140 160 180 lux 180 180 180 180 180 180 180 180 Edison Opto developed four different angles of the high low bay in order to satisfy various market demands. 30° and 45 ° low bay are suitable for storage aisle lighting, 55° and 60 ° can be applied to factories, parking lots, gas stations, underpass and other large spaces. 70° takes big shopping mall as the main target. Using PC reflector can change the light structure, widen the range of lighting. Edison high low bay products have passed CE certification and 120W High Bay has passed UL certification as well.

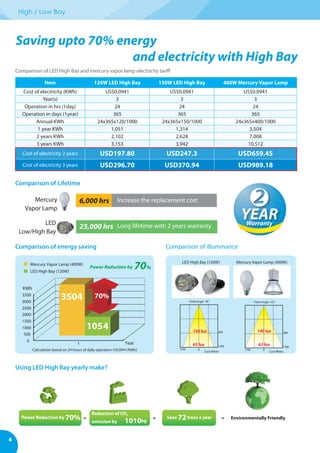

- 17. High / LowBay 4 Item 120W LED High Bay 150W LED High Bay 400W Mercury Vapor Lamp Cost of electricity (KWh) US$0.0941 US$0.0941 US$0.0941 Year(s) 3 3 3 Operation in hrs (1day) 24 24 24 Operation in days (1year) 365 365 365 Annual KWh 24x365x120/1000 24x365x150/1000 24x365x400/1000 1 year KWh 1,051 1,314 3,504 2 years KWh 2,102 2,628 7,008 3 years KWh 3,153 3,942 10,512 Cost of electricity 2 years USD197.80 USD247.3 USD659.45 Cost of electricity 3 years USD296.70 USD370.94 USD989.18 Comparison of Lifetime Comparison of energy saving Using LED High Bay yearly make? Comparison of illuminance Saving upto 70% energy and electricity with High Bay Mercury Vapor Lamp LED Low/High Bay Comparison of LED High Bay and mercury vapor lamp electricity tariff Power Reduction by 70% Reduction of CO2 emission by 1010kg Save 72trees a year Environmentally Friendly= = = 25,000 hrs 6,000 hrs Long lifetime with 2 years warranty Increase the replacement cost YEARWarranty Calculation based on 24 hours of daily operation (¢0.0941/KWh) Mercury Vapor Lamp (400W) LED High Bay (120W) 0 500 1000 1500 2000 2500 3000 3500 1 70%3504 1054 Year KWh Power Reduction by 70% 65 lux 145 lux 62 lux 140 lux8M 12M 015M Field Angle 90˚ Cool WhiteCool White 8M 12M 017M Field Angle 103˚ LED High Bay (120W) Mercury Vapor Lamp (400W)

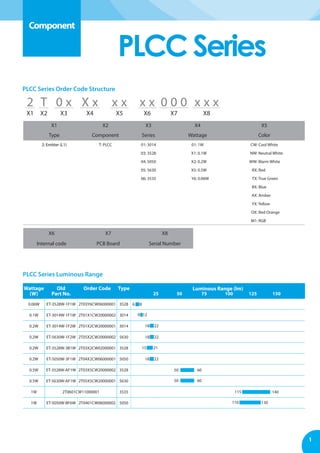

- 19. 1 Wattage (W) Old Part No. Order CodeType Luminous Range (lm) 25 50 75 100 125 150 0.06W ET-3528W-1F1W 2T03Y6CW06000001 3528 0.1W ET-3014W-1F1W 2T01X1CW20000002 3014 0.2W ET-3014W-1F2W 2T01X2CW20000001 3014 0.2W ET-5630W-1F2W 2T05X2CW20000002 5630 0.2W ET-3528W-3B1W 2T03X2CW02000001 3528 0.2W ET-5050W-3F1W 2T04X2CW06000001 5050 0.5W ET-3528W-AF1W 2T03X5CW20000002 3528 0.5W ET-5630W-AF1W 2T05X5CW20000001 5630 1W 2T0601CW11000001 3535 1W ET-5050W-BF6W 2T0401CW06000002 5050 PLCC Series PLCC Series Luminous Range Component 6 9 18 18 18 15 115 110 50 50 8 12 22 22 22 21 140 130 60 60 PLCC Series Order Code Structure 2 T 0 x X x x x x x 0 0 0 x x x X1 X2 X3 X4 X5 X6 X7 X8 X1 X2 X3 X4 X5 Type Component Series Wattage Color 2: Emitter (L1) T: PLCC 01: 3014 01: 1W CW: Cool White 03: 3528 X1: 0.1W NW: Neutral White 04: 5050 X2: 0.2W WW: Warm White 05: 5630 X5: 0.5W RX: Red 06: 3535 Y6: 0.06W TX: True Green BX: Blue AX: Amber YX: Yellow OX: Red Orange M1: RGB X6 X7 X8 Internal code PCB Board Serial Number

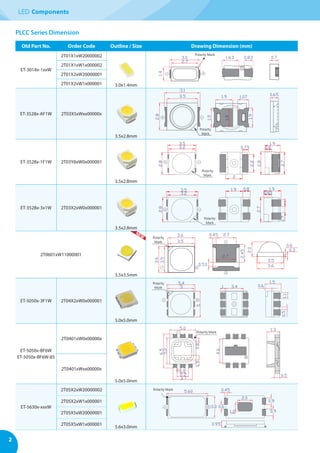

- 20. 2 LED Components Old PartNo. Order Code Outline / Size Drawing Dimension (mm) ET-3014x-1xxW 2T01X1xW20000002 3.0x1.4mm 2T01X1xW1x000002 2T01X2xW20000001 2T01X2xW1x000001 ET-3528x-AF1W 2T03X5xWxx00000x 3.5x2.8mm ET-3528x-1F1W 2T03Y6xW0x000001 3.5x2.8mm ET-3528x-3x1W 2T03X2xW0x000001 3.5x2.8mm 2T0601xW11000001 3.5x3.5mm ET-5050x-3F1W 2T04X2xW0x000001 5.0x5.0mm ET-5050x-BF6W ET-5050x-BF6W-85 2T0401xW0x00000x 5.0x5.0mm 2T0401xWxx00000x ET-5630x-xxxW 2T05X2xW20000002 5.6x3.0mm 2T05X2xW1x000001 2T05X5xW20000001 2T05X5xW1x000001 PLCC Series Dimension Polarity Mark Polarity Mark Polarity Mark 3.0 3.5 0.75 1.9 0.8 2 3.5 5.4 1 3.4 1.5 0.65 5.0 5.60 0.63.0 0.45 2.0 1.2 0.95 0.9 0.9 1.3 0.5 1.0 2.2 3.7 5.0 4.6 0.80.9 6.5 1.9 0.8 0.85 1.9 3.2 3.2 2.8 2.8 2.7 2.2 2.8 5 0.51.1 2.7 0.7 1.63 0.83 0.7 2.7 3.5 3.6 3.1 1.9 0.65 1.073.5 2.8 1.9 1.9 0.45 0.53 2.45 2.0 2.7 3.5 0.6 0.3 3.6 1.4 3.5 3.6 Polarity Mark Polarity Mark 2.7 1.8 Polarity Mark NEW Polarity Mark Polarity Mark

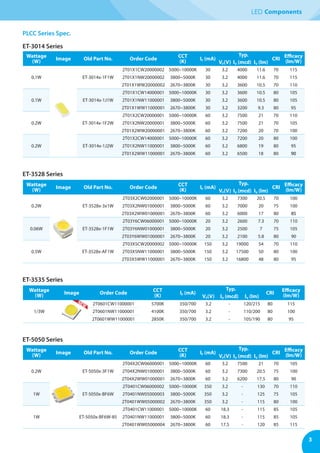

- 21. 3 LED Components PLCC SeriesSpec. ET-3014 Series ET-3528 Series ET-3535 Series ET-5050 Series Wattage (W) Image Old Part No. Order Code CCT (K) IF (mA) Typ. CRI Efficacy (lm/W)VF(V) IV (mcd) IV (lm) 0.2W ET-5050x-3F1W 2T04X2CW06000001 5000~10000K 60 3.2 7500 21 70 105 2T04X2NW01000001 3800~5000K 60 3.2 7300 20.5 75 100 2T04X2WW01000001 2670~3800K 60 3.2 6200 17.5 80 90 1W ET-5050x-BF6W 2T0401CW06000002 5000~10000K 350 3.2 - 130 70 110 2T0401NW05000003 3800~5000K 350 3.2 - 125 75 105 2T0401WW05000002 2670~3800K 350 3.2 - 115 80 100 1W ET-5050x-BF6W-85 2T0401CW11000001 5000~10000K 60 18.3 - 115 85 105 2T0401NW11000001 3800~5000K 60 18.3 - 115 85 105 2T0401WW05000004 2670~3800K 60 17.5 - 120 85 115 Wattage (W) Image Order Code CCT (K) IF (mA) Typ. CRI Efficacy (lm/W)VF(V) IV (mcd) IV (lm) 1/3W 2T0601CW11000001 5700K 350/700 3.2 - 120/215 80 115 2T0601NW11000001 4100K 350/700 3.2 - 110/200 80 100 2T0601WW11000001 2850K 350/700 3.2 - 105/190 80 95 Wattage (W) Image Old Part No. Order Code CCT (K) IF (mA) Typ. CRI Efficacy (lm/W)VF(V) IV (mcd) IV (lm) 0.2W ET-3528x-3x1W 2T03X2CW02000001 5000~10000K 60 3.2 7300 20.5 70 100 2T03X2NW01000001 3800~5000K 60 3.2 7000 20 75 100 2T03X2WW01000001 2670~3800K 60 3.2 6000 17 80 85 0.06W ET-3528x-1F1W 2T03Y6CW06000001 5000~10000K 20 3.2 2600 7.3 70 110 2T03Y6NW01000001 3800~5000K 20 3.2 2500 7 75 105 2T03Y6WW01000001 2670~3800K 20 3.2 2100 5.8 80 90 0.5W ET-3528x-AF1W 2T03X5CW20000002 5000~10000K 150 3.2 19000 54 70 110 2T03X5NW11000001 3800~5000K 150 3.2 17500 50 80 100 2T03X5WW11000001 2670~3800K 150 3.2 16800 48 80 95 Wattage (W) Image Old Part No. Order Code CCT (K) IF (mA) Typ. CRI Efficacy (lm/W)VF(V) IV (mcd) IV (lm) 0.1W ET-3014x-1F1W 2T01X1CW20000002 5000~10000K 30 3.2 4000 11.6 70 115 2T01X1NW20000002 3800~5000K 30 3.2 4000 11.6 70 115 2T01X1WW20000002 2670~3800K 30 3.2 3600 10.5 70 110 0.1W ET-3014x-1J1W 2T01X1CW14000001 5000~10000K 30 3.2 3600 10.5 80 105 2T01X1NW11000001 3800~5000K 30 3.2 3600 10.5 80 105 2T01X1WW11000001 2670~3800K 30 3.2 3200 9.3 80 95 0.2W ET-3014x-1F2W 2T01X2CW20000001 5000~10000K 60 3.2 7500 21 70 110 2T01X2NW20000001 3800~5000K 60 3.2 7500 21 70 105 2T01X2WW20000001 2670~3800K 60 3.2 7200 20 70 100 0.2W ET-3014x-1J2W 2T01X2CW14000001 5000~10000K 60 3.2 7200 20 80 100 2T01X2NW11000001 3800~5000K 60 3.2 6800 19 80 95 2T01X2WW11000001 2670~3800K 60 3.2 6500 18 80 90 NEW

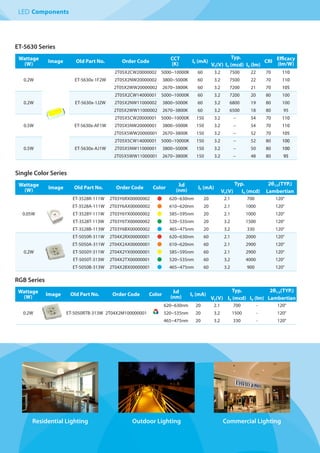

- 22. 4 LED Components ET-5630 Series Wattage (W) ImageOld Part No. Order Code CCT (K) IF (mA) Typ. CRI Efficacy (lm/W)VF(V) IV (mcd) IV (lm) 0.2W ET-5630x-1F2W 2T05X2CW20000002 5000~10000K 60 3.2 7500 22 70 110 2T05X2NW20000002 3800~5000K 60 3.2 7500 22 70 110 2T05X2WW20000002 2670~3800K 60 3.2 7200 21 70 105 0.2W ET-5630x-1J2W 2T05X2CW14000001 5000~10000K 60 3.2 7200 20 80 100 2T05X2NW11000002 3800~5000K 60 3.2 6800 19 80 100 2T05X2WW11000002 2670~3800K 60 3.2 6500 18 80 95 0.5W ET-5630x-AF1W 2T05X5CW20000001 5000~10000K 150 3.2 -- 54 70 110 2T05X5NW20000001 3800~5000K 150 3.2 -- 54 70 110 2T05X5WW20000001 2670~3800K 150 3.2 -- 52 70 105 0.5W ET-5630x-AJ1W 2T05X5CW14000001 5000~10000K 150 3.2 -- 52 80 100 2T05X5NW11000001 3800~5000K 150 3.2 -- 50 80 100 2T05X5WW11000001 2670~3800K 150 3.2 -- 48 80 95 Wattage (W) Image Old Part No. Order Code Color λd (nm) IF (mA) Typ. 2θ1/2(TYP.) VF(V) IV (mcd) Lambertian 0.05W ET-3528R-111W 2T03Y6RX00000002 620~630nm 20 2.1 700 120° ET-3528A-111W 2T03Y6AX00000002 610~620nm 20 2.1 1000 120° ET-3528Y-111W 2T03Y6YX00000002 585~595nm 20 2.1 1000 120° ET-3528T-113W 2T03Y6TX00000002 520~535nm 20 3.2 1500 120° ET-3528B-113W 2T03Y6BX00000002 465~475nm 20 3.2 330 120° 0.2W ET-5050R-311W 2T04X2RX00000001 620~630nm 60 2.1 2000 120° ET-5050A-311W 2T04X2AX00000001 610~620nm 60 2.1 2900 120° ET-5050Y-311W 2T04X2YX00000001 585~595nm 60 2.1 2900 120° ET-5050T-313W 2T04X2TX00000001 520~535nm 60 3.2 4000 120° ET-5050B-313W 2T04X2BX00000001 465~475nm 60 3.2 900 120° Wattage (W) Image Old Part No. Order Code Color λd (nm) IF (mA) Typ. 2θ1/2(TYP.) VF(V) IV (mcd) IV (lm) Lambertian 0.2W ET-5050RTB-313W 2T04X2M100000001 620~630nm 20 2.1 700 - 120° 520~535nm 20 3.2 1500 - 120° 465~475nm 20 3.2 330 - 120° Single Color Series RGB Series Residential Lighting Commercial LightingOutdoor Lighting

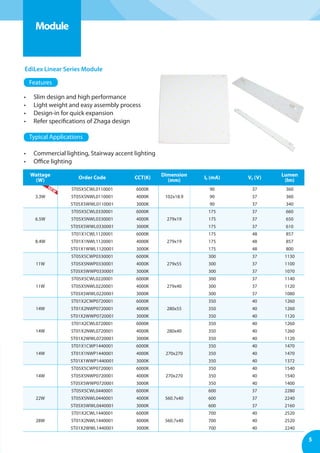

- 23. 5 Module EdiLex Linear SeriesModule • Slim design and high performance • Light weight and easy assembly process • Design-in for quick expansion • Refer specifications of Zhaga design • Commercial lighting, Stairway accent lighting • Office lighting Features Typical Applications Wattage (W) Order Code CCT(K) Dimension (mm) IF (mA) VF (V) Lumen (lm) 3.3W 5T05X5CWL0110001 6000K 102x18.9 90 37 360 5T05X5NWL0110001 4000K 90 37 360 5T05X5WWL0110001 3000K 90 37 340 6.5W 5T05X5CWL0330001 6000K 279x19 175 37 660 5T05X5NWL0330001 4000K 175 37 650 5T05X5WWL0330001 3000K 175 37 610 8.4W 5T01X1CWL1120001 6000K 279x19 175 48 857 5T01X1NWL1120001 4000K 175 48 857 5T01X1WWL1120001 3000K 175 48 800 11W 5T05X5CWP0330001 6000K 279x55 300 37 1130 5T05X5NWP0330001 4000K 300 37 1100 5T05X5WWP0330001 3000K 300 37 1070 11W 5T05X5CWL0220001 6000K 279x40 300 37 1140 5T05X5NWL0220001 4000K 300 37 1120 5T05X5WWL0220001 3000K 300 37 1080 14W 5T01X2CWP0720001 6000K 280x55 350 40 1260 5T01X2NWP0720001 4000K 350 40 1260 5T01X2WWP0720001 3000K 350 40 1120 14W 5T01X2CWL0720001 6000K 280x40 350 40 1260 5T01X2NWL0720001 4000K 350 40 1260 5T01X2WWL0720001 3000K 350 40 1120 14W 5T01X1CWP1440001 6000K 270x270 350 40 1470 5T01X1NWP1440001 4000K 350 40 1470 5T01X1WWP1440001 3000K 350 40 1372 14W 5T05X5CWP0720001 6000K 270x270 350 40 1540 5T05X5NWP0720001 4000K 350 40 1540 5T05X5WWP0720001 3000K 350 40 1400 22W 5T05X5CWL0440001 6000K 560.7x40 600 37 2280 5T05X5NWL0440001 4000K 600 37 2240 5T05X5WWL0440001 3000K 600 37 2160 28W 5T01X2CWL1440001 6000K 560.7x40 700 40 2520 5T01X2NWL1440001 4000K 700 40 2520 5T01X2WWL1440001 3000K 700 40 2240 NEW

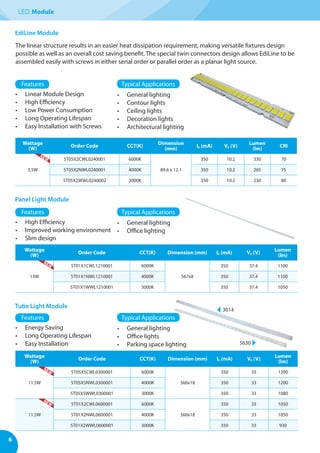

- 24. 6 LED Module 3014 5630 EdiLine Module PanelLight Module Tube Light Module • Linear Module Design • High Efficiency • Low Power Consumption • Long Operating Lifespan • Easy Installation with Screws • High Efficiency • Improved working environment • Slim design • Energy Saving • Long Operating Lifespan • Easy Installation • General lighting • Contour lights • Ceiling lights • Decoration lights • Architectural lighting • General lighting • Office lighting • General lighting • Office lights • Parking space lighting Features Typical Applications Wattage (W) Order Code CCT(K) Dimension (mm) IF (mA) VF (V) Lumen (lm) CRI 3.5W 5T05X2CWL0240001 6000K 89.6 x 12.1 350 10.2 330 70 5T05X2NWL0240001 4000K 350 10.2 265 75 5T05X2WWL0240002 3000K 350 10.2 230 80 Wattage (W) Order Code CCT(K) Dimension (mm) IF (mA) VF (V) Lumen (lm) 13W 5T01X1CWL1210001 6000K 567x8 350 37.4 1100 5T01X1NWL1210001 4000K 350 37.4 1100 5T01X1WWL1210001 3000K 350 37.4 1050 Wattage (W) Order Code CCT(K) Dimension (mm) IF (mA) VF (V) Lumen (lm) 11.5W 5T05X5CWL0300001 6000K 560x18 350 33 1200 5T05X5NWL0300001 4000K 350 33 1200 5T05X5WWL0300001 3000K 350 33 1080 11.5W 5T01X2CWL0600001 6000K 560x18 350 33 1050 5T01X2NWL0600001 4000K 350 33 1050 5T01X2WWL0600001 3000K 350 33 930 NEW NEW NEW NEW The linear structure results in an easier heat dissipation requirement, making versatile fixtures design possible as well as an overall cost saving benefit. The special twin connectors design allows EdiLine to be assembled easily with screws in either serial order or parallel order as a planar light source. Features Typical Applications Features Typical Applications

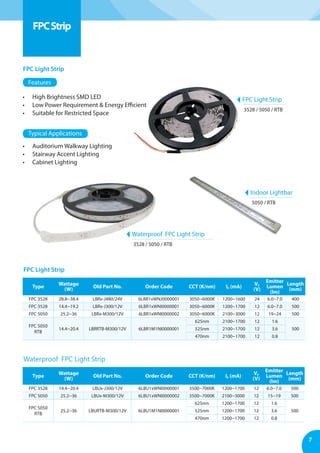

- 25. 7 FPC Light Strip FPCLight Strip FPC Light Strip Waterproof FPC Light Strip Indoor Lightbar 3528 / 5050 / RTB 3528 / 5050 / RTB 5050 / RTB Waterproof FPC Light Strip • High Brightness SMD LED • Low Power Requirement & Energy Efficient • Suitable for Restricted Space • Auditorium Walkway Lighting • Stairway Accent Lighting • Cabinet Lighting Type Wattage (W) Old Part No. Order Code CCT (K/nm) IF (mA) VF (V) Emitter Lumen (lm) Length (mm) FPC 3528 28.8~38.4 LBRx-J480/24V 6LBR1xWNJ0000001 3050~6000K 1200~1600 24 6.0~7.0 400 FPC 3528 14.4~19.2 LBRx-J300/12V 6LBR1xWNI0000001 3050~6000K 1200~1700 12 6.0~7.0 500 FPC 5050 25.2~36 LBRx-M300/12V 6LBR1xWNI0000002 3050~6000K 2100~3000 12 19~24 500 FPC 5050 RTB 14.4~20.4 LBRRTB-M300/12V 6LBR1M1NI0000001 625nm 2100~1700 12 1.6 500525nm 2100~1700 12 3.6 470nm 2100~1700 12 0.8 Type Wattage (W) Old Part No. Order Code CCT (K/nm) IF (mA) VF (V) Emitter Lumen (lm) Length (mm) FPC 3528 14.4~20.4 LBUx-J300/12V 6LBU1xWNI0000001 3500~7000K 1200~1700 12 6.0~7.0 500 FPC 5050 25.2~36 LBUx-M300/12V 6LBU1xWNI0000002 3500~7000K 2100~3000 12 15~19 500 FPC 5050 RTB 25.2~36 LBURTB-M300/12V 6LBU1M1NI0000001 625nm 1200~1700 12 1.6 500525nm 1200~1700 12 3.6 470nm 1200~1700 12 0.8 FPCStrip Features Typical Applications
