GE LED 2D - Product presentation
This document summarizes an LED 2D lighting product that directly replaces CFL 2D fixtures. It has a wide range of options to retrofit both 16W and 28W CFL designs. Key features include high efficacy of up to 128 lm/w, 55-60% energy savings compared to CFL, and a lifespan over 2.5 times longer. The LED 2D provides an easy and cost effective way to upgrade existing CFL fixtures to LED with plug-and-play installation and a simple form factor replacement.
More Related Content
Similar to GE LED 2D - Product presentation
GE LED 2D - Product presentation
- 1.
- 2. • Product Overview •Features and Range • Value Proposition • Marketing materials Content LED 2D
- 3. • LED 2D= Retrofit Energy saving solution to directly replace CFL 2D • Classic 2D shape and look with LED technology • Plug and Play – true retrofit LED solution • Easy and quick upgrade of existing CFL 2D fixtures to LED • Wide range to retrofit 16W 2Pin Magnetic and 28W 4P Magnetic and Electronic ballast designs • High efficacy upto 128 lm/w • 55-60% Energy saving and 2.5-3x longer life compared to CFL 2D • Less than 1% flicker index LED 2D Product Overview Application Areas Office Hospitality

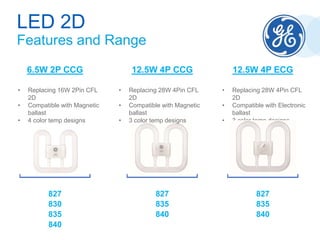

- 4. • Replacing 16W2Pin CFL 2D • Compatible with Magnetic ballast • 4 color temp designs LED 2D Features and Range 6.5W 2P CCG 12.5W 4P CCG 12.5W 4P ECG 827 830 835 840 827 835 840 827 835 840 • Replacing 28W 4Pin CFL 2D • Compatible with Magnetic ballast • 3 color temp designs • Replacing 28W 4Pin CFL 2D • Compatible with Electronic ballast • 3 color temp designs
- 5. • GR8 base> directly replacing 16W 2Pin CFL 2D • Compatible with Magnetic ballast • 750-830 lumens • 115-128 lm/W • 2700/3000/3500/4000K versions • Matching system lumen of 16W CFL 2D • 60% energy saving versus 16W CFL 2D • 40 000hrs L70 life LED 2D Features and Range 6.5W 2P CCG LED 2D
- 6. • GR10q base> directly replacing 28W 4Pin CFL 2D • Compatible with Magnetic ballast & CFL starter need to be replaced with dummy starter, which is included in the pack • 1400-1550 lumens • 112-124 lm/W • 2700/3500/4000K versions • Matching system lumen of 28W CFL 2D • 55% energy saving versus 28W CFL 2D • 40 000hrs L70 life LED 2D Features and Range 12.5W 4P CCG LED 2D
- 7. • GR10q base> directly replacing 28W 4Pin CFL 2D • Compatible with Electronic ballast. Design is differentiated with Silver print on the front panel saying ’For Electronic Ballast’ • 1400-1550 lumens • 112-124 lm/W • 2700/3500/4000K versions • Matching system lumen of 28W CFL 2D • 55% energy saving versus 28W CFL 2D • 40 000hrs L70 life LED 2D Features and Range 12.5W 4P ECG LED 2D

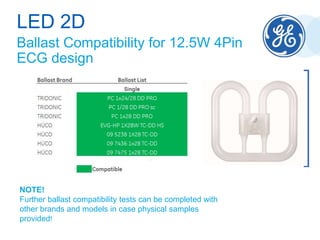

- 8. LED 2D Ballast Compatibilityfor 12.5W 4Pin ECG design NOTE! Further ballast compatibility tests can be completed with other brands and models in case physical samples provided!

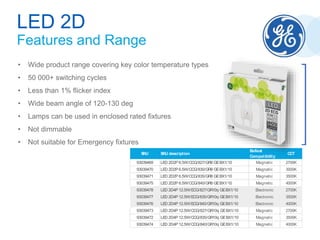

- 9. • Wide productrange covering key color temperature types • 50 000+ switching cycles • Less than 1% flicker index • Wide beam angle of 120-130 deg • Lamps can be used in enclosed rated fixtures • Not dimmable • Not suitable for Emergency fixtures LED 2D Features and Range SKU SKU description Ballast Compatibility CCT 93039469 LED 2D2P 6.5W/CCG/827/GR8 GEBX1/10 Magnetic 2700K 93039470 LED 2D2P 6.5W/CCG/830/GR8 GEBX1/10 Magnetic 3000K 93039471 LED 2D2P 6.5W/CCG/835/GR8 GEBX1/10 Magnetic 3500K 93039475 LED 2D2P 6.5W/CCG/840/GR8 GEBX1/10 Magnetic 4000K 93039478 LED 2D4P 12.5W/ECG/827/GR10q GEBX1/10 Electronic 2700K 93039477 LED 2D4P 12.5W/ECG/835/GR10q GEBX1/10 Electronic 3500K 93039476 LED 2D4P 12.5W/ECG/840/GR10q GEBX1/10 Electronic 4000K 93039473 LED 2D4P 12.5W/CCG/827/GR10q GEBX1/10 Magnetic 2700K 93039472 LED 2D4P 12.5W/CCG/835/GR10q GEBX1/10 Magnetic 3500K 93039474 LED 2D4P 12.5W/CCG/840/GR10q GEBX1/10 Magnetic 4000K

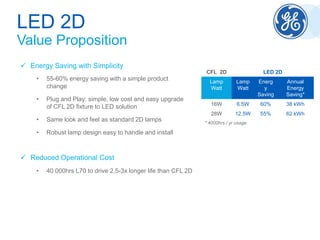

- 10. Energy Savingwith Simplicity • 55-60% energy saving with a simple product change • Plug and Play: simple, low cost and easy upgrade of CFL 2D fixture to LED solution • Same look and feel as standard 2D lamps • Robust lamp design easy to handle and install LED 2D Value Proposition CFL 2D LED 2D Lamp Watt Lamp Watt Energ y Saving Annual Energy Saving* 16W 6.5W 60% 38 kWh 28W 12.5W 55% 62 kWh Reduced Operational Cost • 40 000hrs L70 to drive 2.5-3x longer life than CFL 2D * 4000hrs / yr usage

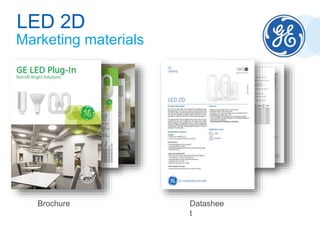

- 11. Marketing materials LED 2D BrochureDatashee t

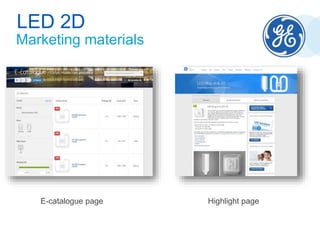

- 12. Marketing materials LED 2D E-cataloguepage Highlight page
- 13.
