1. Game Design &
Development Workshop
with Cocos2d-x
PeopleSpace 9 & 10 July 2016

3. Troy Miles
Troy Miles
Over 37 years of
programming experience
Speaker and author
Author of jQuery Essentials
rockncoder@gmail.com
@therockncoder

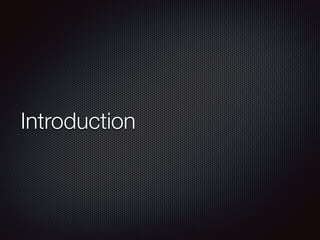

4. Introduction

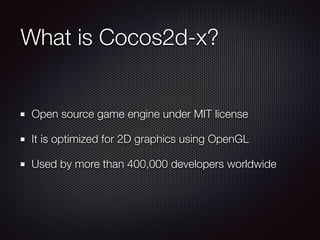

5. What is Cocos2d-x?
Open source game engine under MIT license
It is optimized for 2D graphics using OpenGL
Used by more than 400,000 developers worldwide

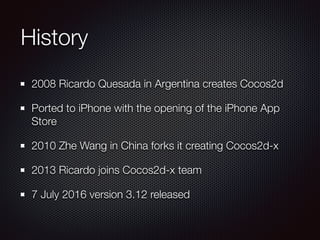

6. History
2008 Ricardo Quesada in Argentina creates Cocos2d
Ported to iPhone with the opening of the iPhone App
Store
2010 Zhe Wang in China forks it creating Cocos2d-x
2013 Ricardo joins Cocos2d-x team
7 July 2016 version 3.12 released

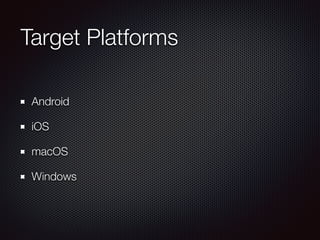

7. Target Platforms
Android
iOS
macOS
Windows

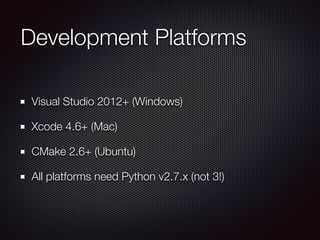

8. Development Platforms
Visual Studio 2012+ (Windows)
Xcode 4.6+ (Mac)
CMake 2.6+ (Ubuntu)
All platforms need Python v2.7.x (not 3!)

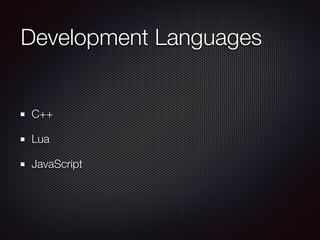

9. Development Languages
C++
Lua
JavaScript

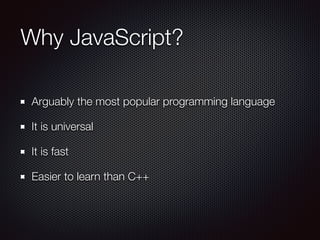

11. Why JavaScript?
Arguably the most popular programming language
It is universal
It is fast
Easier to learn than C++

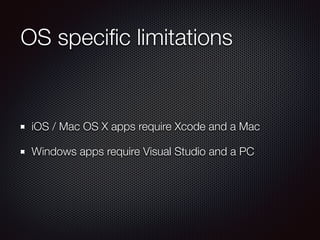

12. OS specific limitations
iOS / Mac OS X apps require Xcode and a Mac
Windows apps require Visual Studio and a PC

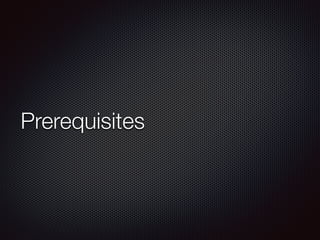

13. Prerequisites

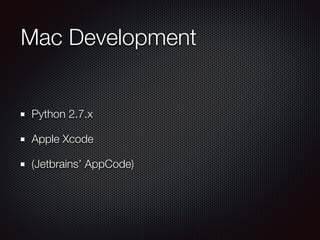

14. Mac Development
Python 2.7.x
Apple Xcode
(Jetbrains’ AppCode)

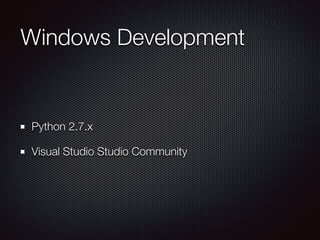

15. Windows Development
Python 2.7.x
Visual Studio Studio Community

16. Before we move on
Be sure that your dev tools are work
For Mac, build a command line tool
For Windows, build a console app

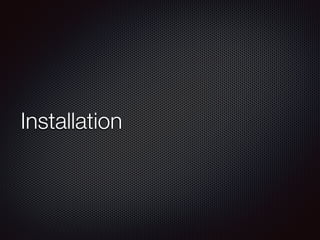

17. Installation

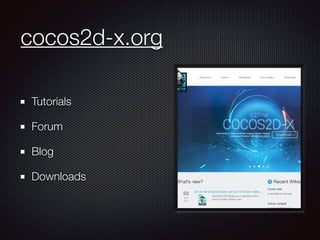

18. cocos2d-x.org
Tutorials
Forum
Blog
Downloads

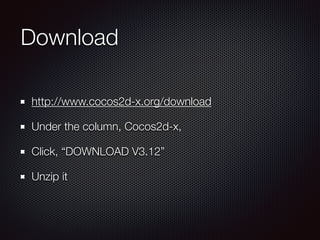

19. Download
http://www.cocos2d-x.org/download
Under the column, Cocos2d-x,
Click, “DOWNLOAD V3.12”
Unzip it

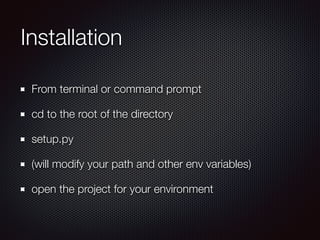

20. Installation
From terminal or command prompt
cd to the root of the directory
setup.py
(will modify your path and other env variables)
open the project for your environment

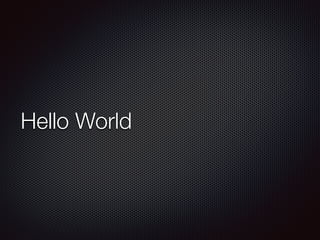

21. Hello World

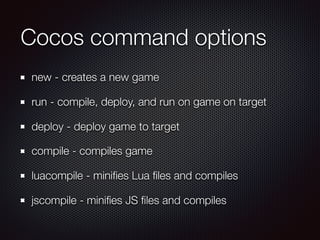

22. Cocos command options
new - creates a new game
run - compile, deploy, and run on game on target
deploy - deploy game to target
compile - compiles game
luacompile - minifies Lua files and compiles
jscompile - minifies JS files and compiles

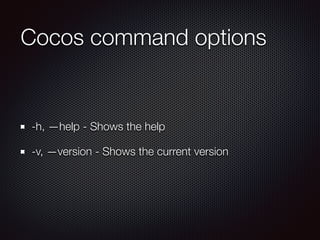

23. Cocos command options
-h, —help - Shows the help
-v, —version - Shows the current version

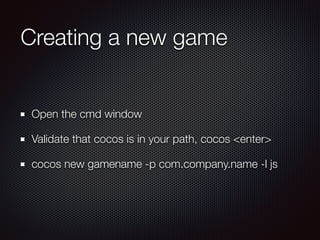

24. Creating a new game
Open the cmd window
Validate that cocos is in your path, cocos <enter>
cocos new gamename -p com.company.name -l js

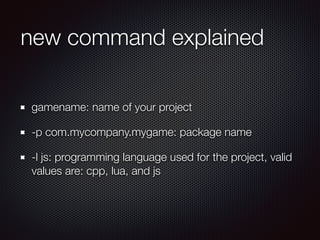

25. new command explained
gamename: name of your project
-p com.mycompany.mygame: package name
-l js: programming language used for the project, valid
values are: cpp, lua, and js

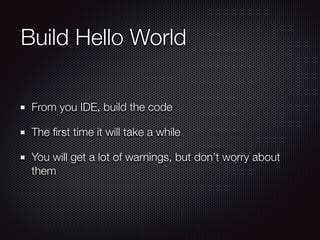

26. Build Hello World
From you IDE, build the code
The first time it will take a while
You will get a lot of warnings, but don’t worry about
them

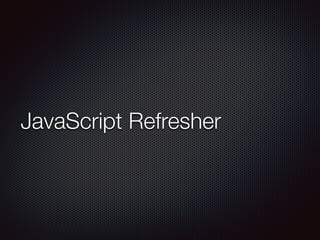

27. JavaScript Refresher

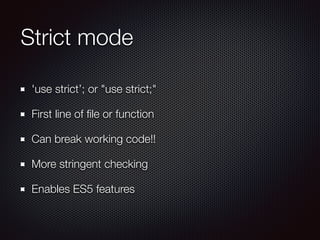

28. Strict mode
'use strict’; or "use strict;"
First line of file or function
Can break working code!!
More stringent checking
Enables ES5 features

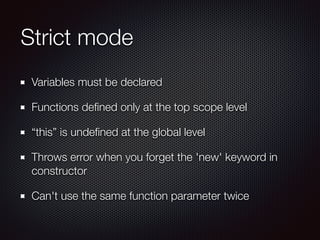

29. Strict mode
Variables must be declared
Functions defined only at the top scope level
“this” is undefined at the global level
Throws error when you forget the 'new' keyword in
constructor
Can't use the same function parameter twice

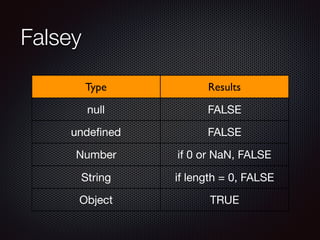

30. Falsey
Type Results
null FALSE
undefined FALSE
Number if 0 or NaN, FALSE
String if length = 0, FALSE
Object TRUE

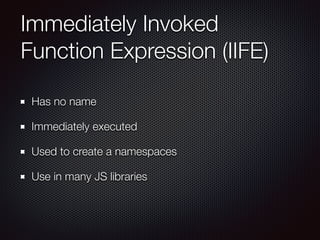

31. Immediately Invoked
Function Expression (IIFE)
Has no name
Immediately executed
Used to create a namespaces
Use in many JS libraries

32. IIFE (continued)
(function() {
/* Nothing inside of the function can be seen on
on the outside, unless we want it to */
}());

33. Object Literals
A pair of curly braces surrounding name/value pairs
Can appear anywhere an expression can
The property’s name can be ANY string
Quotes only need when the name is not a legal variable
name

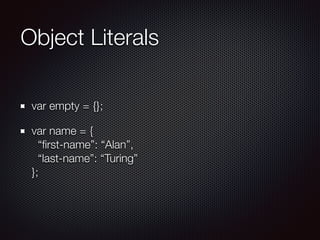

34. Object Literals
var empty = {};
var name = {
“first-name”: “Alan”,
“last-name”: “Turing”
};

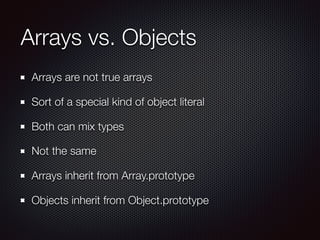

35. Arrays vs. Objects
Arrays are not true arrays
Sort of a special kind of object literal
Both can mix types
Not the same
Arrays inherit from Array.prototype
Objects inherit from Object.prototype

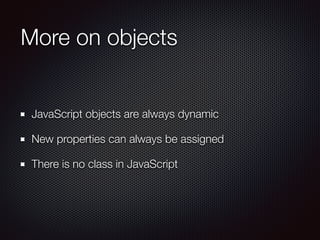

36. More on objects
JavaScript objects are always dynamic
New properties can always be assigned
There is no class in JavaScript

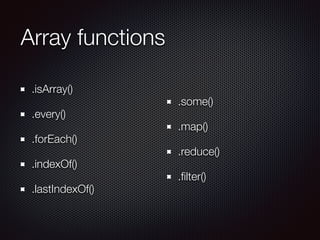

37. Array functions
.isArray()
.every()
.forEach()
.indexOf()
.lastIndexOf()
.some()
.map()
.reduce()
.filter()

38. forEach
let junk = [1, 2, 3, 4, 'Alpha', 5, {name: 'Jason'}];
let letters = ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K'];
let nums = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20];
console.log(nums);
// forEach iterates over the array, once for each element, but there is no way to
// break out
nums.forEach(function (elem, index, arr) {
console.log(index + ': ' + elem);
});

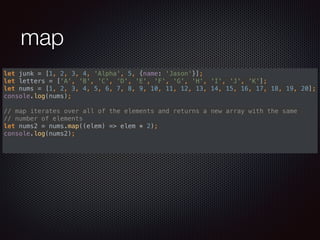

39. map
let junk = [1, 2, 3, 4, 'Alpha', 5, {name: 'Jason'}];
let letters = ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K'];
let nums = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20];
console.log(nums);
// map iterates over all of the elements and returns a new array with the same
// number of elements
let nums2 = nums.map((elem) => elem * 2);
console.log(nums2);

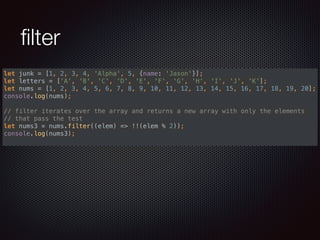

40. filter
let junk = [1, 2, 3, 4, 'Alpha', 5, {name: 'Jason'}];
let letters = ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K'];
let nums = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20];
console.log(nums);
// filter iterates over the array and returns a new array with only the elements
// that pass the test
let nums3 = nums.filter((elem) => !!(elem % 2));
console.log(nums3);

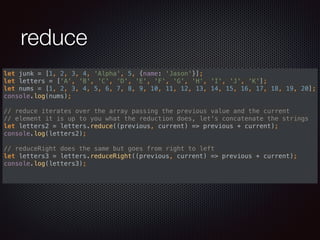

41. reduce
let junk = [1, 2, 3, 4, 'Alpha', 5, {name: 'Jason'}];
let letters = ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K'];
let nums = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20];
console.log(nums);
// reduce iterates over the array passing the previous value and the current
// element it is up to you what the reduction does, let's concatenate the strings
let letters2 = letters.reduce((previous, current) => previous + current);
console.log(letters2);
// reduceRight does the same but goes from right to left
let letters3 = letters.reduceRight((previous, current) => previous + current);
console.log(letters3);

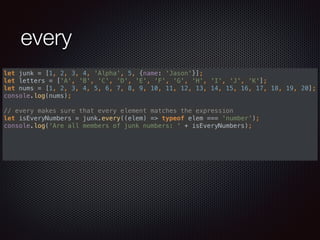

42. every
let junk = [1, 2, 3, 4, 'Alpha', 5, {name: 'Jason'}];
let letters = ['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K'];
let nums = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20];
console.log(nums);
// every makes sure that every element matches the expression
let isEveryNumbers = junk.every((elem) => typeof elem === 'number');
console.log('Are all members of junk numbers: ' + isEveryNumbers);

43. ES6 aka ES2015
for-of
let
const
Template strings
Arrow functions

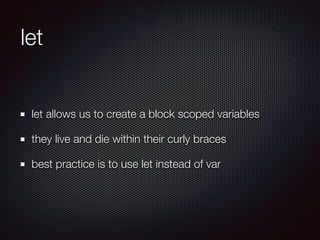

44. let
let allows us to create a block scoped variables
they live and die within their curly braces
best practice is to use let instead of var

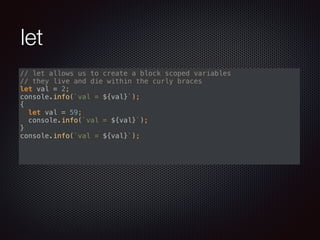

45. let
// let allows us to create a block scoped variables
// they live and die within the curly braces
let val = 2;
console.info(`val = ${val}`);
{
let val = 59;
console.info(`val = ${val}`);
}
console.info(`val = ${val}`);

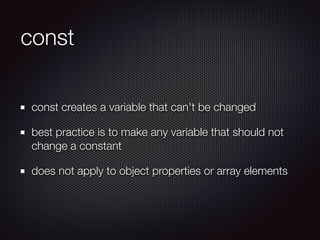

46. const
const creates a variable that can't be changed
best practice is to make any variable that should not
change a constant
does not apply to object properties or array elements

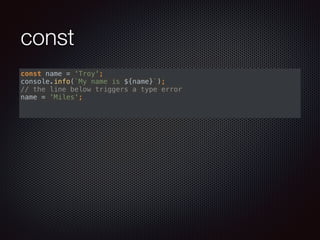

47. const
const name = 'Troy';
console.info(`My name is ${name}`);
// the line below triggers a type error
name = 'Miles';

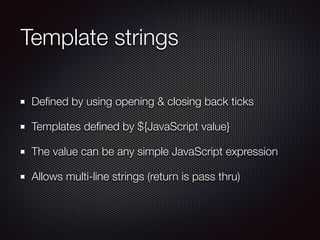

48. Template strings
Defined by using opening & closing back ticks
Templates defined by ${JavaScript value}
The value can be any simple JavaScript expression
Allows multi-line strings (return is pass thru)

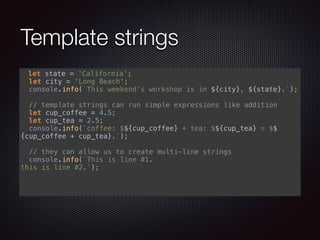

49. Template strings
let state = 'California';
let city = 'Long Beach';
console.info(`This weekend's workshop is in ${city}, ${state}.`);
// template strings can run simple expressions like addition
let cup_coffee = 4.5;
let cup_tea = 2.5;
console.info(`coffee: $${cup_coffee} + tea: $${cup_tea} = $$
{cup_coffee + cup_tea}.`);
// they can allow us to create multi-line strings
console.info(`This is line #1.
this is line #2.`);

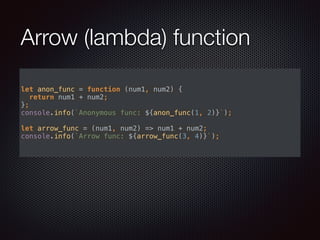

50. Arrow (lambda) function
let anon_func = function (num1, num2) {
return num1 + num2;
};
console.info(`Anonymous func: ${anon_func(1, 2)}`);
let arrow_func = (num1, num2) => num1 + num2;
console.info(`Arrow func: ${arrow_func(3, 4)}`);

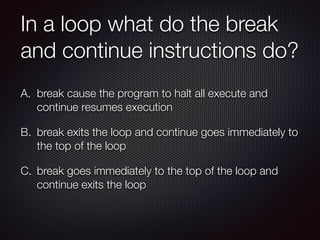

51. In a loop what do the break
and continue instructions do?
A. break cause the program to halt all execute and
continue resumes execution
B. break exits the loop and continue goes immediately to
the top of the loop
C. break goes immediately to the top of the loop and
continue exits the loop

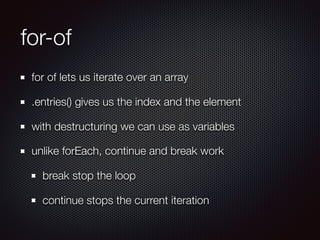

52. for-of
for of lets us iterate over an array
.entries() gives us the index and the element
with destructuring we can use as variables
unlike forEach, continue and break work
break stop the loop
continue stops the current iteration

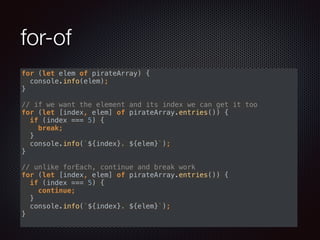

53. for-of
for (let elem of pirateArray) {
console.info(elem);
}
// if we want the element and its index we can get it too
for (let [index, elem] of pirateArray.entries()) {
if (index === 5) {
break;
}
console.info(`${index}. ${elem}`);
}
// unlike forEach, continue and break work
for (let [index, elem] of pirateArray.entries()) {
if (index === 5) {
continue;
}
console.info(`${index}. ${elem}`);
}

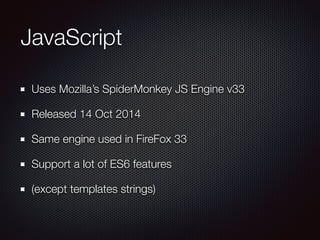

54. JavaScript
Uses Mozilla’s SpiderMonkey JS Engine v33
Released 14 Oct 2014
Same engine used in FireFox 33
Support a lot of ES6 features
(except templates strings)

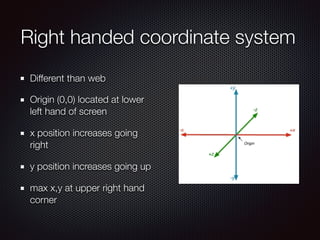

55. Right handed coordinate system
Different than web
Origin (0,0) located at lower
left hand of screen
x position increases going
right
y position increases going up
max x,y at upper right hand
corner

56. Hello World
Cocos2D-x ships as
source code
Build it to compile the
libraries

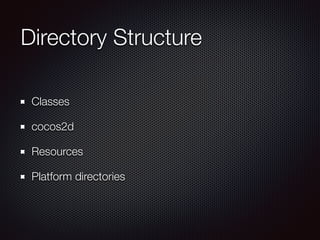

57. Directory Structure
Classes
cocos2d
Resources
Platform directories

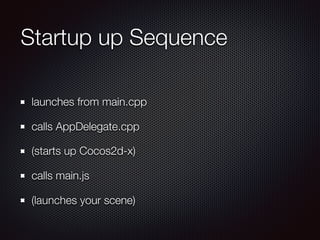

58. Startup up Sequence
launches from main.cpp
calls AppDelegate.cpp
(starts up Cocos2d-x)
calls main.js
(launches your scene)

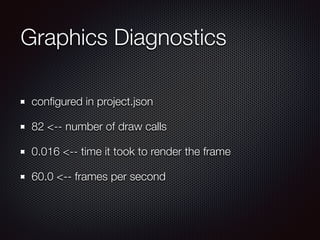

59. Graphics Diagnostics
configured in project.json
82 <-- number of draw calls
0.016 <-- time it took to render the frame
60.0 <-- frames per second

60. Don’t forget
Add JavaScript files to the project.json
Add resources (images/sound/music) to resources.js
Forgetting to add them is a very common bug

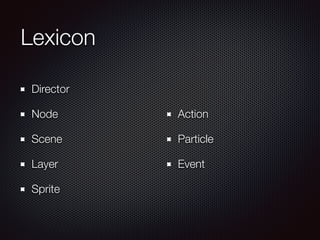

61. Lexicon
Director
Node
Scene
Layer
Sprite
Action
Particle
Event

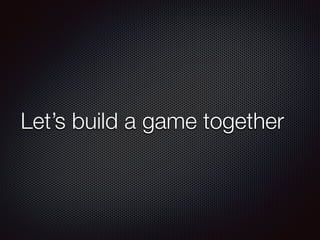

62. Let’s build a game together

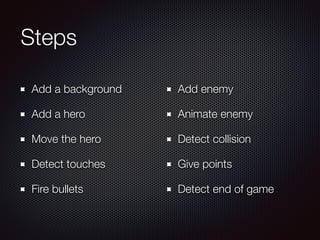

63. Steps
Add a background
Add a hero
Move the hero
Detect touches
Fire bullets
Add enemy
Animate enemy
Detect collision
Give points
Detect end of game

64. Steps
Adding sound
Adding music
Adding scenes

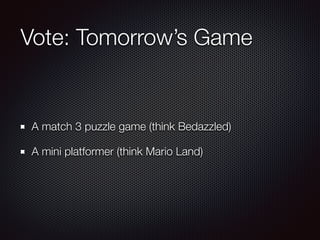

65. Vote: Tomorrow’s Game
A match 3 puzzle game (think Bedazzled)
A mini platformer (think Mario Land)
