This document provides a case study for the full demolition of a 3-story commercial building located at 12, Jalan Meru in Klang, Selangor. The building needs to be demolished to make way for a new commercial building. Special precautions must be taken due to the building's concrete structure and connections to adjoining buildings. The demolition process will include relocating utility lines, erecting safety hoarding, clearing debris, and properly disposing of waste off-site.

1. FULLY DEMOLITION CASE STUDY : SOUND LINE SHOP Mohd Ikhwan Abdullah 2009994441 Norshahida Ishak 2009343777 Hanis Nizar 2009107745 PREPARED FOR: ASSOC. PROF DR. TUAN HJ. KAMRAN SHAVAREBI ALI

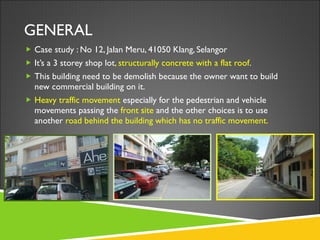

2. GENERAL Case study : No 12, Jalan Meru, 41050 Klang, Selangor It’s a 3 storey shop lot , structurally concrete with a flat roof . This building need to be demolish because the owner want to build new commercial building on it. Heavy traffic movement especially for the pedestrian and vehicle movements passing the front site and the other choices is to use another road behind the building which has no traffic movement.

3. ADJOINING BUILDING The adjoining building have same design and specification as the demolish building. Same concrete structure and having the flat roof Structurally effecting when demolish because of the continuous beam between the adjoining building and the demolish A copy of the letter sent to the occupants of nearby.

4. USE OF THE BUILDING Commercial building Shop at the ground level and office use for the 2 nd and 3 rd floor . There is no dangerous material used for that building such as the flammable substances, toxic substances, lead, and asbestos. No underground tank and no basement.

5. PUBLIC SERVICE The services line is fixed underground . - electrical, water piping, drains and telephone cable must be relocated . Arrangement must be done with SYABAS, TNB and Telekom for the cutting and relocation. Footpaths for the peoples must be change to ensure the safety for pedestrian and vehicle.

6. DANGEROUS STRUCTURE Shoring & temporary support where the possibilities of structural modification to enable efficient demolition. The shops are sharing the same main beam, the wall, column and have the staircase which means special precaution must be taken during demolish work to avoid all these from collapsed. Need to get confirmation from local authority

7. BUILDING PLAN DUMPSTER HOARDING DEMOLISH BUILDING HOARDING OTHER SHOP LOT VEHICLE MOVEMENT MAIN ROAD ADJOINING BUILDING ADJOINING BUILDING

8. DEMOLITION WORK Make an arrangement with local authority for relocating the services Put hoarding front and backside of the building Traffic control for pedestrian and vehicle Delivery of labor and hand tools Commission the demolition works Flying shoring and conventional shoring Clearing the debris and waste material

9. RELOCATING THE SERVICES

10. HOARDING FOR FRONT AND BACK SIDE FRONT SIDE BACK SIDE

11. TRAFFIC CONTROL -Use the traffic cone - Use proper signage -Mark for diversion the traffic

12. DELIVERY OF LABOR AND HAND TOOLS Safety Gear for Labor Hand Tools

13. ROOF Flat roof. No trusses, no bracing, no clay tiles finishing is found during the visit. Demolish using the method of hand tools COMMISSIONS THE DEMOLISH WORK

14. WALLS The shops are having the walls which are properly bounded into front and rear wall. Use flying shore to hold between the wall. The consultation from engineer is needed to determine whether the wall can stand the demolish or not. Use the hand tools method

15. CANTILEVERED STRUCTURE Staircase is fixed between the shop lot Cantilevered slab at the 2 nd floor Use conventional shoring method to avoid it collapse.

16. CONCRETE STRUCTURE Alteration for the beam and column need the architect approval Method choose for demolish the beam is using hand tools

17. Finishing Demolition Works Take Off the Shoring System Clear The Site From Debris

18. DISPOSAL OF DEBRIS AND WASTE MATERIAL Must be properly taken care, shall not be thrown, tipped / shot down from a height that may injured a person Use wheeloader to carry the waste from site to the dumpster then the dumper will throw it away The disposal area is near the demolish area which is MPK Disposal Area at Teluk Kapas, Rantau Panjang, Klang .

19. DEMOLITION .WMV

20. THANK YOU
