‘fsck’ for Openstack
Wei Tian -- Cloud Performance Lead at Paypal
Zhenhua Feng -- Staff Software Engineer
10/ 27 / 2015
Detect Resource Leaking and Keep the Cloud Consistent

2. © 2014-15 PayPal Inc. All rights reserved. Confidential and proprietary.
Agenda
2
• Some numbers about Paypal Cloud
• What makes our cloud inconsistent
• Our solutions to keep our cloud consistent

3. © 2014-15 PayPal Inc. All rights reserved. Confidential and proprietary.

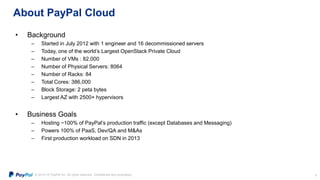

About PayPal Cloud
3
• Background
– Started in July 2012 with 1 engineer and 16 decommissioned servers
– Today, one of the world’s Largest OpenStack Private Cloud
– Number of VMs : 82,000
– Number of Physical Servers: 8064
– Number of Racks: 84
– Total Cores: 386,000
– Block Storage: 2 peta bytes
– Largest AZ with 2500+ hypervisors
• Business Goals
– Hosting ~100% of PayPal’s production traffic (except Databases and Messaging)
– Powers 100% of PaaS, Dev/QA and M&As
– First production workload on SDN in 2013

4. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

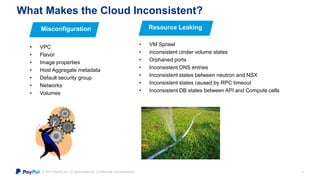

What Makes the Cloud Inconsistent?
4
• VPC
• Flavor
• Image properties
• Host Aggregate metadata
• Default security group
• Networks
• Volumes
• VM Sprawl
• inconsistent cinder volume states
• Orphaned ports
• Inconsistent DNS entries
• Inconsistent states between neutron and NSX
• Inconsistent states caused by RPC timeout
• Inconsistent DB states between API and Compute cells
Misconfiguration Resource Leaking

5. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

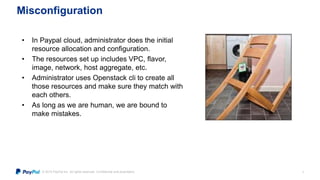

Misconfiguration
• In Paypal cloud, administrator does the initial
resource allocation and configuration.
• The resources set up includes VPC, flavor,
image, network, host aggregate, etc.
• Administrator uses Openstack cli to create all
those resources and make sure they match with
each others.
• As long as we are human, we are bound to
make mistakes.
5

6. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.
Scenario may have misconfiguration (1)
6

7. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.
Scenario may have misconfiguration (2)
7

8. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

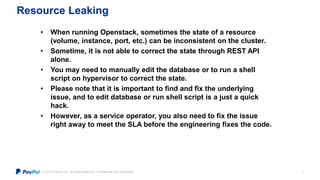

Resource Leaking
8
• When running Openstack, sometimes the state of a resource
(volume, instance, port, etc.) can be inconsistent on the cluster.
• Sometime, it is not able to correct the state through REST API
alone.
• You may need to manually edit the database or to run a shell
script on hypervisor to correct the state.
• Please note that it is important to find and fix the underlying
issue, and to edit database or run shell script is a just a quick
hack.
• However, as a service operator, you also need to fix the issue
right away to meet the SLA before the engineering fixes the code.

9. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

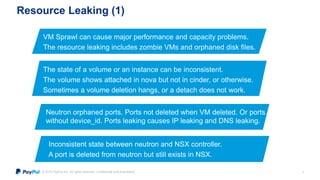

Resource Leaking (1)
9
VM Sprawl can cause major performance and capacity problems.
The resource leaking includes zombie VMs and orphaned disk files.
The state of a volume or an instance can be inconsistent.
The volume shows attached in nova but not in cinder, or otherwise.
Sometimes a volume deletion hangs, or a detach does not work.
Neutron orphaned ports. Ports not deleted when VM deleted. Or ports
without device_id. Ports leaking causes IP leaking and DNS leaking.
Inconsistent state between neutron and NSX controller.
A port is deleted from neutron but still exists in NSX.

10. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

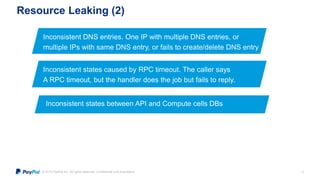

Resource Leaking (2)
10
Inconsistent DNS entries. One IP with multiple DNS entries, or
multiple IPs with same DNS entry, or fails to create/delete DNS entry
Inconsistent states caused by RPC timeout. The caller says
A RPC timeout, but the handler does the job but fails to reply.
Inconsistent states between API and Compute cells DBs

11. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

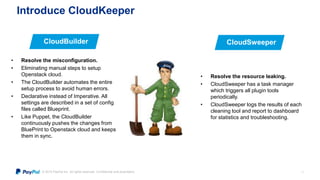

Introduce CloudKeeper
11
CloudBuilder CloudSweeper
• Resolve the misconfiguration.
• Eliminating manual steps to setup
Openstack cloud.
• The CloudBuilder automates the entire
setup process to avoid human errors.
• Declarative instead of Imperative. All
settings are described in a set of config
files called Blueprint.
• Like Puppet, the CloudBuilder
continuously pushes the changes from
BluePrint to Openstack cloud and keeps
them in sync.
• Resolve the resource leaking.
• CloudSweeper has a task manager
which triggers all plugin tools
periodically.
• CloudSweeper logs the results of each
cleaning tool and report to dashboard
for statistics and troubleshooting.

12. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

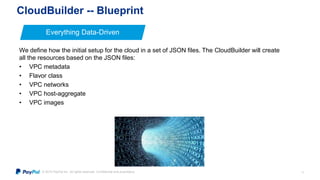

CloudBuilder -- Blueprint
12
Everything Data-Driven
We define how the initial setup for the cloud in a set of JSON files. The CloudBuilder will create
all the resources based on the JSON files:
• VPC metadata
• Flavor class
• VPC networks
• VPC host-aggregate
• VPC images

13. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.
CloudBuilder – Blueprint – VPC metadata

14. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

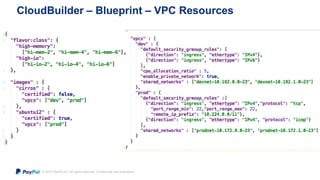

CloudBuilder – Blueprint – VPC Resources

15. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

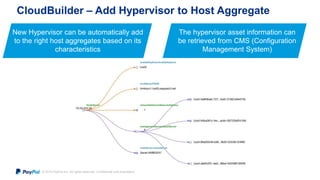

CloudBuilder – Add Hypervisor to Host Aggregate
New Hypervisor can be automatically add
to the right host aggregates based on its
characteristics
The hypervisor asset information can
be retrieved from CMS (Configuration
Management System)

16. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

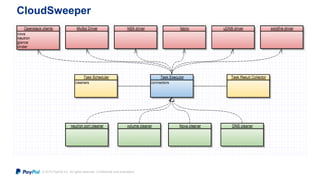

CloudSweeper

17. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

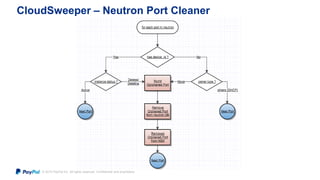

CloudSweeper – Neutron Port Cleaner

18. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary.

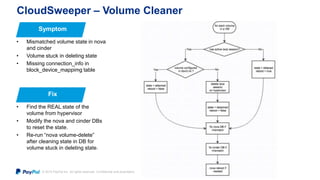

CloudSweeper – Volume Cleaner
• Mismatched volume state in nova
and cinder
• Volume stuck in deleting state
• Missing connection_info in
block_device_mappimg table
Symptom
• Find the REAL state of the
volume from hypervisor
• Modify the nova and cinder DBs
to reset the state.
• Re-run “nova volume-delete”
after cleaning state in DB for
volume stuck in deleting state.
Fix

19. © 2015 PayPal Inc. All rights reserved. Confidential and proprietary. 19
Questions ?
