The document discusses new technologies for electronic surveillance, including: 1. The VideoIQ iCVR device, which is an all-in-one surveillance device that performs intelligent video analytics, recording, streaming and storage at the edge to reduce bandwidth usage. 2. VideoIQ's adaptive analytics can accurately detect objects in real-world conditions with minimal false alarms and are easily installed with low maintenance needs. 3. Remote guarding solutions using the iCVR allow guards to automatically receive alarm video clips, zoom in live video and confront intruders using two-way audio.

1. The New World of
Electronic ccTV Guarding
In Africa
VideoIQ Confidential

2. 1. VideoIQ iCVR – SmartGuard
PIXIM Wide Dynamic Range, Intelligent 750 GB
Day/Night Sensor Database NVR/DVR
VOIP Audio for Powerful Analytic
Intervention Detection and Search
2

3. Full HD Resolution – with VideoIQ Intelligence
Zero bandwidth recording to 1080p/25fps
On-demand live
streaming
iCVR All-in-One
Video Surveillance
Automatic streaming
Device when events detected
Intelligent
Streaming
Intelligent
Up to 750GB
Storage
Increased recording frame rate
onboard NVR and resolution during events
Continuous recording at baseline
frame rate and resolution
10/15/12 VideoIQ Confidential 3

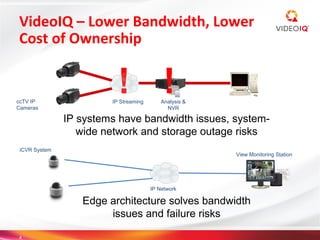

4. VideoIQ – Lower Bandwidth, Lower
Cost of Ownership
ccTV IP
Cameras
! !
IP Streaming Analysis &
NVR
PC
IP systems have bandwidth issues, system-
wide network and storage outage risks
iCVR System
View Monitoring Station
IP Network
Edge architecture solves bandwidth
issues and failure risks
4

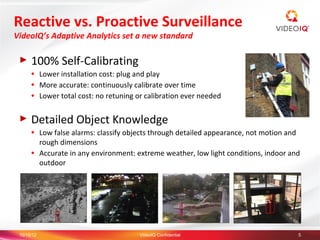

5. Reactive vs. Proactive Surveillance
VideoIQ’s Adaptive Analytics set a new standard
► 100% Self-Calibrating
● Lower installation cost: plug and play
● More accurate: continuously calibrate over time
● Lower total cost: no retuning or calibration ever needed
► Detailed Object Knowledge
● Low false alarms: classify objects through detailed appearance, not motion and
rough dimensions
● Accurate in any environment: extreme weather, low light conditions, indoor and
outdoor
10/15/12 VideoIQ Confidential 5

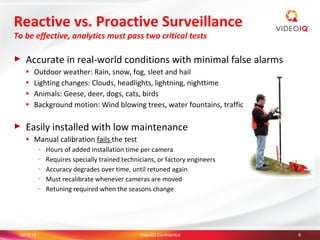

6. Reactive vs. Proactive Surveillance
To be effective, analytics must pass two critical tests
► Accurate in real-world conditions with minimal false alarms
● Outdoor weather: Rain, snow, fog, sleet and hail
● Lighting changes: Clouds, headlights, lightning, nighttime
● Animals: Geese, deer, dogs, cats, birds
● Background motion: Wind blowing trees, water fountains, traffic
► Easily installed with low maintenance
● Manual calibration fails the test
– Hours of added installation time per camera
– Requires specially trained technicians, or factory engineers
– Accuracy degrades over time, until retuned again
– Must recalibrate whenever cameras are moved
– Retuning required when the seasons change
10/15/12 VideoIQ Confidential 6

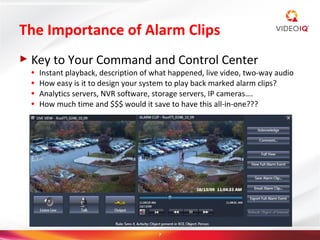

7. The Importance of Alarm Clips
► Key to Your Command and Control Center
● Instant playback, description of what happened, live video, two-way audio
● How easy is it to design your system to play back marked alarm clips?
● Analytics servers, NVR software, storage servers, IP cameras….
● How much time and $$$ would it save to have this all-in-one???
7

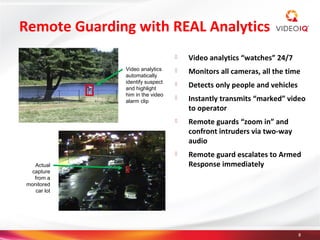

8. Remote Guarding with REAL Analytics
 Video analytics “watches” 24/7
Video analytics
automatically
 Monitors all cameras, all the time
identify suspect
and highlight
 Detects only people and vehicles
him in the video
alarm clip
 Instantly transmits “marked” video
to operator
 Remote guards “zoom in” and
confront intruders via two-way
audio
 Remote guard escalates to Armed
Actual Response immediately
capture
from a
monitored
car lot
8

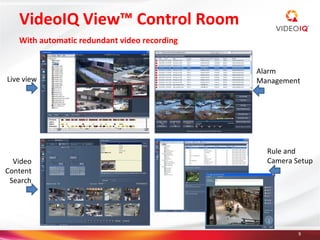

9. VideoIQ View™ Control Room
With automatic redundant video recording
Alarm
Live view Management
Rule and
Video Camera Setup
Content
Search
9

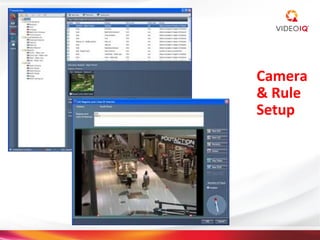

10. Camera
& Rule
Setup

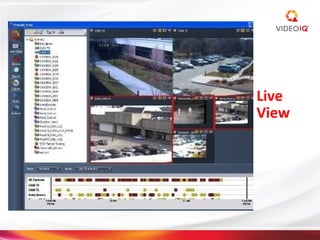

11. Live
View

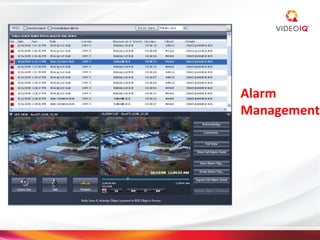

12. Alarm
Management

13. Smart
Search

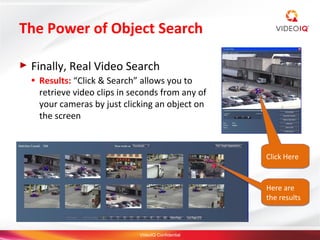

14. The Power of Object Search
► Finally, Real Video Search
● Results: “Click & Search” allows you to
retrieve video clips in seconds from any of
your cameras by just clicking an object on
the screen
Click Here
Here are
the results
VideoIQ Confidential

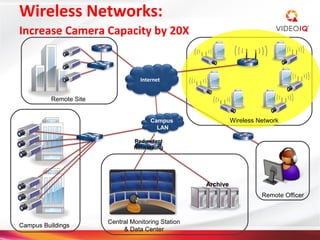

15. Wireless Networks:
Increase Camera Capacity by 20X
Internet
Remote Site
Campus Wireless Network
LAN
Redundant
Networking
Archive
Remote Officer
Central Monitoring Station
Campus Buildings
& Data Center

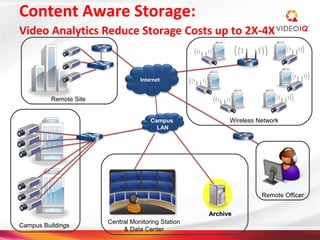

16. Content Aware Storage:
Video Analytics Reduce Storage Costs up to 2X-4X
Internet
Remote Site
Campus Wireless Network
LAN
Remote Officer
Archive
Central Monitoring Station
Campus Buildings
& Data Center
