From DDD to CQRS presented by Dennis Traub .NET Usergroup Bern - 19. März 2013 Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Who‘s that guy? Dennis Traub Founder, Owner, CEO, Single Employee of D. Traub Software Development Consultancy Consultant, developer, trainer, speaker 39 years old Married, father of one 20+ years in software development Hire me at mail@dennistraub.de @dtraub Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

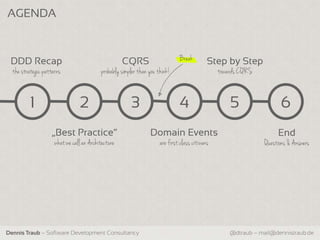

AGENDA DDD Recap CQRS Break Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & Answers Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & Answers Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
The „Blue Book“ by Eric Evans Image Placeholder Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

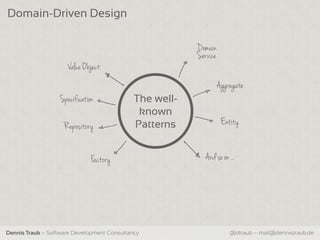

Domain-Driven Design Domain Service Value Object Aggregate Specification The well- known Reposit ory Patterns Entity Factory And so on . . Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

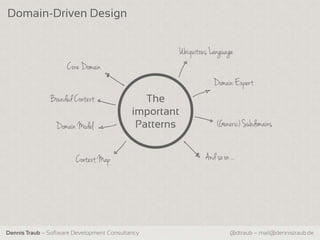

Domain-Driven Design Ubiquit ous Language Core Domain Domain Expert Bounded Context The important Domain Model Patterns (Generic) Subdomains Context Map And so on . . Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

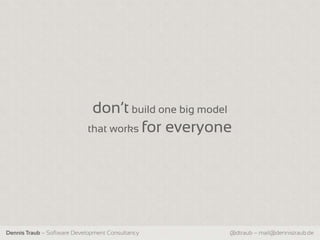

don‘t build one big model that works for everyone Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

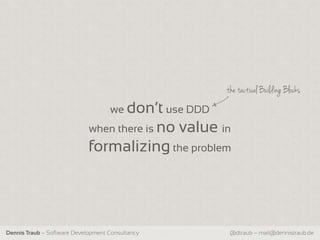

the tactical Building Blocks we don‘t use DDD when there is no value in formalizing the problem Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

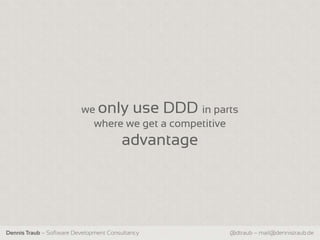

we only use DDD in parts where we get a competitive advantage Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
we focus our effort and resources on the most important subdomain Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
a.k.a. The Core Domain Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & Answers Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

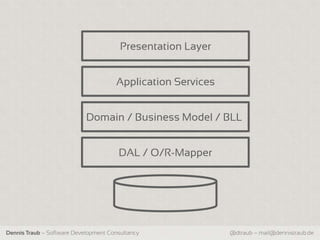

Presentation Layer Application Services Domain / Business Model / BLL DAL / O/R-Mapper Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Pros of the „Best Practice Architecture“ 1 Easy to build 2 Accepted by management 3 Well-know throughall all seniority levels 4 We know ist limitiations Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

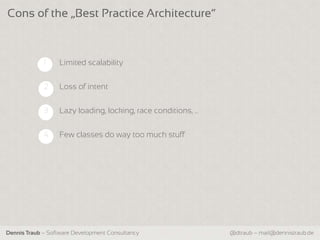

Cons of the „Best Practice Architecture“ 1 Limited scalability 2 Loss of intent 3 Lazy loading, locking, race conditions, … 4 Few classes do way too much stuff Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
And: If the model is basically CRUD where does Business Logic live? Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

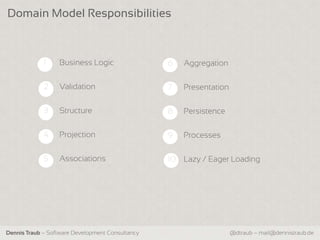

Domain Model Responsibilities 1 Business Logic 6 Aggregation 2 Validation 7 Presentation 3 Structure 8 Persistence 4 Projection 9 Processes 5 Associations 10 Lazy / Eager Loading Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
the S in SOLID Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

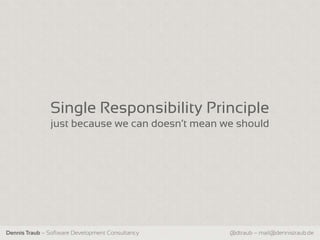

Single Responsibility Principle just because we can doesn‘t mean we should Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
why do we try to build One Model to Rule Them All? Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

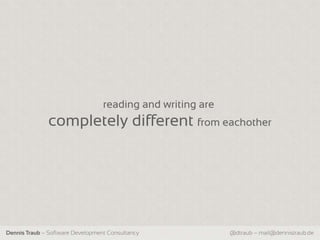

reading and writing are completely different from eachother Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

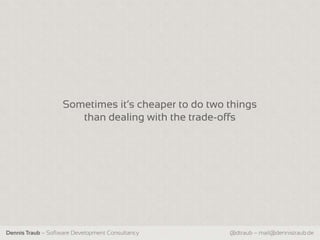

Sometimes it‘s cheaper to do two things than dealing with the trade-offs Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & Answers Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Command Query Separation Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Command Query Separation (CQS) „Every method should either be a command that performs an action or a query that returns data to the caller“ -- Dr. Bertrand Meyer Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

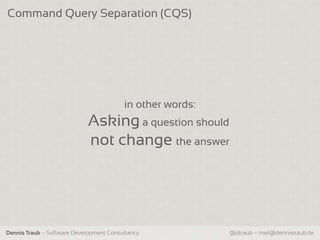

Command Query Separation (CQS) in other words: Asking a question should not change the answer Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

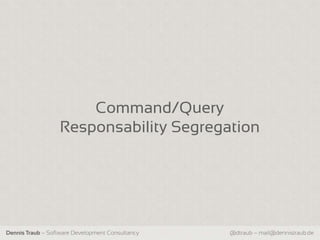

Command/Query Responsability Segregation Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
CQS on an Architectural Level Queries Commands Project Details Project List Project Data Store Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

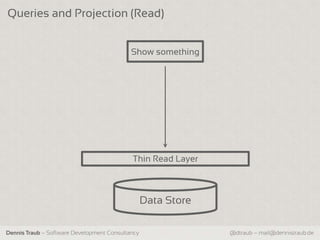

Queries and Projection (Read) Show something Thin Read Layer Data Store Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Thin Read Layer Concerns: 1 Filtering, Scope 2 Data Presentation Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Thin Read Layer Attributes: 1 Data-Oriented 2 Indexable 3 Can be denormalized and distributed for fast access 4 Only Structure Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

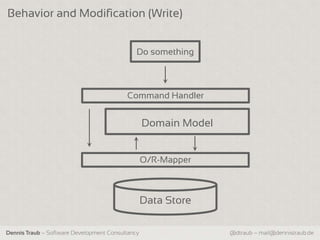

Behavior and Modification (Write) Do something Command Handler Domain Model O/R-Mapper Data Store Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

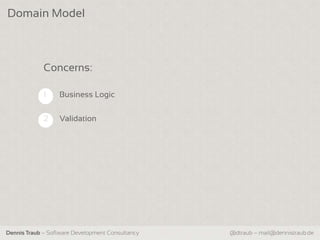

Domain Model Concerns: 1 Business Logic 2 Validation Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Domain Model Attributes: 1 Normalized 2 Transactional 3 Object-Oriented 4 Persistence Ignorant 5 Only Behavior Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

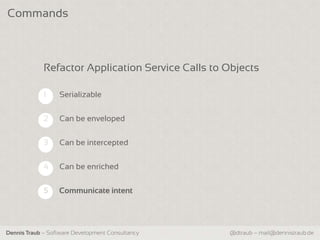

Commands Refactor Application Service Calls to Objects 1 Serializable 2 Can be enveloped 3 Can be intercepted 4 Can be enriched 5 Communicate intent Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Command Handlers Refactored Application Service Methods: 1 Unify interface to all application services 2 Can be wrapped (e.g. Transaction, Authorization, Logging) 3 Can be enveloped (e.g. REST) Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Command Handlers Rule of thumb: One Command Handler per use Case Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

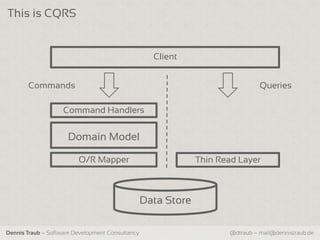

This is CQRS Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Data Store Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
BREAK Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & Answers Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Domain Event Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Domain Event captures the memory of something interesting affecting the domain Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

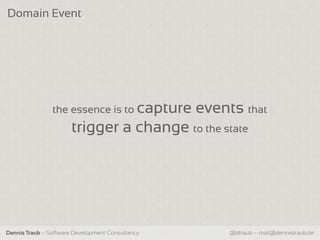

Domain Event the essence is to capture events that trigger a change to the state Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Domain Event event objects are processed to cause the respective change Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Domain Event and stored to provide an audit log Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

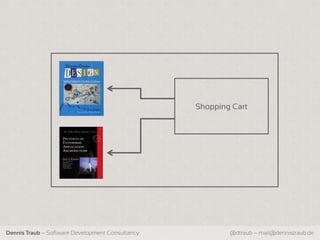

Shopping Cart Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
we don‘t know: What led to this state? Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

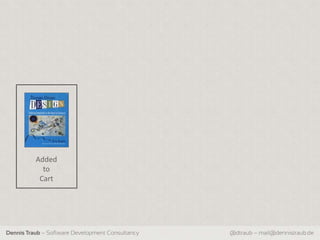

Added to Cart Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

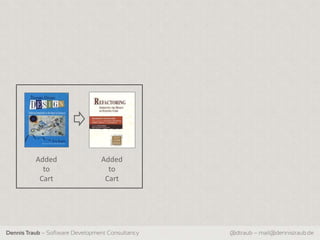

Added Added to to Cart Cart Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

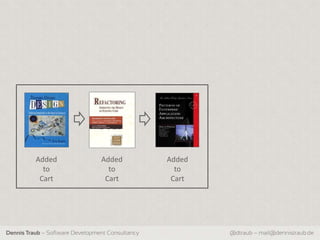

Added Added Added to to to Cart Cart Cart Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

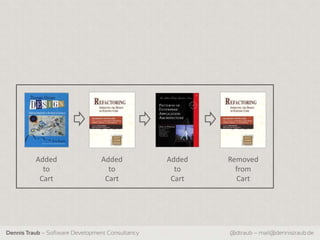

Added Added Added Removed to to to from Cart Cart Cart Cart Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Which model contains more information? Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Shopping Cart Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Added Added Added Removed to to to from Cart Cart Cart Cart Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
what if we capture every single event? Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

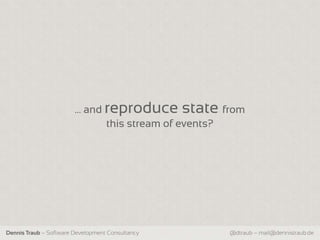

… and reproduce state from this stream of events? Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

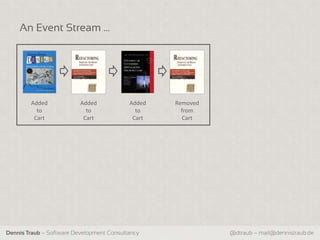

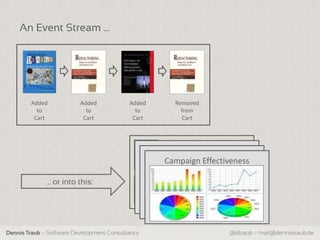

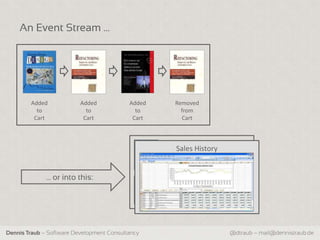

An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Shopping Cart Can be projected into: Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Sales History Shopping Cart … or into this: Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Sales History Audit Trail Shopping Cart … or into this: Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Sales History Audit Trail Shopping Campaign Effectiveness Cart … or into this: Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & Answers Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

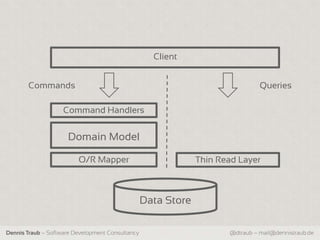

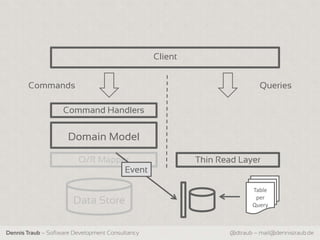

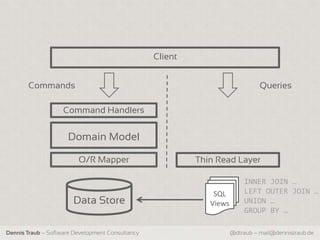

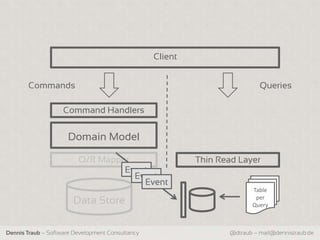

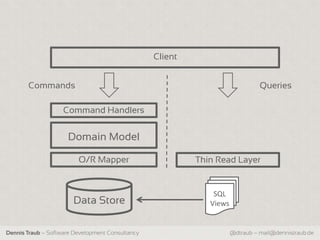

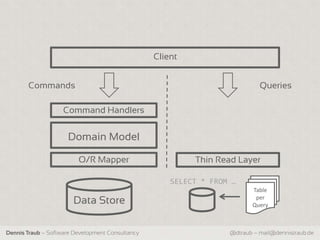

Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Data Store Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer SQL Data Store Views Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer INNER JOIN … SQL LEFT OUTER JOIN … Data Store Views UNION … GROUP BY … Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

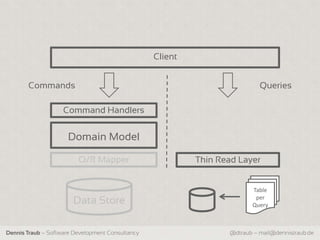

Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer SELECT * FROM … Table Data Store per Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Table Data Store per Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Event Table Data Store per Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Event Event Table Data Store per Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Event Event Event Table Data Store per Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Simplified: Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

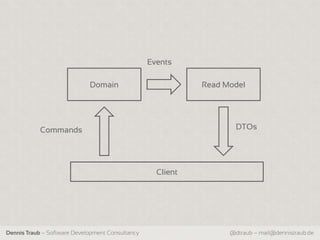

Events Domain Read Model Commands DTOs Client Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

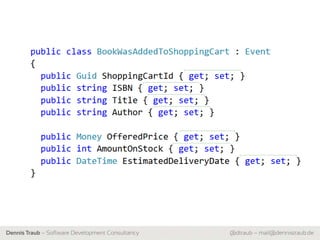

Some Code Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

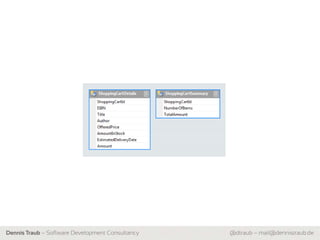

Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

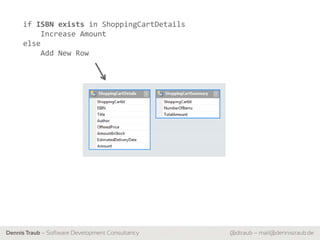

if ISBN exists in ShoppingCartDetails Increase Amount else Add New Row Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

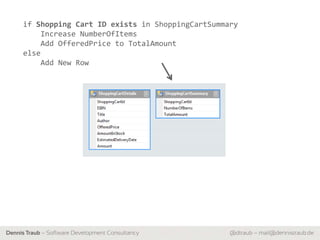

if Shopping Cart ID exists in ShoppingCartSummary Increase NumberOfItems Add OfferedPrice to TotalAmount else Add New Row Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

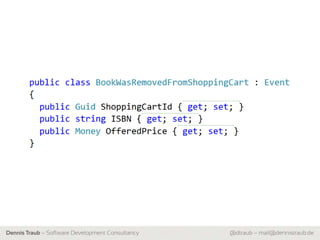

Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

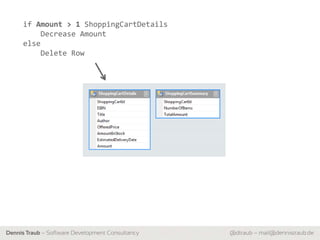

if Amount > 1 ShoppingCartDetails Decrease Amount else Delete Row Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

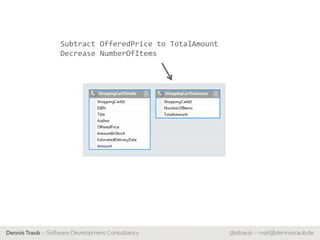

Subtract OfferedPrice to TotalAmount Decrease NumberOfItems Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

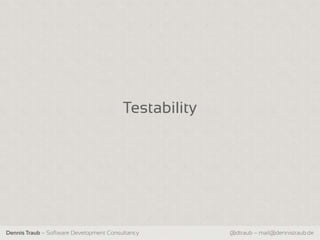

Testability Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

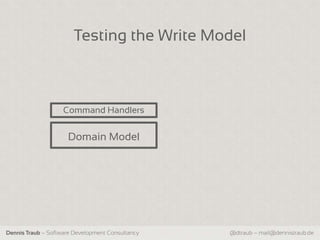

Testing the Write Model Command Handlers Domain Model Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Testing the Write Model Command Handlers Given that certain Events happened Domain Model Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

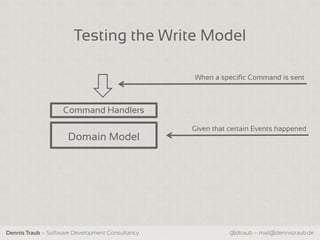

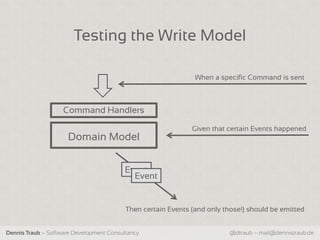

Testing the Write Model When a specific Command is sent Command Handlers Given that certain Events happened Domain Model Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Testing the Write Model When a specific Command is sent Command Handlers Given that certain Events happened Domain Model Event Event Then certain Events (and only those!) should be emitted Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

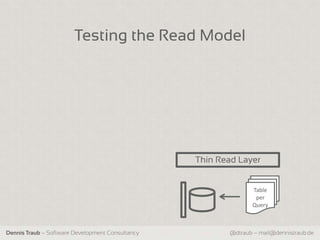

Testing the Read Model Thin Read Layer Table per Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

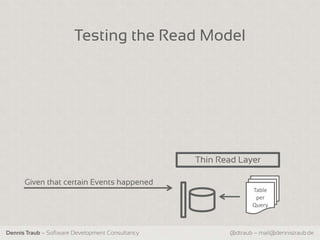

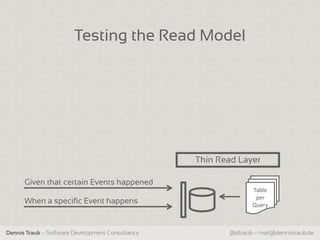

Testing the Read Model Thin Read Layer Given that certain Events happened Table per Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Testing the Read Model Thin Read Layer Given that certain Events happened Table per When a specific Event happens Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

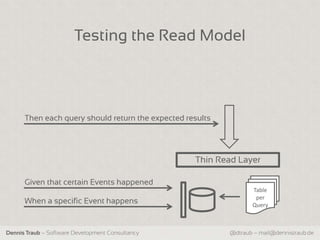

Testing the Read Model Then each query should return the expected results Thin Read Layer Given that certain Events happened Table per When a specific Event happens Query Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Main Values Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

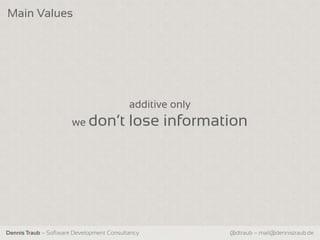

Main Values additive only we don‘t lose information Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Main Values linearly scalable and distributable Read Model Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

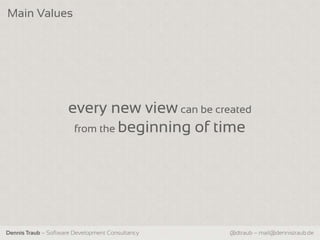

Main Values every new view can be created from the beginning of time Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Main Values We can come up with new questions at any time Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

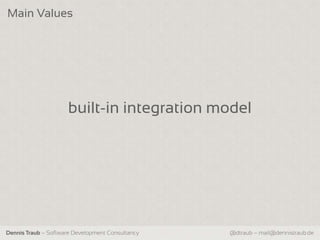

Main Values built-in integration model Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Proven Technology Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
mature business models move away from Update/Delete and become purely transactional Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
Human resources Medicine Bookkeeping Banking Finances Government … Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & Answers Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
? QUESTIONS Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
THANK YOU! follow me: @dtraub Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
