This document summarizes a presentation by Dennis Traub on Domain-Driven Design (DDD). It discusses key DDD concepts like the ubiquitous language, bounded contexts, subdomains and core domains. It provides an example of applying these concepts to an ambulance flight management system. It also discusses architectural approaches to applying DDD like separating domains, applications services and interfaces. The presentation emphasizes that DDD is about modeling the business domain and separating concerns, not about diagrams or class modeling. It is about applying object-oriented principles at the architectural level.

1. Dennis Traub @dtraub
strategic application development with
Domain-Driven Design
dotnet Cologne 2013 – 03. Mai 2013 – #dnc13

2. Dennis Traub @dtraub

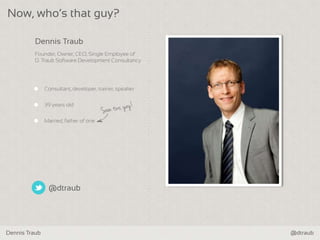

Now, who‘s that guy?
Dennis Traub
Founder, Owner, CEO, Single Employee of
D. Traub Software Development Consultancy
@dtraub
Consultant, developer, trainer, speaker
39 years old
Married, father of one

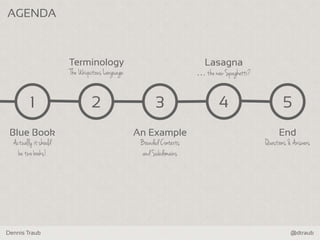

3. Dennis Traub @dtraub
51
Blue Book
Actually it should
be two books!
Terminology
The Ubiquitous Language
2
An Example
Bounded Contexts
and Subdomains
3
Lasagna
… the new Spaghetti?
4
End
Questions & Answers
AGENDA

4. Dennis Traub @dtraub
Image Placeholder
The „Blue Book“ by Eric Evans

5. Dennis Traub @dtraub
• Entities
• Value Objects
• Aggregates
• Repositories
• Services
• Factories
• etc.
The „Blue Book“ by Eric Evans
Tactical
Class
Design
• Model Integrity
• Large-Scale Structure
• Bounded Contexts
• Core Domain
• Context Maps
• Ubiquitous Language
• etc.
Strategic
DDD
It should be two books!

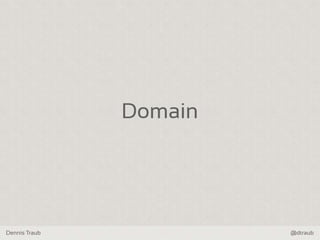

6. Dennis Traub @dtraub
Domain

7. Dennis Traub @dtraub
a sphere of
knowledge, influence, or activity

8. Dennis Traub @dtraub
what an organization does
and the world it does it in

9. Dennis Traub @dtraub

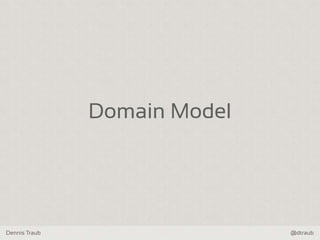

Domain Model

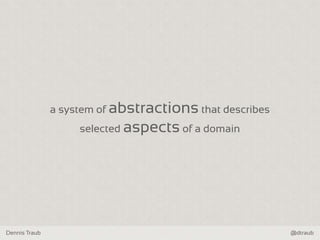

10. Dennis Traub @dtraub
a system of abstractions that describes
selected aspects of a domain

11. Dennis Traub @dtraub
can be used to solve problems
related to that domain

12. Dennis Traub @dtraub

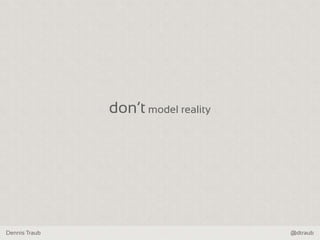

don‘t model reality

13. Dennis Traub @dtraub
we model useful abstractions of reality

14. Dennis Traub @dtraub
Ubiquitous Language

15. Dennis Traub @dtraub

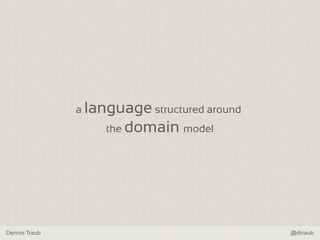

a language structured around
the domain model

16. Dennis Traub @dtraub
used by all team members

17. Dennis Traub @dtraub
Bounded Context

18. Dennis Traub @dtraub
an explicit boundary within which
a domain model exists

19. Dennis Traub @dtraub

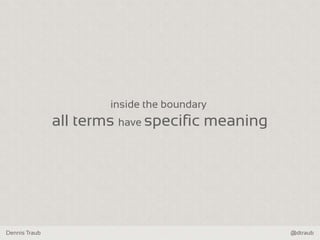

inside the boundary
all terms have specific meaning

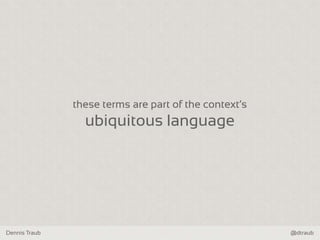

20. Dennis Traub @dtraub
these terms are part of the context‘s
ubiquitous language

21. Dennis Traub @dtraub

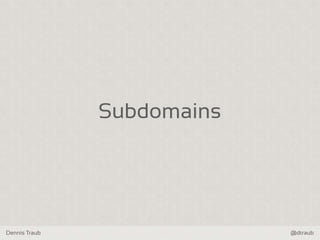

Subdomains

22. Dennis Traub @dtraub
the whole domain of the organization
is comprised of subdomains

23. Dennis Traub @dtraub
they focus on only one
specific area of the whole business domain

24. Dennis Traub @dtraub
Core Domain

25. Dennis Traub @dtraub
the distinctive part of the model,
central to the users‘ goals

26. Dennis Traub @dtraub

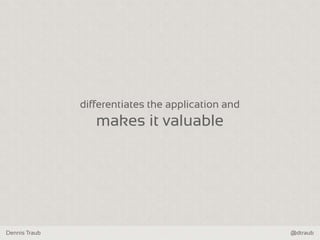

differentiates the application and
makes it valuable

27. Dennis Traub @dtraub
the most important subdomain

28. Dennis Traub @dtraub

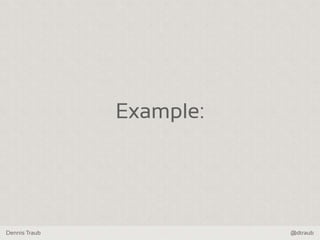

Example:

29. Dennis Traub @dtraub
Ambulance Flight Management
order flights from an operator
dispatch patients
assign medical staff

30. Dennis Traub @dtraub
Bounded Contexts
1 Patiententransport-Disposition
2 Flugplanung und -durchführung
3 Personaleinsatzplanung (Flugärzte, Rettungsassistenten)
4 Stammdaten, Rechnungswesen
5 Benutzerrechte, Web-Oberfläche

31. Dennis Traub @dtraub
Subdomains
6 Bodentransport
7 Abrechnung, Buchhaltung
8 Anwendungsoberfläche
9 REST-Schnittstelle
10 Benutzer- und Zugriffsrechte
1 Ambulanzflug-Disposition
2 Flottenmanagement
3 Flugplanung
4 Passagier-/Patientendaten
5 Medizinisches Personal

32. Dennis Traub @dtraub

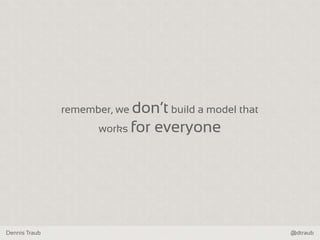

remember, we don‘t build a model that
works for everyone

33. Dennis Traub @dtraub
to focus our effort and resources we ask
two questions for each subdomain

34. Dennis Traub @dtraub

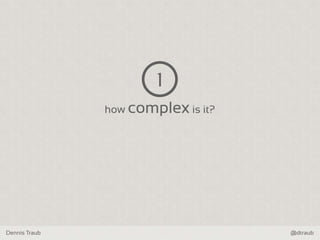

how complex is it?
1

35. Dennis Traub @dtraub
what‘s the value to our specific problem?
(if we model it ourselves)
2

36. Dennis Traub @dtraub
Core Domain
6 Bodentransport
7 Abrechnung, Buchhaltung
8 Anwendungsoberfläche
9 REST-Schnittstelle
10 Benutzer- und Zugriffsrechte
1 Ambulanzflug-Disposition
2 Flottenmanagement
3 Flugplanung
4 Passagier-/Patientendaten
5 Medizinisches Personal
Ambulanzflug-Disposition

37. Dennis Traub @dtraub

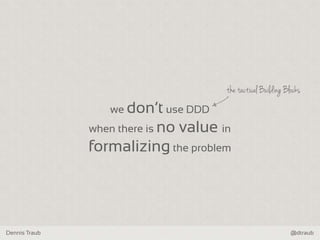

we don‘t use DDD
when there is no value in
formalizing the problem
the tactical Building Blocks

38. Dennis Traub @dtraub
we only use DDD in parts
where we get a competitive
advantage

39. Dennis Traub @dtraub
Best Practice
Architecture

40. Dennis Traub @dtraub

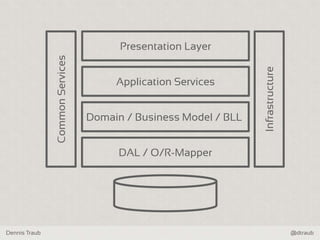

DAL / O/R-Mapper
Domain / Business Model / BLL
Presentation Layer
Application Services
Infrastructure
CommonServices

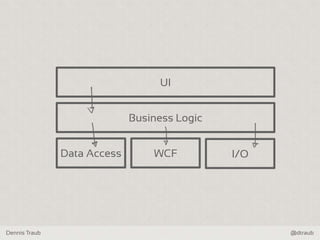

41. Dennis Traub @dtraub
WCFData Access
UI
Business Logic
I/O

42. Dennis Traub @dtraub
Lasagna is the new Spaghetti

43. Dennis Traub @dtraub

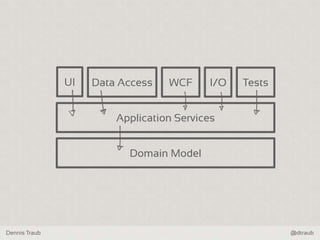

UI Data Access
Domain Model
Application Services
I/OWCF Tests

44. Dennis Traub @dtraub

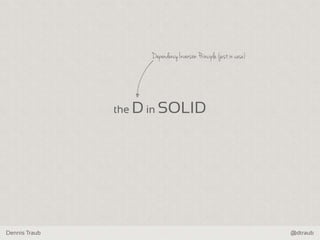

the D in SOLID
DependencyInversion Principle (just in case)

45. Dennis Traub @dtraub
UI Data Access
Domain Model
Application Services
I/OWCF Tests

46. Dennis Traub @dtraub

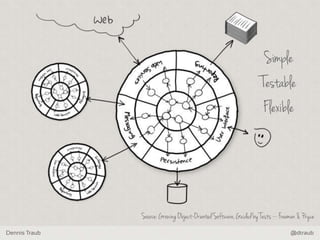

Source: Growing Object-OrientedSoftware, Guided by Tests -- Freeman & Pryce
Simple
Testable
Flexible

47. Dennis Traub @dtraub
Onion Architecture
Hexagonal Architecture
Ports & AdaptersArchitecture

48. Dennis Traub @dtraub
Summary

49. Dennis Traub @dtraub
DDD != Silver Bullet

50. Dennis Traub @dtraub
DDD != Diagrams

51. Dennis Traub @dtraub
DDD != Class Modeling

52. Dennis Traub @dtraub
DDD == how the business works

53. Dennis Traub @dtraub

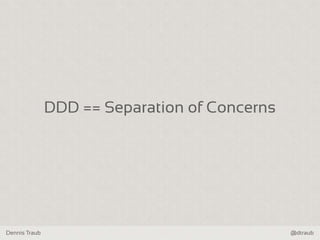

DDD == Separation of Concerns

54. Dennis Traub @dtraub
DDD is basically the application of
the SOLID principles of object-orientation
on an architectural level

55. Dennis Traub @dtraub
Image Placeholder
The „Blue Book“ by Eric Evans

56. Dennis Traub @dtraub
Image Placeholder
Another essential Book

57. Dennis Traub @dtraub
Image Placeholder
And another one

58. Dennis Traub @dtraub
THANK YOU!
@dtraub – #dnc13
