Forecasting long-term global solar radiation with an ANN algorithm
coupled with satellite-derived (MODIS) land surface temperature (LST) for
regional locations in Queensland
Ravinesh C. Deoa,c,⁎
, Mehmet Şahinb
a
School of Agricultural Computational and Environmental Sciences, Institute of Agriculture and Environment (IAg & E), International Centre for Applied
Climate Sciences (ICACS), University of Southern Queensland, Springfield, QLD 4300, Australia
b
Department of Electrical and Electronics Engineering, Siirt University, 56100 Siirt, Turkey
c
Cold and Arid Regions Environmental and Engineering Research Institute, Chinese Academy of Sciences, Lanzhou, Gansu, China
A R T I C L E I N F O
Keywords:
Satellite-based solar model
Neural network
Multi-linear regression
ARIMA model
A B S T R A C T
Forecasting solar radiation (G) is extremely crucial for engineering applications (e.g. design of solar furnaces
and energy-efficient buildings, solar concentrators, photovoltaic-systems and a site-selection of sites for future
power plants). To establish long-term sustainability of solar energy, energy practitioners utilize versatile
predictive models of G as an indispensable decision-making tool. Notwithstanding this, sparsity of solar sites,
instrument maintenance, policy and fiscal issues constraint the availability of model input data that must be
used for forecasting the onsite value of G. To surmount these challenge, low-cost, readily-available satellite
products accessible over large spatial domains can provide viable alternatives. In this paper, the preciseness of
artificial neural network (ANN) for predictive modelling of G is evaluated for regional Queensland, which
employed Moderate Resolution Imaging Spectroradiometer (MODIS) land-surface temperature (LST) as an
effective predictor. To couple an ANN model with satellite-derived variable, the LST data over 2012–2014 are
acquired in seven groups, with three sites per group where the data for first two (2012–2013) are utilised for
model development and the third (2014) group for cross-validation. For monthly horizon, the ANN model is
optimized by trialing 55 neuronal architectures, while for seasonal forecasting, nine neuronal architectures are
trailed with time-lagged LST. ANN coupled with zero lagged LST utilised scaled conjugate gradient algorithm,
and while ANN with time-lagged LST utilised Levenberg-Marquardt algorithm. To ascertain conclusive results,
the objective model is evaluated via multiple linear regression (MLR) and autoregressive integrated moving
average (ARIMA) algorithms. Results showed that an ANN model outperformed MLR and ARIMA models
where an analysis yielded 39% of cumulative errors in smallest magnitude bracket, whereas MLR and ARIMA
produced 15% and 25%. Superiority of an ANN model was demonstrated by site-averaged (monthly) relative
error of 5.85% compared with 10.23% (MLR) and 9.60 (ARIMA) with Willmott's Index of 0.954 (ANN), 0.899
(MLR) and 0.848 (ARIMA). This work ascertains that an ANN model coupled with satellite-derived LST data
can be adopted as a qualified stratagem for the proliferation of solar energy applications in locations that have
an appropriate satellite footprint.
1. Background review
Forecasting solar energy is an important research area for en-
gineers, energy experts, policy-makers and climate advocates since the
utilization of carbon-free energy with less environmental impacts is a
promising outlook for addressing climate change [1]. There is growing
consensus with healthy debates on the adoption of solar as a substitute
for carbon-based fuels not only from a global perspective but also in
Australia where solar has immense potential due to high insolation, low
rainfall and small fraction of cloud cover leading to less scattering of
solar radiation over large spatial domains [2,3]. Estimatedly, annual
solar radiation is 58 million petajoules, which is 10,000 fold Australia's
energy consumption [4]. However, photovoltaic systems contribute to
7.6% of Australia's annual energy use [5] while modest utilizations are
limited to rooftop water heating system that barely exceed 4500 MW
capacity [6,7]. In spite of the current staggering adoption of solar as a
http://dx.doi.org/10.1016/j.rser.2017.01.114
Received 22 August 2016; Received in revised form 4 December 2016; Accepted 17 January 2017
⁎
Corresponding author at: School of Agricultural Computational and Environmental Sciences, Institute of Agriculture and Environment (IAg & E), International Centre for Applied
Climate Sciences (ICACS), University of Southern Queensland, Springfield, QLD 4300, Australia.
E-mail address: ravinesh.deo@usq.edu.au (R.C. Deo).
Renewable and Sustainable Energy Reviews 72 (2017) 828–848
1364-0321/ © 2017 Elsevier Ltd. All rights reserved.
MARK

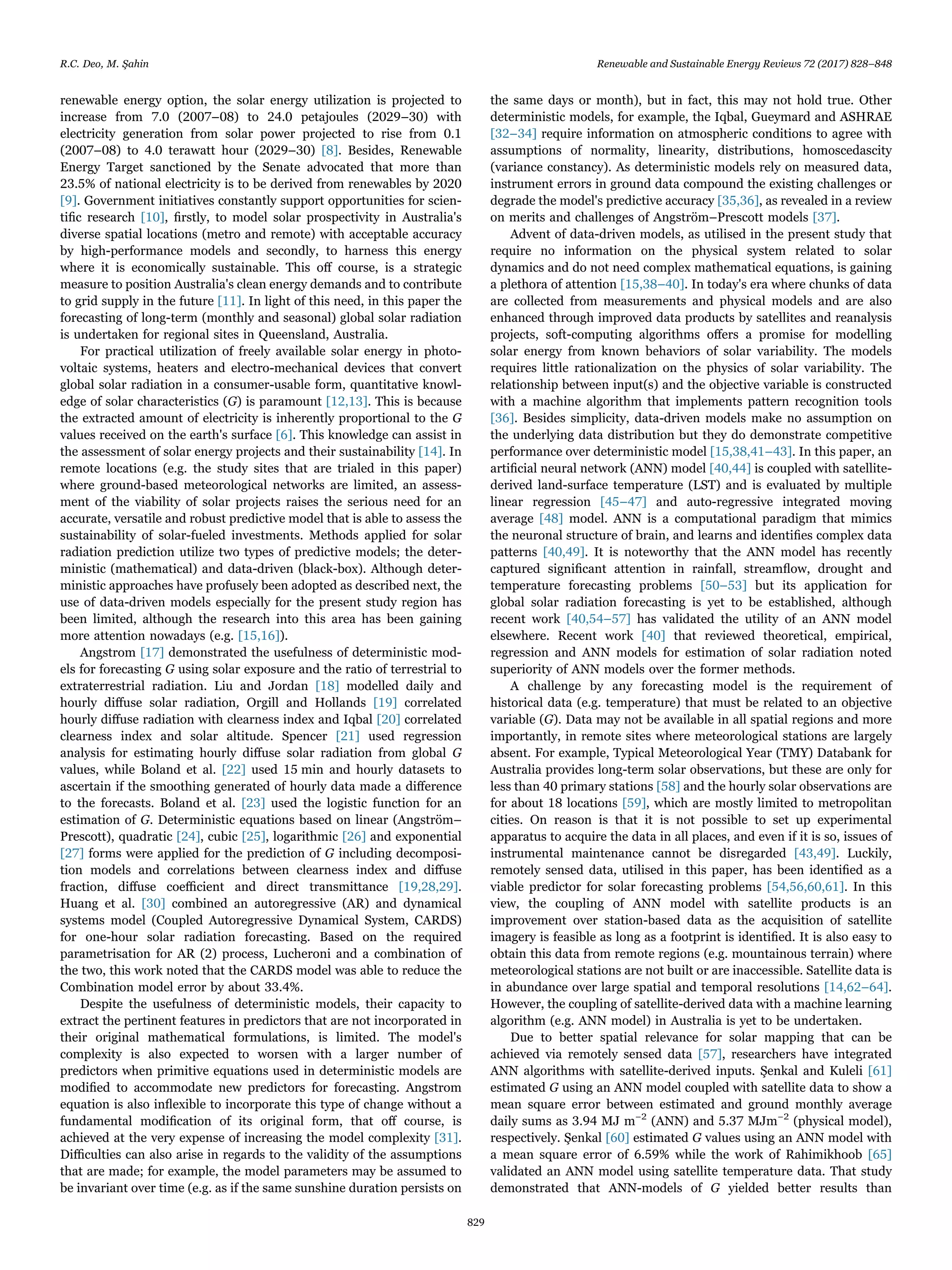

2. renewable energy option, the solar energy utilization is projected to
increase from 7.0 (2007–08) to 24.0 petajoules (2029–30) with
electricity generation from solar power projected to rise from 0.1
(2007–08) to 4.0 terawatt hour (2029–30) [8]. Besides, Renewable
Energy Target sanctioned by the Senate advocated that more than
23.5% of national electricity is to be derived from renewables by 2020
[9]. Government initiatives constantly support opportunities for scien-
tific research [10], firstly, to model solar prospectivity in Australia's
diverse spatial locations (metro and remote) with acceptable accuracy
by high-performance models and secondly, to harness this energy
where it is economically sustainable. This off course, is a strategic
measure to position Australia's clean energy demands and to contribute
to grid supply in the future [11]. In light of this need, in this paper the
forecasting of long-term (monthly and seasonal) global solar radiation
is undertaken for regional sites in Queensland, Australia.
For practical utilization of freely available solar energy in photo-
voltaic systems, heaters and electro-mechanical devices that convert
global solar radiation in a consumer-usable form, quantitative knowl-
edge of solar characteristics (G) is paramount [12,13]. This is because
the extracted amount of electricity is inherently proportional to the G
values received on the earth's surface [6]. This knowledge can assist in
the assessment of solar energy projects and their sustainability [14]. In
remote locations (e.g. the study sites that are trialed in this paper)
where ground-based meteorological networks are limited, an assess-
ment of the viability of solar projects raises the serious need for an
accurate, versatile and robust predictive model that is able to assess the
sustainability of solar-fueled investments. Methods applied for solar
radiation prediction utilize two types of predictive models; the deter-
ministic (mathematical) and data-driven (black-box). Although deter-
ministic approaches have profusely been adopted as described next, the
use of data-driven models especially for the present study region has
been limited, although the research into this area has been gaining
more attention nowadays (e.g. [15,16]).
Angstrom [17] demonstrated the usefulness of deterministic mod-
els for forecasting G using solar exposure and the ratio of terrestrial to
extraterrestrial radiation. Liu and Jordan [18] modelled daily and
hourly diffuse solar radiation, Orgill and Hollands [19] correlated
hourly diffuse radiation with clearness index and Iqbal [20] correlated
clearness index and solar altitude. Spencer [21] used regression
analysis for estimating hourly diffuse solar radiation from global G
values, while Boland et al. [22] used 15 min and hourly datasets to
ascertain if the smoothing generated of hourly data made a difference
to the forecasts. Boland et al. [23] used the logistic function for an
estimation of G. Deterministic equations based on linear (Angström–
Prescott), quadratic [24], cubic [25], logarithmic [26] and exponential
[27] forms were applied for the prediction of G including decomposi-
tion models and correlations between clearness index and diffuse
fraction, diffuse coefficient and direct transmittance [19,28,29].
Huang et al. [30] combined an autoregressive (AR) and dynamical
systems model (Coupled Autoregressive Dynamical System, CARDS)
for one-hour solar radiation forecasting. Based on the required
parametrisation for AR (2) process, Lucheroni and a combination of
the two, this work noted that the CARDS model was able to reduce the
Combination model error by about 33.4%.
Despite the usefulness of deterministic models, their capacity to
extract the pertinent features in predictors that are not incorporated in
their original mathematical formulations, is limited. The model's
complexity is also expected to worsen with a larger number of
predictors when primitive equations used in deterministic models are
modified to accommodate new predictors for forecasting. Angstrom
equation is also inflexible to incorporate this type of change without a
fundamental modification of its original form, that off course, is
achieved at the very expense of increasing the model complexity [31].
Difficulties can also arise in regards to the validity of the assumptions
that are made; for example, the model parameters may be assumed to
be invariant over time (e.g. as if the same sunshine duration persists on
the same days or month), but in fact, this may not hold true. Other
deterministic models, for example, the Iqbal, Gueymard and ASHRAE
[32–34] require information on atmospheric conditions to agree with
assumptions of normality, linearity, distributions, homoscedascity
(variance constancy). As deterministic models rely on measured data,
instrument errors in ground data compound the existing challenges or
degrade the model's predictive accuracy [35,36], as revealed in a review
on merits and challenges of Angström–Prescott models [37].
Advent of data-driven models, as utilised in the present study that
require no information on the physical system related to solar
dynamics and do not need complex mathematical equations, is gaining
a plethora of attention [15,38–40]. In today's era where chunks of data
are collected from measurements and physical models and are also
enhanced through improved data products by satellites and reanalysis
projects, soft-computing algorithms offers a promise for modelling
solar energy from known behaviors of solar variability. The models
requires little rationalization on the physics of solar variability. The
relationship between input(s) and the objective variable is constructed
with a machine algorithm that implements pattern recognition tools
[36]. Besides simplicity, data-driven models make no assumption on
the underlying data distribution but they do demonstrate competitive
performance over deterministic model [15,38,41–43]. In this paper, an
artificial neural network (ANN) model [40,44] is coupled with satellite-
derived land-surface temperature (LST) and is evaluated by multiple
linear regression [45–47] and auto-regressive integrated moving
average [48] model. ANN is a computational paradigm that mimics
the neuronal structure of brain, and learns and identifies complex data
patterns [40,49]. It is noteworthy that the ANN model has recently
captured significant attention in rainfall, streamflow, drought and
temperature forecasting problems [50–53] but its application for
global solar radiation forecasting is yet to be established, although
recent work [40,54–57] has validated the utility of an ANN model
elsewhere. Recent work [40] that reviewed theoretical, empirical,
regression and ANN models for estimation of solar radiation noted
superiority of ANN models over the former methods.
A challenge by any forecasting model is the requirement of
historical data (e.g. temperature) that must be related to an objective
variable (G). Data may not be available in all spatial regions and more
importantly, in remote sites where meteorological stations are largely
absent. For example, Typical Meteorological Year (TMY) Databank for
Australia provides long-term solar observations, but these are only for
less than 40 primary stations [58] and the hourly solar observations are
for about 18 locations [59], which are mostly limited to metropolitan
cities. On reason is that it is not possible to set up experimental
apparatus to acquire the data in all places, and even if it is so, issues of
instrumental maintenance cannot be disregarded [43,49]. Luckily,
remotely sensed data, utilised in this paper, has been identified as a
viable predictor for solar forecasting problems [54,56,60,61]. In this
view, the coupling of ANN model with satellite products is an
improvement over station-based data as the acquisition of satellite
imagery is feasible as long as a footprint is identified. It is also easy to
obtain this data from remote regions (e.g. mountainous terrain) where
meteorological stations are not built or are inaccessible. Satellite data is
in abundance over large spatial and temporal resolutions [14,62–64].
However, the coupling of satellite-derived data with a machine learning
algorithm (e.g. ANN model) in Australia is yet to be undertaken.
Due to better spatial relevance for solar mapping that can be
achieved via remotely sensed data [57], researchers have integrated
ANN algorithms with satellite-derived inputs. Şenkal and Kuleli [61]
estimated G using an ANN model coupled with satellite data to show a
mean square error between estimated and ground monthly average
daily sums as 3.94 MJ m−2
(ANN) and 5.37 MJm−2
(physical model),
respectively. Şenkal [60] estimated G values using an ANN model with
a mean square error of 6.59% while the work of Rahimikhoob [65]
validated an ANN model using satellite temperature data. That study
demonstrated that ANN-models of G yielded better results than
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
829

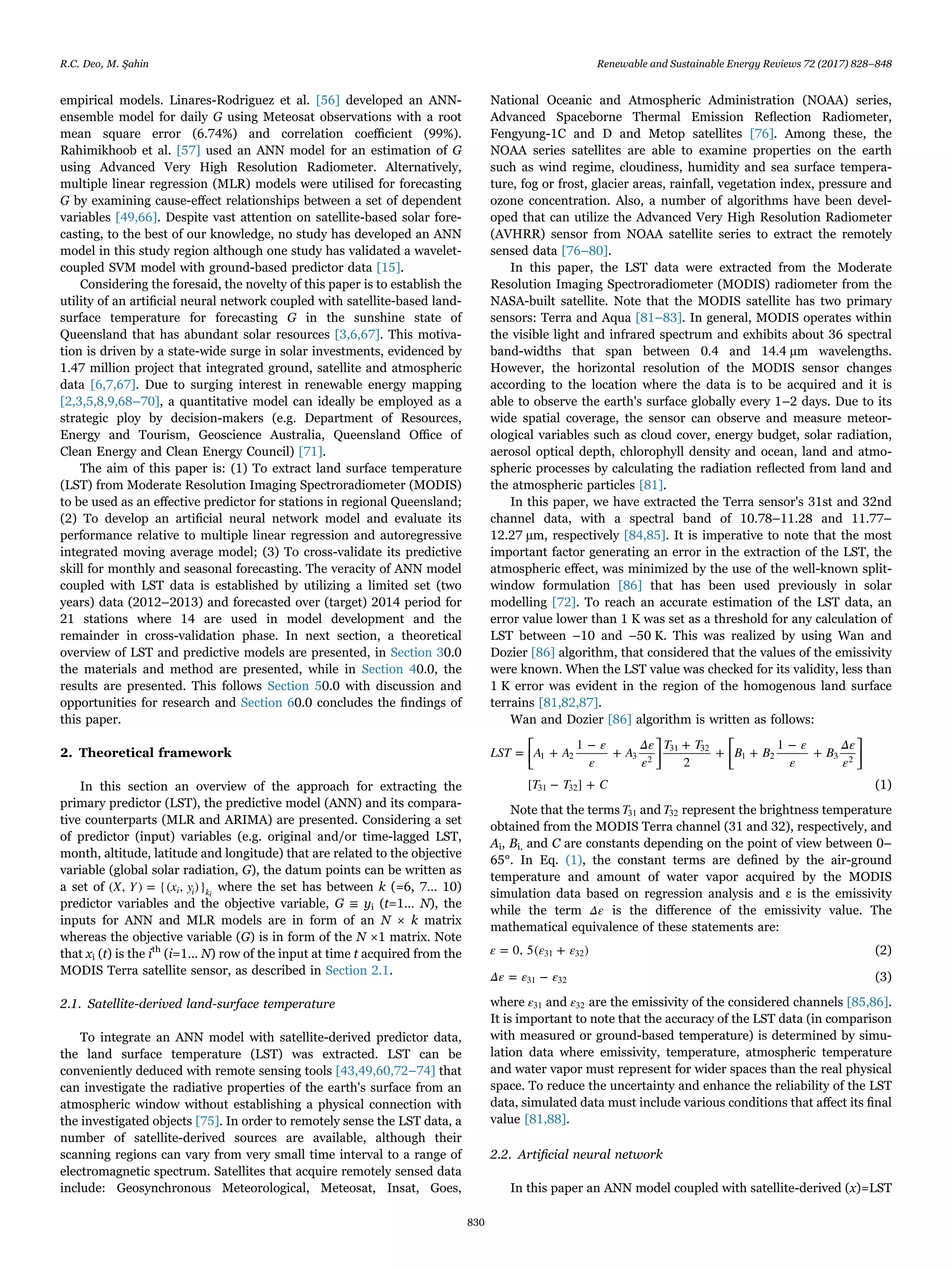

3. empirical models. Linares-Rodriguez et al. [56] developed an ANN-
ensemble model for daily G using Meteosat observations with a root
mean square error (6.74%) and correlation coefficient (99%).
Rahimikhoob et al. [57] used an ANN model for an estimation of G
using Advanced Very High Resolution Radiometer. Alternatively,
multiple linear regression (MLR) models were utilised for forecasting
G by examining cause-effect relationships between a set of dependent
variables [49,66]. Despite vast attention on satellite-based solar fore-
casting, to the best of our knowledge, no study has developed an ANN
model in this study region although one study has validated a wavelet-
coupled SVM model with ground-based predictor data [15].
Considering the foresaid, the novelty of this paper is to establish the
utility of an artificial neural network coupled with satellite-based land-
surface temperature for forecasting G in the sunshine state of
Queensland that has abundant solar resources [3,6,67]. This motiva-
tion is driven by a state-wide surge in solar investments, evidenced by
1.47 million project that integrated ground, satellite and atmospheric
data [6,7,67]. Due to surging interest in renewable energy mapping
[2,3,5,8,9,68–70], a quantitative model can ideally be employed as a
strategic ploy by decision-makers (e.g. Department of Resources,
Energy and Tourism, Geoscience Australia, Queensland Office of
Clean Energy and Clean Energy Council) [71].
The aim of this paper is: (1) To extract land surface temperature
(LST) from Moderate Resolution Imaging Spectroradiometer (MODIS)
to be used as an effective predictor for stations in regional Queensland;
(2) To develop an artificial neural network model and evaluate its
performance relative to multiple linear regression and autoregressive
integrated moving average model; (3) To cross-validate its predictive
skill for monthly and seasonal forecasting. The veracity of ANN model
coupled with LST data is established by utilizing a limited set (two
years) data (2012–2013) and forecasted over (target) 2014 period for
21 stations where 14 are used in model development and the
remainder in cross-validation phase. In next section, a theoretical
overview of LST and predictive models are presented, in Section 30.0
the materials and method are presented, while in Section 40.0, the
results are presented. This follows Section 50.0 with discussion and
opportunities for research and Section 60.0 concludes the findings of
this paper.
2. Theoretical framework
In this section an overview of the approach for extracting the
primary predictor (LST), the predictive model (ANN) and its compara-
tive counterparts (MLR and ARIMA) are presented. Considering a set
of predictor (input) variables (e.g. original and/or time-lagged LST,
month, altitude, latitude and longitude) that are related to the objective
variable (global solar radiation, G), the datum points can be written as
a set of X Y x y( , ) = {( , )}i i ki
where the set has between k (=6, 7… 10)
predictor variables and the objective variable, G ≡ yi (t=1… N), the
inputs for ANN and MLR models are in form of an N × k matrix
whereas the objective variable (G) is in form of the N ×1 matrix. Note
that xi (t) is the ith
(i=1… N) row of the input at time t acquired from the
MODIS Terra satellite sensor, as described in Section 2.1.
2.1. Satellite-derived land-surface temperature
To integrate an ANN model with satellite-derived predictor data,
the land surface temperature (LST) was extracted. LST can be
conveniently deduced with remote sensing tools [43,49,60,72–74] that
can investigate the radiative properties of the earth's surface from an
atmospheric window without establishing a physical connection with
the investigated objects [75]. In order to remotely sense the LST data, a
number of satellite-derived sources are available, although their
scanning regions can vary from very small time interval to a range of
electromagnetic spectrum. Satellites that acquire remotely sensed data
include: Geosynchronous Meteorological, Meteosat, Insat, Goes,
National Oceanic and Atmospheric Administration (NOAA) series,
Advanced Spaceborne Thermal Emission Reflection Radiometer,
Fengyung-1C and D and Metop satellites [76]. Among these, the
NOAA series satellites are able to examine properties on the earth
such as wind regime, cloudiness, humidity and sea surface tempera-
ture, fog or frost, glacier areas, rainfall, vegetation index, pressure and
ozone concentration. Also, a number of algorithms have been devel-
oped that can utilize the Advanced Very High Resolution Radiometer
(AVHRR) sensor from NOAA satellite series to extract the remotely
sensed data [76–80].
In this paper, the LST data were extracted from the Moderate
Resolution Imaging Spectroradiometer (MODIS) radiometer from the
NASA-built satellite. Note that the MODIS satellite has two primary
sensors: Terra and Aqua [81–83]. In general, MODIS operates within
the visible light and infrared spectrum and exhibits about 36 spectral
band-widths that span between 0.4 and 14.4 µm wavelengths.
However, the horizontal resolution of the MODIS sensor changes
according to the location where the data is to be acquired and it is
able to observe the earth's surface globally every 1–2 days. Due to its
wide spatial coverage, the sensor can observe and measure meteor-
ological variables such as cloud cover, energy budget, solar radiation,
aerosol optical depth, chlorophyll density and ocean, land and atmo-
spheric processes by calculating the radiation reflected from land and
the atmospheric particles [81].
In this paper, we have extracted the Terra sensor's 31st and 32nd
channel data, with a spectral band of 10.78–11.28 and 11.77–
12.27 µm, respectively [84,85]. It is imperative to note that the most
important factor generating an error in the extraction of the LST, the
atmospheric effect, was minimized by the use of the well-known split-
window formulation [86] that has been used previously in solar
modelling [72]. To reach an accurate estimation of the LST data, an
error value lower than 1 K was set as a threshold for any calculation of
LST between –10 and −50 K. This was realized by using Wan and
Dozier [86] algorithm, that considered that the values of the emissivity
were known. When the LST value was checked for its validity, less than
1 K error was evident in the region of the homogenous land surface
terrains [81,82,87].
Wan and Dozier [86] algorithm is written as follows:
⎡
⎣
⎢
⎤
⎦
⎥
⎡
⎣
⎢
⎤
⎦
⎥LST A A
ε
ε
A
Δε
ε
T T
B B
ε
ε
B
Δε
ε
T T C
= +
1 −
+
+
2
+ +
1 −
+
[ − ] +
1 2 3 2
31 32
1 2 3 2
31 32 (1)
Note that the terms T31 and T32 represent the brightness temperature
obtained from the MODIS Terra channel (31 and 32), respectively, and
Ai, Bi, and C are constants depending on the point of view between 0–
65°. In Eq. (1), the constant terms are defined by the air-ground
temperature and amount of water vapor acquired by the MODIS
simulation data based on regression analysis and ε is the emissivity
while the term Δε is the difference of the emissivity value. The
mathematical equivalence of these statements are:
ε ε ε= 0, 5( + )31 32 (2)
Δε ε ε= −31 32 (3)
where ε31 and ε32 are the emissivity of the considered channels [85,86].
It is important to note that the accuracy of the LST data (in comparison
with measured or ground-based temperature) is determined by simu-
lation data where emissivity, temperature, atmospheric temperature
and water vapor must represent for wider spaces than the real physical
space. To reduce the uncertainty and enhance the reliability of the LST
data, simulated data must include various conditions that affect its final
value [81,88].
2.2. Artificial neural network
In this paper an ANN model coupled with satellite-derived (x)=LST
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
830

4. data as a primary predictor (with site-specific parameters defined by
altitude, longitude, latitude and solar periodicity (month) as supple-
mentary predictors) was adopted for forecasting the global solar
radiation (G). The aim of the ANN model was to extract patterns
(predictive features) contained in x time-series in order to forecast the
objective variable, G. Fig. 1 outlines a schematic view of the model. An
ANN model is a non-linear modelling technique with a network
architecture that mimics the biological structure of our nervous system
[44]. It has interconnected inputs that are related to the G and is able to
transmit information through weighted connections (i.e. functional
neurons) to map nonlinearly the predictor data features to a high-
dimensional hyper-plane.
This study employed a popular ANN algorithm: Feed-Forward
Back-Propagation (FFBP) that contained multilayer perceptron neu-
rons and have been applied in problems of forecasting solar radiation
(e.g., [49,72]). The FFBP is superior to the other category of ANN
models [89–93] where the neuronal architecture is designed to
successively validate the model's parameters (i.e., weighted connec-
tions and neuron biases) to drive the empirical error to a set tolerance
through each iteration (epoch) of the forward passing of the updated
parameters and backward propagation of errors to fine tune them.
Mathematically, the ANN algorithm can be written as [50,93,94]:
⎛
⎝
⎜⎜
⎞
⎠
⎟⎟∑y x F w t x t b( ) = ( ). ( ) +
i
L
i i
=1 (4)
where xi(t) = predictor (input) variable(s) in discrete time space t, y (x)
= forecasted G in cross-validation (test) data set, L = hidden neurons
determined iteratively, wj (t) = weight that connects the ith
neuron in
the input layer, b = neuronal bias and F(.) is the hidden transfer
function.
As an ANN model is a black-box and does not identify the training
algorithm in an explicit manner without an iterative model identifica-
tion process, this study has trialed several algorithms [93] whose
performances were assessed to select the superior model. MATLAB-
based algorithms used in this paper are classified in three categories:
the quasi-Newton [95] (that utilizes trainlm and trainbfg functions),
the gradient descent (traingdx) [96] and the conjugate Gradient
[97,98] (trainscg, traincgf and traincgp). Quasi-Newton method is
based on the Levenberg-Marquardt (LM) and the Broyden-Fletcher-
Goldfarb-Shanno (BFGS) algorithms [99,100] that minimize the mean
square error whereas the LM algorithm locates the minimum of an
input data that is expressed as the sum of squares of non-linear real-
valued functions [101]. Both exhibit a memory overhead issue due to
the gradient and Hessian matrix that needs to be calculated [102] and
this is especially a disadvantage for very large networks [103]. BFGS
uses the Newton's method based on a hill-climbing optimisation
approach that seeks a stationary point of (twice continuously differ-
entiable) function. This has good performance for non-smooth optimi-
zations [104] where the Hessian matrix is not evaluated directly, but
instead it is approximated by rank-one updates specified by gradient
evaluation. The Scaled conjugate updates weights/biases based on
conjugate directions without performing line search [105] while the
gradient backpropagation with Powell-Beale restart [106] and the
Fletcher-Reeves update [96] is able to train the network as long as
its weight, input and transfer functions have derivatives. Resilient
backpropagation [107] is generally fast, requires modest memory and
does not store the updated values of weight/bias, while the gradient
descent with momentum and adaptive learning rate (traingdx) [107]
combines adaptive learning with momentum training where momen-
tum coefficient is included as a training parameter [103]. Others use
one-step secant (trainoss) [108] and Bayesian regulation (trainbr)
function. One-step secant faces a smaller computation overhead,
without storing the Hessian matrix but rather assumes it at each
iteration as a compromise between the quasi-Newton and gradient
algorithm [108] while Bayesian regularization (trainbr) [109,110] uses
the Jacobian matrix to update weight/biases to attain the best general-
ization of the input/target dataset.
Considering the black-box nature of an ANN model, a primal task
for modelers is to determine the appropriate transfer function as this is
not a known a priori. A series equations, F(.) available in MATLAB
toolbox can be trialed [111]:
F x
x
Tangent Sigmoid ⇒ ( ) =
2
1 + exp(−2 )
− 1
(5.1)
F x
x
Log Sigmoid ⇒ ( ) =
1
1 + exp(− ) (5.2)
F x
x
x
Soft Max ⇒ ( ) =
exp ( )
sum (exp ( )) (5.3)
F x i xHard − Limit ⇒ ( ) = 1, f > 0 (5.4)
F x x if xPositive Linear ⇒ ( ) = ≥ 0, or 0 otherwise (5.5)
F x x xTriangular Basis ⇒ ( ) = 1 − abs ( ), if − 1 ≤ ≤ 1,
or 0 otherwise (5.6)
F x xRadial Basis ⇒ ( ) = exp(− )2
(5.7)
F x i xSymmetric Hardlimit ⇒ ( ) = 1, f ≥ 0 (5.8)
F x i x
F x x i x
F x i x
Saturating Linear ⇒ ( ) = 0, f ≤ 0,
⇒ ( ) = , f 0 < ≤ 1
⇒ ( ) = 1, f ≥ 1 (5.9)
F x i x
F x x i x
F x i x
Symmetric Saturating Linear ⇒ ( ) = −1, f ≤ −1,
⇒ ( ) = , f − 1 < ≤ 1,
⇒ ( ) = 1, f > 1 (5.10)
where x is the predictor dataset analysed in accordance with the
function F(x) that is able to map the predictive features to create a
hidden layer weight for the suitable model.
2.3. Multiple linear regression
To evaluate the veracity of the ANN model, multiple linear
regression (MLR), a statistical technique that examines the cause and
effect relationship between objective (y ≡ G) and predictor variables
(x), was employed. MLR is an extension of the simple regression model
to the case of multiple predictors where the goal is to deduce a model to
be able to explain as much as possible the variations in the predictor
dataset to determine their corresponding regression coefficients. MLR
ensures that the predictive model leaves as little variations as possible
due to the unexplained "noise" in the predictor data. For N observa-
tions for k predictor variables, an MLR model takes has a regression
Fig. 1. ANN architecture adopted for forecasted monthly and seasonal global incident
solar radiation (G).
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
831

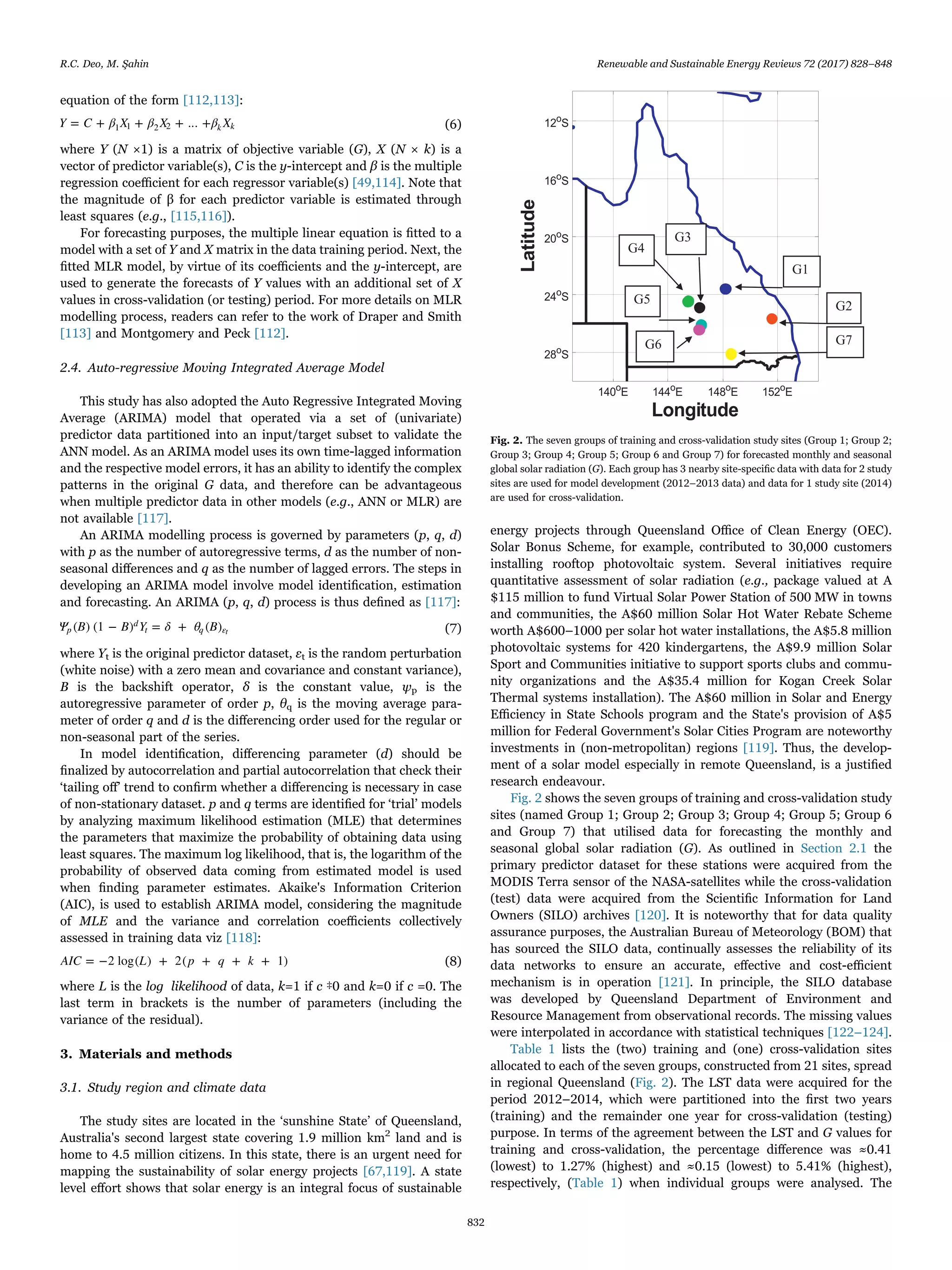

5. equation of the form [112,113]:
Y C β X β X β X= + + + ... + k k1 1 2 2 (6)
where Y (N ×1) is a matrix of objective variable (G), X (N × k) is a
vector of predictor variable(s), C is the y-intercept and β is the multiple
regression coefficient for each regressor variable(s) [49,114]. Note that
the magnitude of β for each predictor variable is estimated through
least squares (e.g., [115,116]).
For forecasting purposes, the multiple linear equation is fitted to a
model with a set of Y and X matrix in the data training period. Next, the
fitted MLR model, by virtue of its coefficients and the y-intercept, are
used to generate the forecasts of Y values with an additional set of X
values in cross-validation (or testing) period. For more details on MLR
modelling process, readers can refer to the work of Draper and Smith
[113] and Montgomery and Peck [112].
2.4. Auto-regressive Moving Integrated Average Model
This study has also adopted the Auto Regressive Integrated Moving
Average (ARIMA) model that operated via a set of (univariate)
predictor data partitioned into an input/target subset to validate the
ANN model. As an ARIMA model uses its own time-lagged information
and the respective model errors, it has an ability to identify the complex
patterns in the original G data, and therefore can be advantageous
when multiple predictor data in other models (e.g., ANN or MLR) are
not available [117].
An ARIMA modelling process is governed by parameters (p, q, d)
with p as the number of autoregressive terms, d as the number of non-
seasonal differences and q as the number of lagged errors. The steps in
developing an ARIMA model involve model identification, estimation
and forecasting. An ARIMA (p, q, d) process is thus defined as [117]:
Ψ B B Y δ θ B( ) (1 − ) = + ( )p
d
t q εt (7)
where Yt is the original predictor dataset, εt is the random perturbation
(white noise) with a zero mean and covariance and constant variance),
B is the backshift operator, δ is the constant value, ψp is the
autoregressive parameter of order p, θq is the moving average para-
meter of order q and d is the differencing order used for the regular or
non-seasonal part of the series.
In model identification, differencing parameter (d) should be
finalized by autocorrelation and partial autocorrelation that check their
‘tailing off’ trend to confirm whether a differencing is necessary in case
of non-stationary dataset. p and q terms are identified for ‘trial’ models
by analyzing maximum likelihood estimation (MLE) that determines
the parameters that maximize the probability of obtaining data using
least squares. The maximum log likelihood, that is, the logarithm of the
probability of observed data coming from estimated model is used
when finding parameter estimates. Akaike's Information Criterion
(AIC), is used to establish ARIMA model, considering the magnitude
of MLE and the variance and correlation coefficients collectively
assessed in training data viz [118]:
AIC L p q k= −2 log( ) + 2( + + + 1) (8)
where L is the log likelihood of data, k=1 if c ‡0 and k=0 if c =0. The
last term in brackets is the number of parameters (including the
variance of the residual).
3. Materials and methods
3.1. Study region and climate data
The study sites are located in the ‘sunshine State’ of Queensland,
Australia's second largest state covering 1.9 million km2
land and is
home to 4.5 million citizens. In this state, there is an urgent need for
mapping the sustainability of solar energy projects [67,119]. A state
level effort shows that solar energy is an integral focus of sustainable
energy projects through Queensland Office of Clean Energy (OEC).
Solar Bonus Scheme, for example, contributed to 30,000 customers
installing rooftop photovoltaic system. Several initiatives require
quantitative assessment of solar radiation (e.g., package valued at A
$115 million to fund Virtual Solar Power Station of 500 MW in towns
and communities, the A$60 million Solar Hot Water Rebate Scheme
worth A$600–1000 per solar hot water installations, the A$5.8 million
photovoltaic systems for 420 kindergartens, the A$9.9 million Solar
Sport and Communities initiative to support sports clubs and commu-
nity organizations and the A$35.4 million for Kogan Creek Solar
Thermal systems installation). The A$60 million in Solar and Energy
Efficiency in State Schools program and the State's provision of A$5
million for Federal Government's Solar Cities Program are noteworthy
investments in (non-metropolitan) regions [119]. Thus, the develop-
ment of a solar model especially in remote Queensland, is a justified
research endeavour.
Fig. 2 shows the seven groups of training and cross-validation study
sites (named Group 1; Group 2; Group 3; Group 4; Group 5; Group 6
and Group 7) that utilised data for forecasting the monthly and
seasonal global solar radiation (G). As outlined in Section 2.1 the
primary predictor dataset for these stations were acquired from the
MODIS Terra sensor of the NASA-satellites while the cross-validation
(test) data were acquired from the Scientific Information for Land
Owners (SILO) archives [120]. It is noteworthy that for data quality
assurance purposes, the Australian Bureau of Meteorology (BOM) that
has sourced the SILO data, continually assesses the reliability of its
data networks to ensure an accurate, effective and cost-efficient
mechanism is in operation [121]. In principle, the SILO database
was developed by Queensland Department of Environment and
Resource Management from observational records. The missing values
were interpolated in accordance with statistical techniques [122–124].
Table 1 lists the (two) training and (one) cross-validation sites
allocated to each of the seven groups, constructed from 21 sites, spread
in regional Queensland (Fig. 2). The LST data were acquired for the
period 2012–2014, which were partitioned into the first two years
(training) and the remainder one year for cross-validation (testing)
purpose. In terms of the agreement between the LST and G values for
training and cross-validation, the percentage difference was ≈0.41
(lowest) to 1.27% (highest) and ≈0.15 (lowest) to 5.41% (highest),
respectively, (Table 1) when individual groups were analysed. The
140o
E 144o
E 148o
E 152o
E
o
S
o
S
o
S
o
S
28
24
20
16
12o
S
Longitude
edutitaL
G1
G2
G3
G6
G4
G7
G5
Fig. 2. The seven groups of training and cross-validation study sites (Group 1; Group 2;
Group 3; Group 4; Group 5; Group 6 and Group 7) for forecasted monthly and seasonal
global solar radiation (G). Each group has 3 nearby site-specific data with data for 2 study
sites are used for model development (2012–2013 data) and data for 1 study site (2014)
are used for cross-validation.
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
832

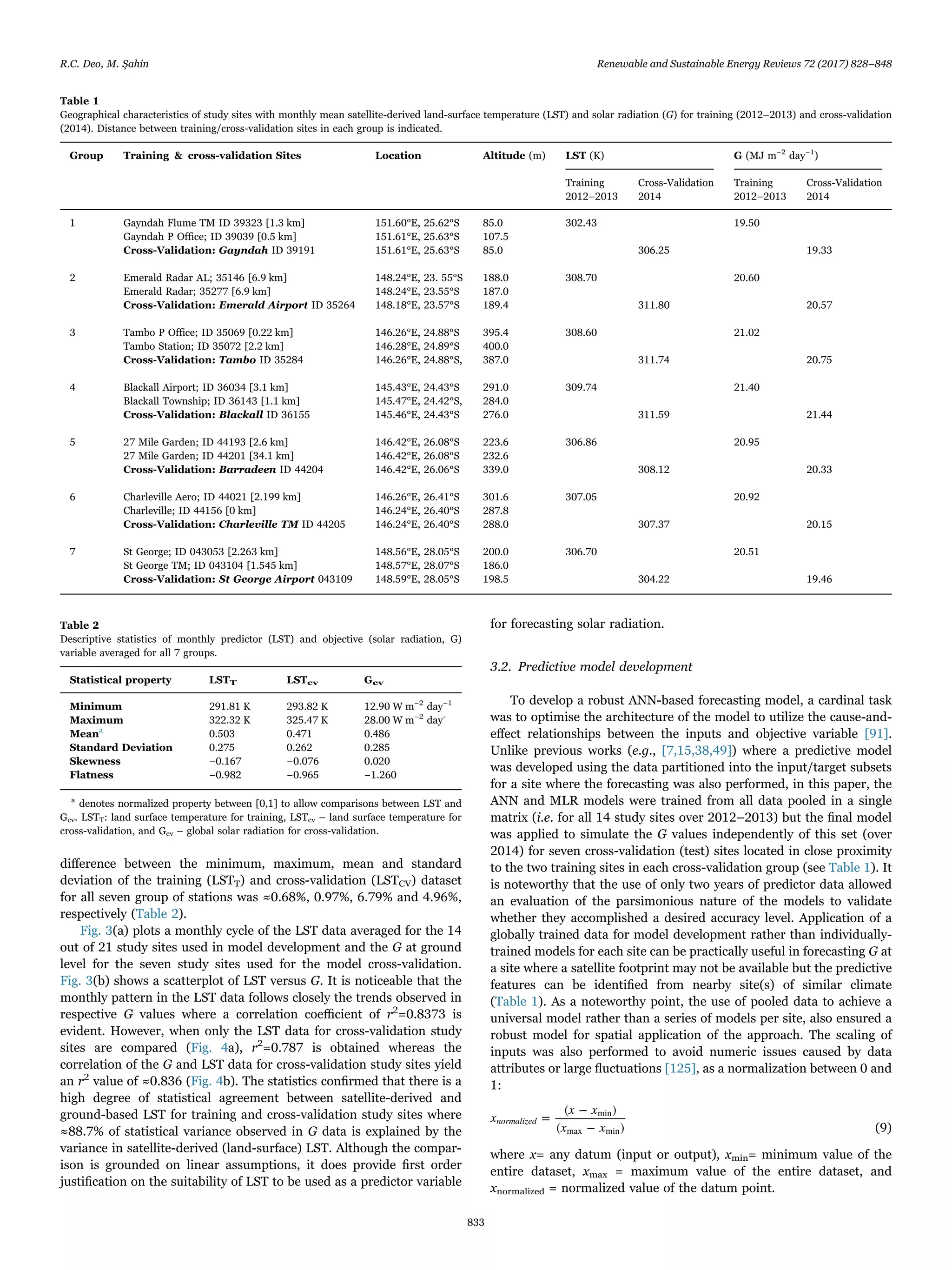

6. difference between the minimum, maximum, mean and standard
deviation of the training (LSTT) and cross-validation (LSTCV) dataset
for all seven group of stations was ≈0.68%, 0.97%, 6.79% and 4.96%,
respectively (Table 2).
Fig. 3(a) plots a monthly cycle of the LST data averaged for the 14
out of 21 study sites used in model development and the G at ground
level for the seven study sites used for the model cross-validation.
Fig. 3(b) shows a scatterplot of LST versus G. It is noticeable that the
monthly pattern in the LST data follows closely the trends observed in
respective G values where a correlation coefficient of r2
=0.8373 is
evident. However, when only the LST data for cross-validation study
sites are compared (Fig. 4a), r2
=0.787 is obtained whereas the
correlation of the G and LST data for cross-validation study sites yield
an r2
value of ≈0.836 (Fig. 4b). The statistics confirmed that there is a
high degree of statistical agreement between satellite-derived and
ground-based LST for training and cross-validation study sites where
≈88.7% of statistical variance observed in G data is explained by the
variance in satellite-derived (land-surface) LST. Although the compar-
ison is grounded on linear assumptions, it does provide first order
justification on the suitability of LST to be used as a predictor variable
for forecasting solar radiation.
3.2. Predictive model development
To develop a robust ANN-based forecasting model, a cardinal task
was to optimise the architecture of the model to utilize the cause-and-
effect relationships between the inputs and objective variable [91].
Unlike previous works (e.g., [7,15,38,49]) where a predictive model
was developed using the data partitioned into the input/target subsets
for a site where the forecasting was also performed, in this paper, the
ANN and MLR models were trained from all data pooled in a single
matrix (i.e. for all 14 study sites over 2012–2013) but the final model
was applied to simulate the G values independently of this set (over
2014) for seven cross-validation (test) sites located in close proximity
to the two training sites in each cross-validation group (see Table 1). It
is noteworthy that the use of only two years of predictor data allowed
an evaluation of the parsimonious nature of the models to validate
whether they accomplished a desired accuracy level. Application of a
globally trained data for model development rather than individually-
trained models for each site can be practically useful in forecasting G at
a site where a satellite footprint may not be available but the predictive
features can be identified from nearby site(s) of similar climate
(Table 1). As a noteworthy point, the use of pooled data to achieve a
universal model rather than a series of models per site, also ensured a
robust model for spatial application of the approach. The scaling of
inputs was also performed to avoid numeric issues caused by data
attributes or large fluctuations [125], as a normalization between 0 and
1:
x
x x
x x
=
( − )
( − )
normalized
min
max min (9)
where x= any datum (input or output), xmin= minimum value of the
entire dataset, xmax = maximum value of the entire dataset, and
xnormalized = normalized value of the datum point.
Table 1
Geographical characteristics of study sites with monthly mean satellite-derived land-surface temperature (LST) and solar radiation (G) for training (2012–2013) and cross-validation
(2014). Distance between training/cross-validation sites in each group is indicated.
Group Training & cross-validation Sites Location Altitude (m) LST (K) G (MJ m−2
day−1
)
Training Cross-Validation Training Cross-Validation
2012–2013 2014 2012–2013 2014
1 Gayndah Flume TM ID 39323 [1.3 km] 151.60°E, 25.62°S 85.0 302.43 19.50
Gayndah P Office; ID 39039 [0.5 km] 151.61°E, 25.63°S 107.5
Cross-Validation: Gayndah ID 39191 151.61°E, 25.63°S 85.0 306.25 19.33
2 Emerald Radar AL; 35146 [6.9 km] 148.24°E, 23. 55°S 188.0 308.70 20.60
Emerald Radar; 35277 [6.9 km] 148.24°E, 23.55°S 187.0
Cross-Validation: Emerald Airport ID 35264 148.18°E, 23.57°S 189.4 311.80 20.57
3 Tambo P Office; ID 35069 [0.22 km] 146.26°E, 24.88°S 395.4 308.60 21.02
Tambo Station; ID 35072 [2.2 km] 146.28°E, 24.89°S 400.0
Cross-Validation: Tambo ID 35284 146.26°E, 24.88°S, 387.0 311.74 20.75
4 Blackall Airport; ID 36034 [3.1 km] 145.43°E, 24.43°S 291.0 309.74 21.40
Blackall Township; ID 36143 [1.1 km] 145.47°E, 24.42°S, 284.0
Cross-Validation: Blackall ID 36155 145.46°E, 24.43°S 276.0 311.59 21.44
5 27 Mile Garden; ID 44193 [2.6 km] 146.42°E, 26.08°S 223.6 306.86 20.95
27 Mile Garden; ID 44201 [34.1 km] 146.42°E, 26.08°S 232.6
Cross-Validation: Barradeen ID 44204 146.42°E, 26.06°S 339.0 308.12 20.33
6 Charleville Aero; ID 44021 [2.199 km] 146.26°E, 26.41°S 301.6 307.05 20.92
Charleville; ID 44156 [0 km] 146.24°E, 26.40°S 287.8
Cross-Validation: Charleville TM ID 44205 146.24°E, 26.40°S 288.0 307.37 20.15
7 St George; ID 043053 [2.263 km] 148.56°E, 28.05°S 200.0 306.70 20.51
St George TM; ID 043104 [1.545 km] 148.57°E, 28.07°S 186.0
Cross-Validation: St George Airport 043109 148.59°E, 28.05°S 198.5 304.22 19.46
Table 2
Descriptive statistics of monthly predictor (LST) and objective (solar radiation, G)
variable averaged for all 7 groups.
Statistical property LSTT LSTcv Gcv
Minimum 291.81 K 293.82 K 12.90 W m−2
day−1
Maximum 322.32 K 325.47 K 28.00 W m−2
day-
Meana
0.503 0.471 0.486
Standard Deviation 0.275 0.262 0.285
Skewness −0.167 −0.076 0.020
Flatness −0.982 −0.965 −1.260
a
denotes normalized property between [0,1] to allow comparisons between LST and
Gcv. LSTT: land surface temperature for training, LSTcv – land surface temperature for
cross-validation, and Gcv – global solar radiation for cross-validation.
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
833

7. All predictive models developed in MATLAB software using ‘pooled’
LST data (with latitude, longitude, altitude and month) for these
stations (i.e., Gayndah Flume TM, Gayndah Post Office, Emerald
Radar Al, Emerald Radar, Tambo Post Office, Tambo Station,
Blackall Airport, Blackall Township, 27 Mile Garden, 27 Mile Garden
TM, Charleville Aero, Charleville, St George, St George TM). The
models were cross-validated at the test sites (i.e., Gayndah, Emerald
Airport, Tambo, Blackall, Barradeen, Charleville TM, St George
Airport). For the MLR model development, a similar process was
adopted to acquire the regression coefficients and y-intercepts for the
month, altitude, latitude, longitude and LST data. Then the model was
applied at seven cross-validation sites (i.e., Gayndah, Emerald Airport,
Tambo, Blackall, Barradeen, Charleville TM, St George Airport),
resulting in a single predictive model trained using all forecasting
algorithms (Table 1).
To determine the inputs for the ANN/MLR models, cross correla-
tion between the LST and G data for all 14 training stations were
examined (Fig. 5). Specifically, the cross correlations measured the
statistical similarity between inputs (x) and shifted (lagged) copy of
output (G) as a function of the particular lag. For any discrete signal,
the correlation between xi =(x1, x2… xM – 1) and y=(y1, y2… yN – 1) is:
∑ϕ x k M N= , = −( + 1), ... ,0, ... ,( − 1)xy k
j k
M k N
j k,
= max(0, )
min( −1+ , −1)
−
(10)
where cross correlation coefficient, rcross is:

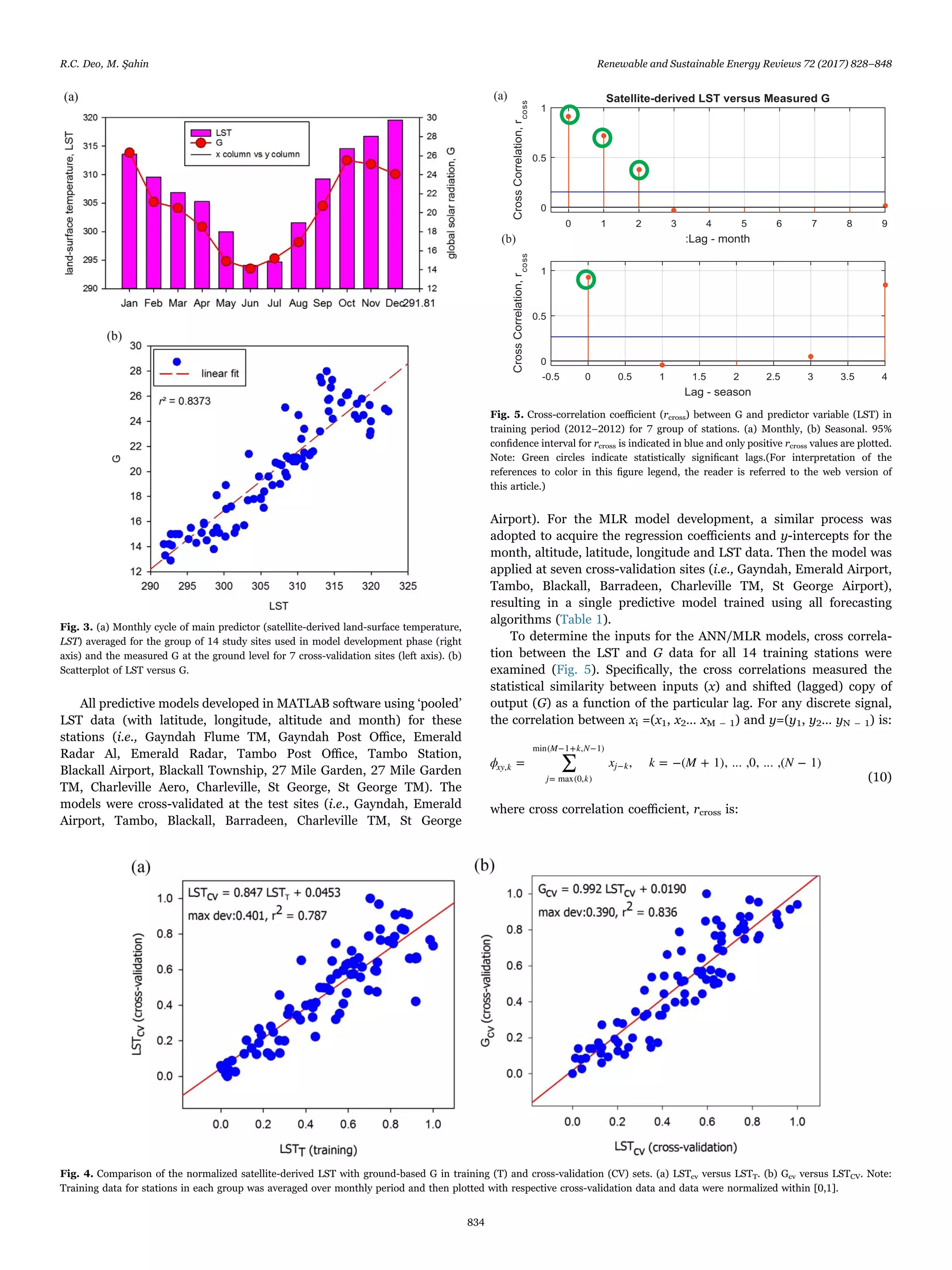

Fig. 3. (a) Monthly cycle of main predictor (satellite-derived land-surface temperature,
LST) averaged for the group of 14 study sites used in model development phase (right
axis) and the measured G at the ground level for 7 cross-validation sites (left axis). (b)
Scatterplot of LST versus G.
Fig. 4. Comparison of the normalized satellite-derived LST with ground-based G in training (T) and cross-validation (CV) sets. (a) LSTcv versus LSTT. (b) Gcv versus LSTCV. Note:
Training data for stations in each group was averaged over monthly period and then plotted with respective cross-validation data and data were normalized within [0,1].
Fig. 5. Cross-correlation coefficient (rcross) between G and predictor variable (LST) in
training period (2012–2012) for 7 group of stations. (a) Monthly, (b) Seasonal. 95%
confidence interval for rcross is indicated in blue and only positive rcross values are plotted.
Note: Green circles indicate statistically significant lags.(For interpretation of the
references to color in this figure legend, the reader is referred to the web version of
this article.)
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
834

8. r t
ϕ t
ϕ ϕ
( ) =
( )
(0) (0)
cross
xy
xx yy (11)
r t( )cross is bounded by [−1, 1] with 1 indicating that both time-series
have an exact shape (although amplitudes can vary) while −1 indicates
that both time-series have the same shape but possess opposite signs.
The N and M are the lengths of the predictor and predictand data,
respectively. When the value of r t( )cross =0, both signals are uncorre-
lated but if r t( )cross ≥0.70, a good match between the two signals can be
identified.
Evidently, the LST versus the G data at zero, 1 and 2 lags were
statistically significant at 95% confidence interval (Fig. 5a) for the
monthly, and the LST versus the G data at zero lag were statistically
significant for the seasonal forecasting horizons (Fig. 5b).
Subsequently, for the monthly forecasting horizon, the ANN model
was developed using the LST (t), month, latitude, longitude and
altitude with lagged combination, LST(t – 1), LST(t – 2), LST(t – 3)
and LST(t – 4). It is noteworthy that, while a maximum lag of 2 was
significant, an additional predictor data with two lags (LST(t – 3) and
LST(t – 4)) were also considered as the predictor variables to check if
an improvement in the forecasting accuracy was attained (Table 3a–b).
For seasonal forecasting, both models were developed using the LST (t)
data and the respective supplementary variables (Table 3c). A total of
45 ANN models with the LST (t) and seven models with the LST (t – n)
predictors (where n varied from 1 to 4 for different lags) for monthly
(Table 3a–b) and nine models for seasonal forecasting were con-
structed. All models were optimized by alternately testing the training
algorithm and hidden transfer function in different combinations, as
detailed in Table 3(a–b), which are also stated in Eqs. (5.1–5.10).
The ANN model had a three-layer network designed with input
(where predictors were fed), learning (where transfer function was
applied to extract features to formulate a model with lowest mean
square error) and the output space (with forecasted G) (Table 3). The
number of input neurons (x) was 8 (denoted as x1, x2, x3 …, x8) for the
monthly and 5 for the seasonal forecasting horizons where 1 neuron
was assigned for the month (for solar periodicity), between 5 and 8
neurons for the LST and the remainder 3 neurons for the latitude,
longitude and altitude as the input variables. In data-driven models,
there is not set rule to attest the best transfer function, as the predictive
features are not known apriori. Following an iterative modelling

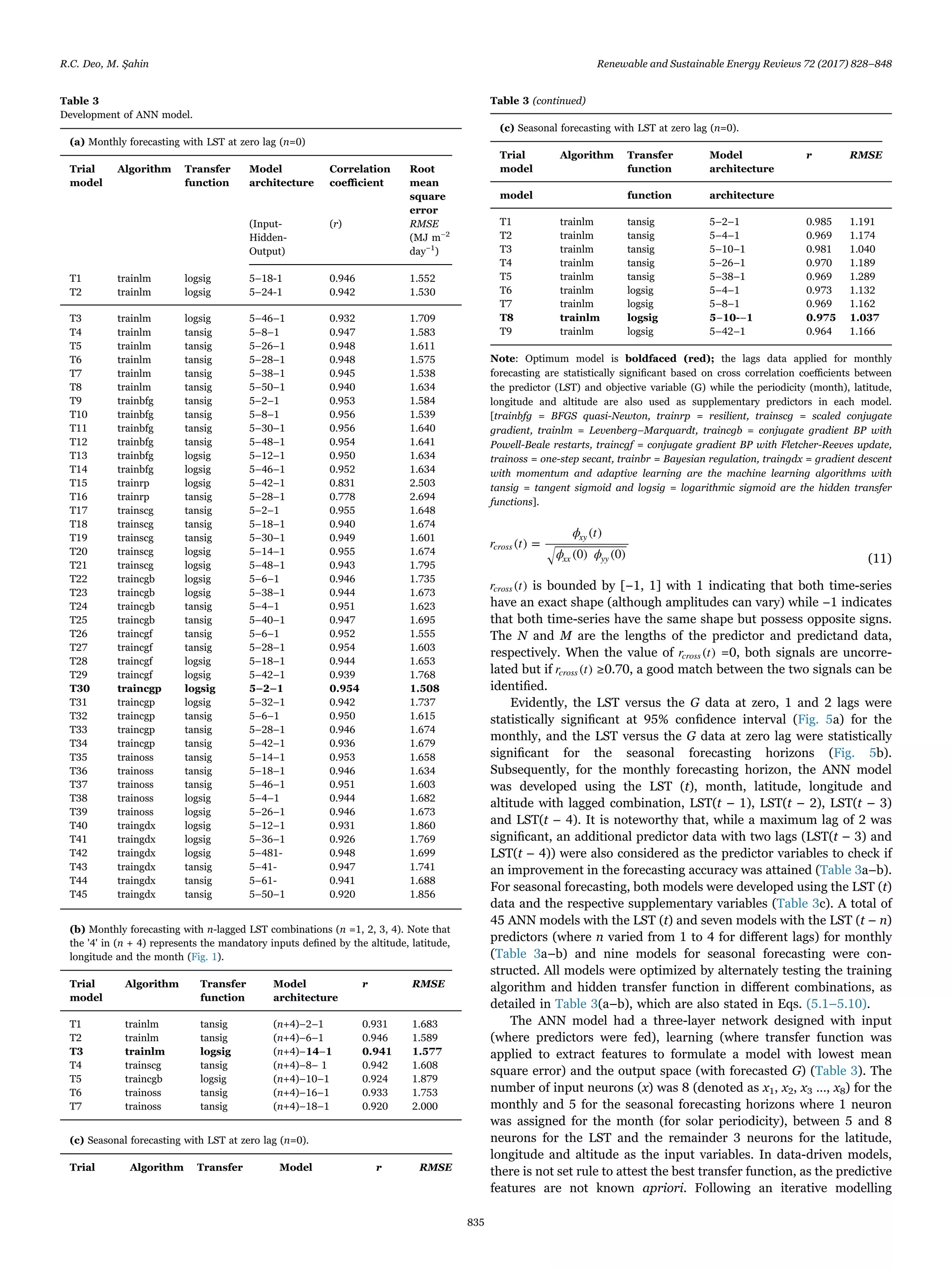

Table 3
Development of ANN model.
(a) Monthly forecasting with LST at zero lag (n=0)
Trial
model
Algorithm Transfer
function
Model
architecture
Correlation
coefficient
Root
mean
square
error
(Input-
Hidden-
Output)
(r) RMSE
(MJ m−2
day−1
)
T1 trainlm logsig 5–18-1 0.946 1.552
T2 trainlm logsig 5–24-1 0.942 1.530
T3 trainlm logsig 5–46–1 0.932 1.709
T4 trainlm tansig 5–8–1 0.947 1.583
T5 trainlm tansig 5–26–1 0.948 1.611
T6 trainlm tansig 5–28–1 0.948 1.575
T7 trainlm tansig 5–38–1 0.945 1.538
T8 trainlm tansig 5–50–1 0.940 1.634
T9 trainbfg tansig 5–2–1 0.953 1.584
T10 trainbfg tansig 5–8–1 0.956 1.539
T11 trainbfg tansig 5–30–1 0.956 1.640
T12 trainbfg tansig 5–48–1 0.954 1.641
T13 trainbfg logsig 5–12–1 0.950 1.634
T14 trainbfg logsig 5–46–1 0.952 1.634
T15 trainrp logsig 5–42–1 0.831 2.503
T16 trainrp tansig 5–28–1 0.778 2.694
T17 trainscg tansig 5–2–1 0.955 1.648
T18 trainscg tansig 5–18–1 0.940 1.674
T19 trainscg tansig 5–30–1 0.949 1.601
T20 trainscg logsig 5–14–1 0.955 1.674
T21 trainscg logsig 5–48–1 0.943 1.795
T22 traincgb logsig 5–6–1 0.946 1.735
T23 traincgb logsig 5–38–1 0.944 1.673
T24 traincgb tansig 5–4–1 0.951 1.623
T25 traincgb tansig 5–40–1 0.947 1.695
T26 traincgf tansig 5–6–1 0.952 1.555
T27 traincgf tansig 5–28–1 0.954 1.603
T28 traincgf logsig 5–18–1 0.944 1.653
T29 traincgf logsig 5–42–1 0.939 1.768
T30 traincgp logsig 5–2–1 0.954 1.508
T31 traincgp logsig 5–32–1 0.942 1.737
T32 traincgp tansig 5–6–1 0.950 1.615
T33 traincgp tansig 5–28–1 0.946 1.674
T34 traincgp tansig 5–42–1 0.936 1.679
T35 trainoss tansig 5–14–1 0.953 1.658
T36 trainoss tansig 5–18–1 0.946 1.634
T37 trainoss tansig 5–46–1 0.951 1.603
T38 trainoss logsig 5–4–1 0.944 1.682
T39 trainoss logsig 5–26–1 0.946 1.673
T40 traingdx logsig 5–12–1 0.931 1.860
T41 traingdx logsig 5–36–1 0.926 1.769
T42 traingdx logsig 5–481- 0.948 1.699
T43 traingdx tansig 5–41- 0.947 1.741
T44 traingdx tansig 5–61- 0.941 1.688
T45 traingdx tansig 5–50–1 0.920 1.856
(b) Monthly forecasting with n-lagged LST combinations (n =1, 2, 3, 4). Note that
the '4' in (n + 4) represents the mandatory inputs defined by the altitude, latitude,
longitude and the month (Fig. 1).
Trial
model
Algorithm Transfer
function
Model
architecture
r RMSE
T1 trainlm tansig (n+4)–2–1 0.931 1.683
T2 trainlm tansig (n+4)–6–1 0.946 1.589
T3 trainlm logsig (n+4)–14–1 0.941 1.577
T4 trainscg tansig (n+4)–8– 1 0.942 1.608
T5 traincgb logsig (n+4)–10–1 0.924 1.879
T6 trainoss tansig (n+4)–16–1 0.933 1.753
T7 trainoss tansig (n+4)–18–1 0.920 2.000
(c) Seasonal forecasting with LST at zero lag (n=0).
Trial Algorithm Transfer Model r RMSE
Table 3 (continued)
(c) Seasonal forecasting with LST at zero lag (n=0).
Trial
model
Algorithm Transfer
function
Model
architecture
r RMSE
model function architecture
T1 trainlm tansig 5–2–1 0.985 1.191
T2 trainlm tansig 5–4–1 0.969 1.174
T3 trainlm tansig 5–10–1 0.981 1.040
T4 trainlm tansig 5–26–1 0.970 1.189
T5 trainlm tansig 5–38–1 0.969 1.289
T6 trainlm logsig 5–4–1 0.973 1.132
T7 trainlm logsig 5–8–1 0.969 1.162
T8 trainlm logsig 5–10-–1 0.975 1.037
T9 trainlm logsig 5–42–1 0.964 1.166
Note: Optimum model is boldfaced (red); the lags data applied for monthly
forecasting are statistically significant based on cross correlation coefficients between
the predictor (LST) and objective variable (G) while the periodicity (month), latitude,
longitude and altitude are also used as supplementary predictors in each model.
[trainbfg = BFGS quasi-Newton, trainrp = resilient, trainscg = scaled conjugate
gradient, trainlm = Levenberg–Marquardt, traincgb = conjugate gradient BP with
Powell-Beale restarts, traincgf = conjugate gradient BP with Fletcher-Reeves update,
trainoss = one-step secant, trainbr = Bayesian regulation, traingdx = gradient descent
with momentum and adaptive learning are the machine learning algorithms with
tansig = tangent sigmoid and logsig = logarithmic sigmoid are the hidden transfer
functions].
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
835

9. process, we trialed several transfer functions (Eqs. (5.1–5.10)) and
learning algorithm to optimise the ANN model's accuracy (Table 3a-c).
In each trial, the number of neurons in hidden layer was increased
at an interval of one, and a subsequent adjustment in model was
considered. The nearly optimal neurons with relevant transfer function,
determined by mean square error, which was intrinsically disparate for
each combination, was adopted. As an additional measure, correlation
coefficient (r) of trained models was noted to verify the model. In
accordance with lowest RMSE (≈1.577 MJ m−2
day−1
) and high r value
(≈0.941), Model T3 with n-lagged combinations of the LST data
executed with the Levenberg–Marquardt (LM) algorithm, logarithmic
sigmoid (Eq. (5.2)) and linear output function with architecture of
n−14-1 was adopted for monthly forecasting horizons. For seasonal
forecasting horizon, the LM training algorithm, logarithmic sigmoid
and linear functions with an architecture of 1–10-1 was established.
For an MLR model, regression coefficients and the y-intercept for the
LST, month, latitude, longitude and altitude were also determined,
which are detailed in Table 4.
An ARIMA model was developed using the ‘R’ software with its
architecture established by an iterative modelling process [91,117]
detailed in Section 2.4. Table 5 displays the ARIMA model's architec-
ture and the respective goodness-of-fit tests performed to construct the
forecasting model. The ground-based G data for two study sites in each
of the seven group over 2012–2013 were used in the model develop-
ment. The first step was to examine the stationarity of G via
autocorrelation (ACF) and partial autocorrelation (PACF) function.
Evidently, the monthly solar radiation for all seven groups was non-
stationary. The ARIMA model required an input data to have a
constant mean, variance and autocorrelation through time [91,117],
so a differencing of the data was applied to make it stationary, which
was confirmed by running the autoarima() function in R-software to
yield the lowest standard deviation/AIC and the highest likelihood (Eq.
(8)). By contrast, the seasonal data, which was already stationary, did
not require any differencing. The number of non-seasonal differences
(d) was set to 2 (for monthly) and 0 (seasonal). Following this, an
estimation of autoregressive (p) and moving average (q) terms for each
cross-validation site was performed by trailing a set of feasible values to
satisfy the training performance criteria according to the log like-
lihood/AIC in conjunction with lowest variance and highest correlation
coefficient. The model was cross-validated by generating the monthly
(12-values) and seasonal (4-values) forecasts. This required the trained
model to be applied to 2014 ‘test’ data using ‘predict ()’ function. It is
noteworthy that the training performance of ARIMA was unique for
different sites based on goodness-of-fit and the statistical test para-
meters.
3.3. Model performance criteria
Following a review of the model evaluation metrics by American
Society for Civil Engineers (ASCE) [126], two category of model
evaluation measures have surfaced: visual and descriptive statistics
(i.e., observed and forecasted data to cross-check the difference in
minimum, maximum, mean, variance, standard deviation skewness,
kurtosis) and the standardized metrics applied to the forecasts that are
validated with observed data. To establish whether the data-driven
models were qualified for forecasting global solar radiation, a range of
statistical error criterion was adopted. They were based on root mean
square error (RMSE), mean absolute error (MAE), correlation coeffi-
cient (r), Willmott's Index (WI) and relative (%) error values based on
the RMSE and MAE, with their mathematical equations written as
follows [15,127,128]:
I. Correlation coefficient (r) expressed as
⎛
⎝
⎜
⎜⎜
⎞
⎠
⎟
⎟⎟
r
G G G G
G G G G
=
∑ ( − )( − )
∑ ( − ) ∑ ( − )
i
N
OBS i OBS i FOR i FOR i
i
N
OBS i OBS i i
N
FOR i FOR i
=1 , , , ,
=1 , ,
2
=1 , ,
2
(12)
II. Root mean square error (RMSE) expressed as
∑RMSE
N
G G=
1
( − )
i
N
FOR i OBS i
=1
, ,
2
(13)
III. Mean absolute error (MAE) expressed as
∑MAE
N
G G=
1
( − )
i
N
FOR i OBS i
=1
, ,
(14)
IV. Willmott's Index (WI) expressed as
⎡
⎣
⎢
⎢
⎤
⎦
⎥
⎥
WI
G G
G G G G
d
= 1 −
∑ ( − )
∑ ( − + − )
,
0 ≤ ≤ 1
i
N
FOR i OBS i
i
N
FOR i OBS i OBS i OBS i
=1 , ,
2
=1 , , , ,
2
(15)
V. Relative root mean square error (RRMSE¸%) expressed as
Table 4
Development of MLR model for monthly and seasonal forecasting. For LST as predictor,
lag (n) varies from 0 to 4.
Model Predictor Variable
(input), x
Monthly
Forecasting
Seasonal
Forecasting
Name Coefficient Magnitude Magnitude
M1 Periodicity
(Month)
β1 0.002 −0.191
Altitude β2 0.003 0.003
Latitude β3 0.332 0.326
Longitude β4 0.220 0.205
Y-Intercept C −198.2 −194.0
LST (t) β5 0.532 0.524
M2 Month β1 −0.041
Altitude β2 0.003
Latitude β3 0.331
Longitude β4 0.220
Y-Intercept C −196.9
LST (t) β5 0.572
LST(t – 1) β6 −0.042
M3 Month β1 −0.024
Altitude β2 0.003
Latitude β3 0.307
Longitude β4 0.228
Y-Intercept C −195.6
LST (t) β5 0.585
LST(t – 1) β6 −0.074
LST(t – 2) β7 0.024
M4 Month β1 −0.102
Altitude β2 0.003
Latitude β3 0.245
Longitude β4 0.218
Y-Intercept C −171.4
LST (t) β5 0.584
LST(t – 1) β6 −0.121
LST(t – 2) β7 0.136
LST(t – 3) β8 −0.110
M5 Month β1 −0.257
Altitude β2 0.002
Latitude β3 0.054
Longitude β4 0.187
Y-Intercept C −95.69
LST (t) β5 0.562
LST(t – 1) β6 −0.152
LST(t – 2) β7 0.070
LST(t – 3) β8 0.107
LST(t – 4) β9 −0.245
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
836

10. RRMSE
G G
G
=
∑ ( − )
∑ ( )
× 100
N i
N
FOR i OBS i
N i
N
OBS i
1
=1 , ,
2
1
=1 , (16)
VI. Mean absolute percentage error (MAPE; %), expressed as
∑MAPE
N
G G
G
=
1 ( − )
× 100
i
N
FOR i OBS i
OBS i=1
, ,
, (17)
where GOBS and GFOR are the observed and forecasted ith
value of G,
GOBS and GFOR are the observed and forecasted mean G in cross-
validation (test) set and N is the number of datum points in the test set.
In terms of physical reasoning for the performance metrics, it is
deducible that the correlation coefficient, bounded by [0,1] where 0=
relatively poor to 1.0= perfect model, describes the proportion of
variance in observed solar radiation that is explained by the ANN, MLR
and ARIMA models [128]. The equation for r, however, is based on the
consideration of linear relationship between GOBS and GFOR and there-
fore, is limited in it capacity to provide a robust assessment since it
standardizes the observed and forecasted means and variances.
However, the RMSE and MAE are able to provide better information
about the predictive skill whereby RMSE measures the goodness-of-fit
relevant to high values whereas the MAE is not weighted towards
high(er) magnitude or low(er) magnitude events, but instead evaluates
all deviations from observed, in both an equal manner and regardless
of sign. It important to note, that while the RMSE can assess the model
with higher level of skill compared to correlation coefficient, this metric
is computed on squared differences. Thus, performance assessment is
biased in favour of the peaks and high(er) magnitude events, that will
in most cases exhibit the greatest error, and be insensitive to low(er)
magnitude sequences [128]. Consequently, the RMSE can be more
sensitive than other performance metrics due to occasional large errors
as the squaring process can yield disproportionate weights to the very
large errors [129]. To overcome this issue, Willmott's Index (WI) [130]
was computed by considering the ratio of the mean square error
instead of the square of the differences [131], providing an advantage
over the r, RMSE and MAE values. Considering the geographic
differences between the present study sites (Table 1; Fig. 2), which in
fact, can lead to differences in the distribution of solar radiation data,
the relative root mean square error (RRMSE) was also computed
[15,132] to compare and evaluate the model over geographically
diverse study sites. According to [133], a model's precision level is
excellent if the RRMSE < 10%, good if 10% < RRMSE < 20%, fair if
20% < RRMSE < 30% and poor if the RRMSE > 30%.
4. Results
In this paper, the results attained for appraising an ANN model
coupled with satellite-derived LST data for forecasting monthly and
seasonal solar radiation over a group of seven cross-validation sites in
regional Queensland are presented. The ANN model is evaluated in
respect to an MLR and ARIMA model. To establish whether an ANN
was a parsimonious model to accomplish a desired level of accuracy
with as few predictor variables as possible, an iterative modelling
process was applied to optimise the model's parameters using input
combinations, training algorithms and hidden transfer functions where
the lowest mean square error for optimum model was sought (Section
3.2). In this section, we first provide the results for monthly forecast-
ing, and then proceed with seasonal forecasting evaluation measures
based on a number of statistical performance metrics described in Eqs.
(12–17).
In order to compare directly the forecasted and observed monthly
G, Fig. 6(a–g) plots the model's error, GFOR – GOBS for each tested
month in cross-validation (2014) period. A scatterplot showing the
goodness-of-fit line and its correlation coefficient (r) to depict the
extent of agreement between GFOR and GOBS is included. There is
compelling evidence that ANN outperforms the MLR and ARIMA
models for all tested months. On a month-by-month basis, the
forecasting error is seen to exhibit a much larger magnitude for the
MLR model especially for the forecasts generated in the month of
Table 5
ARIMA with structure (p, d, q) with d = differencing, p and q = order of autoregressive (AR) and moving average (MA) term.
Group Training station ARIMA
structure
AIC Log
likelihood
Variance Correlation
coefficient
Parameters
(AR1, AR2, AR3, MA1, MA2, MA3)
(p, d, q) r AR1 AR2 AR3 MA1 MA2 MA3
Monthly forecasting
1 Gayndah Post Office /
Gayndah Flume TM
ARIMA (3, 1, 3) 112.96 −49.48 2.905 0.878 0.727 0.681 −0.918 −1.193 −0.513 0.770
2 Emerald Radar / Emerald
Radar AI
ARIMA (3, 2, 3) 111.13 −49.56 2.575 0.893 1.218 −0.108 −0.505 −2.874 2.874 −1.000
3 Tambo Post Office / Tambo
Station
ARIMA (2, 2, 3) 95.26 −41.63 1.441 0.947 1.724 −0.990 −2.873 2.873 −1.000
4 Blackall Airport / Blackall
Township
ARIMA (3, 2, 2) 106.4 −47.2 2.843 0.897 0.782 0.553 −0.828 −1.957 1.000
5 27 Mile Garden / ARIMA (3, 2, 3) 108.55 −47.27 2.464 0.921 1.373 −0.393 −0.351 −2.781 2.778 −0.996
27 Mile Garden TM
6 Charleville Aero / Charleville ARIMA (2, 2, 3) 110.78 −49.39 3.133 0.899 1.727 −0.981 −2.871 2.871 −1.000
7 St George Airport / St George
TM
ARIMA (2, 2, 3) 107.00 −47.5 2.2546 0.929 1.727 −0.984 −2.880 2.880 −1.000
Seasonal forecasting
1 As Above ARIMA (2, 0, 2) 32.70 −10.4 0.111 0.995 0.027 −0.988 −1.962 0.999
2 ARIMA (3, 0, 3) 13.60 1.20 0.008 0.999 −0.886 −0.980 −0.908 −1.516 0.799 0.091
3 ARIMA (3, 0, 2) −23.10 18.50 0.000 0.999 −0.996 −0.997 −1.808 0.998
4 ARIMA (3, 0, 2) 21.90 −4.00 0.009 0.998 −0.734 −0.915 −0.808 −1.808 1.000
5 ARIMA (3, 0, 3) 18.20 −1.10 0.018 0.997 −0.916 −0.945 −0.973 −1.181 −0.460 0.725
6 ARIMA (3, 0, 3) 10.80 2.60 0.006 0.995 −0.952 −0.956 −1.074 −0.561 0.822
7 ARIMA (3, 0, 3) 36.70 −10.40 0.102 0.998 −0.739 −0.953 −0.786 −1.337 0.017 0.526
Note: Akaike's Information Criterion (AIC) used to identify model in conjunction with log Likelihood, variance and correlation coefficient.
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
837

11. Fig. 6. (Left) Times-series of ANN, MLR and ARIMA model monthly forecasting errors and (right) the scatterplot of forecasted and observed monthly G. (a) Group 1 Gayndah, (b)
Group 2 Emerald Airport, (c) Group 3 Tambo, (d) Group 4 Blackall, (e) Group 5 Barradeen, (f) Group 6 Charleville, (g) Group 7 St George Airport. For each scatterplot, least square
fitting line and its respective correlation coefficient is shown. Cumulative frequency of ANN, MLR and ARIMA model monthly forecasting errors in G for the seven group of stations
pooled together. Note that the percentage for each bracket is shown in the respective error bracket.
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
838

12. August and September. Except for Gayndah (Fig. 6a), the ANN model
does not result in significantly large errors relative to its comparative
counterparts for the other six groups. It is important to note that the
ARIMA model is seen to generate more accurate forecasting of solar
radiation compared to the MLR model although its performance
remains inferior to ANN for all tested months. Therefore, it is evident
that the ANN model can simulate G-values with good accuracy, also
verified by higher level of agreement (i.e., r value).
In Table 6(a) we evaluate the preciseness of the ANN model in
relation to the MLR model where the results for a set of five trial
performances over the 2014 period with a combination of predictor
variable are shown. It is imperative to mention that the number of
inputs in each trial model is increased by one to yield a total of five
unique models and performances are validated using r, RMSE and
MAE. For all study sites considered, the accuracy of an ANN model
appears to have generally improved as the number predictor variables
with lagged input combinations of the LST data are fed into the
algorithm. This can be verified by the notable increase in correlation
coefficient computed between monthly observed and forecasted G and
a corresponding decrease in model's generalization error. However, for
the ANN model, the improvement in forecasting accuracy appears to
have attained an asymptotic state with no further increase in r value or
a further reduction in RMSE/MAE values with additional combination
of LST after the third lag.
In the case of an optimal ANN model (i.e., M4) applied at the
Gayndah station, there is a gradual reduction in MAE (≈1.54 to 0.82
Fig. 6. (continued)
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
839

13. MJ m−2
) and an increase in r (≈0.961–0.962) for predictors defined by
LST(t), LST(t – 1), LST(t – 2) and LST(t – 3) relative to single input,
LST(t) as the predictor. Similar trend is also evident for the case of
Barradeen, Charleville TM and St George stations where a total of four
predictor variables based on the original and lagged LST data are
required to attain an accurate forecasting. By contrast, when an ANN
model is cross-validated for Emerald Airport and Blackall stations, only
three predictor variables, and that for the case of Tambo site, a total of
Table 6
Evaluation of monthly forecasting models using correlation coefficient (r), root mean square error (RMSE; MJ m−2
day−1
) and mean absolute error (MAE; MJ m−2
day−1
). Note that the
best model is boldfaced (red).
(a) ANN and MLR
Model Input combinations ANN MLR
r RMSE MAE r RMSE MAE
Group1: Gayndah
M1 LST (t) 0.961 1.73 1.54 0.957 2.07 1.80
M2 LST (t) + LST (t – 1) 0.939 1.88 1.28 0.806 3.21 2.58
M3 LST (t) + LST (t – 1) + LST (t – 2) 0.949 1.55 1.18 0.801 3.17 2.50
M4 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) 0.962 1.13 0.82 0.791 3.16 2.48
M5 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) + LST (t – 4) 0.964 1.38 1.12 0.790 3.02 2.53
Group2: Emerald Airport
M1 LST (t) 0.968 1.28 1.05 0.945 2.53 2.32
M2 LST (t) + LST (t – 1) 0.968 1.06 0.81 0.802 3.52 2.94
M3 LST (t) + LST (t – 1) + LST (t – 2) 0.965 1.04 0.78 0.793 3.55 2.95
M4 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) 0.943 1.42 1.05 0.761 3.59 3.04
M5 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) + LST (t – 4) 0.969 1.11 0.82 0.799 3.00 2.60
Group 3: Tambo
M1 LST (t) 0.958 1.35 1.11 0.948 2.65 2.26
M2 LST (t) + LST (t – 1) 0.926 1.70 1.37 0.868 3.10 2.51
M3 LST (t) + LST (t – 1) + LST (t – 2) 0.939 1.69 1.37 0.856 3.20 2.60
M4 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) 0.900 1.85 1.35 0.814 3.33 2.76
M5 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) + LST (t – 4) 0.958 1.39 1.00 0.823 2.99 2.61
Group 4: Blackall
M1 LST (t) 0.968 1.13 0.91 0.965 1.57 1.18
M2 LST (t) + LST (t – 1) 0.959 1.18 1.01 0.836 2.46 1.92
M3 LST (t) + LST (t – 1) + LST (t – 2) 0.975 0.93 0.62 0.828 2.53 2.01
M4 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) 0.907 1.80 1.44 0.787 2.76 2.21
M5 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) + LST (t – 4) 0.969 1.16 0.95 0.787 2.760 2.12
Group 5: Barradeen
M1 LST (t) 0.949 1.53 1.24 0.938 1.78 1.371
M2 LST (t) + LST (t – 1) 0.942 1.77 1.33 0.881 2.29 1.839
M3 LST (t) + LST (t – 1) + LST (t – 2) 0.944 1.82 1.58 0.874 2.35 1.887
M4 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) 0.953 1.31 0.98 0.853 2.50 2.014
M5 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) + LST (t – 4) 0.954 1.36 1.06 0.847 2.49 2.016
Group 6: Charleville TM
M1 LST (t) 0.944 1.72 1.40 0.919 2.05 1.69
M2 LST (t) + LST (t – 1) 0.940 1.83 1.43 0.814 2.78 2.31
M3 LST (t) + LST (t – 1) + LST (t – 2) 0.938 1.66 1.41 0.806 2.83 2.35
M4 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) 0.961 1.42 0.95 0.773 3.03 2.46
M5 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) + LST (t – 4) 0.953 1.45 0.99 0.811 2.80 2.37
Group 7: St George Airport
M1 LST (t) 0.944 1.66 1.36 0.926 0.65 0.92
M2 LST (t) + LST (t – 1) 0.963 1.36 1.12 0.880 1.66 0.923
M3 LST (t) + LST (t – 1) + LST (t – 2) 0.960 1.44 1.20 0.922 1.70 1.32
M4 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) 0.967 1.38 0.96 0.895 1.98 1.56
M5 LST (t) + LST (t – 1) + LST (t – 2) + LST (t – 3) + LST (t – 4) 0.952 1.16 1.01 0.899 2.01 1.52
Overall Average 0.963 1.23 1.02 0.943 1.90 1.65
(b) ARIMA
Cross-validation stations r RMSE MAE
Group1: Gayndah 0.937 1.56 1.35
Group2: Emerald Airport 0.961 1.13 0.87
Group 3: Tambo 0.945 1.57 1.35
Group 4: Blackall 0.823 2.81 2.29
Group 5: Barradeen 0.926 2.00 1.61
Group 6: Charleville TM 0.940 2.41 1.83
Group 7: St George Airport 0.933 2.09 1.40
Overall Average 0.924 1.94 1.53
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
840

14. five predictor variables, are necessary for accurate forecasting. In
accordance with this, the ANN model for each study site appears to
respond differently to the prescribed set of variables, which presumably
provides different types of predictive features. In agreement with
earlier studies (e.g., [15,132]), the findings suggest that the pertinent
features in the prescribed data-driven predictive models must be
harvested by trialing different combinations of variables of an appro-
priate choice (e.g., Table 6) in order to optimise the forecasting model.
It must also be noted that different level of accuracy stipulate that the
model performance are expected to scale differently for the geographi-
cally diverse sites [15] (e.g., Fig. 2; Table 1).
As a noteworthy point, the MLR model did not yield similar result
where its performance for the cross-validation sites deteriorated with
larger number of predictors and a successive addition of the lagged LST
data (Table 6). Take for example, Gayndah: the correlation coefficient
between the observed and forecasted monthly G decreased from
≈0.957 to 0.790 and root mean square and mean absolute error
increased from ≈2.07–3.02 MJ m−2
and ≈1.80–2.53 MJm−2
, respec-
tively, as noted for models (M1 and M5) when input variables were
increased. While the exact cause of this is not known, it does indicate
that the MLR model has a different mechanism to model the solar
radiation data compared to an ANN model. In comparison to the ANN
model, the MLR model exhibits an inferior performance for all tested
study sites. In fact, the forecasting error generated by the MLR model is
also significantly larger with a smaller degree of statistical correlation
between the forecasted and observed G, which confirms the superiority
of the ANN over the MLR model.
Table 6b lists the performance of the ARIMA model which in fact,
operates as a univariate (i.e., single-input) model. In our study, the
ARIMA model has utilised the onsite G data in the training and
evaluation phase. In this regard, the ARIMA model is developed by
using two training study sites in the respective group (Table 1) with
only one set of predictor (G) variable over 2012–2013 and it is then
applied to generate the forecasts of solar radiation for the remaining
3rd (test) site in particular cross-validation group. For the seven group
of study sites that are tested, the performance of the ANN model far
exceeds that of the ARIMA model. More precisely, the metrics are
clearly distinguishable, with r values that are larger by ≈2.25–18.46%
and a correspondingly lower RMSE/MAE value by ≈8.55–67.01% and
≈10.67–72.92% across the different cross-validation sites. In fact, the
best performance of an ARIMA model is recorded for the Emerald
Airport station where the smallest difference in MAE and RMSE
metrics in respect to the ANN model metric is evident. When averaged
over all seven sites, the root mean square and the mean absolute error
generated by the ANN model is smaller by over 35% compared to the
MLR and ARIMA models, which are inherently reflected in the
statistical correlation metric of observed and forecasted global solar
radiation (see Table 6).
Whilst the correlation coefficient and RMSE are useful goodness-of-
fit statistics, the metrics are regarded as suboptimal measures with an
inability to compare models between geographically (and climatologi-
cally) diverse sites. This is because these metrics are based on the non-
normalized values of the forecasting error, and hence may carry little
meaning where different distributions of predictor and objective
variable(s) are evident [132]. In the retrospective outcome of model
evaluation using r and RMSE, it is perceived that the squaring of the
relatively larger forecasting errors can over-weigh the influence of the
smaller errors based on the sum-of-squared errors used to calculate
these metrics [134]. To overcome this insensitivity and over-domi-
nance of large over small errors, an assessment of the ANN model with
its comparative model is undertaken using the normalized RMSE and
MAE where the respective percentages are used. Table 7 shows the
Willmott's Index (WI) [134,135] and relative percentage of RMSE and
MAE [15,132]. In accordance with earlier deduction (Table 6), in this
case we only show the best performing ANN and MLR model with
respective combination of the LST data in the optimal case. For the
case of an ARIMA model, the zero-lag G values are employed as the
predictor with an appropriate differencing and an auto-regressive and a
moving average term added to create the optimal model (Table 5a).
An interpretation of forgoing results is relatively straightforward.
The ANN model dramatically outperformed the MLR and ARIMA
models, which is confirmed by marked difference in the normalized
metrics. For Gayndah, Emerald Airport and Tambo stations, the
optimal performance is attained by an ANN model followed by an
ARIMA and then the MLR model (i.e., WI ≈0.959, 0.962 and 0.93
compared to 0.931, 0.960 and 41 (ARIMA) and 0.906, 0.834 and 0.878
(MLR)). Correspondingly, the relative RMSE are ≈5.70%, 5.02% and
6.35% (ANN), ≈8.08%, 5.53% and 7.65% (ARIMA) and ≈10.72%,
12.33% and 12.78% (MLR). While performance of the ANN model
demonstrates high level of superiority over the MLR and ARIMA
models for Blackall, Charleville TM and St George Airport stations, the
MLR model is preferable over an ARIMA model. That is, the MLR
outperforms the ARIMA model by a large margin with r≈0.877–0.927
compared with ≈0.798–0.894. An ANN model is also found to be
superior when the relative percentage MAE are compared (Table 7). It
is interesting to note that for all study sites, the univariate ARIMA
model that utilised the G data at the respective sites is superior to the
MLR model, indicating that it is a preferable option over the multi-
variate (MLR) model although the ANN by all performance measures
remains superior to ARIMA. In terms of site-averaged performance,
the ANN model is found to yield the highest Willmott's Index (≈0.954),
contrasted by a remarkable margin the mean value for the MLR model
(≈0.899) and the ARIMA model (≈0.848). The site-averaged RRMSE
for the ANN model is notably lower, with 5.85% compared to the MLR
(10.23%) and ARIMA models (9.60%). This shows that forecasts
generated by the MLR model are significantly out of phase with the
observations, as the relative error in fact, exceeded the recommended
10% threshold for an excellent model (e.g., [133]).
To establish a complete picture of forecasting skills of the data-
driven models, Fig. 6 shows a frequency plot where relative predictive
errors over monthly horizon in error bracket of ± 0.5 MJ m−2
on
abscissa is indicated. For every bar, the percentage of datum points
within the cross-validation (test) set for the seven group of study sites
pooled together is indicated. There is sound evidence that the ANN
model generated the largest proportion of forecasting errors (≈39%) in
the smallest ( ± 0.5 MJ m−2
) error range whereas the ARIMA model
recorded about 25%, and the MLR model generated only 15% of all
errors in this error bracket. Moving rightward to the abscissa; the next
error bracket (0.50 < error ≤1.00) captured 27% of all errors, which
contrasts the ARIMA and MLR models with about 21% and 17%,
respectively. In response to the greater proportion of errors that are
being recorded in smallest error bracket, the ANN model produces less
than 35% of errors in error magnitude larger than 1.0 MJ m−2
. By
contrast, the proportion of errors amounted to about 53% (for ARIMA)
and about 69% (for MLR). In concurrence with earlier results, it is
deducible that the ANN model produces a much smaller proportion of
forecasting errors that fall in the larger magnitude bracket, which in
fact, typifies that a more accurate level of forecasting is achieved by this
method.
Fig. 7 shows a boxplot of the model's forecasting error for seven
groups pooled together where the least and most accurate results (i.e.,
Group 5: Barradeen and Group 4: Blackall) is included. In each
boxplot, the outliers (indicated by +) that represent extreme values of
the forecasting error within the cross-validation set and their upper
quartile, median and lower quartile values are also indicated. Overall,
the boxplot provides justification that the distributed errors for the
ANN model acquire a much lesser spread with a correspondingly
smaller magnitude of the quartile statistics and median values com-
pared to the MLR and the ARIMA model. In fact, the net shift in the
monthly forecasting error values towards larger magnitude for the
ARMA and MLR models are clearly consistent with previous result
(e.g., Fig. 6; Table 7). While the ANN model remains the optimal model
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
841

15. in terms of a clustered error distribution towards smaller magnitudes,
the MLR model performance is significantly inferior to the ARIMA
model for all errors pooled together and for errors recorded at the
Barradeen study site. In the case of most accurate forecasting results
obtained for the Blackall station, the ARIMA model is found to be
similar in its ability to forecast the solar radiation compared to the
MLR model, although the ANN model is seen to outweigh the
performance of both forecasting models.
To check the predictive ability of the ANN model coupled with the
LST data for seasonal forecasting of solar radiation, we show the
normalized metrics in terms of the Willmott's Index, relative root mean
square error and mean absolute error. It is imperative to state that the
Table 7
Evaluation of monthly forecasting models using normalized errors: Willmott's Index (WI) and relative RMSE and MAE (%).
Cross-Validation Site Inputs ANN Input MLR Input ARIMA
WI RRMSE RMAE WI RRMSE RMAE WI RRMSE RMAE
Group1: Gayndah LST (t) 0.959 5.70 4.44 LST (t) 0.906 10.72 9.84 G(t) 0.931 8.08 7.51
LST (t – 1)
LST (t – 2)
LST (t – 3)
Group2: Emerald Airport LST (t) 0.962 5.02 3.52 LST (t) 0.834 12.33 12.23 G(t) 0.960 5.53 4.09
LST (t – 1)
LST (t – 2)
Group 3: Tambo LST (t) 0.953 6.35 4.49 LST (t) 0.878 12.78 11.40 G(t) 0.941 7.65 6.38
LST (t – 1) LST (t – 2)
LST (t – 3) LST(t – 4)
Group 4: Blackall LST (t) 0.971 4.37 2.78 LST (t) 0.942 7.46 5.71 G(t) 0.382 13.3 9.92
LST (t – 1)
LST (t – 2)
Group 5: Barradeen LST (t) 0.946 6.48 4.71 LST (t) 0.927 8.54 6.83 G(t) 0.914 9.86 7.66
LST (t – 1)
LST (t – 2)
LST (t – 3)
Group 6: Charleville TM LST (t) 0.945 7.29 4.54 LST (t) 0.888 10.45 8.88 G(t) 0.907 12.4 9.39
LST (t – 1)
LST (t – 2)
LST (t – 3)
Group 7: St George Airport LST (t) 0.942 5.79 4.73 LST (t) 0.917 9.33 8.41 G(t) 0.910 10.4 6.62
LST (t – 1)
LST (t – 2)
LST (t – 3)
Overall 0.954 5.85 4.17 0.899 10.23 9.04 0.848 9.60 7.36
Fig. 7. Boxplot of the distribution of monthly forecasting error generated by ANN, MLR and ARIMA model for monthly G-forecasting. (a) All seven groups of stations pooled together,
(b) least accurate forecasting results (Group 5), (c) least accurate forecasting results (Group 4).
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
842

16. primary predictor used in seasonal forecasting was the LST (t) data
(i.e., with zero lag), together with supplementary input parameters
defined in terms of latitude, longitude, altitude and the periodicity for
the ANN and the MLR models. This decision followed the cross-
correlation results (Fig. 5) where lagged combinations of the LST
values were found to be largely insignificant, and therefore, were not
applied in seasonal forecasting.
In agreement with the monthly forecasting horizons, the ANN
models tested for seasonal forecasting also demonstrated significantly
better results than the MLR and ARIMA models for all cross-validation
sites (Fig. 8a-c). This has been exemplified in the scatterplots of the
forecasted data for all stations pooled together, including the goodness-
of-fit regression line, y= mx + C based on GOBS and GFOR data. Note
that r2
and m close to 1.00 and C close to 0 should be attained for a
perfect forecasting model. Despite some degree of scatter between the
observed and forecasted G data, a reasonably linear fit is evident, albeit
with different levels of accuracy for the three models considered. That
is, r2
≈0.951 for the ANN, 0.896 for the MLR and 0.688 for the ARIMA
models whereas the gradient of regression line is ≈1.06 (ANN), 0.985
(ARIMA) and 0.962 (MLR) model. Consequently, the statistics provide
first order justification of the superior performance of the ANN over the
MLR and ARIMA models applied for seasonal forecasting of global
solar radiation.
In Table 8 we evaluate seasonal forecasting models using normal-
ized error metrics in terms of the Willmott's Index and the relative
(percentage) RMSE and MAEvalues. It is immediately obvious that WI
for the ANN model is the highest with a range of 0.944–0.976 and the
relative RMSE/MAE is the lowest over the range of 4.60–5.80% and
0.03–4.67%, respectively, compared with those of the MLR and
ARIMA models. In accordance with [133], the less than 10% RRMSE
accedes to an excellent performance of the present ANN model. By
contrast, the MLR model yielded an error of RMSE≈5.23–11.65%
while that of the ARIMA model was between 2.93–26.50%.
In the foregoing research context, it is attested that the ARIMA
model forecasts are significantly in error especially for the case of
Emerald Airport (Group 2), Blackall (Group 4) and Barradeen (Group
5) study sites where a relative RMSE ≈26.5%, 9.54% and 9.73%,
respectively, are attained. While further exploration of this result is
needed, it can be construed that the relatively poor performance of the
ARIMA model is associated with a less number of datum points (i.e., 4
per year) utilised in the model development phase that may lead to an
insufficient number of predictive features. Nevertheless, the RRMSE
generated by the ANN model is smaller by over fivefold for the case of
Emerald Airport and is between 1.6 to two fold for the case of Blackall
and Barradeen, respectively. Similar deduction is made when the
correlation coefficient and RMAE values are checked. When the errors
averaged over all study sites, the performance of the ANN model
remains remarkably superior to that of the MLR and ARIMA models
(Table 8).
To draw more solid conclusive arguments about the forecasting skill
of the ANN model, one can inspect Fig. 9, where a bar graph is used to
depict the relative forecasting error for the case of the most and the
least accurate study site on a season-by-season basis. With a few
exceptions, the ANN model yields the smallest error in forecasting solar
radiation. Importantly, there is a dramatic difference in the relative
error for MAM and JJA for Charleville station. Notwithstanding this,
the ARIMA model performs better than the ANN and MLR model in
the spring (SON) season (for Charleville), and the autumn (MAM
season for Blackall). However, for all other seasons, the ANN model
remain the preferred model (with the lowest relative error).
Fig. 10 displays a bar graph of seasonal data. Evidently, the relative
percentage error accumulated across these seasons shows a dramati-
cally superior result for the ANN model. However, the ANN model
error encountered in predicting the global solar radiation is at par with
the MLR model, and this is the largest for the summer (DJF) season. In
spite of this, the forecasting errors recorded for the autumn (MAM),
Fig. 8. Scatterplot of ANN, MLR and ARIMA model performance for seasonal forecasting of G using all station data pooled together.
Table 8
Evaluation of seasonal forecasting models using normalized errors: Willmott's Index (WI) and relative RMSE and MAE (%).
Cross-validation site ANN MLR ARIMA
WI RRMSE RMAE WI RRMSE RMAE WI RRMSE RMAE
Group1: Gayndah ID 039191 0.959 4.92 4.67 0.844 9.14 9.06 0.943 7.41 0.03
Group2: Emerald Airport ID 035264 0.957 4.88 2.14 0.622 10.93 11.0 0.075 26.5 3.74
Group 3: Tambo ID 035284 0.952 5.70 3.46 0.726 11.65 10.76 0.988 2.93 0.89
Group 4: Blackall ID 036155 0.944 5.80 0.03 0.956 5.23 4.00 0.884 9.54 −0.90
Group 5: Barradeen ID 044204 0.971 4.76 2.90 0.920 7.09 5.18 0.883 9.73 4.41
Group 6: Charleville TM ID 044205 0.976 4.60 0.18 0.909 7.96 3.32 0.935 7.23 5.42
Group 7: St George Airport ID 043109 0.969 4.81 2.29 0.934 7.07 2.14 0.913 8.39 3.14
Overall 0.961 5.07 2.24 0.844 8.44 6.49 0.803 10.25 2.39
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
843

17. winter (JJA) and the spring (SON) seasons remain significantly
smaller, especially in respect to the MLR and ARIMA models for the
autumn (MAM) season. Accordingly, it can be argued that the ANN
model integrated with satellite-derived LST data as its predictor
variable is a preferred model for seasonal forecasting of solar radiation.
5. Discussion: limitations and opportunity for further
research
To address environmental, health and economic issues associated
with climate shift by promoting more sustainable energy projects, there
is a nationwide surge in solar investments [3,6,67,119,136], consistent
with the global trends. A desire to attain predictive models incorpo-
rated with remotely sensed data for forecasting global solar radiation is
driving a lot of research momentum among scientists, who are
exploring satellite data-coupled predictive models [6,136] over deter-
ministic models with ground-based (on-site) data [22,23]. This precise
aim of this paper was thus to model global solar radiation at remote
sites in Queensland, Australia using Moderate-Resolution Imaging
Spectroradiometer land-surface temperature (LST). By incorporating
the LST data over a relatively limited period (2012–2013), this study
has designed and validated an artificial neural network (ANN) model
and evaluated its forecasting performance in respect to multiple linear
regression (MLR) and autoregressive integrated moving average
(ARIMA) models. A validation of the simulations over the 2014 period
showed the utility of the ANN model coupled with satellite-derived data
as an advancement over deterministic models that wholly rely on
ground-based variables to simulate the solar radiation [22,23,30,137].
This study, which can be adapted to a location were satellite footprint is
available, is an advancement over TMY datasets [58,59] that provide
quantitative estimates of solar radiation mostly limited to certain
ground-based measurement stations.
In spite of the superior performance, it is perceived that the ANN
model based on satellite-derived data should be trialed over a much
larger spatial area than investigated in this pilot study, as this would be
of interest to solar engineers who require quantitative evidence for
developing sustainable energy projects over continental-scales. An
application of satellite data with a potential to provide instantaneous
pixel values of solar radiation with high resolution (up to 5 km) and
hourly temporal coverage [67] can help expand the scope, relevance
and practical utility of the solar forecasting models. As an additional
merit, satellites also observe areas at different wavelengths within small
period and pixel resolution [60,61] and the estimated irradiation is
more accurate than interpolation techniques with distance to stations
that are greater than 34 km for hourly irradiation and 50 km for daily
irradiation [138]. In this paper, the ANN model coupled with satellite-
derived data was diagnostically evaluated to yield less than 6.0%
uncertainty based on root mean square error and high statistical
correlation between measured and forecasted solar radiation
(r≈0.961) averaged over cross-validation sites (Tables 7, 8). As the
forecasting error achieved was less than 10%, this accords to excellent
performance [133]. In a practical sense, the improved version of the
ANN model can be adopted for justifying whether or not solar energy
investments in a remote region are made where meteorological stations
may be absent. Consequently, one may also explore the utility of an
ANN model for site selection purposes in areas that are eyed for solar
energy investments, and addressing solar energy infrastructure and
developmental constraints [6,7,136].
In spite of the foresaid merits, our pilot study has shortcomings
create opportunity for follow-up work. While we have adopted the
MODIS data over a relatively small region in Queensland, a practical
implementation of the ANN model requires its validation with alter-
native datasets for a wider spatial domain. Follow-up studies can also
use Australian Bureau of Meteorology's Geostationary Meteorological
and MTSAT satellite data operated by the Japan Meteorological Agency
and the GOES-9 satellite of National Oceanographic & Atmospheric
Administration for Japan Meteorological Agency [6,7]. In principle,
Fig. 9. Bar graph of the relative forecasting error (RRMSE, %) for most (Group 6, Charleville) and least accurate (Group 4, Blackall) stations.
Fig. 10. Bar graphs of relative root mean square error (RRMSE; %) for different seasons
(DJF=summer; MAM=autumn; JJA=winter; SON=spring).
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
844

18. satellites are able to yield hourly variables over a grid resolution of
0.05° ×0.05° [136]. Additionally, some research has shown that
reanalysis data products (e.g., ERA-interim reanalysis of European
Centre for Medium Range Weather Forecasts) can be utilised when
satellite and station irradiance data are not available [139]. Generally,
the ERA-interim data is of good temporal resolution since the variables
are available 6 hourly from 1979–present at the highest grid resolution
of 1.5°×.5° [140,141].
The identification of alternatives predictor data sources provide an
opportunity to combine them in such a way that the performance of the
model is better than a model with just the meteorological, satellite or
reanalysis on its own [6,7]. The optimisation of models is important as
most studies only rely on meteorological irradiance to generate solar
estimates over vast topographical and non-homogenous terrains
[67,71,124,136]. The scope of this paper was limited in terms of
forecasting horizon as we have validated the ANN model for long-term
periods. A follow-up study could investigate the model's skill for better
temporal resolution (e.g., sub-hourly, hourly and daily) with improved
pre-satellite irradiance estimates, sunshine durations and cloud cover
[124]. Real-time implementation especially for consumer power grids
requires quantitative data for sub-hourly, hourly and daily forecasts.
Therefore, the ANN model coupled with satellite-derived data needs to
be validated for smaller timescales. In spite of coarse temporal
resolution, the ANN model has set a promising pathway for alternative
predictors with better resolution to be explored over a larger con-
tinental scales than those investigated in this pilot study.
It is noted that we have employed a set of 21 regional sites in
Queensland, of which 14 have been utilised in model development and/
or training and remainder (seven) for cross-validation (Fig. 2). A
‘universal’ model was constructed to forecast G at cross-validation
sites. It is noteworthy that LST data used for cross-validation sites were
not used in developing the model (Table 1), yet, a good accuracy was
attained (Tables 6–8). The notion of a ‘universal’ model for forecasting
at sites closest in distance to the training site(s) show the spatial
relevance of our approach in terms of its application at nearby site(s)
where predictor data are not unavailable. Indeed, some research (e.g.,
[138,142]) that compared hourly site/time global irradiances obtained
via extrapolation and interpolation of ground sites obtained by
processing satellite images with statistical model found that for hourly
data, satellite estimated solar radiation becomes more accurate than a
local ground station if the distance from the station exceeds 34 km,
down from a previously reported 50 km range for daily irradiances and
for a regularly spaced network, the breakeven distance is estimated to
be 50 km. This shows that satellite-derived irradiance can surpass site/
time specific accuracy achievable with geostationary satellites.
Considering this, accuracy of an ANN model applied to nearby sites
where models were trained, is expected to scale with the distance and
predictive features at the cross-validation sites. A follow-up study
should investigate the spatial relevance of model in terms of how the
predictive features at cross-validation site could influence the accuracy.
In doing so, one must consider the nature and source of errors at these
sites emerging from satellite-determination of cloud thickness and
atmospheric turbidity, etc.
There is no doubt that, our paper found good accuracy with LST
data, as evidenced in an error magnitude of less than 10% based on
root mean square error and over 96% correlation between observed
and forecasted G (Table 7). However, more exhaustive list of predictors
based on MODIS and other products (e.g., Geostationary
Meteorological Satellite, MTSAT and GOES-9 satellite) could be
utilised. In follow-up study, one could incorporate an exhaustive list
of carefully screened predictors. Atmospheric properties such cloud
cover (including optical thickness, effective particle radius, thermo-
dynamic phase, cloud top altitude, temperature, cirrus reflectance),
precipitable water, and temperature profiles can be incorporated to
establish the relevant inputs [81,84,88]. To increase predictors and add
features or predictive patterns into the model, reanalysis products
[140,141] which are yet to be explored for solar modelling in Australia,
can be explored.
It is acknowledged that, in this paper, we utilised a single predictor
(i.e., LST) that in fact, did not have a pre-processing algorithm to pre-
select the predictive features. Data-driven models encounter challenges
with non-stationarity, jumps, periodicity and stochastic behaviour in
input variables [143]. Despite the flexibility of the ANN model in
handling non-linear data, the accuracy is affected by chaotic behaviour
in training variables if features prevail over a wide range of frequencies
(e.g., hourly, daily or seasonal scale) [144,145]. In case of ‘daily cycle’
or ‘seasonality’, the absence of an input-output data pre-post-proces-
sing scheme be challenging in attaining an optimum model. In this
paper we utilised LST without identifying its underlying frequencies,
therefore, a hybrid model with data pre-processing technique based on
wavelet transformation algorithm can be used to obviate this short-
coming [15]. Decomposition of predictors in high (approximation) and
low frequency (detail) subset can enhance the model's responsiveness
to predictive features [146]. Similar observation was made in a study
on solar forecasting for metropolitan and regional sites [15] where a
wavelet-based hybrid support vector machine model was more precise
relative to a support vector machine model. Research elsewhere
support similar deduction [132,143].
In order to broaden the scope, predictors from satellite-derived
product (e.g., cloud cover) and reanalysis products (e.g., wind fields)
related to solar radiation can be utilised with a non-linear feature
selection algorithm that assimilates the relevant features. Statistical
methods such as iterative input selection (IIS) [147], bootstrap rank-
ordered conditional mutual information (broCMI) [148] and evolu-
tionary methods such as grouping genetic algorithm (GGA) [149] and
coral reef optimisation (CRO) [150,151] can be applied to rank
predictor variables in context of a wavelet-hybrid model. Although
hybrid models with feature selection algorithm is known to yield good
accuracy in energy applications (e.g., [149–151]), it was beyond the
scope of this paper and could form the subject of another independent
study.
6. Summary
This paper established the preciseness of artificial neural network
(ANN) coupled with satellite-derived land-surface temperature (LST)
as predictor for forecasting solar radiation for regional Queensland. A
limited set of LST data from 2012 to 2014 for 21 stations was utilised,
partitioned in seven groups with two stations (2012–2013) in each
group for development of model and the third for cross-validation over
2014 period. To enhance the preciseness of the ANN model, several
training algorithms and hidden transfer functions were trialed such
that the Levenberg-Marquardt training algorithm and logarithmic
sigmoid function was finally adopted for forecasting G. To meet the
objectives (Section 1.0), ANN model was benchmarked with multiple
linear regression (MLR) and autoregressive moving average (ARIMA)
models. The findings have been enumerated below.
1. For monthly horizons, different lagged combinations of LST as
primary predictor variable was required to attain an accurate ANN
model, albeit with a significant degree of variability over different
study sites. By contrast, the MLR model required only the LST data
with zero lagged data whereas the ARIMA model was developed
using the G data at the cross-validation study sites.
2. The performance of the ANN model in terms of its root mean square
error and mean absolute error in cross-validation period was
dramatically lower than the MLR and ARIMA model with average
values of RMSE≈1.23 MJ m−2
, 1.90 MJ m−2
and 1.94 MJ m−2
,
whereas the MAE was 1.02 MJ m−2
, 1.65 MJ m−2
and 1.53 MJ m−2
,
respectively. The normalized performance metrics yielded a
Willmott's Index of 0.954 (ANN) compared with 0.899 (MLR) and
0.848 (ARIMA), and the relative RMSE was only 5.85% (ANN)
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
845

19. compared with 10.23% (MLR) and 9.60% (ARIMA) when averaged
for all cross-validation sites. Similarly, better performance of ANN
over MLR and ARIMA models were attained for seasonal forecast-
ing.
3. By an analysis of relative percentage error between different study
sites, a significant degree of geographic variability in model's
accuracy was evident with the optimal performance obtained for
Group 7 (Blackall station) and the worst for Group 7 (St George
Airport station) with the ANN model. Although the same station
attained the best results generated by the MLR model, the worst
performance was attained for Group 2 (Emerald Airport), and both
of these remained inferior to the ANN model performance. Clearly, a
strong signature based on geographic location of stations and the
particular data-driven model was evident.
4. On the seasonal basis, the accuracy of the ANN model was the lowest
for the summer (DJF) period followed by similar levels for the
autumn (MAM) and winter (JJA) and the highest for spring (SON)
season and these exceeded the accuracy of both the MLR and the
ARIMA model in terms of all performance score metrics in the tested
period.
5. When global solar radiation was forecasted by means of a persis-
tence-type model with the autoregressive moving average algorithm
(ARIMA) and ground-based measured G as its predictor, the
accuracy for monthly and seasonal predictions was significantly
inferior for all cross-validation sites, with an overall site-averaged
precision level of 50% to that of the ANN model.
In synopsis, this pilot study advocates the possibility of incorporat-
ing satellite-derived data to enhance the predictive accuracy of the solar
radiation forecasts. Moreover, the use of remotely-sensed (satellite)
data can surpass the benefit of TMY (measured) dataset [58,59] for
solar energy assessment, especially in remote regions, where TMY data
are not available. The potential of utilizing satellite data for solar
prediction that generally presents good spatial resolution compared to
the sparsely located ground-based measurement data opens a new
opportunity for its utility in data-driven modelling and solar energy
mapping in Australia. Although this paper has provided baseline
relevance of an ANN model, the testing of the model for shorter
timescales (e.g., hourly) and a wider range of remote and regional sites
needs to be performed to enhance its practicality in solar energy
modelling. This study set the foundation for the potential of using more
extensive predictor data products such as satellite data merged with
reanalysis and ground-based products, where possible for solar energy
modelling.
Acknowledgments
The paper utilized SILO data from the Department of Environment
and Resource Management and the MODIS satellite data from National
Aeronautics and Space Administration that are duly acknowledged.
USQ Academic Division (2016) funded Dr R C Deo through “Academic
Development and Outside Studies Program (ADOSP, July 2016 –
January 2017)” to collaborate with Dr M Sahin (Siirt University,
Turkey). Special acknowledgement to both reviewers whose comments
have improved the final manuscript.
References
[1] Solangi K, Islam M, Saidur R, Rahim N, Fayaz H. A review on global solar energy
policy. Renew Sustain Energy Rev 2011;15:2149–63.
[2] Yusaf T, Goh S, Borserio J. Potential of renewable energy alternatives in Australia.
Renew Sustain Energy Rev 2011;15:2214–21.
[3] Beath AC. Industrial energy usage in Australia and the potential for implemen-
tation of solar thermal heat and power. Energy 2012;43:261–72.
[4] Geoscience Australia . Australian energy resource assessment: Department of
resources, Energy and tourism, geoscience Australia. Aust Bur Agric Resour Econ
2010.
[5] Clean Energy Australia. Clean Energy Council Report. Clean Energy Council
(〈https://www.cleanenergycouncil.org.au/dam/cec/policy-and-advocacy/reports/
2015/Clean-Energy-Australia-Report-2014.pdf〉). p. 80pp; 2014.
[6] Davy RJ, Troccoli A. Interannual variability of solar energy generation in
Australia. Sol Energy 2012;86:3554–60.
[7] Davy RJ, Huang JR, Troccoli A. Improving the accuracy of hourly satellite-derived
solar irradiance by combining with dynamically downscaled estimates using
generalised additive models. Sol Energy 2016;135:854–63.
[8] ABARE . Australian energy projections to 2029–2030. Australian Bureau of
Agricultural and Resource Economics; 2010.
[9] Media-Release . Certainty and growth for renewable energy. Canberra [Web
http://www.environment.gov.au/minister/hunt/2015/pubs/mr20150623.pdf].
ACT: Australian Government (Ministry of Environment & Ministry of Industry
and Science); 2015.
[10] Haidar AM, Muttaqi K, Sutanto D. Smart Grid and its future perspectives in
Australia. Renew Sustain Energy Rev 2015;51:1375–89.
[11] Bahadori A, Nwaoha C. A review on solar energy utilisation in Australia. Renew
Sustain Energy Rev 2013;18:1–5.
[12] Ahmad MJ, Tiwari G. Solar radiation models—A review. Int J Energy Res
2011;35:271–90.
[13] Ahmad A, Anderson T. Global solar radiation prediction using artificial neural
network models for New Zealand. Solar 2014 Conference & Expo; 2014.
[14] Koca A, Oztop HF, Varol Y, Koca GO. Estimation of solar radiation using artificial
neural networks with different input parameters for Mediterranean region of
Anatolia in Turkey. Expert Syst Appl 2011;38:8756–62.
[15] Deo RC, Wen X, Feng Q. A wavelet-coupled support vector machine model for
forecasting global incident solar radiation using limited meteorological dataset.
Appl Energy 2016;168:568–93.
[16] Florens M, Cairns IH, Knock S, Robinson P. Data‐driven solar wind model and
prediction of type II bursts. Geophys Res Lett 2007:34.
[17] Angstrom A. Solar and terrestrial radiation. Report to the international commis-
sion for solar research on actinometric investigations of solar and atmospheric
radiation. Q J R Meteorol Soc 1924;50:121–6.
[18] Liu BY, Jordan RC. The interrelationship and characteristic distribution of direct,
diffuse and total solar radiation. Sol Energy 1960;4:1–19.
[19] Orgill J, Hollands K. Correlation equation for hourly diffuse radiation on a
horizontal surface. Sol Energy 1977;19:357–9.
[20] Iqbal M. Prediction of hourly diffuse solar radiation from measured hourly global
radiation on a horizontal surface. Sol Energy 1980;24:491–503.
[21] Spencer J. A comparison of methods for estimating hourly diffuse solar radiation
from global solar radiation. Sol Energy 1982;29:19–32.
[22] Boland J, Scott L, Luther M. Modelling the diffuse fraction of global solar radiation
on a horizontal surface. Environmetrics 2001;12:103–16.
[23] Boland J, Ridley B, Brown B. Models of diffuse solar radiation. Renew Energy
2008;33:575–84.
[24] Ögelman H, Ecevit A, Tasdemiroǧlu E. A new method for estimating solar
radiation from bright sunshine data. Sol Energy 1984;33:619–25.
[25] Samuel T. Estimation of global radiation for Sri Lanka. Sol Energy
1991;47:333–7.
[26] Ampratwum DB, Dorvlo AS. Estimation of solar radiation from the number of
sunshine hours. Appl Energy 1999;63:161–7.
[27] Almorox Jy, Hontoria C. Global solar radiation estimation using sunshine
duration in Spain. Energy Convers Manag 2004;45:1529–35.
[28] Erbs D, Klein S, Duffie J. Estimation of the diffuse radiation fraction for hourly,
daily and monthly-average global radiation. Sol Energy 1982;28:293–302.
[29] Reindl DT, Beckman WA, Duffie JA. Diffuse fraction correlations. Sol Energy
1990;45:1–7.
[30] Huang J, Korolkiewicz M, Agrawal M, Boland J. Forecasting solar radiation on an
hourly time scale using a Coupled AutoRegressive and Dynamical System
(CARDS) model. Sol Energy 2013;87:136–49.
[31] Kaltiya M, Abubakar M, Itodo I. Prediction of Global Solar Radiation Using
Angstrom-Page Equation Model for Makurdi Benue State, Nigeria. Volume 3 Issue
8–August 2014. 2014:145.
[32] Iqbal M. An introduction to solar radiation, 390. Toronto: Academic Press; 1983.
[33] Gueymard CA. Progress in direct irradiance modeling and validation. Solar 2010
Conf, Phoenix, AZ, American Solar Energy Soc2010.
[34] Gueymard C. Critical analysis and performance assessment of clear sky solar
irradiance models using theoretical and measured data. Sol Energy
1993;51:121–38.
[35] Şen Z. Angström equation parameter estimation by unrestricted method. Sol
Energy 2001;71:95–107.
[36] Santamouris M, Mihalakakou G, Psiloglou B, Eftaxias G, Asimakopoulos D.
Modeling the global solar radiation on the Earth's surface using atmospheric
deterministic and intelligent data-driven techniques. J Clim 1999;12:3105–16.
[37] Yorukoglu M, Celik AN. A critical review on the estimation of daily global solar
radiation from sunshine duration. Energy Convers Manag 2006;47:2441–50.
[38] Mohammadi K, Shamshirband S, Anisi MH, Alam KA, Petković D. Support vector
regression based prediction of global solar radiation on a horizontal surface.
Energy Convers Manag 2015;91:433–41.
[39] Olatomiwa L, Mekhilef S, Shamshirband S, Mohammadi K, Petković D, Sudheer C.
A support vector machine–firefly algorithm-based model for global solar radiation
prediction. Sol Energy 2015;115:632–44.
[40] Kumar R, Aggarwal R, Sharma J. Comparison of regression and artificial neural
network models for estimation of global solar radiations. Renew Sustain Energy
Rev 2015;52:1294–9.
[41] Liberti L, Kucherenko S. Comparison of deterministic and stochastic approaches
to global optimization. Int Trans Oper Res 2005;12:263–85.
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
846

20. [42] Bocco M, Willington E, Arias EM. Comparison of regression and neural networks
models to estimate solar radiation. Agric técnica 2010;70:428–35.
[43] Şahin M, Kaya Y, Uyar M, Yıldırım S. Application of extreme learning machine for
estimating solar radiation from satellite data. Int J Energy Res 2014;38:205–12.
[44] McCulloch WS, Pitts W. A logical calculus of the ideas immanent in nervous
activity. Bull Math Biophys 1943;5:115–33.
[45] Abuella M, Chowdhury B. Solar power probabilistic forecasting by using multiple
linear regression analysis. Southeast 2015: IEEE 2015:1–5.
[46] Wang G, Su Y, Shu L. One-day-ahead daily power forecasting of photovoltaic
systems based on partial functional linear regression models. Renew Energy
2016;96:469–78.
[47] Kaytez F, Taplamacioglu MC, Cam E, Hardalac F. Forecasting electricity con-
sumption: a comparison of regression analysis, neural networks and least squares
support vector machines. Int J Electr Power Energy Syst 2015;67:431–8.
[48] Nury AH, Hasan K, Alam MJB. Comparative study of wavelet-ARIMA and
wavelet-ANN models for temperature time series data in northeastern
Bangladesh. J King Saud Univ-Sci 2015.
[49] Şahin M, Kaya Y, Uyar M. Comparison of ANN and MLR models for estimating
solar radiation in Turkey using NOAA/AVHRR data. Adv Space Res
2013;51:891–904.
[50] Deo RC, Şahin M. An extreme learning machine model for the simulation of
monthly mean streamflow water level in eastern Queensland. Environ Monit
Assess 2016. http://dx.doi.org/10.1007/s10661-016-5094-9.
[51] Deo RC, Tiwari MK, Adamowski JF, Quilty MJ. Forecasting effective drought
index using a wavelet extreme learning machine (W-ELM) model. Stoch Environ
Res Risk Assess 2016:1–30.
[52] Deo RC, Şahin M. Application of the extreme learning machine algorithm for the
prediction of monthly Effective Drought Index in eastern Australia. Atmos Res
2015;153:512–25.
[53] Salcedo-Sanz S, Deo RC, Carro-Calvo L, Saavedra-Moreno B. Monthly prediction
of air temperature in Australia and New Zealand with machine learning
algorithms. Theor Appl Climatol 2015. http://dx.doi.org/10.1007/s00704-015-
1480-4.
[54] Şenkal O. Solar radiation and precipitable water modeling for Turkey using
artificial neural networks. Meteorol Atmos Phys 2015:1–8.
[55] Khatib T, Elmenreich W. A model for hourly solar radiation data generation from
daily solar radiation data using a Generalized regression artificial neural network.
Int J Photo 2015:2015.
[56] Linares-Rodriguez A, Ruiz-Arias JA, Pozo-Vazquez D, Tovar-Pescador J. An
artificial neural network ensemble model for estimating global solar radiation
from Meteosat satellite images. Energy 2013;61:636–45.
[57] Rahimikhoob A, Behbahani S, Banihabib M. Comparative study of statistical and
artificial neural network's methodologies for deriving global solar radiation from
NOAA satellite images. Int J Clim 2013;33:480–6.
[58] Morrison GL, Litvak A. Condensed solar radiation data base for Australia:
Citeseer; 1988.
[59] Walsh PJ, Spencer J, Munro M. An Australian climatic data bank for use in the
estimation of building energy use: Commonwealth Scientific and Industrial
Research Oganization, Division of Building Research; 1983.
[60] Şenkal O. Modeling of solar radiation using remote sensing and artificial neural
network in Turkey. Energy 2010;35:4795–801.
[61] Şenkal O, Kuleli T. Estimation of solar radiation over Turkey using artificial neural
network and satellite data. Appl Energy 2009;86:1222–8.
[62] Kant Y, Badarinath K. Studies on land surface temperature over heterogeneous
areas using AVHRR data. Int J Remote Sens 2000;21:1749–56.
[63] Cano D, Monget J-M, Albuisson M, Guillard H, Regas N, Wald L. A method for the
determination of the global solar radiation from meteorological satellite data. Sol
Energy 1986;37:31–9.
[64] Qin J, Chen Z, Yang K, Liang S, Tang W. Estimation of monthly-mean daily global
solar radiation based on MODIS and TRMM products. Appl Energy
2011;88:2480–9.
[65] Rahimikhoob A. Estimating global solar radiation using artificial neural network
and air temperature data in a semi-arid environment. Renew Energy
2010;35:2131–5.
[66] Elminir HK, Azzam YA, Younes FI. Prediction of hourly and daily diffuse fraction
using neural network, as compared to linear regression models. Energy
2007;32:1513–23.
[67] Troccoli A. Integrated Solar Radiation Data Sources over Australia Final report:
project results and lessons learnt. CSIRO ed: Commonwealth Scientific and
Industrial Research Organisation and Australian Renewable Energy Agency; 2015.
p. 37.
[68] Baniyounes A, Liu G, Rasul M, Khan MMK. Review on renewable energy potential
in Australian subtropical region (Central and North Queensland). Advanced
Materials Research: Trans Tech Publ; 2012. p. 3846–55.
[69] Elliston B, Diesendorf M, MacGill I. Simulations of scenarios with 100% renew-
able electricity in the Australian National Electricity Market. Energy Policy
2012;45:606–13.
[70] Rayner DP. New Australian Daily Historical Climate Surfaces Using CLIMARC:
Technical Report: Department of Natural Resources, Mines and Energy; 2004.
[71] Muirhead I, Grant I, Rikus L, Gregory P, Scott G. Progress in Australian Solar
Resource Assessment. Solar2010, In: Proceedings of the 48th AuSES Annual
Conference; 2010.
[72] Şahin M. Modelling of air temperature using remote sensing and artificial neural
network in Turkey. Adv Space Res 2012;50:973–85.
[73] Saadat H, Adamowski J, Bonnell R, Sharifi F, Namdar M, Ale-Ebrahim S. Land use
and land cover classification over a large area in Iran based on single date analysis
of satellite imagery. ISPRS J Photogramm Remote Sens 2011;66:608–19.
[74] Marj AF, Meijerink AM. Agricultural drought forecasting using satellite images,
climate indices and artificial neural network. Int J Remote Sens
2011;32:9707–19.
[75] Carter D, Curran PJ. Principles of remote sensing. JSTOR 1985.
[76] Pelton JN, Madry S, Camacho-Lara S. Handbook of satellite applications. Springer
Publishing Company, Incorporated; 2012.
[77] Price JC. Land surface temperature measurements from the split window channels
of the NOAA 7 Advanced Very High Resolution Radiometer. J Geophys Res:
Atmos 1984;89:7231–7.
[78] Becker F, Li Z-L. Towards a local split window method over land surfaces. Remote
Sens 1990;11:369–93.
[79] Ulivieri C, Castronuovo M, Francioni R, Cardillo A. A split window algorithm for
estimating land surface temperature from satellites. Adv Space Res
1994;14:59–65.
[80] Kerenyi J, Putsay M. Investigation of land surface temperature algorithms using
NOAA AVHRR images. Adv Space Res 2000;26:1077–80.
[81] Wan Z. MODIS land-surface temperature algorithm theoretical basis document
(LST ATBD). Institute for Computational Earth System Science, Santa Barbara.
1999;75.
[82] Wan Z, Zhang Y, Zhang Q, Li Z-L. Quality assessment and validation of the
MODIS global land surface temperature. Int J Remote Sens 2004;25:261–74.
[83] Wan Z, Zhang Y, Zhang Q, Li Z-l. Validation of the land-surface temperature
products retrieved from Terra Moderate Resolution Imaging Spectroradiometer
data. Remote Sens Environ 2002;83:163–80.
[84] MODIS . MODIS (Moderate-Resolution Imaging Spectroradiometer [In: NASA,
editor. In the Internet]. NASA; 2016, [In: NASA, editor. In the Internet] 〈http://
modis.gsfc.nasa.gov/about/media/modis_brochure.pdf:〉.
[85] Benali A, Carvalho A, Nunes J, Carvalhais N, Santos A. Estimating air surface
temperature in Portugal using MODIS LST data. Remote Sens Environ
2012;124:108–21.
[86] Wan Z, Dozier J. A generalized split-window algorithm for retrieving land-surface
temperature from space. IEEE Trans Geosci Remote Sens 1996;34:892–905.
[87] Coll C, Caselles V, Galve JM, Valor E, Niclos R, Sánchez JM, et al. Ground
measurements for the validation of land surface temperatures derived from
AATSR and MODIS data. Remote Sens Environ 2005;97:288–300.
[88] Wang W, Liang S, Meyers T. Validating MODIS land surface temperature products
using long-term nighttime ground measurements. Remote Sens Environ
2008;112:623–35.
[89] Abbot J, Marohasy J. Application of artificial neural networks to rainfall
forecasting in Queensland, Australia. Adv Atmos Sci 2012;29:717–30.
[90] Keskin ME, Terzi Ö. Artificial neural network models of daily pan evaporation. J
Hydrol Eng 2006;11:65–70.
[91] Adamowski J, Fung Chan H, Prasher SO, Ozga‐Zielinski B, Sliusarieva A.
Comparison of multiple linear and nonlinear regression, autoregressive integrated
moving average, artificial neural network, and wavelet artificial neural network
methods for urban water demand forecasting in Montreal, Canada. Water Resour
Res 2012:48.
[92] Mekanik F, Imteaz M, Gato-Trinidad S, Elmahdi A. Multiple regression and
Artificial Neural Network for long-term rainfall forecasting using large scale
climate modes. J Hydrol 2013;503:11–21.
[93] Deo RC, Şahin M. Application of the Artificial Neural Network model for
prediction of monthly Standardized Precipitation and Evapotranspiration Index
using hydrometeorological parameters and climate indices in eastern Australia.
Atmos Res 2015;161–162:65–81.
[94] Kim T-W, Valdés JB. Nonlinear model for drought forecasting based on a
conjunction of wavelet transforms and neural networks. J Hydrol Eng
2003;8:319–28.
[95] Huang H-Y. Unified approach to quadratically convergent algorithms for function
minimization. J Optim Theory Appl 1970;5:405–23.
[96] Fletcher R, Reeves CM. Function minimization by conjugate gradients. Comput J
1964;7:149–54.
[97] Hestenes MR, Stiefel E. Methods of conjugate gradients for solving linear systems;
1952.
[98] Ali S, Smith KA. On learning algorithm selection for classification. Appl Soft
Comput 2006;6:119–38.
[99] Dennis JE, Jr, Schnabel RB. Numerical methods for unconstrained optimization
and nonlinear equations. Siam; 1996.
[100] Marquardt DW. An algorithm for least-squares estimation of nonlinear para-
meters. J Soc Ind Appl Math 1963;11:431–41.
[101] HariKumar R, Vasanthi N, Balasubramani M. Performance analysis of artificial
neural networks and statistical methods in classification of oral and breast cancer
stages. Int J Soft Comput Eng (IJSCE) 2009;Volume:2.
[102] Pham D, Sagiroglu S. Training multilayered perceptrons for pattern recognition: a
comparative study of four training algorithms. Int J Mach Tools Manuf
2001;41:419–30.
[103] Anusree K, Binu G. Analysis of training functions in a Biometric System. Int J
Recent Innov Trends Comput Commun 2014;2:150–4.
[104] Avriel M. Nonlinear programming: analysis and methods: Courier Corporation;
2003.
[105] Møller MF. A scaled conjugate gradient algorithm for fast supervised learning.
Neural Netw 1993;6:525–33.
[106] Powell MJ. Restart procedures for the conjugate gradient method. Math Program
1977;12:241–54.
[107] Riedmiller M, Braun H. A direct adaptive method for faster backpropagation
learning: The RPROP algorithm. Neural Networks, 1993, IEEE International
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
847

21. Conference on: IEEE; 1993. p. 586–91.
[108] Battiti R. First-and second-order methods for learning: between steepest descent
and Newton's method. Neural Comput 1992;4:141–66.
[109] MacKay DJ. Probable networks and plausible predictions-a review of practical
Bayesian methods for supervised neural networks. Netw: Comput Neural Syst
1995;6:469–505.
[110] MacKay DJ. Bayesian interpolation. Neural Comput 1992;4:415–47.
[111] Vogl T, Mangis J, Rigler A, Zink W, Alkon D. Accelerating the convergence of the
backpropagation method. Biol Cybern 1988;59:257–63.
[112] Montgomery DC, Peck EA, Vining GG. Introduction to linear regression analysis.
John Wiley & Sons; 2012.
[113] Draper N, Smith H. Applied regression analysis. New York: John Wiley; 1981. p.
709.
[114] Civelekoglu G, Yigit N, Diamadopoulos E, Kitis M. Prediction of bromate
formation using multi-linear regression and artificial neural networks. Ozone: Sci
Eng 2007;29:353–62.
[115] Apaydın A, Kutsal A, Atakan C. Ankara. The Statistics in practice. Hacettepe Pub.;
1994.
[116] Ozdamar K. The Statistical Data Analysis with Software Packages. Kaan press,
Eskisehir; 2004.
[117] Box GE, Jenkins GM. Time series analysis: forecasting and control, revised ed.
Holden-Day; 1976.
[118] Pappas SS, Ekonomou L, Karamousantas DC, Chatzarakis G, Katsikas S, Liatsis P.
Electricity demand loads modeling using AutoRegressive Moving Average
(ARMA) models. Energy 2008;33:1353–60.
[119] Martin NJ, Rice JL. Developing renewable energy supply in Queensland,
Australia: a study of the barriers, targets, policies and actions. Renew Energy
2012;44:119–27.
[120] Jeffrey SJ, Carter JO, Moodie KB, Beswick AR. Using spatial interpolation to
construct a comprehensive archive of Australian climate data. Environ Model
Softw 2001;16:309–30.
[121] BOM. Australian Data Archive for Meteorology for Meteorology. Melbourne,
Victoria, 3001, Australia: National Climate Centre, GPO Box 1289 (Last Accessed
08-September-2015); 2015.
[122] Beesley C, Frost A, Zajaczkowski J. A comparison of the BAWAP and SILO
spatially interpolated daily rainfall datasets. 18th World IMACS/MODSIM
Congress, Cairns, Australia2009. p. 17.
[123] Tozer C, Kiem A, Verdon-Kidd D. On the uncertainties associated with using
gridded rainfall data as a proxy for observed. Hydrol Earth Syst Sci
2012;16:1481–99.
[124] Zajaczkowski J, Wong K, Carter J. Improved historical solar radiation gridded
data for Australia. Environ Model Softw 2013;49:64–77.
[125] Hsu C-W, Chang C-C, Lin C-J. A practical guide to support vector classification;
2003.
[126] ASCE. Criteria for Evaluation of Watershed Models. Journal of Irrigation and
Drainage Engineering. 1993;119:429-42.
[127] Deo RC, Kisi O, Singh VP. Drought forecasting in eastern Australia using
multivariate adaptive regression spline, least square support vector machine and
M5Tree model. Atmos Res. 2017;184:149–75.
[128] Dawson CW, Abrahart RJ, See LM. HydroTest: a web-based toolbox of evaluation
metrics for the standardised assessment of hydrological forecasts. Environ Model
Softw 2007;22:1034–52.
[129] Legates DR, McCabe GJ. Evaluating the use of “goodness‐of‐fit” Measures in
hydrologic and hydroclimatic model validation. Water Resour Res
1999;35:233–41.
[130] Willmott CJ. On the validation of models. Phys Geogr 1981;2:184–94.
[131] Willmott CJ. On the evaluation of model performance in physical geography.
Spatial statistics and models. Springer; 1984. p. 443–60.
[132] Mohammadi K, Shamshirband S, Tong CW, Arif M, Petković D, Ch S. A new
hybrid support vector machine–wavelet transform approach for estimation of
horizontal global solar radiation. Energy Convers Manag 2015;92:162–71.
[133] Ertekin C, Yaldiz O. Comparison of some existing models for estimating global
solar radiation for Antalya (Turkey). Energy Convers Manag 2000;41:311–30.
[134] Willmott CJ, Robeson SM, Matsuura K. A refined index of model performance. Int
J Climatol 2012;32:2088–94.
[135] Willmott CJ. Some comments on the evaluation of model performance. Bull Am
Meteorol Soc 1982;63:1309–13.
[136] Blanksby C, Bennett D, Langford S. Improvement to an existing satellite data set
in support of an Australia solar atlas. Sol Energy 2013;98:111–24.
[137] Ridley B, Boland J, Lauret P. Modelling of diffuse solar fraction with multiple
predictors. Renew Energy 2010;35:478–83.
[138] Perez R, Seals R, Zelenka A. Comparing satellite remote sensing and ground
network measurements for the production of site/time specific irradiance data. Sol
Energy 1997;60:89–96.
[139] Bojanowski JS, Vrieling A, Skidmore AK. A comparison of data sources for
creating a long-term time series of daily gridded solar radiation for Europe. Sol
Energy 2014;99:152–71.
[140] Kalnay E, Kanamitsu M, Kistler R, Collins W, Deaven D, Gandin L, et al. The
NCEP/NCAR 40-year reanalysis project. Bull Am Meteorol Soc 1996;77:437–71.
[141] Dee D, Uppala S, Simmons A, Berrisford P, Poli P, Kobayashi S, et al. The era‐
interim reanalysis: configuration and performance of the data assimilation
system. Q J R Meteorol Soc 2011;137:553–97.
[142] Zelenka A, Perez R, Seals R, Renné D. Effective accuracy of satellite-derived hourly
irradiances. Theor Appl Climatol 1999;62:199–207.
[143] Cao S, Cao J. Forecast of solar irradiance using recurrent neural networks
combined with wavelet analysis. Appl Therm Eng 2005;25:161–72.
[144] Tiwari MK, Chatterjee C. Development of an accurate and reliable hourly flood
forecasting model using wavelet–bootstrap–ANN (WBANN) hybrid approach. J
Hydrol 2010;394:458–70.
[145] Rathinasamy M, Adamowski J, Khosa R. Multiscale streamflow forecasting using
a new Bayesian Model Average based ensemble multi-wavelet Volterra nonlinear
method. J Hydrol 2013;507:186–200.
[146] Nourani V, Baghanam AH, Adamowski J, Kisi O. Applications of hybrid wavelet–
Artificial Intelligence models in hydrology: a review. J Hydrol 2014;514:358–77.
[147] Galelli S, Castelletti A. Tree‐based iterative input variable selection for hydro-
logical modeling. Water Resour Res 2013;49:4295–310.
[148] Quilty J, Adamowski J, Khalil B, Rathinasamy M. Bootstrap rank‐ordered
conditional mutual information (broCMI)—A nonlinear input variable selection
method for water resources modeling. Water Resour Res 2016.
[149] Cornejo-Bueno L, Nieto-Borge J, García-Díaz P, Rodríguez G, Salcedo-Sanz S.
Significant wave height and energy flux prediction for marine energy applications:
a grouping genetic algorithm–Extreme Learning Machine approach. Renew
Energy 2016;97:380–9.
[150] Salcedo-Sanz S, Pastor-Sánchez A, Prieto L, Blanco-Aguilera A, García-Herrera R.
Feature selection in wind speed prediction systems based on a hybrid coral reefs
optimization–Extreme learning machine approach. Energy Convers Manag
2014;87:10–8.
[151] Salcedo-Sanz S, Casanova-Mateo C, Pastor-Sánchez A, Sánchez-Girón M. Daily
global solar radiation prediction based on a hybrid Coral Reefs Optimization–
Extreme Learning Machine approach. Sol Energy 2014;105:91–8.
R.C. Deo, M. Şahin Renewable and Sustainable Energy Reviews 72 (2017) 828–848
848
