The footswitch of the Constellation vision system controls functional operations and has several parts: a handle, treadle, and horizontal/vertical and heel switches on the right and left sides. The treadle controls a parameter like vacuum proportionally based on depression. The switches control functions like infusion, cut, vacuum, diathermy, and reflux. It also navigates between steps during phacoemulsification.

1. FOOTSWITCH OF THE CONSTELLATION VISION SYSTEM
Dr. Arup Krishna Choudhury
FCPS, DO, MBBS
Vitreo-Retina Fellow ( IIEI&H)

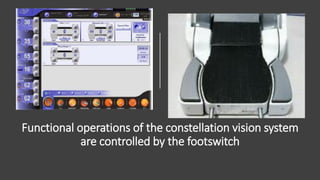

2. Functional operations of the constellation vision system
are controlled by the footswitch

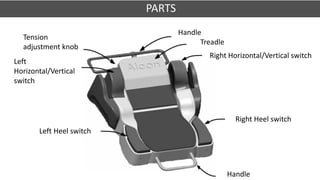

3. Handle
Treadle
Right Horizontal/Vertical switch
Right Heel switch
Handle
Left Heel switch
Left
Horizontal/Vertical
switch
Tension
adjustment knob
PARTS

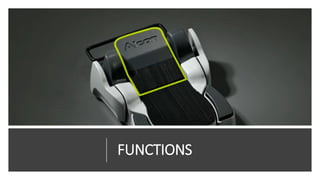

4. FUNCTIONS

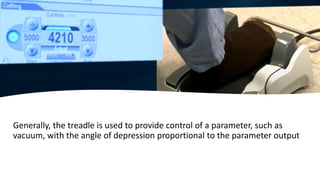

5. Generally, the treadle is used to provide control of a parameter, such as
vacuum, with the angle of depression proportional to the parameter output

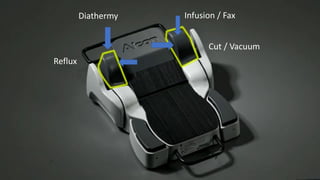

6. Infusion / Fax
Cut / Vacuum
Diathermy
Reflux

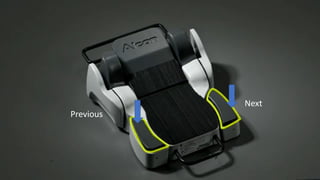

7. Next
Previous

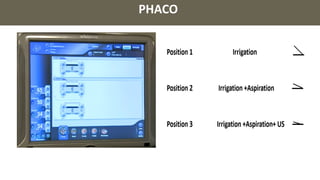

8. PHACO
