Foetal Skull, Definition, Parts & Regions of skull, bones of foetal skull, sutures, fontanels, landmark & diameters of foetal skull

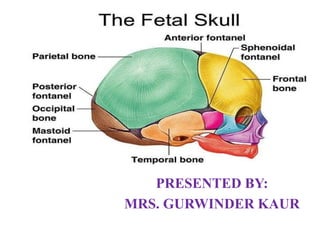

1. PRESENTED BY:
MRS. GURWINDER KAUR

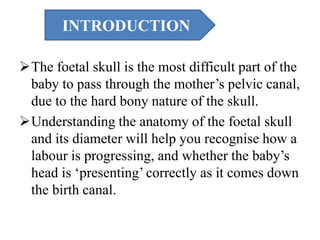

2. The foetal skull is the most difficult part of the
baby to pass through the mother’s pelvic canal,
due to the hard bony nature of the skull.
Understanding the anatomy of the foetal skull
and its diameter will help you recognise how a
labour is progressing, and whether the baby’s
head is ‘presenting’ correctly as it comes down
the birth canal.
INTRODUCTION

3. This will give you a better understanding of
whether a normal vaginal delivery is likely, or
if the mother needs referral because the
descent of the baby’s head is not making
sufficient progress. The head is the most
difficult part to deliver whether it comes first
or last.
INTRODUCTION

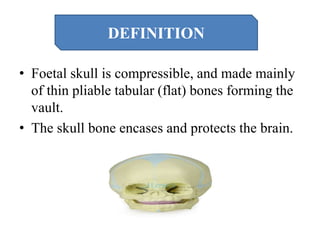

4. • Foetal skull is compressible, and made mainly
of thin pliable tabular (flat) bones forming the
vault.
• The skull bone encases and protects the brain.
DEFINITION

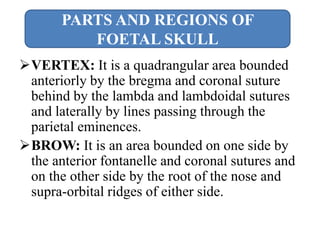

5. VERTEX: It is a quadrangular area bounded
anteriorly by the bregma and coronal suture
behind by the lambda and lambdoidal sutures
and laterally by lines passing through the
parietal eminences.
BROW: It is an area bounded on one side by
the anterior fontanelle and coronal sutures and
on the other side by the root of the nose and
supra-orbital ridges of either side.
PARTS AND REGIONS OF
FOETAL SKULL

6. PARTS AND REGIONS OF
FOETAL SKULL

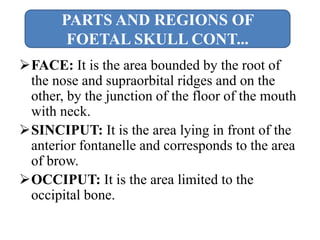

7. FACE: It is the area bounded by the root of
the nose and supraorbital ridges and on the
other, by the junction of the floor of the mouth
with neck.
SINCIPUT: It is the area lying in front of the
anterior fontanelle and corresponds to the area
of brow.
OCCIPUT: It is the area limited to the
occipital bone.
PARTS AND REGIONS OF
FOETAL SKULL CONT...

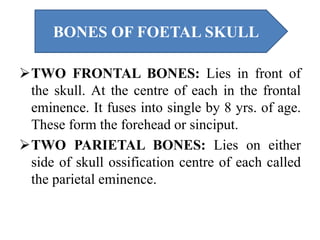

8. TWO FRONTAL BONES: Lies in front of
the skull. At the centre of each in the frontal
eminence. It fuses into single by 8 yrs. of age.
These form the forehead or sinciput.
TWO PARIETAL BONES: Lies on either
side of skull ossification centre of each called
the parietal eminence.
BONES OF FOETAL SKULL

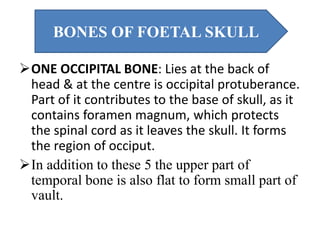

9. ONE OCCIPITAL BONE: Lies at the back of
head & at the centre is occipital protuberance.
Part of it contributes to the base of skull, as it
contains foramen magnum, which protects
the spinal cord as it leaves the skull. It forms
the region of occiput.
In addition to these 5 the upper part of
temporal bone is also flat to form small part of
vault.
BONES OF FOETAL SKULL

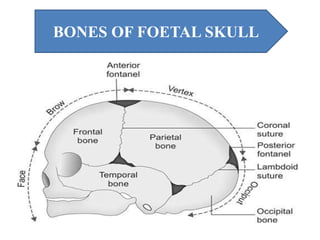

10. BONES OF FOETAL SKULL

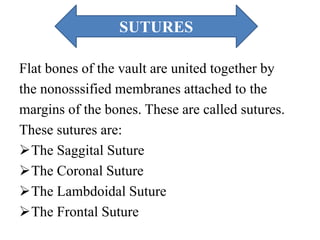

11. Flat bones of the vault are united together by
the nonosssified membranes attached to the
margins of the bones. These are called sutures.
These sutures are:
The Saggital Suture
The Coronal Suture
The Lambdoidal Suture
The Frontal Suture
SUTURES

12. SUTURES

13. It permits gliding movement of one bone over
the other during moulding of the head.
 Digital palpations of sagittal suture during
internal examination in labour gives an idea of
the manner of engagement of the head, degree
of internal rotation of the head and degree of
moulding of the head.
IMPORTANCE OF
SUTURES

14. DEFINITION: Wide gap in the suture line is
called fontanelle.
There are two types of main fontanelles present
in foetal skull and these are:
Anterior Fontanelle
Posterior Fontanelle
FONTANELLES

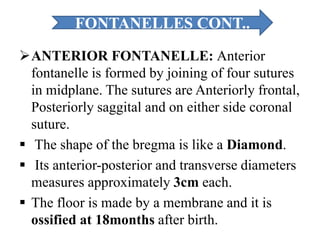

15. ANTERIOR FONTANELLE: Anterior
fontanelle is formed by joining of four sutures
in midplane. The sutures are Anteriorly frontal,
Posteriorly saggital and on either side coronal
suture.
 The shape of the bregma is like a Diamond.
 Its anterior-posterior and transverse diameters
measures approximately 3cm each.
 The floor is made by a membrane and it is
ossified at 18months after birth.
FONTANELLES CONT..

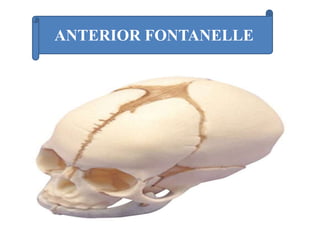

16. ANTERIOR FONTANELLE

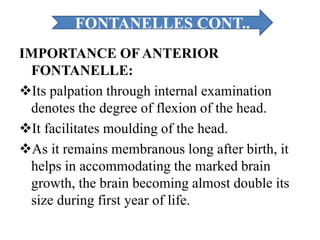

17. IMPORTANCE OFANTERIOR
FONTANELLE:
Its palpation through internal examination
denotes the degree of flexion of the head.
It facilitates moulding of the head.
As it remains membranous long after birth, it
helps in accommodating the marked brain
growth, the brain becoming almost double its
size during first year of life.
FONTANELLES CONT..

18. Palpation of the floor reflects intracranial
status depressed in dehydration, elevated in
raised intracranial tension.
Collection of blood and exchange transfusion,
on rare occasion, can be performed through it
via the superior longitudinal sinus.
 Cerebrospinal fluid can be drawn, although
rare, through the lateral angle of the anterior
fontanelle from the lateral ventricle.
FONTANELLES CONT..

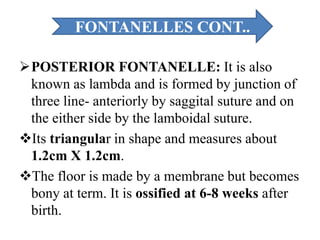

19. POSTERIOR FONTANELLE: It is also
known as lambda and is formed by junction of
three line- anteriorly by saggital suture and on
the either side by the lamboidal suture.
Its triangular in shape and measures about
1.2cm X 1.2cm.
The floor is made by a membrane but becomes
bony at term. It is ossified at 6-8 weeks after
birth.
FONTANELLES CONT..

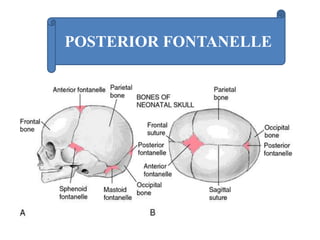

20. POSTERIOR FONTANELLE

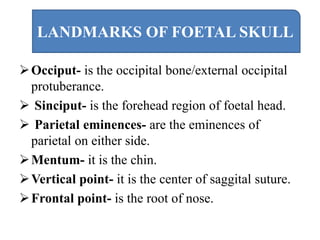

21. Occiput- is the occipital bone/external occipital
protuberance.
 Sinciput- is the forehead region of foetal head.
 Parietal eminences- are the eminences of
parietal on either side.
Mentum- it is the chin.
Vertical point- it is the center of saggital suture.
Frontal point- is the root of nose.
LANDMARKS OF FOETAL SKULL

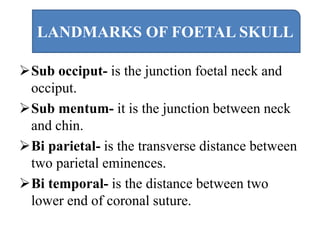

22. Sub occiput- is the junction foetal neck and
occiput.
Sub mentum- it is the junction between neck
and chin.
Bi parietal- is the transverse distance between
two parietal eminences.
Bi temporal- is the distance between two
lower end of coronal suture.
LANDMARKS OF FOETAL SKULL

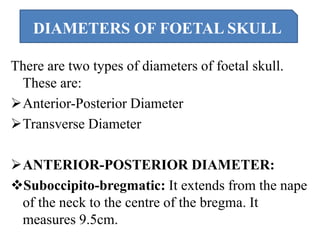

23. There are two types of diameters of foetal skull.
These are:
Anterior-Posterior Diameter
Transverse Diameter
ANTERIOR-POSTERIOR DIAMETER:
Suboccipito-bregmatic: It extends from the nape
of the neck to the centre of the bregma. It
measures 9.5cm.
DIAMETERS OF FOETAL SKULL

24. Suboccipito-frontal: It extends from the nape
of the neck to the centre of the frontral suture.
It measures 10cm.
Occipito-frontal: It extends from the occipital
eminence to the root of the nose and supra
orbital ridges. It measures 11.5cm.
Mento-vertical: It extends from the midpoint
of the chin to the highest point on the saggital
sutre. It measures 14cm.
DIAMETERS OF FOETAL SKULL

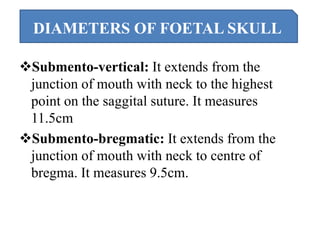

25. Submento-vertical: It extends from the
junction of mouth with neck to the highest
point on the saggital suture. It measures
11.5cm
Submento-bregmatic: It extends from the
junction of mouth with neck to centre of
bregma. It measures 9.5cm.
DIAMETERS OF FOETAL SKULL

26. DIAMETERS OF FOETAL SKULL

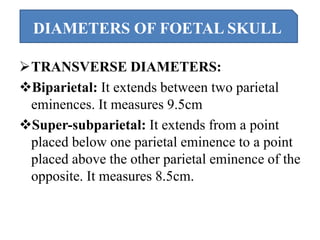

27. TRANSVERSE DIAMETERS:
Biparietal: It extends between two parietal
eminences. It measures 9.5cm
Super-subparietal: It extends from a point
placed below one parietal eminence to a point
placed above the other parietal eminence of the
opposite. It measures 8.5cm.
DIAMETERS OF FOETAL SKULL

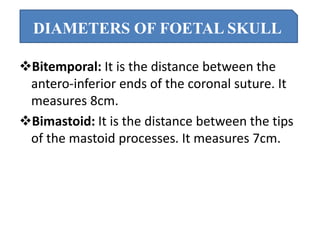

28. Bitemporal: It is the distance between the
antero-inferior ends of the coronal suture. It
measures 8cm.
Bimastoid: It is the distance between the tips
of the mastoid processes. It measures 7cm.
DIAMETERS OF FOETAL SKULL

29. SUMMARIZATION

30. RECAPTULIZATION

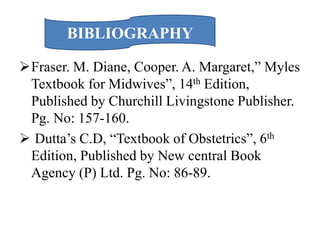

31. Fraser. M. Diane, Cooper. A. Margaret,” Myles
Textbook for Midwives”, 14th Edition,
Published by Churchill Livingstone Publisher.
Pg. No: 157-160.
 Dutta’s C.D, “Textbook of Obstetrics”, 6th
Edition, Published by New central Book
Agency (P) Ltd. Pg. No: 86-89.
BIBLIOGRAPHY

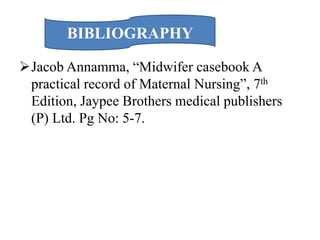

32. Jacob Annamma, “Midwifer casebook A
practical record of Maternal Nursing”, 7th
Edition, Jaypee Brothers medical publishers
(P) Ltd. Pg No: 5-7.
BIBLIOGRAPHY
