1. Fluidization &
Fluidized Beds
Aijaz Ali Mooro

2. What is Fluidization?
The operation by which fine solids are
transformed into a fluidlike state through
contact with a gas or liquid.

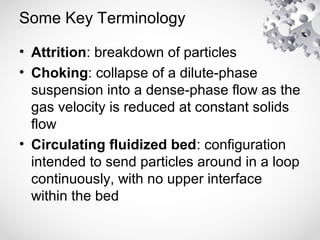

3. Some Key Terminology
• Attrition: breakdown of particles
• Choking: collapse of a dilute-phase
suspension into a dense-phase flow as the
gas velocity is reduced at constant solids
flow
• Circulating fluidized bed: configuration
intended to send particles around in a loop
continuously, with no upper interface
within the bed

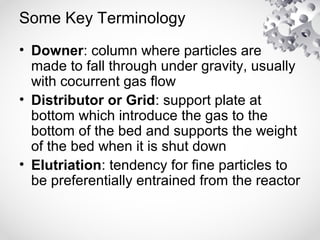

4. Some Key Terminology
• Downer: column where particles are
made to fall through under gravity, usually
with cocurrent gas flow
• Distributor or Grid: support plate at
bottom which introduce the gas to the
bottom of the bed and supports the weight
of the bed when it is shut down
• Elutriation: tendency for fine particles to
be preferentially entrained from the reactor

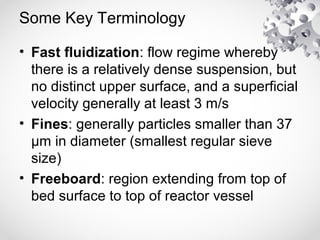

5. Some Key Terminology
• Fast fluidization: flow regime whereby
there is a relatively dense suspension, but
no distinct upper surface, and a superficial
velocity generally at least 3 m/s
• Fines: generally particles smaller than 37
µm in diameter (smallest regular sieve
size)
• Freeboard: region extending from top of
bed surface to top of reactor vessel

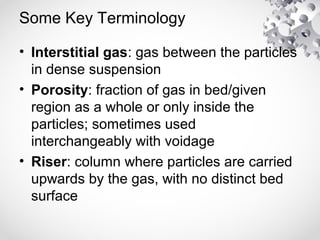

6. Some Key Terminology
• Interstitial gas: gas between the particles
in dense suspension
• Porosity: fraction of gas in bed/given
region as a whole or only inside the
particles; sometimes used
interchangeably with voidage
• Riser: column where particles are carried
upwards by the gas, with no distinct bed
surface

7. Some Key Terminology
• Segregation: tendency for particles to
gather in different zones according to their
size and/or density
• Solids: used synonymously with particles
• Superficial velocity: gas flow rate divided
by total column surface area

8. Some Key Terminology
• Transport disengaging zone: region in
freeboard beginning at bed surface in
which particle flux decreases with height
and above which the entrainment is
independent of height
• Voidage (or void fraction): fraction by
volume of suspension or bed which is
occupied by the fluid

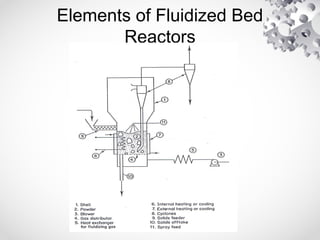

9. Elements of Fluidized Bed
Reactors

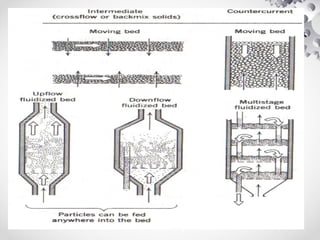

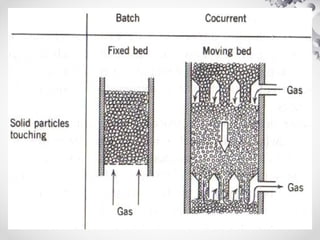

10. Contacting Methods
• Batch, cocurrent, backmix, crossflow,
countercurrent
• Solids may often be represented by backmix
flow
• By using proper baffling and staging of units,
and with negligible entrainment of solids, the
contacting in fluidized beds can be made to
approach closely the usually desirable
extreme of cuntercurrent plug flow
• For good design, proper contacting of phases
is essential

14. Advantages of Fluidized Beds
• The smooth, liquid-like flow of particles allows
continuous automatically controlled operations
with ease of handling.
• The rapid mixing of solids leads to nearly
isothermal conditions throughout the reactor,
hence the operation can be controlled simply
and reliably.
• It is suited to large-scale operations.

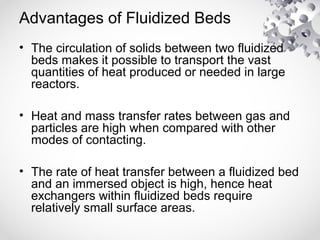

15. Advantages of Fluidized Beds
• The circulation of solids between two fluidized
beds makes it possible to transport the vast
quantities of heat produced or needed in large
reactors.
• Heat and mass transfer rates between gas and
particles are high when compared with other
modes of contacting.
• The rate of heat transfer between a fluidized bed
and an immersed object is high, hence heat
exchangers within fluidized beds require
relatively small surface areas.

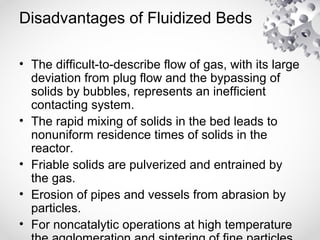

16. Disadvantages of Fluidized Beds
• The difficult-to-describe flow of gas, with its large
deviation from plug flow and the bypassing of
solids by bubbles, represents an inefficient
contacting system.
• The rapid mixing of solids in the bed leads to
nonuniform residence times of solids in the
reactor.
• Friable solids are pulverized and entrained by
the gas.
• Erosion of pipes and vessels from abrasion by
particles.
• For noncatalytic operations at high temperature

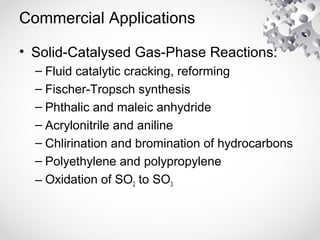

17. Commercial Applications
• Solid-Catalysed Gas-Phase Reactions:
– Fluid catalytic cracking, reforming
– Fischer-Tropsch synthesis
– Phthalic and maleic anhydride
– Acrylonitrile and aniline
– Chlirination and bromination of hydrocarbons
– Polyethylene and polypropylene
– Oxidation of SO2 to SO3

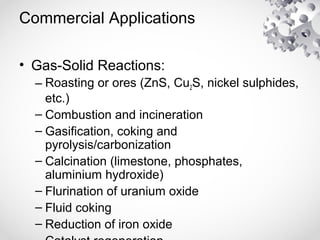

18. Commercial Applications
• Gas-Solid Reactions:
– Roasting or ores (ZnS, Cu2S, nickel sulphides,
etc.)
– Combustion and incineration
– Gasification, coking and
pyrolysis/carbonization
– Calcination (limestone, phosphates,
aluminium hydroxide)
– Flurination of uranium oxide
– Fluid coking
– Reduction of iron oxide

19. Commercial Applications
• Gas-Phase Non-Catalytic Reactions:
– Natural gas combustion
• Gas-Liquid-Solid:
– Hydrotreating, hydroprocessing
– Biochemical processes

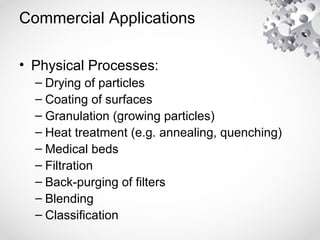

20. Commercial Applications
• Physical Processes:
– Drying of particles
– Coating of surfaces
– Granulation (growing particles)
– Heat treatment (e.g. annealing, quenching)
– Medical beds
– Filtration
– Back-purging of filters
– Blending
– Classification

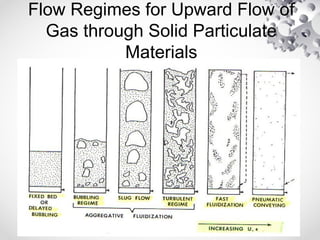

21. Flow Regimes for Upward Flow of
Gas through Solid Particulate
Materials

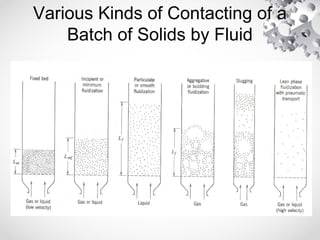

22. Various Kinds of Contacting of a
Batch of Solids by Fluid

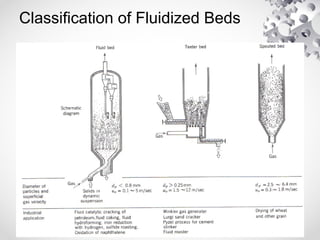

23. Classification of Fluidized Beds

24. Classification of Dense-Phase
Fludized Beds

25. Industrial Applications of Fluidized Beds

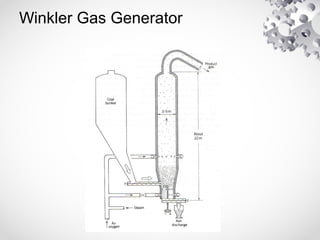

26. Winkler Gas Generator

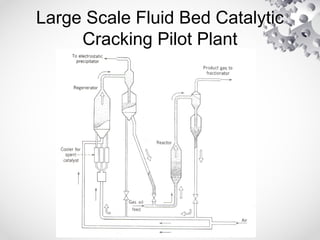

27. Large Scale Fluid Bed Catalytic
Cracking Pilot Plant

28. Two-Stage Fluidized Salt Dryer

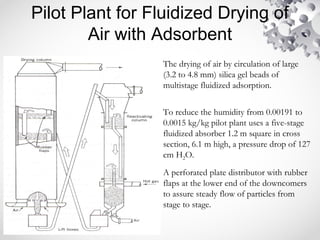

29. Pilot Plant for Fluidized Drying of
Air with Adsorbent
The drying of air by circulation of large
(3.2 to 4.8 mm) silica gel beads of
multistage fluidized adsorption.
To reduce the humidity from 0.00191 to
0.0015 kg/kg pilot plant uses a five-stage
fluidized absorber 1.2 m square in cross
section, 6.1 m high, a pressure drop of 127
cm H2O.
A perforated plate distributor with rubber
flaps at the lower end of the downcomers
to assure steady flow of particles from
stage to stage.

30. Typical Flow Regimes Observed

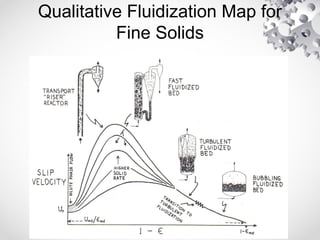

31. Qualitative Fluidization Map for
Fine Solids

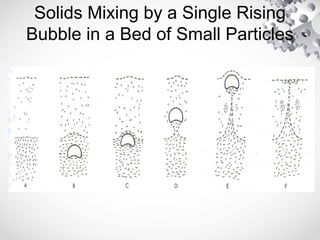

32. Solids Mixing by a Single Rising
Bubble in a Bed of Small Particles

33. Solids Mixing by a Single Rising
Bubble in a Bed of Large Particles
