- 2. About Us Big SwitchNetworks Big Switch Networks builds and promotes Open Software Defined Networking Solutions We use and help support Floodlight and a number of other OpenFlow tools Yes, you can contact us about jobs and internships at careers@bigswitch.com ©2012 – Big Switch Networks Inc. 2

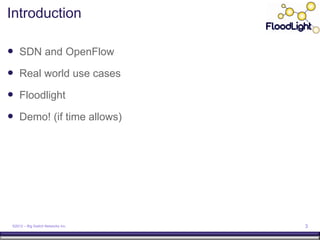

- 3. Introduction SDN andOpenFlow Real world use cases Floodlight Demo! (if time allows) ©2012 – Big Switch Networks Inc. 3
- 4. Limitations in ModernNetworking An Slowly Evolving Environment Operating System / Firmware Hardware / ASICs Hardware focus Fully distributed protocols Hard to innovate, update Independent components software Interoperability and design Vendor specific challenges components ©2012 – Big Switch Networks Inc. 4

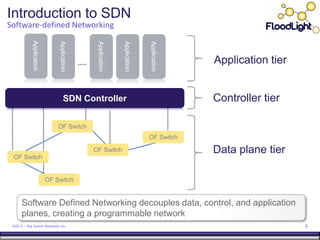

- 5. Introduction to SDN Software-definedNetworking Application Application Application Application Application Application tier SDN Controller Controller tier OF Switch OF Switch OF Switch Data plane tier OF Switch OF Switch Software Defined Networking decouples data, control, and application planes, creating a programmable network ©2012 – Big Switch Networks Inc. 5

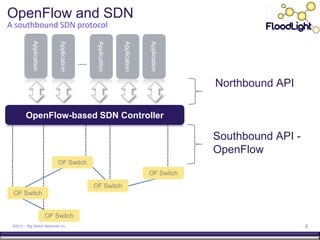

- 6. OpenFlow and SDN Asouthbound SDN protocol Application Application Application Application Application Northbound API OpenFlow-based SDN Controller Southbound API - OpenFlow OF Switch OF Switch OF Switch OF Switch OF Switch ©2012 – Big Switch Networks Inc. 6

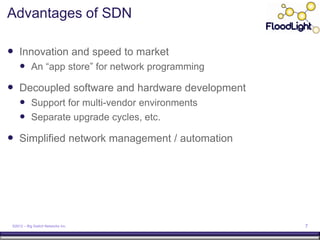

- 7. Advantages of SDN Innovation and speed to market An “app store” for network programming Decoupled software and hardware development Support for multi-vendor environments Separate upgrade cycles, etc. Simplified network management / automation ©2012 – Big Switch Networks Inc. 7
- 8. Real World Examples 1 2 Scalable isolation Alice Bob Cathy Inserting and managing domains and network network services such as slicing. load FlowVisor Isolation balancing, firewall, IDS/IPS Policy , QoS, etc. Example: Flowvisor Example: FlowScale Network Virtualization Platform for Network Services 3 4 Flexible mobility of Lower cost, high virtual machines performance networks Example: Stanford WAN VM Migration Example: non- blocking CLOS architectures Virtual Machine Management CLOS Fabrics 5 6 Simplified data Networks spanning vibility and traffic public / private DC’s monitoring Example: Amazon Example: TBD VPC 8 Data analysis / monitoring Hybrid clouds
- 9.

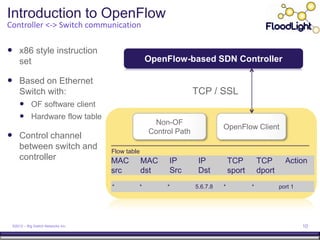

- 10. Introduction to OpenFlow Controller<-> Switch communication x86 style instruction set OpenFlow-based SDN Controller Based on Ethernet Switch with: TCP / SSL OF software client Hardware flow table Non-OF OpenFlow Client Control Path Control channel between switch and Flow table controller MAC MAC IP IP TCP TCP Action src dst Src Dst sport dport * * * 5.6.7.8 * * port 1 ©2012 – Big Switch Networks Inc. 10
- 11. OpenFlow in Action Application Application Application Application Application SDN Controller Rule Action Stats Rule Action Stats Rule Action Stats OF Switch OF Switch 01010 01010 OF Switch ©2012 – Big Switch Networks Inc. 11

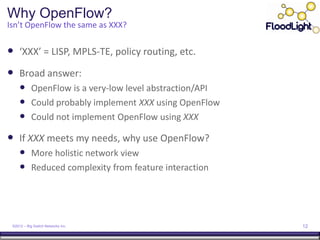

- 12. Why OpenFlow? Isn’t OpenFlowthe same as XXX? ‘XXX’ = LISP, MPLS-TE, policy routing, etc. Broad answer: OpenFlow is a very-low level abstraction/API Could probably implement XXX using OpenFlow Could not implement OpenFlow using XXX If XXX meets my needs, why use OpenFlow? More holistic network view Reduced complexity from feature interaction ©2012 – Big Switch Networks Inc. 12

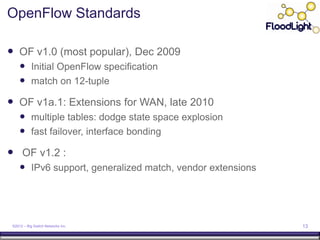

- 13. OpenFlow Standards OFv1.0 (most popular), Dec 2009 Initial OpenFlow specification match on 12-tuple OF v1a.1: Extensions for WAN, late 2010 multiple tables: dodge state space explosion fast failover, interface bonding OF v1.2 : IPv6 support, generalized match, vendor extensions ©2012 – Big Switch Networks Inc. 13
- 14. ©2012 – BigSwitch Networks Inc. – Confidential and Proprietary Floodlight 14

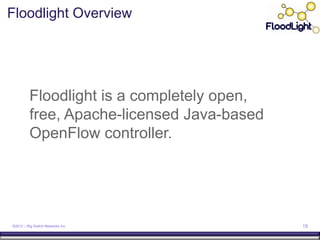

- 15. Floodlight Overview Floodlight is a completely open, free, Apache-licensed Java-based OpenFlow controller. ©2012 – Big Switch Networks Inc. 15
- 16. Floodlight Controller A greatplatform for OpenFlow Research and Easy to build, run, and commercial friendly develop Toolchain Rich set of build and Community of OpenFlow debugging tools experts, access to commercial upgrades, and frequent testing ©2012 – Big Switch Networks Inc. 16

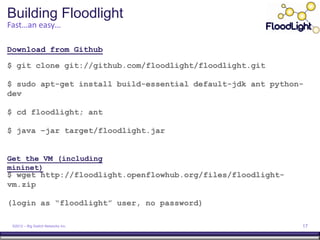

- 17. Building Floodlight Fast…an easy… Downloadfrom Github $ git clone git://github.com/floodlight/floodlight.git $ sudo apt-get install build-essential default-jdk ant python- dev $ cd floodlight; ant $ java –jar target/floodlight.jar Get the VM (including mininet) $ wget http://floodlight.openflowhub.org/files/floodlight- vm.zip (login as “floodlight” user, no password) ©2012 – Big Switch Networks Inc. 17
- 18.
- 19. Floodlight Architecture TopologyManager Modules exporting “services” LinkDiscovery All modules in Java, support for Jython as well Forwarding FloodlightProvider Main module is DeviceManager FloodlightProvider Manages I/O to switches StorageSource Translates OF messages to Floodlight events Multi-threaded via Netty library (all RestServer modules must be thread-safe) StaticFlowPusher Rich, extensible REST API ©2012 – Big Switch Networks Inc. 19

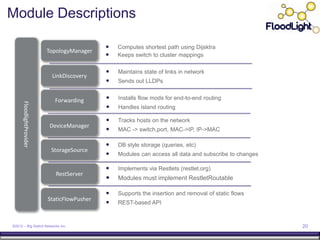

- 20. Module Descriptions Computes shortest path using Dijsktra TopologyManager Keeps switch to cluster mappings Maintains state of links in network LinkDiscovery Sends out LLDPs Forwarding Installs flow mods for end-to-end routing FloodlightProvider Handles island routing Tracks hosts on the network DeviceManager MAC -> switch,port, MAC->IP, IP->MAC DB style storage (queries, etc) StorageSource Modules can access all data and subscribe to changes Implements via Restlets (restlet.org) RestServer Modules must implement RestletRoutable Supports the insertion and removal of static flows StaticFlowPusher REST-based API ©2012 – Big Switch Networks Inc. 20
- 21.

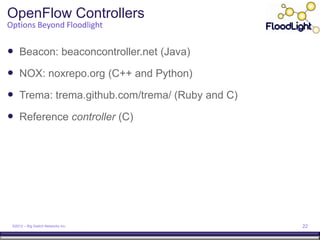

- 22. OpenFlow Controllers Options BeyondFloodlight Beacon: beaconcontroller.net (Java) NOX: noxrepo.org (C++ and Python) Trema: trema.github.com/trema/ (Ruby and C) Reference controller (C) ©2012 – Big Switch Networks Inc. 22
- 23. Mininet OpenFlow network simulator Emulate OpenFlow network in a box Uses Linux Containers and IP namespace Runs your choice of software switch Stanford’s reference OpenFlow switch OpenVSwitch CLI allows interactive management of emulated virtual hosts Packaged in the Floodlight VM at: http://floodlight.openflowhub.org/download ©2012 – Big Switch Networks Inc. 23
- 24.

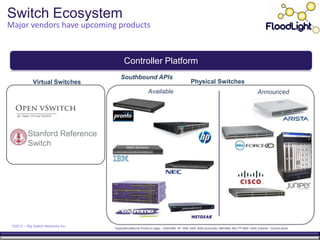

- 25. Switch Ecosystem Major vendorshave upcoming products Controller Platform Southbound APIs Virtual Switches Physical Switches Available Announced Stanford Reference Switch ©2012 – Big Switch Networks Inc. * Supported platforms: Pronto w/ indigo – 3240/3290, HP: 3500, 5400, 8200 (procurves), IBM 8264, NEC PF 5820 / 5240, Extreme – Summit series
- 26.
- 27. Getting Involved -OpenFlowHub A community of open source OpenFlow developers What it is: Get involved: 1. A community of open source Submit a project OpenFlow developers Write a blog post 2. An OpenFlow Blog (available for guest authors) http://www.openflowhub.org 3. Free hosting, tools, and marketing Contact: for open source projects mike.cohen@openflowhub.org Wiki, forums, bug tracking tools, logos, etc. Projects: ©2012 – Big Switch Networks Inc.

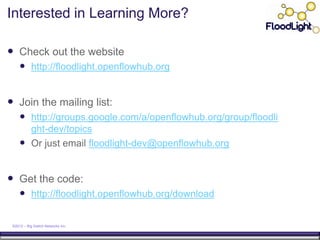

- 28. Interested in LearningMore? Check out the website http://floodlight.openflowhub.org Join the mailing list: http://groups.google.com/a/openflowhub.org/group/floodli ght-dev/topics Or just email floodlight-dev@openflowhub.org Get the code: http://floodlight.openflowhub.org/download ©2012 – Big Switch Networks Inc.

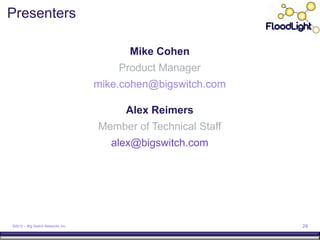

- 29. Presenters Mike Cohen Product Manager mike.cohen@bigswitch.com Alex Reimers Member of Technical Staff alex@bigswitch.com ©2012 – Big Switch Networks Inc. 29
- 30.
- 31.
- 32. Network considerations WhyOpenFlow? Lots of reasons we talked about already... Simplest is network monitoring from a single location – packetin, flow modes, cpu usage, throughput, devices connected, etc. Control / Data networks Offer critical services on non-OF network (ie. Voip) Control / data path separation – vlans in most cases Deploy OF from edge to core. Gain increased visibility over time. Measure traffic patterns and make sure your switch hardware can support it. Some have limited control traffic throughput (flow set up rate, etc.). Security considerations Do you need to protect against controller DoS attacks? Do you want encrypted control traffic? Gotchas Physical loops into the OpenFlow network Wifi mesh networks ©2012 – Big Switch Networks Inc. 32
- 33.

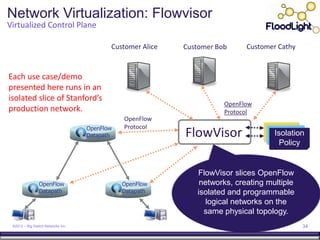

- 34. Network Virtualization: Flowvisor VirtualizedControl Plane Customer Alice Customer Bob Customer Cathy Each use case/demo presented here runs in an isolated slice of Stanford’s OpenFlow production network. Protocol OpenFlow OpenFlow Protocol Datapath FlowVisor Isolation Policy FlowVisor slices OpenFlow OpenFlow OpenFlow networks, creating multiple Datapath Datapath isolated and programmable logical networks on the same physical topology. ©2012 – Big Switch Networks Inc. 34

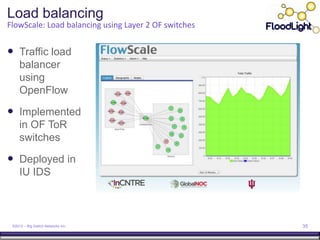

- 35. Load balancing FlowScale: Loadbalancing using Layer 2 OF switches Traffic load balancer using OpenFlow Implemented in OF ToR switches Deployed in IU IDS ©2012 – Big Switch Networks Inc. 35

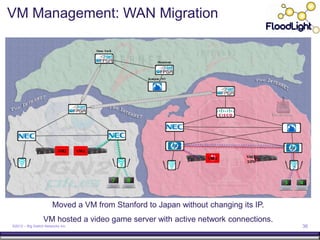

- 36. VM Management: WANMigration Moved a VM from Stanford to Japan without changing its IP. VM hosted a video game server with active network connections. ©2012 – Big Switch Networks Inc. 36

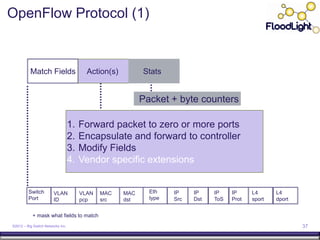

- 37. OpenFlow Protocol (1) Match Fields Action(s) Stats Packet + byte counters 1. Forward packet to zero or more ports 2. Encapsulate and forward to controller 3. Modify Fields 4. Vendor specific extensions Switch VLAN VLAN MAC MAC Eth IP IP IP IP L4 L4 Port ID pcp src dst type Src Dst ToS Prot sport dport + mask what fields to match ©2012 – Big Switch Networks Inc. 37

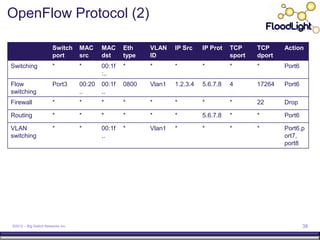

- 38. OpenFlow Protocol (2) Switch MAC MAC Eth VLAN IP Src IP Prot TCP TCP Action port src dst type ID sport dport Switching * * 00:1f * * * * * * Port6 :.. Flow Port3 00:20 00:1f 0800 Vlan1 1.2.3.4 5.6.7.8 4 17264 Port6 switching .. .. Firewall * * * * * * * * 22 Drop Routing * * * * * * 5.6.7.8 * * Port6 VLAN * * 00:1f * Vlan1 * * * * Port6,p switching .. ort7, port8 ©2012 – Big Switch Networks Inc. 38

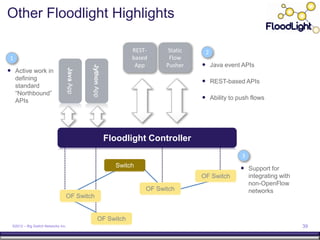

- 39. Other Floodlight Highlights REST- Static 2 1 based Flow App Pusher Java event APIs Jython App Active work in Java App defining REST-based APIs standard “Northbound” APIs Ability to push flows Floodlight Controller 3 Switch Support for OF Switch integrating with non-OpenFlow OF Switch networks OF Switch OF Switch ©2012 – Big Switch Networks Inc. 39

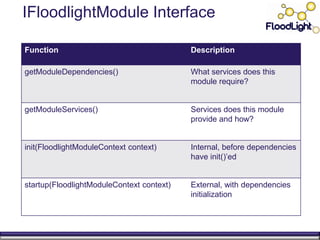

- 40. IFloodlightModule Interface 1. getModuleDependencies() Function Description What services does this moduleWhat services does this getModuleDependencies() require? module require? 2. getModuleServices(), getServiceImpls() Services does this module provide and how? getModuleServices() Services does this module provide and how? 3. init(FloodlightModuleContext context) Internal, before dependencies have init()’d init(FloodlightModuleContext context) Internal, before dependencies have init()’ed 4. startup(FloodlightModuleContext context) External, with dependencies initialization startup(FloodlightModuleContext context) External, with dependencies initialization

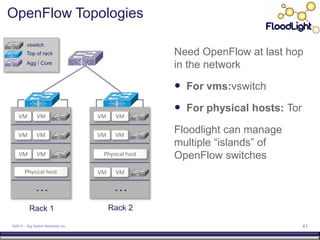

- 41. OpenFlow Topologies vswitch Top of rack Need OpenFlow at last hop Agg / Core in the network For vms:vswitch For physical hosts: Tor VM VM VM VM VM VM VM VM Floodlight can manage multiple “islands” of VM VM Physical host OpenFlow switches Physical host VM VM … … Rack 1 Rack 2 ©2012 – Big Switch Networks Inc. 41

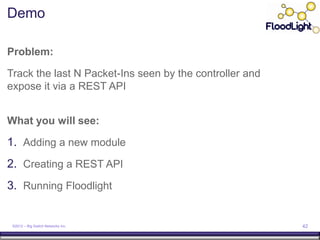

- 42. Demo Problem: Track the lastN Packet-Ins seen by the controller and expose it via a REST API What you will see: 1. Adding a new module 2. Creating a REST API 3. Running Floodlight ©2012 – Big Switch Networks Inc. 42
