This document discusses code for reading flex sensor values and controlling LEDs based on the flex sensor reading. The code initializes an analog pin as an input to read the flex sensor values, which range from 0-24. It then uses if/else statements to light different LEDs depending on which range the flex sensor reading falls in to.

1. Flex Sensor
Hang Do Thi Duc | Jane McDonough | Hsuan Chou

2. https://www.youtube.com/watch?v=1TfKs-PUL4U

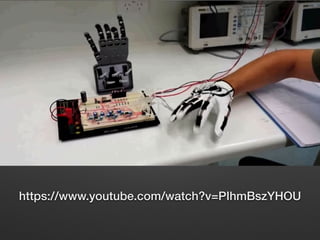

3. https://www.youtube.com/watch?v=PIhmBszYHOU

5. void setup() {
Serial.begin(9600);
// the array elements are numbered from 0 to (pinCount - 1).
// use a for loop to initialize each pin as an output:
pinMode(A0, INPUT);
}
!
void loop() {
//mapped range for flex sensor is 0 - 24
int flex = analogRead(A0);
Serial.println(flex);
!
if (flex <= 4) {
digitalWrite(2, HIGH);
delay(100);
digitalWrite(2, LOW);
}
else if (flex <= 8){
digitalWrite(3, HIGH);
delay(100);
digitalWrite(3, LOW);
}
else if (flex <= 12){
digitalWrite(4, HIGH);
delay(100);
digitalWrite(4, LOW);
}
else if (flex <= 16){
digitalWrite(5, HIGH);
delay(100);
digitalWrite(5, LOW);
}
else if (flex <= 20){
digitalWrite(6, HIGH);
delay(100);
digitalWrite(6, LOW);
}
else if (flex <= 25){
digitalWrite(7, HIGH);
delay(100);
digitalWrite(7, LOW);
}
}
