The document provides a comprehensive overview of laboratory notebooks, highlighting their importance for documenting experiments and establishing intellectual property rights. It contrasts two types of laboratory notebooks: paper (PLN) and electronic (ELN), detailing their respective features, uses, and advantages. The text also discusses challenges, user feedback, and the future trend towards electronic solutions in scientific research documentation.

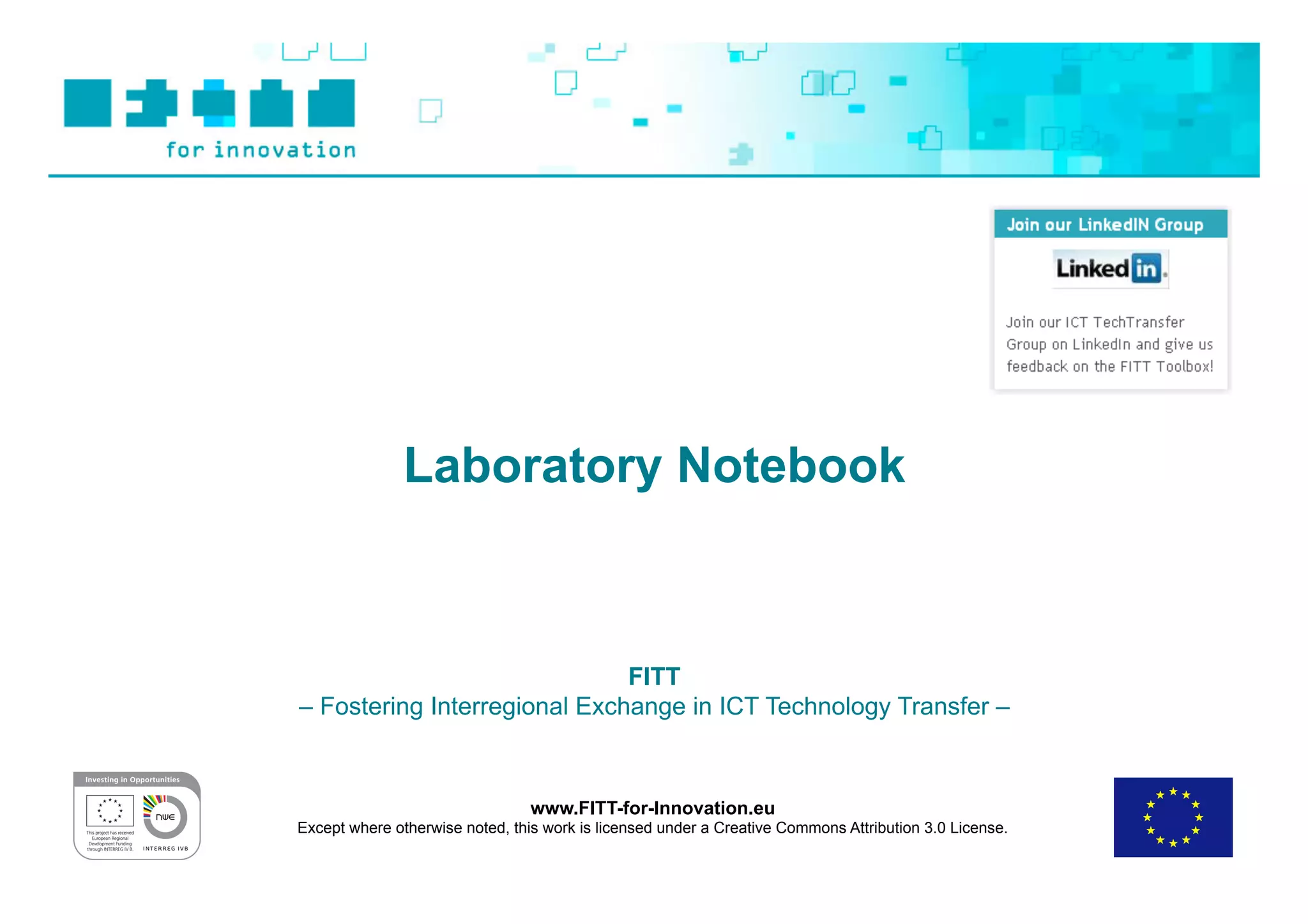

1. Laboratory Notebook
FITT
– Fostering Interregional Exchange in ICT Technology Transfer –
www.FITT-for-Innovation.eu
Except where otherwise noted, this work is licensed under a Creative Commons Attribution 3.0 License.

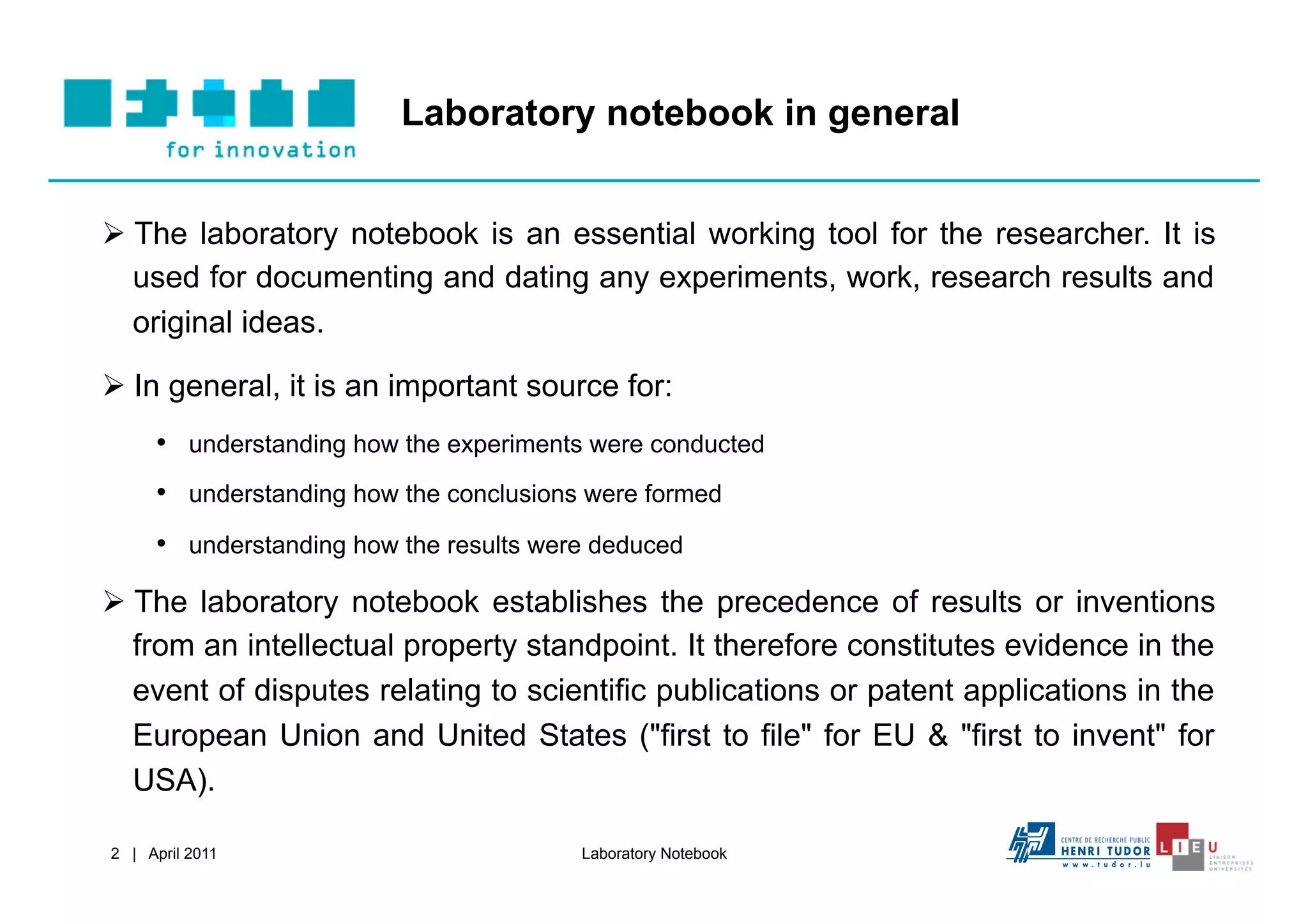

2. Laboratory notebook in general
 The laboratory notebook is an essential working tool for the researcher. It is
used for documenting and dating any experiments, work, research results and
original ideas.
 In general, it is an important source for:
• understanding how the experiments were conducted
• understanding how the conclusions were formed
• understanding how the results were deduced
 The laboratory notebook establishes the precedence of results or inventions
from an intellectual property standpoint. It therefore constitutes evidence in the
event of disputes relating to scientific publications or patent applications in the
European Union and United States ("first to file" for EU & "first to invent" for
USA).
2 | April 2011 Laboratory Notebook

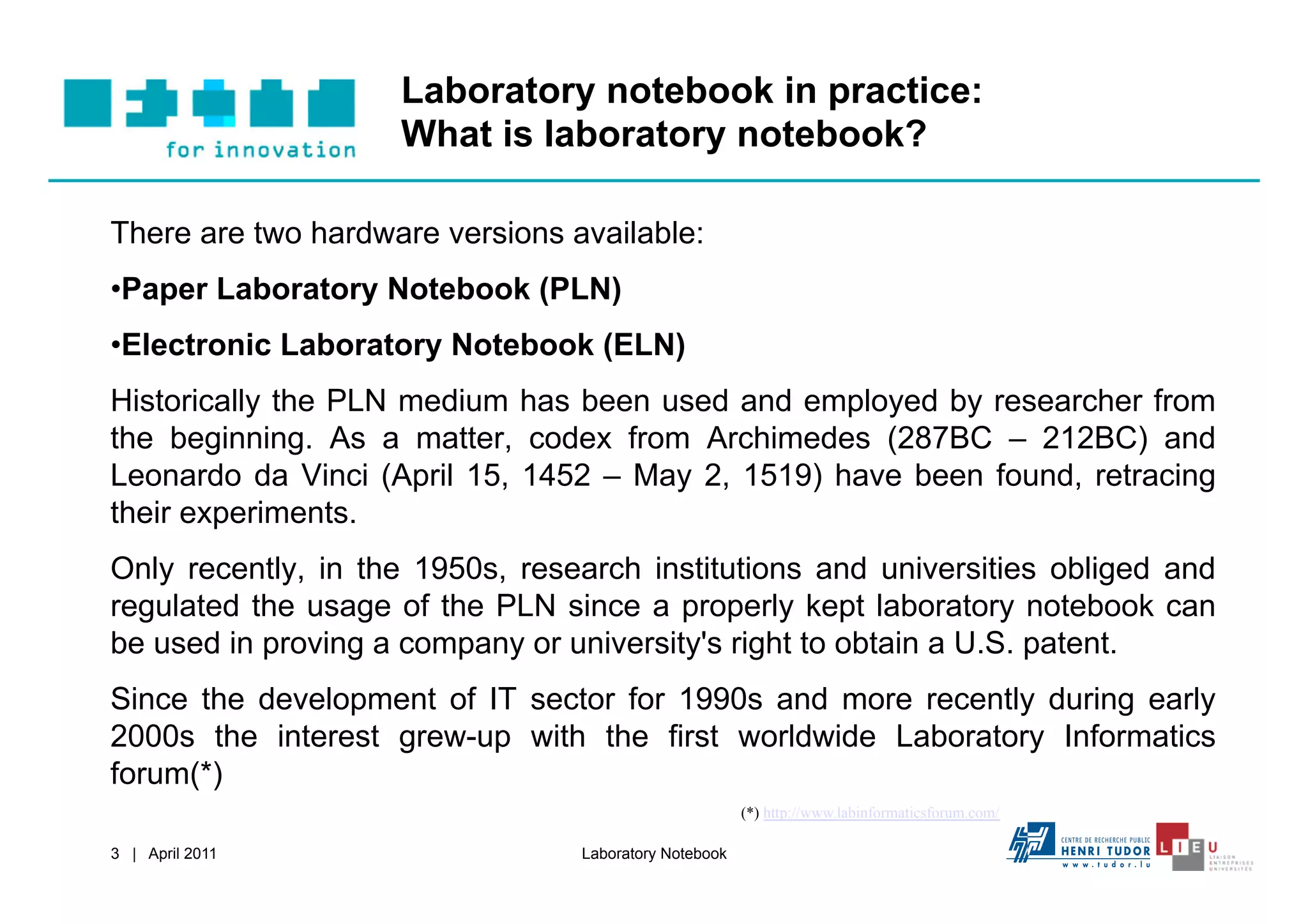

3. Laboratory notebook in practice:
What is laboratory notebook?
There are two hardware versions available:
• Paper Laboratory Notebook (PLN)
• Electronic Laboratory Notebook (ELN)
Historically the PLN medium has been used and employed by researcher from
the beginning. As a matter, codex from Archimedes (287BC – 212BC) and
Leonardo da Vinci (April 15, 1452 – May 2, 1519) have been found, retracing
their experiments.
Only recently, in the 1950s, research institutions and universities obliged and
regulated the usage of the PLN since a properly kept laboratory notebook can
be used in proving a company or university's right to obtain a U.S. patent.
Since the development of IT sector for 1990s and more recently during early
2000s the interest grew-up with the first worldwide Laboratory Informatics
forum(*)
(*) http://www.labinformaticsforum.com/
3 | April 2011 Laboratory Notebook

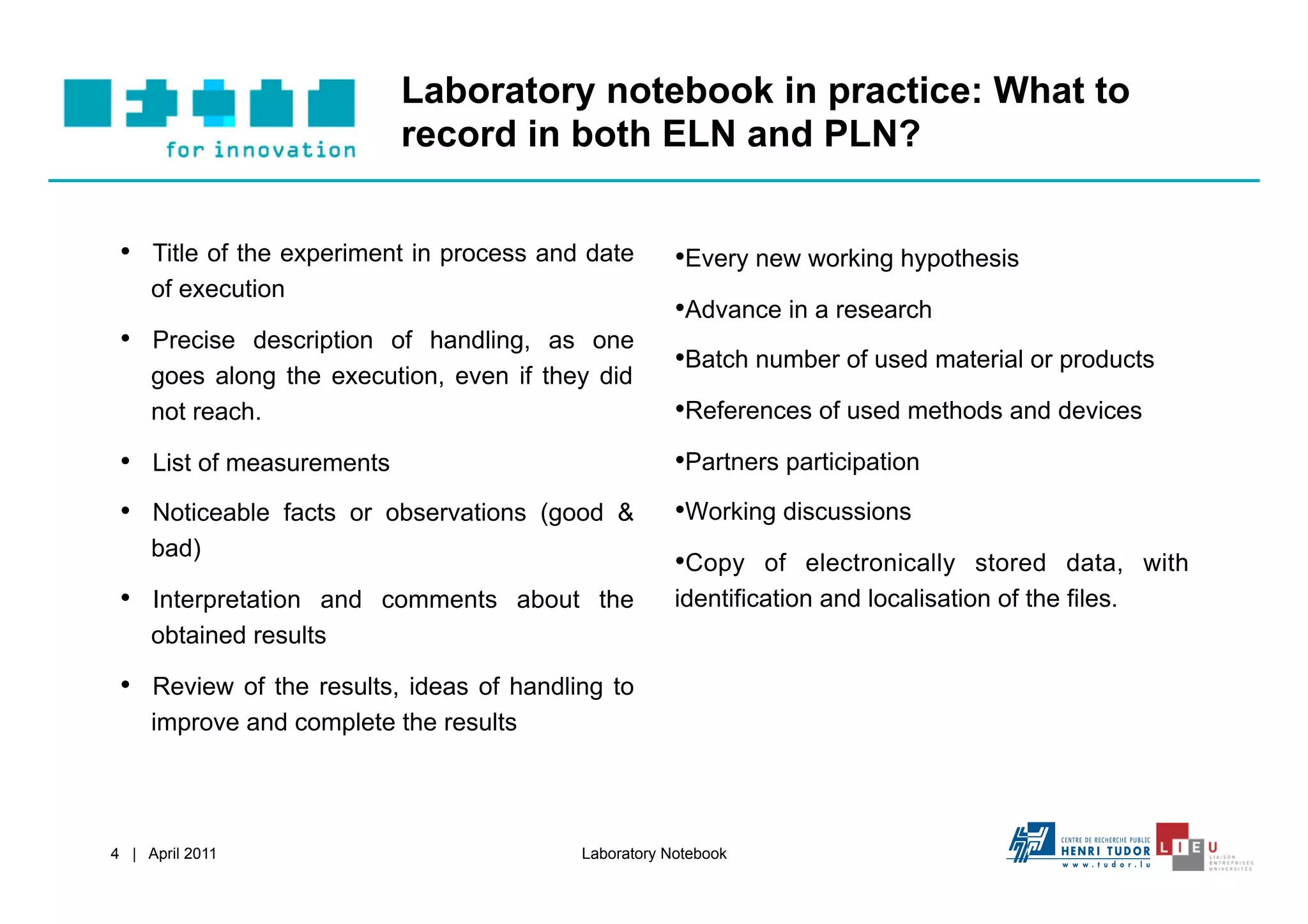

4. Laboratory notebook in practice: What to
record in both ELN and PLN?
• Title of the experiment in process and date • Every new working hypothesis
of execution
• Advance in a research
• Precise description of handling, as one
• Batch number of used material or products
goes along the execution, even if they did
not reach. • References of used methods and devices
• List of measurements • Partners participation
• Noticeable facts or observations (good & • Working discussions
bad)
• Copy of electronically stored data, with
• Interpretation and comments about the identification and localisation of the files.
obtained results
• Review of the results, ideas of handling to
improve and complete the results
4 | April 2011 Laboratory Notebook

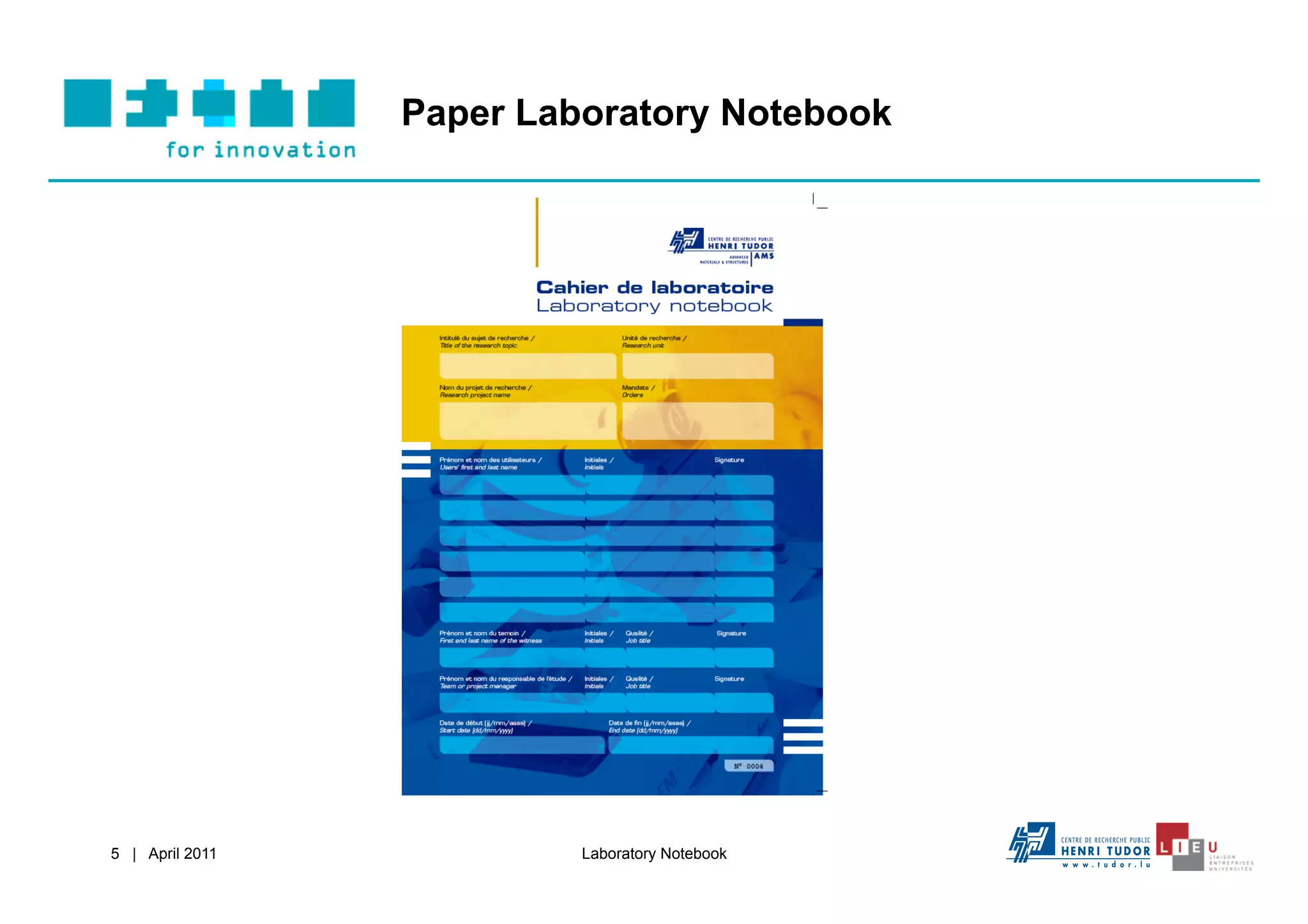

5. Paper Laboratory Notebook
5 | April 2011 Laboratory Notebook

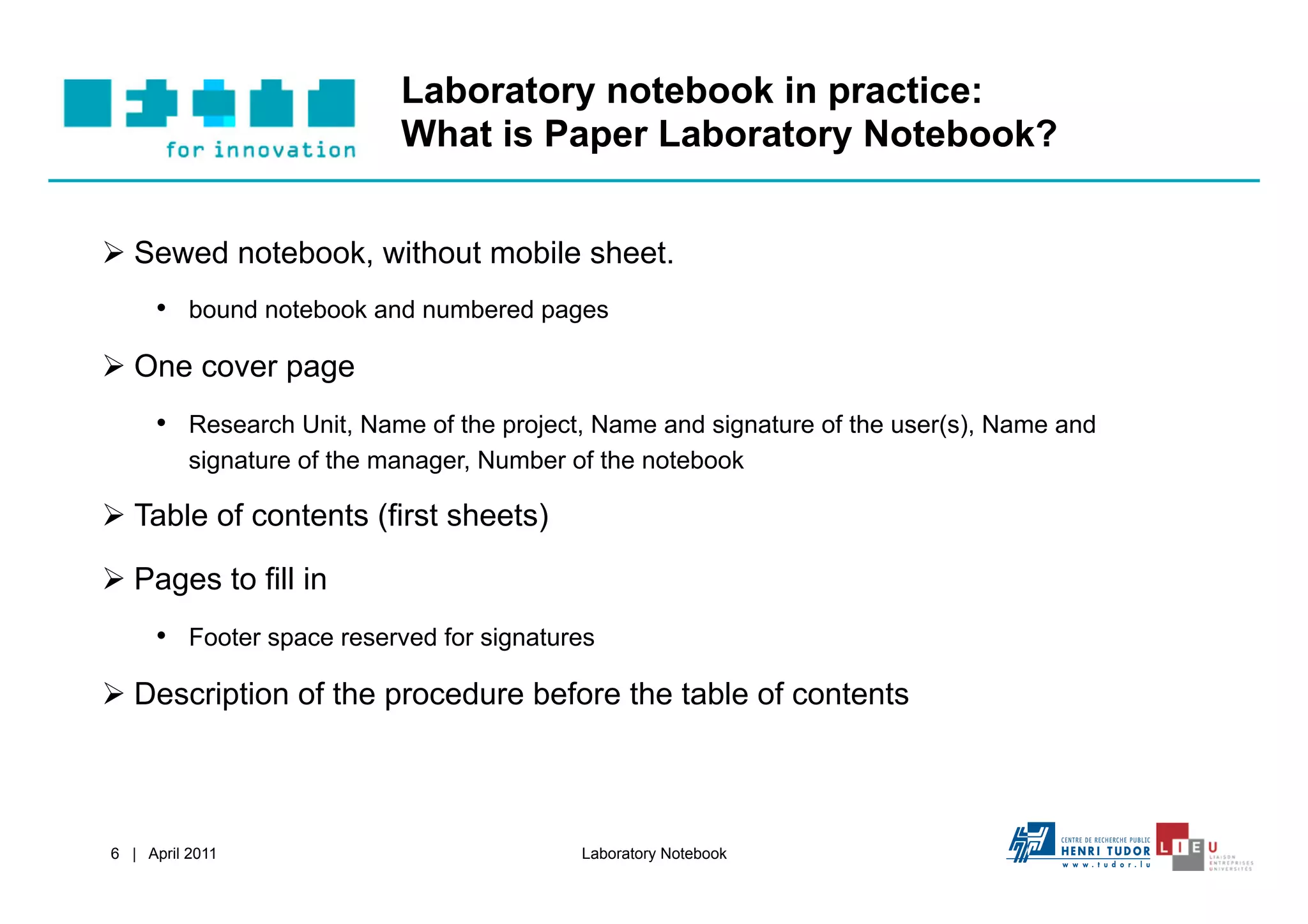

6. Laboratory notebook in practice:
What is Paper Laboratory Notebook?
 Sewed notebook, without mobile sheet.
• bound notebook and numbered pages
 One cover page
• Research Unit, Name of the project, Name and signature of the user(s), Name and
signature of the manager, Number of the notebook
 Table of contents (first sheets)
 Pages to fill in
• Footer space reserved for signatures
 Description of the procedure before the table of contents
6 | April 2011 Laboratory Notebook

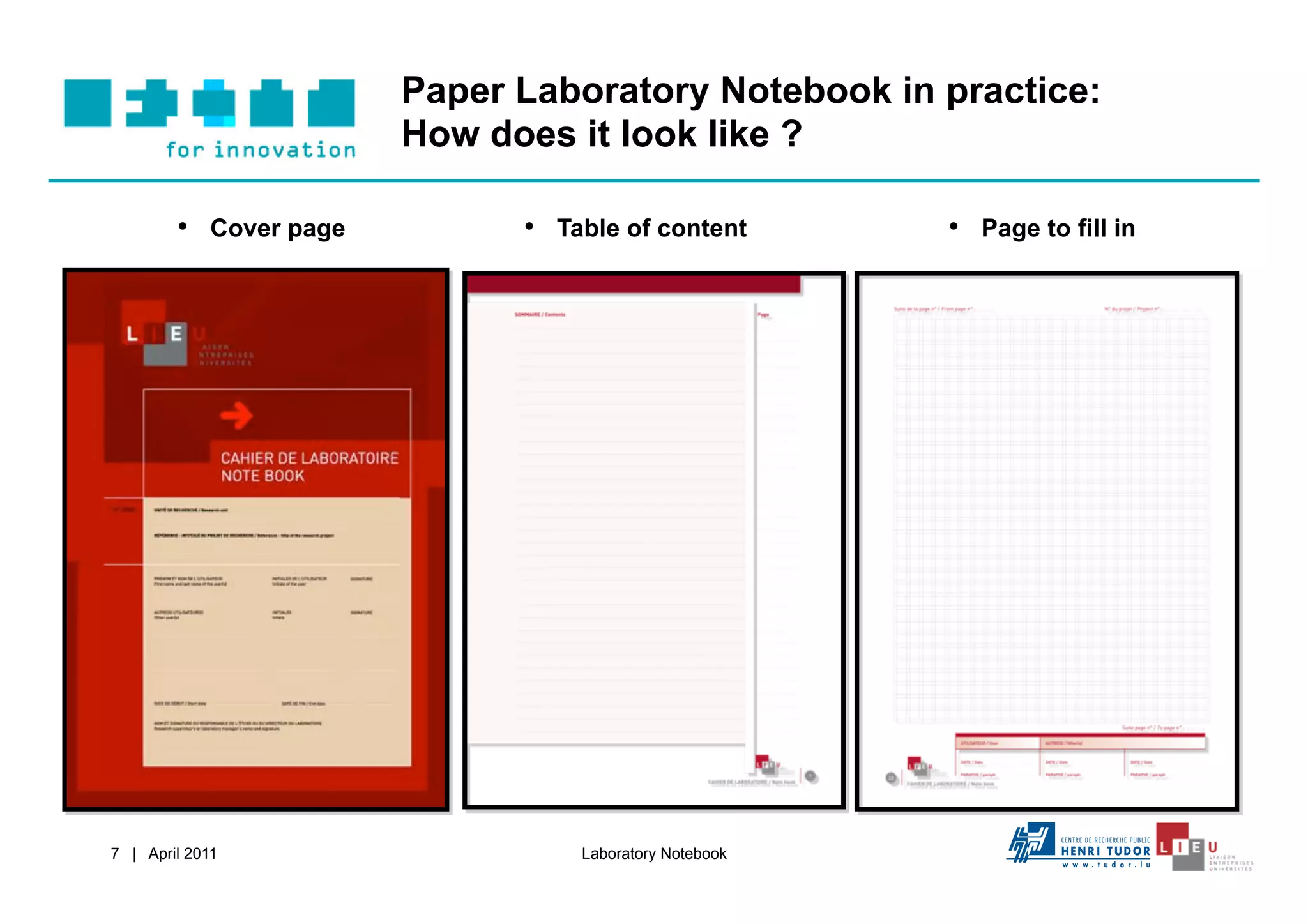

7. Paper Laboratory Notebook in practice:
How does it look like ?
• Cover page • Table of content • Page to fill in
7 | April 2011 Laboratory Notebook

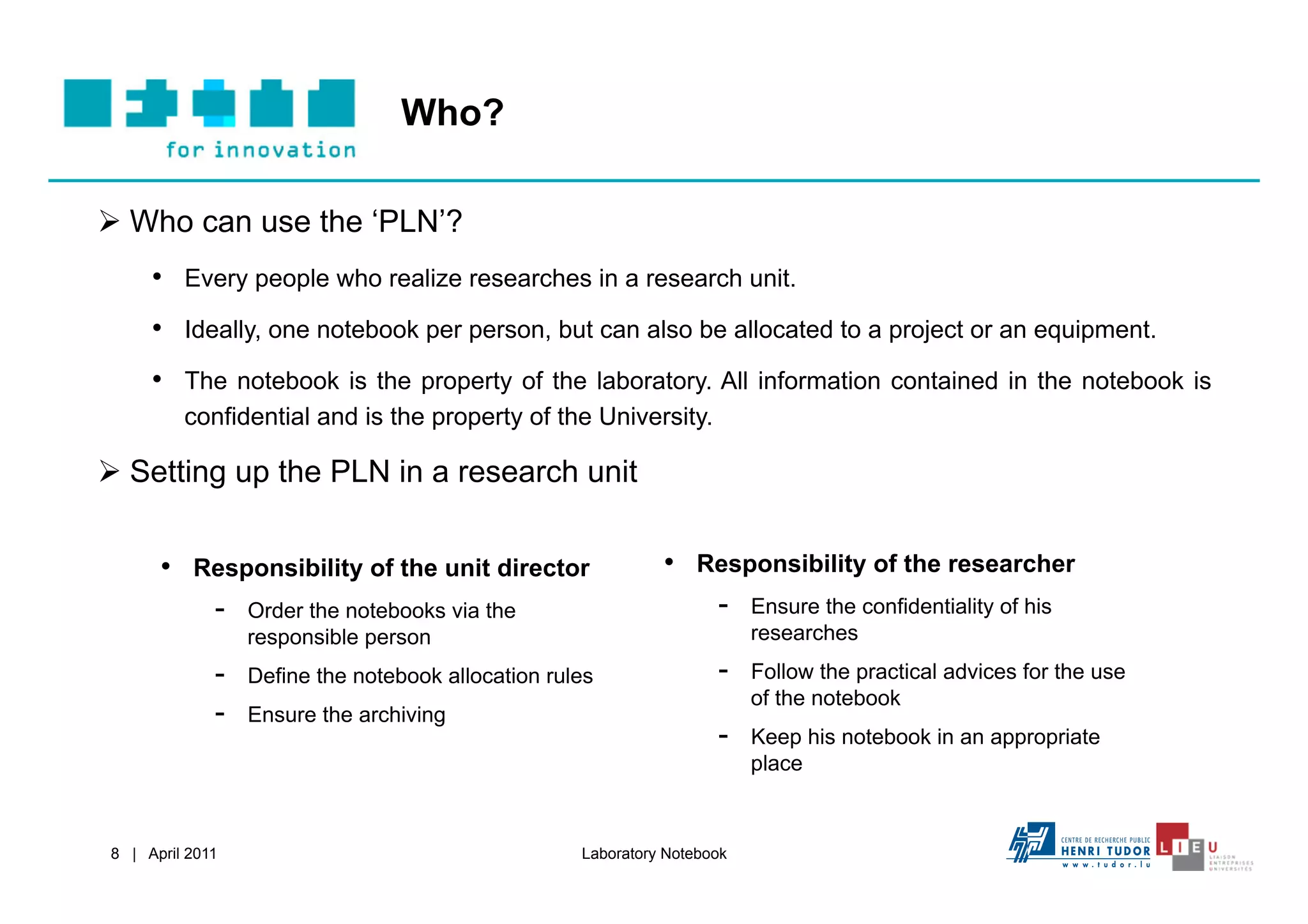

8. Who?
 Who can use the ‘PLN’?
• Every people who realize researches in a research unit.
• Ideally, one notebook per person, but can also be allocated to a project or an equipment.
• The notebook is the property of the laboratory. All information contained in the notebook is
confidential and is the property of the University.
 Setting up the PLN in a research unit
• Responsibility of the unit director • Responsibility of the researcher
- Order the notebooks via the - Ensure the confidentiality of his
responsible person researches
- Define the notebook allocation rules - Follow the practical advices for the use
of the notebook
- Ensure the archiving
- Keep his notebook in an appropriate
place
8 | April 2011 Laboratory Notebook

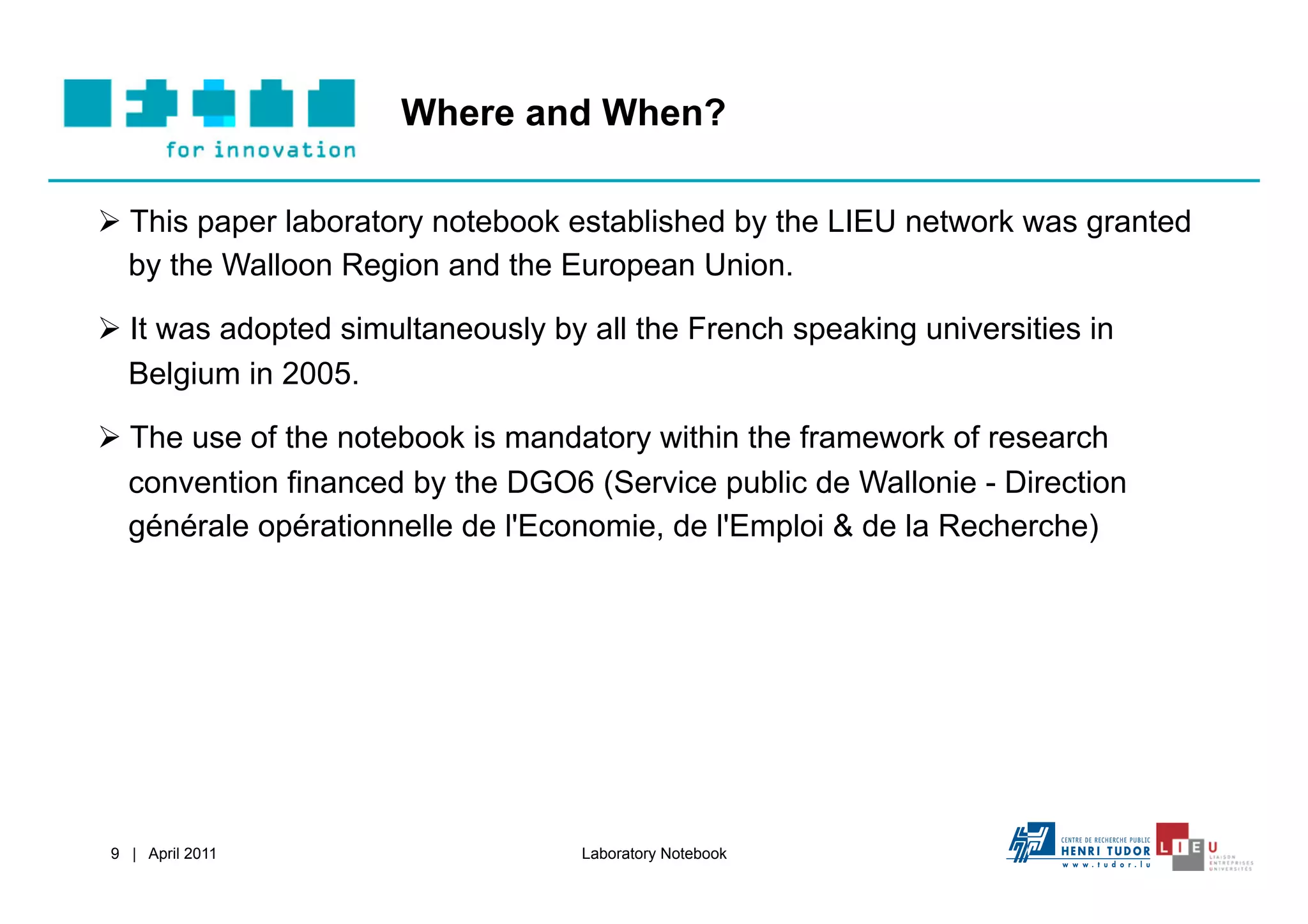

9. Where and When?
 This paper laboratory notebook established by the LIEU network was granted
by the Walloon Region and the European Union.
 It was adopted simultaneously by all the French speaking universities in
Belgium in 2005.
 The use of the notebook is mandatory within the framework of research
convention financed by the DGO6 (Service public de Wallonie - Direction
générale opérationnelle de l'Economie, de l'Emploi & de la Recherche)
9 | April 2011 Laboratory Notebook

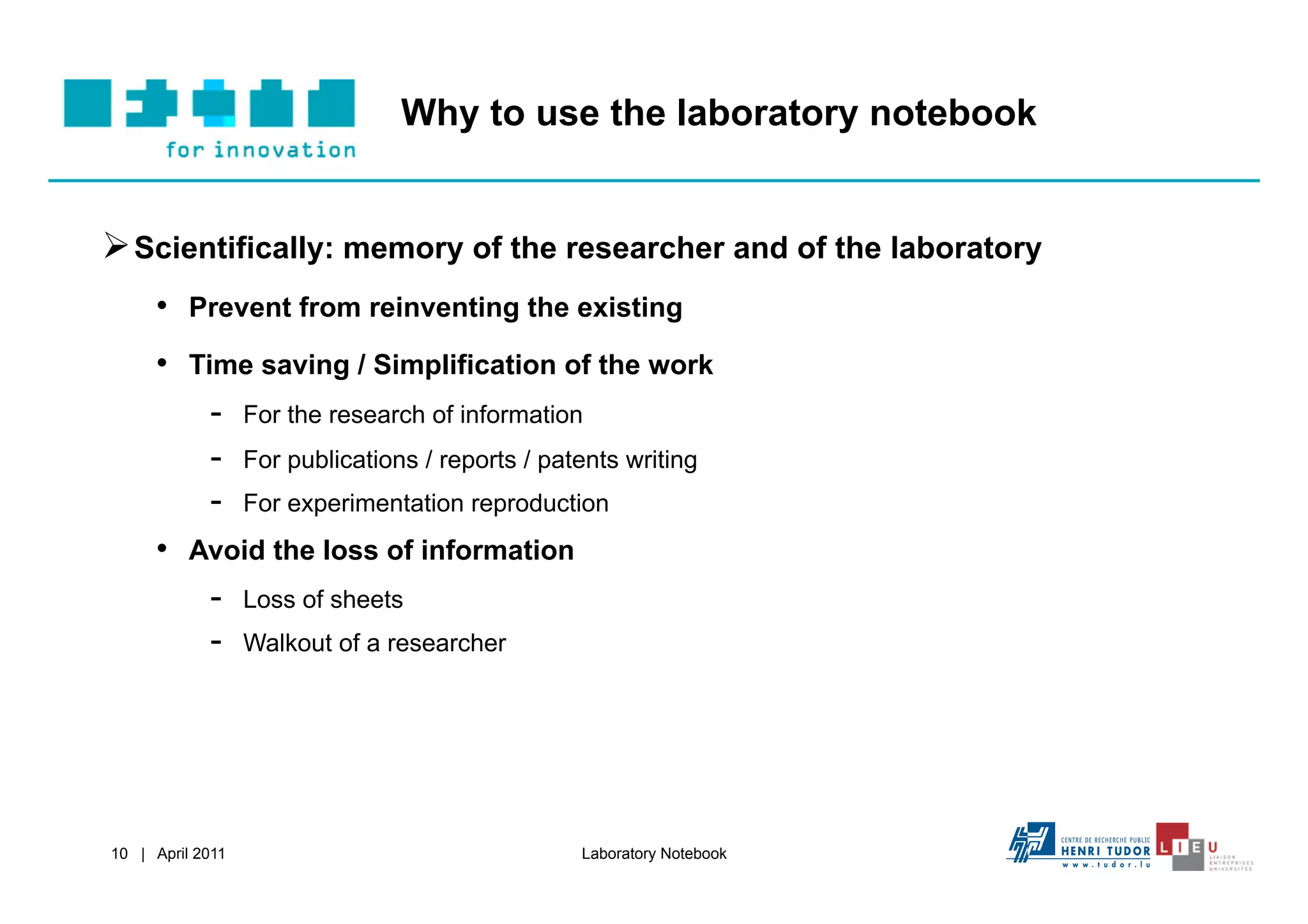

10. Why to use the laboratory notebook
 Scientifically: memory of the researcher and of the laboratory
• Prevent from reinventing the existing
• Time saving / Simplification of the work
- For the research of information
- For publications / reports / patents writing
- For experimentation reproduction
• Avoid the loss of information
- Loss of sheets
- Walkout of a researcher
10 | April 2011 Laboratory Notebook

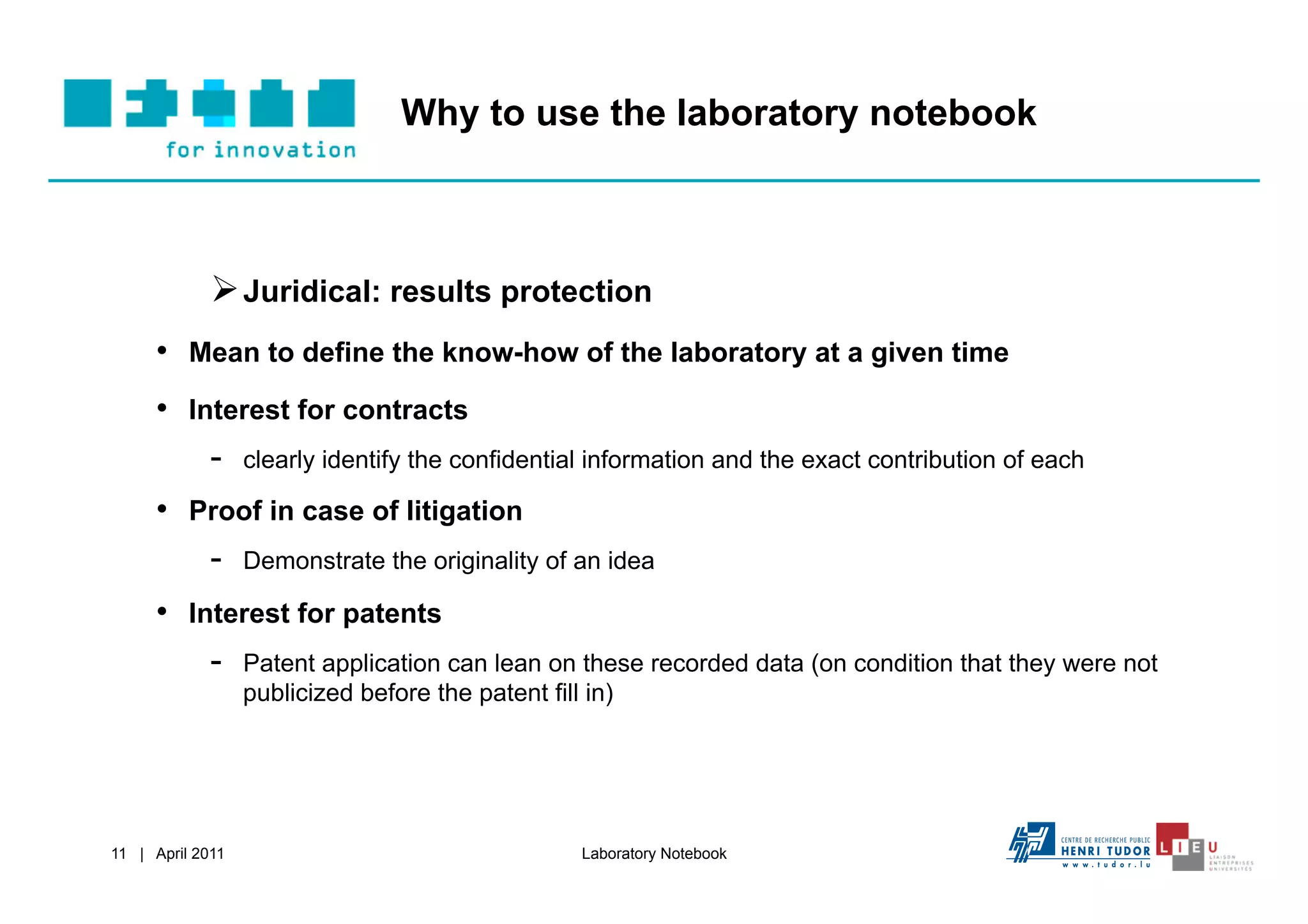

11. Why to use the laboratory notebook
 Juridical: results protection
• Mean to define the know-how of the laboratory at a given time
• Interest for contracts
- clearly identify the confidential information and the exact contribution of each
• Proof in case of litigation
- Demonstrate the originality of an idea
• Interest for patents
- Patent application can lean on these recorded data (on condition that they were not
publicized before the patent fill in)
11 | April 2011 Laboratory Notebook

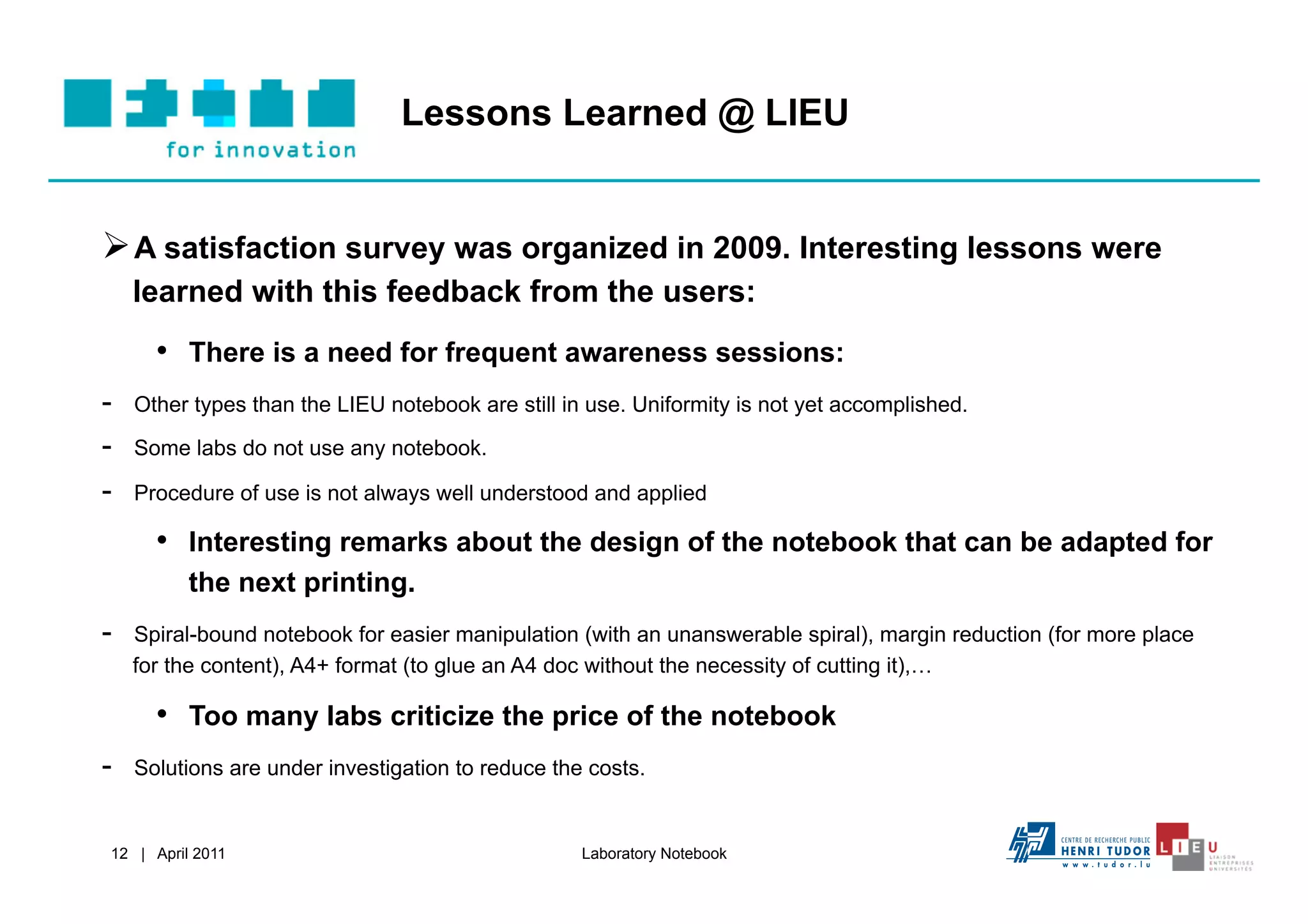

12. Lessons Learned @ LIEU
 A satisfaction survey was organized in 2009. Interesting lessons were
learned with this feedback from the users:
• There is a need for frequent awareness sessions:
- Other types than the LIEU notebook are still in use. Uniformity is not yet accomplished.
- Some labs do not use any notebook.
- Procedure of use is not always well understood and applied
• Interesting remarks about the design of the notebook that can be adapted for
the next printing.
- Spiral-bound notebook for easier manipulation (with an unanswerable spiral), margin reduction (for more place
for the content), A4+ format (to glue an A4 doc without the necessity of cutting it),…
• Too many labs criticize the price of the notebook
- Solutions are under investigation to reduce the costs.
12 | April 2011 Laboratory Notebook

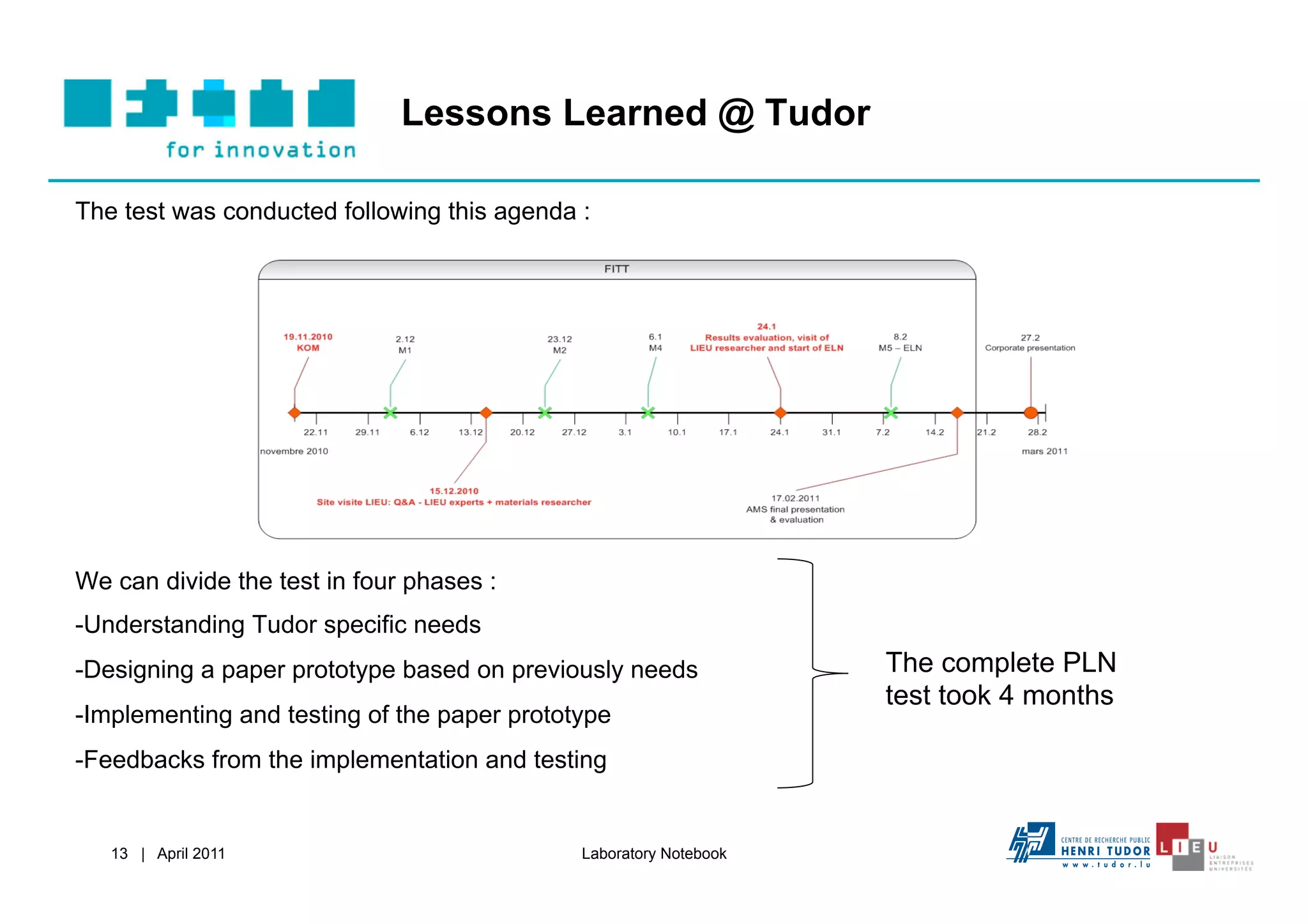

13. Lessons Learned @ Tudor
The test was conducted following this agenda :
We can divide the test in four phases :
- Understanding Tudor specific needs
- Designing a paper prototype based on previously needs The complete PLN
test took 4 months
- Implementing and testing of the paper prototype
- Feedbacks from the implementation and testing
13 | April 2011 Laboratory Notebook

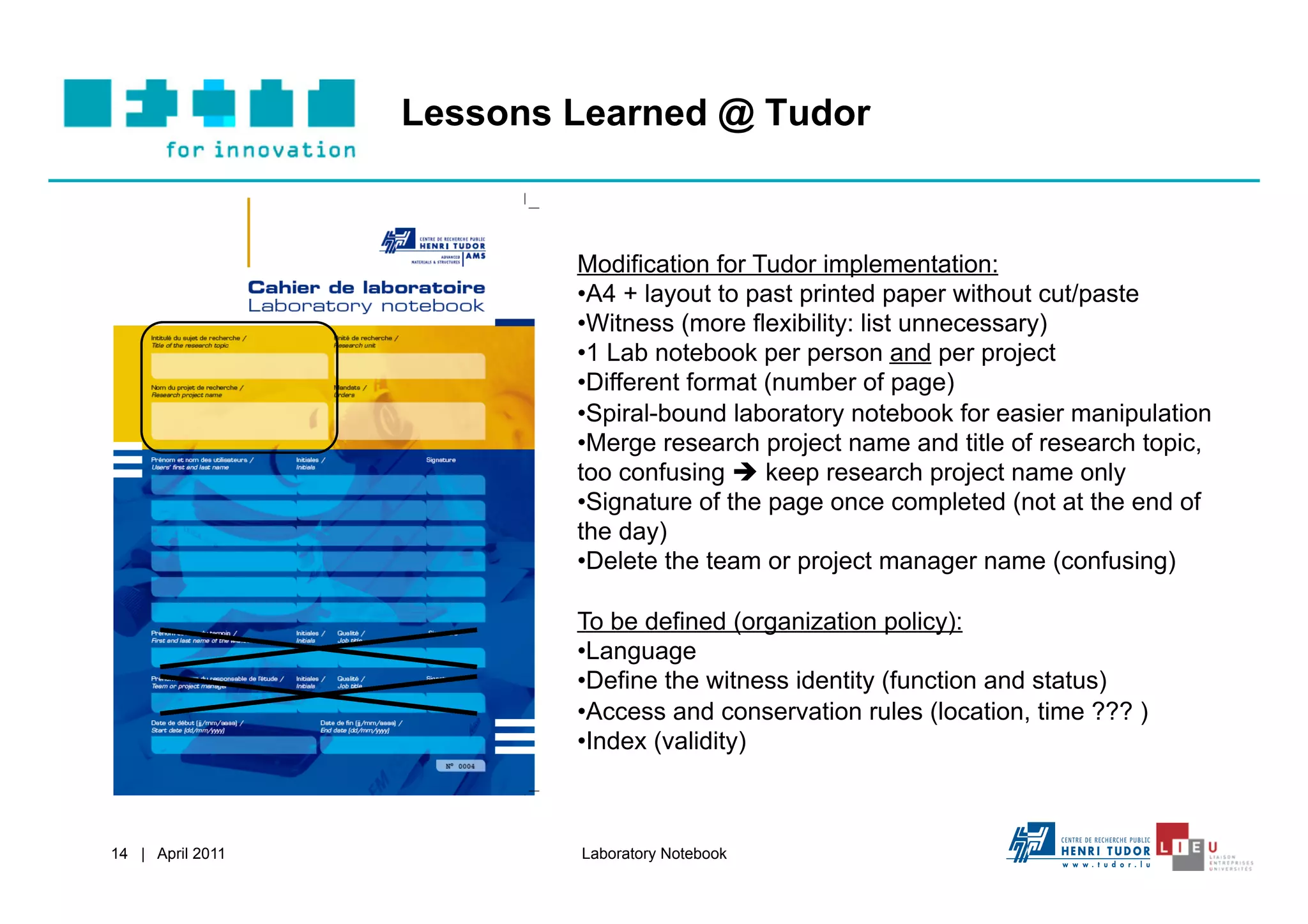

14. Lessons Learned @ Tudor
Modification for Tudor implementation:
• A4 + layout to past printed paper without cut/paste
• Witness (more flexibility: list unnecessary)
• 1 Lab notebook per person and per project
• Different format (number of page)
• Spiral-bound laboratory notebook for easier manipulation
• Merge research project name and title of research topic,
too confusing  keep research project name only
• Signature of the page once completed (not at the end of
the day)
• Delete the team or project manager name (confusing)
To be defined (organization policy):
• Language
• Define the witness identity (function and status)
• Access and conservation rules (location, time ??? )
• Index (validity)
14 | April 2011 Laboratory Notebook

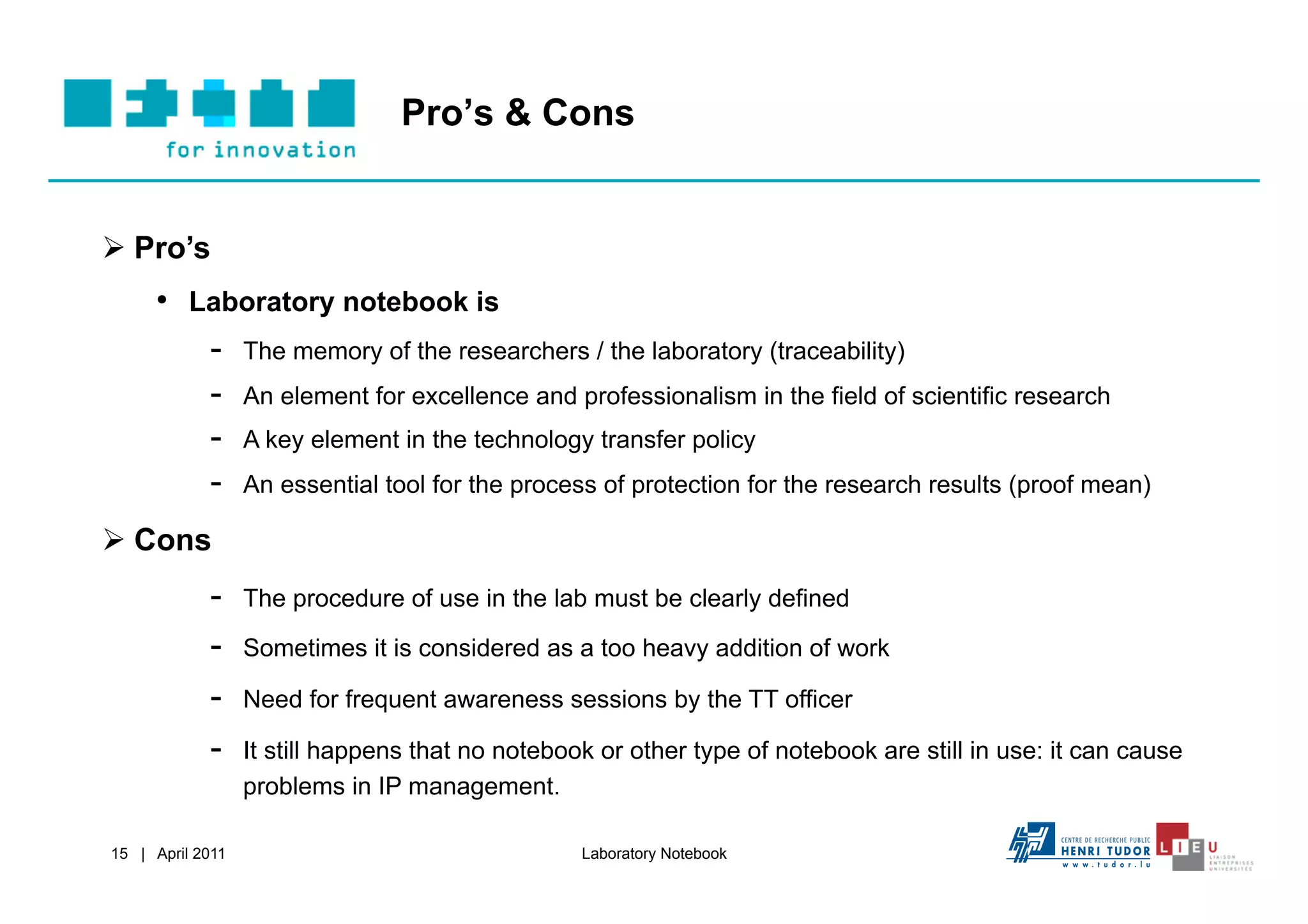

15. Pro’s & Cons
 Pro’s
• Laboratory notebook is
- The memory of the researchers / the laboratory (traceability)
- An element for excellence and professionalism in the field of scientific research
- A key element in the technology transfer policy
- An essential tool for the process of protection for the research results (proof mean)
 Cons
- The procedure of use in the lab must be clearly defined
- Sometimes it is considered as a too heavy addition of work
- Need for frequent awareness sessions by the TT officer
- It still happens that no notebook or other type of notebook are still in use: it can cause
problems in IP management.
15 | April 2011 Laboratory Notebook

16. Electronic Laboratory Notebook
16 | April 2011 Laboratory Notebook

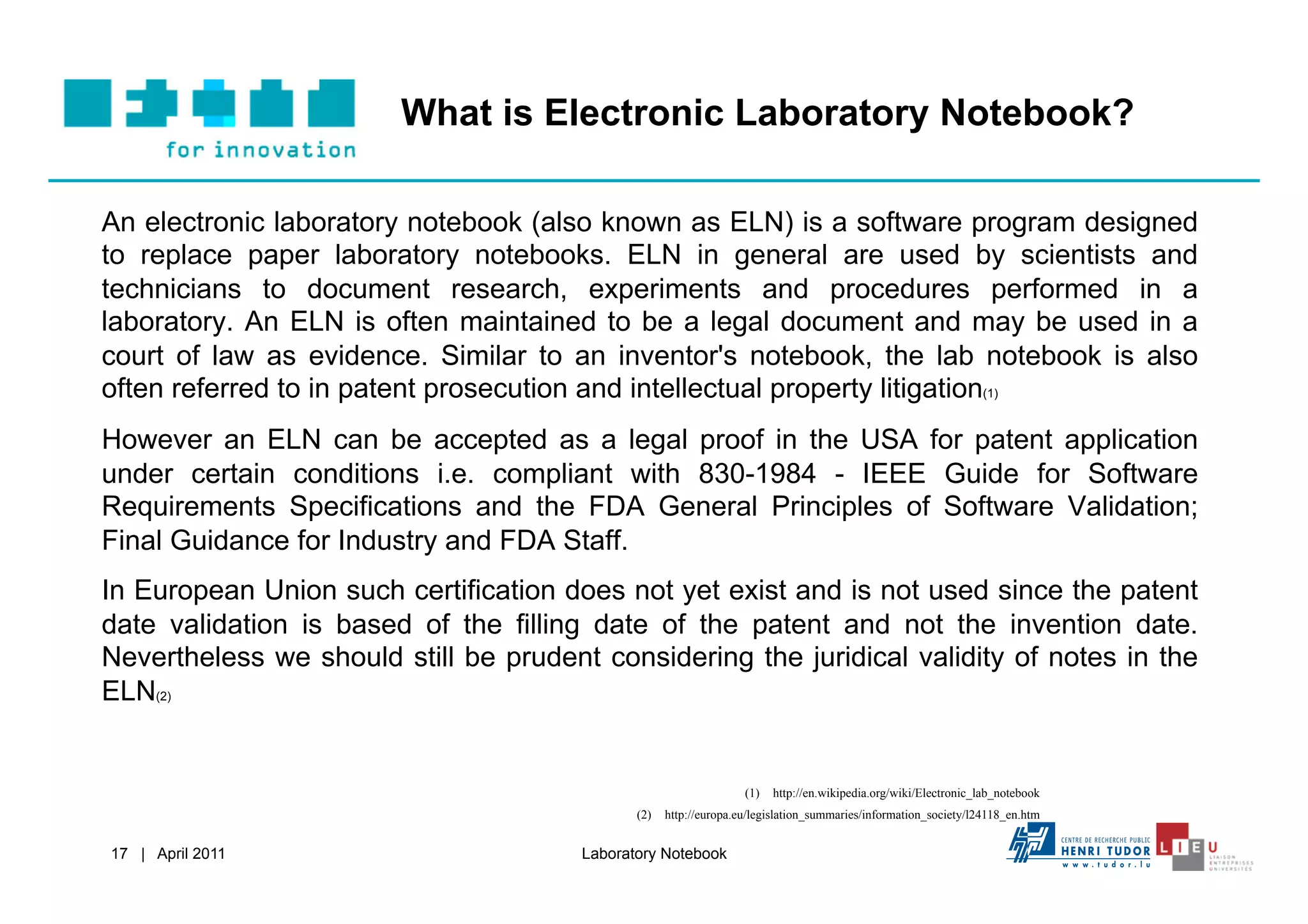

17. What is Electronic Laboratory Notebook?
An electronic laboratory notebook (also known as ELN) is a software program designed
to replace paper laboratory notebooks. ELN in general are used by scientists and
technicians to document research, experiments and procedures performed in a
laboratory. An ELN is often maintained to be a legal document and may be used in a
court of law as evidence. Similar to an inventor's notebook, the lab notebook is also
often referred to in patent prosecution and intellectual property litigation(1)
However an ELN can be accepted as a legal proof in the USA for patent application
under certain conditions i.e. compliant with 830-1984 - IEEE Guide for Software
Requirements Specifications and the FDA General Principles of Software Validation;
Final Guidance for Industry and FDA Staff.
In European Union such certification does not yet exist and is not used since the patent
date validation is based of the filling date of the patent and not the invention date.
Nevertheless we should still be prudent considering the juridical validity of notes in the
ELN(2)
(1) http://en.wikipedia.org/wiki/Electronic_lab_notebook
(2) http://europa.eu/legislation_summaries/information_society/l24118_en.htm
17 | April 2011 Laboratory Notebook

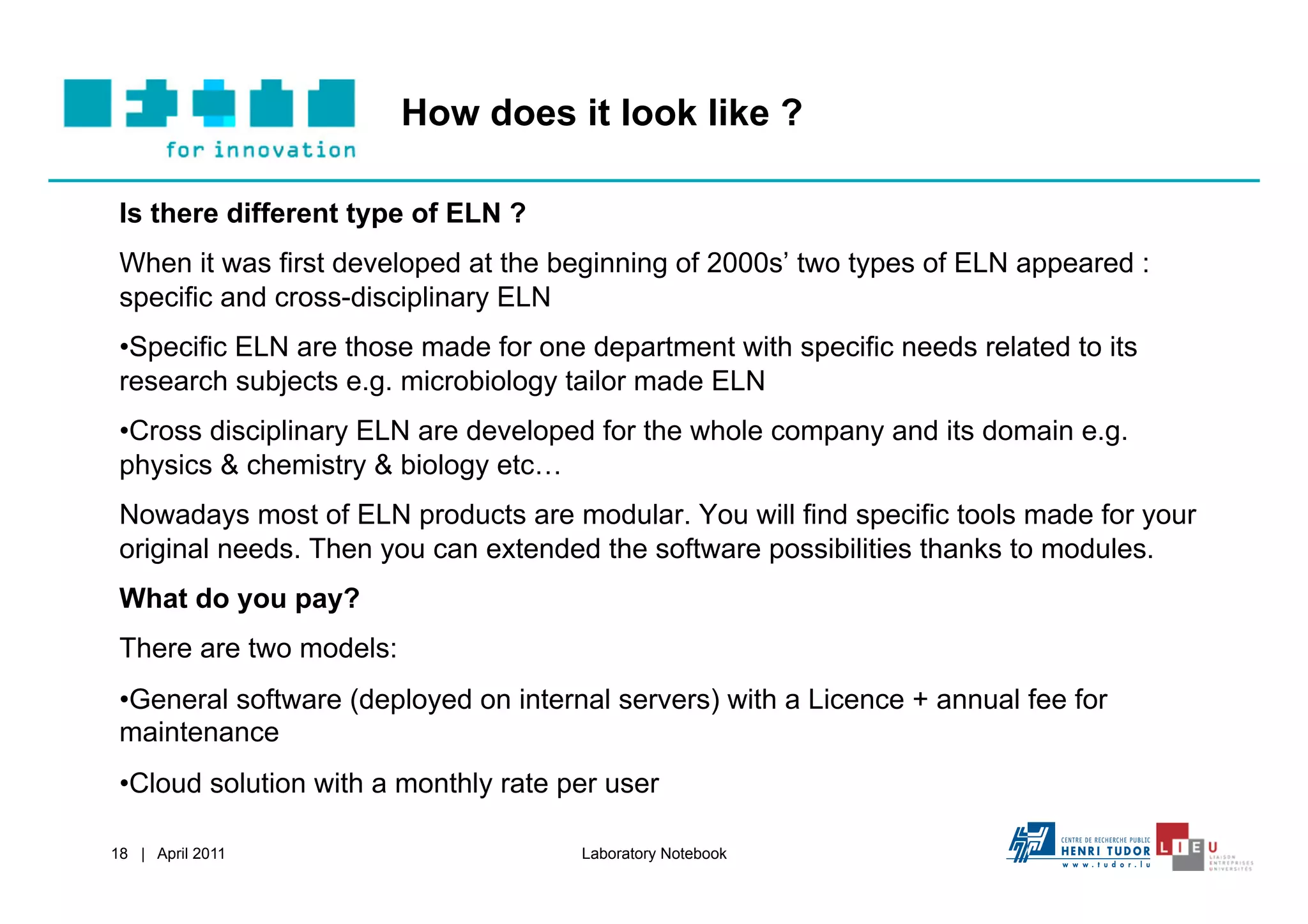

18. How does it look like ?
Is there different type of ELN ?
When it was first developed at the beginning of 2000s’ two types of ELN appeared :
specific and cross-disciplinary ELN
• Specific ELN are those made for one department with specific needs related to its
research subjects e.g. microbiology tailor made ELN
• Cross disciplinary ELN are developed for the whole company and its domain e.g.
physics & chemistry & biology etc…
Nowadays most of ELN products are modular. You will find specific tools made for your
original needs. Then you can extended the software possibilities thanks to modules.
What do you pay?
There are two models:
• General software (deployed on internal servers) with a Licence + annual fee for
maintenance
• Cloud solution with a monthly rate per user
18 | April 2011 Laboratory Notebook

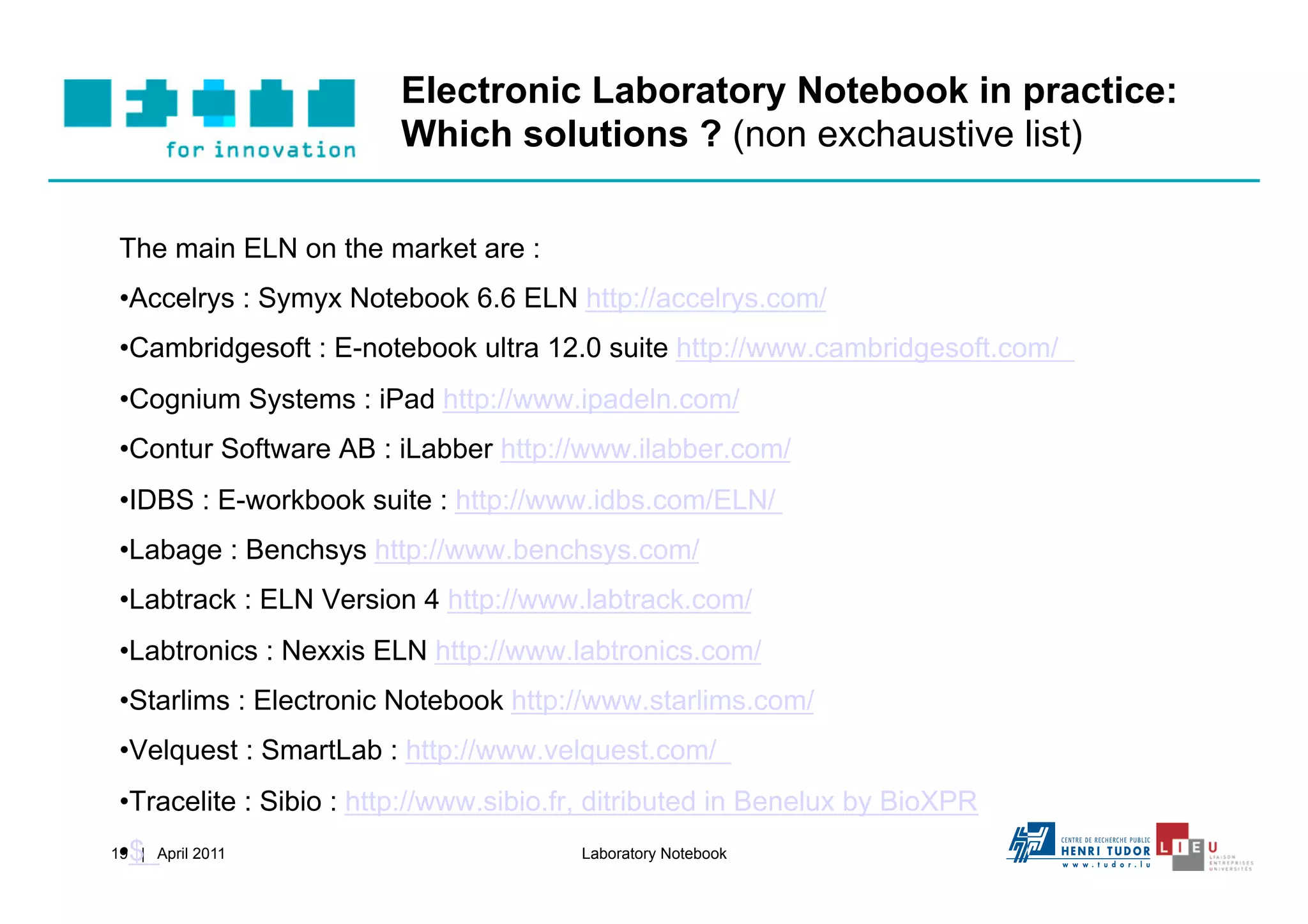

19. Electronic Laboratory Notebook in practice:
Which solutions ? (non exchaustive list)
The main ELN on the market are :
• Accelrys : Symyx Notebook 6.6 ELN http://accelrys.com/
• Cambridgesoft : E-notebook ultra 12.0 suite http://www.cambridgesoft.com/
• Cognium Systems : iPad http://www.ipadeln.com/
• Contur Software AB : iLabber http://www.ilabber.com/
• IDBS : E-workbook suite : http://www.idbs.com/ELN/
• Labage : Benchsys http://www.benchsys.com/
• Labtrack : ELN Version 4 http://www.labtrack.com/
• Labtronics : Nexxis ELN http://www.labtronics.com/
• Starlims : Electronic Notebook http://www.starlims.com/
• Velquest : SmartLab : http://www.velquest.com/
• Tracelite : Sibio : http://www.sibio.fr, ditributed in Benelux by BioXPR
• $
19 | April 2011 Laboratory Notebook

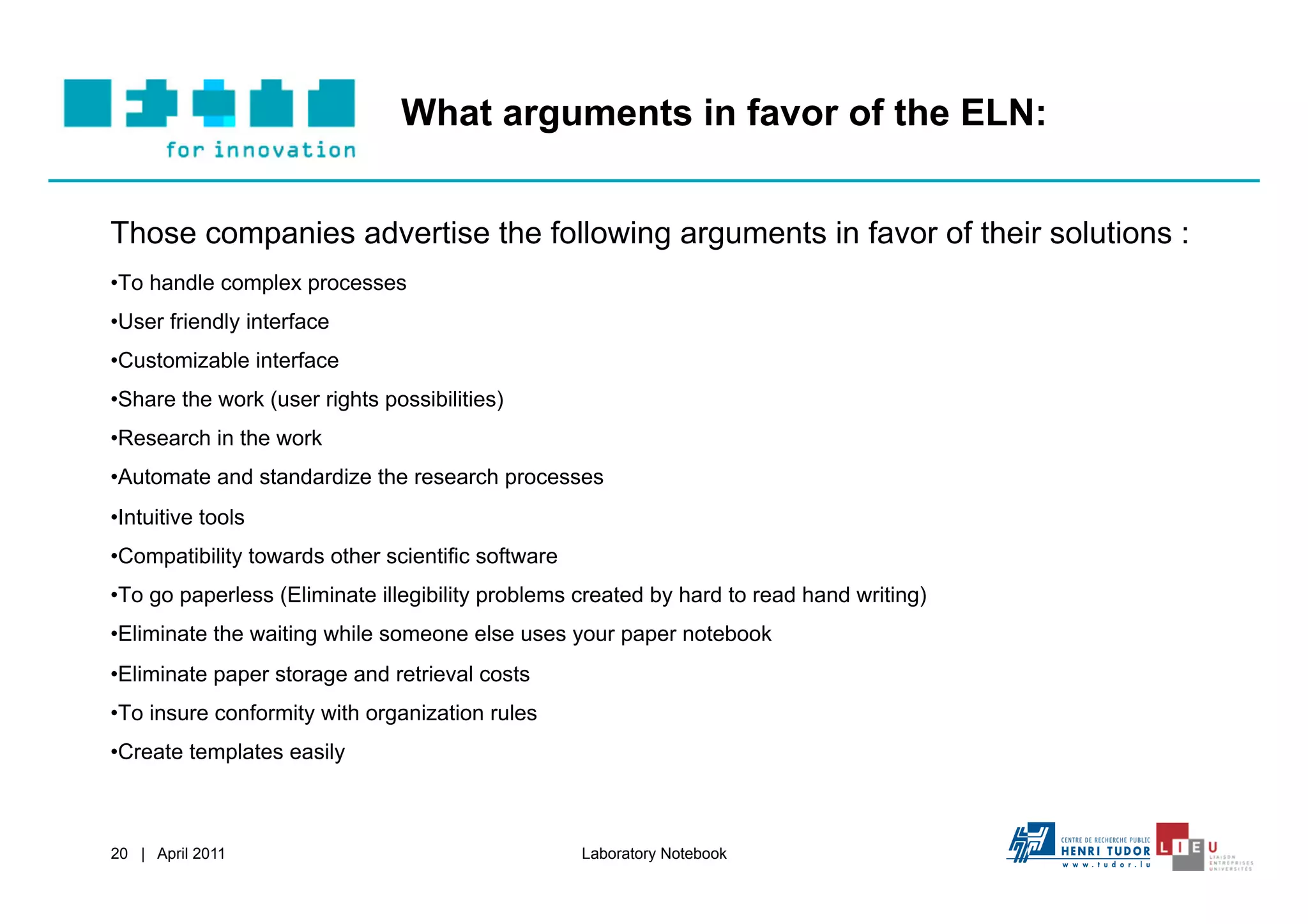

20. What arguments in favor of the ELN:
Those companies advertise the following arguments in favor of their solutions :
• To handle complex processes
• User friendly interface
• Customizable interface
• Share the work (user rights possibilities)
• Research in the work
• Automate and standardize the research processes
• Intuitive tools
• Compatibility towards other scientific software
• To go paperless (Eliminate illegibility problems created by hard to read hand writing)
• Eliminate the waiting while someone else uses your paper notebook
• Eliminate paper storage and retrieval costs
• To insure conformity with organization rules
• Create templates easily
20 | April 2011 Laboratory Notebook

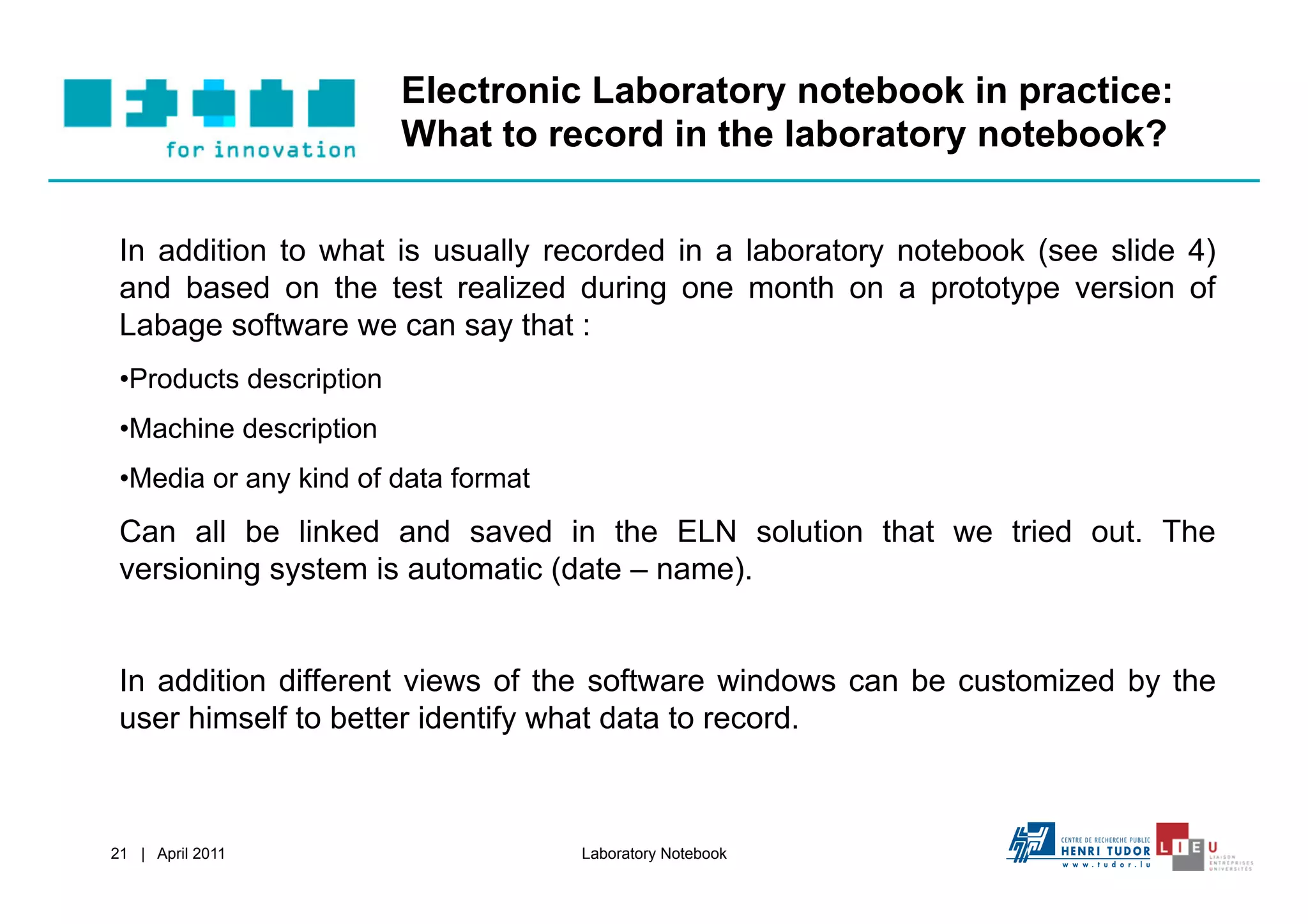

21. Electronic Laboratory notebook in practice:
What to record in the laboratory notebook?
In addition to what is usually recorded in a laboratory notebook (see slide 4)
and based on the test realized during one month on a prototype version of
Labage software we can say that :
• Products description
• Machine description
• Media or any kind of data format
Can all be linked and saved in the ELN solution that we tried out. The
versioning system is automatic (date – name).
In addition different views of the software windows can be customized by the
user himself to better identify what data to record.
21 | April 2011 Laboratory Notebook

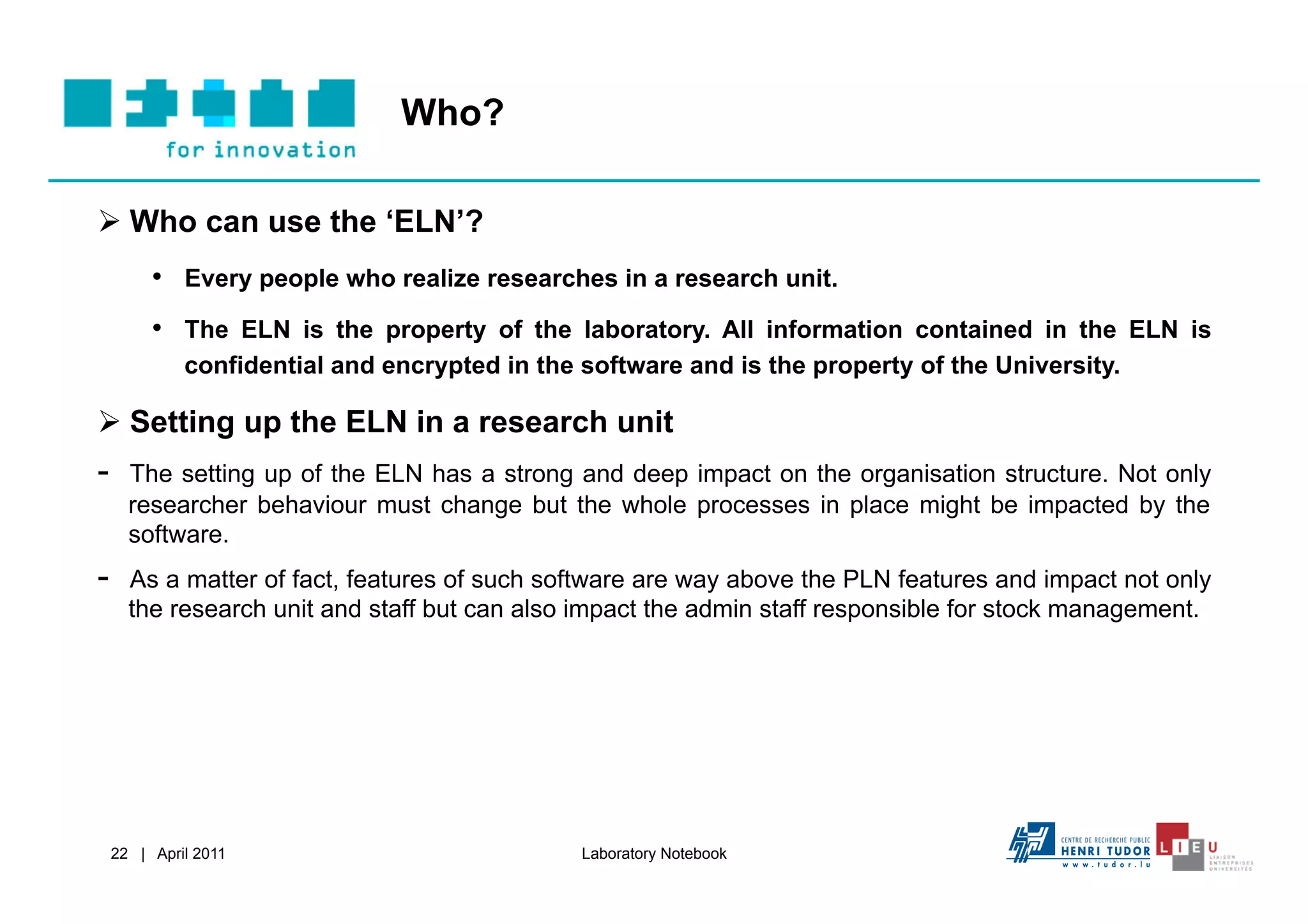

22. Who?
 Who can use the ‘ELN’?
• Every people who realize researches in a research unit.
• The ELN is the property of the laboratory. All information contained in the ELN is
confidential and encrypted in the software and is the property of the University.
 Setting up the ELN in a research unit
- The setting up of the ELN has a strong and deep impact on the organisation structure. Not only
researcher behaviour must change but the whole processes in place might be impacted by the
software.
- As a matter of fact, features of such software are way above the PLN features and impact not only
the research unit and staff but can also impact the admin staff responsible for stock management.
22 | April 2011 Laboratory Notebook

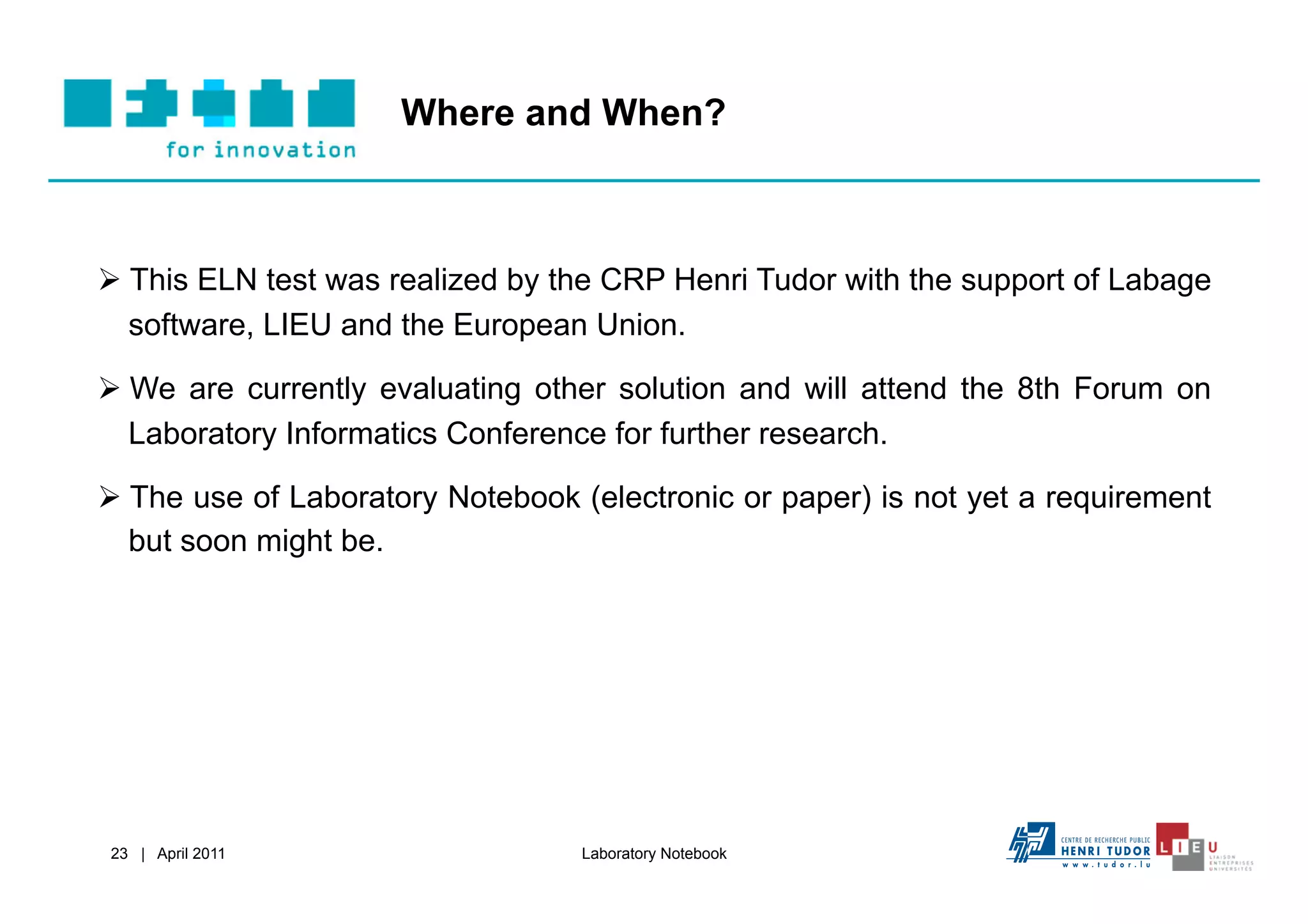

23. Where and When?
 This ELN test was realized by the CRP Henri Tudor with the support of Labage
software, LIEU and the European Union.
 We are currently evaluating other solution and will attend the 8th Forum on
Laboratory Informatics Conference for further research.
 The use of Laboratory Notebook (electronic or paper) is not yet a requirement
but soon might be.
23 | April 2011 Laboratory Notebook

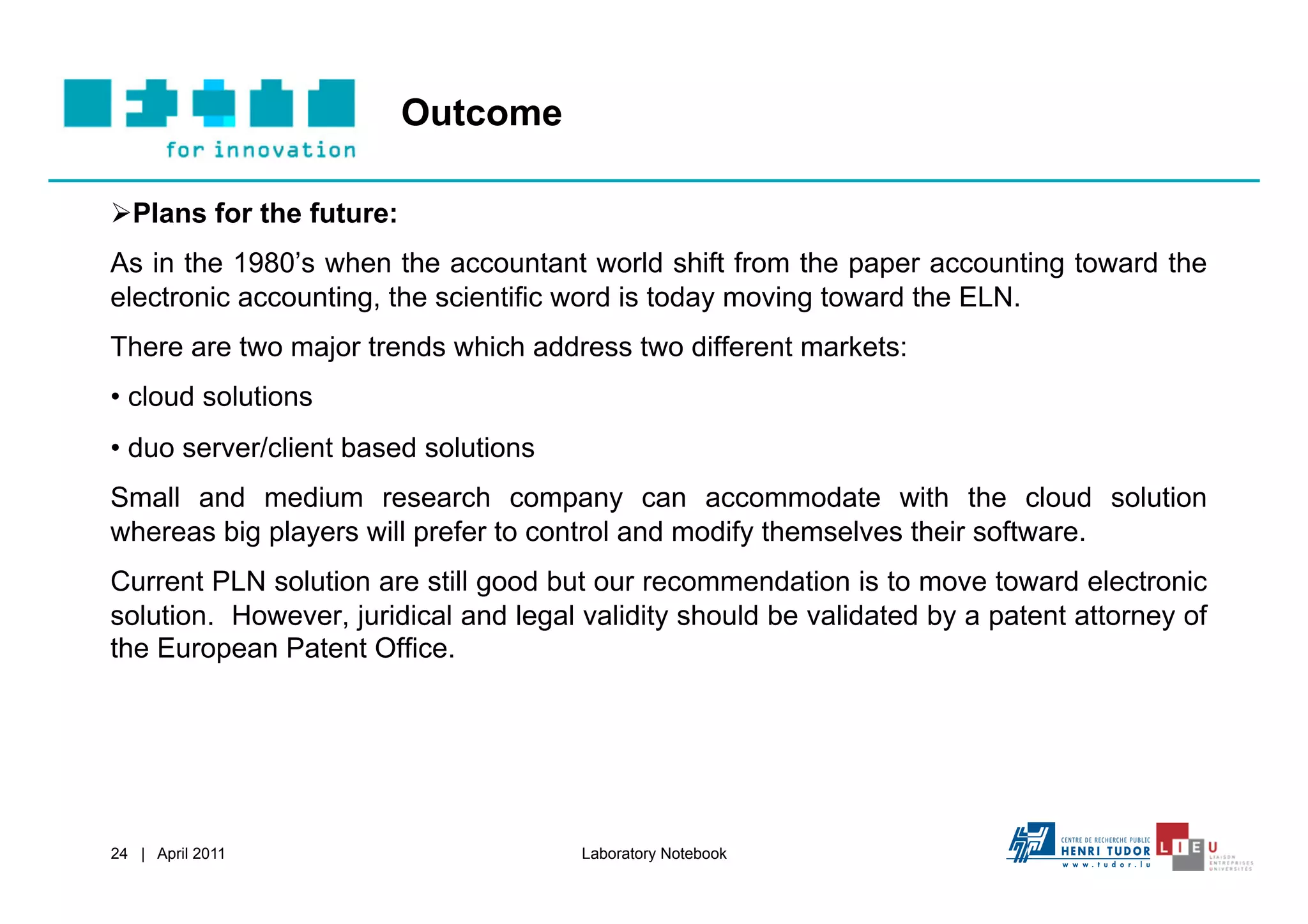

24. Outcome
 Plans for the future:
As in the 1980’s when the accountant world shift from the paper accounting toward the
electronic accounting, the scientific word is today moving toward the ELN.
There are two major trends which address two different markets:
• cloud solutions
• duo server/client based solutions
Small and medium research company can accommodate with the cloud solution
whereas big players will prefer to control and modify themselves their software.
Current PLN solution are still good but our recommendation is to move toward electronic
solution. However, juridical and legal validity should be validated by a patent attorney of
the European Patent Office.
24 | April 2011 Laboratory Notebook

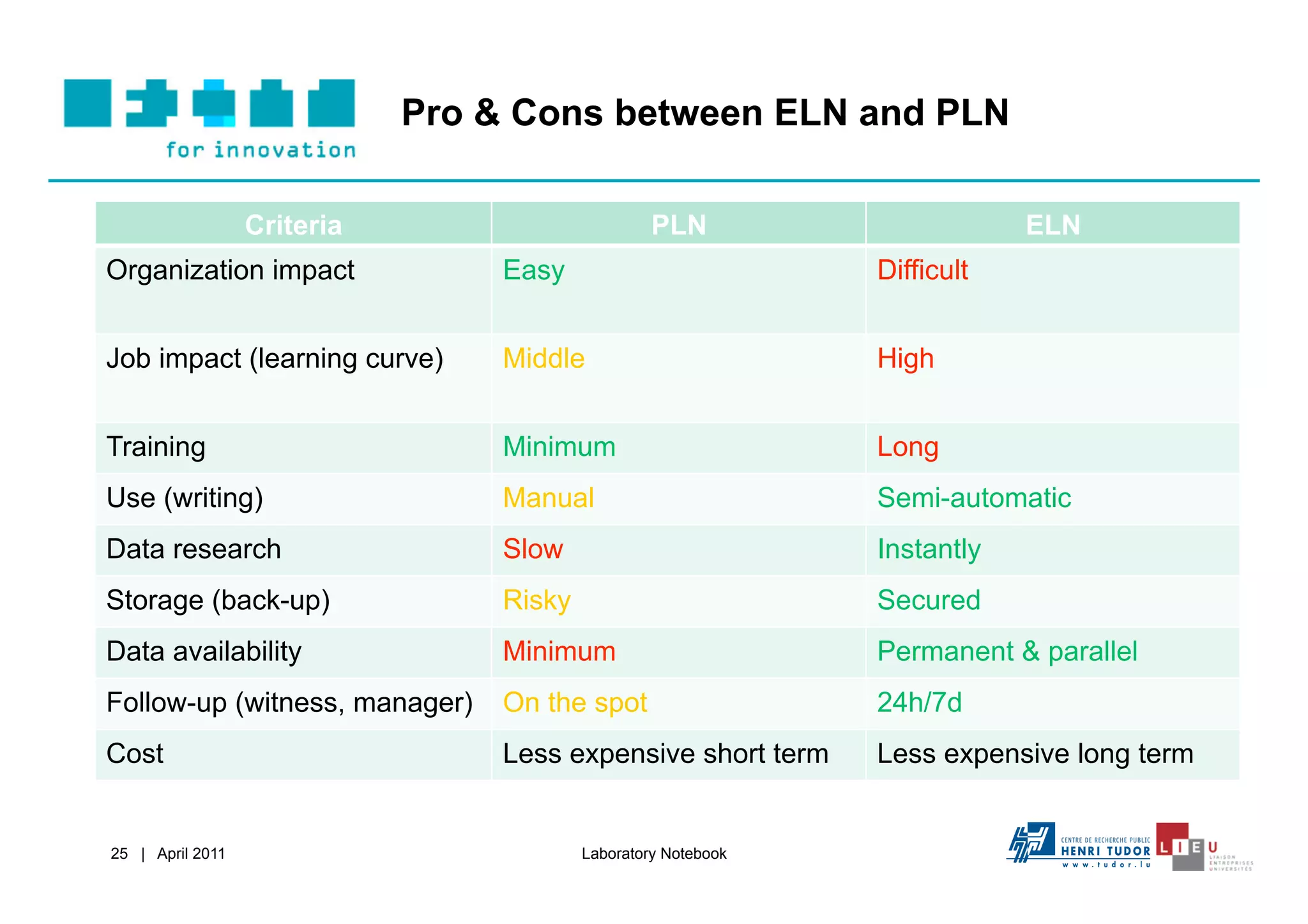

25. Pro & Cons between ELN and PLN
Criteria PLN ELN
Organization impact Easy Difficult
Job impact (learning curve) Middle High
Training Minimum Long
Use (writing) Manual Semi-automatic
Data research Slow Instantly
Storage (back-up) Risky Secured
Data availability Minimum Permanent & parallel
Follow-up (witness, manager) On the spot 24h/7d
Cost Less expensive short term Less expensive long term
25 | April 2011 Laboratory Notebook

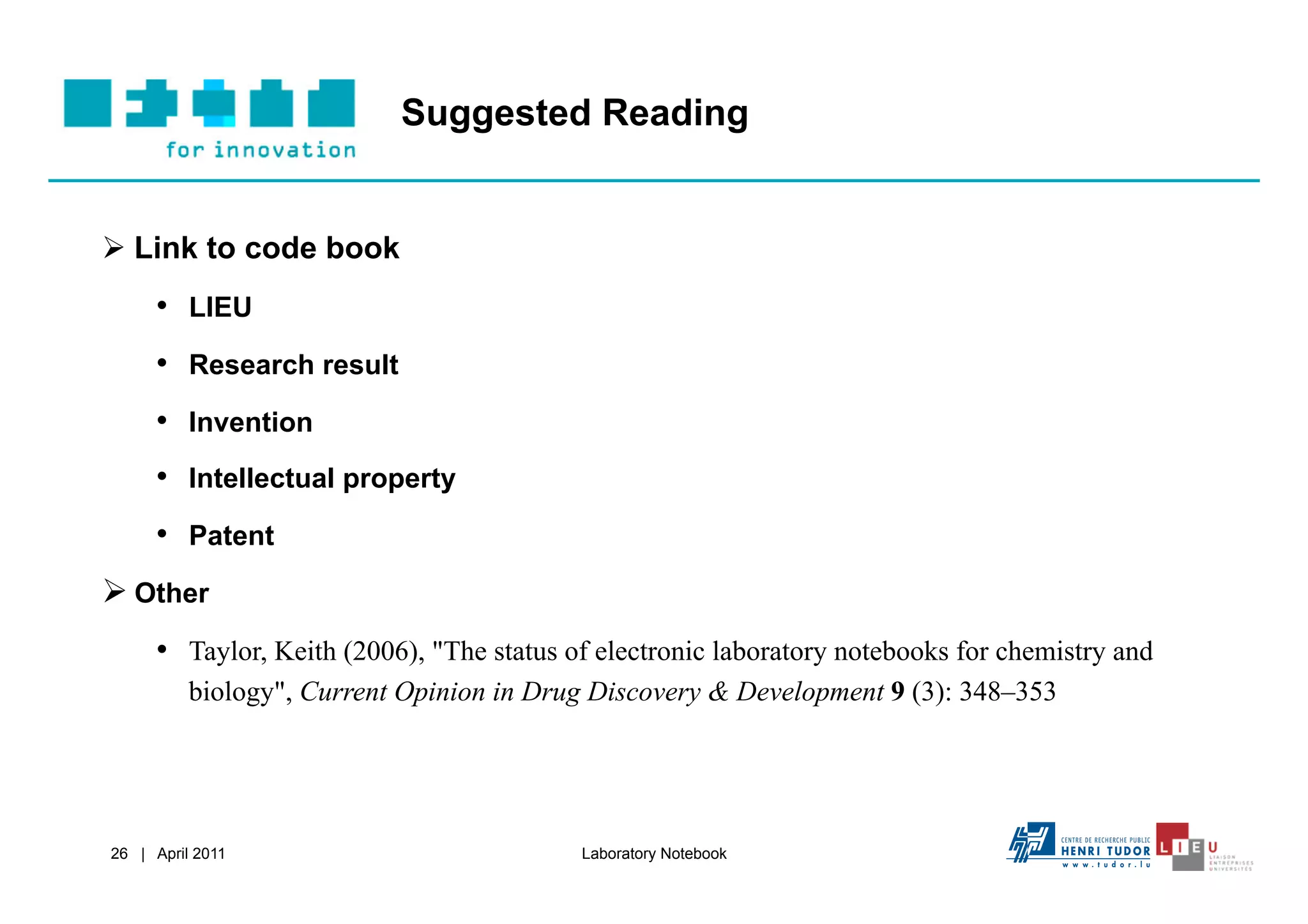

26. Suggested Reading
 Link to code book
• LIEU
• Research result
• Invention
• Intellectual property
• Patent
 Other
• Taylor, Keith (2006), "The status of electronic laboratory notebooks for chemistry and
biology", Current Opinion in Drug Discovery & Development 9 (3): 348–353
26 | April 2011 Laboratory Notebook
