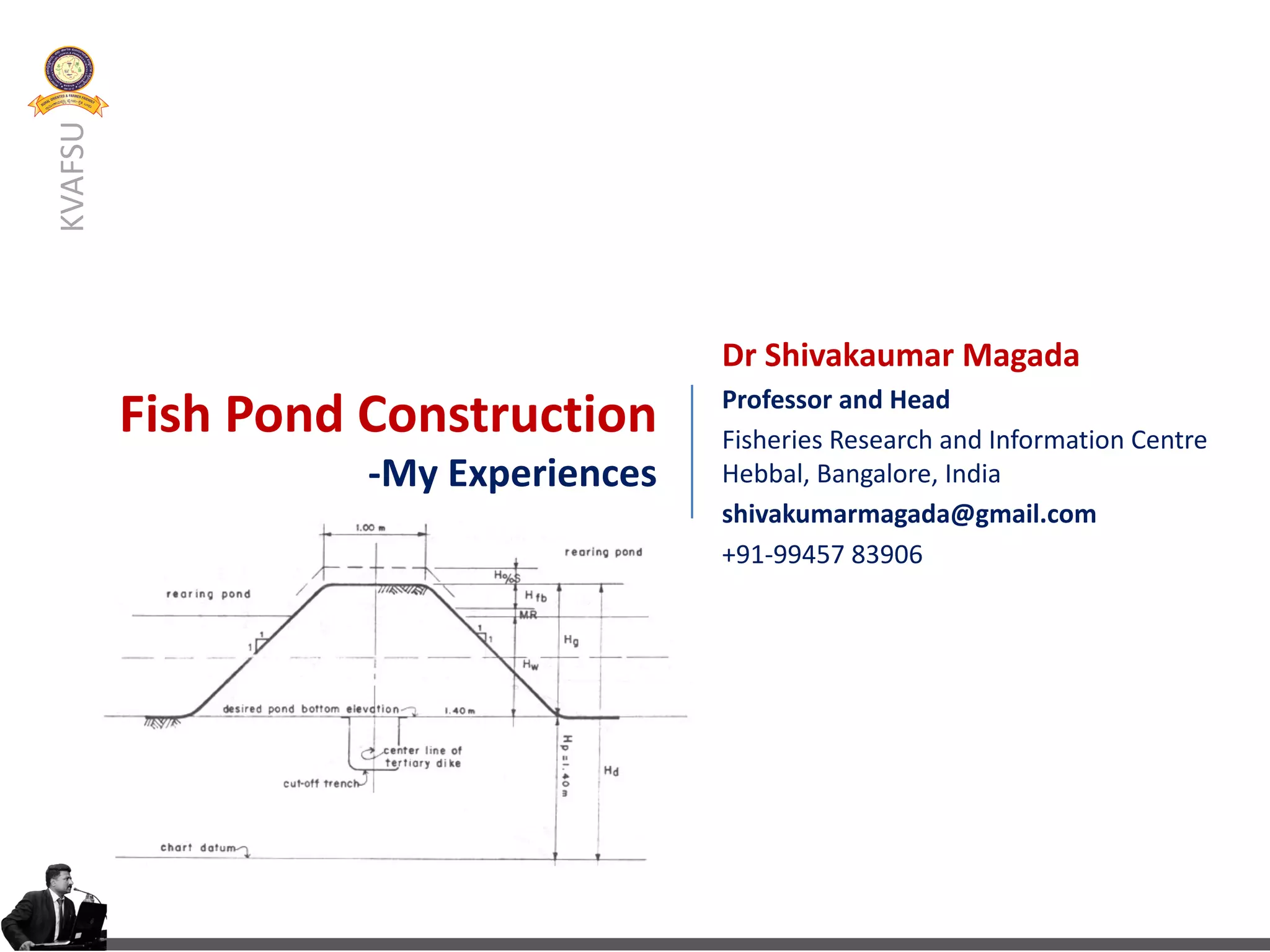

Fish Pond Construction
-My Experiences
Dr Shivakaumar Magada
Professor and Head
Fisheries Research and Information Centre
Hebbal, Bangalore, India
shivakumarmagada@gmail.com
+91-99457 83906

2. KVAFSU Conditions apply..are

3. KVAFSU
Tribute to departed souls

4. KVAFSU
Pond construction
§ Soil types
§ Site selection
§ Pond constructions
§ Bund strengthening
§ Sedimentation tank
§ ETT (if necessary)
§ Lining if required
§ Economics

5. KVAFSU

6. KVAFSU

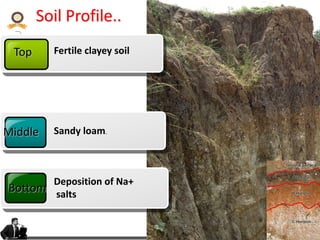

Top Fertile clayey soil
Middle Sandy loam.
Bottom
Deposition of Na+
salts
Soil Profile..

7. KVAFSU

8. KVAFSU

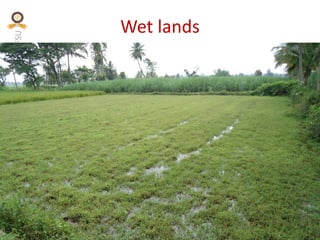

Wet lands

9. KVAFSU

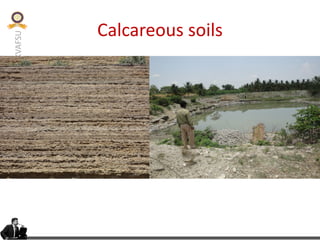

Calcareous soils

10. KVAFSU

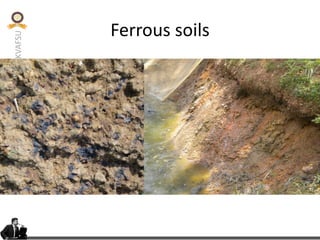

Ferrous soils

11. KVAFSU

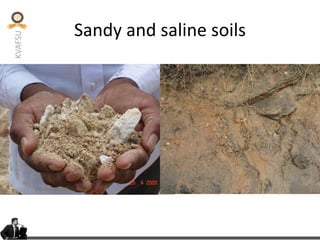

Sandy and saline soils

12. KVAFSU

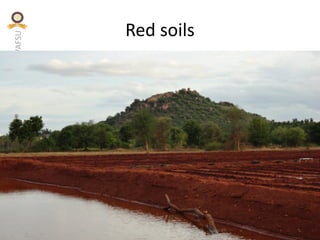

Red soils

13. KVAFSU

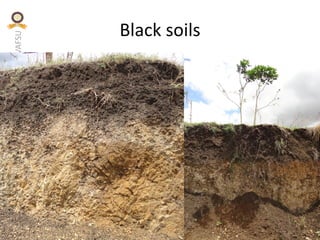

Black soils

14. KVAFSU

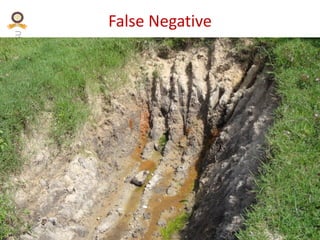

False Negative

15. KVAFSU

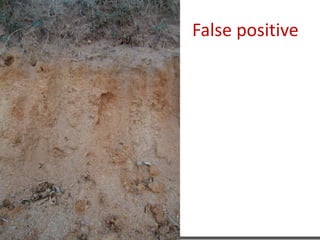

False positive

16. KVAFSU

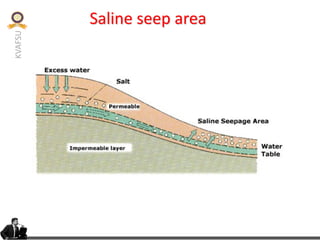

17. KVAFSU Saline seep area

18. KVAFSU
Site selection
• Good water source/ ¤Ãj£À ¸Ë®¨sÀå
• Water retention/ ¤ÃgÀÄ ¤®ÄèªÀ ¸ÁªÀÄxÀðå
• Road and electricity/ gÀ¸ÉÛ ªÀÄvÀÄÛ
«zÀÄå±ÀÑQÛ
• Soil and water quality/ ªÀÄtÄÚ ªÀÄvÀÄÛ ¤Ãj£À
UÀÄtzÀªÀÄð

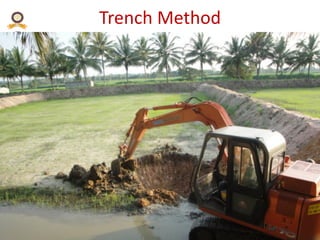

19. KVAFSU Trench Method

20. KVAFSU

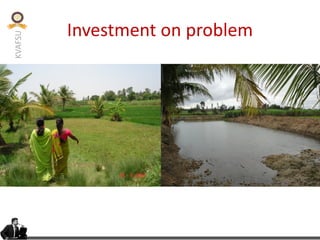

Investment on problem

21. KVAFSU
Challenge turned opportunity

22. KVAFSU

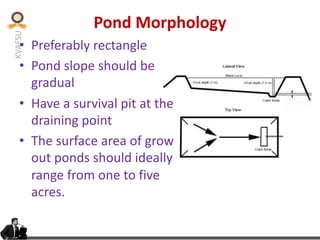

Pond Morphology
• Preferably rectangle
• Pond slope should be
gradual
• Have a survival pit at the
draining point
• The surface area of grow
out ponds should ideally
range from one to five
acres.

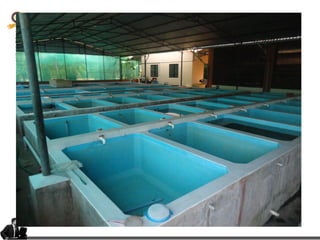

23. KVAFSU

24. KVAFSU

25. KVAFSU

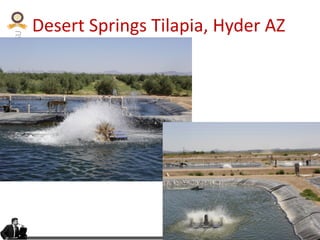

Desert Springs Tilapia, Hyder AZ

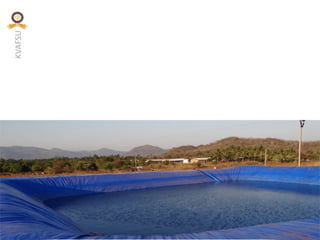

26. KVAFSU

27. KVAFSU

28. KVAFSU

29. KVAFSU

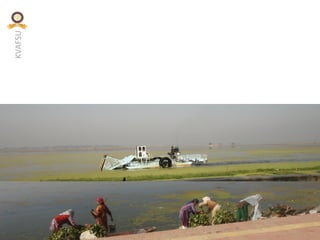

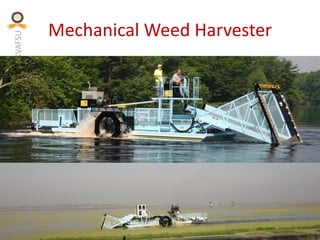

Mechanical Weed Harvester

30. KVAFSU

31. KVAFSU
Drainage Systems

32. KVAFSU

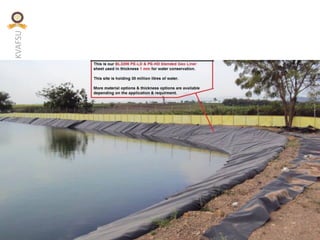

Plastic lining tanks
§ For fish seed rearing/«ÄãÀĪÀÄj ¥Á®£É
§ Stunted fingerlings/PÀÄAnvÀ «ÄãÀĪÀÄj
¥Á®£É
§ Ornamental fish rearing/C®APÁjPÀ «ÄãÀÄ
GvÁàzÀ£É
§ Azolla culture/CeóÉÆïÁ GvÁàzÀ£É

33. KVAFSU

34. KVAFSU

35. KVAFSU

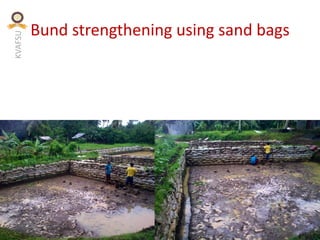

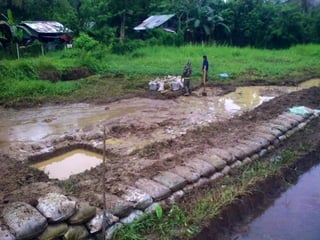

Bund strengthening using sand bags

36. KVAFSU

37. KVAFSU

38. KVAFSU

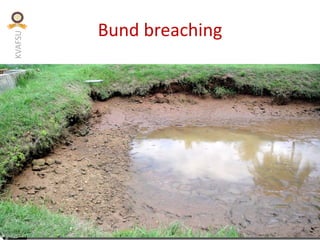

Bund breaching

39. KVAFSU

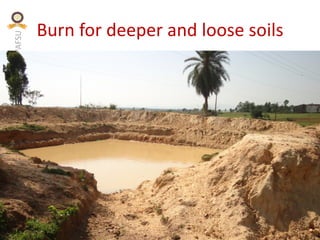

Burn for deeper and loose soils

40. KVAFSU

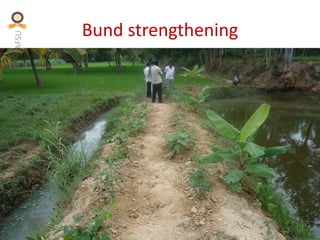

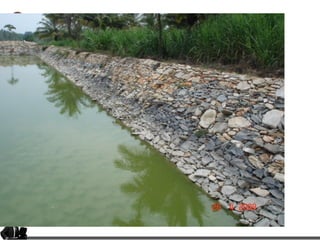

Bund strengthening

41. KVAFSU

42. KVAFSU

43. KVAFSU

44. KVAFSU

45. KVAFSU

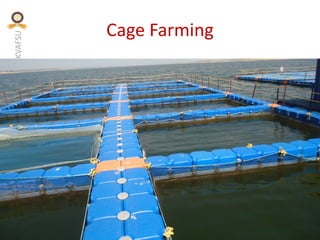

Cage Farming

46. KVAFSU

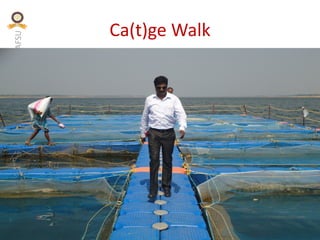

Ca(t)ge Walk

47. KVAFSU

48. KVAFSU

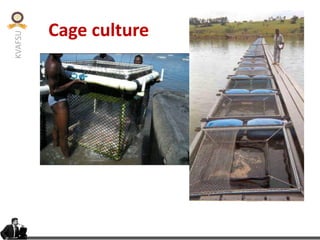

Cage culture

49. KVAFSU

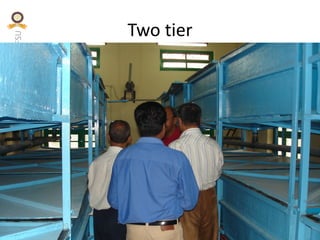

Two tier

50. KVAFSU

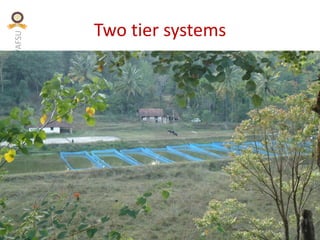

Two tier systems

51. KVAFSU

52. KVAFSU

53. KVAFSU

54. KVAFSU

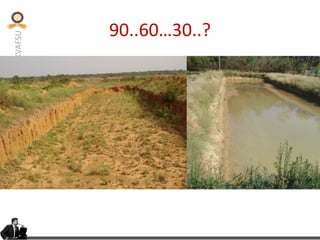

90..60…30..?

55. KVAFSU

56. KVAFSU

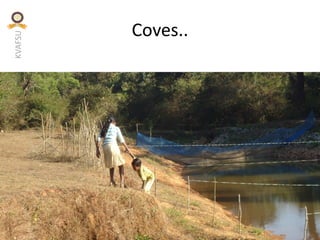

Coves..

57. KVAFSU

58. KVAFSU

59. KVAFSU

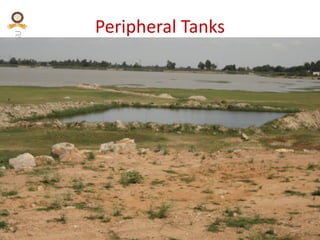

Peripheral Tanks

60. KVAFSU
Pond preparation
• Compaction
• Turfing/stone pitching
• Liming…/¸ÀÄtÚ ºÁPÀĪÀÅzÀÄ
• Tilling/G¼ÀĪÉÄ ªÀiÁqÀĪÀÅzÀÄ
• Water filling/¤ÃgÀÄ vÀÄA§ÄªÀÅzÀÄ
• Check for water loss (seepage and evaporation)

61. KVAFSU

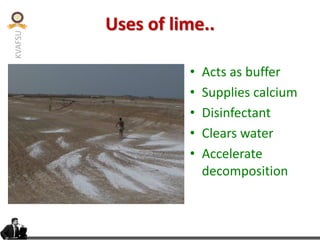

Uses of lime..
• Acts as buffer
• Supplies calcium
• Disinfectant
• Clears water
• Accelerate
decomposition

62. KVAFSU

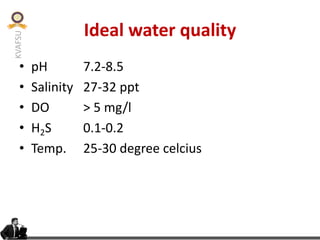

Ideal water quality
• pH 7.2-8.5
• Salinity 27-32 ppt
• DO > 5 mg/l
• H2S 0.1-0.2
• Temp. 25-30 degree celcius

63. KVAFSU

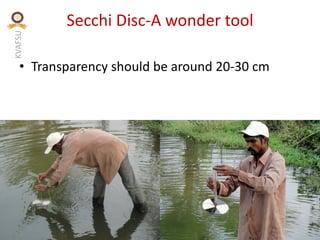

Secchi Disc-A wonder tool
• Transparency should be around 20-30 cm

64. KVAFSU

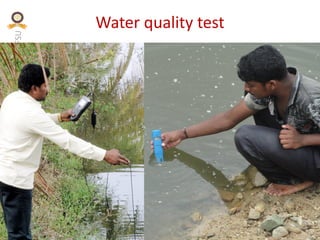

Water quality test

65. KVAFSU IT based farm management

66. KVAFSU
Demand Feeders

67. KVAFSU

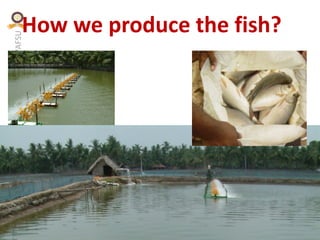

How we produce the fish?

68. KVAFSU

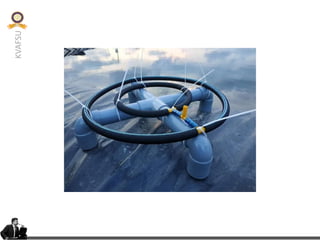

Aerators/UÁ½AiÀÄAvÀæ

69. KVAFSU

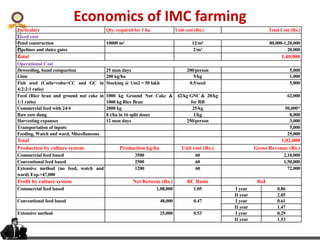

70. KVAFSU Economics of IMC farming
Particulars Qty. required for 1 ha Unit cost (Rs.) Total Cost (Rs.)
Fixed cost
Pond construction 10000 m2 12/m2 80,000-1,20,000
Pipelines and sluice gates 2/m2 20,000
Total 1,40,000
Operational Cost
Deweeding, bund compaction 25 man days 200/person 5,000
Lime 200 kg/ha 5/kg 1,000
Fish seed (Catla+rohu+CC and GC in
4:2:2:1 ratio)
Stocking @ 1/m2 = 50 lakh 0.5/seed 5,000
Feed (Rice bran and ground nut cake in
1:1 ratio)
1000 kg Ground Nut Cake &
1000 kg Rice Bran
42/kg GNC & 20/kg
for RB
62,000
Commercial feed with 24/4 2000 kg 25/kg 50,000*
Raw cow dung 8 t/ha in 16 split doses 1/kg 8,000
Harvesting expanses 12 man days 250/person 3,000
Transportation of inputs 5,000
Feeding, Watch and ward, Miscellaneous 25,000
Total 1,02,000
Production by culture system Production kg/ha Unit cost (Rs.) Gross Revenue (Rs.)
Commercial feed based 3500 60 2,10,000
Conventional feed based 2500 60 1,50,000
Extensive method (no feed, watch and
ward) Exp.=47,000
1200 60 72,000
Profit by culture system Net Returns (Rs.) BC Ratio RoI
Commercial feed based 1,08,000 1.05 I year 0.86
II year 2.05
Conventional feed based 48,000 0.47 I year 0.61
II year 1.47
Extensive method 25,000 0.53 I year 0.29
II year 1.53

71. KVAFSU

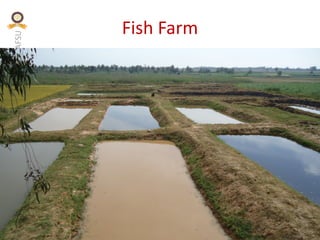

Fish Farm

72. KVAFSU
Jumping Money..

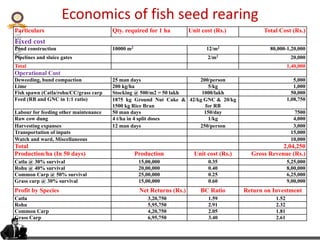

73. KVAFSU Economics of fish seed rearing
Particulars Qty. required for 1 ha Unit cost (Rs.) Total Cost (Rs.)
Fixed cost
Pond construction 10000 m2 12/m2 80,000-1,20,000
Pipelines and sluice gates 2/m2
20,000
Total 1,40,000
Operational Cost
Deweeding, bund compaction 25 man days 200/person 5,000
Lime 200 kg/ha 5/kg 1,000
Fish spawn (Catla/rohu/CC/grass carp Stocking @ 500/m2 = 50 lakh 1000/lakh 50,000
Feed (RB and GNC in 1:1 ratio) 1875 kg Ground Nut Cake &
1500 kg Rice Bran
42/kg GNC & 20/kg
for RB
1,08,750
Labour for feeding other maintenance 50 man days 150/day 7500
Raw cow dung 4 t/ha in 4 split doses 1/kg 4,000
Harvesting expanses 12 man days 250/person 3,000
Transportation of inputs 15,000
Watch and ward, Miscellaneous 10,000
Total 2,04,250
Production/ha (In 50 days) Production Unit cost (Rs.) Gross Revenue (Rs.)
Catla @ 30% survival 15,00,000 0.35 5,25,000
Rohu @ 40% survival 20,00,000 0.40 8,00,000
Common Carp @ 50% survival 25,00,000 0.25 6,25,000
Grass carp @ 30% survival 15,00,000 0.60 9,00,000
Profit by Species Net Returns (Rs.) BC Ratio Return on Investment
Catla 3,20,750 1.59 1.52
Rohu 5,95,750 2.91 2.32
Common Carp 4,20,750 2.05 1.81
Grass Carp 6,95,750 3.40 2.61

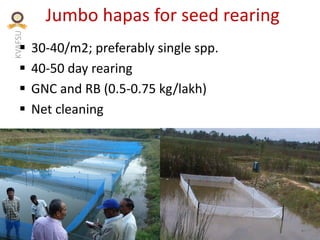

74. KVAFSU Jumbo hapas for seed rearing
§ 30-40/m2; preferably single spp.
§ 40-50 day rearing
§ GNC and RB (0.5-0.75 kg/lakh)
§ Net cleaning

75. KVAFSU
Seed selling by weight basis

76. KVAFSU

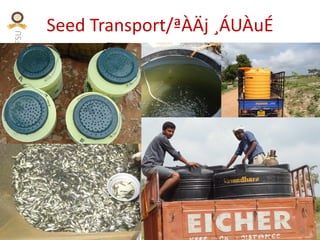

Seed Transport/ªÀÄj ¸ÁUÀuÉ

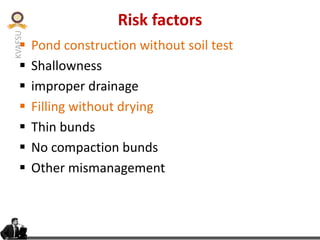

77. KVAFSU Risk factors
§ Pond construction without soil test
§ Shallowness
§ improper drainage
§ Filling without drying
§ Thin bunds
§ No compaction bunds
§ Other mismanagement

78. KVAFSU
Costly mistakes

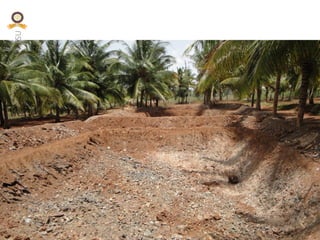

79. KVAFSU

80. KVAFSU

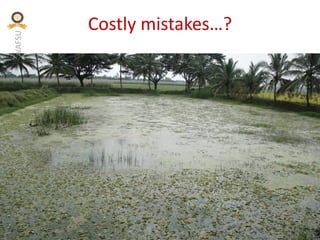

Costly mistakes…?

81. KVAFSU

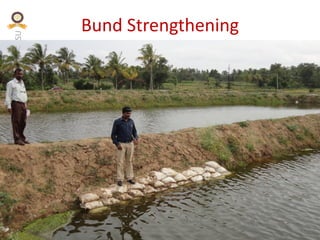

Bund Strengthening

82. KVAFSU

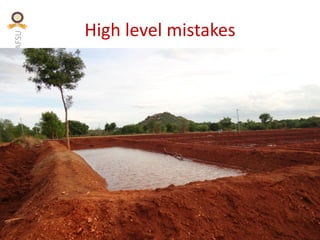

High level mistakes

83. KVAFSU

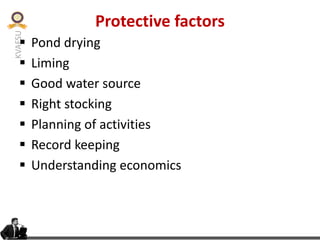

Protective factors
§ Pond drying
§ Liming
§ Good water source
§ Right stocking
§ Planning of activities
§ Record keeping
§ Understanding economics

84. KVAFSU

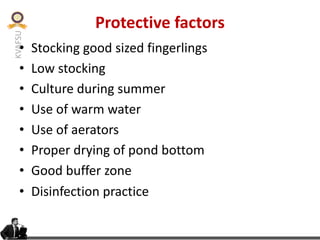

Protective factors
• Stocking good sized fingerlings
• Low stocking
• Culture during summer
• Use of warm water
• Use of aerators
• Proper drying of pond bottom
• Good buffer zone
• Disinfection practice

85. KVAFSU

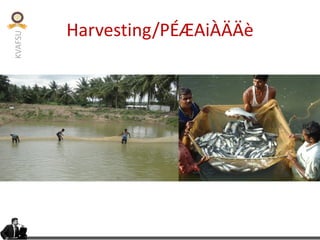

Harvesting/PÉÆAiÀÄÄè

86. KVAFSU
Creativity is not...

87. KVAFSU
Vision Values Strategy Resource Capability Motivation Feed Back = Change
=
=
=
=
=
=
=
Confusion
Corruption
Diffusion
Frustration
Fatigue
Crawl
Doubt
Managing Change....

88. KVAFSU
You can see the past…

89. KVAFSU
Normal is boring..do something different
