Fire station no. 2 design presentation december 2007

The document provides details on the design of a new fire station in Windsor, California. It discusses the operations-based goals of the site layout and building design, as well as the major project elements including a 7,694 square foot fire station with two apparatus bays. Key considerations for the design include site operations, response criteria, and green building goals like pursuing LEED silver certification to reduce costs and increase energy efficiency. Site plans and building floor plans are presented along with discussions of design elements like daylighting, ventilation, and landscaping approaches.

Embed presentation

Download as PDF, PPTX
WINDSOR FIRE STATION NO. 2 FIRE STATION DESIGN Presented by David Kelley & Mary McGrath, AIA, LEED AP, NCARB

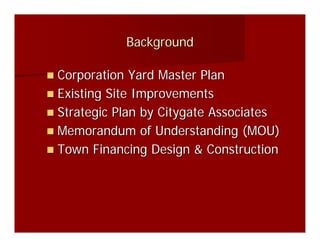

Background Corporation Yard Master Plan Existing Site Improvements Strategic Plan by Citygate Associates Memorandum of Understanding (MOU) Town Financing Design & Construction

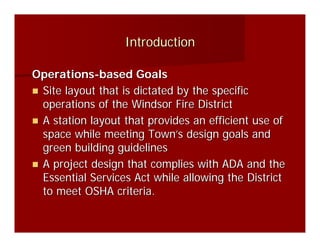

Introduction Operations-based Goals Site layout that is dictated by the specific operations of the Windsor Fire District A station layout that provides an efficient use of space while meeting Town’s design goals and green building guidelines A project design that complies with ADA and the Essential Services Act while allowing the District to meet OSHA criteria.
Functions/Spaces/Issues affecting Design Criteria Current & Future Apparatus Bay Support Operations including decontamination, medical supply storage, hose Site operational goals storage, etc. Public use/Fire District Firefighter Living Quarters interface Apparatus Bays and Storage Response Criteria Neighborhood influences

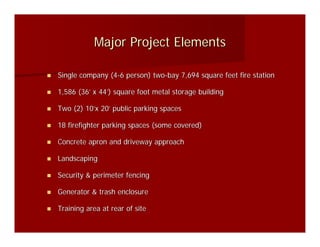

Major Project Elements Single company (4-6 person) two-bay 7,694 square feet fire station 1,586 (36’ x 44’) square foot metal storage building Two (2) 10’x 20’ public parking spaces 18 firefighter parking spaces (some covered) Concrete apron and driveway approach Landscaping Security & perimeter fencing Generator & trash enclosure Training area at rear of site

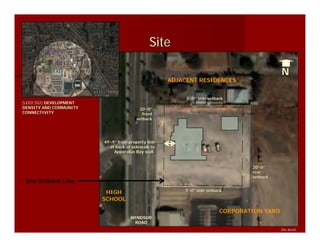

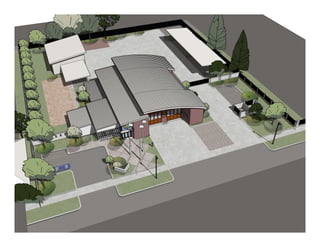

Site N ADJACENT RESIDENCES 5’-0” side setback [LEED SS2] DEVELOPMENT DENSITY AND COMMUNITY 20’-0” 20’ CONNECTIVITY front setback 49’-9” from property line 49’ at back of sidewalk to Apparatus Bay wall. 20’-0” 20’ rear setback Site Setback Line 5’-0” side setback HIGH SCHOOL CORPORATION YARD WINDSOR ROAD Site Aerial

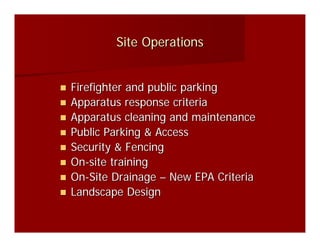

Site Operations Firefighter and public parking Apparatus response criteria Apparatus cleaning and maintenance Public Parking & Access Security & Fencing On-site training On-Site Drainage – New EPA Criteria Landscape Design

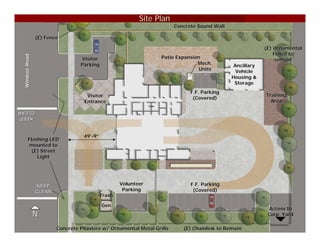

Site Plan Concrete Sound Wall (E) Fence (E) Ornamental Fence to Patio Expansion Windsor Road Visitor remain Parking Mech. Ancillary Units Vehicle Housing & Storage F.F. Parking Visitor Training (Covered) Entrance Area CLEAR CLEAR KEEP 49’-9” 49’ Flashing LED mounted to (E) Street Light KEEP Volunteer F.F. Parking CLEAR Parking (Covered) Trash Gen. Access to N Corp. Yard Concrete Pilasters w/ Ornamental Metal Grills (E) Chainlink to Remain

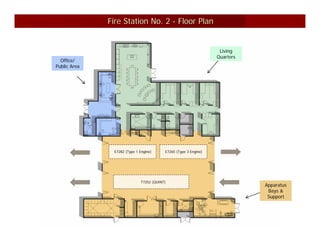

Fire Station No. 2 - Floor Plan Living Quarters Office/ Public Area E7282 (Type 1 Engine) E7265 (Type 3 Engine) T7252 (QUINT) Apparatus Bays & Support

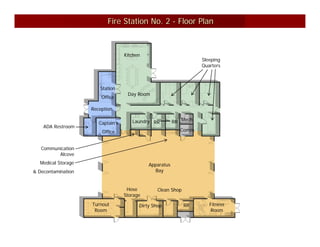

Fire Station No. 2 - Floor Plan Kitchen Sleeping Quarters Station Day Room Office Reception Captain’s Laundry RR RR Mech ADA Restroom Office Comm Communication Alcove Medical Storage Apparatus & Decontamination Bay Hose Clean Shop Storage Turnout Dirty Shop RR Fitness Room Room

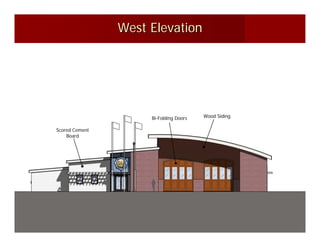

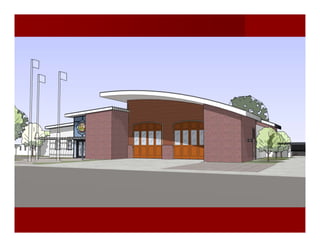

West Elevation Bi-Folding Doors Wood Siding Scored Cement Board

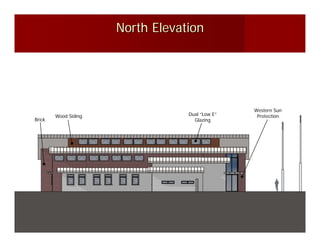

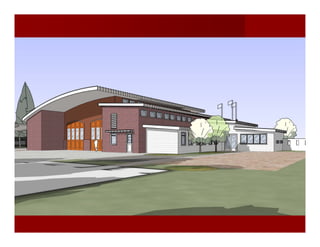

North Elevation Western Sun Wood Siding Dual “Low E” Protection Brick Glazing

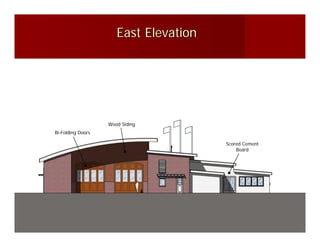

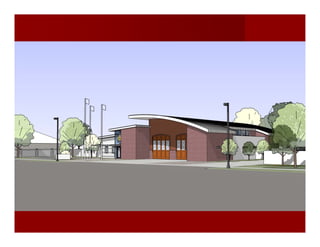

East Elevation Wood Siding Bi-Folding Doors Scored Cement Board

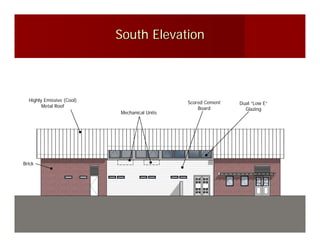

South Elevation Highly Emissive (Cool) Scored Cement Dual “Low E” Metal Roof Board Glazing Mechanical Units Brick

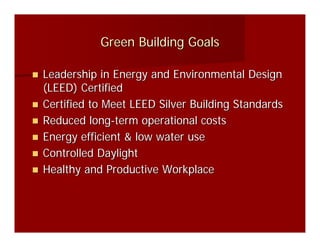

Green Building Goals Leadership in Energy and Environmental Design (LEED) Certified Certified to Meet LEED Silver Building Standards Reduced long-term operational costs Energy efficient & low water use Controlled Daylight Healthy and Productive Workplace

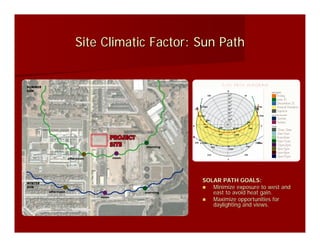

Site Climatic Factor: Sun Path SOLAR PATH GOALS: Minimize exposure to west and east to avoid heat gain. Maximize opportunities for daylighting and views.

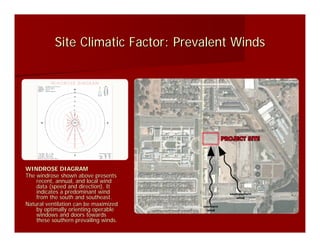

Site Climatic Factor: Prevalent Winds WINDROSE DIAGRAM The windrose shown above presents recent, annual, and local wind data (speed and direction). It indicates a predominant wind from the south and southeast. Natural ventilation can be maximized by optimally orienting operable windows and doors towards these southern prevailing winds.

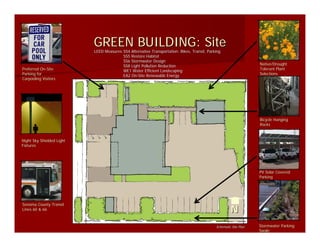

GREEN BUILDING: Site LEED Measures:SS4 Alternative Transportation: Bikes, Transit, Parking Measures:SS4 SS5 Restore Habitat SS6 Stormwater Design SS8 Light Pollution Reduction Native/Drought Preferred On-Site On- WE1 Water Efficient Landscaping Tolerant Plant Parking for EA2 On-Site Renewable Energy On- Selections Carpooling Visitors Bicycle Hanging Racks Night Sky Shielded Light Fixtures PV Solar Covered Parking Sonoma County Transit Lines 60 & 66 N Schematic Site Plan Stormwater Parking Swale

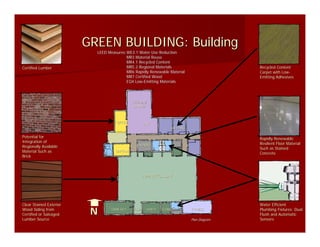

GREEN BUILDING: Building LEED Measures:WE3.1 Water Use Reduction Measures:WE3.1 MR3 Material Reuse MR4.1 Recycled Content Certified Lumber MR5.2 Regional Materials Recycled Content MR6 Rapidly Renewable Material Carpet with Low- Low- MR7 Certified Wood Emitting Adhesives EQ4 Low-Emitting Materials Low- KITCHEN/ DINING OFFICE DAY SLEEPING Potential for Rapidly Renewable Integration of Resilient Floor Material LAUNDRY Regionally Available Such as Stained Material Such as CAPTAIN Concrete Brick APPARATUS BAY Clear Stained Exterior Water Efficient Wood Siding from Certified or Salvaged N TURN OUT HOSE DIRTY CLEAN FITNESS Plumbing Fixtures: Dual Flush and Automatic Lumber Source Plan Diagram Sensors
GREEN BUILDING: Section LEED Measures:SS7 Reduce Heat Island Effect (Roof) Measures:SS7 EA1 Optimize Energy Performance EQ2 Increased Ventilation EQ7 Thermal Comfort EQ8 Daylight and Views Energy Performance will be Optimized thru Building Envelope and Efficient Summer Solstice Sun Mechanical Design with a target Angle at Noon: to exceed Title 24 Energy Code Shaded by Roof Requirements by at least 21%. Overhang to Prevent Highly- Highly- Heat Gain Reflective Roof Coating Natural Winter (Cool Ventilation: Solstice Sun Roof) to Enters Low at Angle at Noon: Reduce Open Apparatus Allowed to Heat Gain Bay Doors and Penetrate Exits High thru Glazing Operable Clerestory Windows High, Clerestory Windows Provide Daylight to Interior Spaces Cross Ventilation at Fitness Room Beyond (Section thru building looking east)

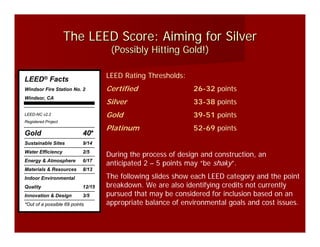

The LEED Score: Aiming for Silver (Possibly Hitting Gold!) LEED® Facts LEED Rating Thresholds: Windsor Fire Station No. 2 Certified 26-32 points Windsor, CA Silver 33-38 points LEED-NC v2.2 Gold 39-51 points Registered Project Platinum 52-69 points Gold 40* Sustainable Sites 9/14 Water Efficiency 2/5 During the process of design and construction, an Energy & Atmosphere 6/17 anticipated 2 – 5 points may “be shaky”. Materials & Resources 8/13 Indoor Environmental The following slides show each LEED category and the point Quality 12/15 breakdown. We are also identifying credits not currently Innovation & Design 3/5 pursued that may be considered for inclusion based on an *Out of a possible 69 points appropriate balance of environmental goals and cost issues.
The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 9 3 2 Sustainable Sites LEED® Facts Windsor Fire Station No. 2 Windsor, CA Y Prereq 1 Construction Activity Pollution Prevention LEED-NC v2.2 1 Credit 1 Site Selection Registered Project 1 Credit 2 Development Density & Community Connectivity 1 Credit 3 Brownfield Redevelopment Gold 40* 1 Credit 4.1 Alternative Transportation, Public Transportation Access Sustainable Sites 9/14 1 Credit 4.2 Alternative Transportation, Bicycle Storage & Changing Rooms Water Efficiency 2/5 1 Credit 4.3 Alternative Transportation, Low-Emitting & Fuel-Efficient Vehicles Energy & Atmosphere 6/17 1 Credit 4.4 Alternative Transportation, Parking Capacity Materials & Resources 8/13 1 Credit 5.1 Site Development, Protect or Restore Habitat Indoor Environmental 1 Credit 5.2 Site Development, Maximize Open Space 1 Credit 6.1 Stormwater Design, Quantity Control Quality 12/15 1 Credit 6.2 Stormwater Design, Quality Control Innovation & Design 3/5 1 Credit 7.1 Heat Island Effect, Non-Roof *Out of a possible 69 points 1 Credit 7.2 Heat Island Effect, Roof 1 Credit 8 Light Pollution Reduction

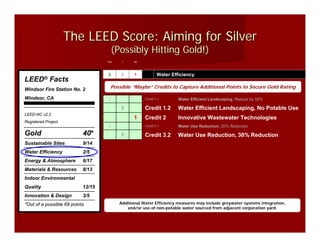

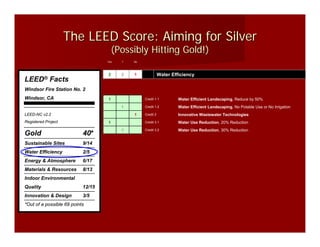

The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 2 2 1 Water Efficiency LEED® Facts Windsor Fire Station No. 2 Windsor, CA 1 Credit 1.1 Water Efficient Landscaping, Reduce by 50% 1 Credit 1.2 Water Efficient Landscaping, No Potable Use or No Irrigation LEED-NC v2.2 1 Credit 2 Innovative Wastewater Technologies Registered Project 1 Credit 3.1 Water Use Reduction, 20% Reduction 1 Credit 3.2 Water Use Reduction, 30% Reduction Gold 40* Sustainable Sites 9/14 Water Efficiency 2/5 Energy & Atmosphere 6/17 Materials & Resources 8/13 Indoor Environmental Quality 12/15 Innovation & Design 3/5 *Out of a possible 69 points
The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 2 2 1 Water Efficiency LEED® Facts Windsor Fire Station No. 2 Possible “Maybe” Credits to Capture Additional Points to Secure Gold Rating Windsor, CA 1 Credit 1.1 Water Efficient Landscaping, Reduce by 50% 1 Credit 1.2 Water Efficient Landscaping, No Potable Use LEED-NC v2.2 1 Credit 2 Innovative Wastewater Technologies Registered Project 1 Credit 3.1 Water Use Reduction, 20% Reduction Gold 40* 1 Credit 3.2 Water Use Reduction, 30% Reduction Sustainable Sites 9/14 Water Efficiency 2/5 Energy & Atmosphere 6/17 Materials & Resources 8/13 Indoor Environmental Quality 12/15 Innovation & Design 3/5 *Out of a possible 69 points Additional Water Efficiency measures may include greywater systems integration, and/or use of non-potable water sourced from adjacent corporation yard.

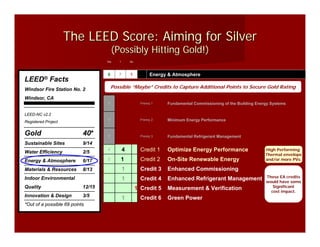

The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 6 7 1 Energy & Atmosphere LEED® Facts Windsor Fire Station No. 2 Windsor, CA Y Prereq 1 Fundamental Commissioning of the Building Energy Systems LEED-NC v2.2 Registered Project Y Prereq 2 Minimum Energy Performance Gold 40* Y Prereq 3 Fundamental Refrigerant Management Sustainable Sites 9/14 4 4 Credit 1 Optimize Energy Performance Water Efficiency 2/5 2 Credit 2 On-Site Renewable Energy Energy & Atmosphere 6/17 1 Credit 3 Enhanced Commissioning Materials & Resources 8/13 1 Credit 4 Enhanced Refrigerant Management Indoor Environmental 1 Credit 5 Measurement & Verification Quality 12/15 1 Credit 6 Green Power Innovation & Design 3/5 *Out of a possible 69 points

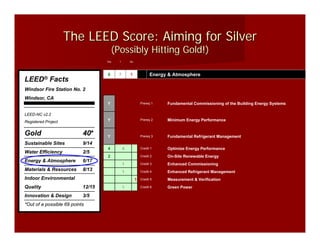

The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 6 7 1 Energy & Atmosphere LEED® Facts Windsor Fire Station No. 2 Possible “Maybe” Credits to Capture Additional Points to Secure Gold Rating Windsor, CA Y Prereq 1 Fundamental Commissioning of the Building Energy Systems LEED-NC v2.2 Registered Project Y Prereq 2 Minimum Energy Performance Gold 40* Y Prereq 3 Fundamental Refrigerant Management Sustainable Sites 9/14 4 4 Credit 1 Optimize Energy Performance High Performing Water Efficiency 2/5 Thermal envelope Energy & Atmosphere 6/17 2 1 Credit 2 On-Site Renewable Energy and/or more PVs. Materials & Resources 8/13 1 Credit 3 Enhanced Commissioning Indoor Environmental These EA credits 1 Credit 4 Enhanced Refrigerant Management would have some Quality 12/15 Significant 1 Credit 5 Measurement & Verification cost impact. Innovation & Design 3/5 1 Credit 6 Green Power *Out of a possible 69 points

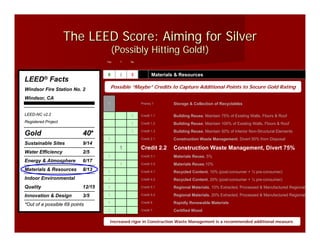

The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 8 2 3 Materials & Resources LEED® Facts Windsor Fire Station No. 2 Windsor, CA Y Prereq 1 Storage & Collection of Recyclables LEED-NC v2.2 1 Credit 1.1 Building Reuse, Maintain 75% of Existing Walls, Floors & Roof Registered Project 1 Credit 1.2 Building Reuse, Maintain 100% of Existing Walls, Floors & Roof 1 Credit 1.3 Building Reuse, Maintain 50% of Interior Non-Structural Elements Gold 40* 1 Credit 2.1 Construction Waste Management, Divert 50% from Disposal Sustainable Sites 9/14 1 Credit 2.2 Construction Waste Management, Divert 75% from Disposal Water Efficiency 2/5 1 Credit 3.1 Materials Reuse, 5% Energy & Atmosphere 6/17 1 Credit 3.2 Materials Reuse,10% Materials & Resources 8/13 1 Credit 4.1 Recycled Content, 10% (post-consumer + ½ pre-consumer) Indoor Environmental 1 Credit 4.2 Recycled Content, 20% (post-consumer + ½ pre-consumer) Quality 12/15 1 Credit 5.1 Regional Materials, 10% Extracted, Processed & Manufactured Regionall 1 Credit 5.2 Regional Materials, 20% Extracted, Processed & Manufactured Regionall Innovation & Design 3/5 1 Credit 6 Rapidly Renewable Materials *Out of a possible 69 points 1 Credit 7 Certified Wood

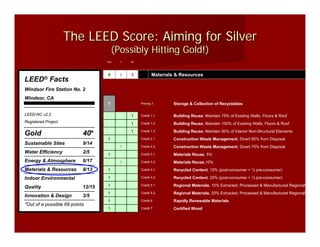

The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 8 2 3 Materials & Resources LEED® Facts Windsor Fire Station No. 2 Possible “Maybe” Credits to Capture Additional Points to Secure Gold Rating Windsor, CA Y Prereq 1 Storage & Collection of Recyclables LEED-NC v2.2 1 Credit 1.1 Building Reuse, Maintain 75% of Existing Walls, Floors & Roof Registered Project 1 Credit 1.2 Building Reuse, Maintain 100% of Existing Walls, Floors & Roof 1 Credit 1.3 Building Reuse, Maintain 50% of Interior Non-Structural Elements Gold 40* 1 Credit 2.1 Construction Waste Management, Divert 50% from Disposal Sustainable Sites 9/14 1 Credit 2.2 Construction Waste Management, Divert 75% Water Efficiency 2/5 1 Credit 3.1 Materials Reuse, 5% Energy & Atmosphere 6/17 1 Credit 3.2 Materials Reuse,10% Materials & Resources 8/13 1 Credit 4.1 Recycled Content, 10% (post-consumer + ½ pre-consumer) Indoor Environmental 1 Credit 4.2 Recycled Content, 20% (post-consumer + ½ pre-consumer) Quality 12/15 1 Credit 5.1 Regional Materials, 10% Extracted, Processed & Manufactured Regionall Innovation & Design 3/5 1 Credit 5.2 Regional Materials, 20% Extracted, Processed & Manufactured Regionall *Out of a possible 69 points 1 Credit 6 Rapidly Renewable Materials 1 Credit 7 Certified Wood Increased rigor in Construction Waste Management is a recommended additional measure.

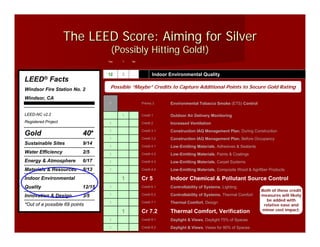

The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 12 3 Indoor Environmental Quality LEED® Facts Y Prereq 1 Minimum IAQ Performance Windsor Fire Station No. 2 Windsor, CA Y Prereq 2 Environmental Tobacco Smoke (ETS) Control LEED-NC v2.2 1 Credit 1 Outdoor Air Delivery Monitoring Registered Project 1 Credit 2 Increased Ventilation 1 Credit 3.1 Construction IAQ Management Plan, During Construction Gold 40* 1 Credit 3.2 Construction IAQ Management Plan, Before Occupancy Sustainable Sites 9/14 1 Credit 4.1 Low-Emitting Materials, Adhesives & Sealants Water Efficiency 2/5 1 Credit 4.2 Low-Emitting Materials, Paints & Coatings Energy & Atmosphere 6/17 1 Credit 4.3 Low-Emitting Materials, Carpet Systems Materials & Resources 8/13 1 Credit 4.4 Low-Emitting Materials, Composite Wood & Agrifiber Products Indoor Environmental 1 Credit 5 Indoor Chemical & Pollutant Source Control 1 Credit 6.1 Controllability of Systems, Lighting Quality 12/15 1 Credit 6.2 Controllability of Systems, Thermal Comfort Innovation & Design 3/5 1 Credit 7.1 Thermal Comfort, Design *Out of a possible 69 points 1 Credit 7.2 Thermal Comfort, Verification 1 Credit 8.1 Daylight & Views, Daylight 75% of Spaces 1 Credit 8.2 Daylight & Views, Views for 90% of Spaces
The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 12 3 Indoor Environmental Quality LEED® Facts Windsor Fire Station No. 2 Possible “Maybe” Credits to Capture Additional Points to Secure Gold Rating Windsor, CA Y Prereq 2 Environmental Tobacco Smoke (ETS) Control LEED-NC v2.2 1 Credit 1 Outdoor Air Delivery Monitoring Registered Project 1 Credit 2 Increased Ventilation 1 Credit 3.1 Construction IAQ Management Plan, During Construction Gold 40* 1 Credit 3.2 Construction IAQ Management Plan, Before Occupancy Sustainable Sites 9/14 1 Credit 4.1 Low-Emitting Materials, Adhesives & Sealants Water Efficiency 2/5 1 Credit 4.2 Low-Emitting Materials, Paints & Coatings Energy & Atmosphere 6/17 1 Credit 4.3 Low-Emitting Materials, Carpet Systems Materials & Resources 8/13 1 Credit 4.4 Low-Emitting Materials, Composite Wood & Agrifiber Products Indoor Environmental 1 Cr 5 Indoor Chemical & Pollutant Source Control Quality 12/15 1 Credit 6.1 Controllability of Systems, Lighting Both of these credit Innovation & Design 3/5 1 Credit 6.2 Controllability of Systems, Thermal Comfort measures will likely be added with 1 Credit 7.1 Thermal Comfort, Design *Out of a possible 69 points relative ease and 1 Cr 7.2 Thermal Comfort, Verification minor cost impact. 1 Credit 8.1 Daylight & Views, Daylight 75% of Spaces 1 Credit 8.2 Daylight & Views, Views for 90% of Spaces

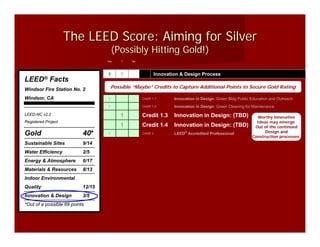

The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 3 2 Innovation & Design Process LEED® Facts Windsor Fire Station No. 2 Windsor, CA 1 Credit 1.1 Innovation in Design: Green Bldg Public Education and Outreach 1 Credit 1.2 Innovation in Design: Green Cleaning for Maintenance LEED-NC v2.2 1 Credit 1.3 Innovation in Design: (TBD) Registered Project 1 Credit 1.4 Innovation in Design: (TBD) 1 Credit 2 LEED® Accredited Professional Gold 40* Sustainable Sites 9/14 Water Efficiency 2/5 Energy & Atmosphere 6/17 Materials & Resources 8/13 Indoor Environmental Quality 12/15 Innovation & Design 3/5 *Out of a possible 69 points
The LEED Score: Aiming for Silver (Possibly Hitting Gold!) Yes ? No 3 2 Innovation & Design Process LEED® Facts Windsor Fire Station No. 2 Possible “Maybe” Credits to Capture Additional Points to Secure Gold Rating Windsor, CA 1 Credit 1.1 Innovation in Design: Green Bldg Public Education and Outreach 1 Credit 1.2 Innovation in Design: Green Cleaning for Maintenance LEED-NC v2.2 1 Credit 1.3 Innovation in Design: (TBD) Worthy innovative Registered Project Ideas may emerge 1 Credit 1.4 Innovation in Design: (TBD) Out of the continued Design and Gold 40* 1 Credit 2 LEED® Accredited Professional Construction processes. Sustainable Sites 9/14 Water Efficiency 2/5 Energy & Atmosphere 6/17 Materials & Resources 8/13 Indoor Environmental Quality 12/15 Innovation & Design 3/5 *Out of a possible 69 points
Overall Project Budget Summary Budget Components Budget Schematic Estimate 11/7/2007 12/5/2007 Building, Site, FFE --------------- $4,568,863 $4,846,910 Design Fees, Mgmt., LEED ---- $ 957,190 $ 957,190 Administrative Fees, Permit & Bidding Costs ------------------ $ 711,105 $ 612,500 Project Contingencies ----------- $ 822,395 $ 620,886 Overall Project Total $7,059,553 $7,037,487 Adjustments Building and Site Costs exceed budget by $300K mainly due to site costs Administrative fee budget reduced to balance budget

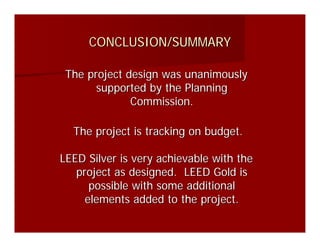

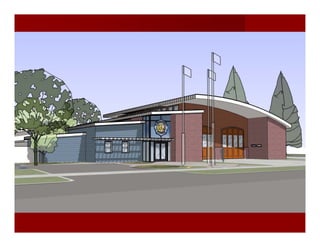

CONCLUSION/SUMMARY The project design was unanimously supported by the Planning Commission. The project is tracking on budget. LEED Silver is very achievable with the project as designed. LEED Gold is possible with some additional elements added to the project.

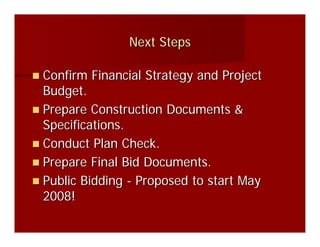

Next Steps Confirm Financial Strategy and Project Budget. Prepare Construction Documents & Specifications. Conduct Plan Check. Prepare Final Bid Documents. Public Bidding - Proposed to start May 2008!
WINDSOR FIRE STATION NO. 2 FIRE STATION DESIGN Presented by David Kelley & Mary McGrath, AIA, LEED AP, NCARB
