FireSeal is a business unit within Essve that provides firestopping and sealing systems for the marine and offshore industries. It has 135 employees and annual turnover of €60 million. FireSeal's Flex-D system is one of the fastest to install for cable, pipe, and ductwork penetrations, taking an average of 20 minutes to complete. FireSeal systems are tested and approved to stringent classification standards to resist fire, water, pressure, smoke, gas, and vibrations.

1. A DIVISION WITHIN

2. COMPANY OVERVIEW
FireSeal - founded some 30 years ago with head office close to
Stockholm, Sweden.
Initially a supplier to nuclear power plants – since 20 year´s our
core business is the marine & offshore market.
Fireseal a business unit within the mother company Essve with an
annual turnover of € 60 million and 135 employees.
Essve owned by B & B Tools, a public company with an annual
turnover of € 617 million (US$ 831 million).

3. WORLDWIDE PRESENCE
North America Austria Australia
South America Croatia China
Denmark Hong Kong
Dubai Russia
Finland Malaysia
Iceland South Korea
Italy Singapore
Sweden Vietnam
Norway
Poland
Russia
Turkey
U.K

4. TESTING & APPROVALS
FireSeal´s systems are designed
in accordance with the SOLAS
(Safety Of Life At Sea) regulation
and IMO resolution (International
Maritime Organization).
All FireSeal´s systems are
approved for A0 - A60 or H0 - H60
classification and resistance to;
- Fire
- Water
- Pressure
- Smoke
- Gas
- Vibrations & Movements

5. TESTING & APPROVALS
FireSeal´s systems has undergone testing under the harshest conditions
possibly and is certified by major authorities and classification societies
such as;
MED Germanischer Lloyd
Bureu Veritas ABS
Det Norske Veritas Rhina
US Coast Guard
Lloyd´s Register
Korean Register

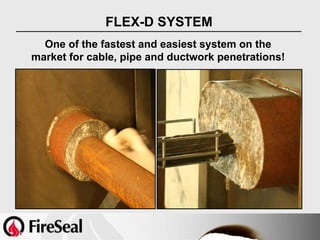

6. FLEX-D SYSTEM
One of the fastest and easiest system on the
market for cable, pipe and ductwork penetrations!

7. FLEX-D SYSTEM
1. Firestop Sealant 3000 (Silicone Sealant)
2. Blanket D-24B (Non-combustible calcium silicate fibre)
Smoke, gas, water and pressure
resistance.
Average 20 min. installation time.
Movements and vibration of pipes
and cables are accepted.
Two part numbers independently of;
a) pipe or cable penetration.
b) sizes of cables.
c) penetration size opening.

8. FLEX-D SYSTEM
Watertight up to 2,5 kg (25 m or 2,5
bar).
A0 - A60 and H0 - H60.
Cable penetration < 800 x 400 mm.
Pipe penetration < 534 x 274 mm
Uninsulated steel pipe < 48,3 mm.
Insulated steel pipe < 273 mm.

9. FLEX-D PIPE INSTALLATION

10. FLEX-D PIPE INSTALLATION
A0 - A60 SLEEVE LENGTH 200 MM (H0 - H60 250 MM)

11. WHAT YOU NEED
HANDTOOL & KNIFE FIRESTOP SEALANT 3000 BLANKET D-24B

12. REMOVE ANY LOOSE DEBRIS

13. CUT BLANKET D-24B, 100 MM WIDTH

14. ROLL THE BLANKET TO SUITABLE SIZE

15. ROLL THE BLANKET TO SUITABLE SIZE

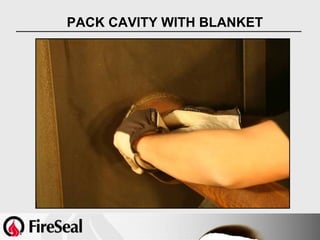

16. PACK CAVITY WITH BLANKET

17. PACK CAVITY WITH BLANKET

18. PACK CAVITY WITH BLANKET

19. PACK CAVITY WITH BLANKET

20. PACK CAVITY WITH BLANKET

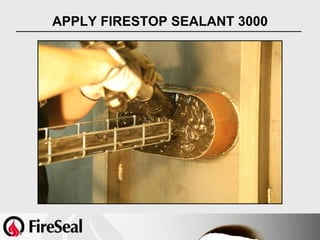

21. APPLY FIRESTOP SEALANT 3000

22. APPLY FIRESTOP SEALANT 3000

23. APPLY FIRESTOP SEALANT 3000

24. FINISHED SEAL ON ONE SIDE!

25. NOW THE OTHER SIDE OF THE SEAL

26. ROLL THE BLANKET

27. PACK CAVITY WITH BLANKET

28. APPLY FIRESTOP SEALANT 3000

29. TOTAL INSTALLATION TIME 10 - 15 MINUTES!

30. FLEX-D CABLE INSTALLATION
(NEW PENETRATION)

31. FLEX-D CABLE INSTALLATION

32. WHAT YOU NEED
HANDTOOL & KNIFE FIRESTOP SEALANT 3000 BLANKET D-24B

33. REMOVE LOOSE DEBRISE

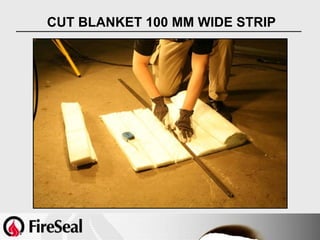

34. CUT BLANKET 100 MM WIDE STRIP

35. ROLL THE BLANKET TO SUITABLE SIZE

36. PACK CAVITY WITH BLANKET

37. PACK CAVITY WITH BLANKET

38. PACK CAVITY WITH BLANKET

39. PACK CAVITY PROPERLY WITH BLANKET

40. DISTANCE 15 MM (A0 - A60) 25 MM (H0 - H60)

41. THE CAVITY IS PROPERLY PACKED

42. APPLY FIRESTOP SEALANT 3000

43. APPLY FIRESTOP SEALANT 3000

44. APPLY FIRESTOP SEALANT 3000

45. APPLY FIRESTOP SEALANT 3000

46. APPLY FIRESTOP SEALANT 3000

47. EVEN OUT THE FIRESTOP SEALANT 3000

48. EVEN OUT THE FIRESTOP SEALANT 3000

49. EVEN OUT THE FIRESTOP SEALANT 3000

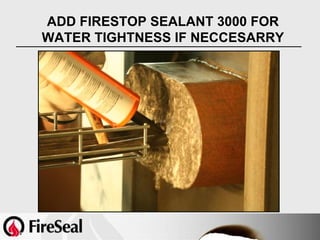

50. ADD FIRESTOP SEALANT 3000 FOR
WATER TIGHTNESS IF NECCESARRY

51. NOW THE OTHER SIDE OF THE SEAL

52. FINISHED SEAL WITHIN 15 - 20 MINUTES!

53. FLEX-D CABLE INSTALLATION
(ADDING A NEW CABLE)

54. CUT A HOLE WITH A KNIFE

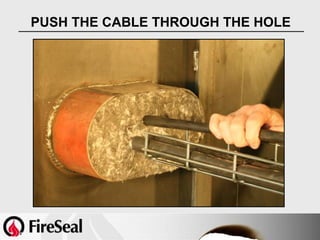

55. PUSH THE CABLE THROUGH THE HOLE

56. ALTERNATIVE TOOL FOR ADDING CABLE

57. SEAL AROUND THE CABLE WITH
FIRESTOP SEALANT 3000

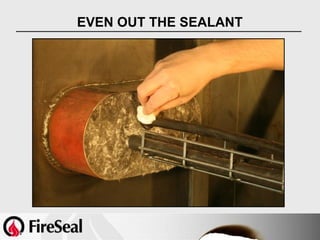

58. EVEN OUT THE SEALANT

59. FIRESEAL FLEX-D BENEFITS
INSTALLATION AVERAGE 20 MINUTES OPERATION.
MODIFICATION EASY, 5 MINUTES OPERATION.
TECHNICAL TRAINING 20 - 30 MIN INSTALLATION TRAINING REQUIRED.
PART NUMBERS FLEX-D REQUIRES ONLY TWO PART NUMBERS
INDEPENDANTLY OF APPLICATION AND PENETRATION
SIZE OPENING.
CABLE INSTALLATION BUNDLED CABLES ACCEPTED.
FRAME INSTALLATION NO SPECIAL FRAMES REQUIRED.
WEIGHT LIGHT WEIGHT FIRE SEALING SYSTEM.
TOTAL COST VERY COMPETITIVE!
* The FireSeal benefit overview is based upon using FireSeal Flex-D system which is the main FireSeal system used
for all types of applications i.e. cables, pipes and ductwork.

60. FS-03 SYSTEM
1. Silicone foam D-03 comp. A and D-03 comp. B
2. Blanket D-24B
3. Silicone foam machine
2-component sealing system for
cables, pipes and ductwork.
Suitable especially for larger and
complicated penetrations.
Smoke, gas, water and pressure
resistance.
Movements and vibration of pipes
and cables accepted.
Installed by approved applicators
having access to special equipment.

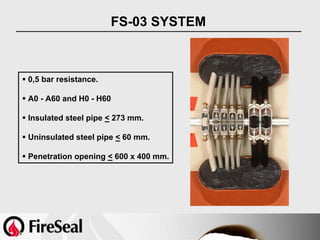

61. FS-03 SYSTEM
0,5 bar resistance.
A0 - A60 and H0 - H60
Insulated steel pipe < 273 mm.
Uninsulated steel pipe < 60 mm.
Penetration opening < 600 x 400 mm.

62. FS-03 SYSTEM INSTALLATION

63. FIRESEAL FS-03 INSTALLATION

64. CUT BLANKET 25 MM WIDE STRIP

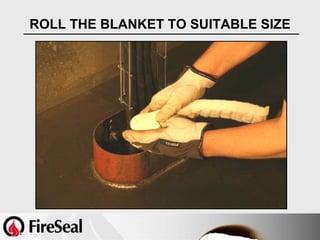

65. ROLL THE BLANKET TO SUITABLE SIZE

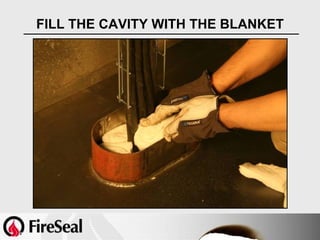

66. FILL THE CAVITY WITH THE BLANKET

67. FILL THE CAVITY WITH THE BLANKET

68. FILL THE CAVITY WITH THE BLANKET

69. PUT BLANKET D-24B BETWEEN CABLES

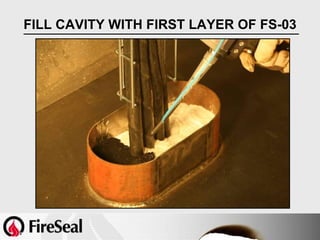

70. FILL CAVITY WITH FIRST LAYER OF FS-03

71. LEAVE FOR CURING ABOUT 3 MIN.

72. FILL CAVITY WITH SECOND
AND A THIRD LAYER OF FS-03

73. LEAVE FOR CURING BETWEEN
THE FILLING ABOUT 3 MIN.

74. FINAL RESULT USING FIRESEAL FS-03

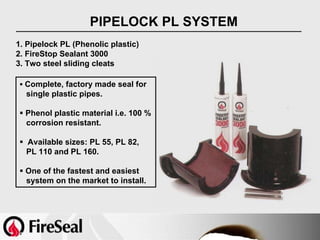

75. PIPELOCK PL SYSTEM
1. Pipelock PL (Phenolic plastic)
2. FireStop Sealant 3000
3. Two steel sliding cleats
Complete, factory made seal for
single plastic pipes.
Phenol plastic material i.e. 100 %
corrosion resistant.
Available sizes: PL 55, PL 82,
PL 110 and PL 160.
One of the fastest and easiest
system on the market to install.

76. PIPELOCK PL SYSTEM
3 bar watertightness in
conjunction with FireStop Sealant
3000.
A0 - A60 approval.
Plastic pipe up to 160 mm in steel
bulkhead / decks
Plastic pipe up to 110 mm in
aluminium bulkhead / decks

77. PIPELOCK
PLASTIC PIPE INSTALLATION

78. PIPELOCK PLASTIC PIPE INSTALLATION

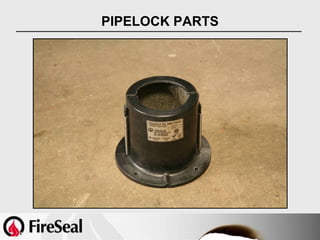

79. PIPELOCK PARTS

80. PIPELOCK PARTS

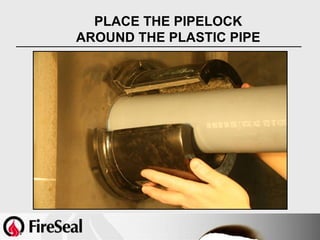

81. PLACE THE PIPELOCK
AROUND THE PLASTIC PIPE

82. PLACE THE PIPELOCK
AROUND THE PLASTIC PIPE
To safeguard against the passage of smoke or gas, or to obtain
watertightness the joint beetween the pipe and the steel division should be
sealed with FireStop Sealant 3000.

83. PLACE THE PIPELOCK
AROUND THE PLASTIC PIPE

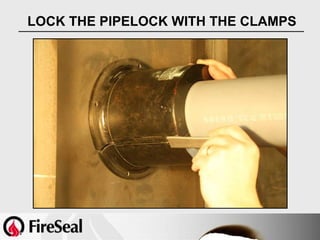

84. LOCK THE PIPELOCK WITH THE CLAMPS

85. LOCK THE PIPELOCK WITH THE CLAMPS

86. LOCK THE PIPELOCK WITH THE CLAMPS

87. LOCK THE PIPELOCK WITH THE CLAMPS

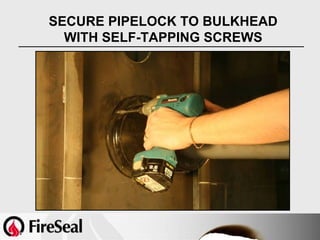

88. SECURE PIPELOCK TO BULKHEAD
WITH SELF-TAPPING SCREWS

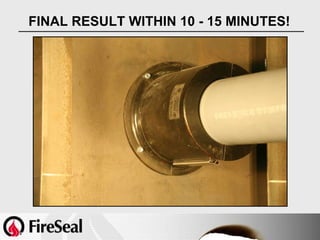

89. FINAL RESULT WITHIN 10 - 15 MINUTES!

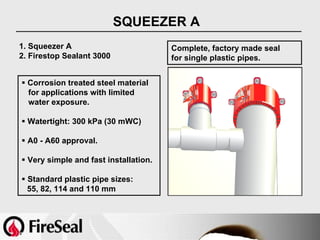

90. SQUEEZER A
1. Squeezer A Complete, factory made seal
2. Firestop Sealant 3000 for single plastic pipes.
Corrosion treated steel material
for applications with limited
water exposure.
Watertight: 300 kPa (30 mWC)
A0 - A60 approval.
Very simple and fast installation.
Standard plastic pipe sizes:
55, 82, 114 and 110 mm

91. SQUEEZER A
PLASTIC PIPE INSTALLATION

92. SQUEEZER PLASTIC PIPE INSTALLATION

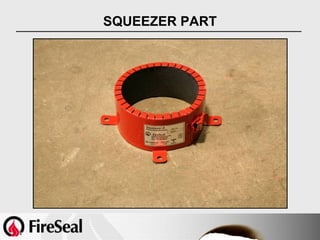

93. SQUEEZER PART

94. PLACE THE SQUEEZER AROUND THE PIPE

95. PLACE THE SQUEEZER AROUND THE PIPE
To safeguard against the passage of smoke or gas, or to obtain
watertightness the joint beetween the pipe and the steel division should be
sealed with FireStop Sealant 3000.

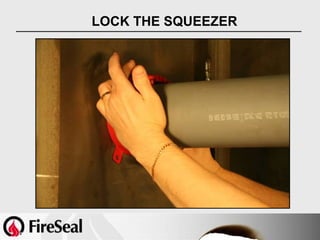

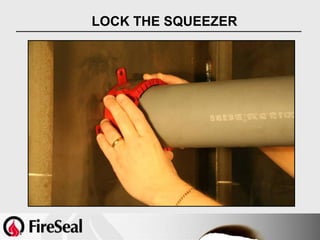

96. LOCK THE SQUEEZER

97. LOCK THE SQUEEZER

98. POSITION THE SQUEEZER

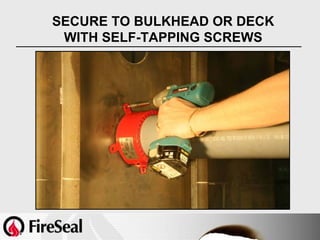

99. SECURE TO BULKHEAD OR DECK
WITH SELF-TAPPING SCREWS

100. FINAL RESULT WITHIN 10 - 15 MINUTES!

101. SQUEEZER B
MULTIPLE PLASTIC PIPES

102. SQUEEZER B
1. Blanket D-24B (Non-combustible calcium silicate fibre)
2. FireStop Sealant 3000 (Silicone elastomer)
3. Graphite material
Complete, factory made seal for
multiple plastic pipes.
Very simple, fast installation.
Ideal for plastic pipes up to 110
mm.
Watertight: 250 kPa (25 mWC)
A0 - A60 approval.

103. REFERENCE LIST – MARINE
T-AKE-1 (NASSCO) Ammunition Ship
Charles de Gaulle Aircraft Carrier
Vistafjord Cruise Ship
Sea Princess Cruise Ship
Silja Symphony Passenger / Car ferry
Silja Serenade Passenger / Car ferry
Fantasy Cruise Ship
Ecstasy Cruise Ship
Song of Norway Cruise Ship
Song of America Cruise Ship
Birka Princess Cruise Ship
Sea Godess l & ll Cruise Ship
Wellamo Passenger / Car ferry
Svea Passenger / Car ferry
Karhu Ice-breaker

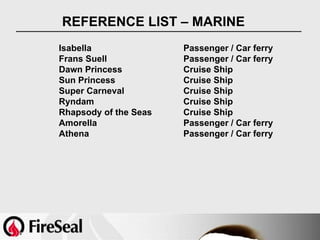

104. REFERENCE LIST – MARINE
Isabella Passenger / Car ferry
Frans Suell Passenger / Car ferry
Dawn Princess Cruise Ship
Sun Princess Cruise Ship
Super Carneval Cruise Ship
Ryndam Cruise Ship
Rhapsody of the Seas Cruise Ship
Amorella Passenger / Car ferry
Athena Passenger / Car ferry

105. REFERENCE LIST – OFFSHORE
Alibaba Sovereign Oil, UK
Balmoral Sun Oil, UK
Beatrice B Brit Oil, UK
Beryl B Mobil, UK
Brent A, B, C, D Shell, UK
Buchan BP, UK
Claymore A Occidential, UK
Cleeton BP, UK
Clyde BP, UK
Cormorant A & North Shell, UK
Dan F Maersk, DK
Draugen Shell, NO
Fulmar Shell, UK
Goodwyn A Woodside, AUS
Gullfaks A, B, C Stat Oil, NO

106. REFERENCE LIST – OFFSHORE
Heidrun Conoco, NO
Hibernia HMDC, CA
Treasure Hunter Wilhelmsen, NO
Troll Shell, NO
Tyra Danbor, DK
Valentin Shaskin State Owned, RU
Venture SOEP, CA
MISP Prirazlomnaya Sevmash, RU
Jotun Mobil, NO
Maccullogh BP, UK
Mad Dog BP, USA
Magnus BP, UK
Michael Mirsksinks State Owned, RU
Molinpaq Marathon, USA
N´Kossa Elf Congo, FR

107. REFERENCE LIST – OFFSHORE
Oseberg A, B, C Norsk Hydro, NO
Safe Gothia Consafe, SE
Safe Karinia Consafe, SE
Shell B.D Shell, UK
Shell C.D Shell, UK
Ship 137 British Gas, UK
Sleipner Stat Oil, NO
Sleipner Vest Stat Oil, NO
Statfjord A, B, C Stat Oil, No
Tartan A Texaco, UK
Thebaud SOEP, CA
Thames Arco Arco, UK
ULA BP, NO
Valhall Amoco, NO
Vesiefrikk Stat Oil, NO
