This document contains schematics and diagrams of a fire hydrant system. It includes details on the capacities and operation sequences of different fire pumps, including a jockey pump, diesel fire pump, and electric fire pump. It also shows the installation of fire protection pipes and accessories like valves, gauges, and hydrant boxes. Operational procedures and types of fire extinguishers used in the system are described.

2. FIRE HYDRANT SYSTEM SCHEMATIC DIAGRAM
SFP = 1900 L / M
DFP = 1900 L / M
JP = 200 L / M
FIRE PUMP CAPACITY
SFD
DFP
JP
WORKING PRESSURE = 7 Kg / CM2
FHB = 4.5 Kg / CM2
FHB = 4.5 Kg / CM2
FHB = 4.5 Kg / CM2
OHB = 4.5 Kg / CM2
OHB = 4.5 Kg / CM2
FHB = 4.5 Kg / CM2
AUTOMATIC AIR
RELIEF VALVE

4. FIRE PROTECTION PUMP STATION
PUMP ROOM AREA
***OPERATION SEQUENCE***
JOCKEY ELECTRIC PUMP (JP)
PUMP CAPACITY : 200 L / M
MOTOR POWER : 5.5 KW / 380V / 3P
********OPERATION SEQUENCE********
PUMP “ON” : 6 Kg/Cm2
PUMP “OFF” : 8 Kg/Cm2
DIESEL FIRE PUMP (DFP)
PUMP CAPACITY : 1900 L / M
MOTOR POWER : 55 KW / 380V / 3P
*******OPERATION SEQUENCE*******
PUMP “ON” : 4 Kg/Cm2 ( AUTOMATIC )
PUMP “OFF” : DONE MANUALLY
ELECTRIC FIRE PUMP (EFP)
PUMP CAPACITY : 1900 L / M
MOTOR POWER : 55 KW / 380V / 3P
******OPERATION SEQUENCE*******
PUMP “ON” : 5 Kg/Cm2 ( AUTOMATIC )
PUMP “OFF” : DONE MANUALLY
DFP
EFP
JP

5. FIRE PTROTECTION PIPE INSTALLATION
Branch Sprinkler Pipe Main Line Pipe
Automatic Air Relief Valve Fire Pump

6. FIRE PROTECTION ACCESORIES
Gate Valve Alarm Gong
Alarm Bell
Rotary Lamp

7. Pressure Swicth
Jockey
pump
Main
pump
Engine
pump
Head Sprinkler Drain Valve
Pressure Gauge
FIRE PROTECTION ACCESORIES

8. Engine pump fuel tank Panel Fire Control
Pressure Gauge Fire pump engine panel
FIRE PROTECTION ACCESORIES

9. Buterfly Valve
Floating Valve
Pressure Gauge Alarm Bell
FIRE PROTECTION ACCESORIES

10. HYDRANT BOX INDOOR & OUTDOOR TYPE
Indoor Fire Hydrant Box FHB hose and valve
Outdoor Fire Hydrant Box Outdoor Fire Hydrant Box

11. INDOOR FIRE HYDRANT BOX TYPE
Wall type Indoor FHB Wall type Indoor FHB hose & valve
Indoor Fire hydrant box Indoor FHB hose & valve

12. Siamesse Connection
DKI FIRE SIMULATION EXERCISE AT SIAMESE CONNECTION
Outdoor Fire Hydrant Box
DKI Fire simulation team

13. FIRE PUMP CONTROL PANEL
PP - UTILITY
FIRE HYDRANT PANEL
INSIDE PP - UTILITY
INSIDE FIRE HYDRANT PANEL

14. FIRE EXTINGUSHER / APAR
• APAR (Alat Pemadam Api Ringan )
• TYPE : ABC POWDER
• CAPACITY : 2.50 Kg
• APAR (Alat Pemadam Api Ringan )
• TYPE : CO
• CAPACITY : 4 Kg AND 6 Kg

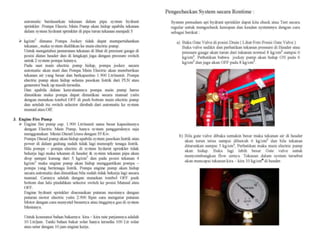

15. FIRE PROTECTION SYSTEM
( OPERATION PROCEDURE)
Dalam rancangan pembuatan gedung kantor & gudang di kumon indonesia education untuk memproteksi
gedung dari bahaya kebakaran di dalam gedung telah tersedia installasi System pemadam api yaitu :
